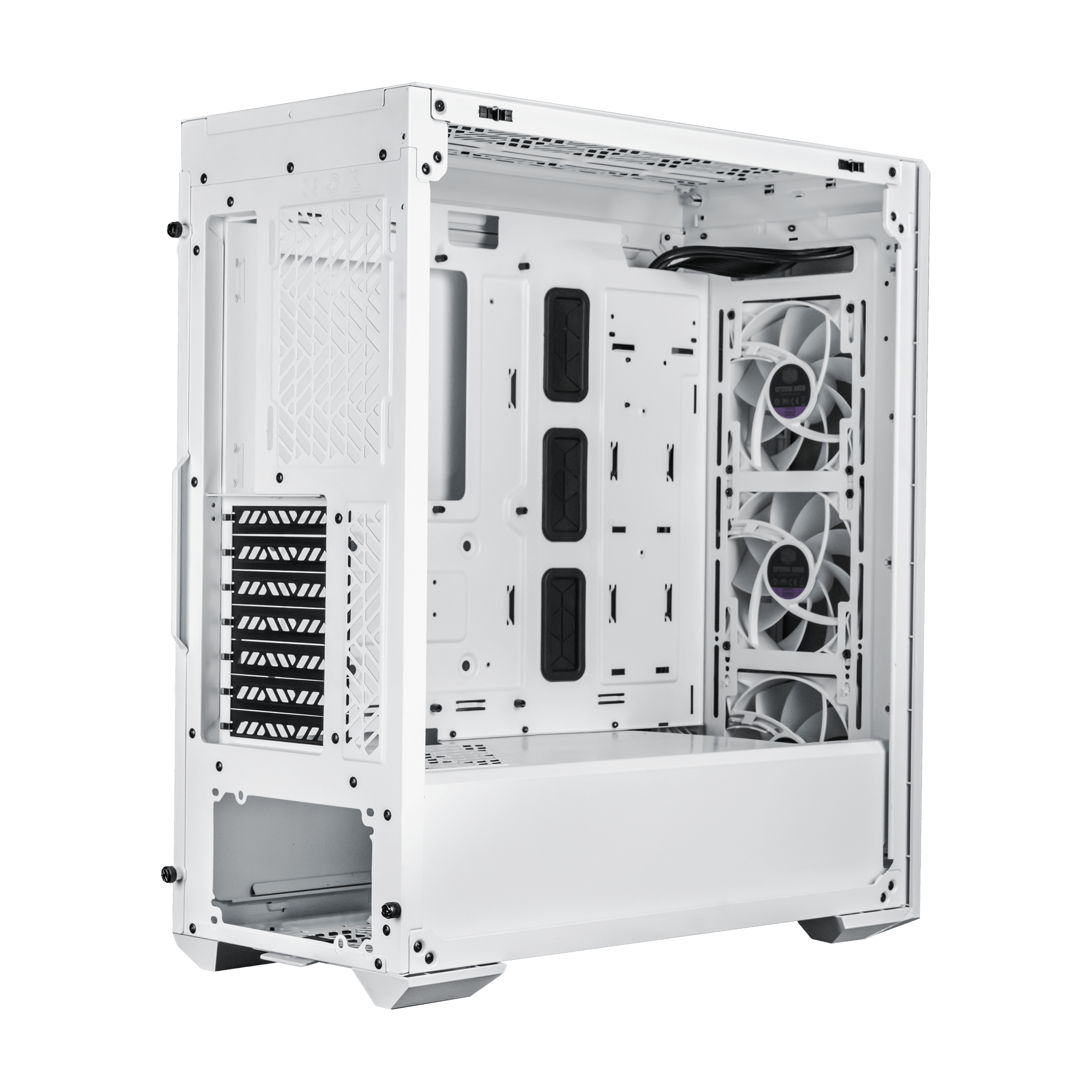

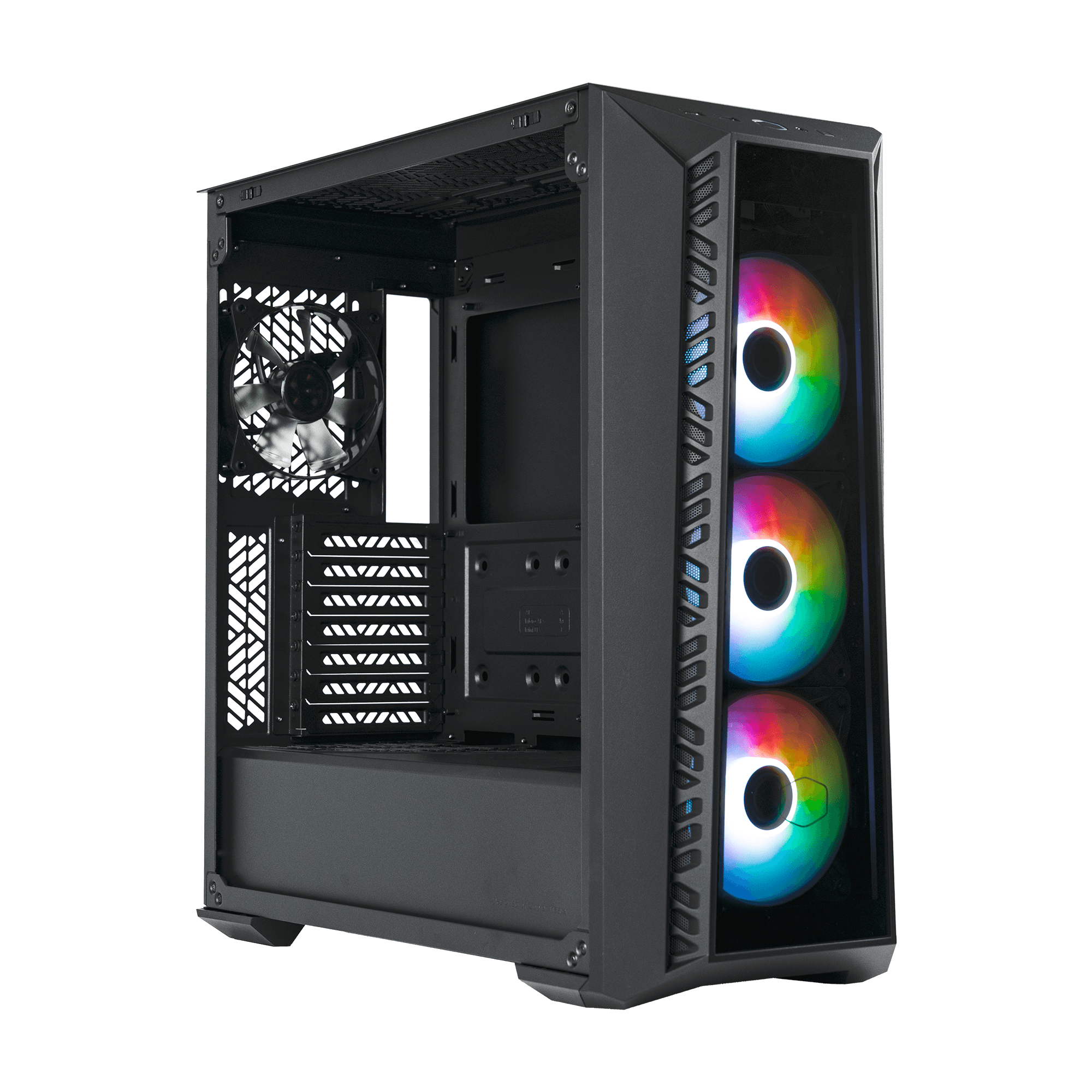

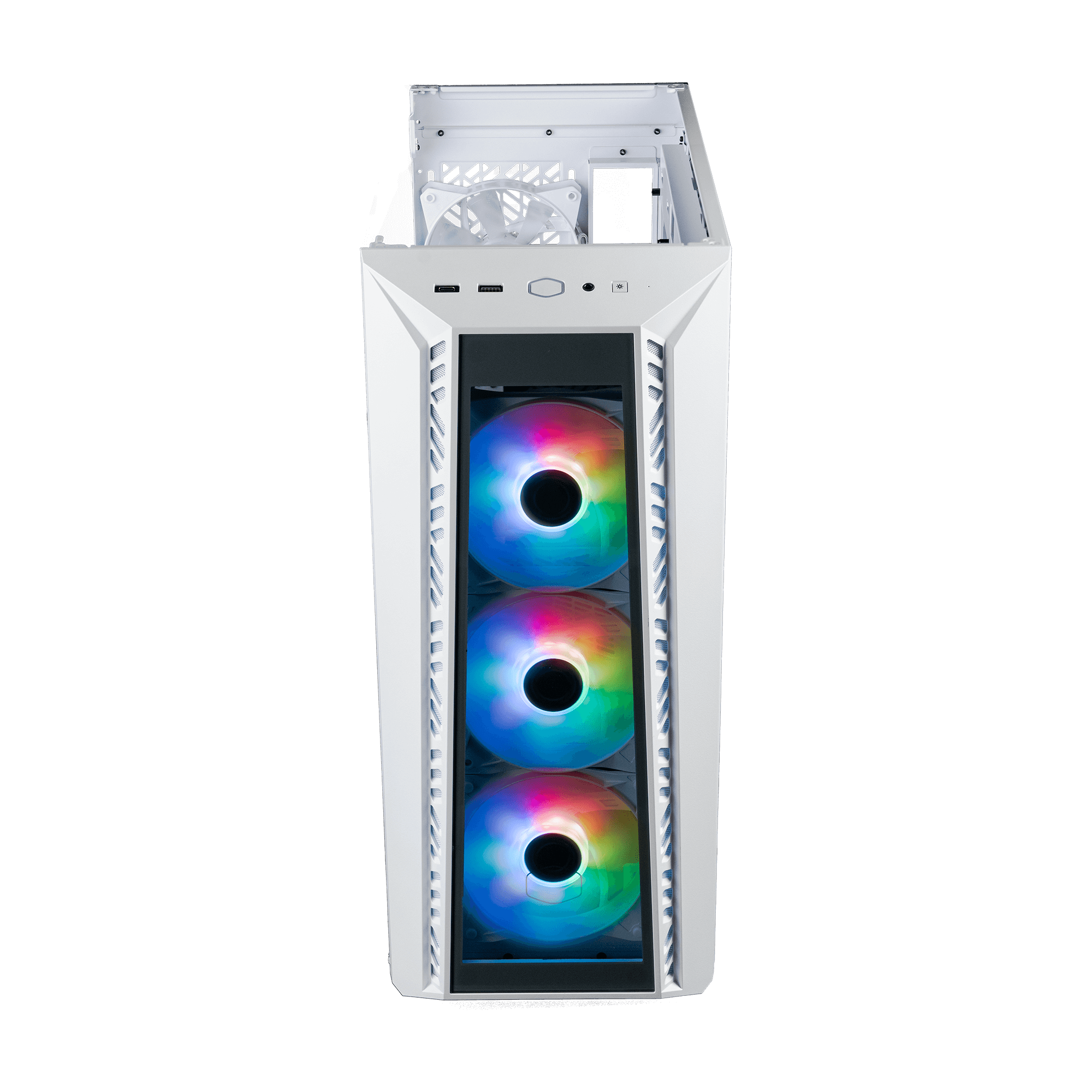

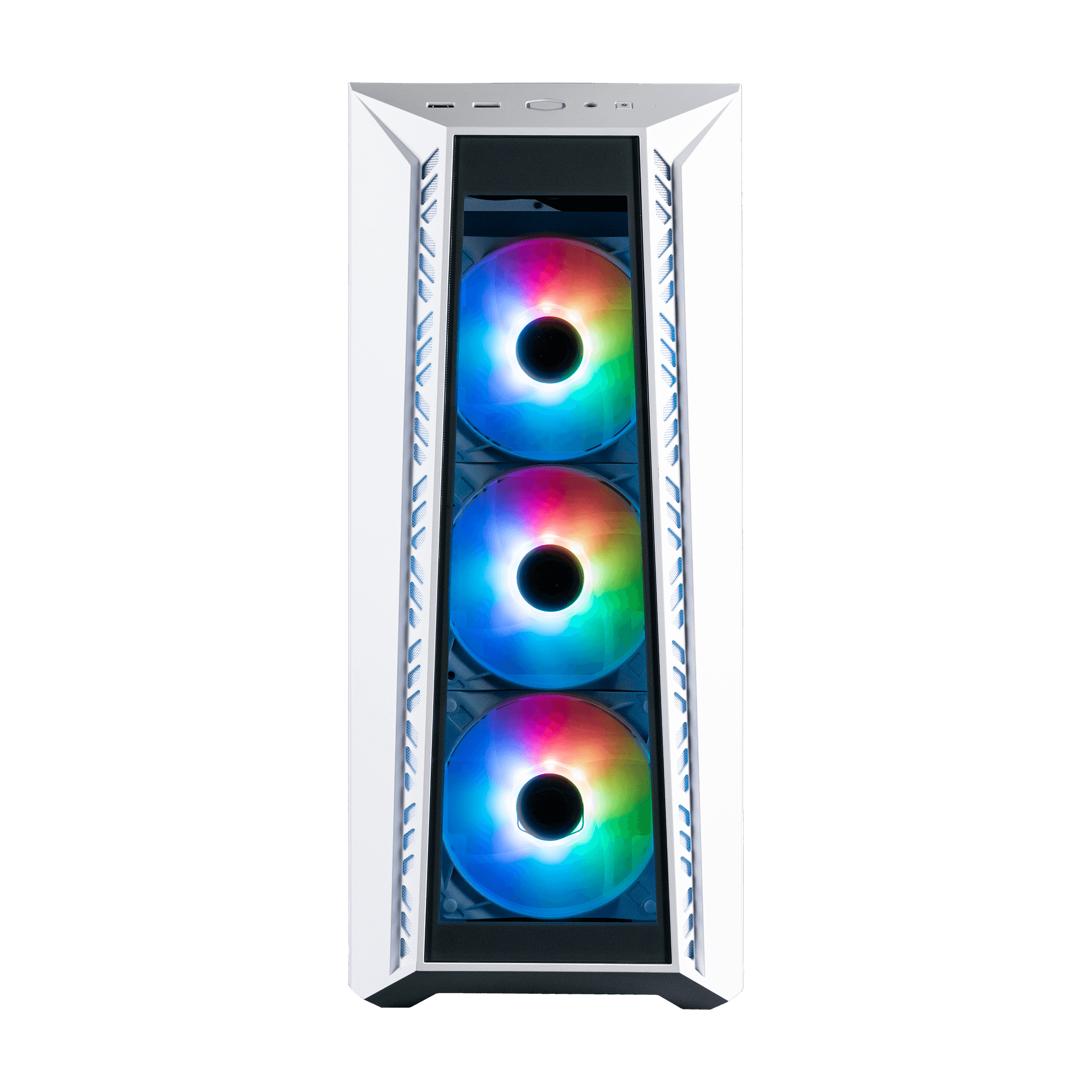

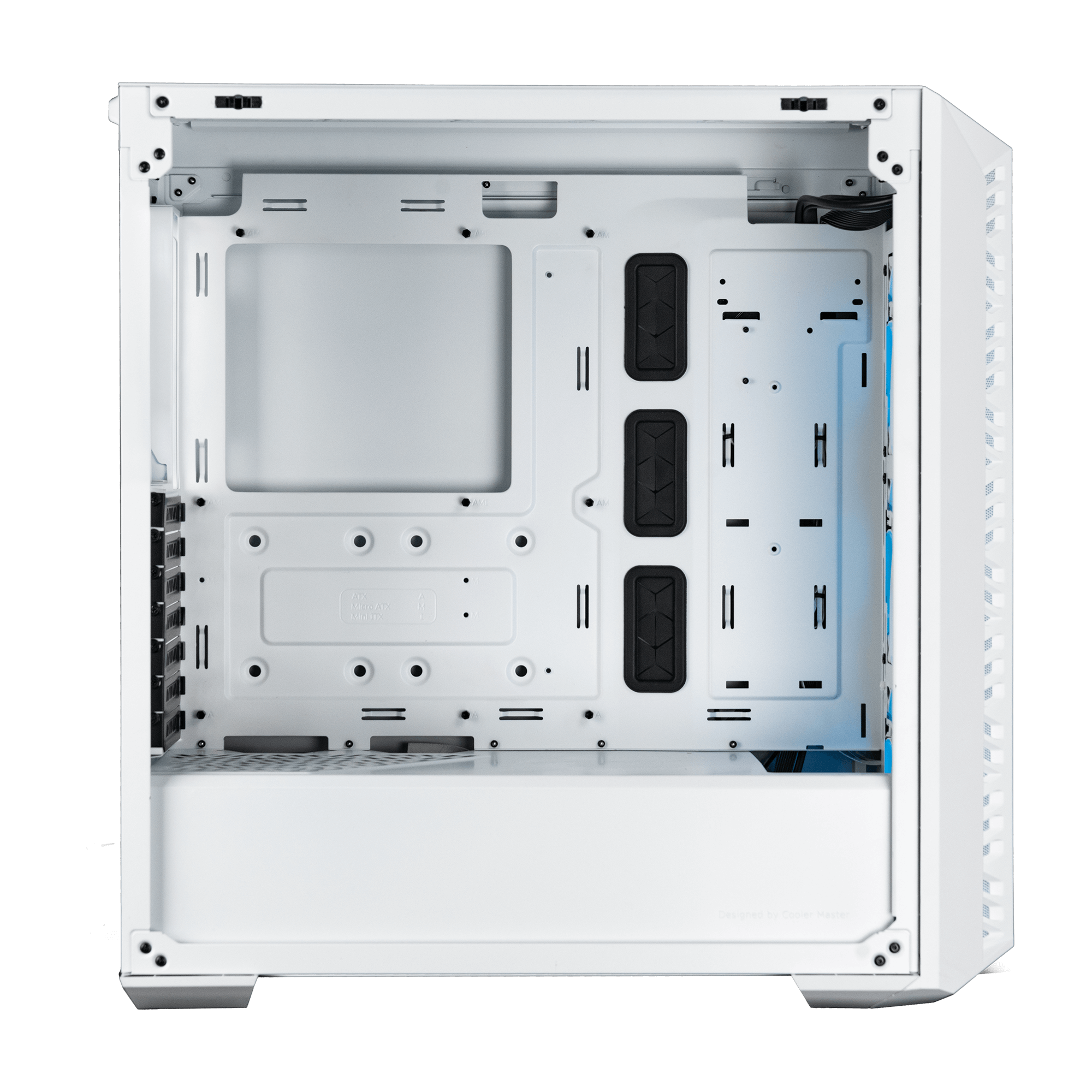

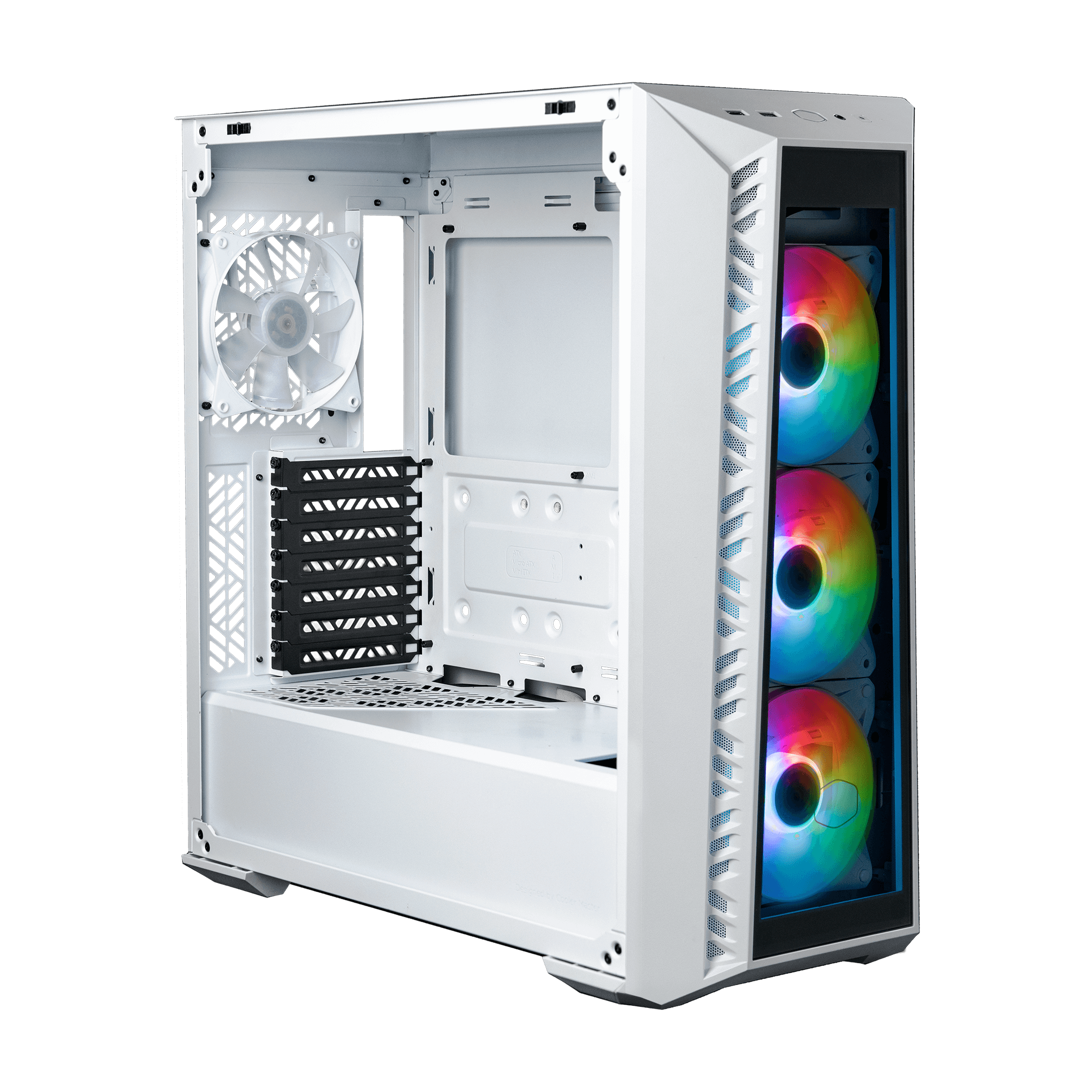

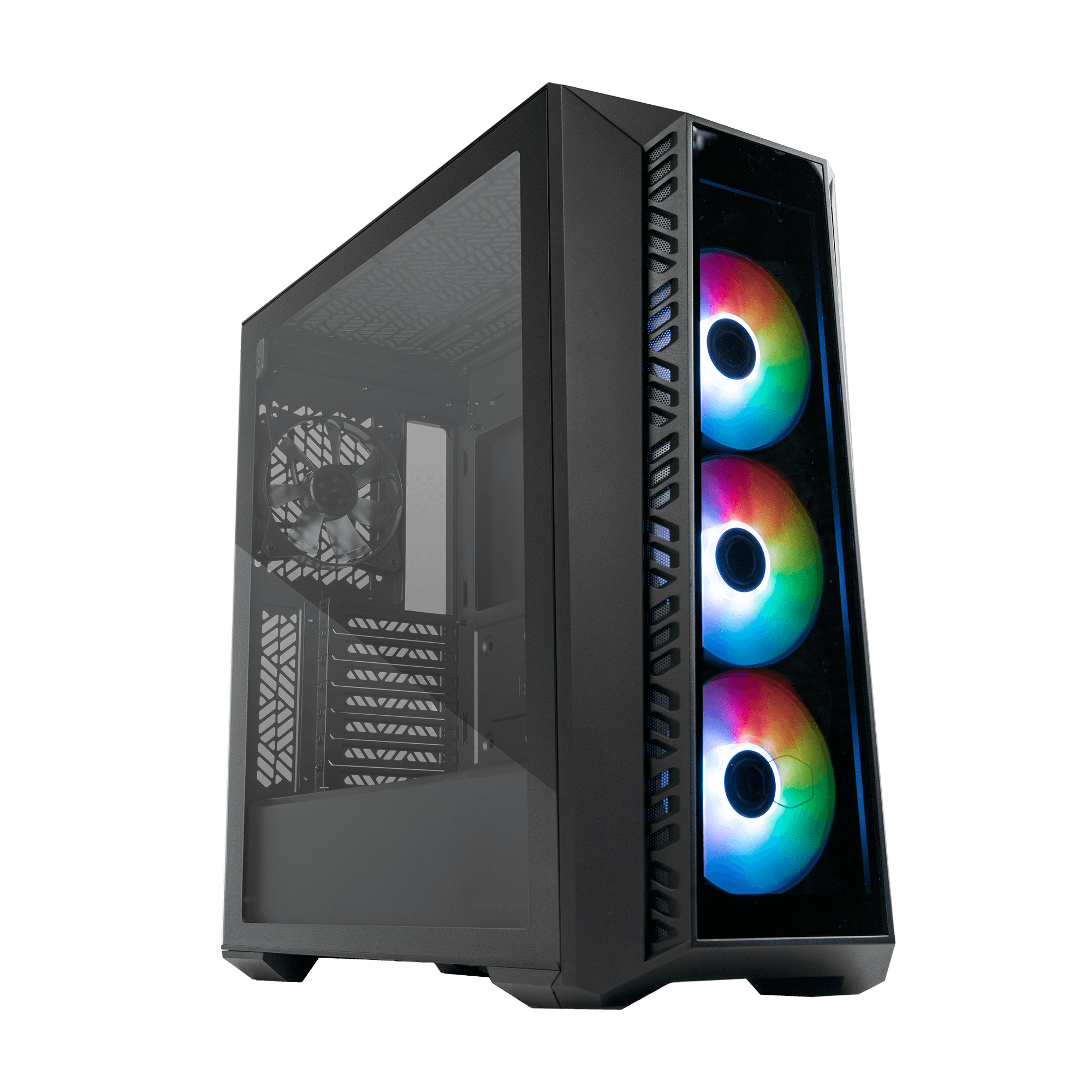

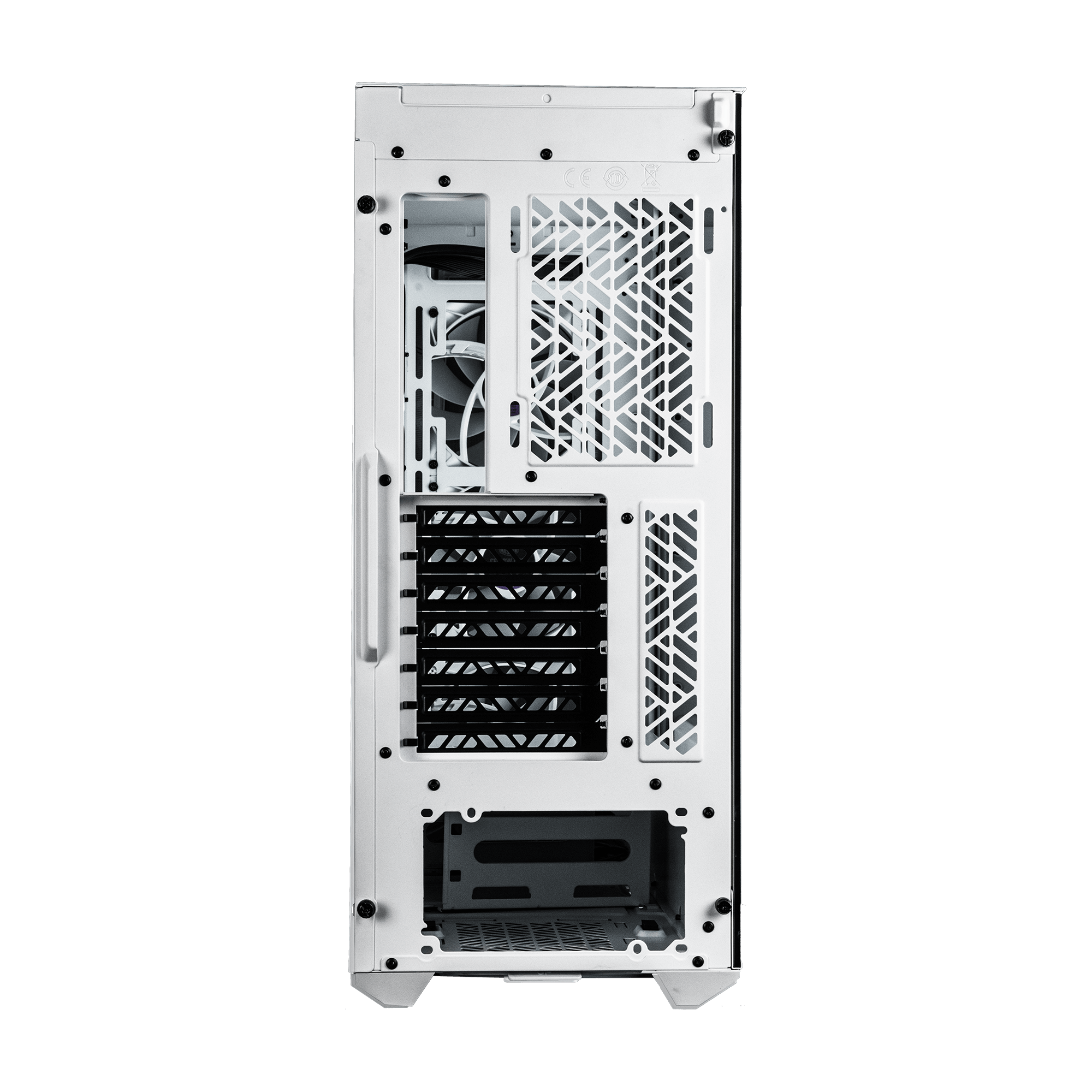

MasterBox 520

Specifications

• Model Number MasterBox 520: MB520-KGNN-S01, MasterBox 520 White: MB520-WGNN-S01
• Exterior Color Black, White
• Materials - Exterior Steel, ABS Plastic, Tempered Glass
• Materials - Left Side Panel Tempered Glass
• Dimensions (L x W x H) 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size)
• Motherboard Support Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
• Expansion Slots 7
• 3.5" Drive Bays 2
• 2.5" Drive Bays 3
• I/O Panel - USB Ports 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C
• I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
• I/O Panel - Other 1x Reset/ARGB button
• Included Accessories ARGB Fans Hub
• Pre-installed Fans - Top N/A
• Pre-installed Fans - Front 3x CF120 ARGB
• Pre-installed Fans - Rear 1x MasterFan Lite 120
• Fan Support - Top 3x 120mm, 2x 140mm
• Fan Support - Front 3x 120mm, 2x 140mm
• Fan Support - Rear 1x 120mm
• Radiator Support - Top 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
• Radiator Support - Front 120 / 140 / 240 / 280 / 360mm
• Radiator Support - Rear 120mm
• Clearance - CPU Cooler 165mm
• Clearance - PSU 200mm (Recommended up to 170mm)
• Clearance - GFX 410mm
• Dust Filters Front, Top, Bottom
• Power Supply Support ATX
• Warranty 2 years
• Size Mid Tower
• Series MasterBox Series
• Back Connector Motherboard Support No
