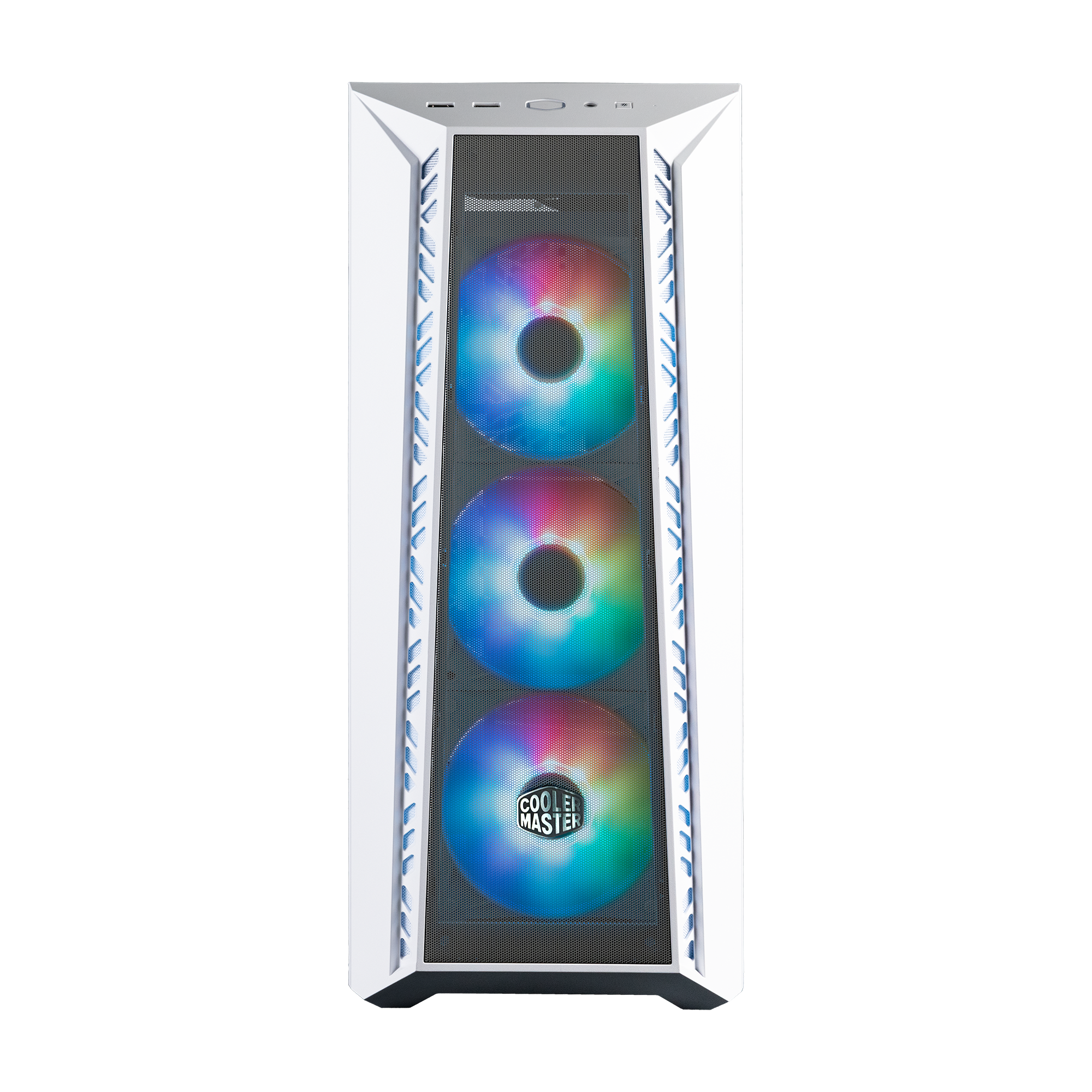

MasterBox 520 Mesh image number 3
MasterBox 520 Mesh image number 4
MasterBox 520 Mesh image number 5
MasterBox 520 Mesh image number 6

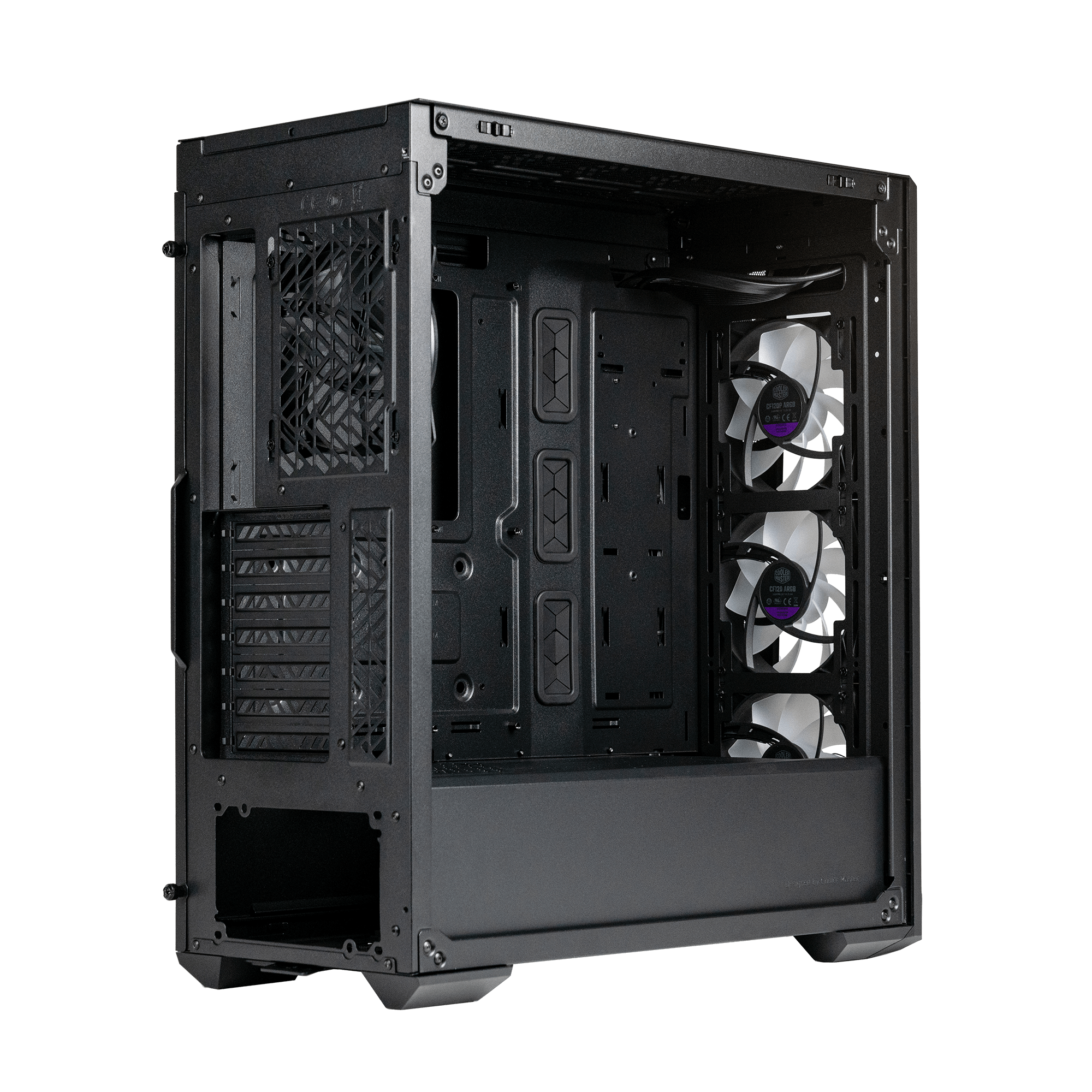

MasterBox 520 Mesh image number 7
MasterBox 520 Mesh image number 8

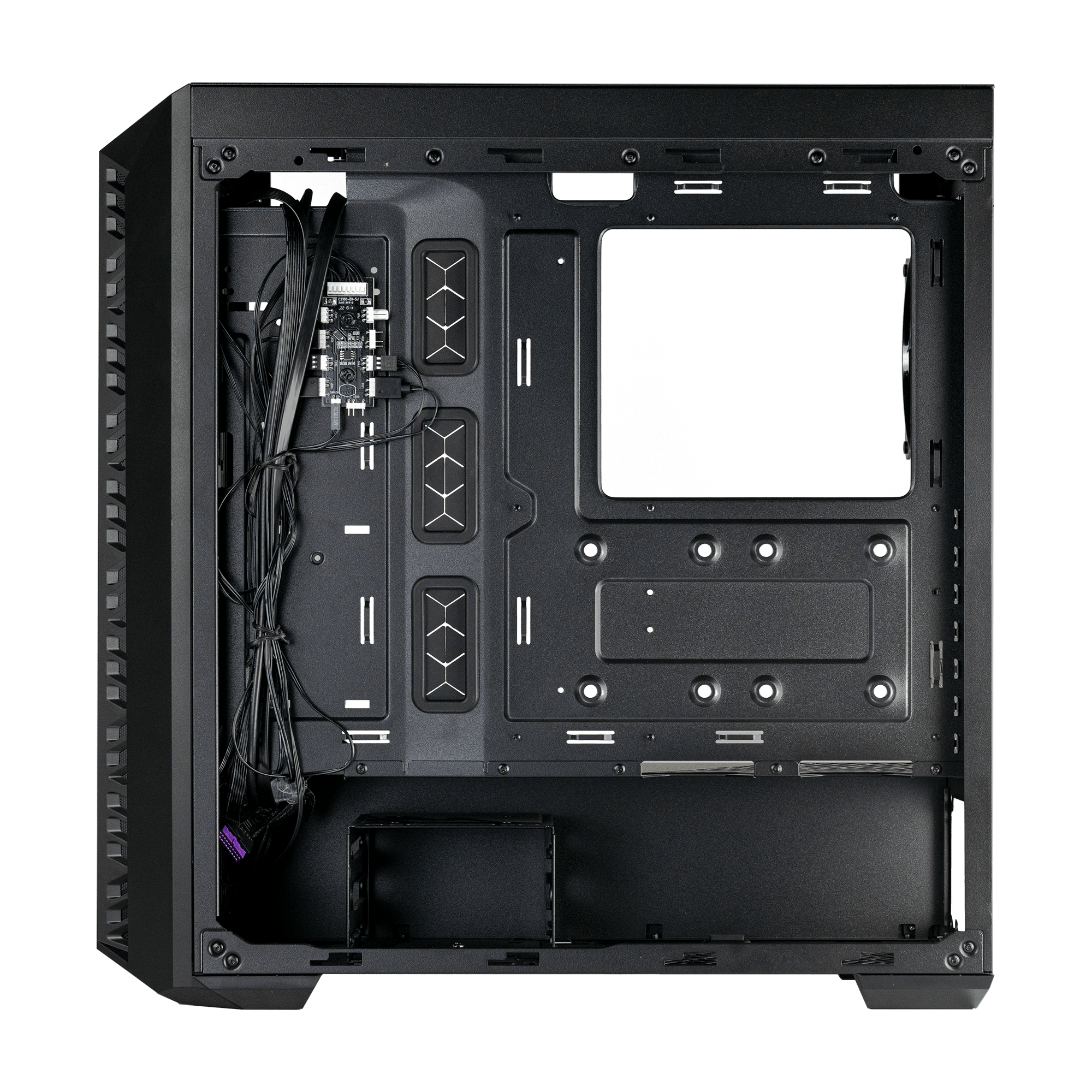

MasterBox 520 Mesh image number 9

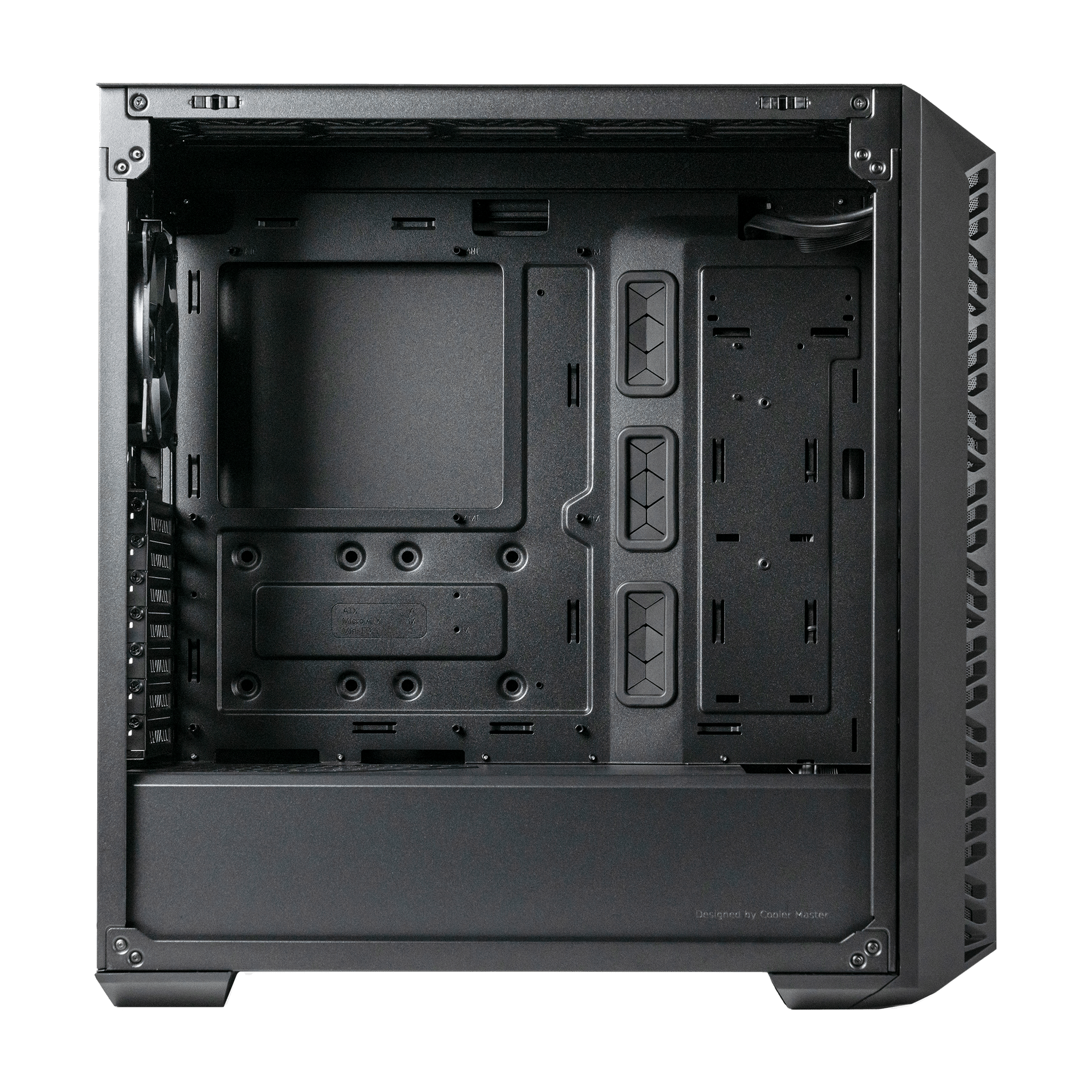

MasterBox 520 Mesh image number 10

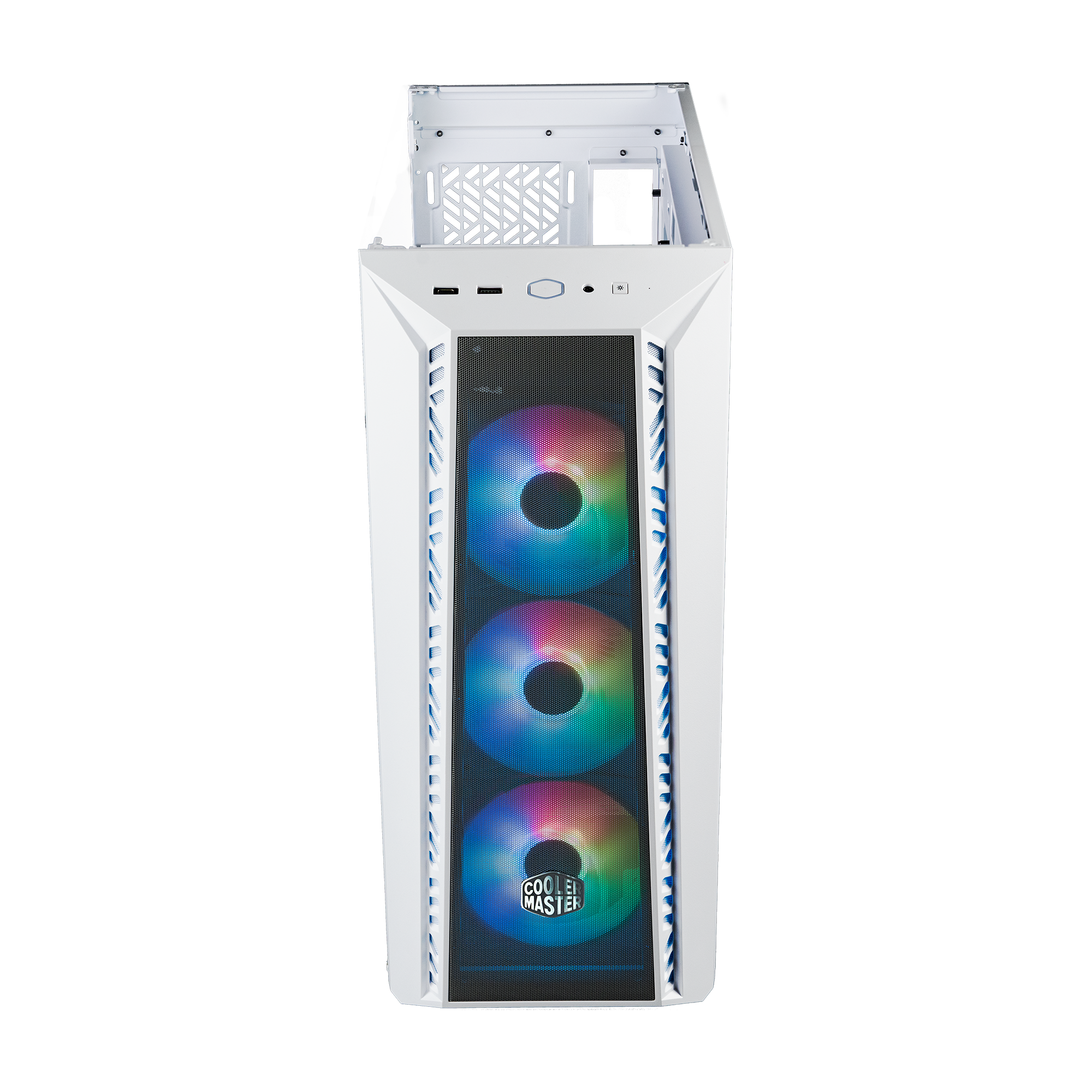

MasterBox 520 Mesh image number 11
MasterBox 520 Mesh image number 12

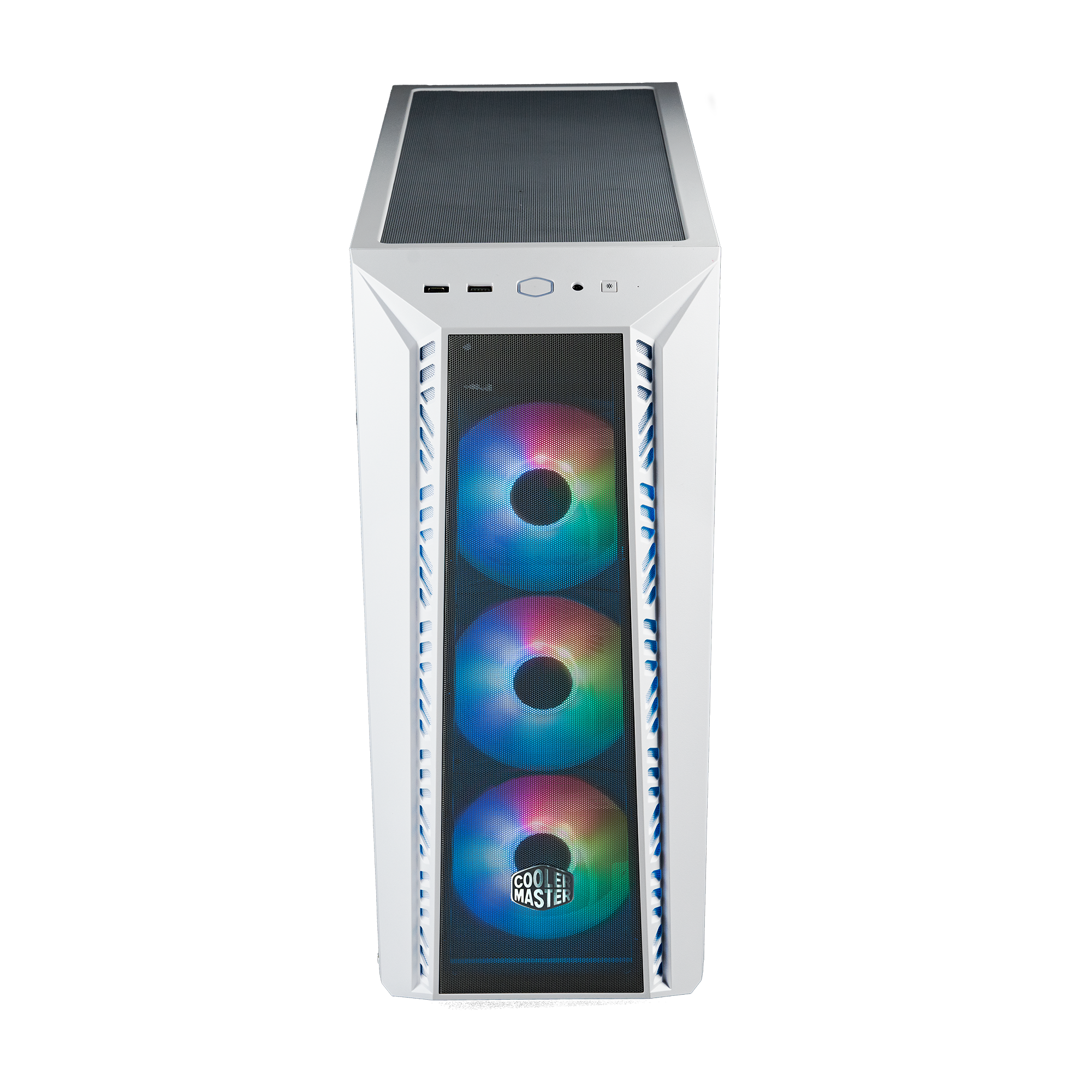

MasterBox 520 Mesh image number 13
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh
MasterBox 520 Mesh

Reaching New Brights

MasterBox 520 Mesh

MasterBox 520 Mesh is the ideal chassis for satisfying the needs of both novice and experienced gamers.

Performance

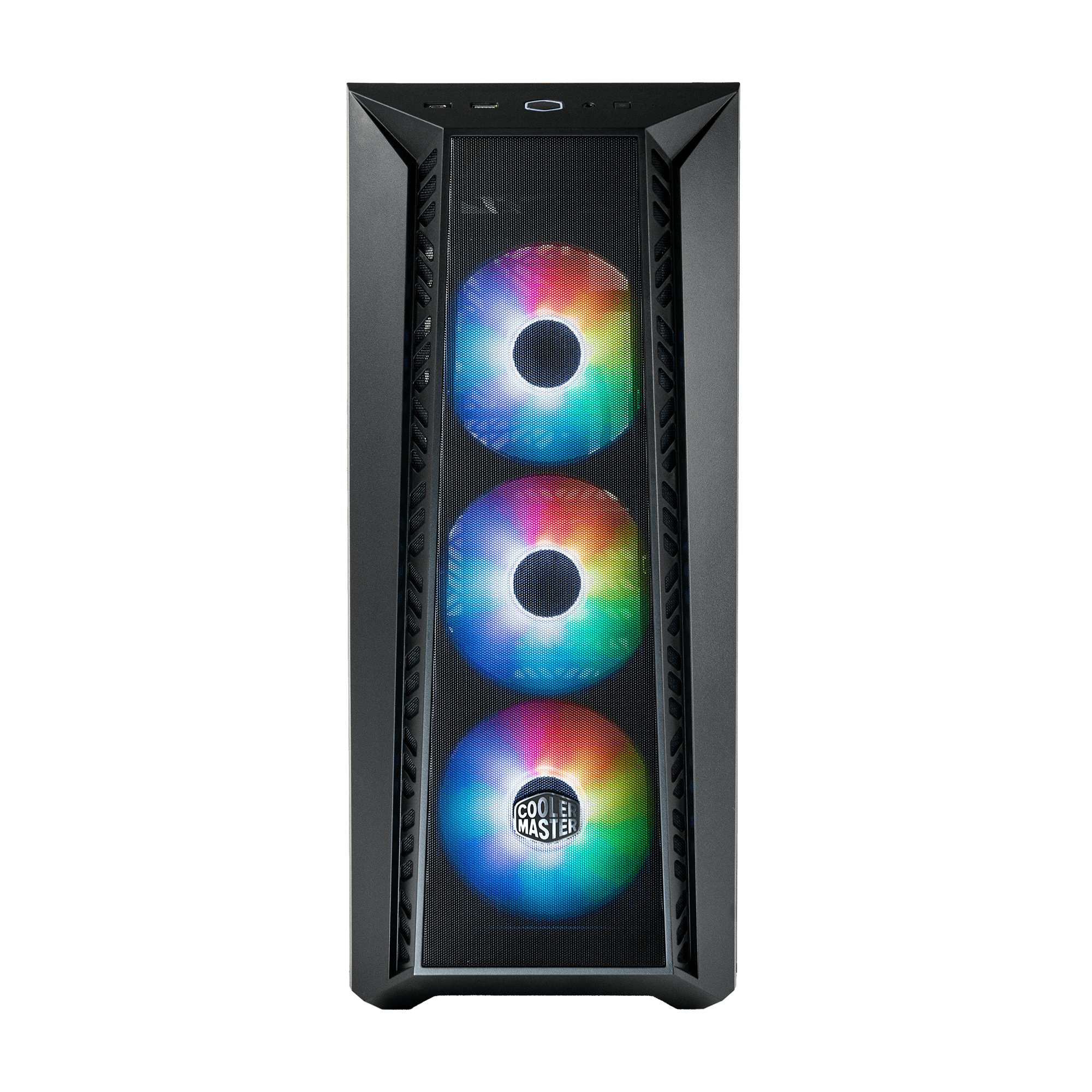

FINEMESH PERFORMANCE FRONT PANEL

Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.

Colors

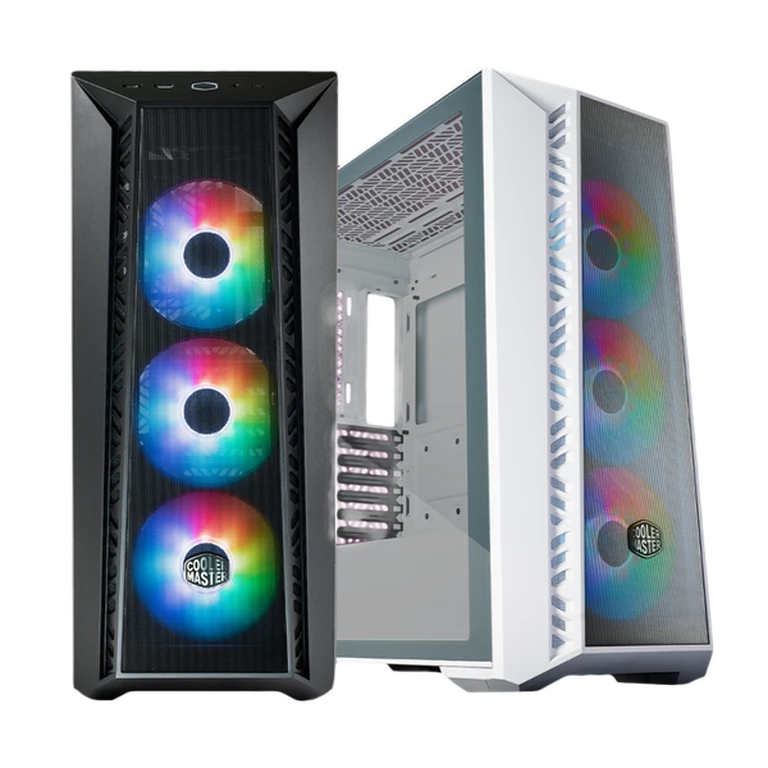

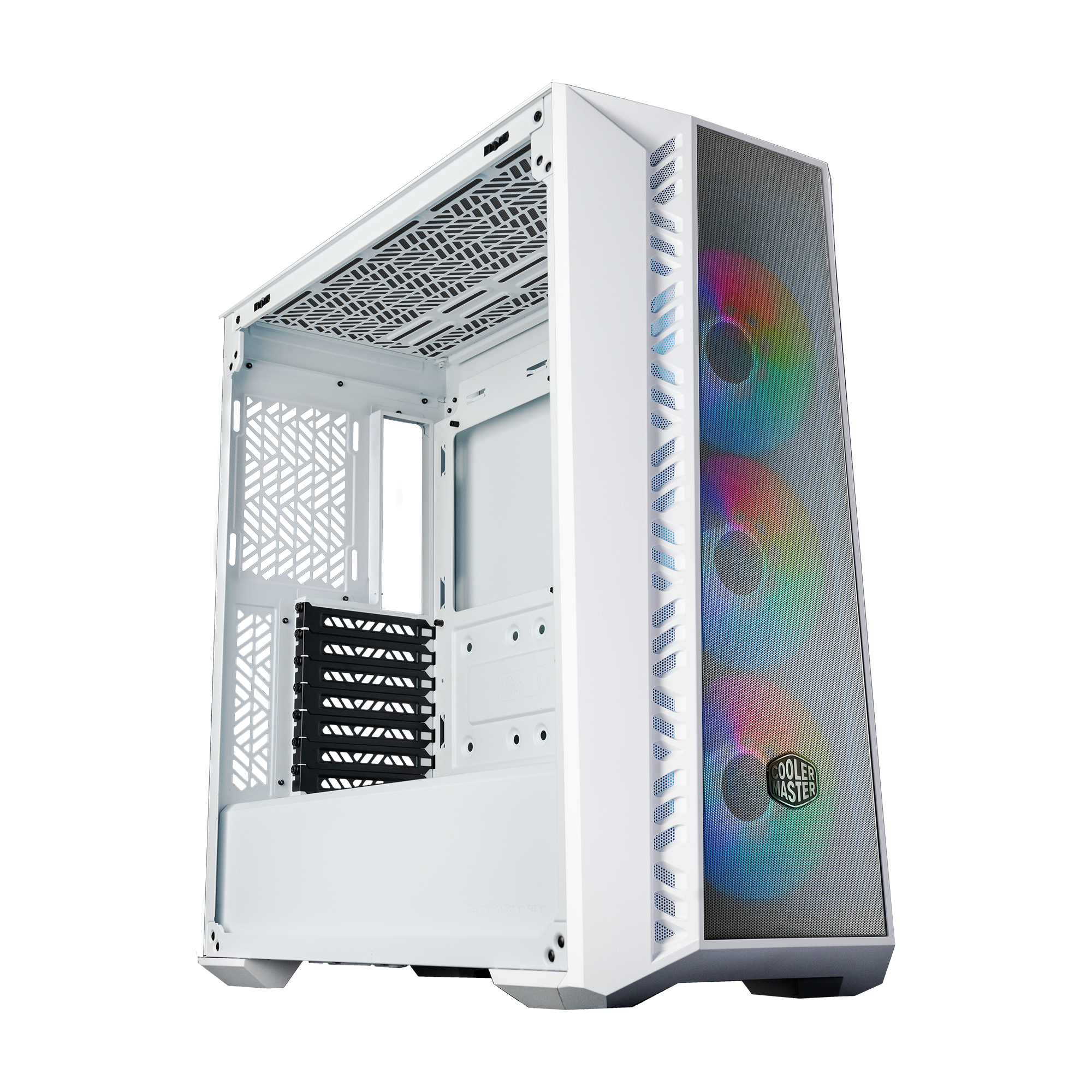

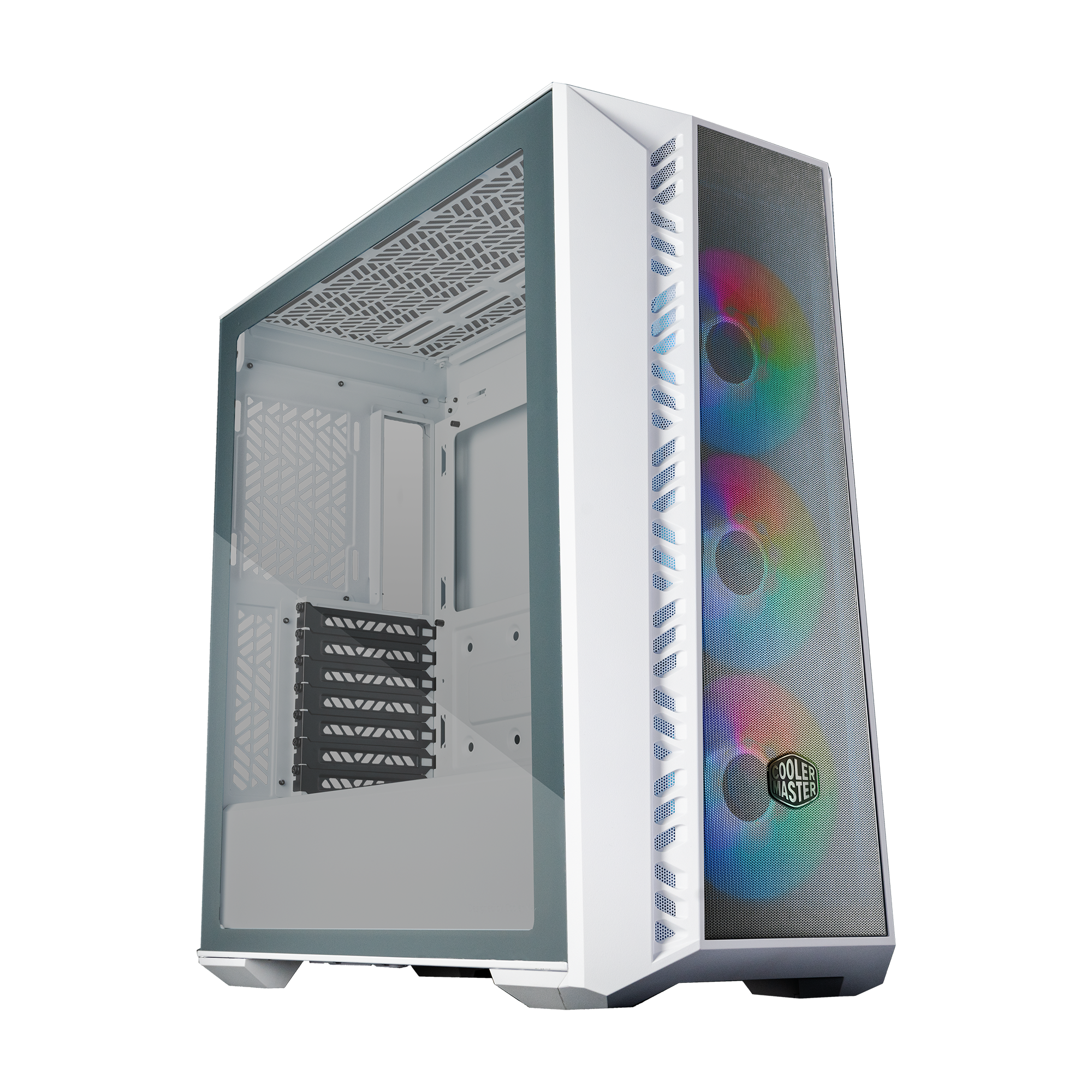

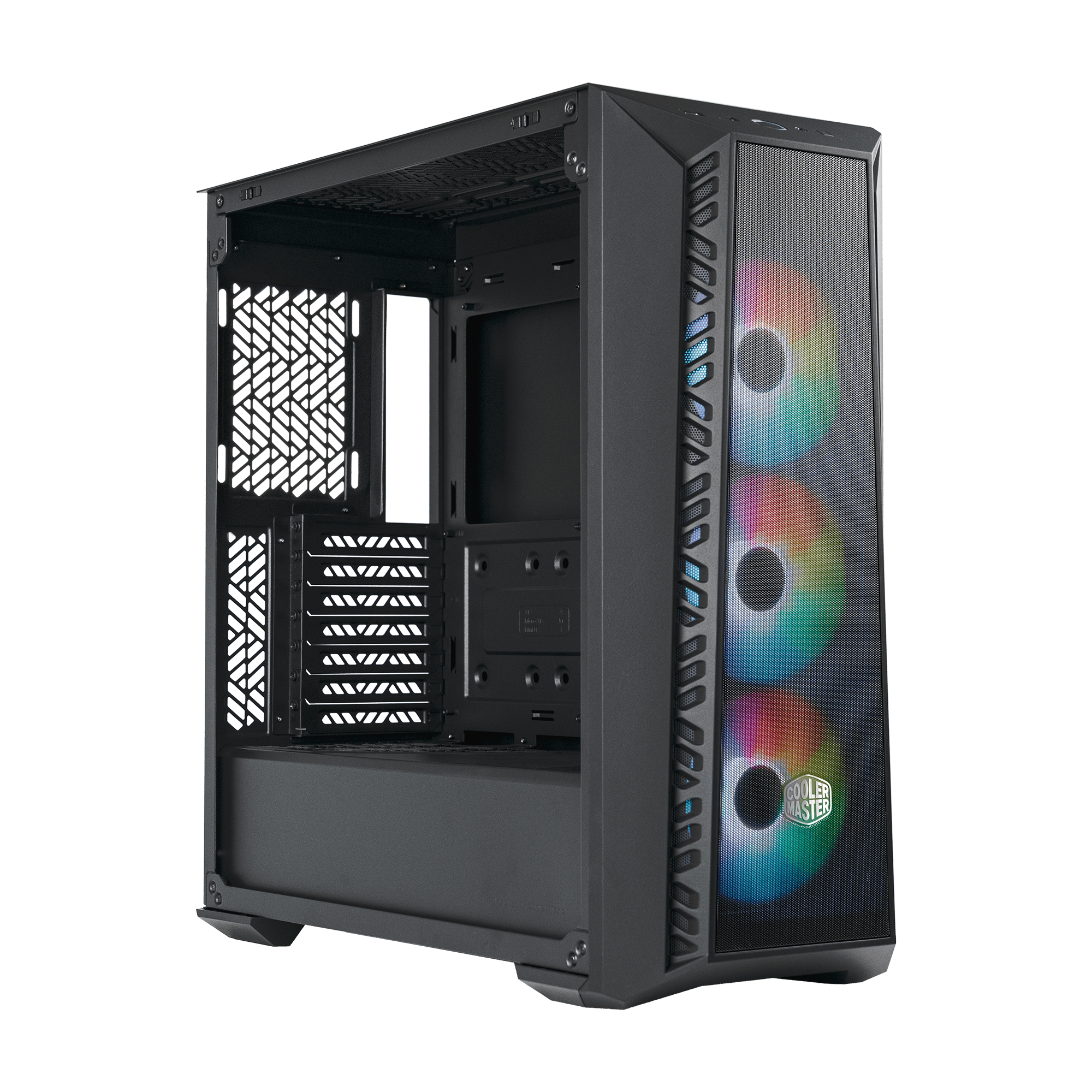

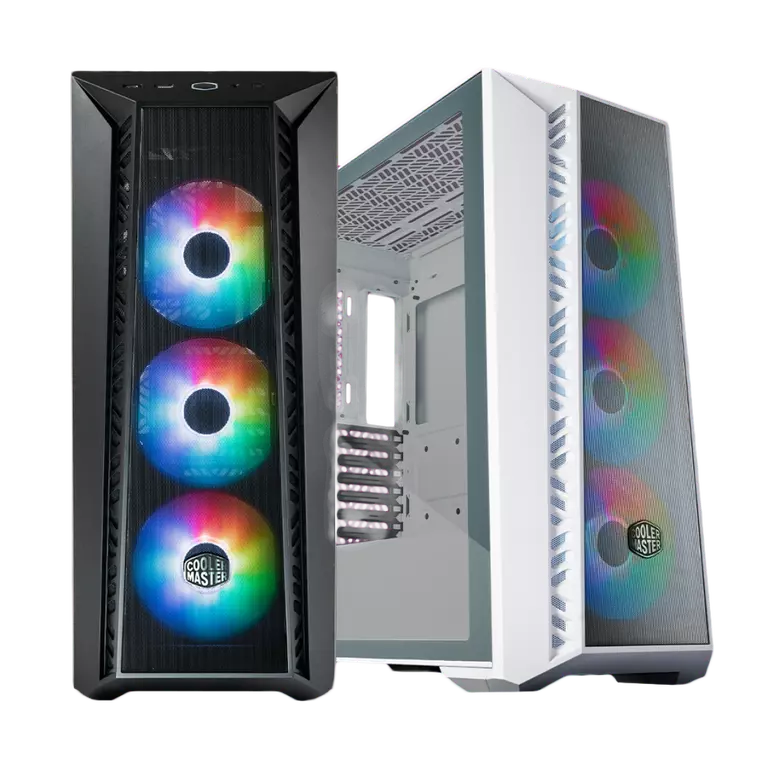

AVAILABLE IN BOTH BLACK & WHITE

Choose the color that best matches your setup!

Design

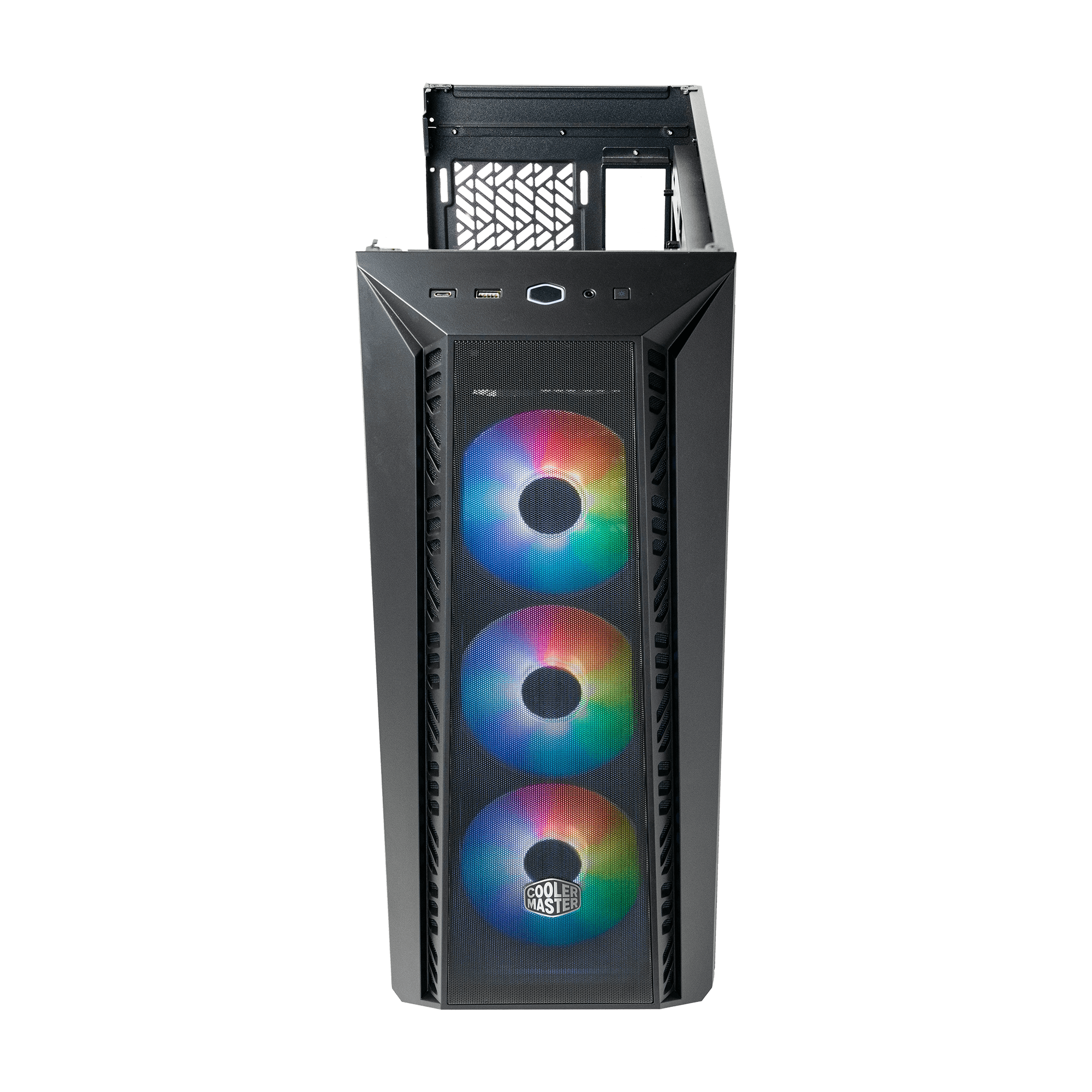

Removable Top Panel

The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.

Fans

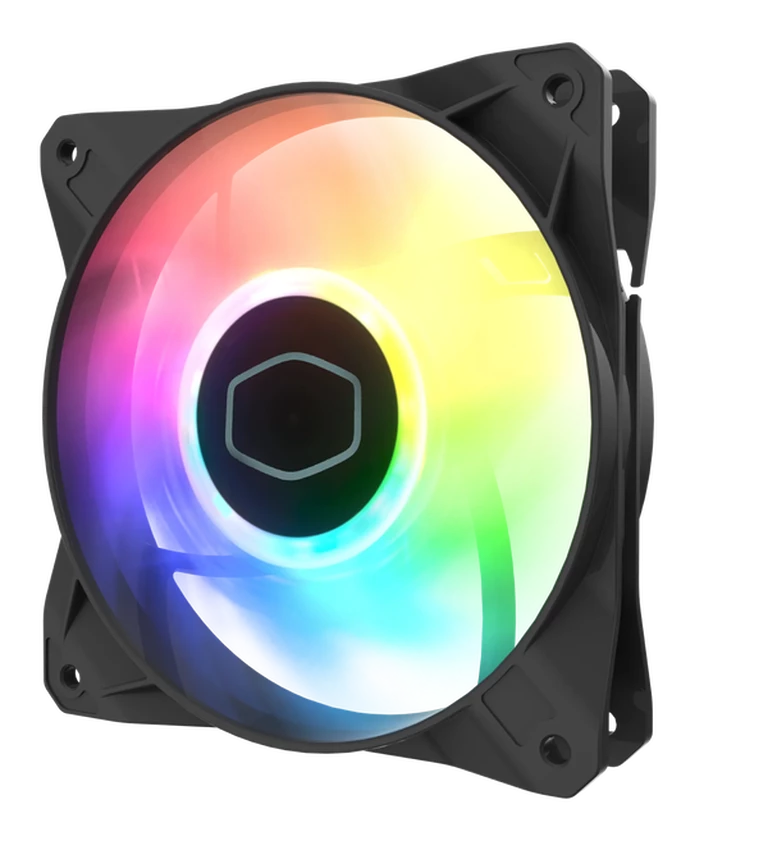

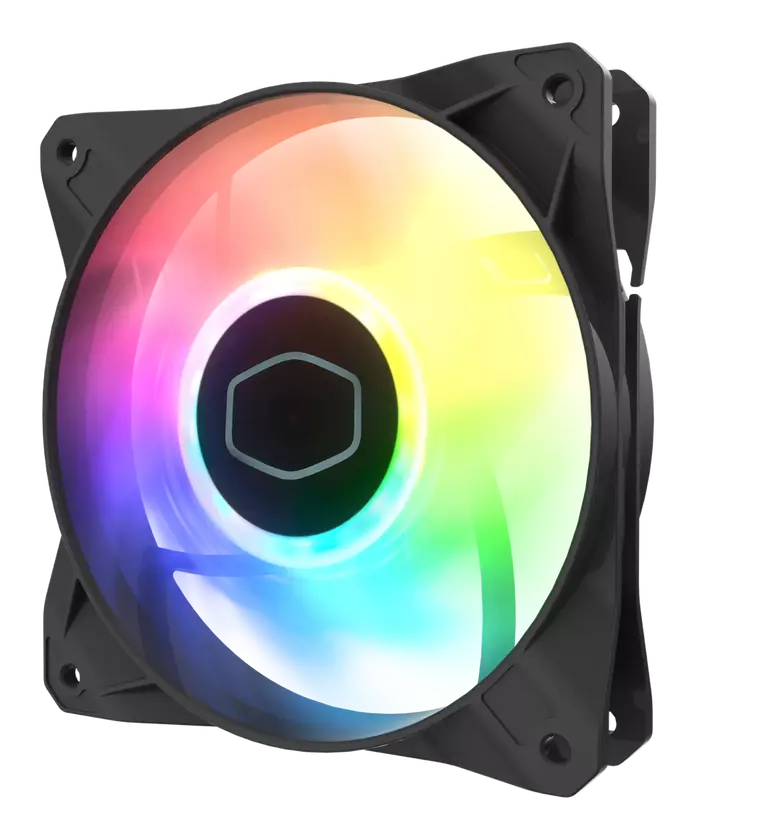

Three CF120 ARGB Fans Included

Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

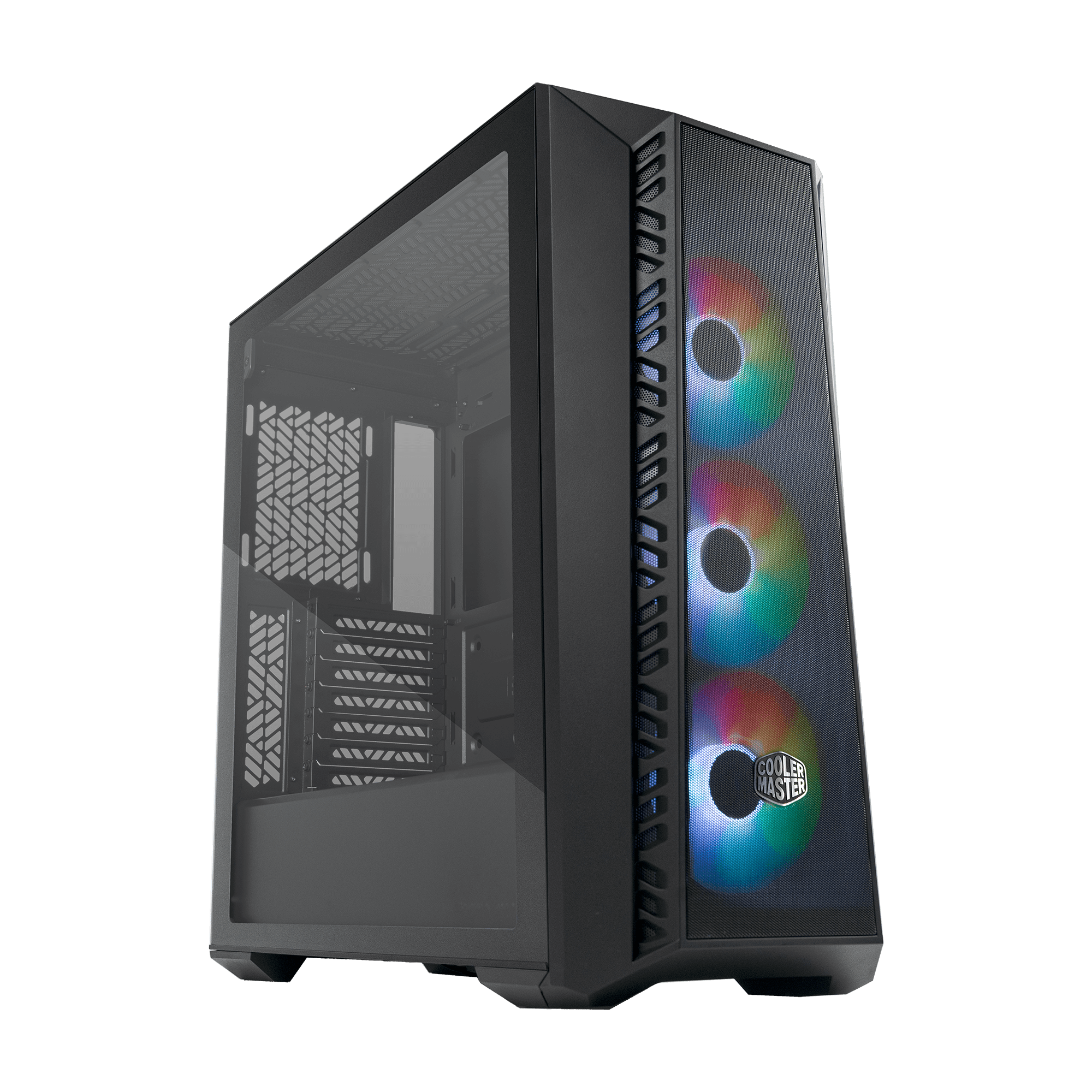

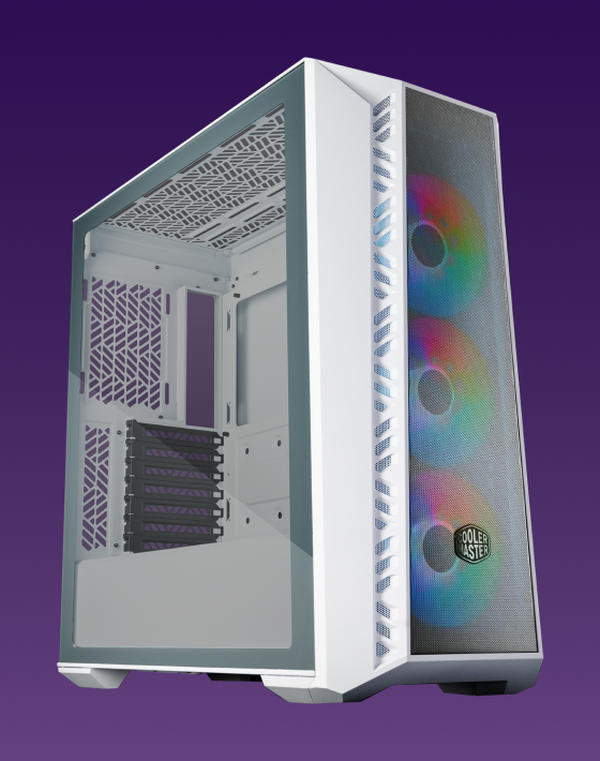

Screwless & Tool-Free TG Side Panel

Screwless & Tool-Free TG Side Panel

The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.

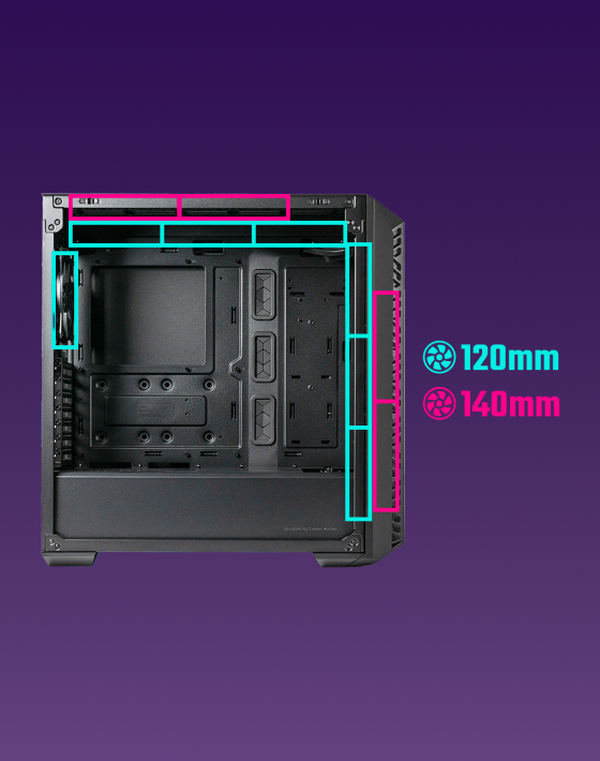

Versatile Cooling Options

Customization

Versatile Cooling Options

Supports up to seven 120mm fans and dual 360mm radiators on the top 140mm and front panel.

Specifications

  • Model Number MasterBox 520 Mesh: MB520-KGNN-S00, MasterBox 520 Mesh White: MB520-WGNN-S00
  • Exterior Color Black, White
  • Materials - Exterior Mesh, Steel, ABS Plastic, Tempered Glass
  • Materials - Left Side Panel Tempered Glass
  • Dimensions (L x W x H) 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size)
  • Motherboard Support Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
  • Expansion Slots 7
  • 3.5" Drive Bays 2
  • 2.5" Drive Bays 3
  • I/O Panel - USB Ports 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C
  • I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
  • I/O Panel - Other 1x Reset/ARGB button
  • Included Accessories ARGB Fans Hub
  • Pre-installed Fans - Top N/A
  • Pre-installed Fans - Front 3x CF120 ARGB
  • Pre-installed Fans - Rear N/A
  • Fan Support - Top 3x 120mm, 2x 140mm
  • Fan Support - Front 3x 120mm, 2x 140mm
  • Fan Support - Rear 1x 120mm
  • Radiator Support - Top 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
  • Radiator Support - Front 120 / 140 / 240 / 280 / 360mm
  • Radiator Support - Rear 120mm
  • Clearance - CPU Cooler 165mm
  • Clearance - PSU 200mm (Recommended up to 170mm)
  • Clearance - GFX 410mm
  • Dust Filters Front, Top, Bottom
  • Power Supply Support ATX
  • Warranty 2 years
  • Size Mid Tower
  • Series MasterBox Series
  • Back Connector Motherboard Support No
