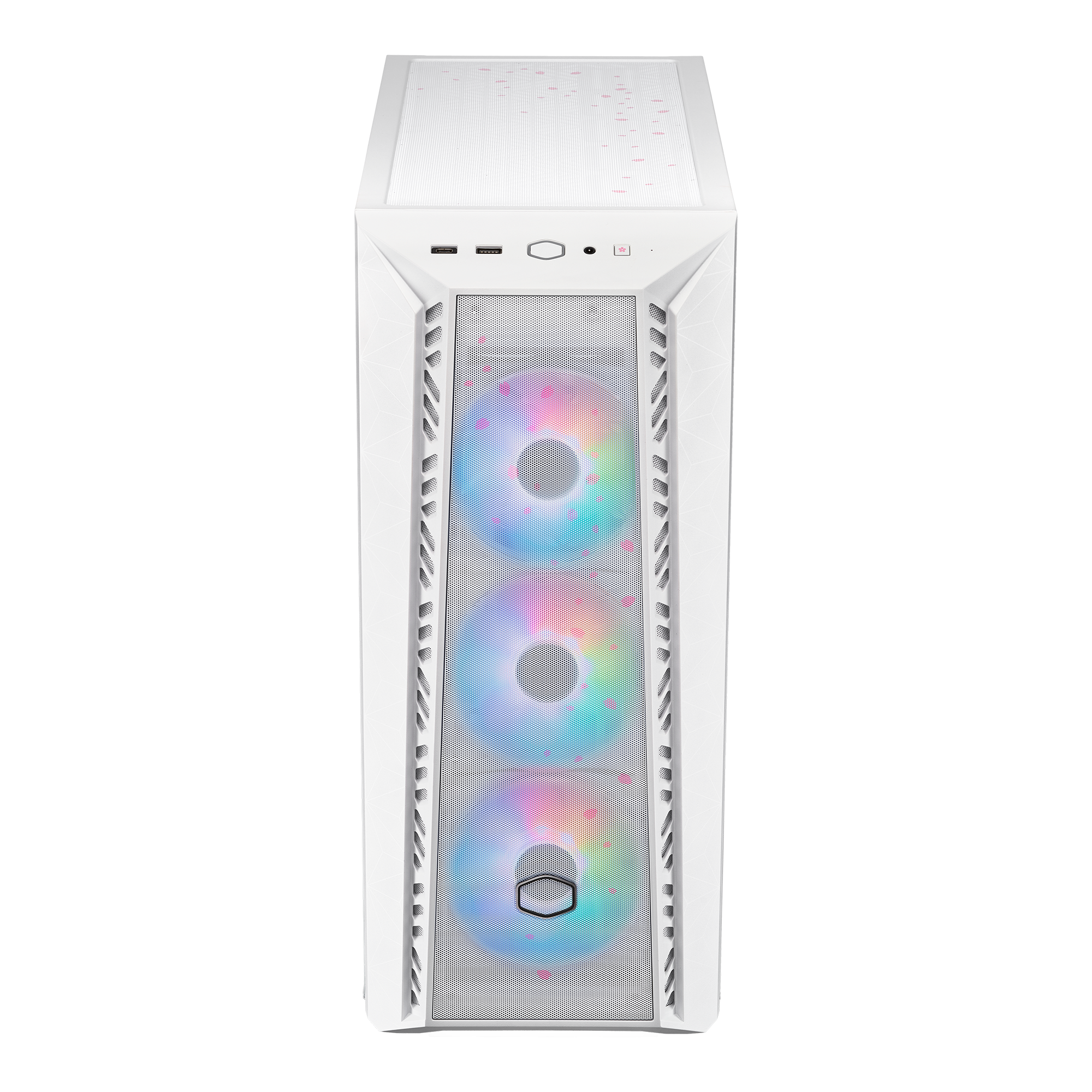

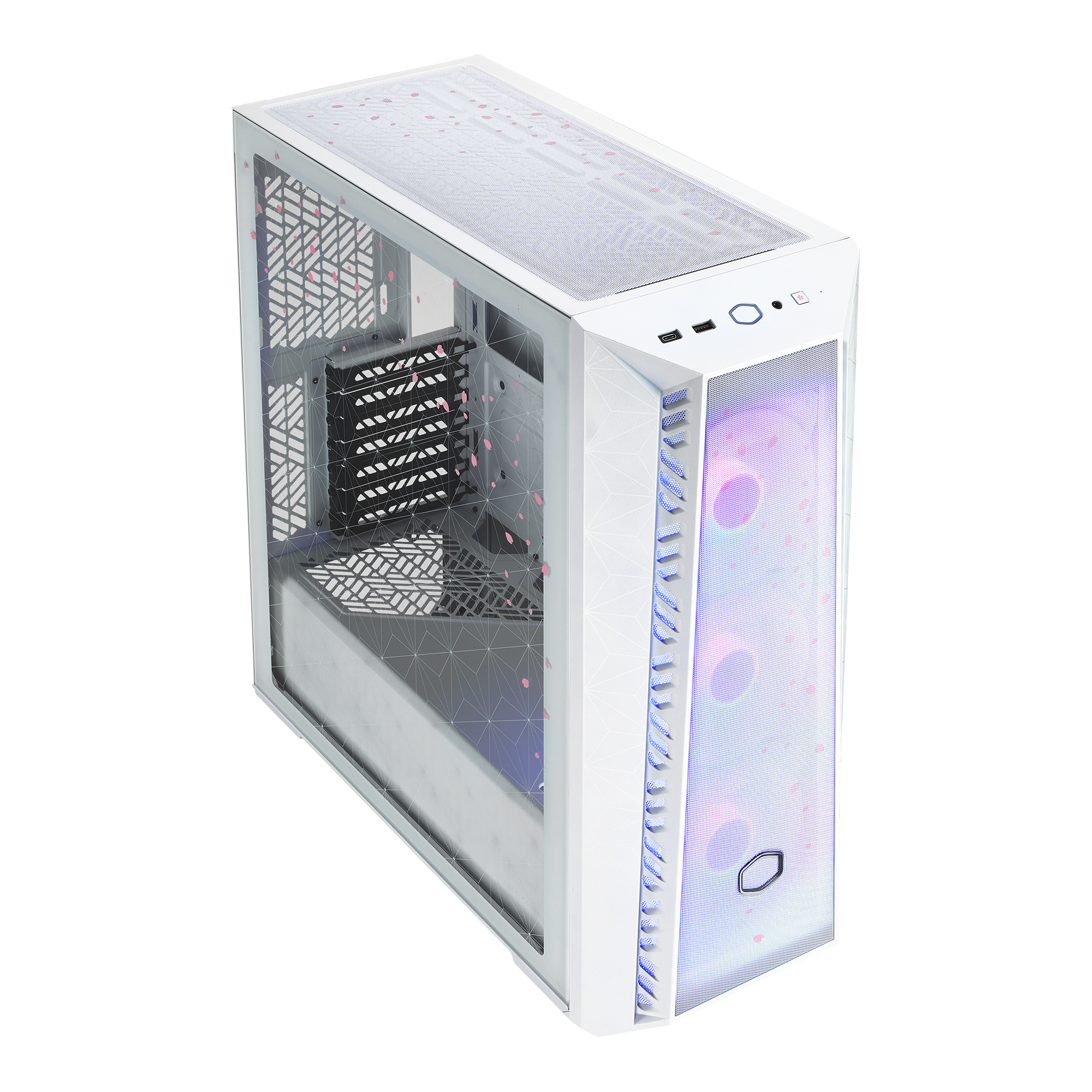

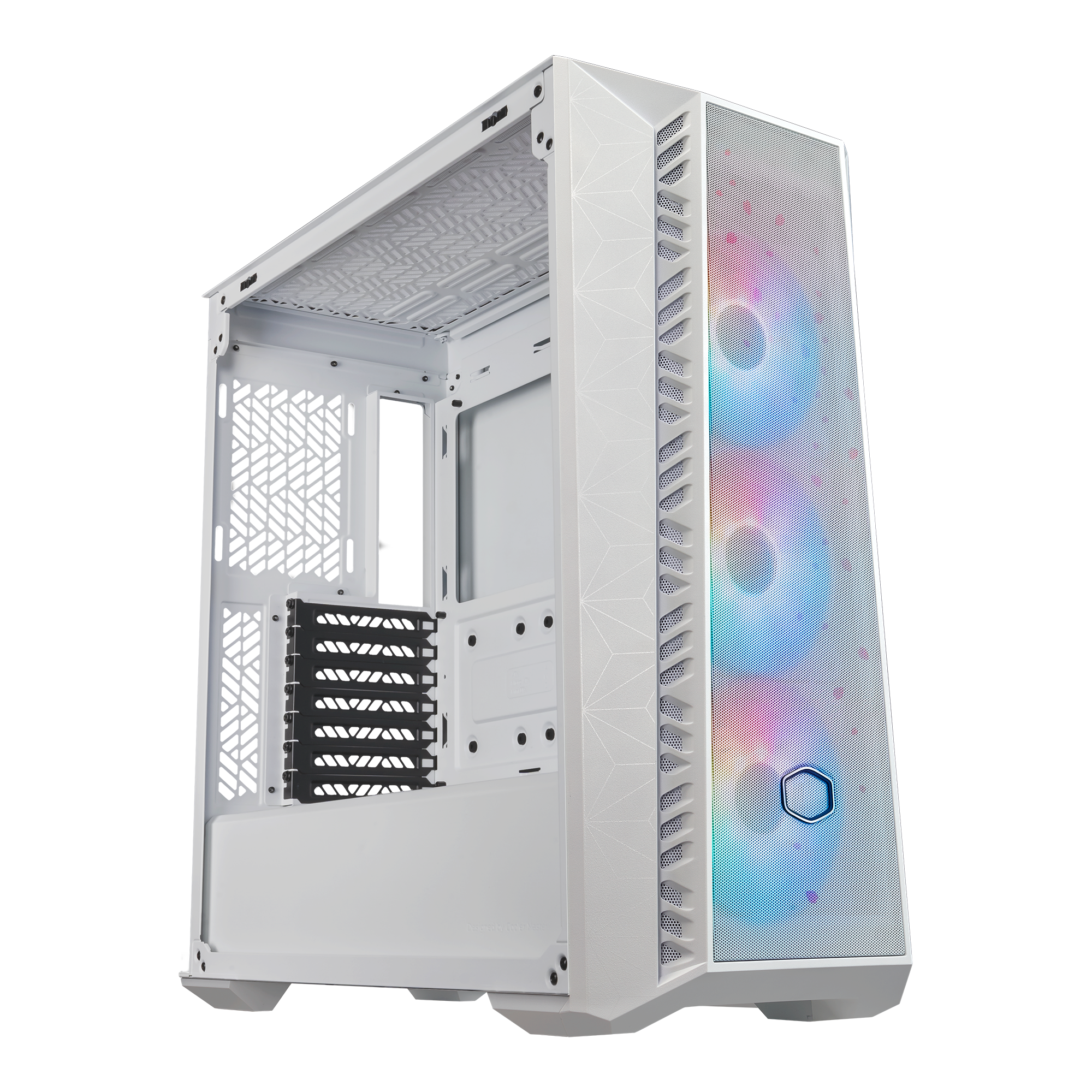

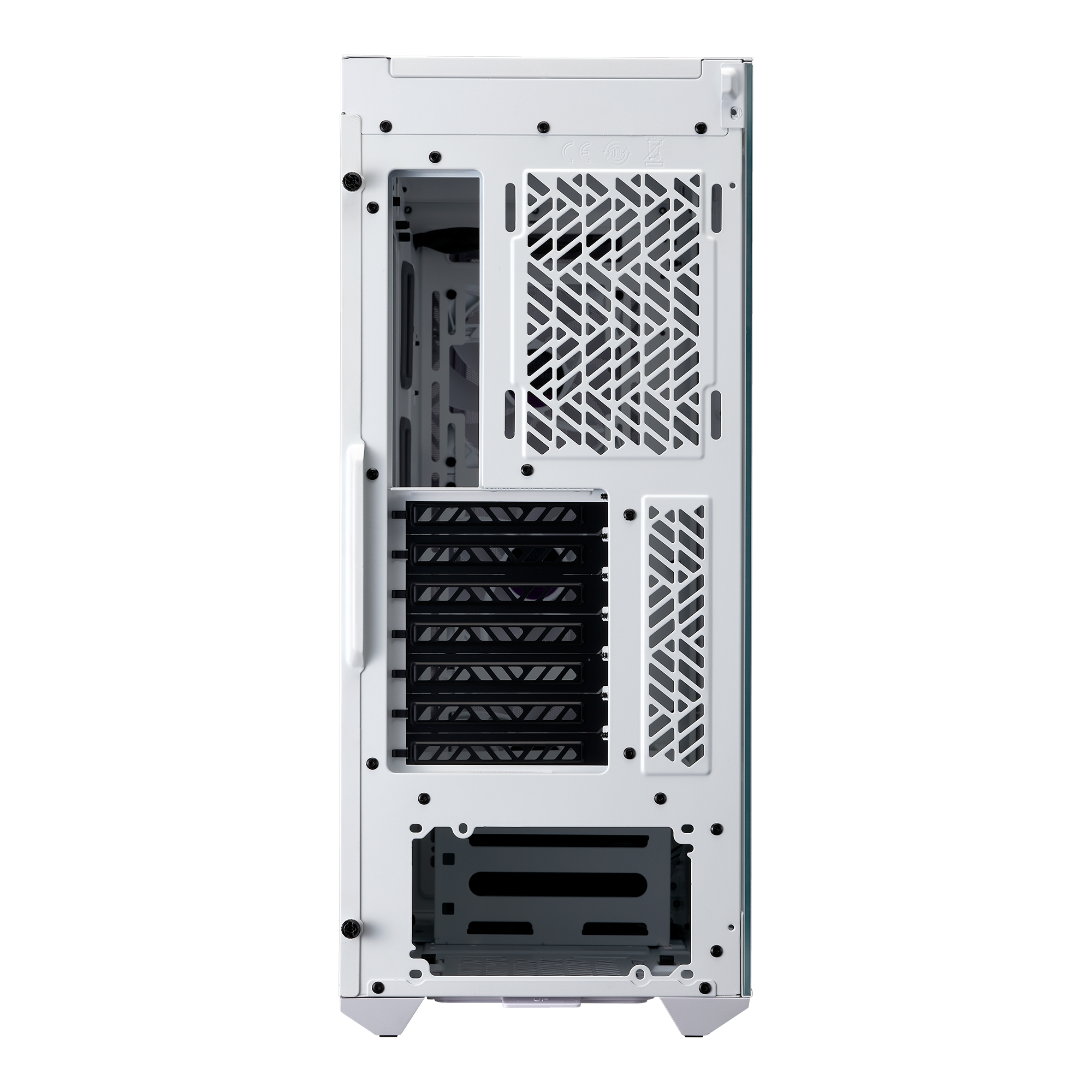

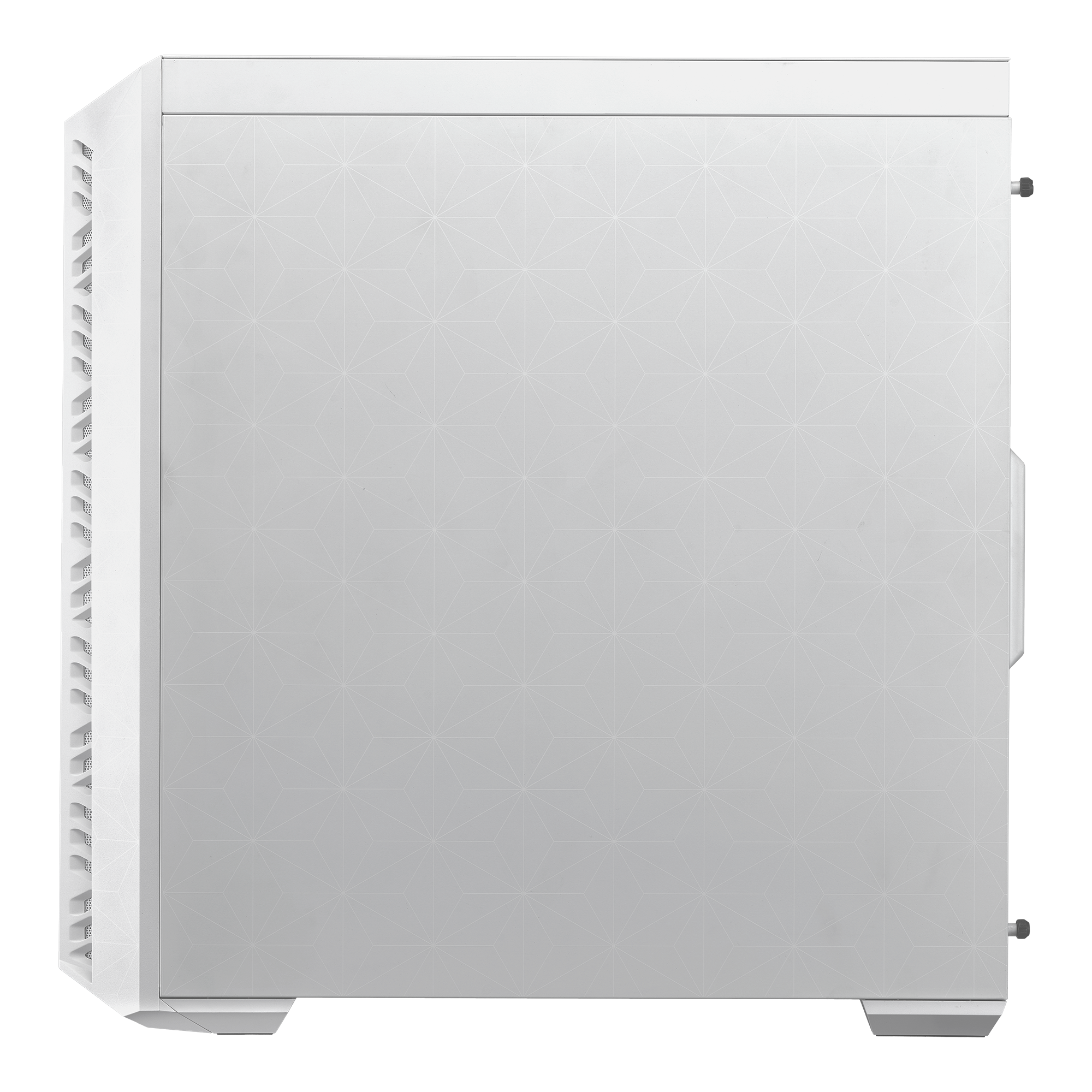

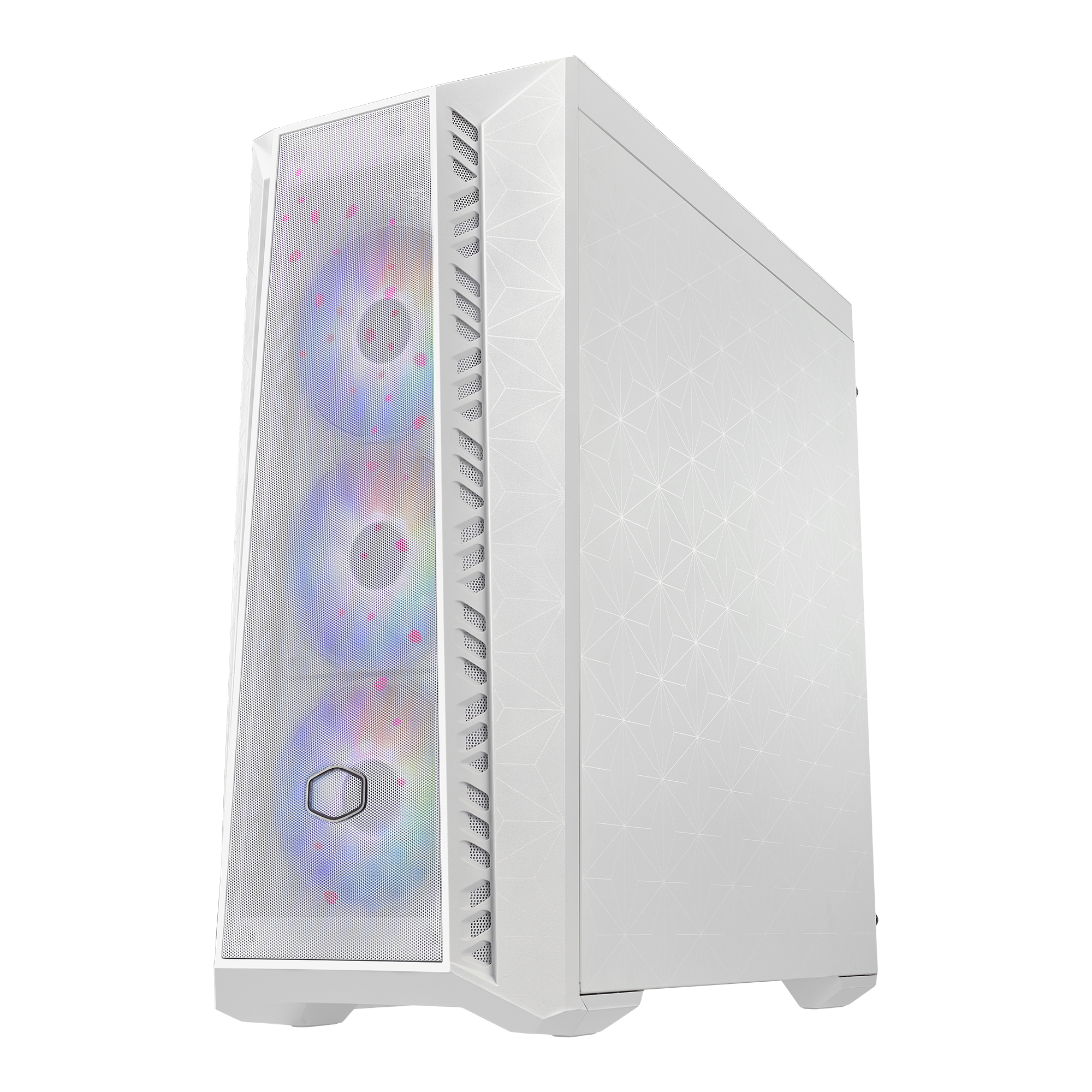

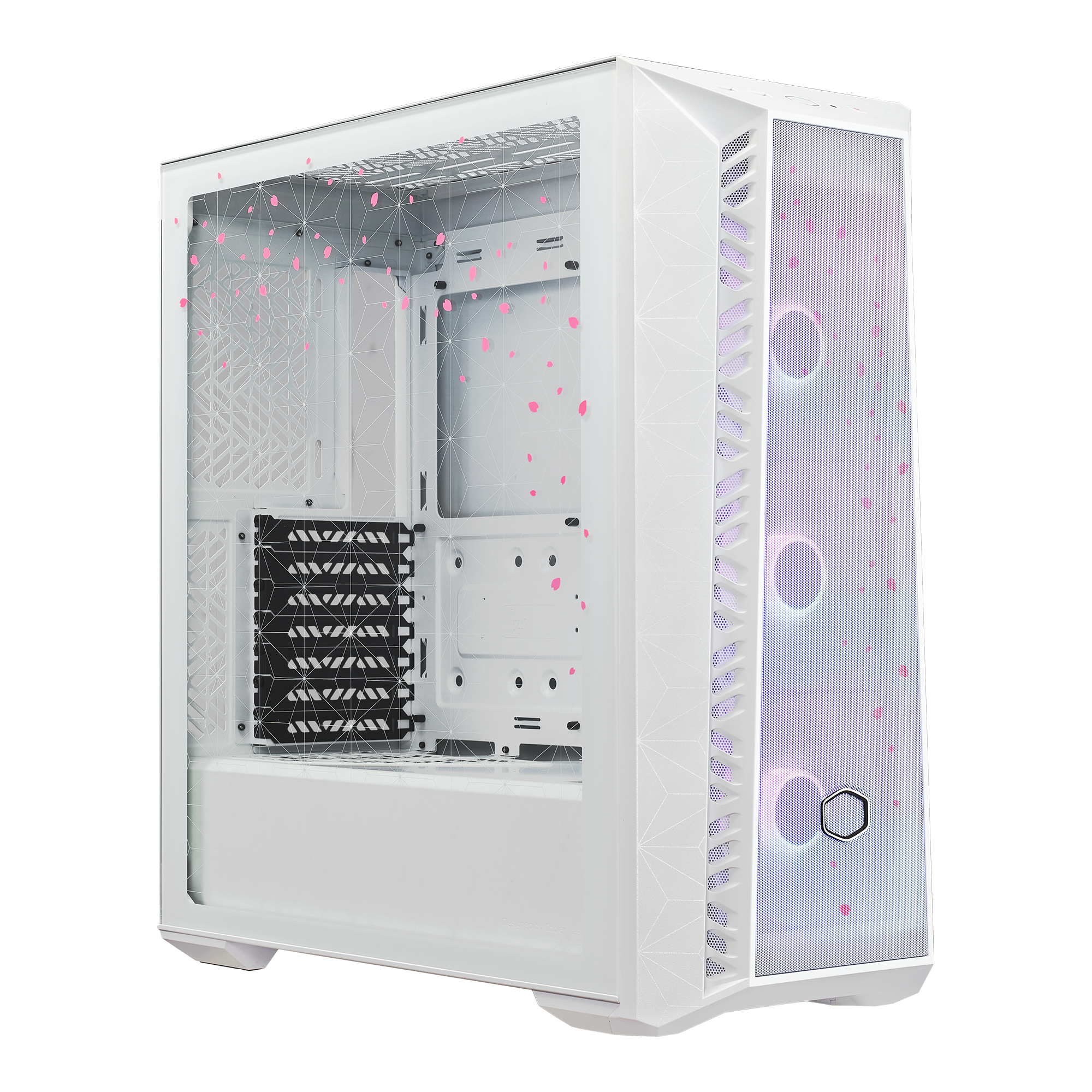

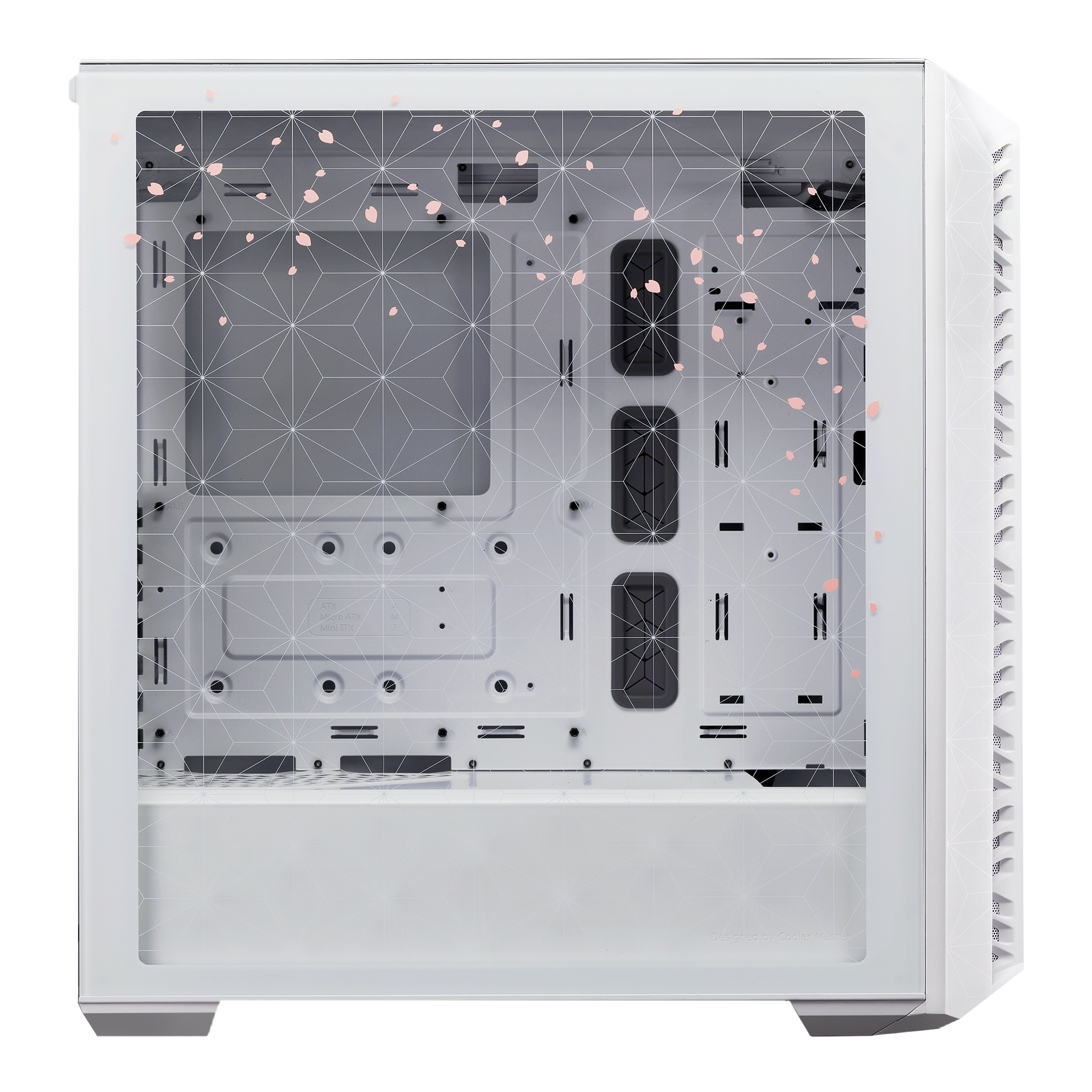

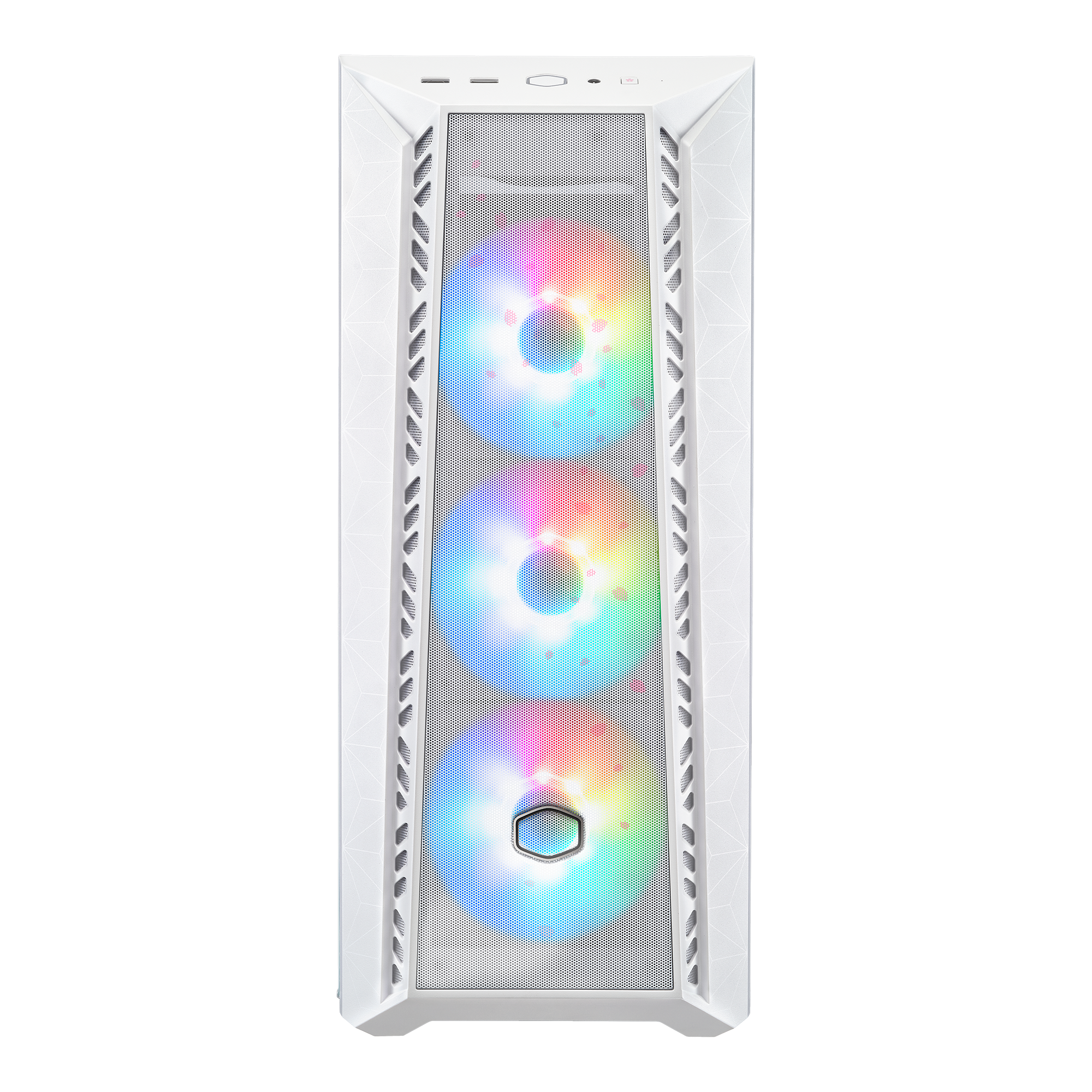

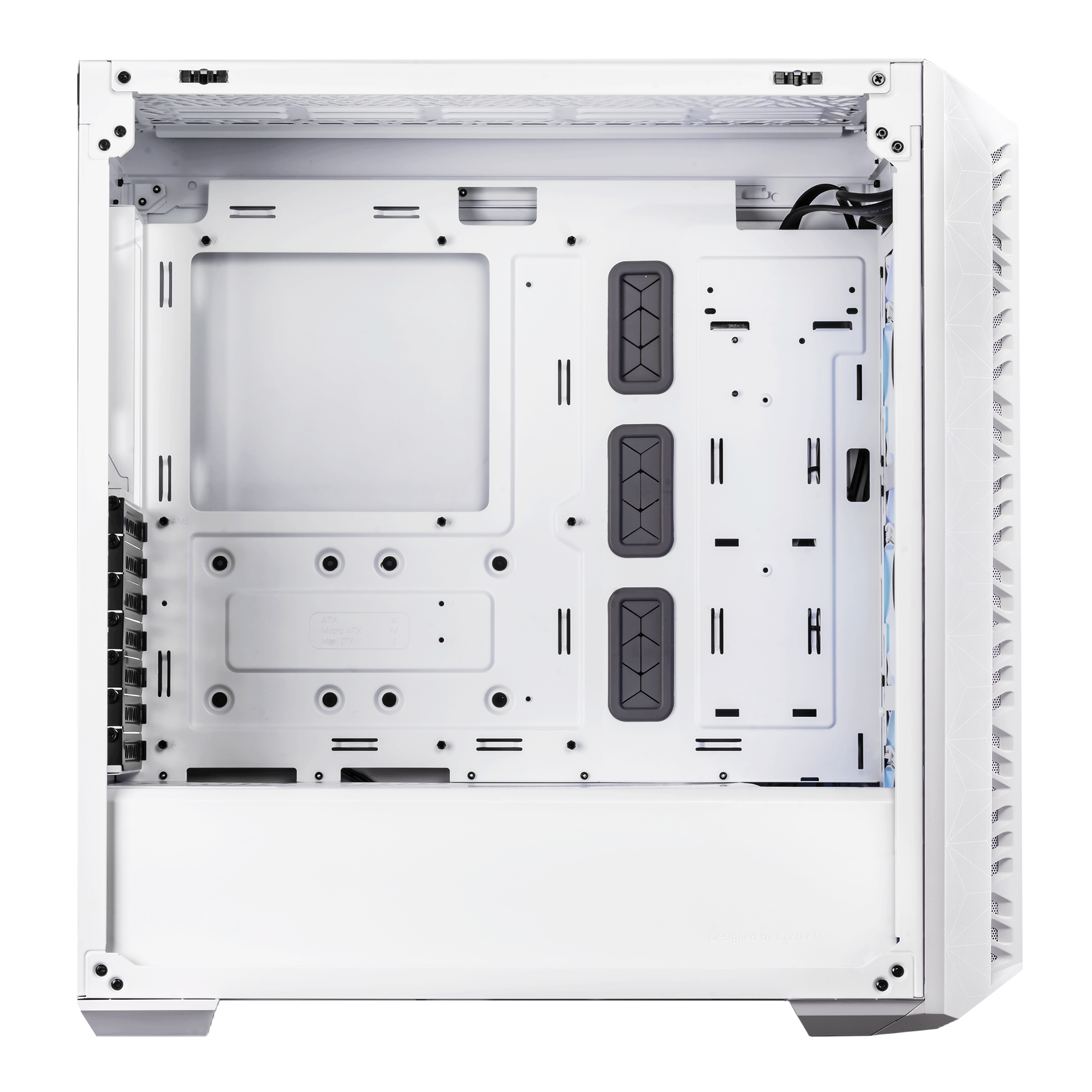

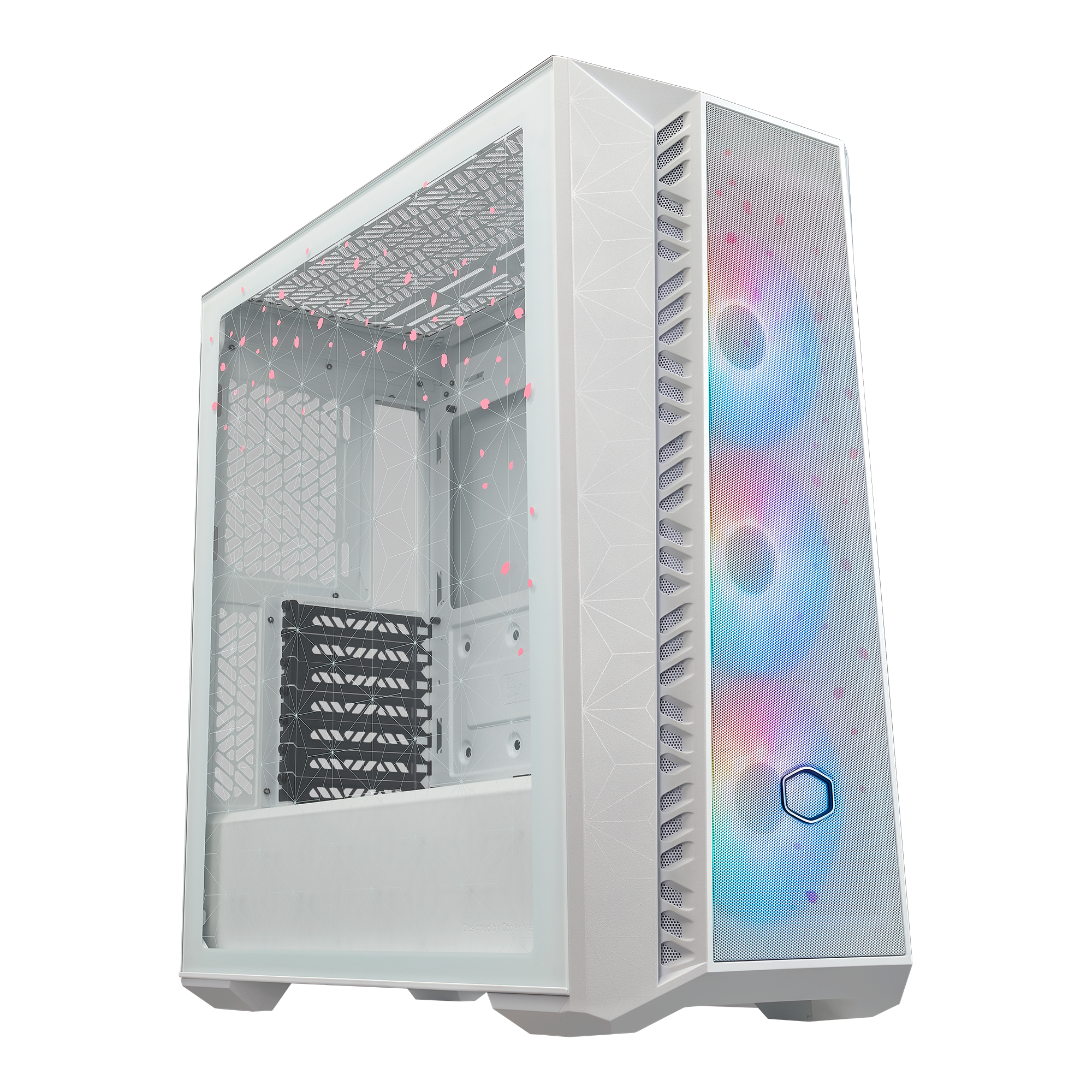

MasterBox 520 Mesh Sakura Limited Edition
MasterBox 520 Mesh Sakura is the ideal chassis for satisfying the needs of both novice and experienced gamers... Now infused with Sakura grace
- Model Number MB520-WGNN-S02
- Exterior Color White
- Materials - Exterior Mesh, Steel, Plastic, Tempered Glass
- Materials - Left Side Panel Tempered Glass
- Dimensions (L x W x H) 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size)
- Motherboard Support Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
- Expansion Slots 7
- 3.5" Drive Bays 2
- 2.5" Drive Bays 3
- I/O Panel - USB Ports 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C
- I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
- I/O Panel - Other 1x Reset/ARGB button
- Included Accessories ARGB Fans Hub
- Pre-installed Fans - Top N/A
- Pre-installed Fans - Front 3x CF120 ARGB
- Pre-installed Fans - Rear N/A
- Fan Support - Top 3x 120mm / 2x 140mm
- Fan Support - Front 3x 120mm / 2x 140mm
- Fan Support - Rear 1x 120mm
- Radiator Support - Top 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
- Radiator Support - Front 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear 120mm
- Clearance - CPU Cooler 165mm
- Clearance - PSU 200mm (Recommended up to 170mm)
- Clearance - GFX 410mm
- Dust Filters Front, Top, Bottom
- Warranty 2 years
- Size Mid Tower
- Series MasterBox Series
- Back Connector Motherboard Support No
