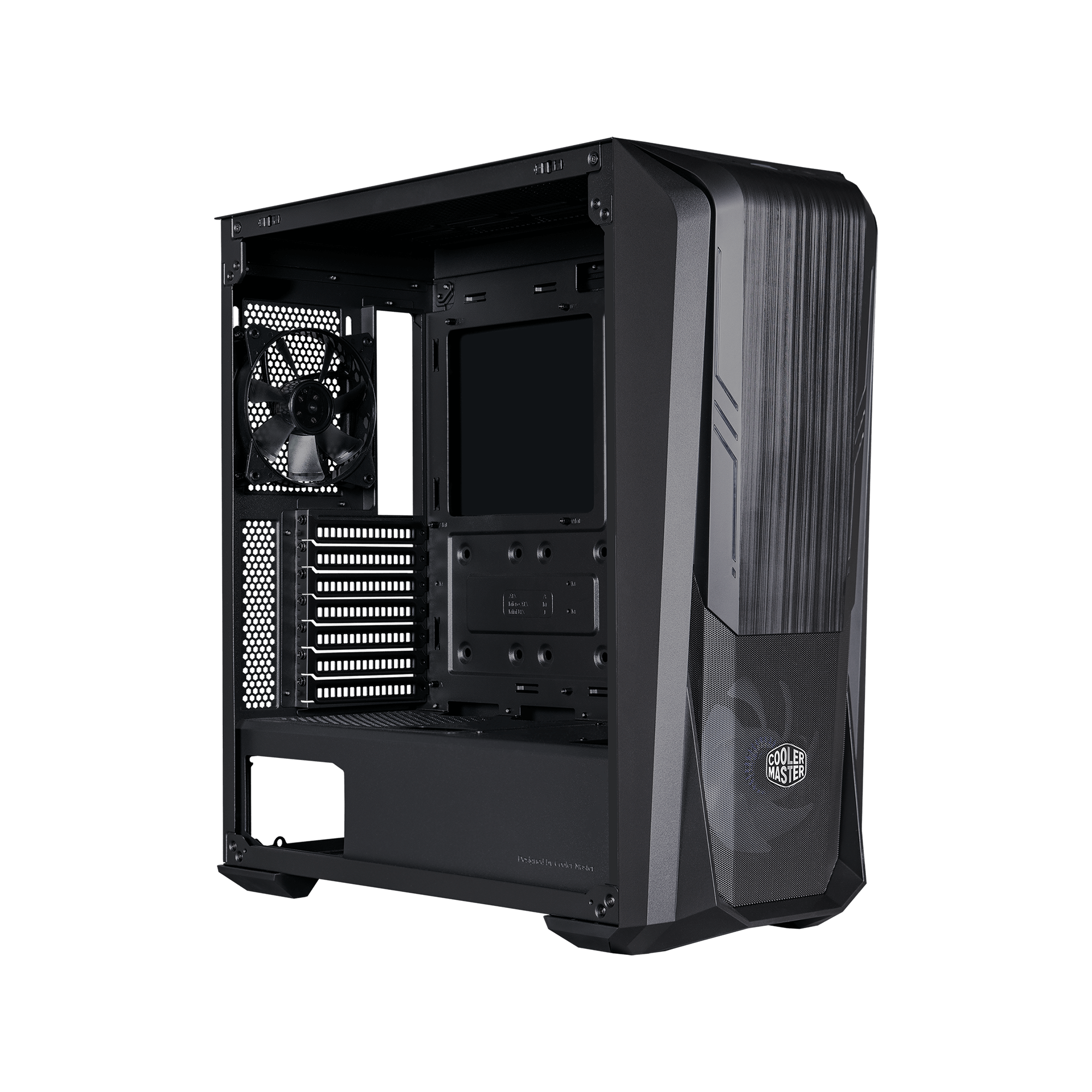

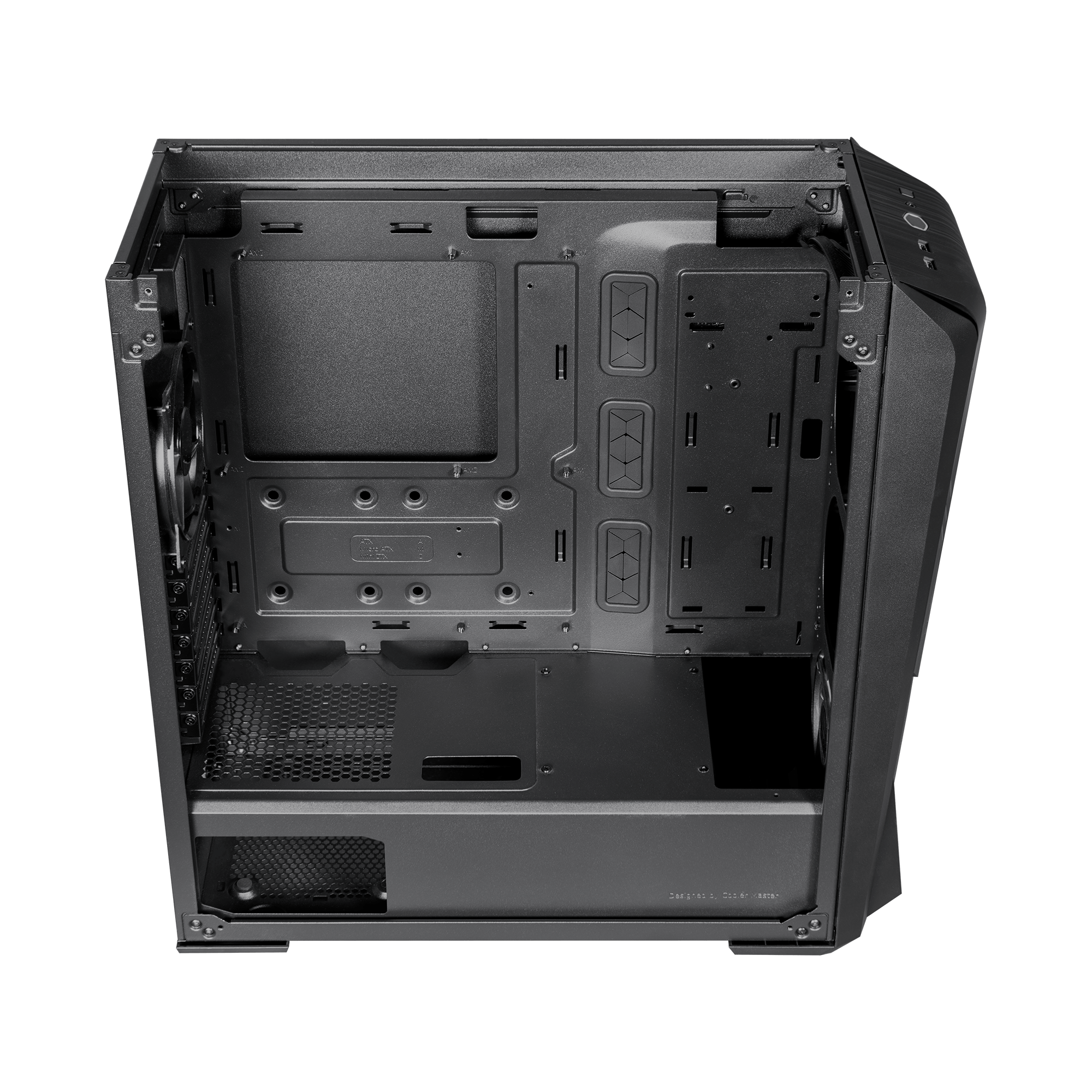

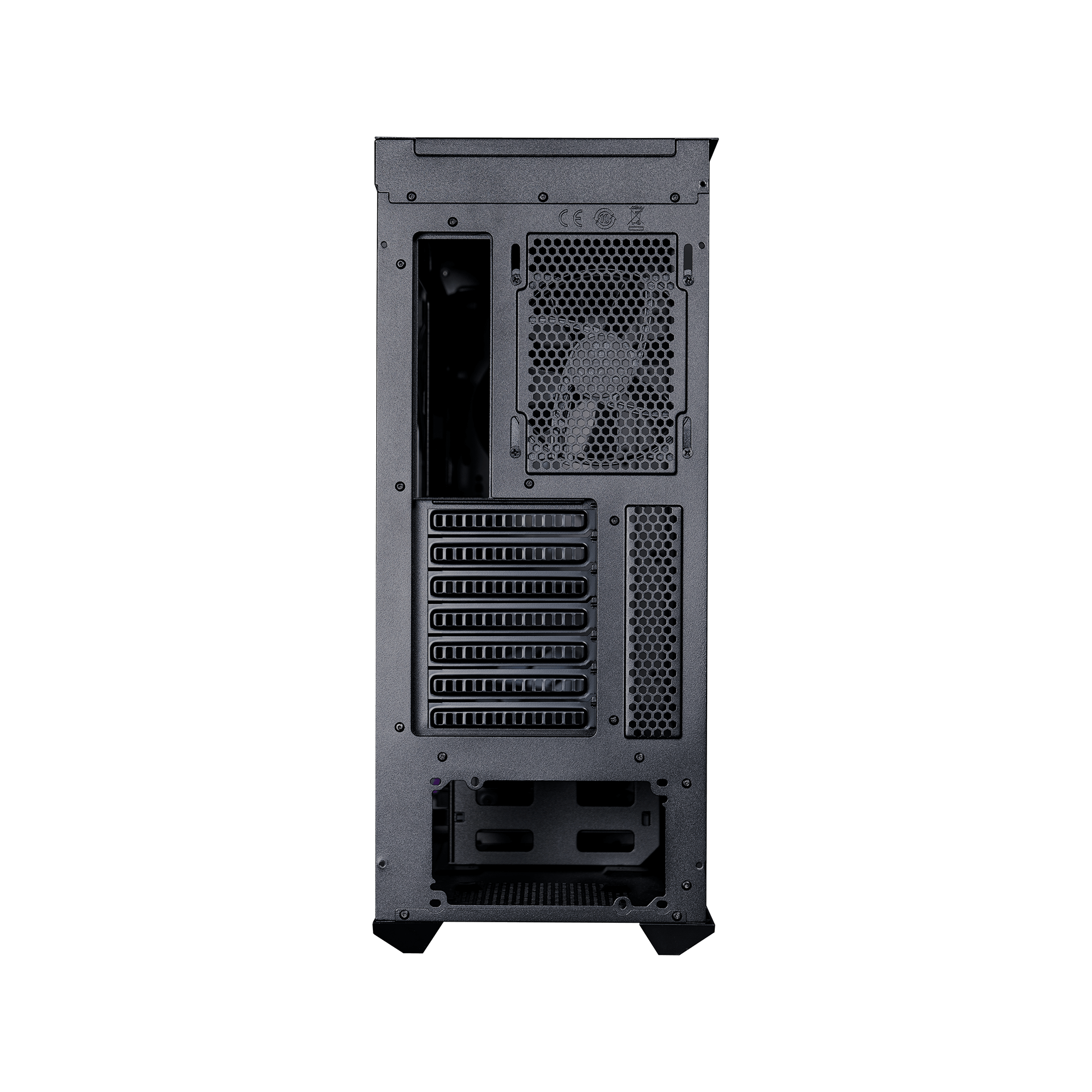

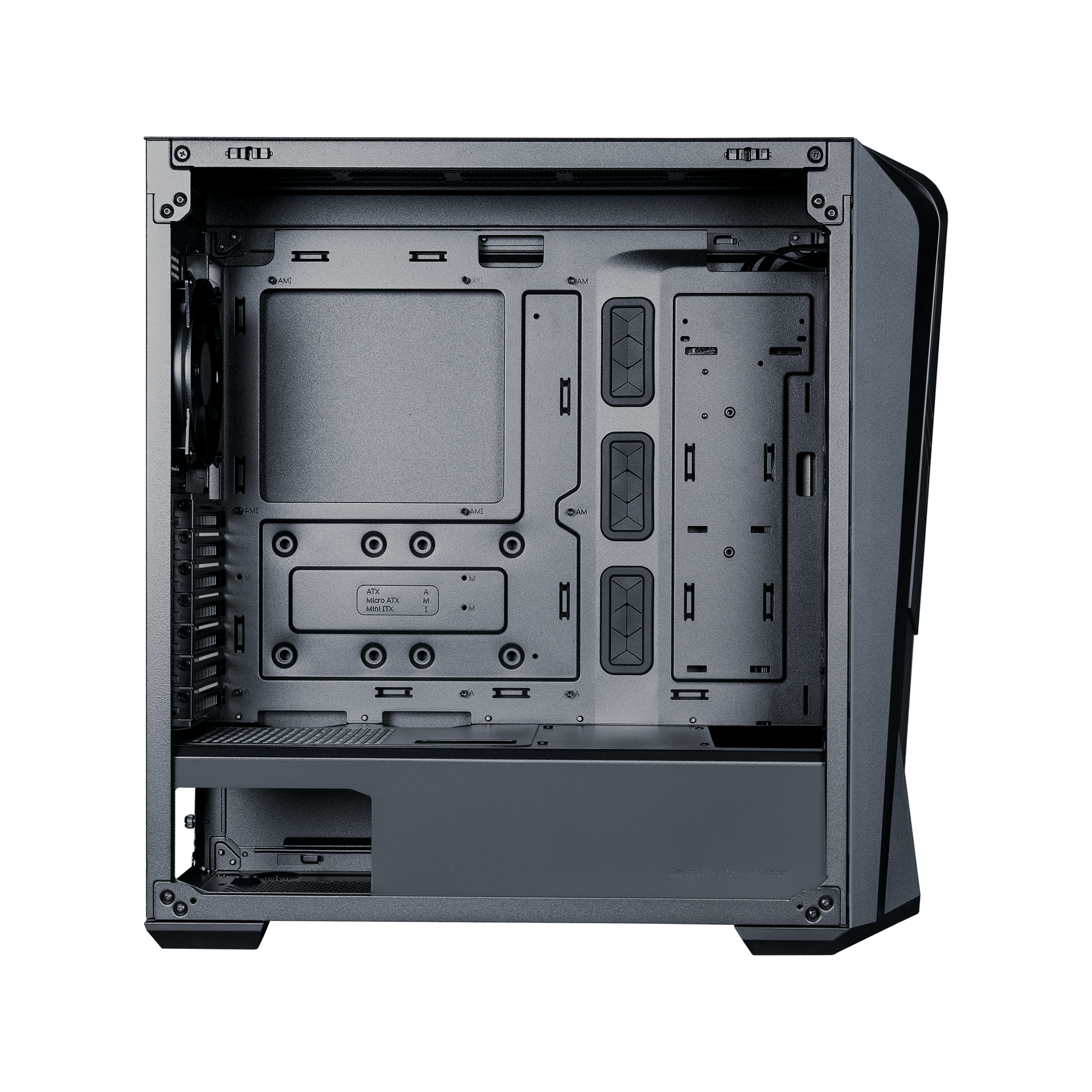

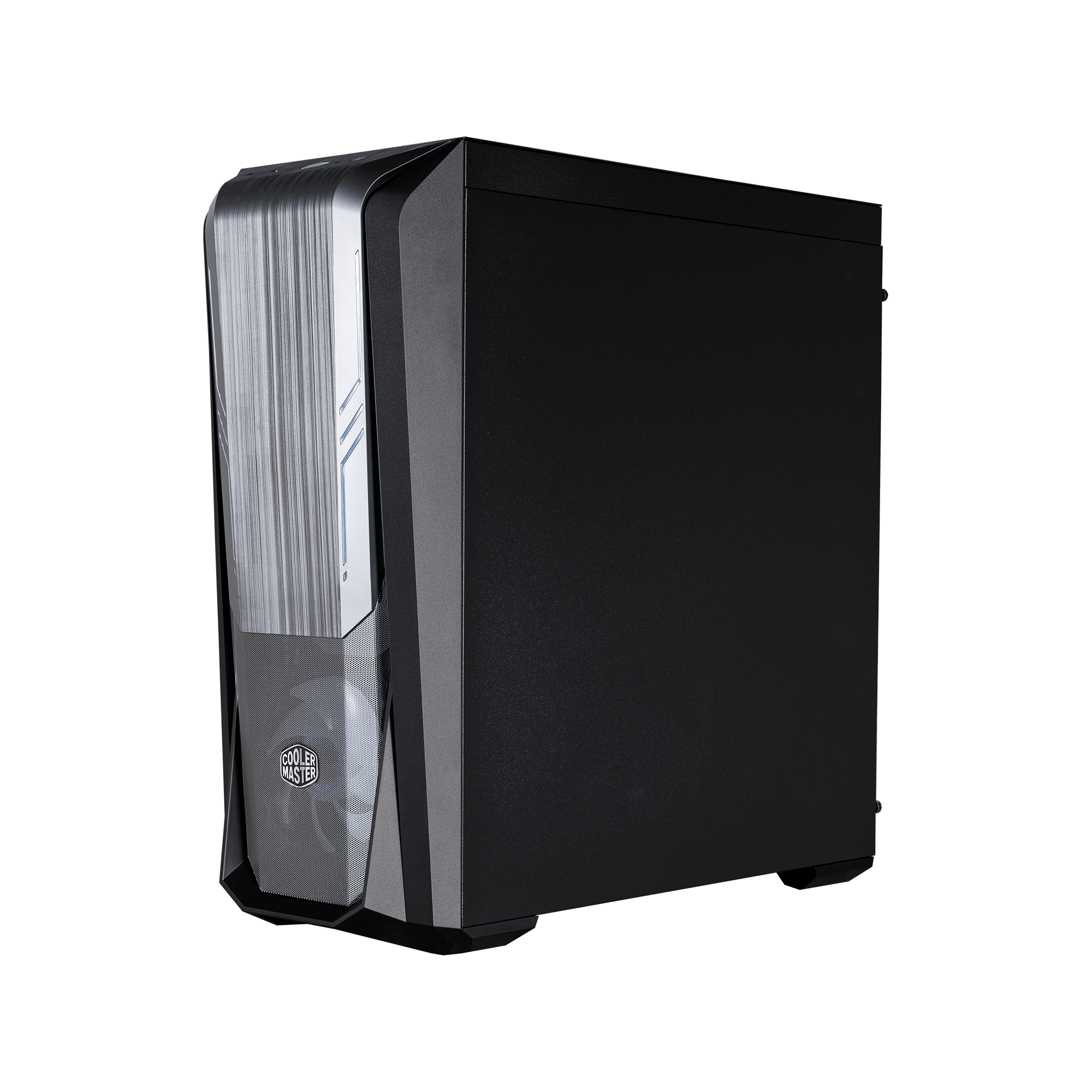

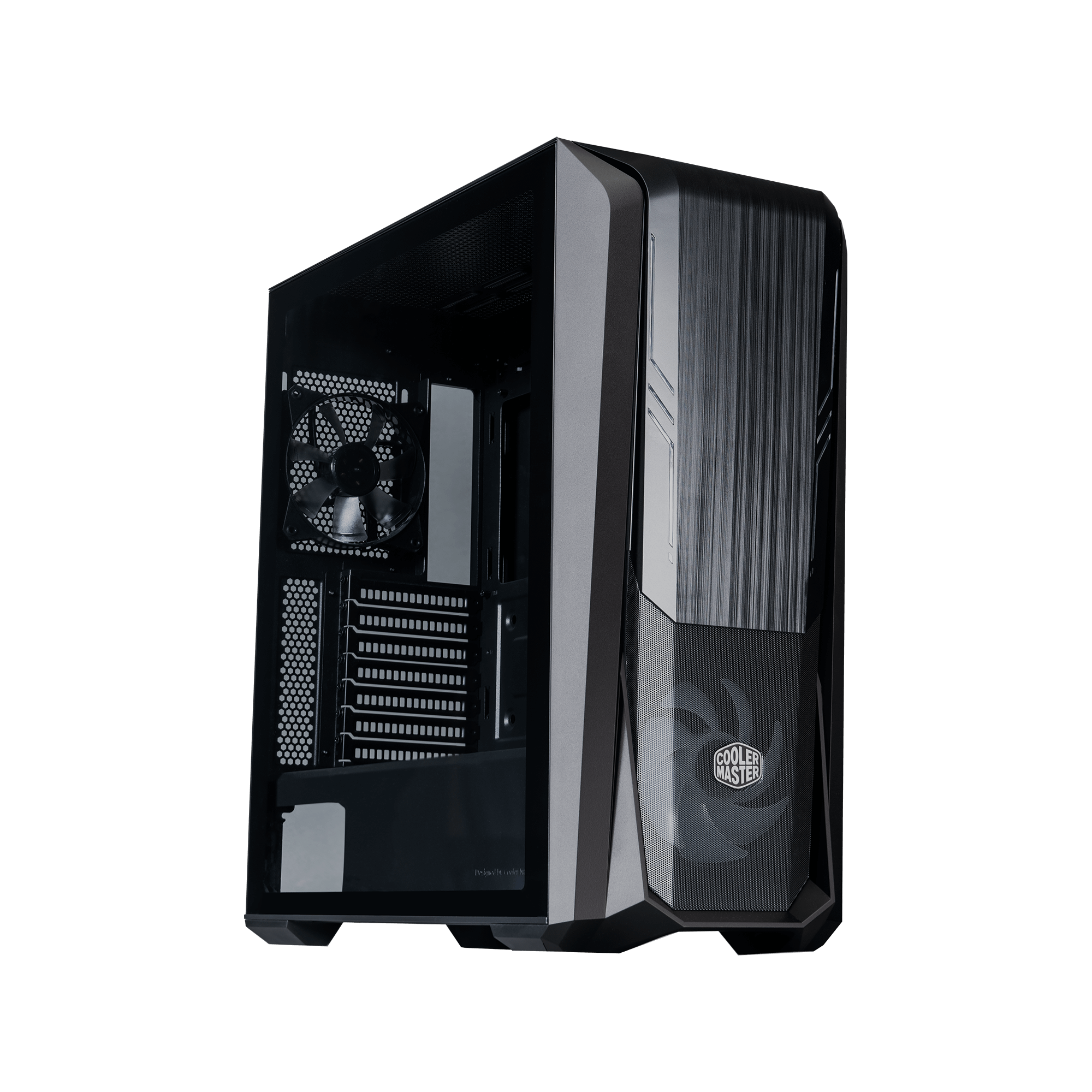

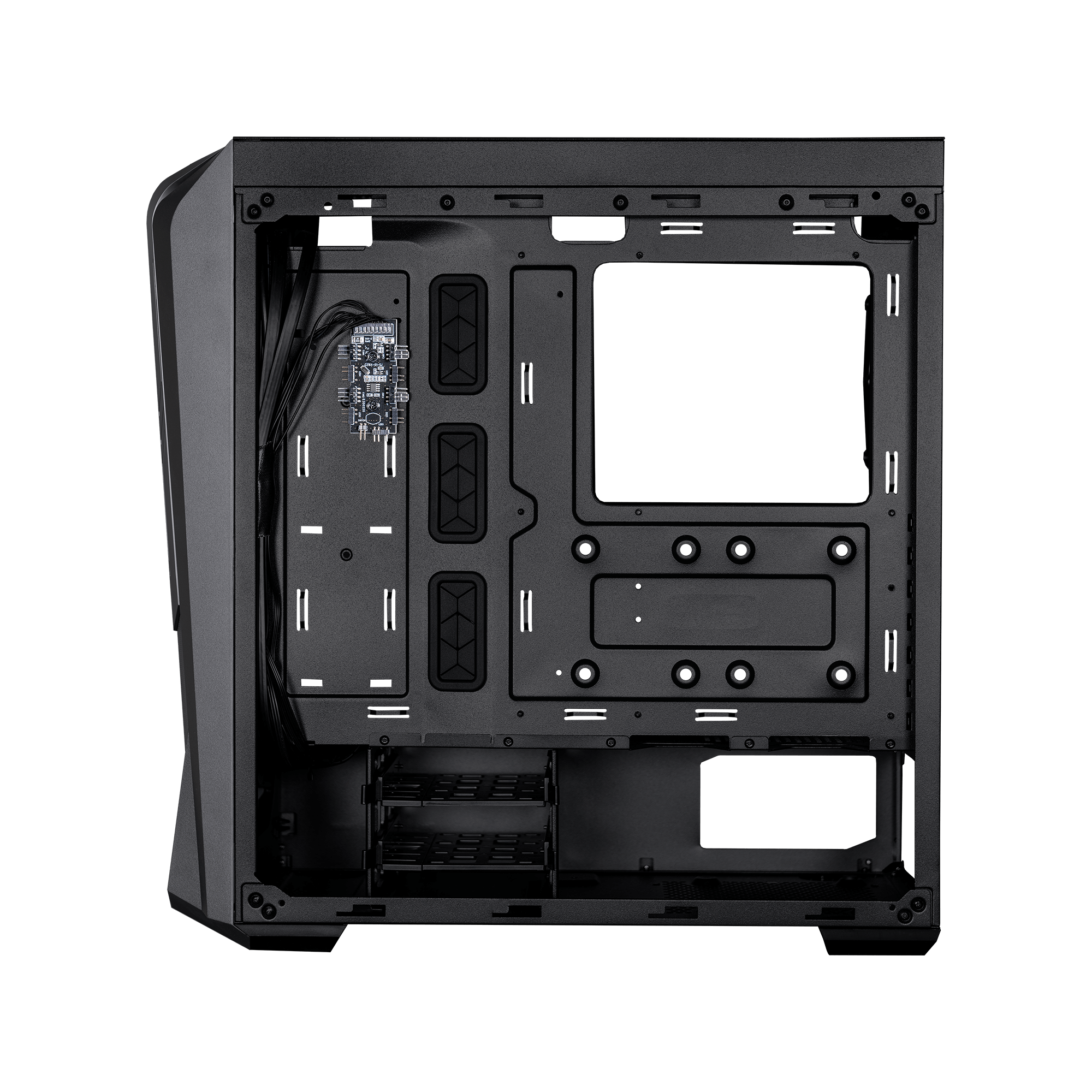

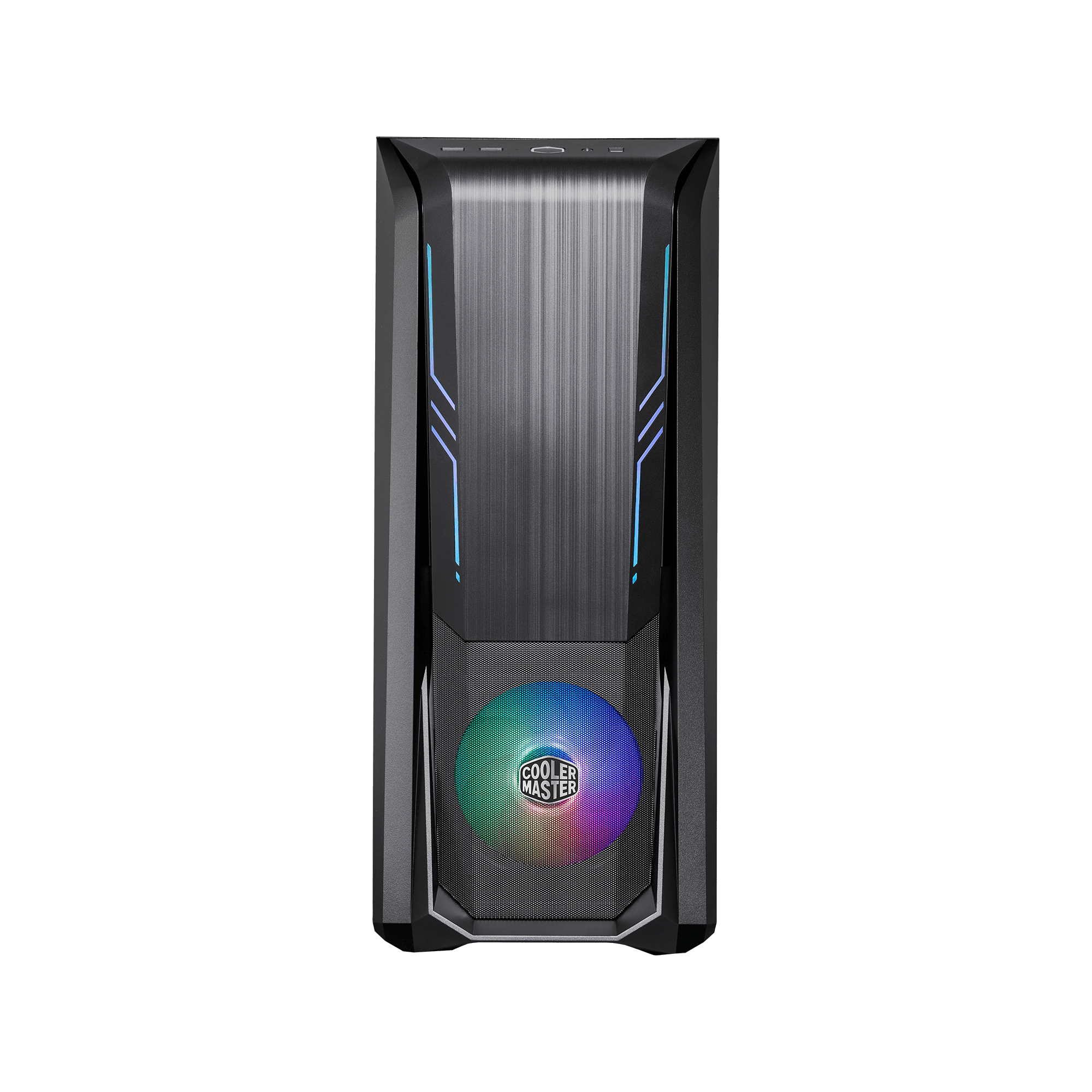

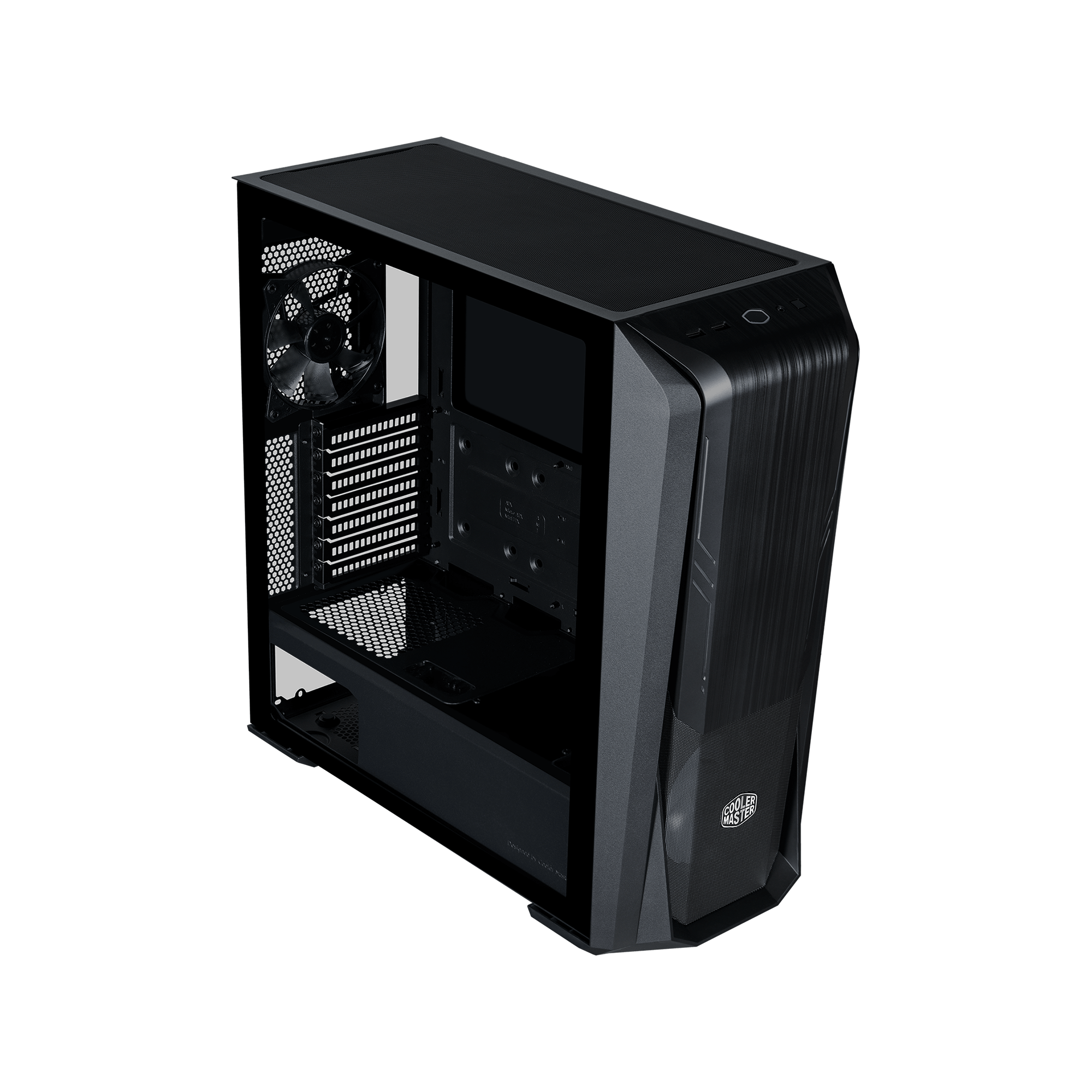

MasterBox 500
With top-notch gaming support and stealthy, futuristic design, MasterBox 500 really is the best of both worlds.
model
- Model Number MB500-KGNN-S00
- Exterior Color Black
- Materials - Exterior Steel, Mesh, Plastic
- Materials - Left Side Panel Tempered Glass
- Dimensions (L x W x H) 505 x 209 x 499mm (incl. Protrusions), 491 x 209 x 499mm (excl. Protrusions)
- Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
- Expansion Slots 7
- 5.25" Drive Bays N/A
- 2.5" / 3.5" Drive Bays (Combo) 2
- 2.5" Drive Bays 4
- I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type A
- I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
- I/O Panel - Other 1x Reset/ARGB button
- ARGB Controller ARGB Hub
- Pre-installed Fans - Top N/A
- Pre-installed Fans - Front 1x 120mm CF120 ARGB
- Pre-installed Fans - Rear 1x 120mm MF120 non-LED Fan
- Fan Support - Top 3x 120mm / 2x 140mm
- Fan Support - Front 3x 120mm / 2x 140mm
- Fan Support - Rear 1x 120mm
- Radiator Support - Top 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
- Radiator Support - Front 120 / 140 / 240 / 280 / 360mm
- Fan Support - Front 3x 120mm
- Fan Support - Top 3x 120mm
- Radiator Support - Rear 120mm
- Clearance - CPU Cooler 165mm/6.49"
- Clearance - PSU 180mm / 7.08" (295mm / 11.61" with HDD cage removed)
- Clearance - GFX 410mm/16.1"
- Dust Filters Front, Top, Bottom
- Power Supply Support ATX
- Warranty 2 years
- Size Mid Tower
- Series MasterBox Series
