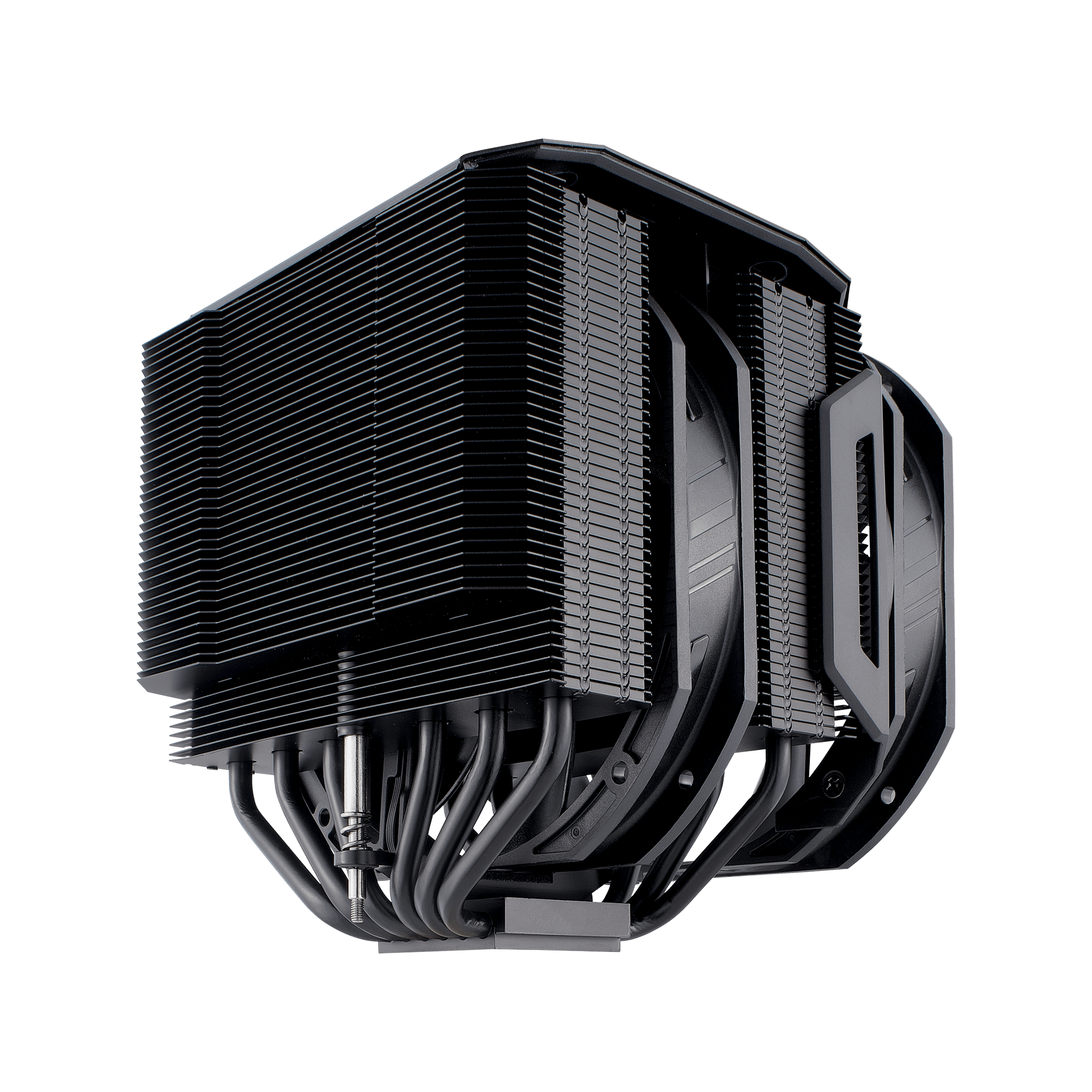

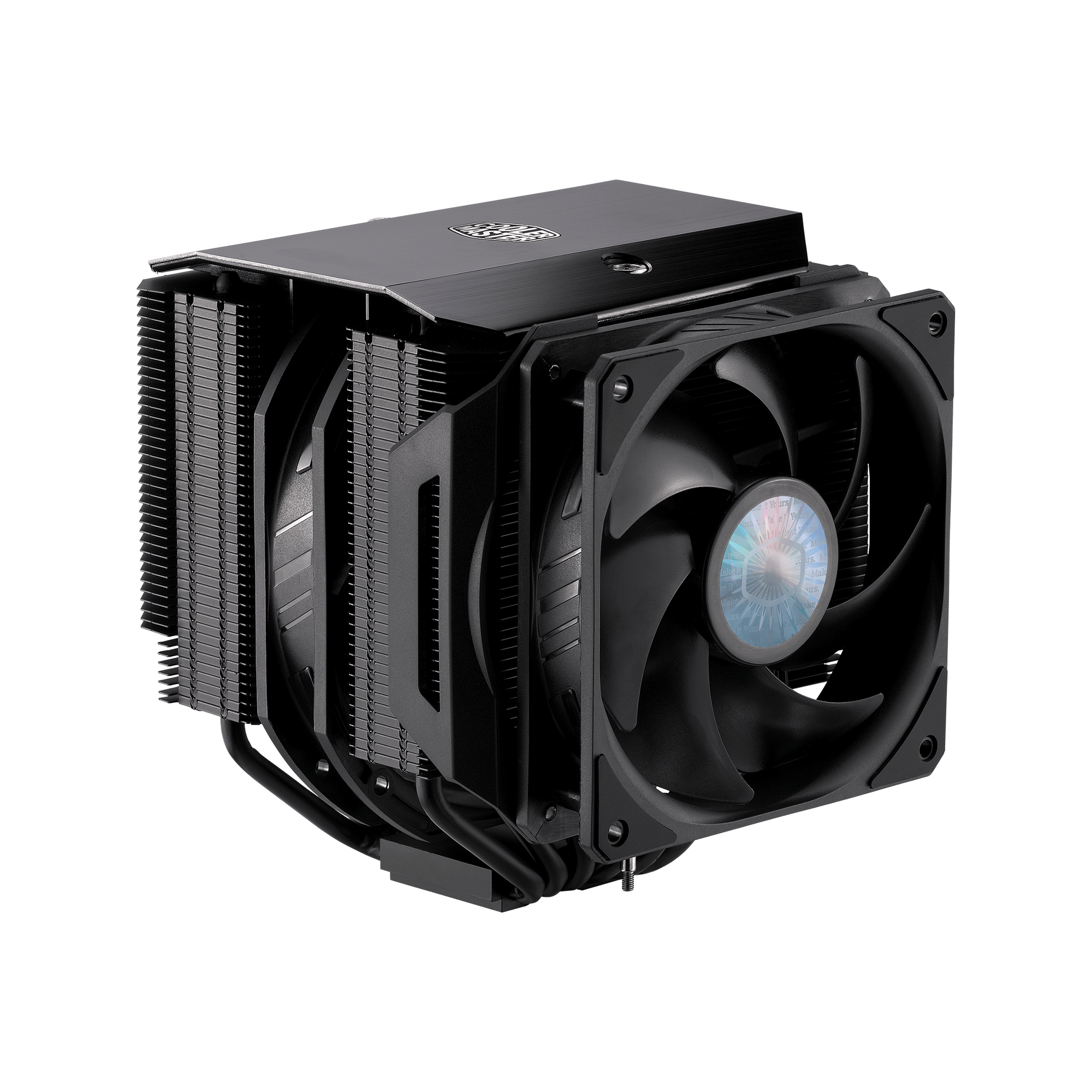

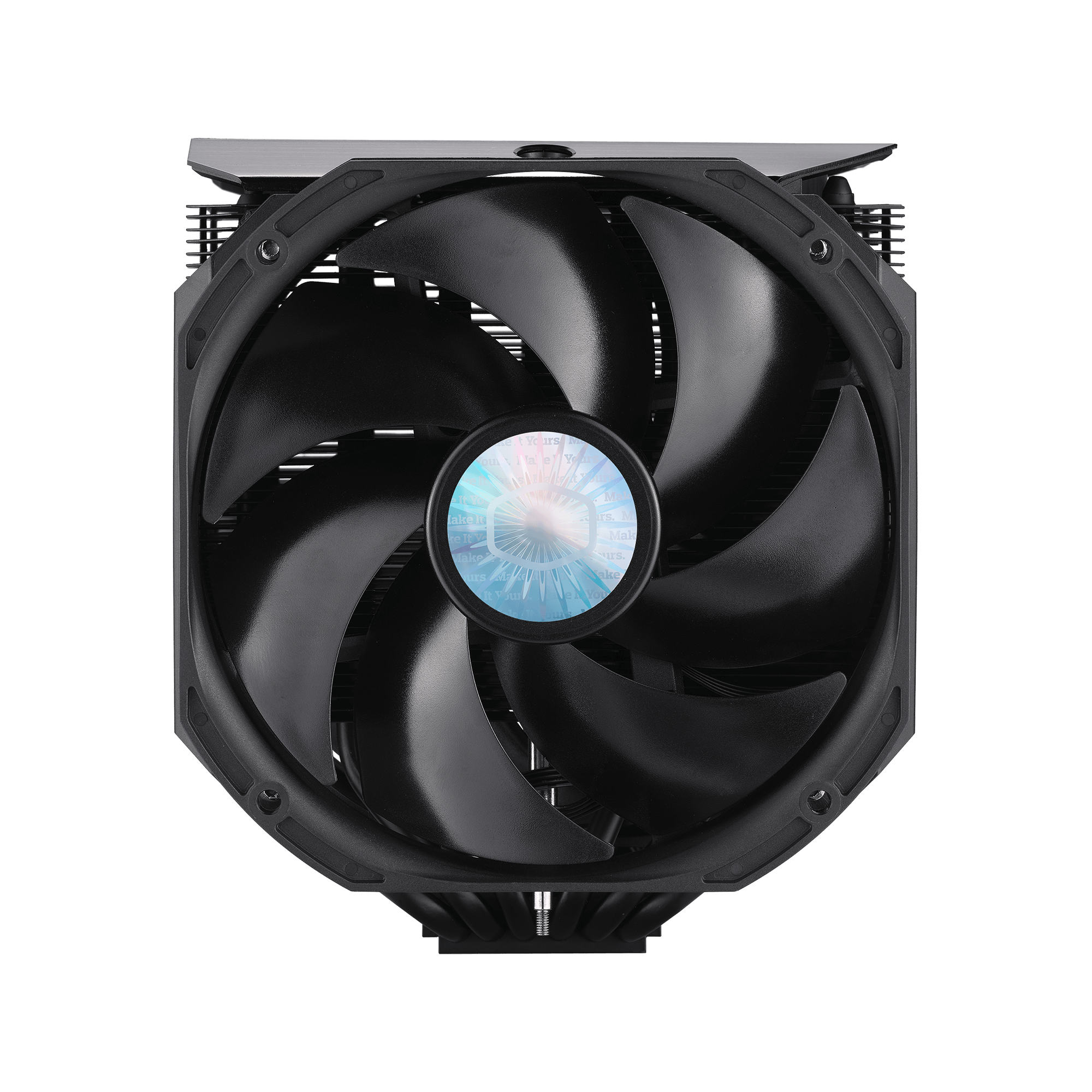

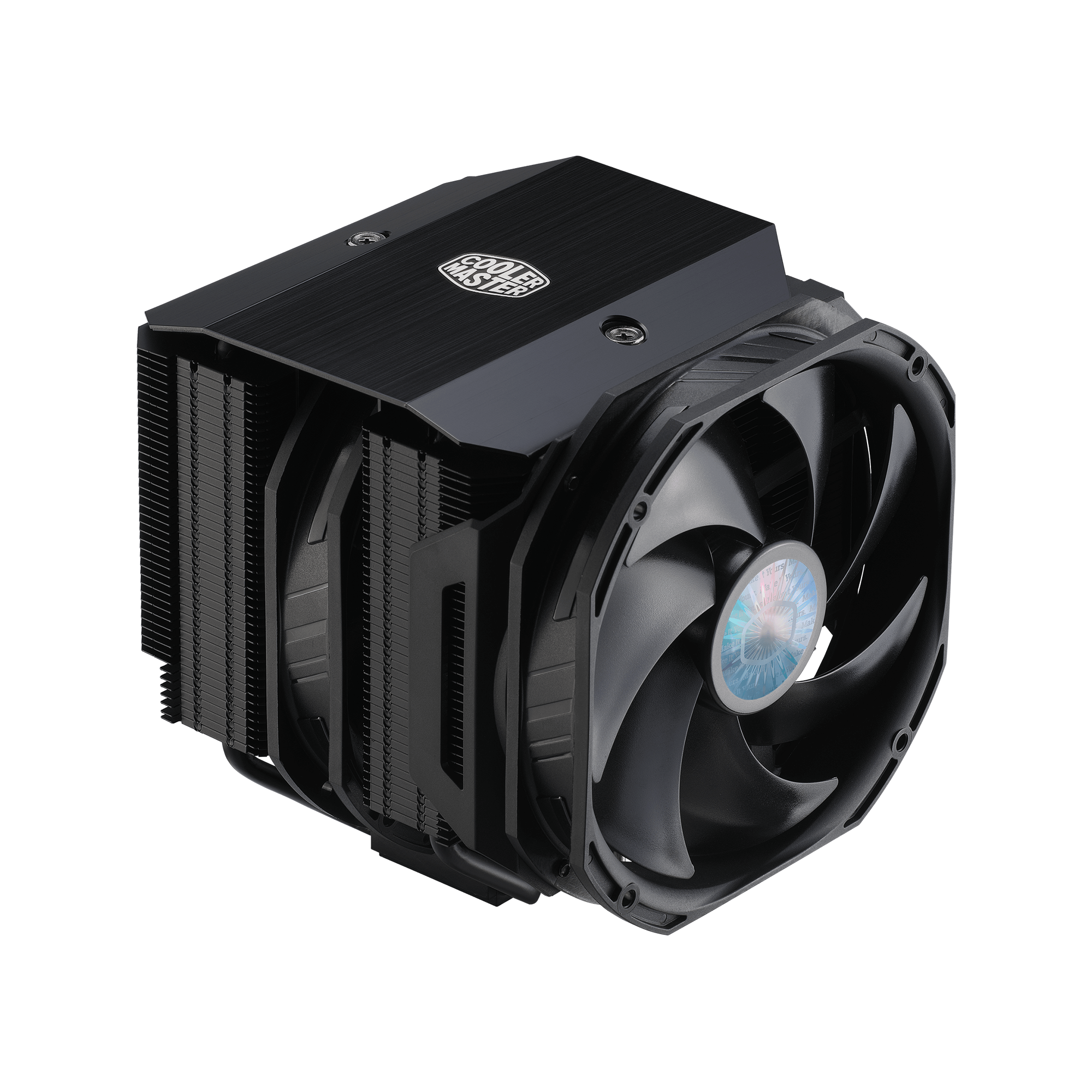

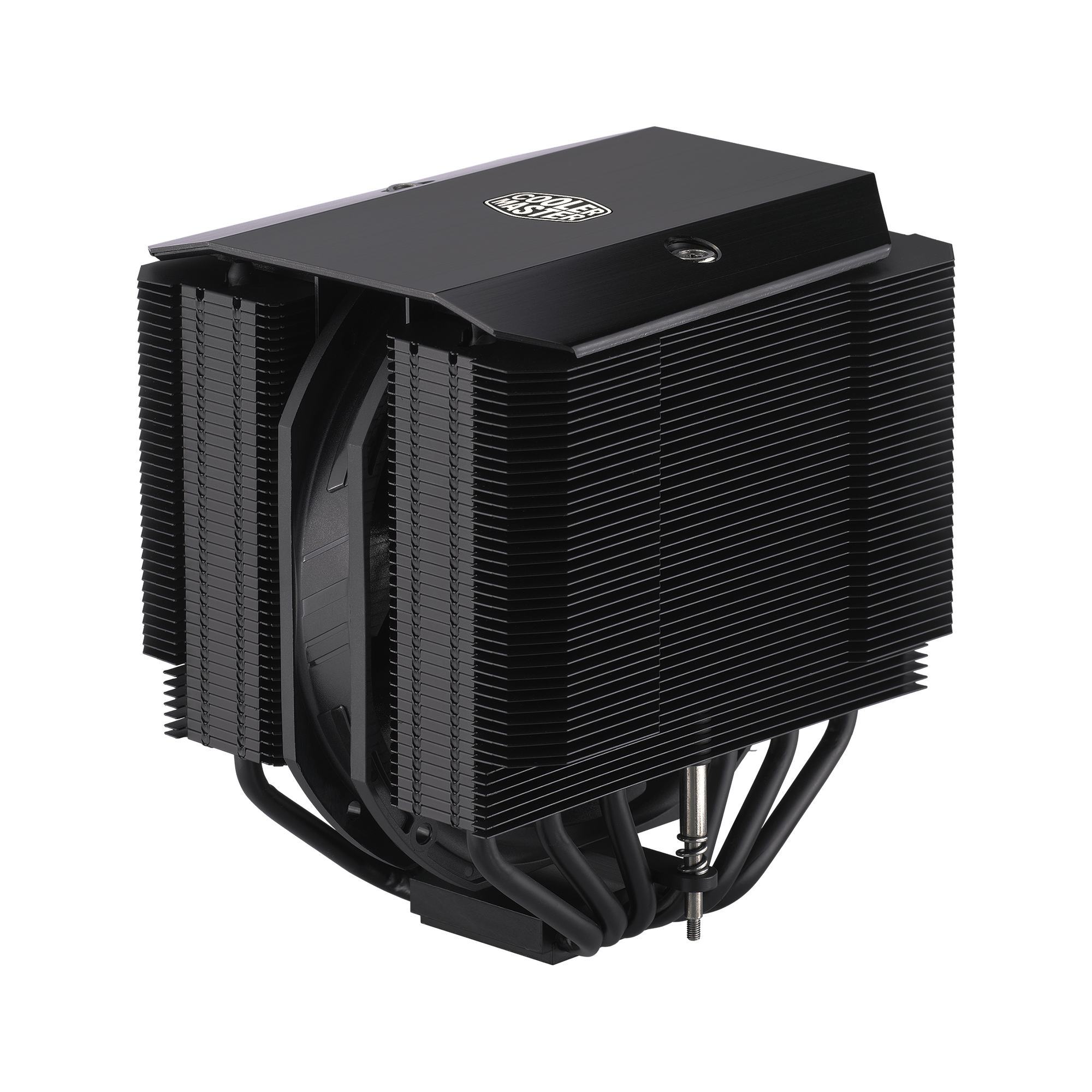

MasterAir MA624 Stealth

Specifications

• Fan Rated Voltage 12 VDC
• Cooler Type Air Cooler
• Exterior Color Black
• Fan Power Connector 4-Pin (PWM)
• CPU Socket LGA2066
• CPU Socket LGA2011-v3
• Fan MTTF 160,000 Hours
• Series MasterAir
• Warranty 5 years
• CPU Socket LGA2011
• Fan Quantity 140 mm Fan - 2 PCS
• Fan Quantity 120 mm Fan - 1 PC

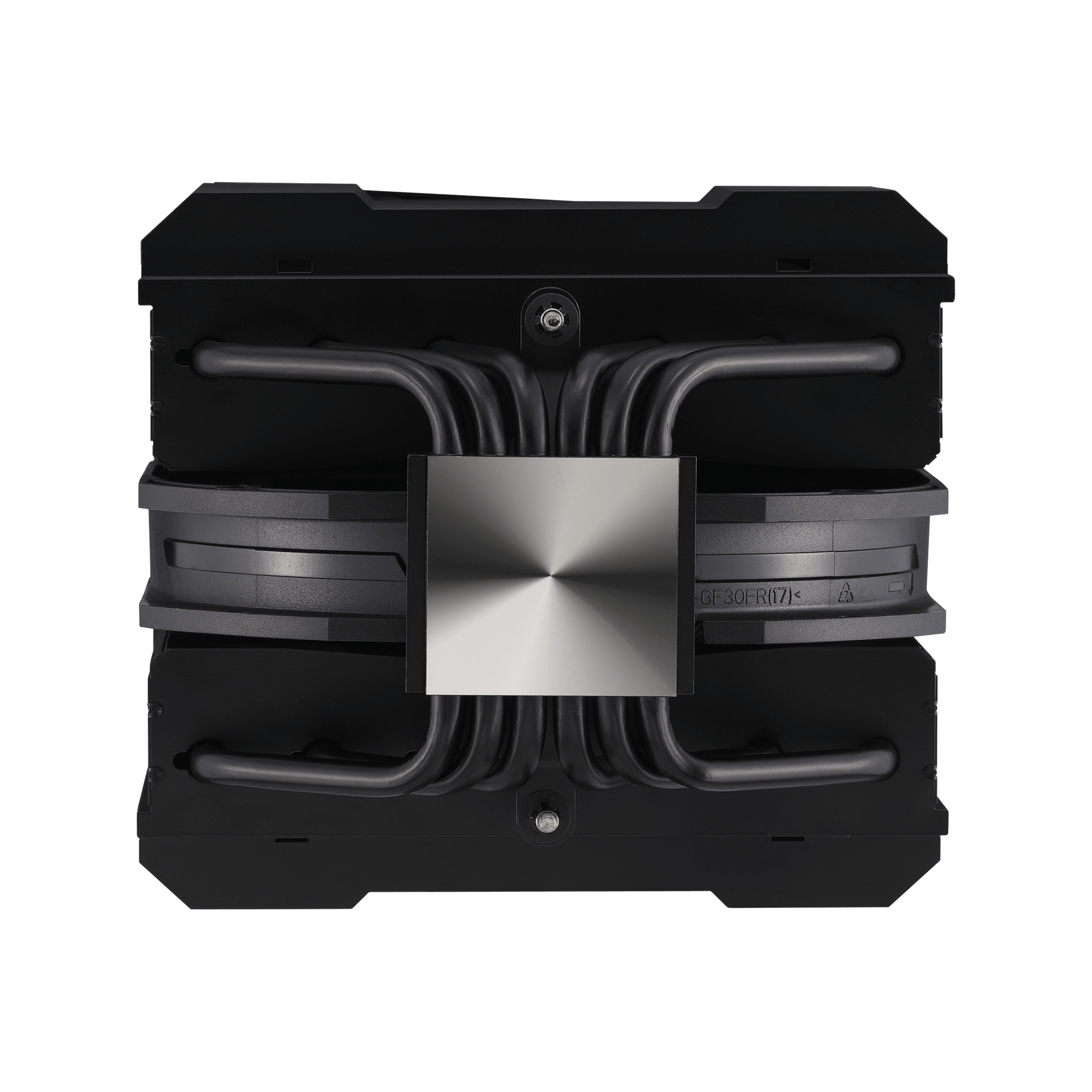

• Heatpipes 6
• CPU Socket LGA1700
• CPU Socket LGA1366
• CPU Socket LGA1200
• Heat Sink Material 6 Heat Pipes
• CPU Socket LGA1156
• CPU Socket LGA1155

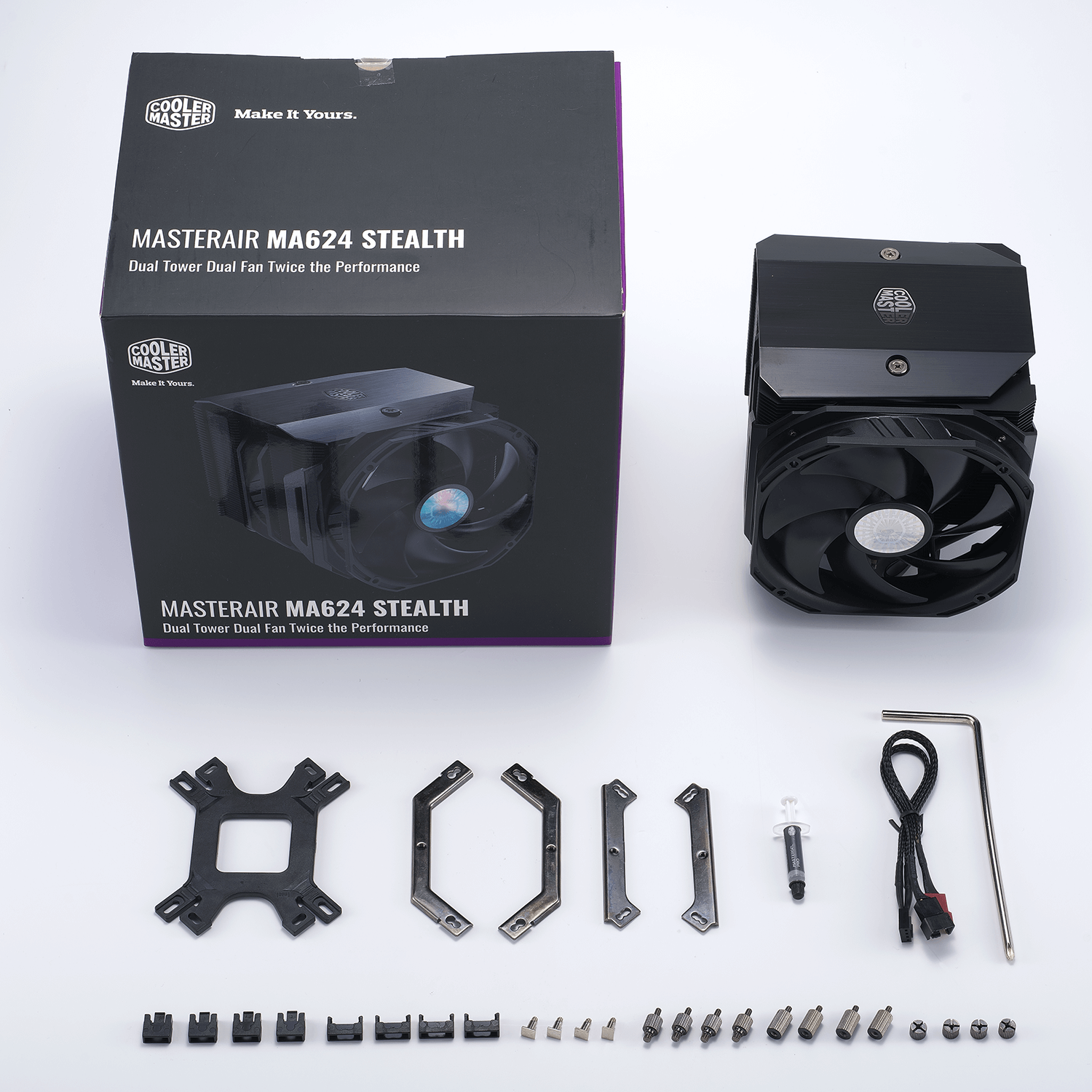

• Note *LGA1700 mounting kit included in products with New Packaging Design. You may obtain required mounting kits for products with older package design through CM store or regional resellers and distributors.
• CPU Socket LGA1151
• CPU Socket LGA1150
• Fan Power Consumption 1.8W
• Heat Sink Material Aluminum Fins
• Fan Rated Current 0.15A
• CPU Socket AM4
• Fan Safety Current 140 mm Fan - 0.4A
• Fan Safety Current 120 mm Fan - 0.37A
• CPU Socket AM3+
• CPU Socket AM3
• CPU Socket AM2+
• CPU Socket AM2
• CPU Socket FM2+
• CPU Socket FM2
• CPU Socket FM1
• Fan Dimensions (L x W x H) 140 mm Fan - 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch
• Fan Dimensions (L x W x H) 120 mm Fan - 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
• Fan Noise Level 140 mm Fan - 10 ~ 27 dBA
• Fan Noise Level 120 mm Fan - 8 ~ 27 dBA
• Dimensions (L x W x H) 144.9 x 153.2 x 160 mm / 5.7 x 6 x 6.3 inch
• Fan Air Pressure 140mm Fan - 2.25 mmH2O (Max)
• Fan Speed 140 mm Fan - 650-1400 RPM (PWM) ± 5%
• Fan Speed 120 mm Fan - 650-1800 RPM (PWM) ± 5%
• Fan Air Pressure 120mm Fan - 2.5 mmH2O (Max)
• Fan Airflow 140mm Fan - 67 CFM (Max)
• Fan Airflow 120mm Fan - 62 CFM (Max)
• Product Number MAM-D6PS-314PK-R1
