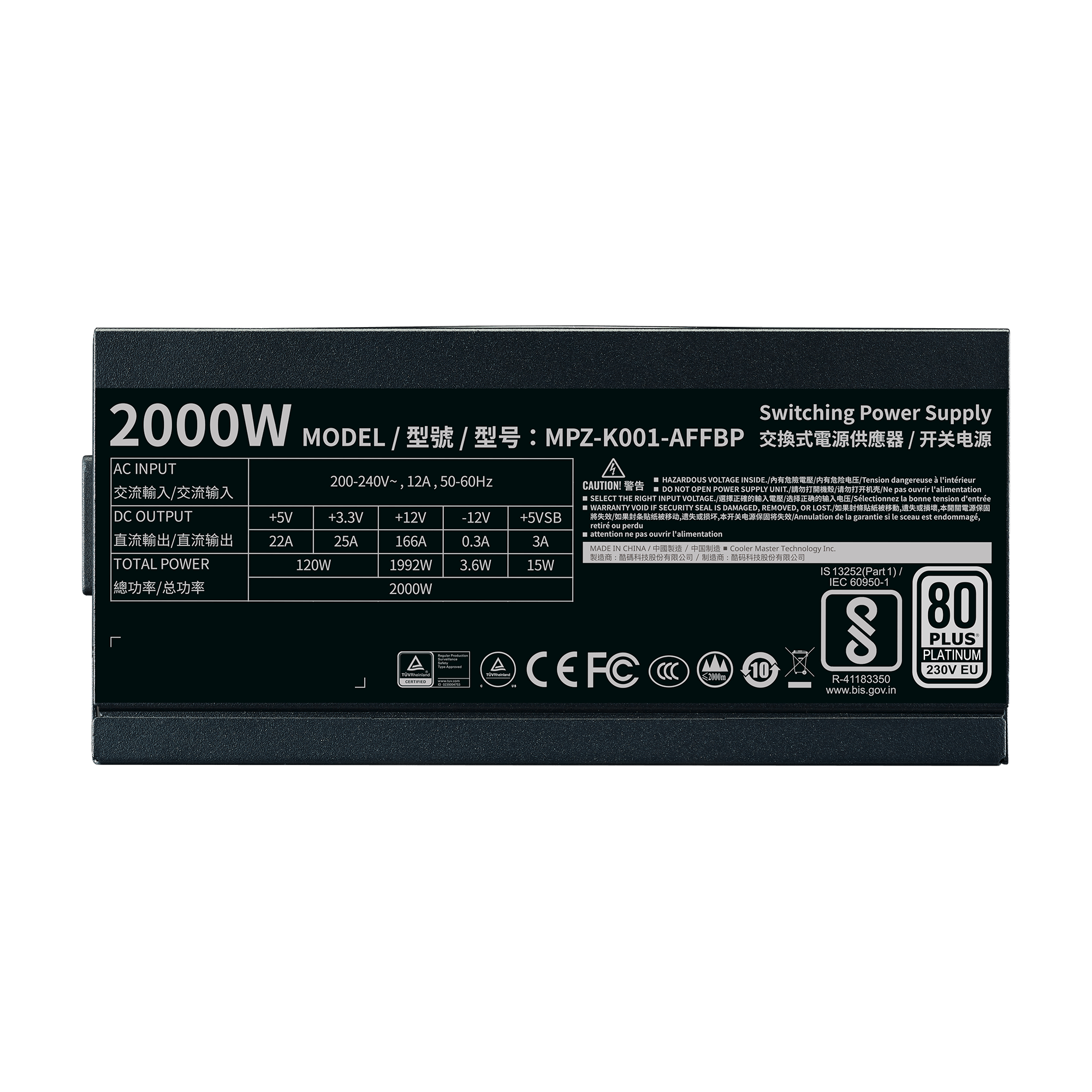

M2000 Platinum image number 4
M2000 Platinum image number 5
M2000 Platinum image number 6
M2000 Platinum image number 7
M2000 Platinum image number 8
M2000 Platinum
M2000 Platinum
M2000 Platinum
M2000 Platinum
M2000 Platinum
M2000 Platinum
M2000 Platinum
M2000 Platinum
M2000 Platinum

Full-Modular 80 PLUS Platinum Certified High Wattage ATX PSU

M2000 Platinum

2000W Maximum Load

80 PLUS Platinum Certified

135mm silent Fan

Full-Modular Cabling

7 Year Warranty

Specifications

  • Modular Fully Modular
  • PFC Active PFC
  • Input Frequency 50-60Hz
  • ErP 2014 Lot 3 Yes
  • Category Above 750W
  • FDD Cable 4 Pin Connectors 1
  • ATX 24 Pin Connectors 1
  • Power Good Signal 100 - 150 ms
  • EPS 4+4 Pin Connectors 2
  • Series M Series
  • 80 Plus Efficiency Platinum
  • MTBF >100,000 hours @ 25℃ ambient
  • SATA Connectors 12
  • Fan Size 135mm
  • Protections OVP
  • Peripheral 4 Pin Connectors 3
  • Fan Bearing DBB
  • Operating Temperature 50°C
  • ATX Version ATX 12V V2.52
  • 80 PLUS Rating 80 PLUS Platinum EU 230V
  • PCI-e 6+2 Pin Connectors 18
  • Protections OPP
  • Protections SCP
  • Protections UVP
  • Protections OTP
  • Fan Speed 2400 RPM
  • Protections OCP
  • Hold Up Time >16ms
  • Protections Surge and Inrush Protection
  • Input Voltage 200-240V
  • Efficiency 94% @ Typical Load
  • Regulatory CCC
  • Regulatory CE
  • Input Current 12A
  • Regulatory EAC
  • Regulatory cTUVus
  • Dimensions (L x W x H) 180 x 150 x 86 mm
  • Regulatory TUV
  • Regulatory RoHS2.0
  • Regulatory BIS
  • Regulatory UKCA
  • Model MPZ-K001-AFFBP
