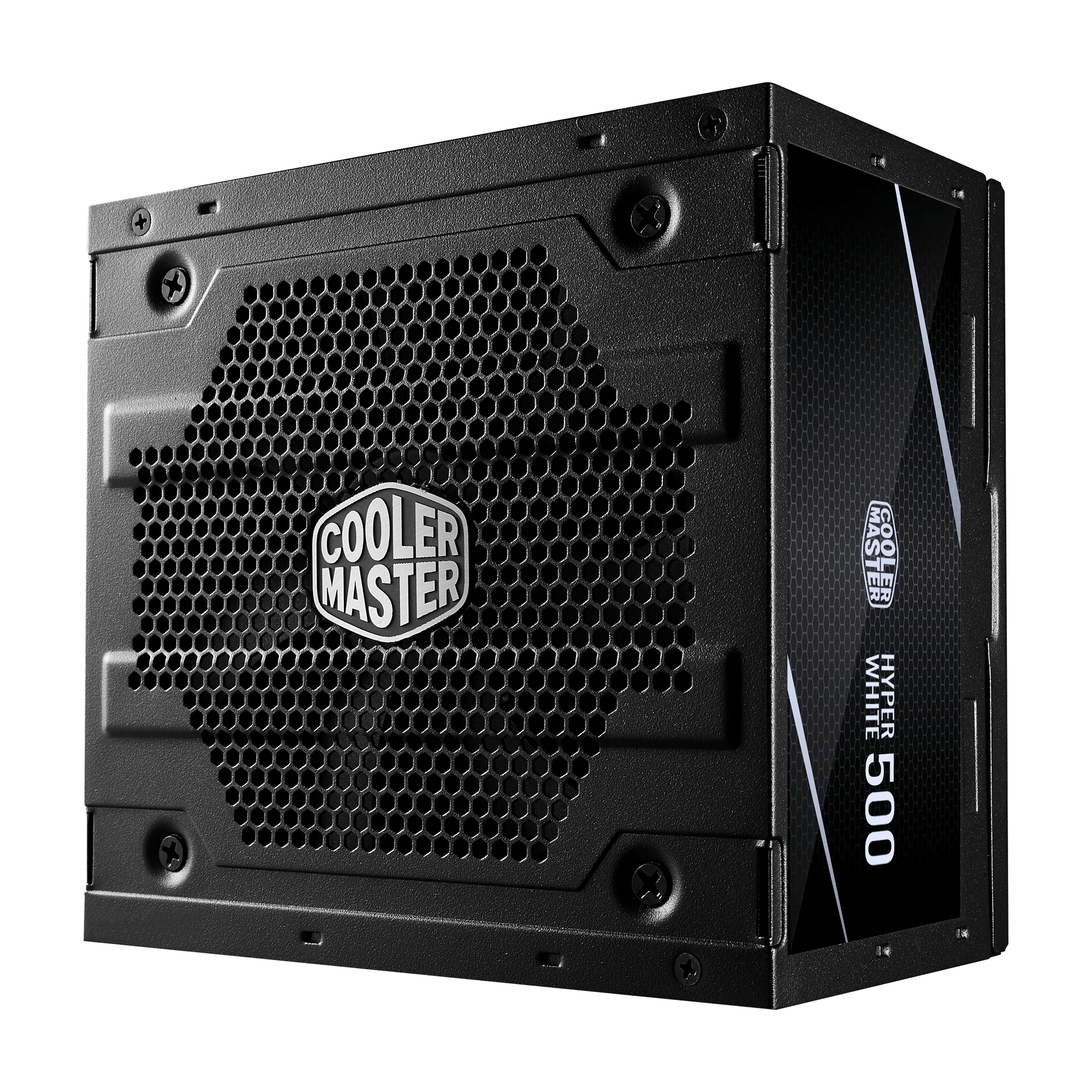

Hyper White 500 image number 0

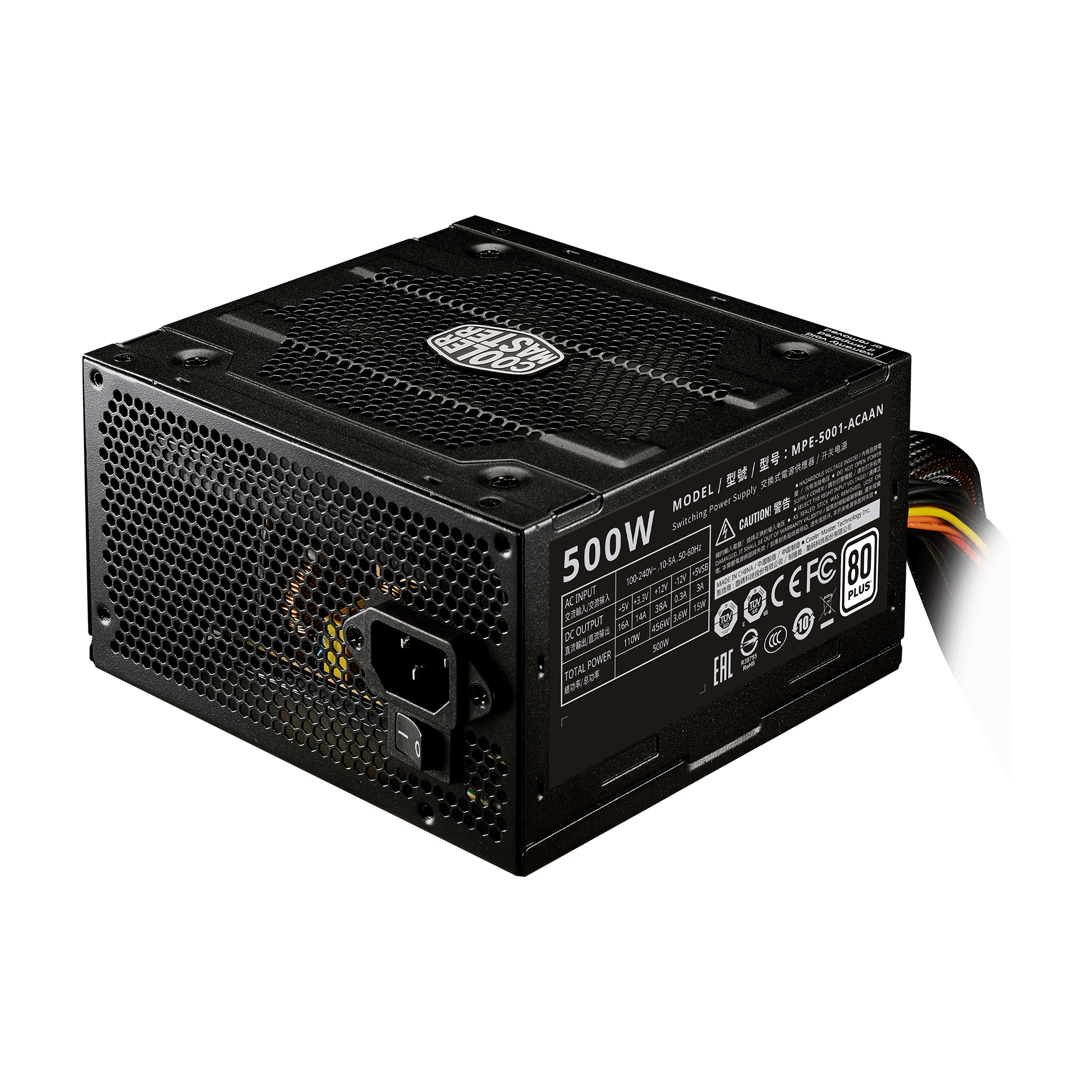

Hyper White 500 image number 1

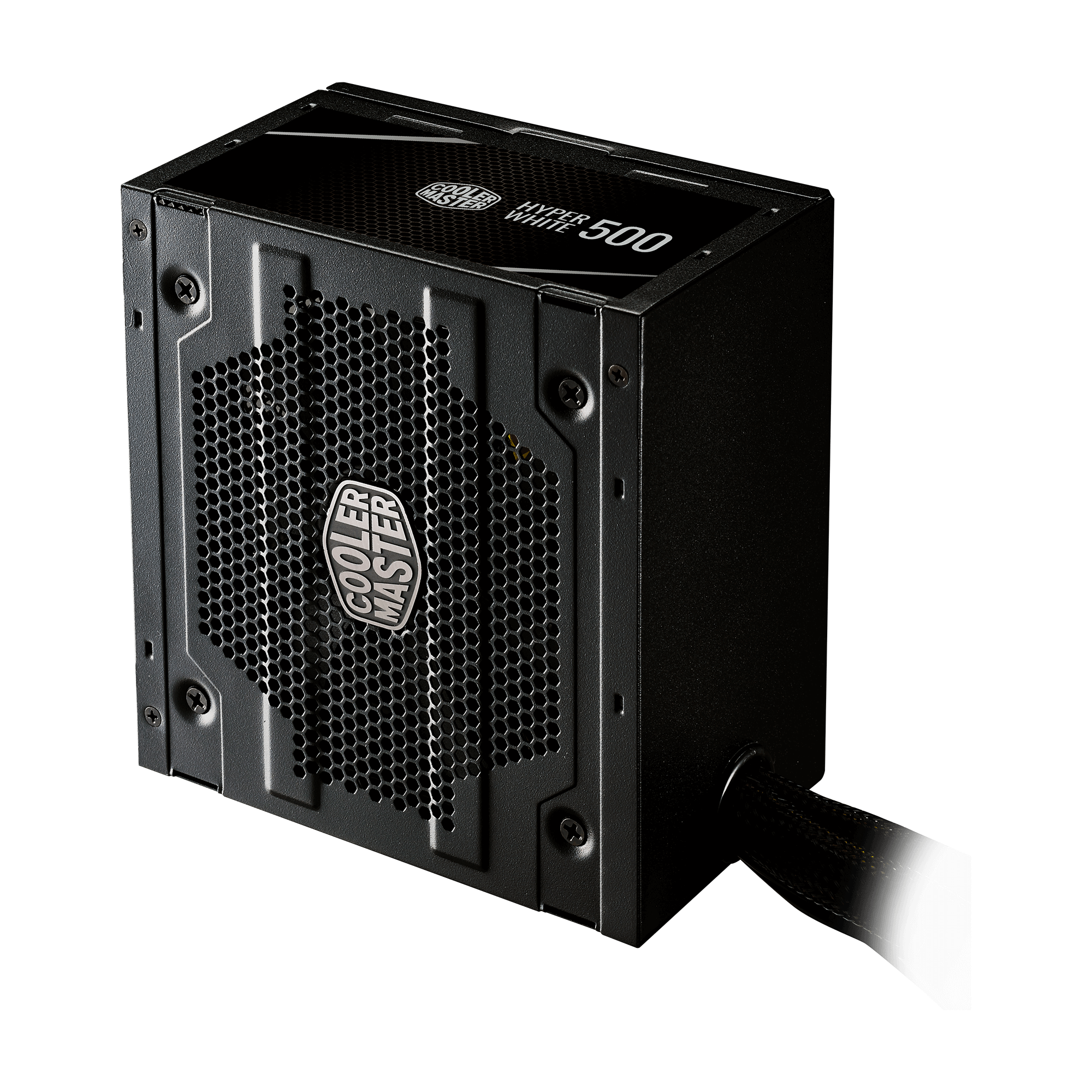

Hyper White 500 image number 2

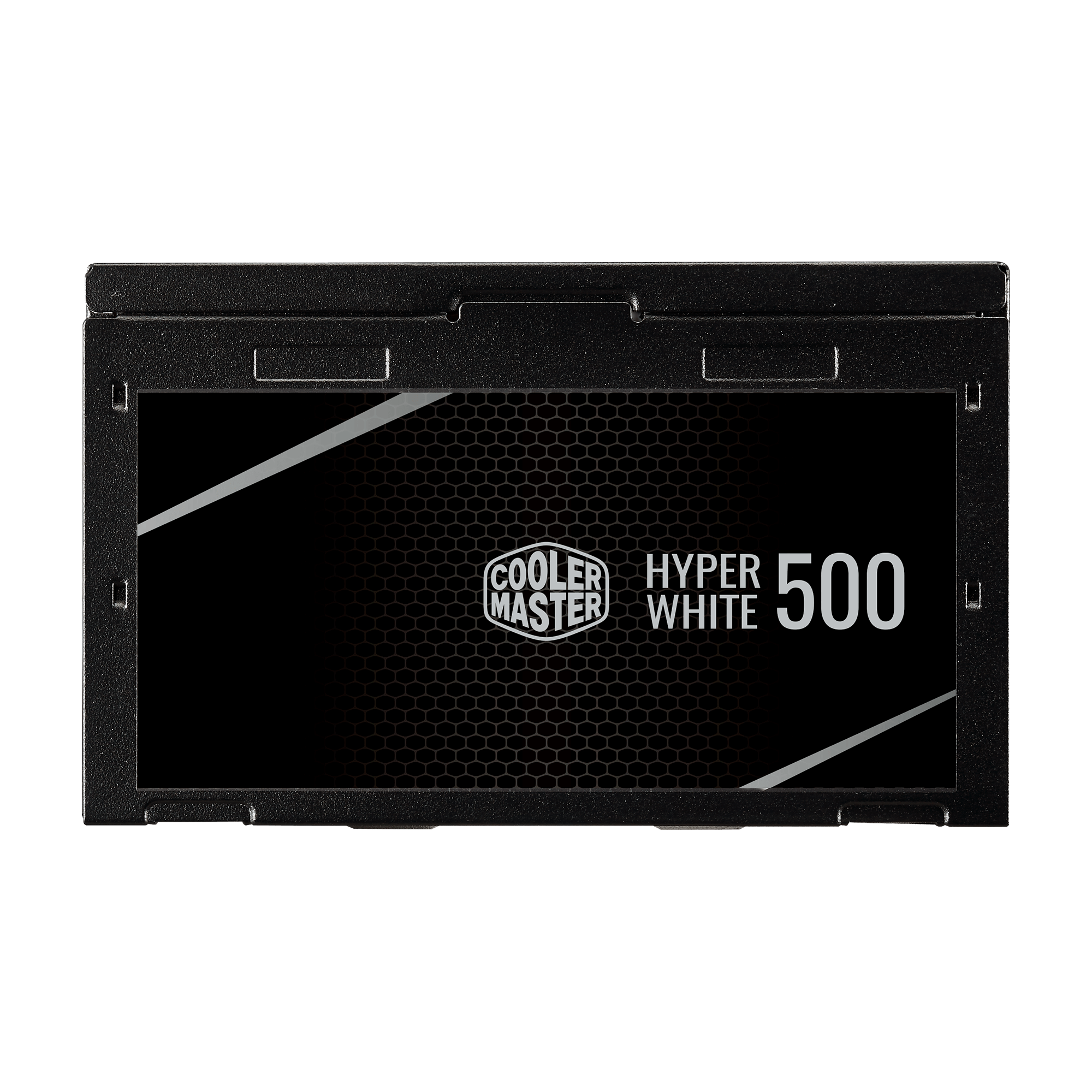

Hyper White 500 image number 3

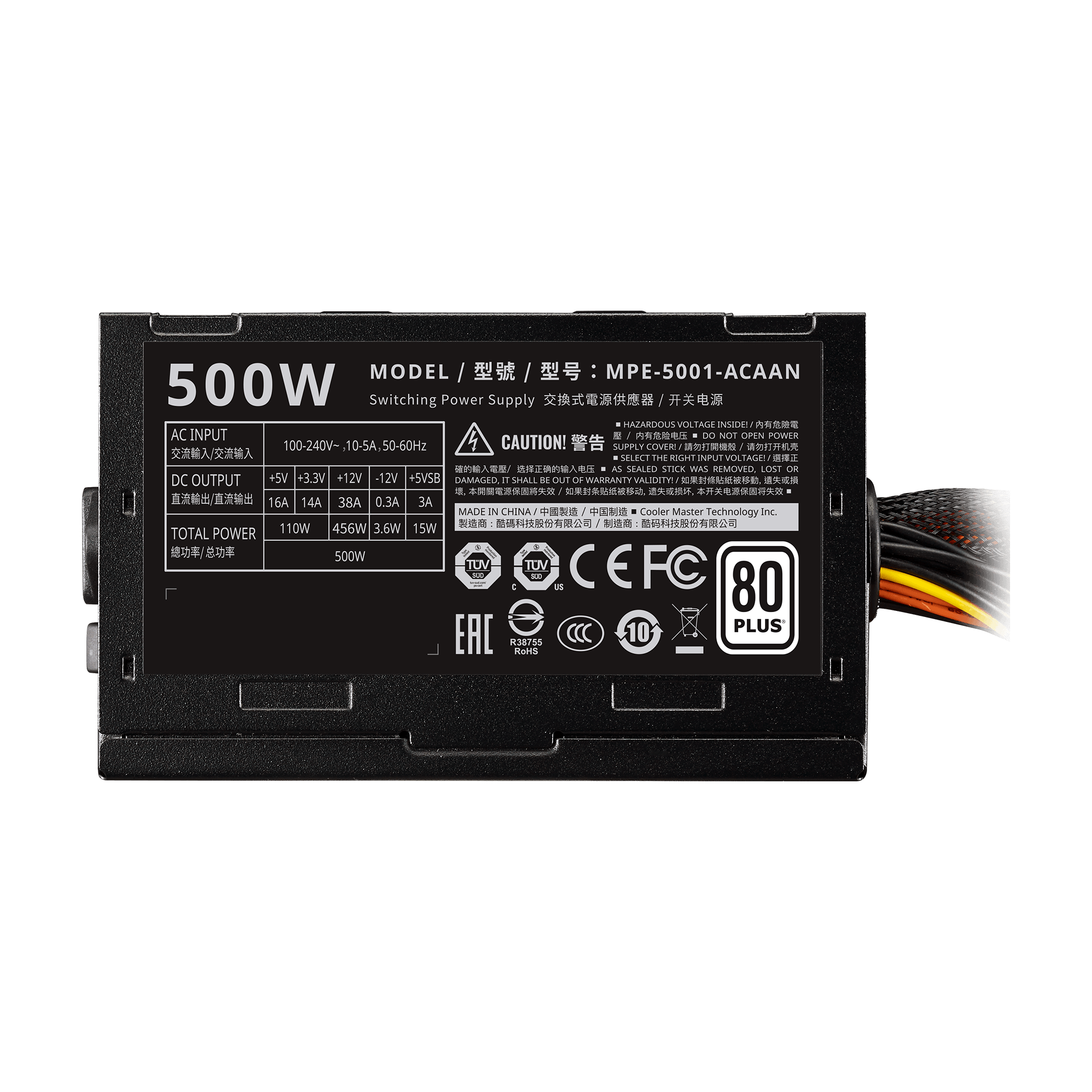

Hyper White 500 image number 4

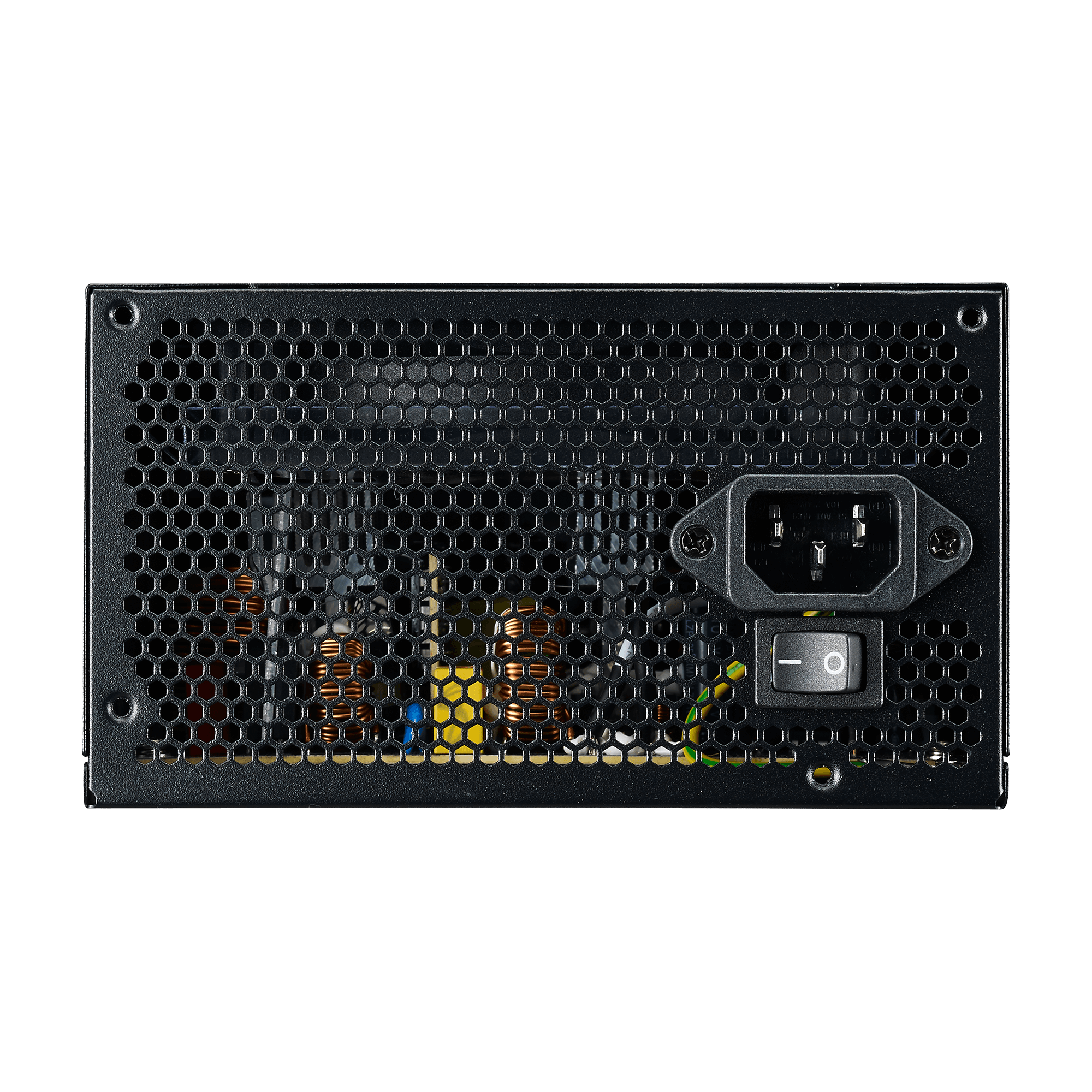

Hyper White 500 image number 5

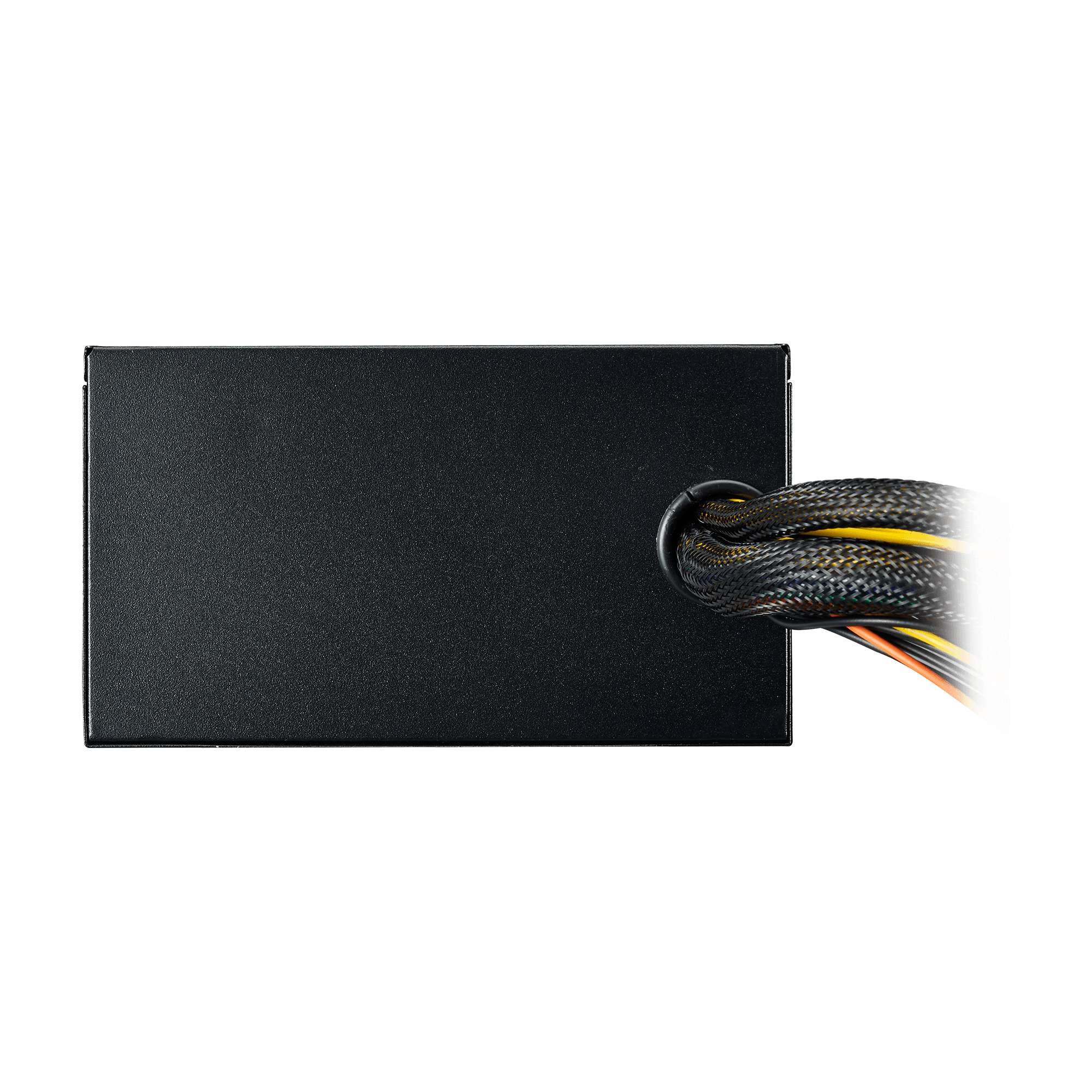

Hyper White 500 image number 6

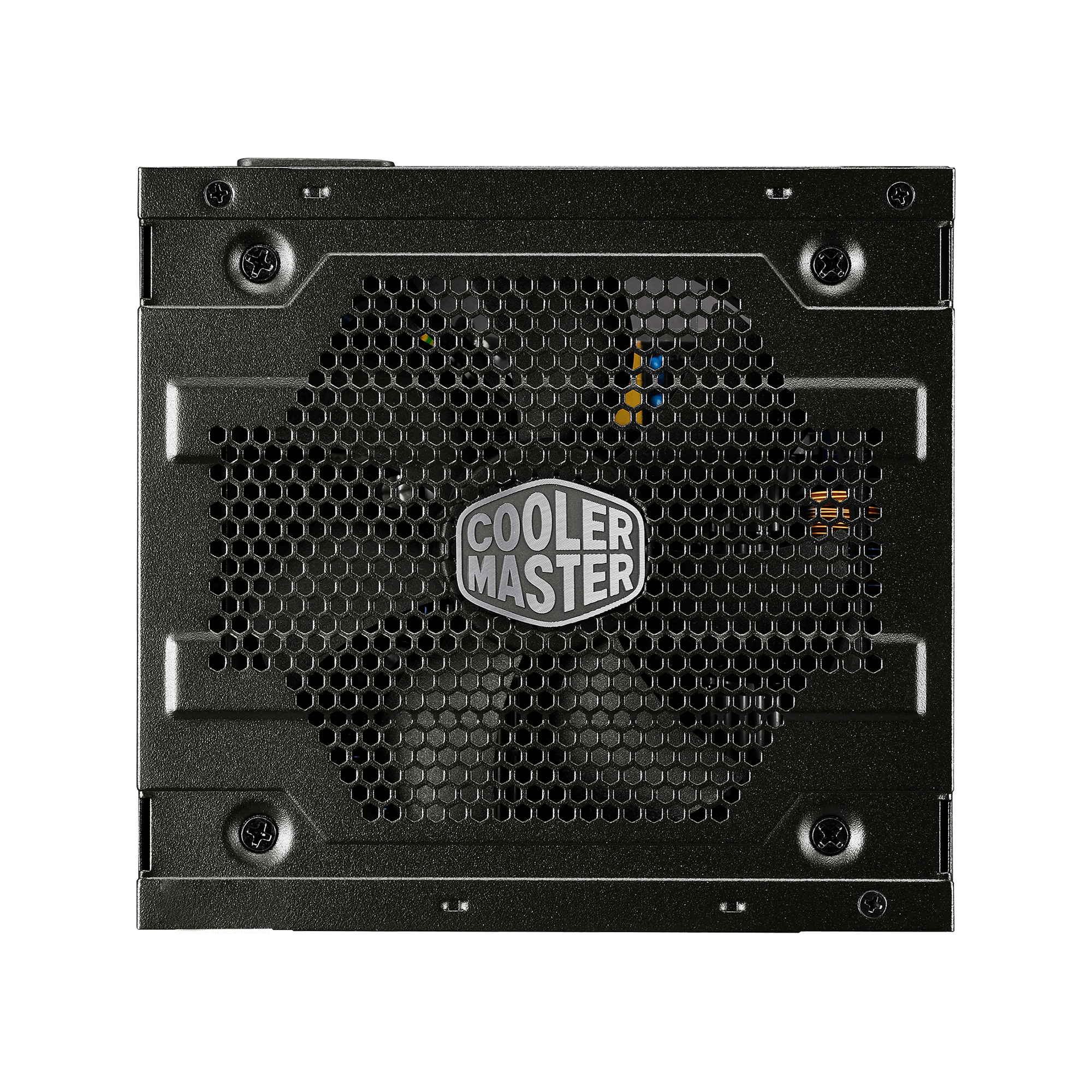

Hyper White 500 image number 7

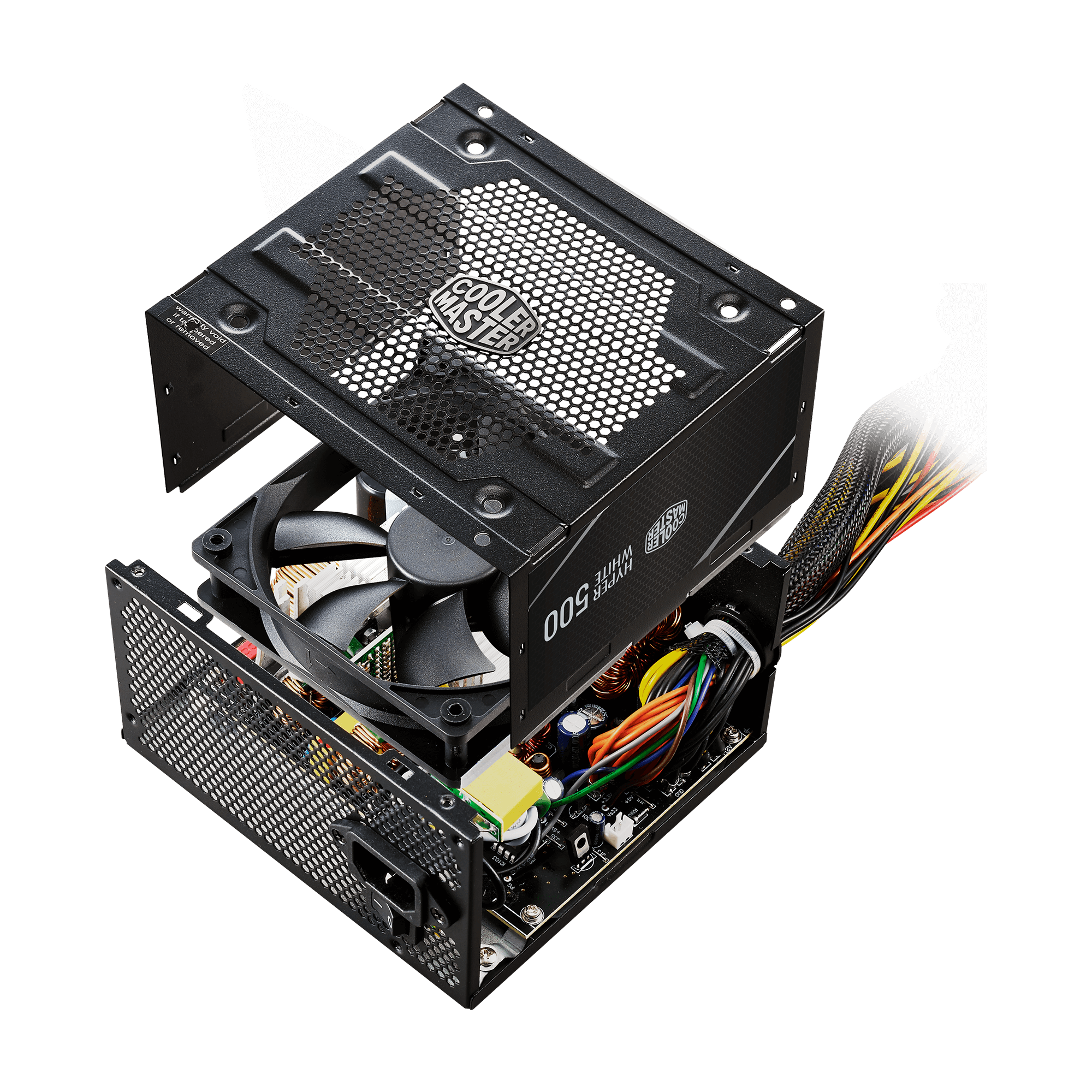

Hyper White 500 image number 8
Hyper White 500
Hyper White 500
Hyper White 500
Hyper White 500
Hyper White 500
Hyper White 500
Hyper White 500
Hyper White 500
Hyper White 500

Entry Level ATX Power Supply Unit

Hyper White 500

• Active PFC + Forward Topology Design

• High Temperature Resistance

• 80% Efficiency

• Durable, Reliable, and Safe

• 3 Year Warranty

Specifications

  • PFC Active PFC
  • Input Frequency 50-60Hz
  • ErP 2014 Lot 3 Yes
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors x1 = 1x (700mm)1
  • Power Good Signal 100 - 500 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • Fan Size 120mm
  • Category 500 to 750W
  • Modular Non Modular
  • 80 PLUS Rating 80 PLUS Standard
  • Fan Bearing Sleeve Bearing
  • Input Voltage 100-240V
  • 80 Plus Efficiency White
  • PCI-e 6+2 Pin Connectors 2
  • Operating Temperature 40°C
  • SATA Connectors 5
  • Protections OVP
  • Peripheral 4 Pin Connectors 3
  • Protections OPP
  • ATX Version ATX 12V Ver. 2.41
  • Protections SCP
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Protections UVP
  • Protections OTP
  • Regulatory CCC
  • Input Current 750W / 850W: 10 – 6 A​ | 1000W: 15 – 8 A
  • Regulatory CE
  • Efficiency ≥80% @ Typical Load
  • Regulatory EAC
  • Regulatory cTUVus
  • Regulatory FCC
  • Series Hyper Series
  • Hold Up Time ≥10ms at 100% load
  • Regulatory BSMI
  • Regulatory CB
  • Regulatory TUV
  • Regulatory S-MARK
  • Model MPE-5001-ACAAN-H
