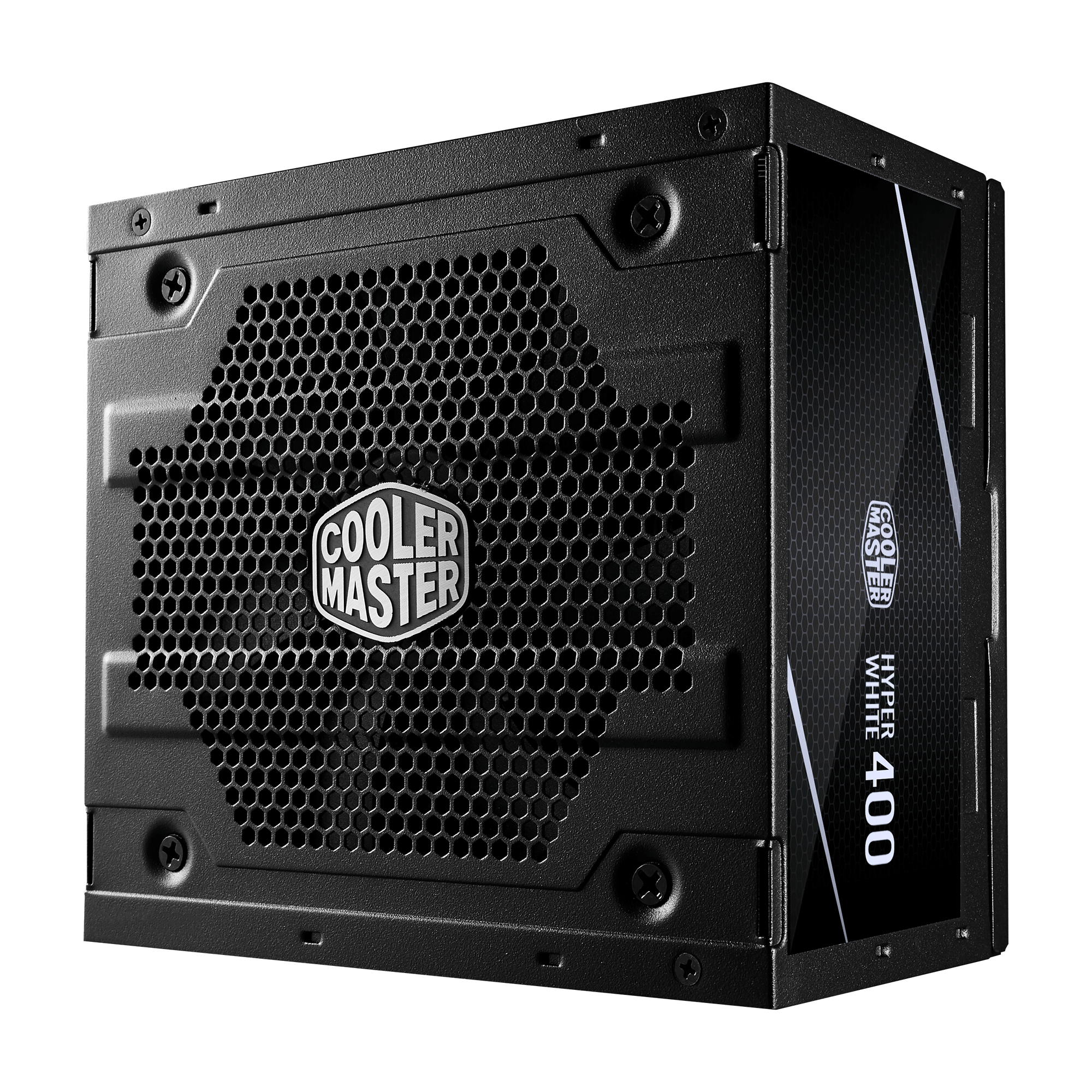

Hyper White 400 image number 0

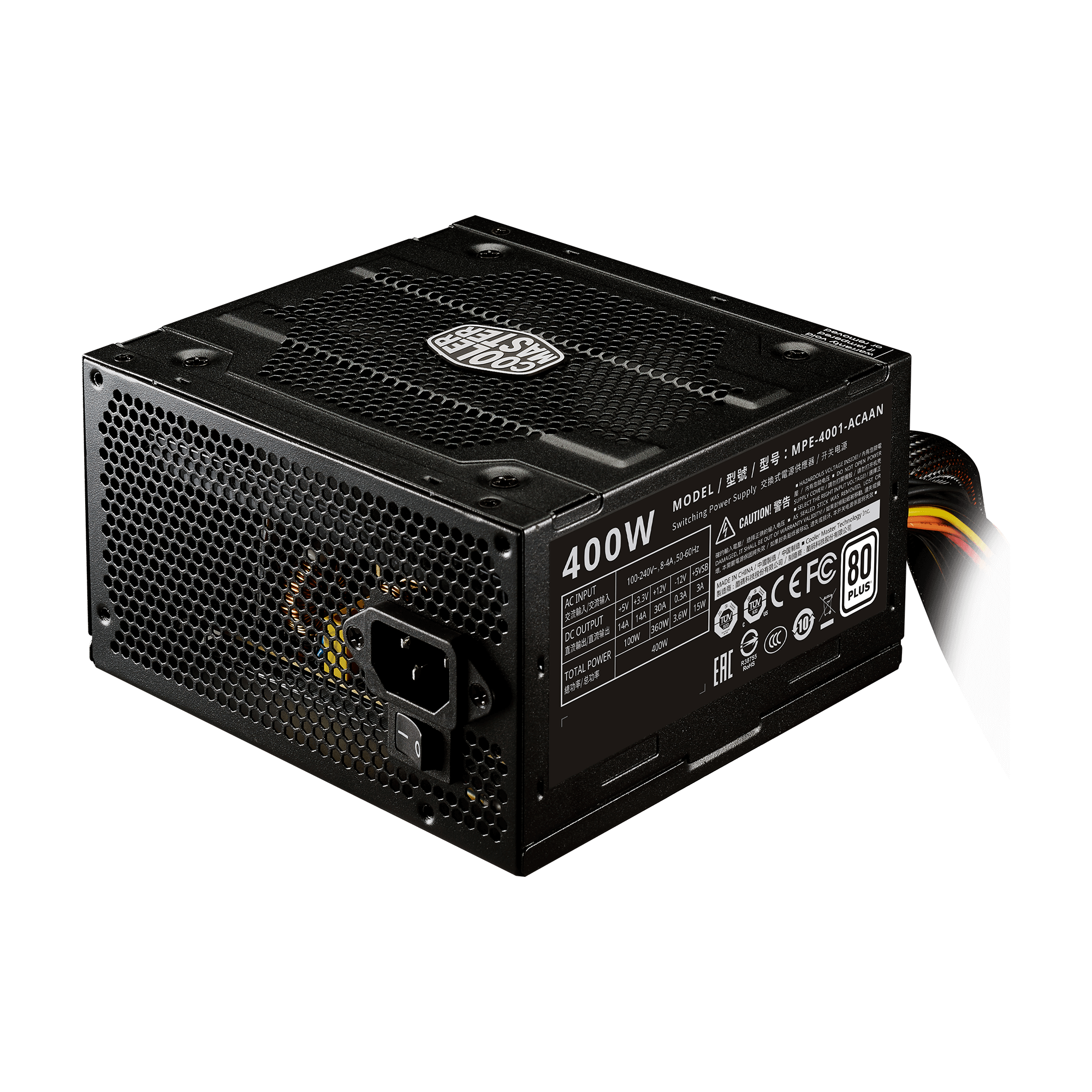

Hyper White 400 image number 1

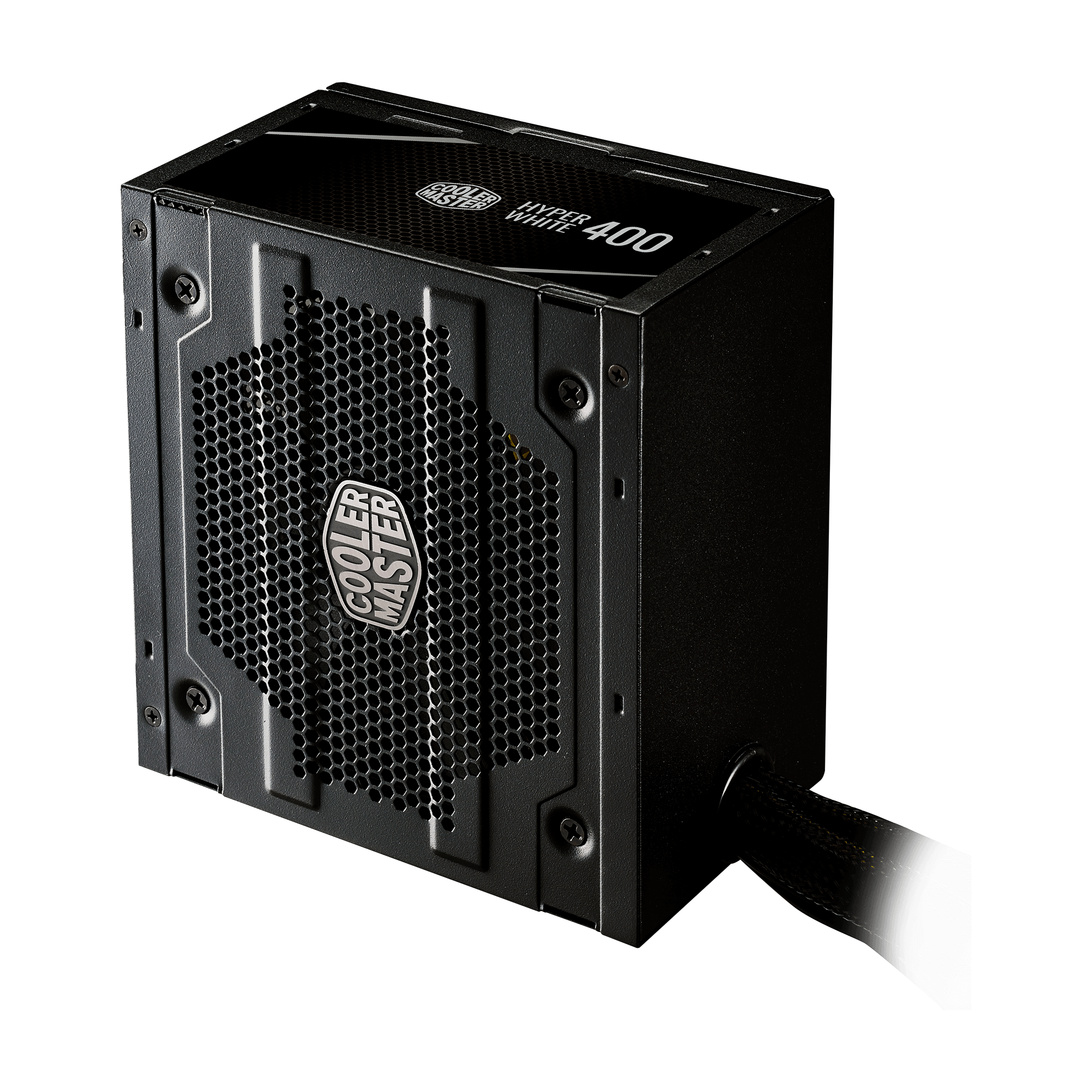

Hyper White 400 image number 2

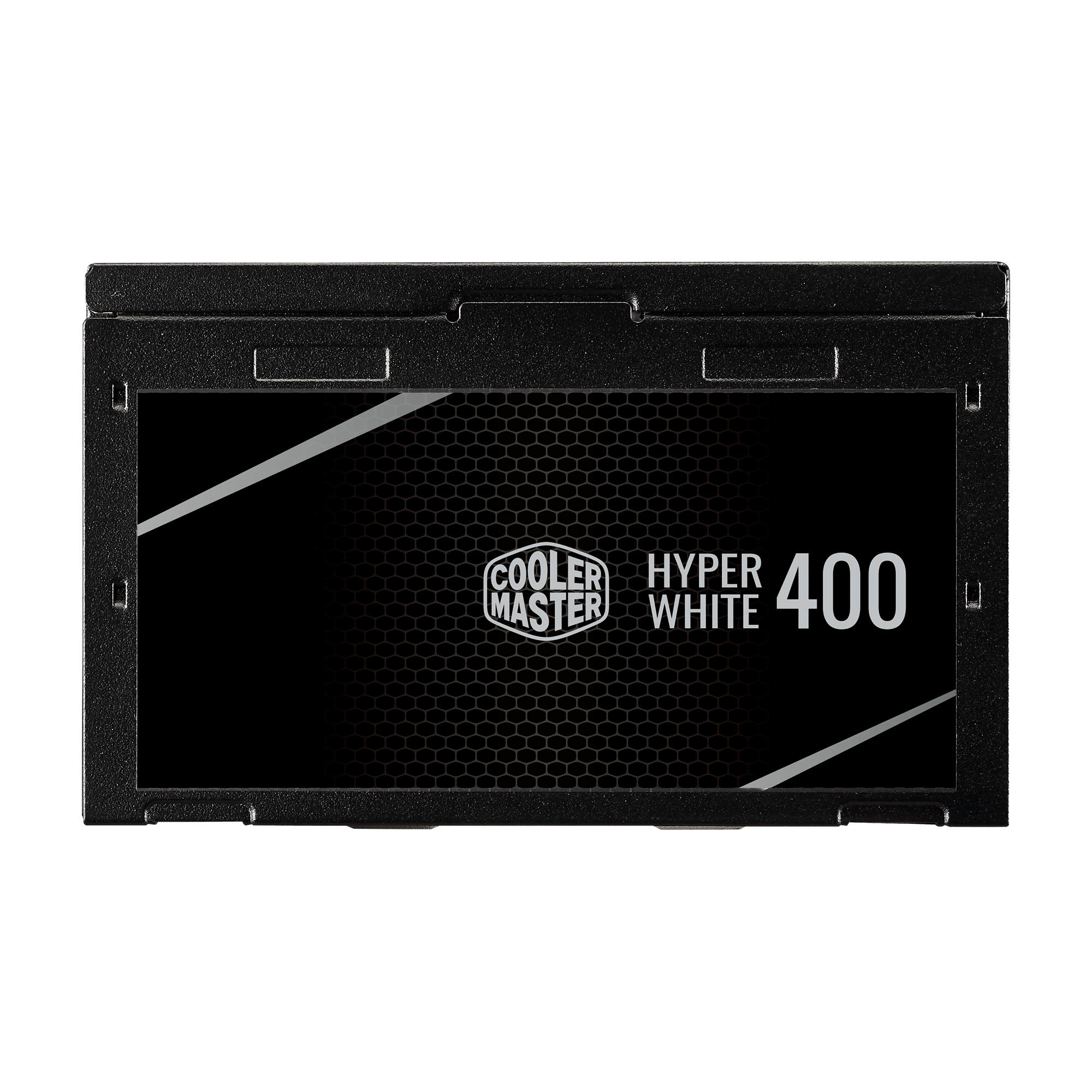

Hyper White 400 image number 3

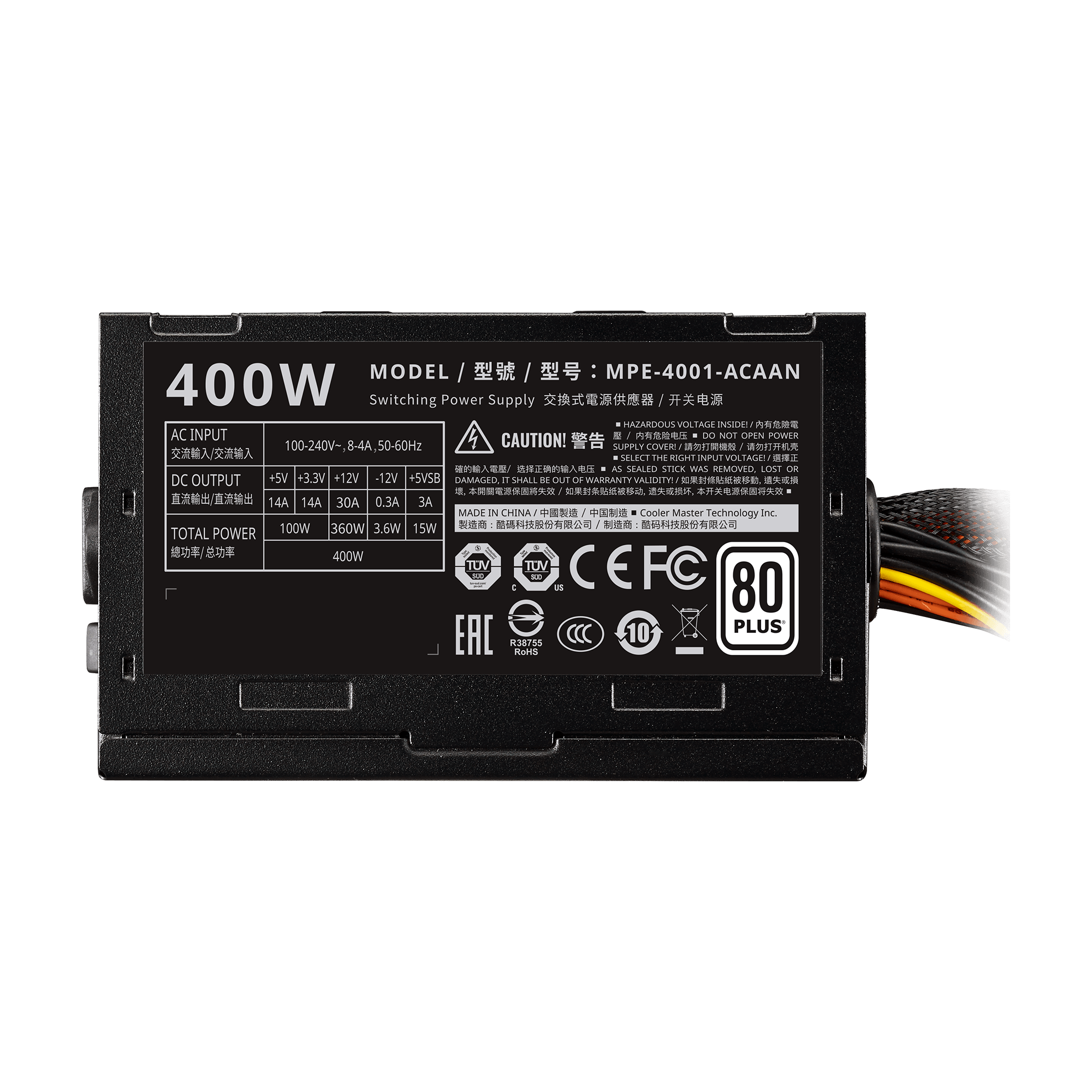

Hyper White 400 image number 4

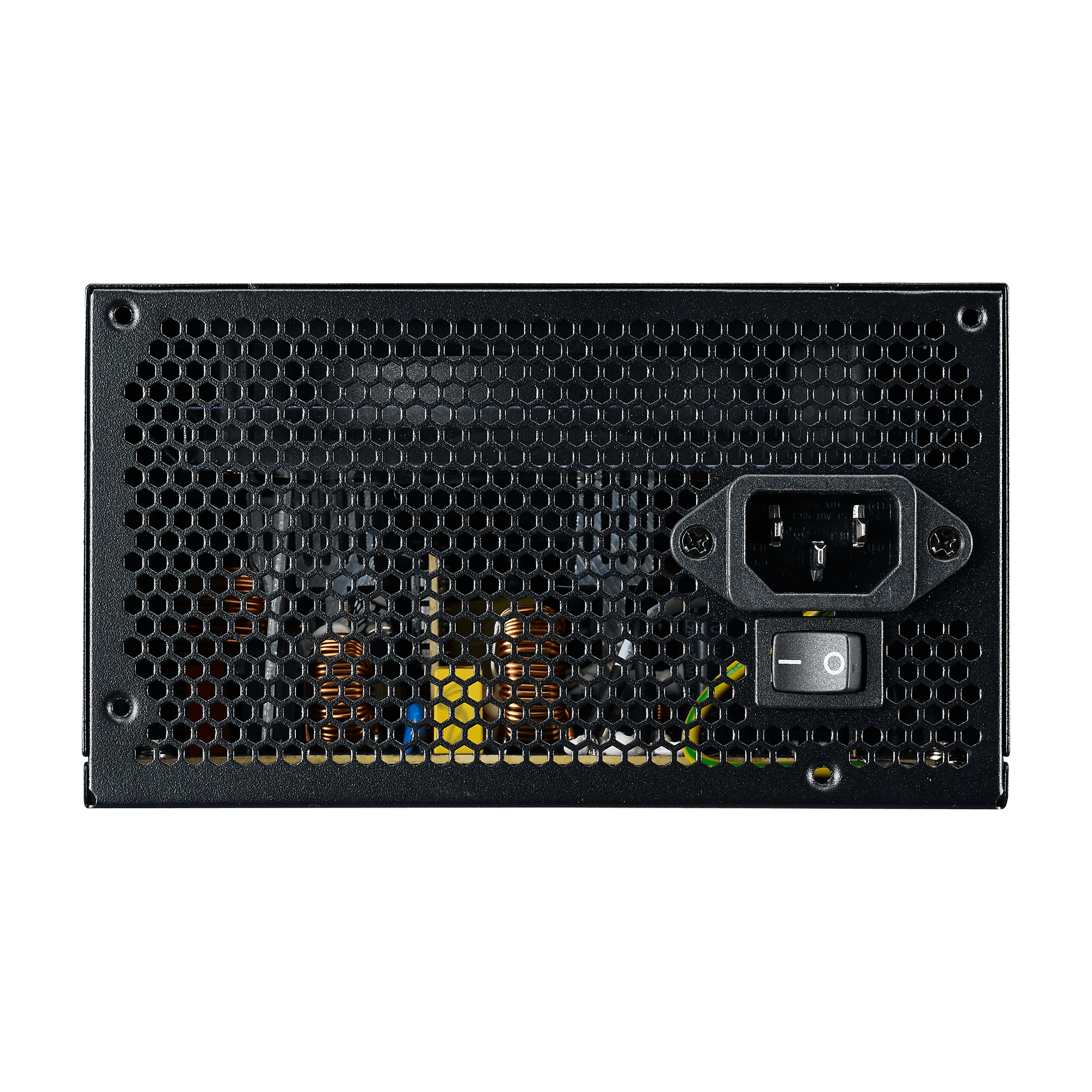

Hyper White 400 image number 5

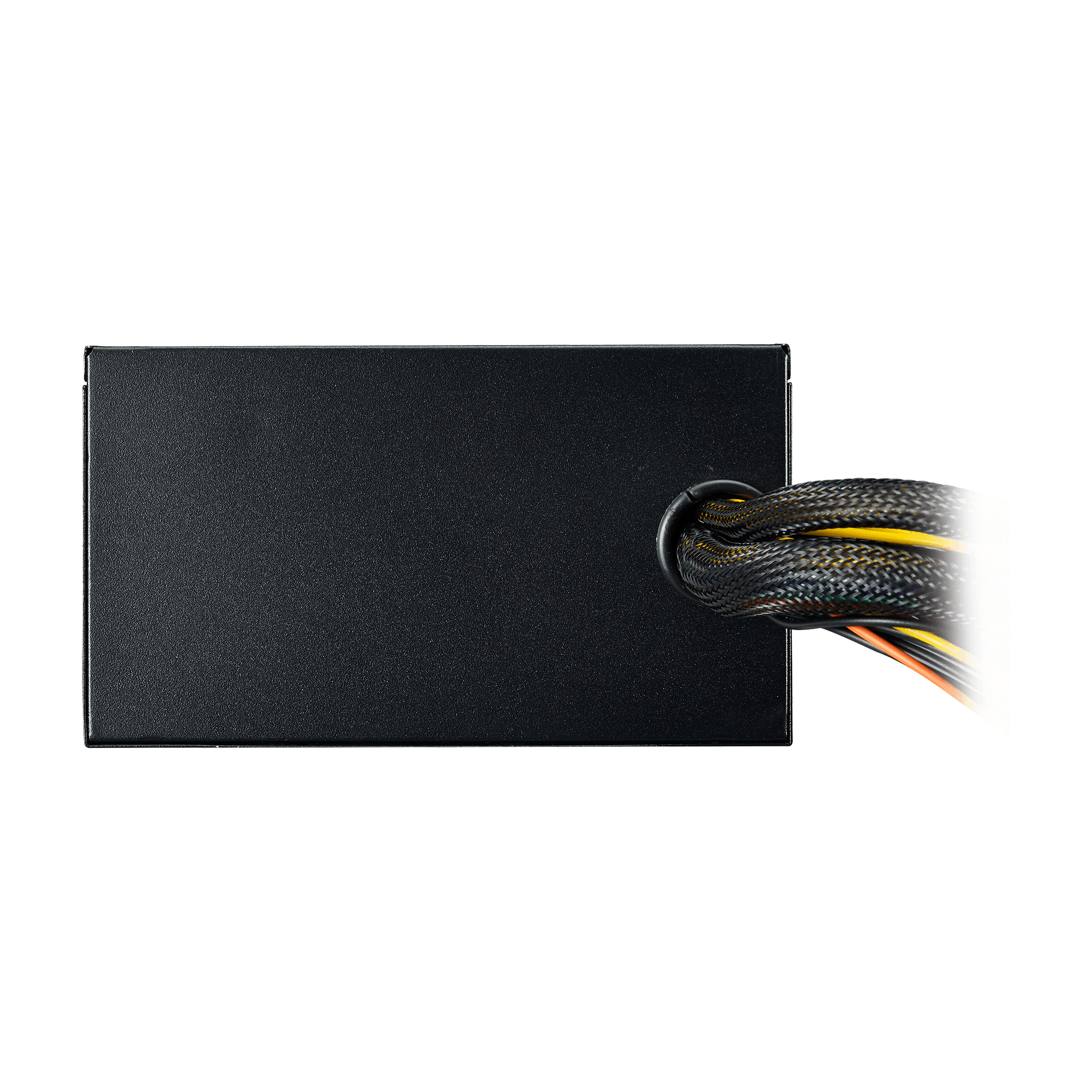

Hyper White 400 image number 6

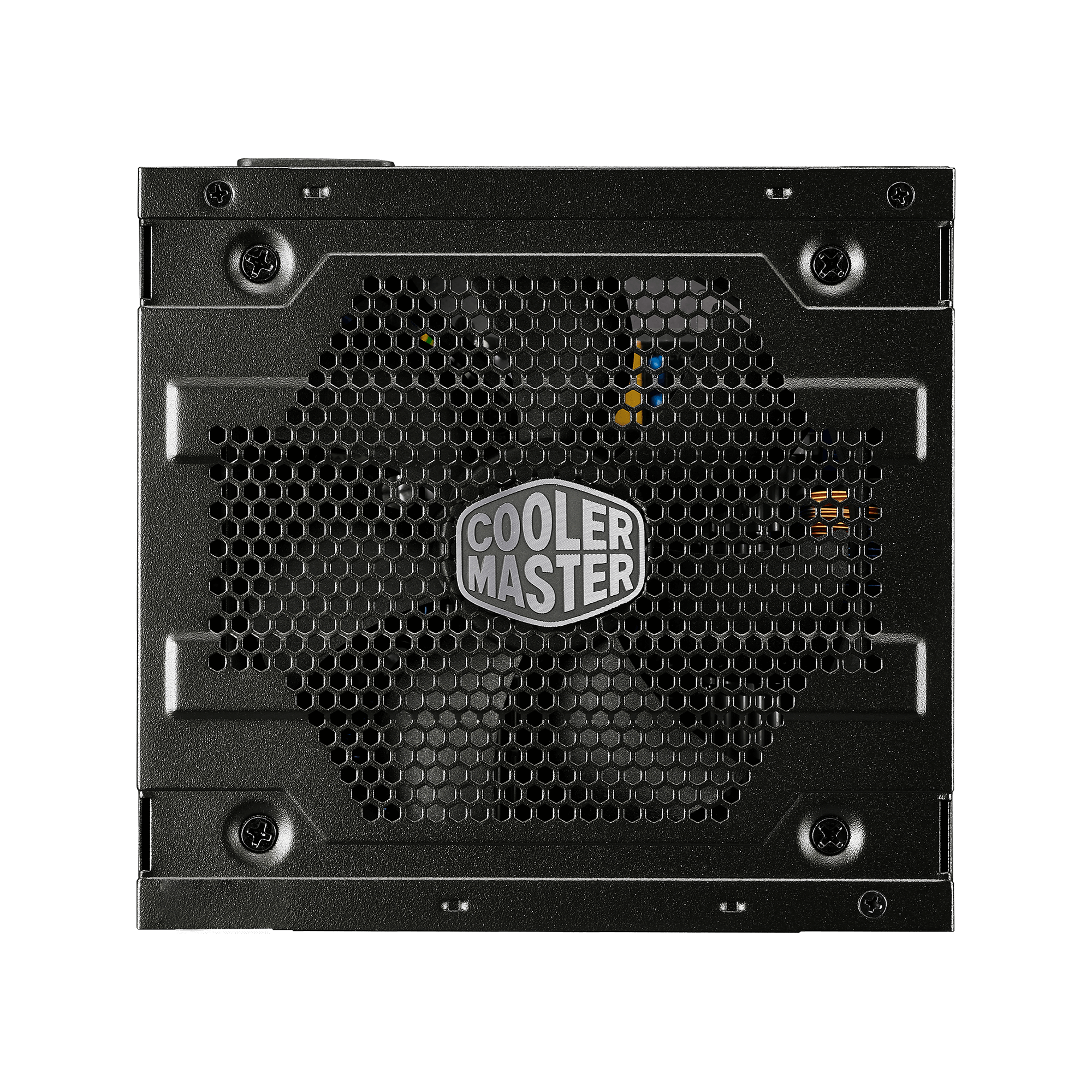

Hyper White 400 image number 7

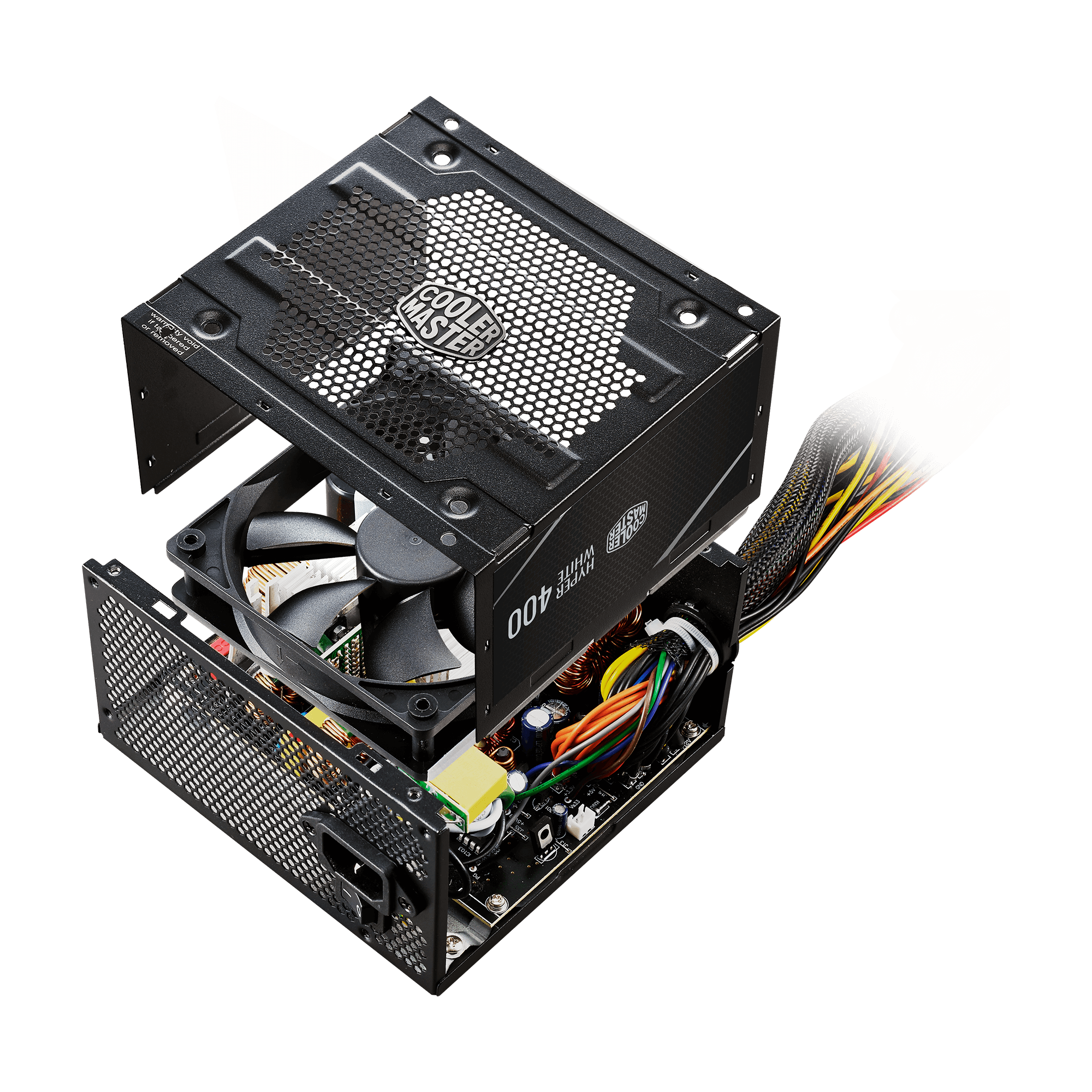

Hyper White 400 image number 8
Hyper White 400
Hyper White 400
Hyper White 400
Hyper White 400
Hyper White 400
Hyper White 400
Hyper White 400
Hyper White 400
Hyper White 400

Entry Level ATX Power Supply Unit

Hyper White 400

• Active PFC + Forward Topology Design

• High Temperature Resistance

• 80% Efficiency

• Durable, Reliable, and Safe

• 3 Year Warranty

Specifications

  • PFC Active PFC
  • Input Frequency 50-60Hz
  • ErP 2014 Lot 3 Yes
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors x1 = 1x (700mm)1
  • Power Good Signal 100 - 150 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • Fan Size 120mm
  • Category Under 500W
  • Modular Non Modular
  • 80 PLUS Rating 80 PLUS Standard
  • 80 Plus Efficiency White
  • Input Voltage 100-240V
  • Operating Temperature 40°C
  • Protections OVP
  • PCI-e 6+2 Pin Connectors 1
  • Peripheral 4 Pin Connectors 2
  • SATA Connectors 4
  • Protections OPP
  • ATX Version ATX 12V Ver. 2.41
  • Protections SCP
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Protections UVP
  • Protections OTP
  • Input Current 8-4A
  • Regulatory CCC
  • Regulatory CE
  • Efficiency ≥80% @ Typical Load
  • Regulatory EAC
  • Regulatory cTUVus
  • Regulatory FCC
  • Series Hyper Series
  • Regulatory BSMI
  • Hold Up Time ≥10ms at 100% load
  • Regulatory CB
  • Regulatory TUV
  • Regulatory S-MARK
  • Model MPE-4001-ACAAN-H
