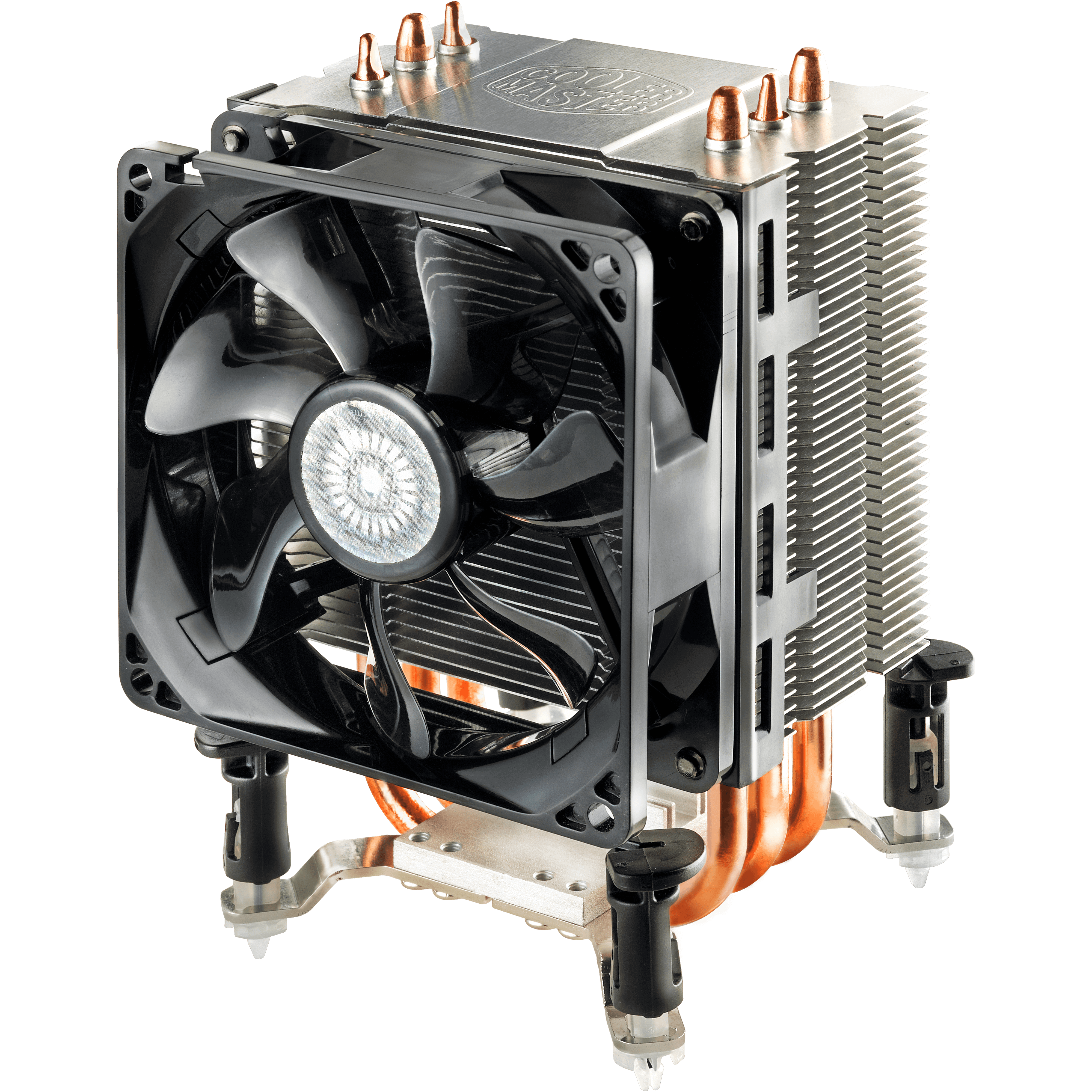

Hyper TX3 EVO image number 0

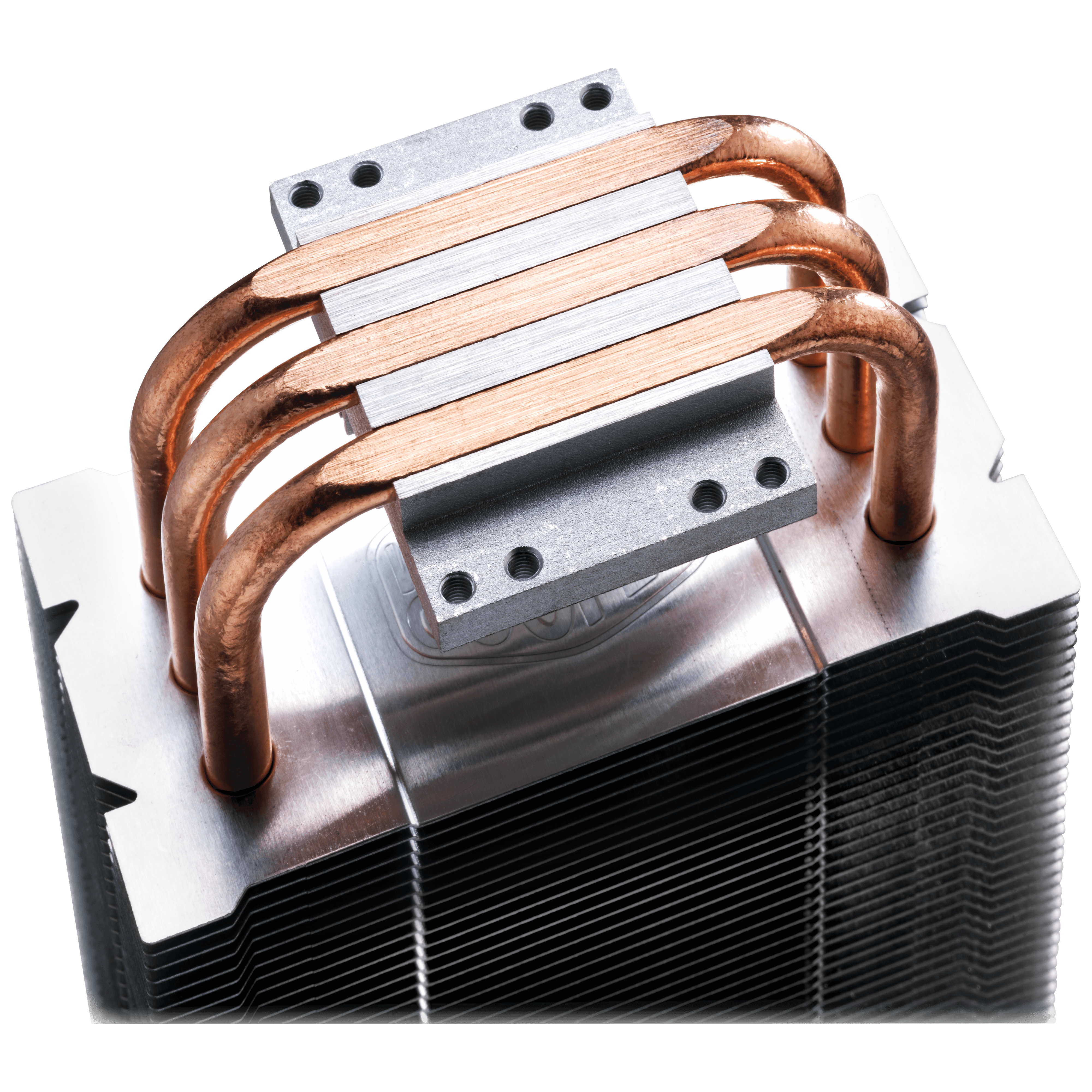

Hyper TX3 EVO image number 1

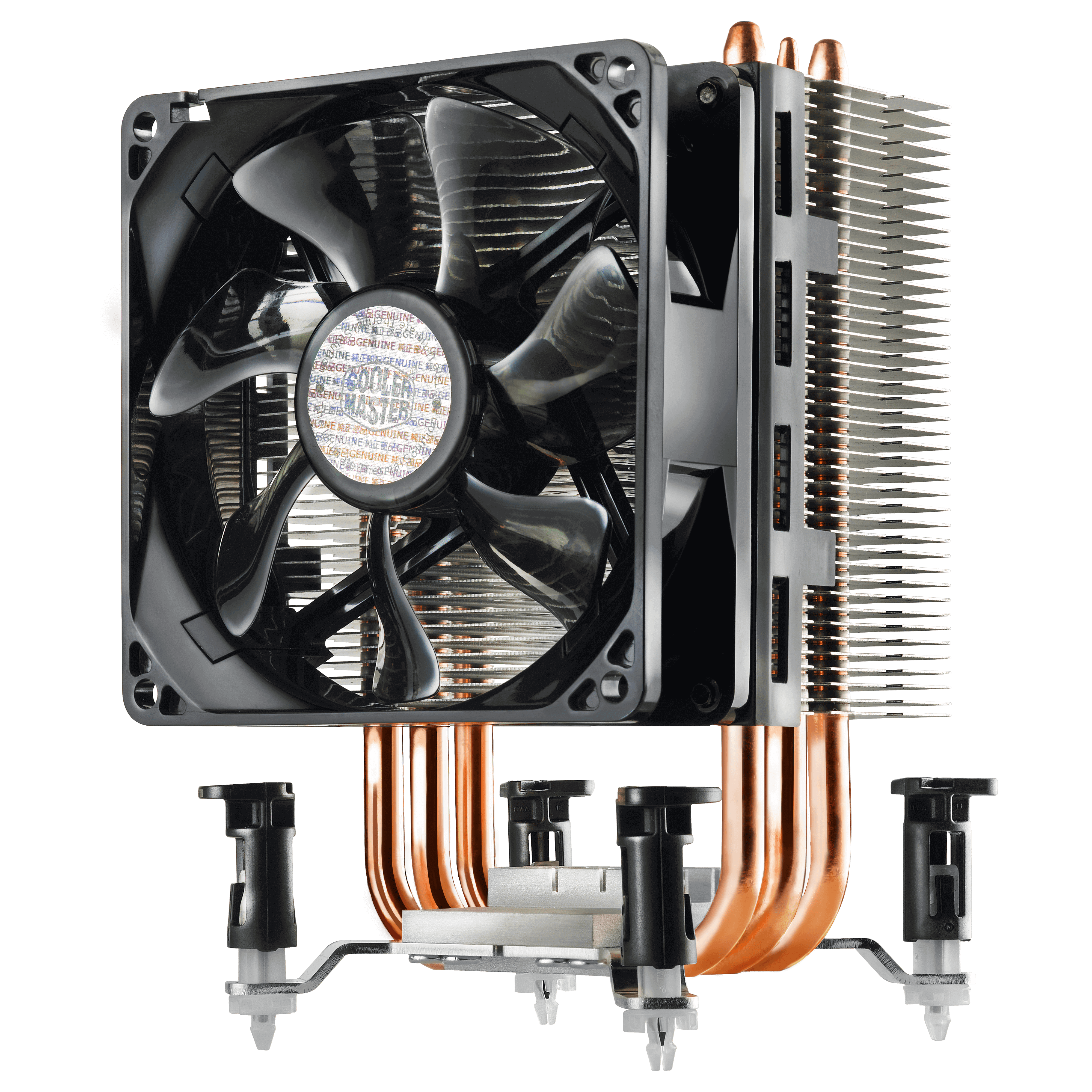

Hyper TX3 EVO image number 2

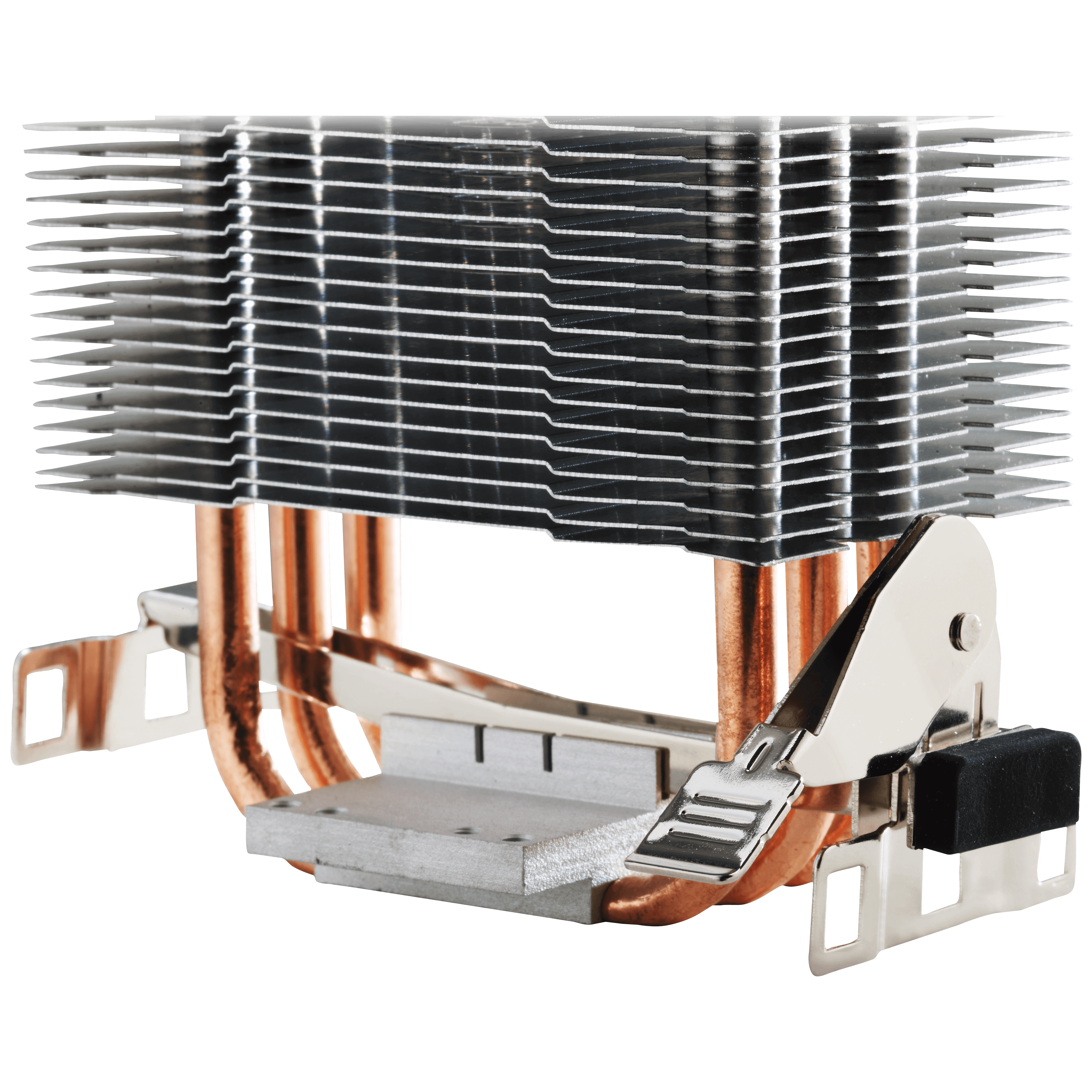

Hyper TX3 EVO image number 3

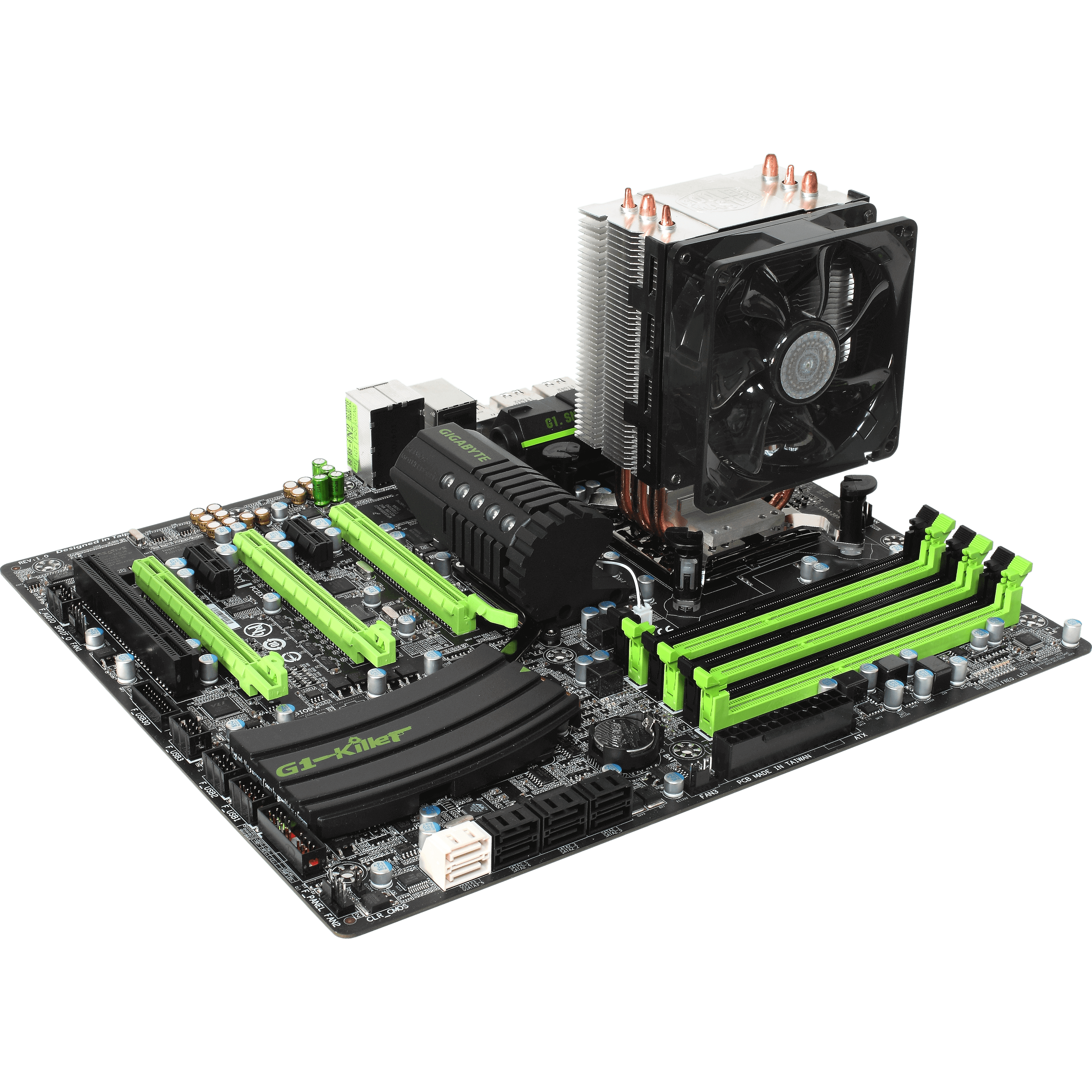

Hyper TX3 EVO image number 4
Hyper TX3 EVO
Hyper TX3 EVO
Hyper TX3 EVO
Hyper TX3 EVO
Hyper TX3 EVO

Hyper TX3 EVO

The launch of Hyper TX3 EVO marks another milestone with Cooler Master’s Improved Direct Contact technology, further improving cooling performance.

Specifications

  • Heat Pipe Dimensions Ø6mm
  • Fan Rated Voltage 12 VDC
  • Fan MTTF 40,000 Hours
  • Legacy Cooling
  • Warranty 2 years
  • Fan Power Connector 4-Pin (PWM)
  • Fan Bearing Type Long Life Sleeve Bearing
  • Fan Weight 73g / 0.85lb
  • Fan Airflow 15.7 - 43.1 CFM ± 10% (EU Version)
  • Fan Airflow 15.7 - 54.8 CFM ± 10%
  • Fan Dimensions (L x W x H) 92 x 92 x 25 mm / 3.6 x 3.6 x 1 inch
  • CPU Socket LGA1366
  • CPU Socket LGA1200
  • CPU Socket LGA1156
  • Fan Speed 800-2800 RPM (PWM) ± 10%
  • Fan Air Pressure 0.35 - 4.27 mmH2O ± 10%
  • CPU Socket LGA1155
  • CPU Socket LGA1151
  • CPU Socket LGA1150
  • CPU Socket LGA775
  • Heat Sink Material Aluminum Fins
  • Heat Sink Dimensions (L x W x H) 90 x 51 x 136 mm / 3.5 x 2.0 x 5.4 inch
  • Fan Power Consumption 1.8W (EU Version)
  • Fan Rated Current 0.15A (EU Version)
  • CPU Socket AM4
  • CPU Socket AM3+
  • CPU Socket AM3
  • Heat Sink Weight 306g / 0.68lb
  • Fan Air Pressure 0.35 - 2.63 mmH2O ± 10% (EU Version)
  • Dimensions (L x W x H) 90 x 79 x 136 mm / 3.5 x 3.1 x 5.4 inch
  • CPU Socket AM2+
  • CPU Socket AM2
  • CPU Socket FM2+
  • Power Consumption 2.88W
  • CPU Socket FM2
  • Heat Sink Material 3 Continuous Direct Contact Heat Pipes
  • CPU Socket FM1
  • Fan Rated Current 0.24A
  • Product Number RR-TX3E-28PK-R1
  • Product Number RR-TX3E-22PK-R1
  • Fan Noise Level 17 - 30 dBA (EU Version)
  • Fan Noise Level 17 - 35 dBA
  • Fan Speed 800-2,200 RPM (PWM) ± 10% (EU Version)
