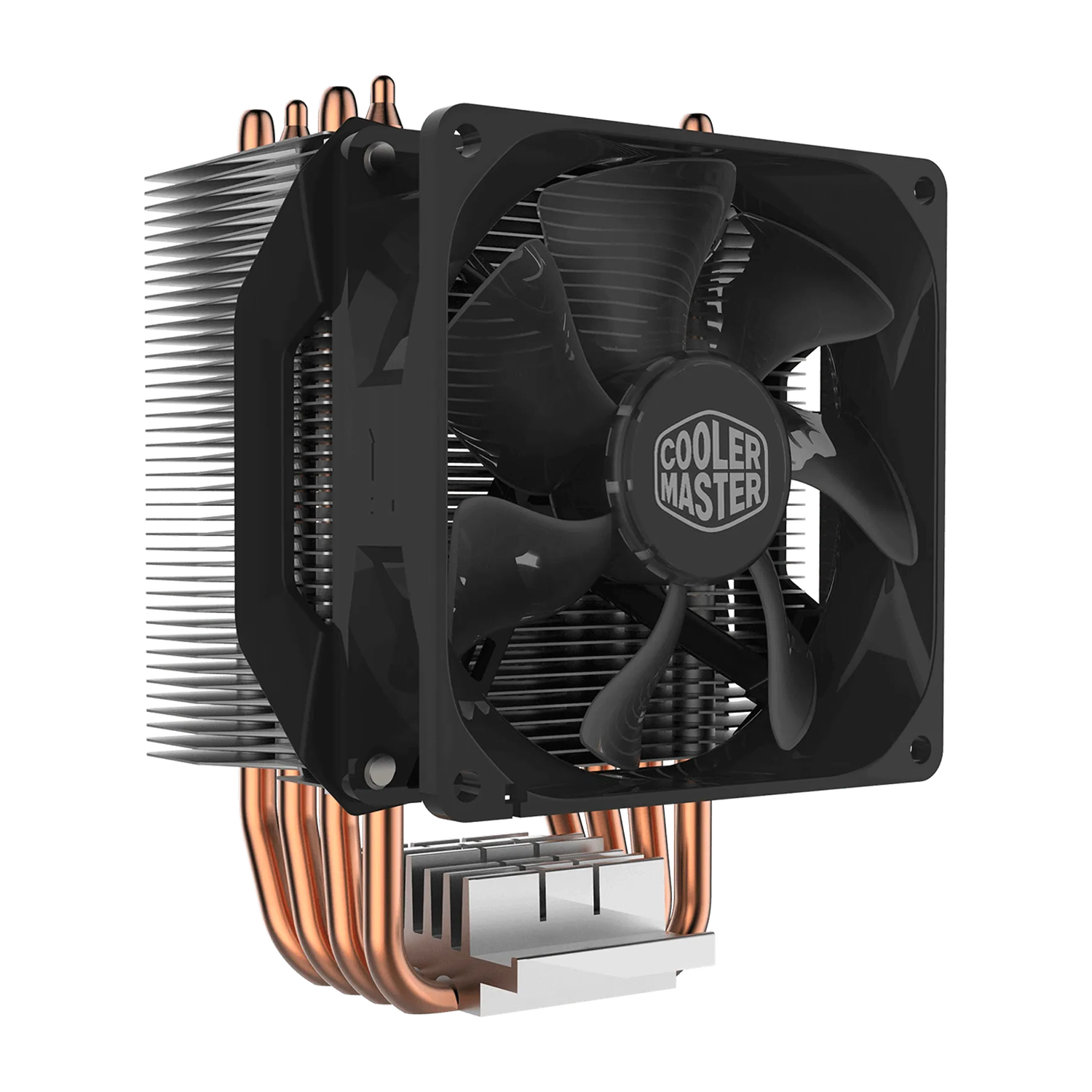

Hyper H412R image number 0

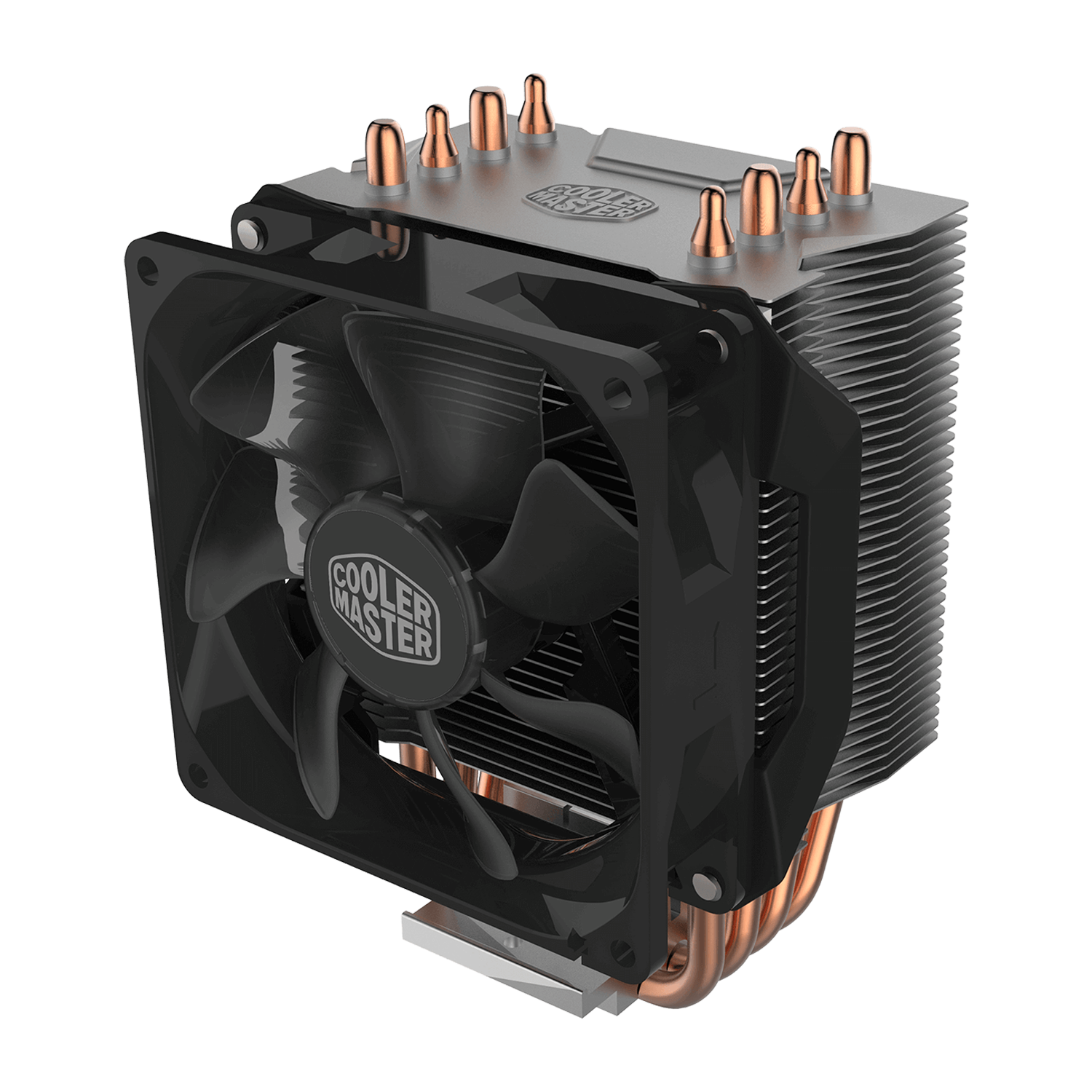

Hyper H412R image number 1
Hyper H412R
Hyper H412R

Compact And Compelling

Hyper H412R

Outstanding Performance in a Compact Size, Direct Contact Technology, Precise Combination of Air Flow and Heat sink, Snap and Play

The Hyper H412R is an affordable, compact and high performance air cooler that is a great fit for small form factor system. With 4 heatpipes and Direct Contact technology, this outperforms its predecessor Hyper TX3 series. The special fin design optimizes air flow toward heatpipes. Its 92mm PWM fan features a wide fan speed range and can be fine tuned for maximum airflow and cooling performance or silent operation.

4 Direct Contact Heatpipes

Performance in Compact Size

Easy Installation

Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.

Perfecting the Heatsink Design

CPU COMPATIBILITY

CPU COMPATIBILITY

Please check out our CPU compatibility page to determine if this product is right for your build.

Learn More

Specifications

  • Product Number RR-H412-20PK-R2
  • Color Silver
  • CPU Socket Intel® LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
  • CPU Socket AMD® AM5 / AM4 Socket
  • Dimensions (L x W x H) 102 x 84.5 x 136 mm / 4.0 x 3.3 x 5.3 inch
  • Heat Sink Material 4 Heat Pipes / Direct Contact / Aluminum Fins
  • Fan Dimensions (L x W x H) 92 x 92 x 25 mm / 3.6 x 3.6 x 1 inch
  • Fan Speed 600-2000 RPM (PWM) ± 10%
  • Fan Airflow 34.73 CFM (Max)
  • Fan Air Pressure 1.86 mmH₂O (Max)
  • Fan MTTF >40,000 Hours
  • Fan Noise Level 29.38 dBA (Max)
  • Fan Bearing Type Rifle Bearing
  • Fan Power Connector 4-Pin (PWM)
  • Fan Rated Voltage 12 VDC
  • Fan Rated Current 0.19A
  • Fan Safety Current 0.4A
  • Fan Power Consumption 2.28W
  • Warranty 2 years
  • Cooler Type Air Cooler
  • Series Hyper
  • Heatpipes 4
  • Note AM5 and LGA 1700 mounting kits are included from New Package Design. You may obtain the required mounting kits for products with older package design through the CM store, regional resellers or distributors. Older CPU sockets (LGA 2066, LGA2011-v3, LGA2011, LGA1366, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1) will not be supported anymore from New Package Design.
