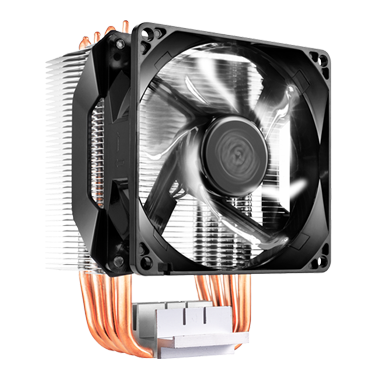

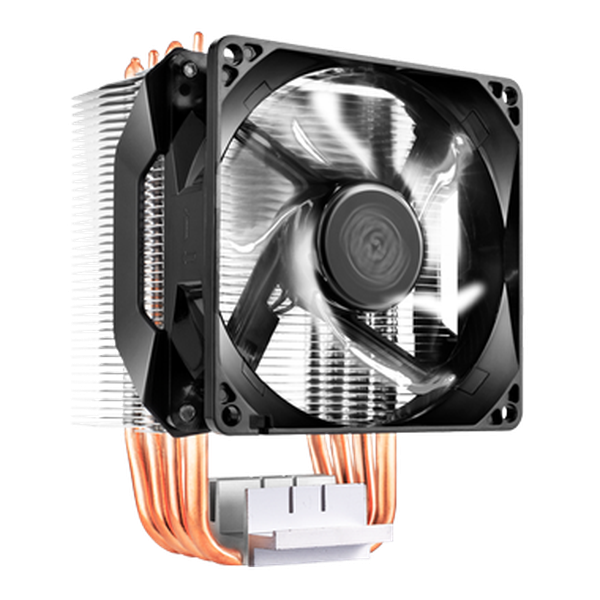

The Hyper H411R is an affordable, compact and high performance air cooler that is a great fit for small form factor system. With 4 heatpipes and Direct Contact technology, this outperforms its predecessor Hyper 103. The special fin design optimizes air flow toward heatpipes. Its 92mm PWM fan features a wide fan speed range and can be fine tuned for maximum airflow and cooling performance or silent operation.
Compact and Compelling
Hyper H411R
Outstanding Performance in a Compact Size, Direct Contact Technology, Precise Combination of Air Flow and Heatsink, Easy Installation
4 Direct Contact Heatpipes
Performance in Compact Size
Easy Installation
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
Perfecting the Heatsink Design
CPU COMPATIBILITY
Please check out our CPU compatibility page to determine if this product is right for your build.

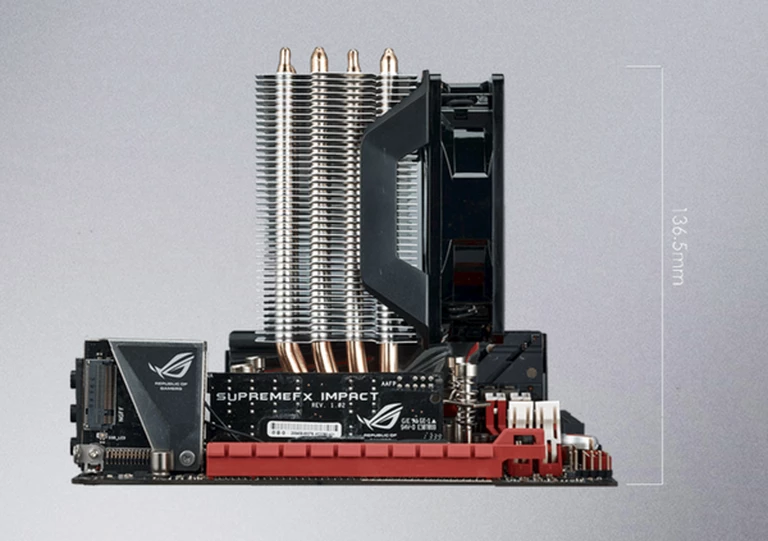

Performance in Compact Size

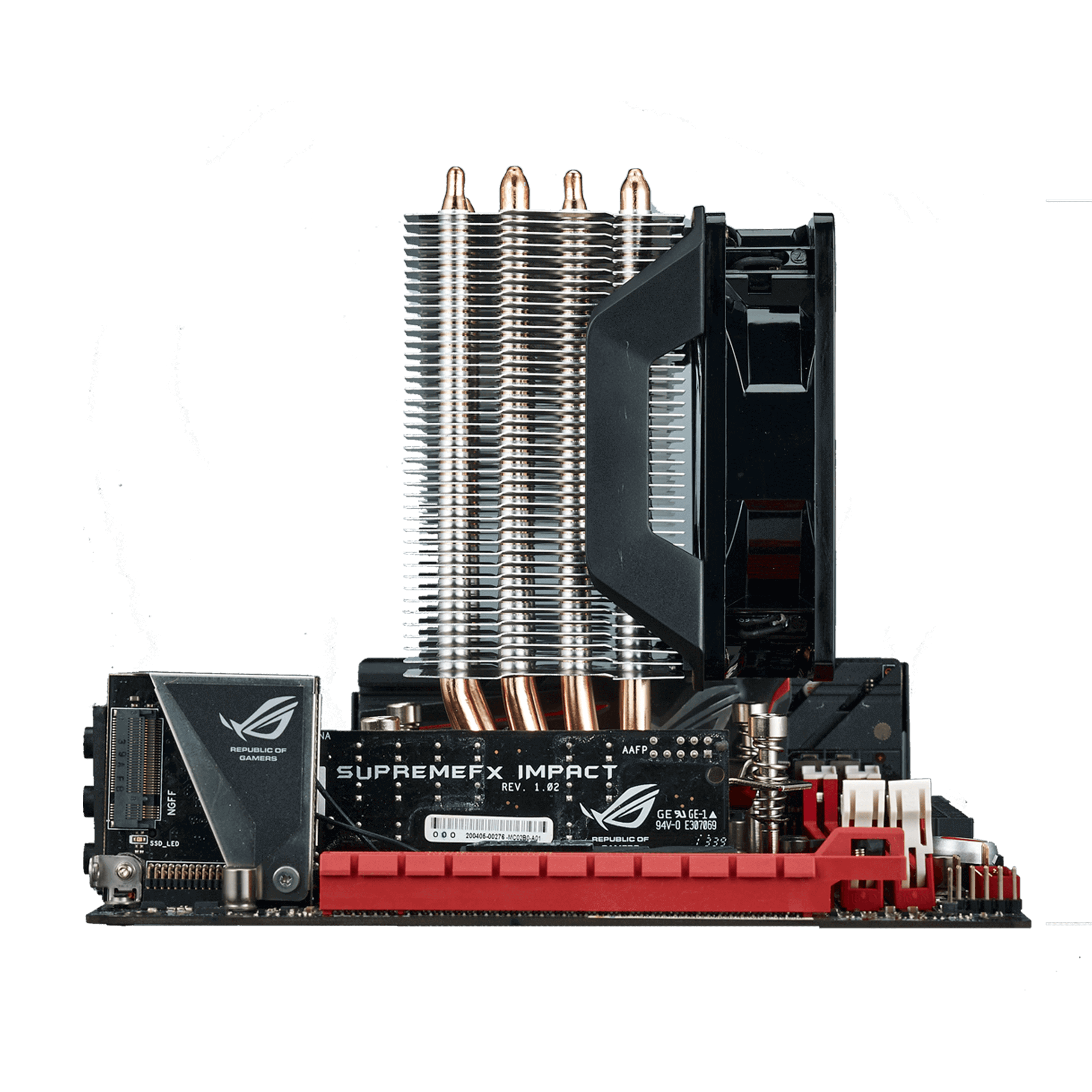

With height of 136.5mm, the Hyper H411R is a compact tower cooler, designed to fit in tight builds. With its outstanding performance in its class, it is a great solution for Micro ATX and Mini ITX boards.

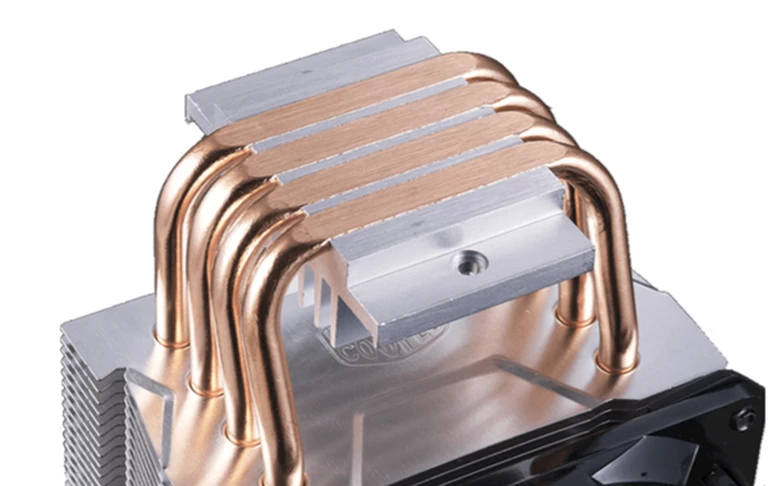

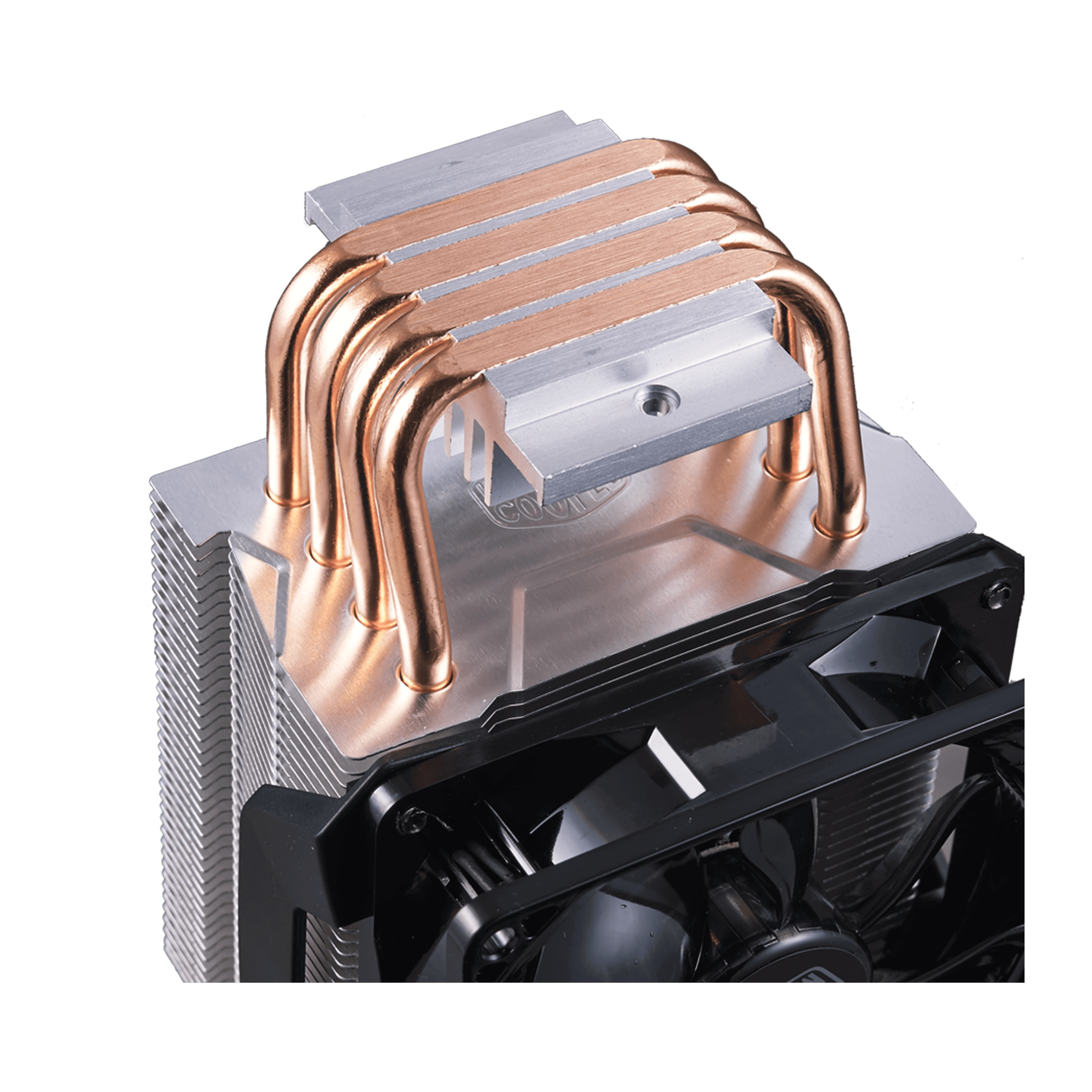

4 Direct Contact Heatpipes
Just like the Hyper 212, it includes 4 Direct Contact heatpipes constructed out of copper to accelerate the heat conduction through the entire heatpipe. This allows heat to be dissipated quickly and efficiently throught the funnel shaped aluminum fins.

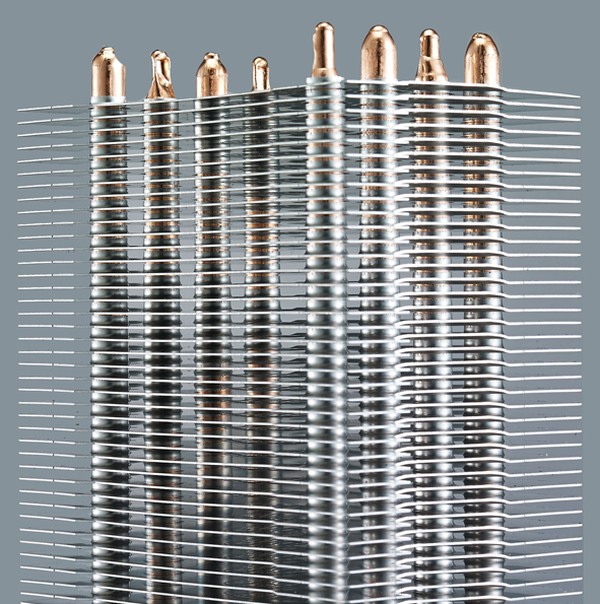

PERFECTING THE HEATSINK DESIGN
Cooler Master's years of aluminum fin craftmanship is second to none. Optimized fin stacked distance between each layer is based on stringent airflow tests from our labs. As a result, even with a compact-size each heatsink with the 92mm fan is able to maintain performance in a compact build.

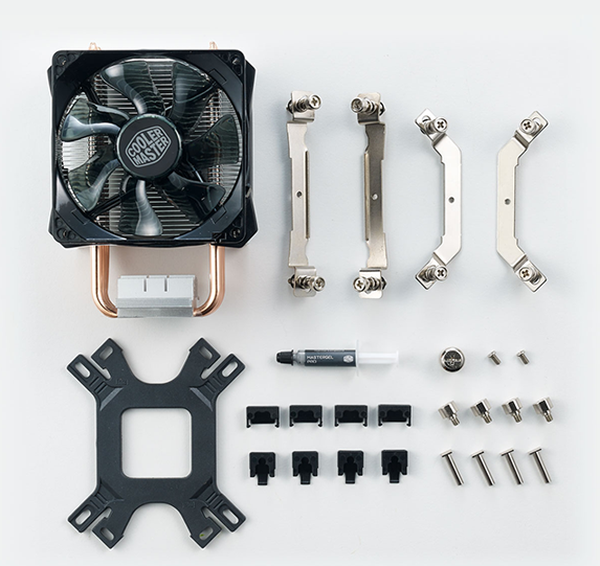

EASY INSTALLATION
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
CPU COMPATIBILITY
Please check out our CPU compatibility page to determine if this product is right for your build.
Specifications
- Product Number RR-H411-20PW-R1
- Color Silver
- CPU Socket Intel® LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
- CPU Socket AMD® AM5 / AM4 Socket
- Dimensions (L x W x H) 102 x 84.5 x 136 mm / 4.0 x 3.3 x 5.3 inch
- Heat Sink Material 4 Heat Pipes / Direct Contact / Aluminum Fins
- Fan Dimensions (L x W x H) 92 x 92 x 25 mm / 3.6 x 3.6 x 1 inch
- Fan Profiles White
- Fan Quantity 1 PC
- Fan Speed 600-2000 RPM (PWM) ± 10%
- Fan Airflow 34.73 CFM (Max)
- Fan Air Pressure 1.86 mmH₂O (Max)
- Fan MTTF >40,000 Hours
- Fan Noise Level 29.38 dBA (Max)
- Fan Bearing Type Rifle Bearing
- Fan Power Connector 4-Pin (PWM)
- Fan Rated Voltage 12 VDC
- Fan Rated Current 0.19A
- Fan Safety Current 0.4A
- Fan Power Consumption 2.28W
- Warranty 2 years
- Cooler Type Air Cooler
- Series Hyper
- Heatpipes 4
- Note AM5 and LGA 1700 mounting kits are included from New Package Design. You may obtain the required mounting kits for products with older package design through the CM store, regional resellers or distributors. Older CPU sockets (LGA 2066, LGA2011-v3, LGA2011, LGA1366, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1) will not be supported anymore from New Package Design.
