The Hyper H410R is an affordable, compact and high performance air cooler that is a great fit for small form factor system. With 4 heatpipes and Direct Contact technology, this outperforms its predecessor Hyper 103. The special fin design optimizes air flow toward heatpipes. Its 92mm PWM fan features a wide fan speed range and can be fine tuned for maximum airflow and cooling performance or silent operation.
Compact Tower Cooler With A Kick

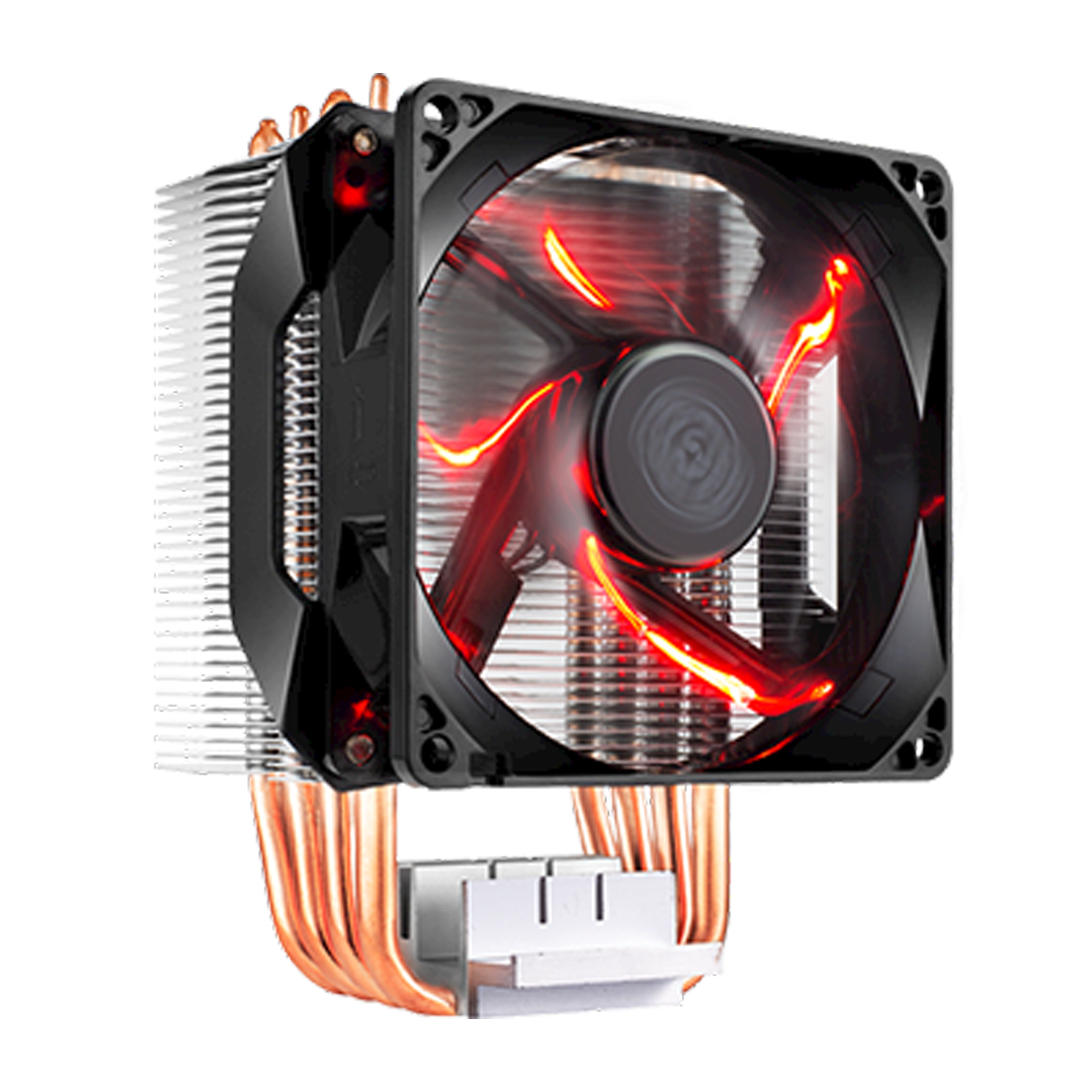

Hyper H410R
The Hyper H410R, is an affordable, compact and high performance air cooler that its compact heatsink is a great match for small form factor system.
4 Direct Contact Heatpipes
Performance in Compact Size
Easy Installation
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
Perfecting the Heatsink Design
Specifications
- Product Number RR-H410-20PK-R1
- Exterior Color Silver
- CPU Socket Intel® LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
- CPU Socket AMD® AM5 / AM4 Socket
- Dimensions (L x W x H) 102 x 84.5 x 136 mm / 4.0 x 3.3 x 5.3 inch
- Heat Sink Material 4 Heat Pipes / Direct Contact / Aluminum Fins
- Fan Dimensions (L x W x H) 92 x 92 x 25 mm / 3.6 x 3.6 x 1 inch
- Fan Profiles Red
- Fan Quantity 1 PC
- Fan Speed 600-2000 RPM (PWM) ± 10%
- Fan Airflow 34.73 CFM (Max)
- Fan Air Pressure 1.86 mmH₂O (Max)
- Fan MTTF >40,000 Hours
- Fan Noise Level 29.38 dBA (Max)
- Fan Bearing Type Rifle Bearing
- Fan Power Connector 4-Pin (PWM)
- Fan Rated Voltage 12 VDC
- Fan Rated Current 0.19A
- Fan Safety Current 0.4A
- Fan Power Consumption 2.28W
- Warranty 2 years
- Cooler Type Air Cooler
- Series Hyper
- Heatpipes 4
- Note AM5 and LGA 1700 mounting kits are included from New Package Design. You may obtain the required mounting kits for products with older package design through the CM store, regional resellers or distributors. Older CPU sockets (LGA 2066, LGA2011-v3, LGA2011, LGA1366, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1) will not be supported anymore from New Package Design.
