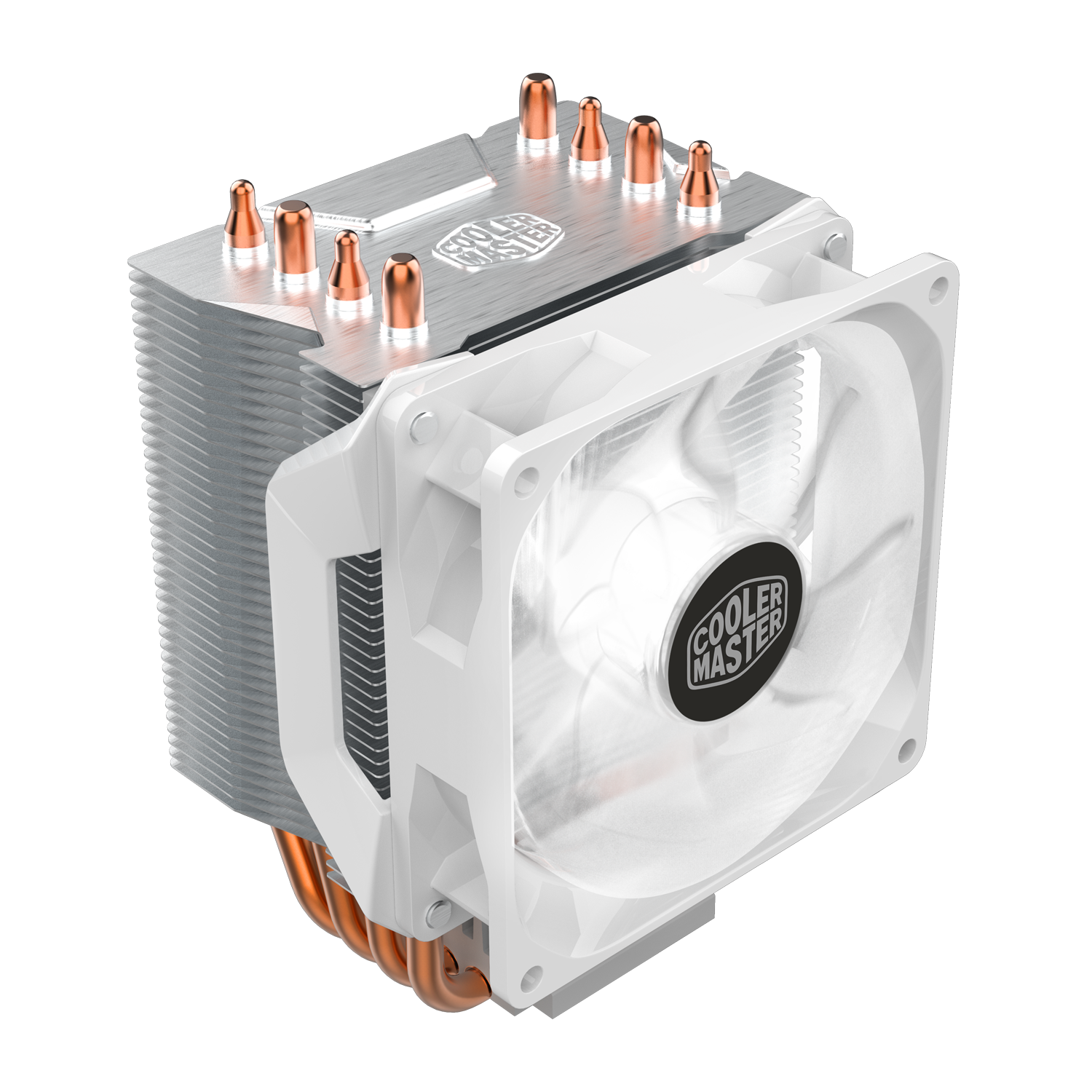

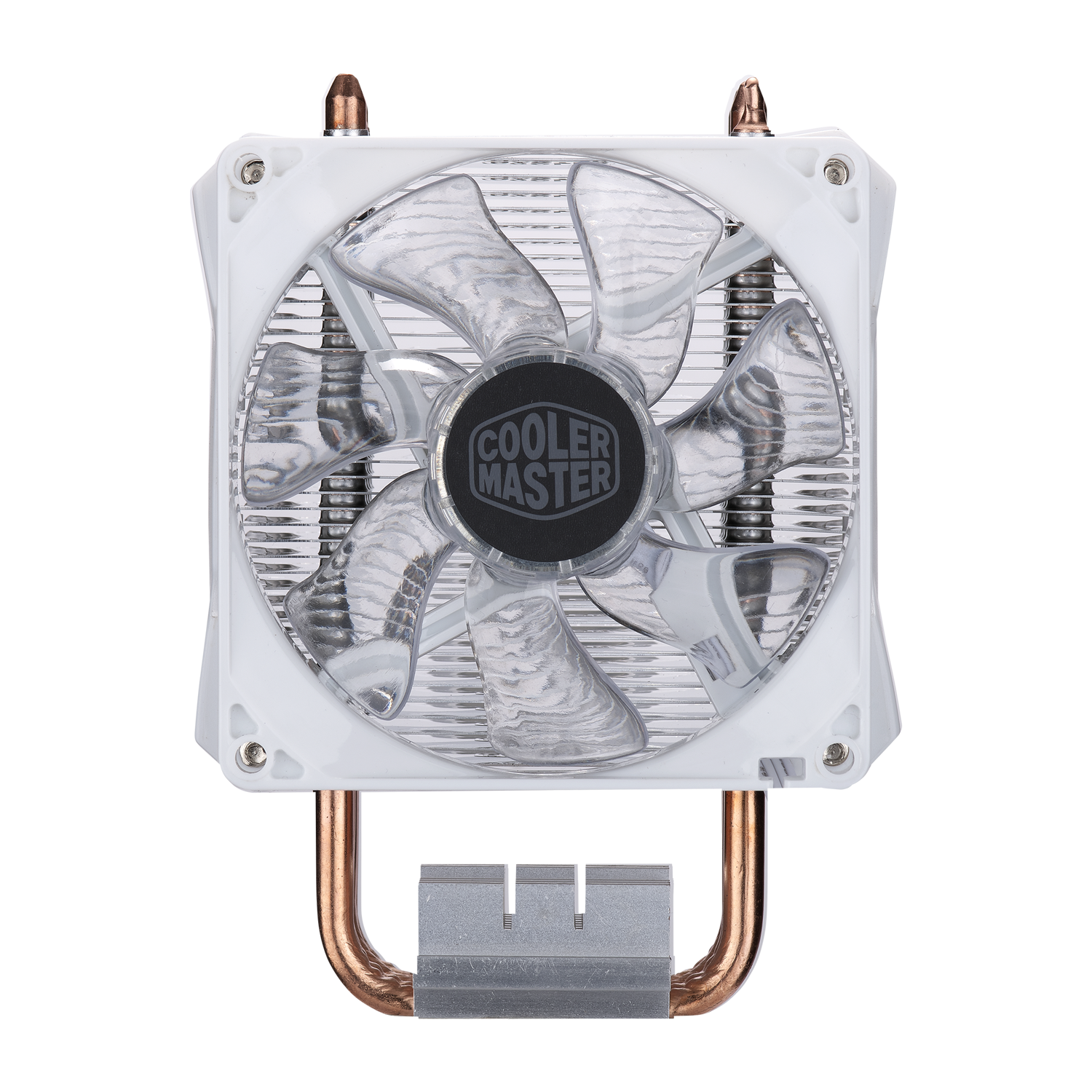

Hyper H410R White Edition

Precise Air Flow

Direct Contact Technology

XtraFlo PWM Fan

Compact Size

Snap and Play

4 heatpipes with Exclusive Direct Contact Technology providing effective and excellent heat dissipation

Comes with white LEDs and wide speed range can be fine-tuned for maximum cooling performance or silent operation

Precise stacked fin array decreases airflow resistance which allows for cooler air flow into the heatsink

Specifications

Product Number RR-H41W-20PW-R1
Exterior Color Silver
CPU Socket Intel® LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
CPU Socket AMD® AM5 / AM4 Socket
Dimensions (L x W x H) 102 x 84.5 x 136 mm / 4.0 x 3.3 x 5.3 inch
Heat Sink Material 4 Heat Pipes / Direct Contact / Aluminum Fins
Fan Dimensions (L x W x H) 92 x 92 x 25 mm / 3.6 x 3.6 x 1 inch
Fan Profiles White
Fan Quantity 1 PC
Fan Speed 600-2000 RPM (PWM) ± 10%
Fan Airflow 34.73 CFM (Max)
Fan Air Pressure 1.86 mmH₂O (Max)
Fan MTTF >40,000 Hours
Fan Noise Level 29.38 dBA (Max)
Fan Bearing Type Rifle Bearing
Fan Power Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 0.19A
Fan Safety Current 0.4A
Fan Power Consumption 2.28W
Warranty 2 years
Cooler Type Air Cooler
Series Hyper
Heatpipes 4
Note AM5 and LGA 1700 mounting kits are included from New Package Design. You may obtain the required mounting kits for products with older package design through the CM store, regional resellers or distributors. Older CPU sockets (LGA 2066, LGA2011-v3, LGA2011, LGA1366, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1) will not be supported anymore from New Package Design.
