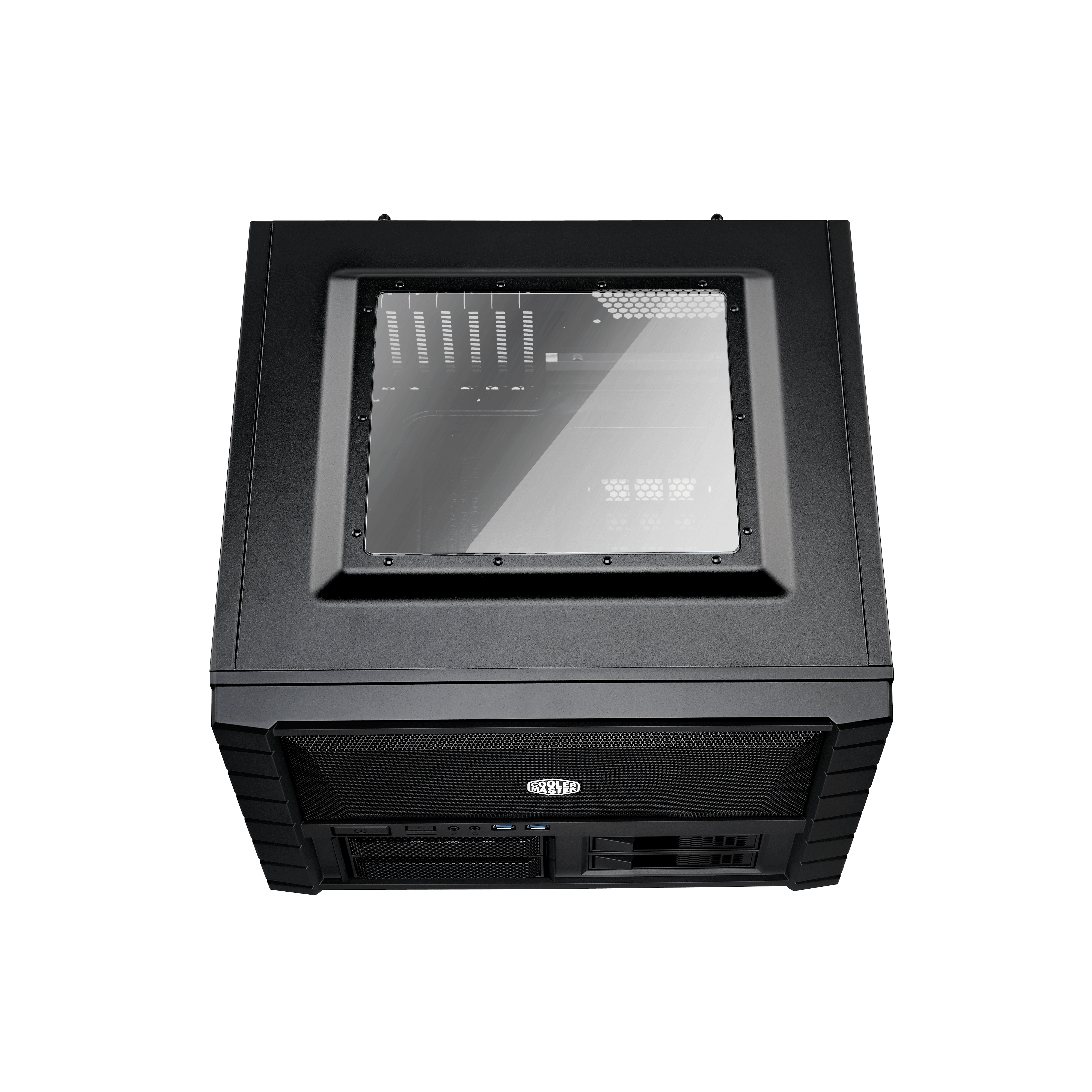

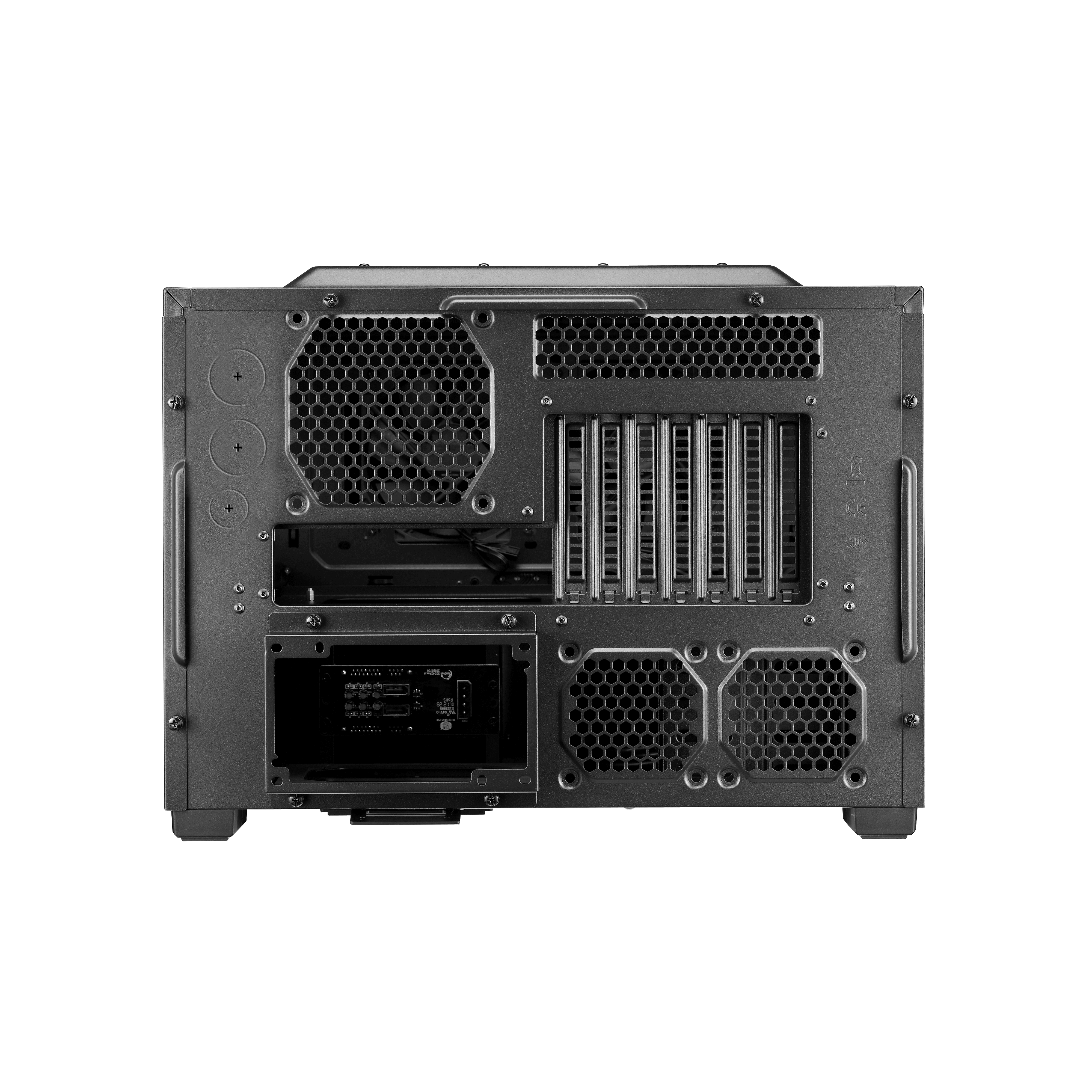

HAF XB (Windowed Top Panel Version)
The Cooler Master HAF XB takes the famous High Air Flow series to a revolutionary new form factor with extreme cooling performance.
Specifications
- Maximum Compatibility - Water Cooling Support 240mm Radiator x 1 (Front)
- Maximum Compatibility - Water Cooling Support 120mm Radiator x 1 (Rear)
- Legacy Cases
- I/O Panel 2x USB 3.0
- 5.25" Drive Bays 2
- Motherboard Support ATX
- Expansion Slots 7
- Motherboard Support Micro ATX
- Materials Steel body
- Motherboard Support Mini ITX
- Materials Plastic bezel
- Power Supply Support ATX PS2 (Support Max. of the PSU in 180mm Length)
- Cooling System - Rear 120mm fan x 1 (optional), and 80mm fan x 2 (optional)
- Maximum Compatibility - CPU Cooler Height 180mm / 7.1 inch
- Maximum Compatibility - VGA Card Length 334mm / 13.1 inch
- Weight 8.2 kg / 18.1 lb
- I/O Panel Audio In & Out (Supports HD Audio)
- 3.5" Drive Bays 2 (from X-Dock)
- Cooling System - Front 120mm fan x 2, 1800 RPM, 21 dBA (or 140mm fan x 2)
- 2.5" Drive Bays 6 (2 from X-Dock)
- Materials Front Mesh
- Dimensions (L x W x H) 442 x 330 x 423 mm / 17.4 x 13 x 16.7 inch
- Model Number RC-902XB-KWN1
