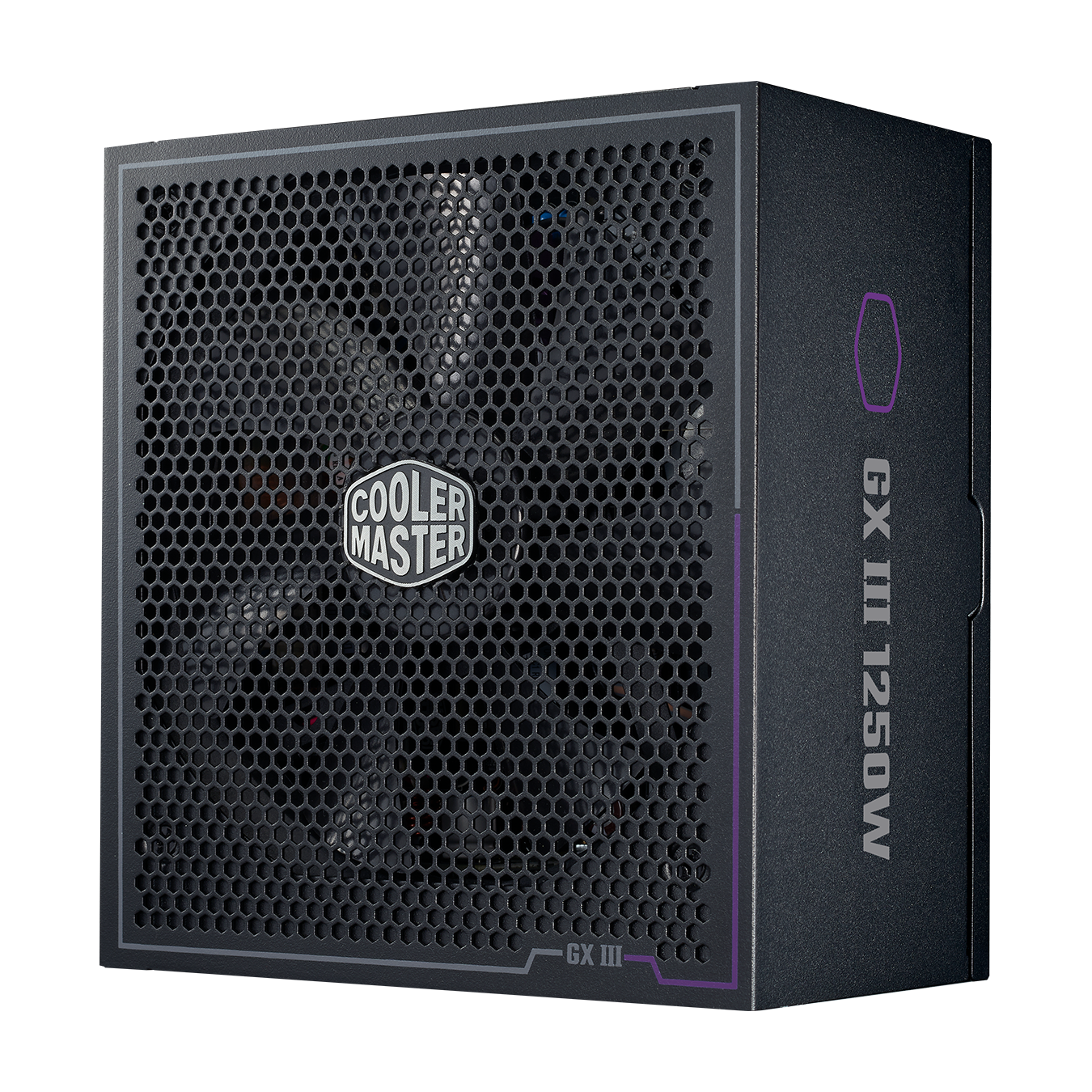

GX III Gold 1250 image number 0

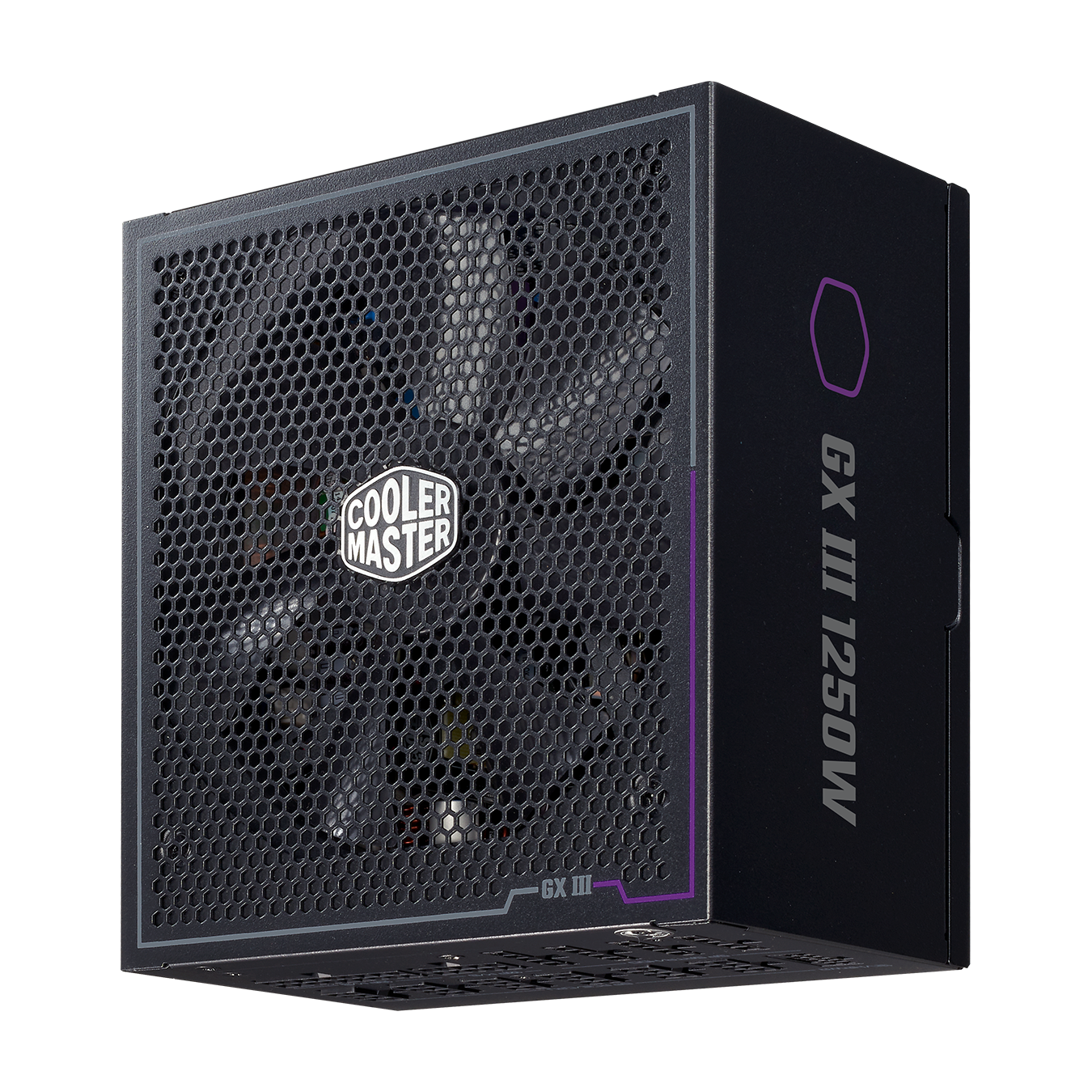

GX III Gold 1250 image number 1

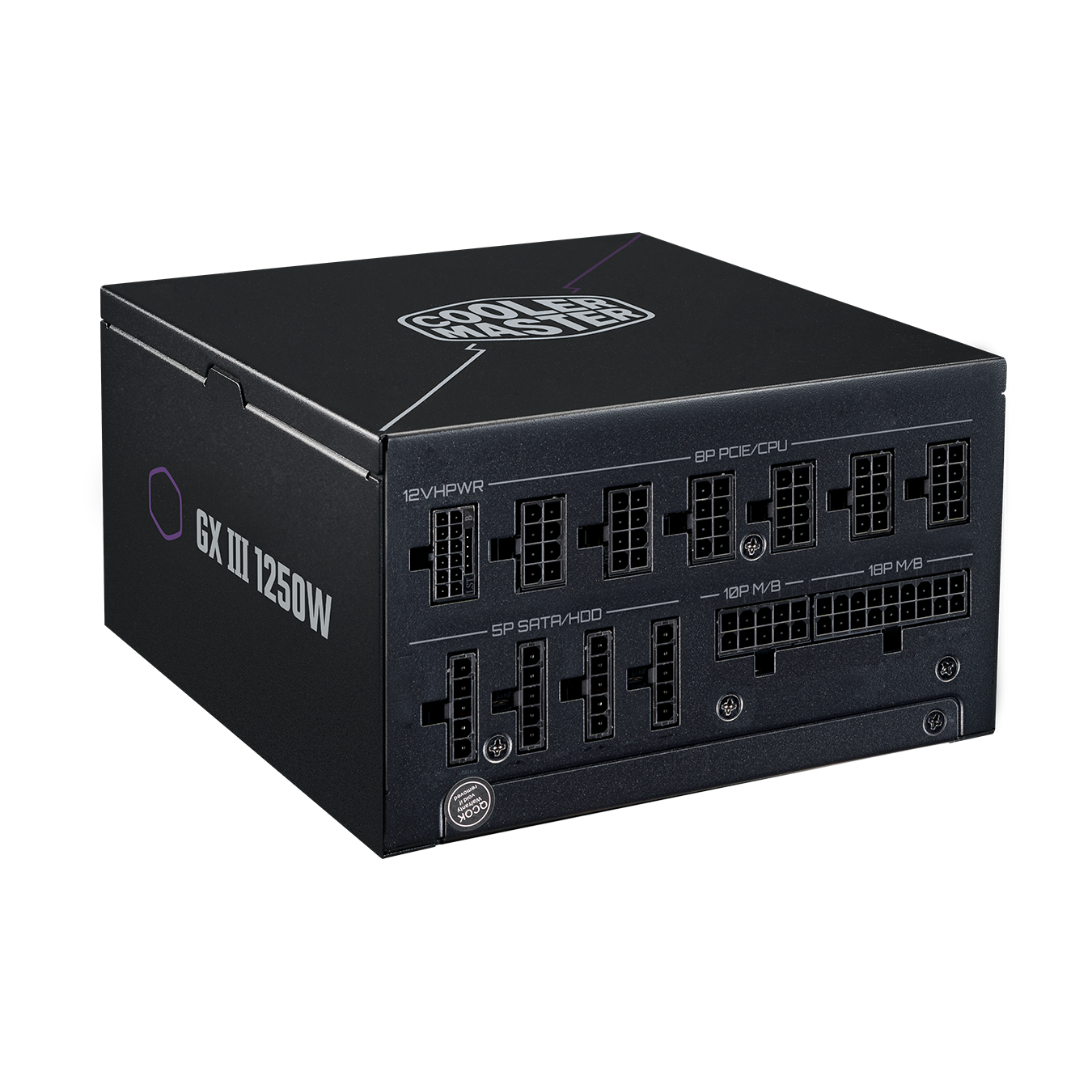

GX III Gold 1250 image number 2

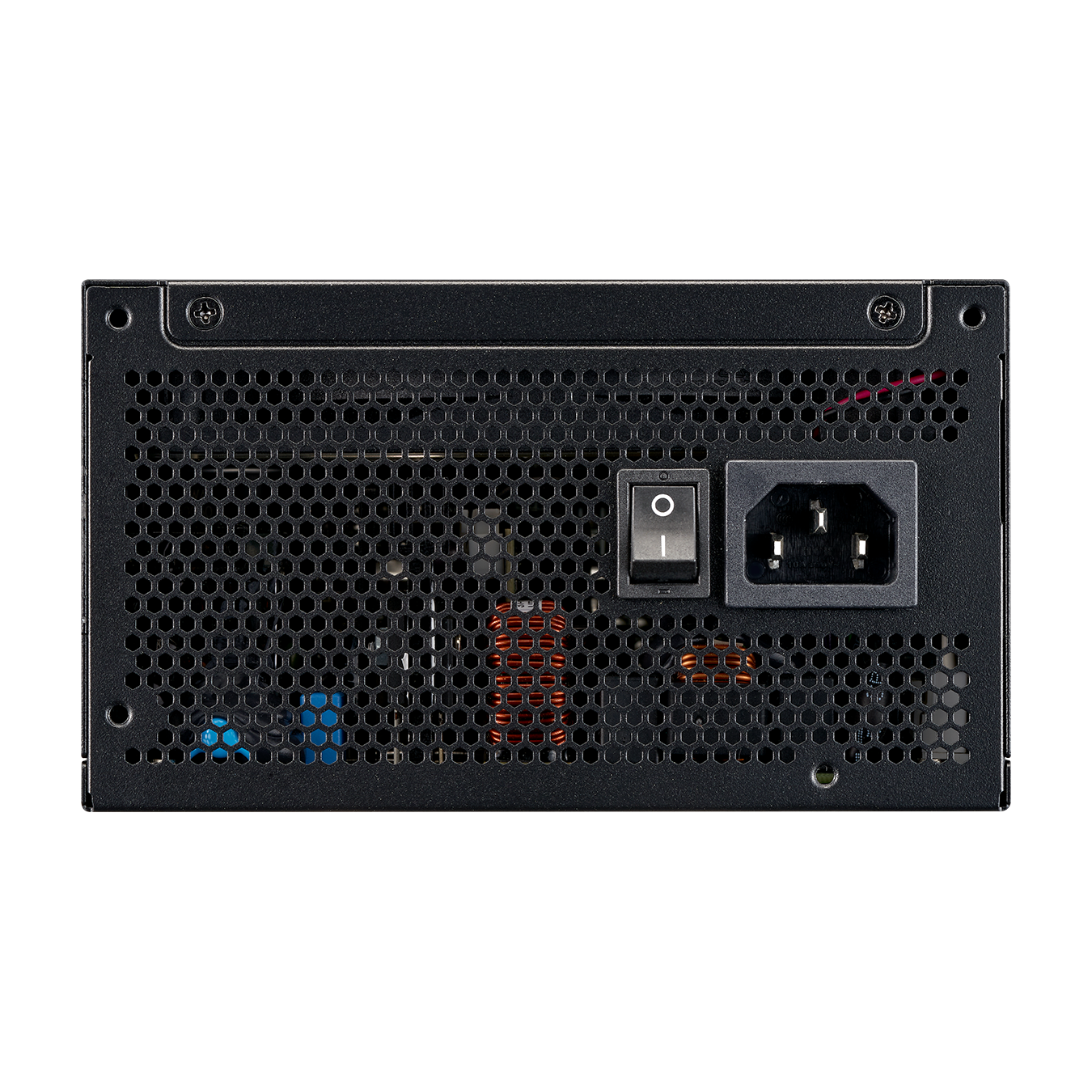

GX III Gold 1250 image number 3

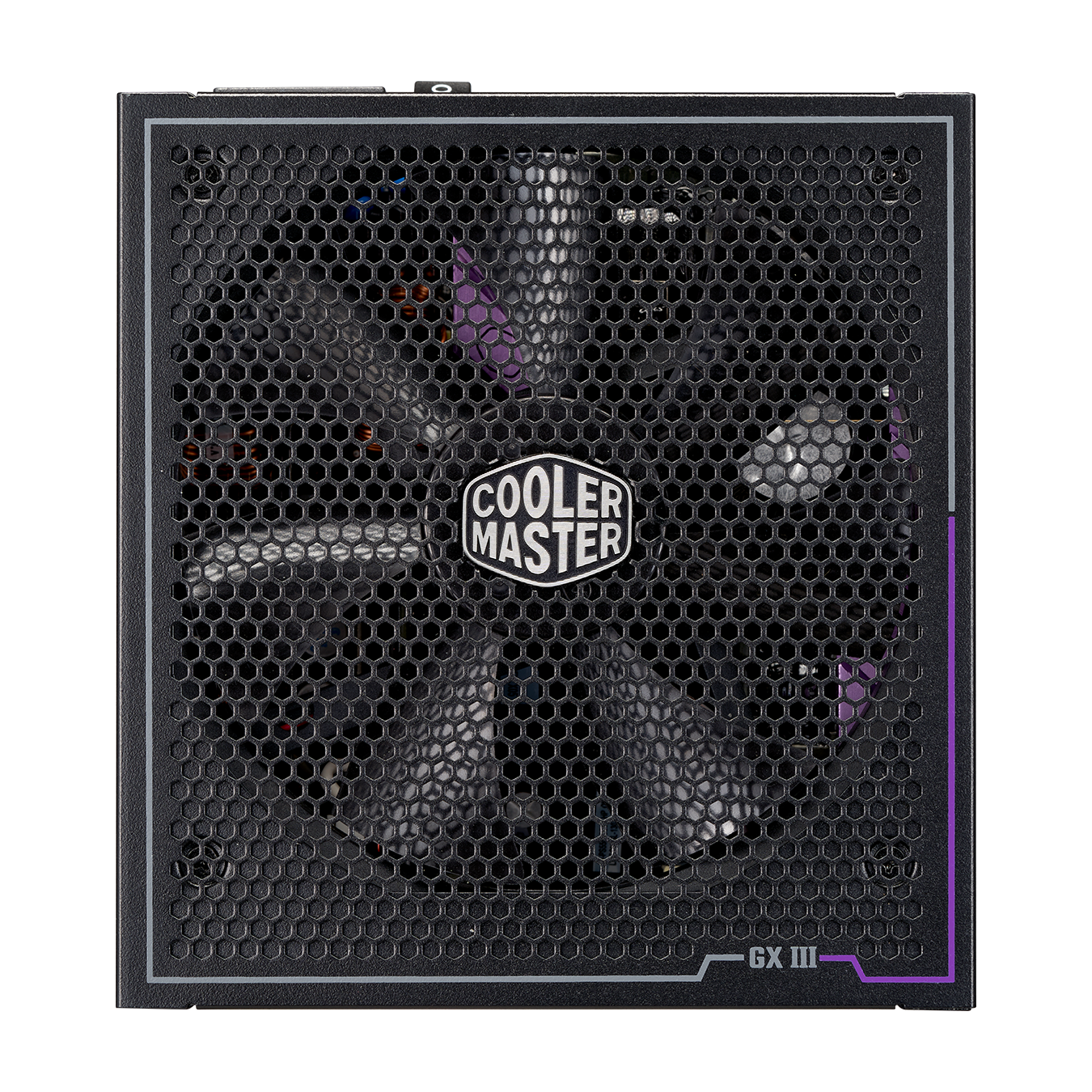

GX III Gold 1250 image number 4
GX III Gold 1250 image number 5
GX III Gold 1250 image number 6

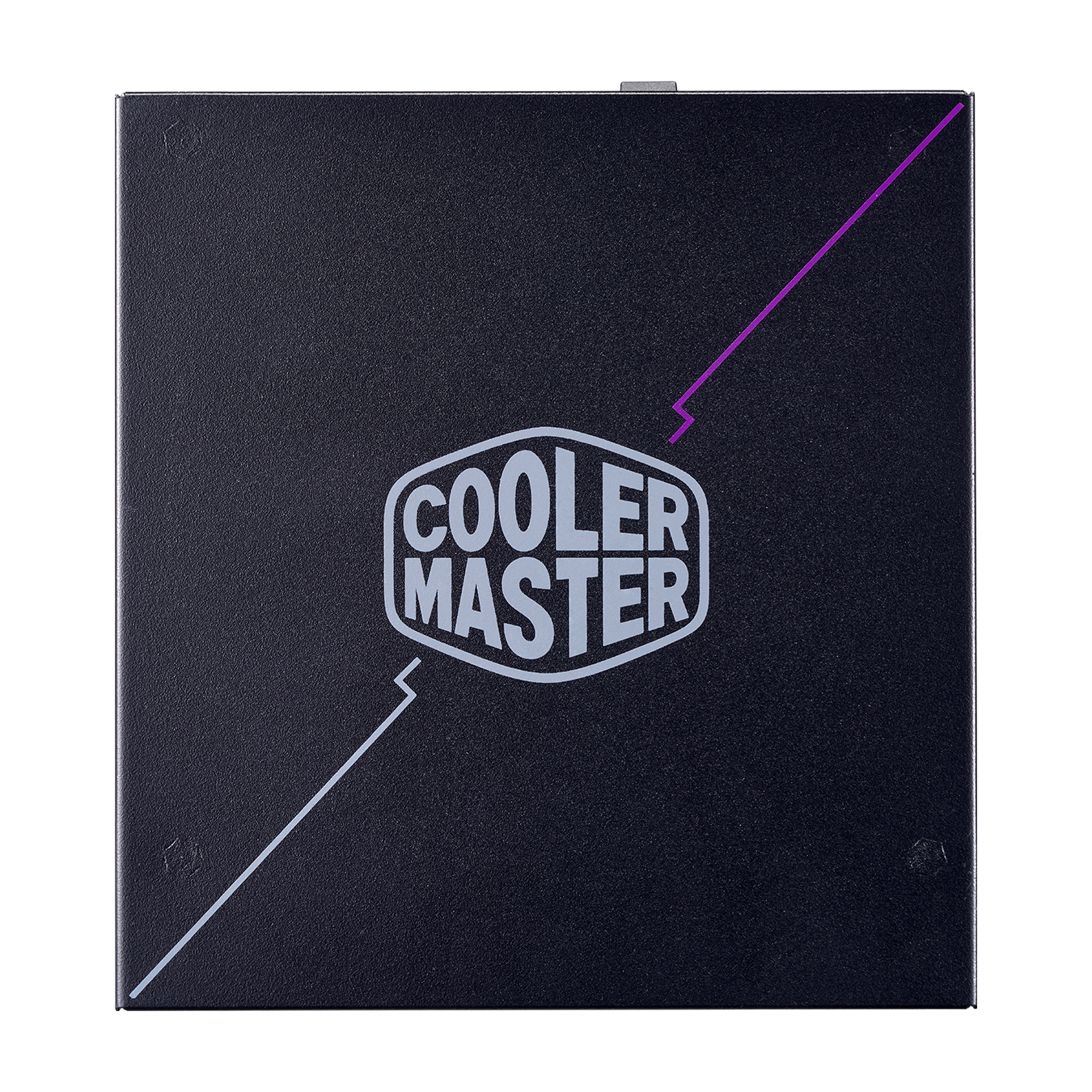

GX III Gold 1250 image number 7
GX III Gold 1250
GX III Gold 1250
GX III Gold 1250
GX III Gold 1250
GX III Gold 1250
GX III Gold 1250
GX III Gold 1250
GX III Gold 1250

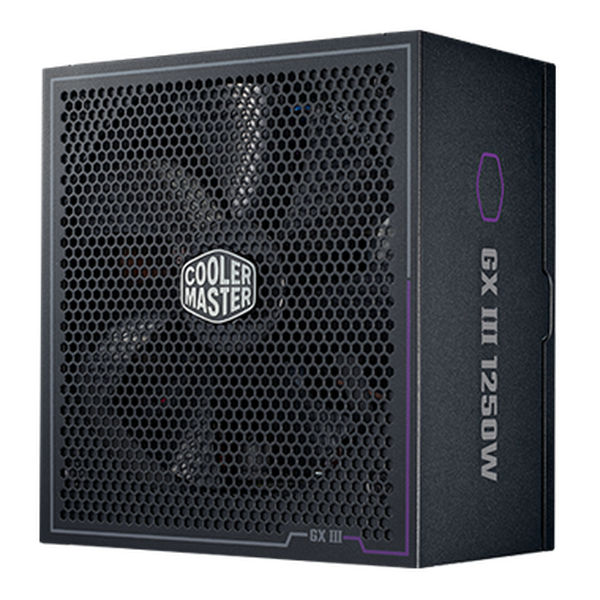

Strength in Elegance

GX III Gold 1250

Innovative, streamlined design

ATX 3.0 support & a 90-degree 12VHPWR cable

Optimized and silent thermal performance

Titanium efficiency at light loads

Fully modular cabling

10-year warranty

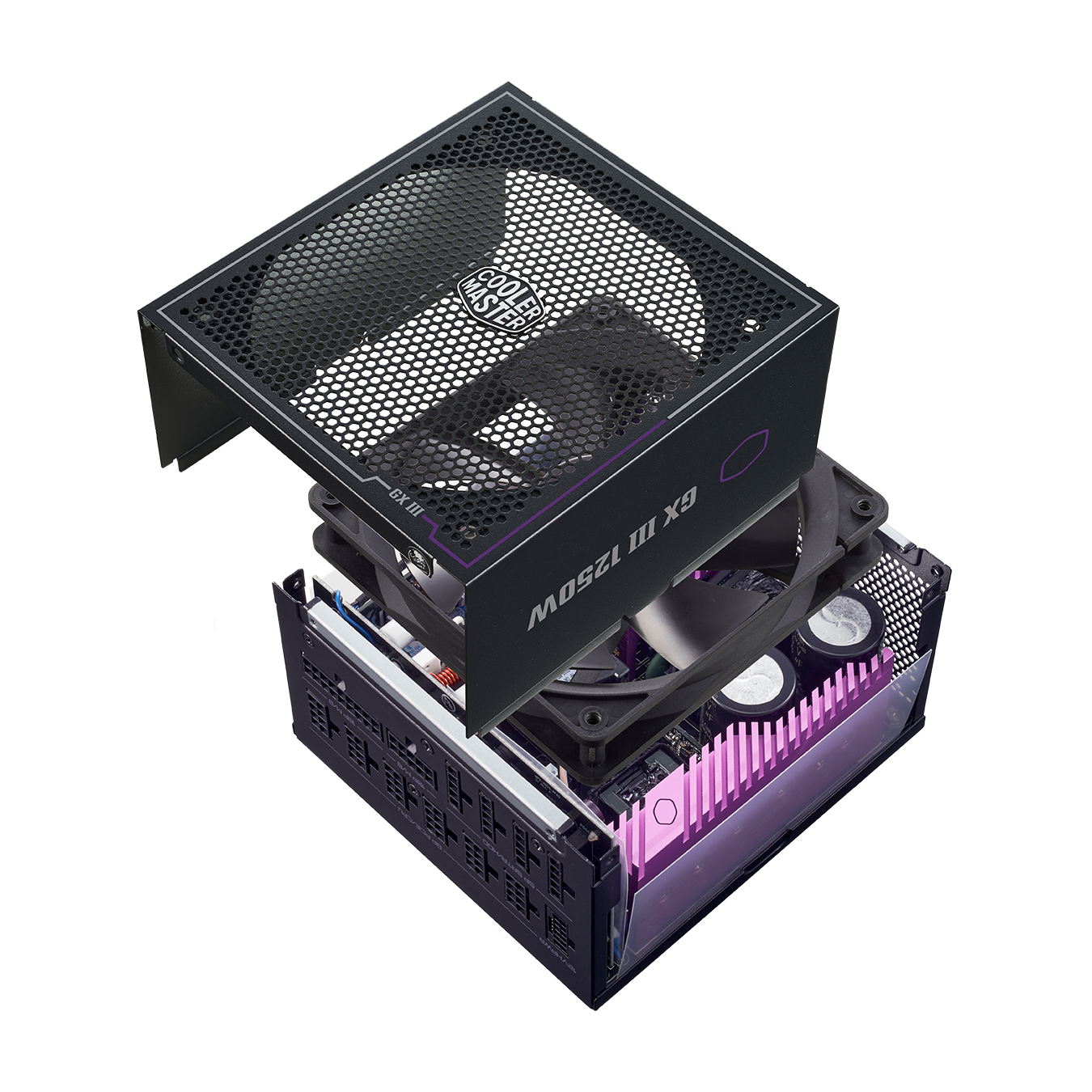

anodic-coated heat sink

90% efficiency

ZERO-RPM MODE

This unit includes a smart thermal control mode that defaults to zero spin.

FULLY MODULAR CABLING

Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

PSU CALCULATOR

Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.

Specifications

  • Model MPX-C503-AFAG
  • ATX Version ATX 12V Ver. 3.0
  • PFC Active PFC
  • Input Voltage 100-240V
  • Input Current 15-7A
  • Input Frequency 50-60Hz
  • Dimensions (L x W x H) 160 x 150 x 86 mm
  • Fan Size 135mm
  • Fan Bearing FDB
  • Fan Speed 2300 RPM
  • Efficiency ≥90% @ Typical Load
  • 80 PLUS Rating 80 PLUS Gold
  • ErP 2014 Lot 3 Yes
  • Operating Temperature 0-50°C
  • Power Good Signal 100 - 150 ms
  • Hold Up Time ≥ 16ms
  • MTBF >100,000 Hours
  • Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • Regulatory cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors 1
  • EPS 8 Pin Connector 1
  • SATA Connectors 12
  • Peripheral 4 Pin Connectors 4
  • PCI-e 6+2 Pin Connectors 3
  • 12VHPWR Connector 1
  • Series GX Series
  • 80 Plus Efficiency Gold
  • Modular Fully Modular
  • Category Above 750W
  • Form Factor ATX
  • Watts 1250W
