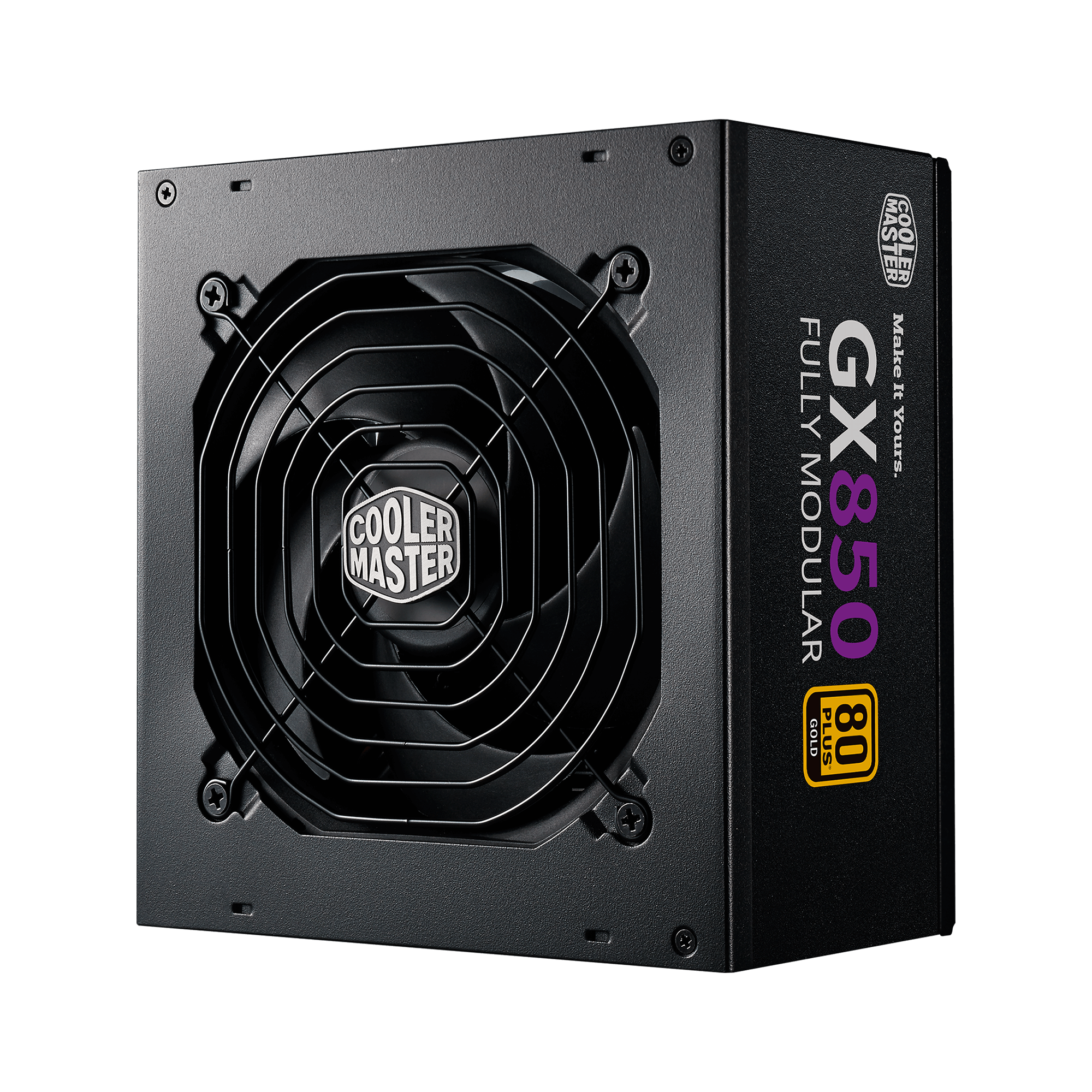

GX Gold 850 Full Modular image number 0

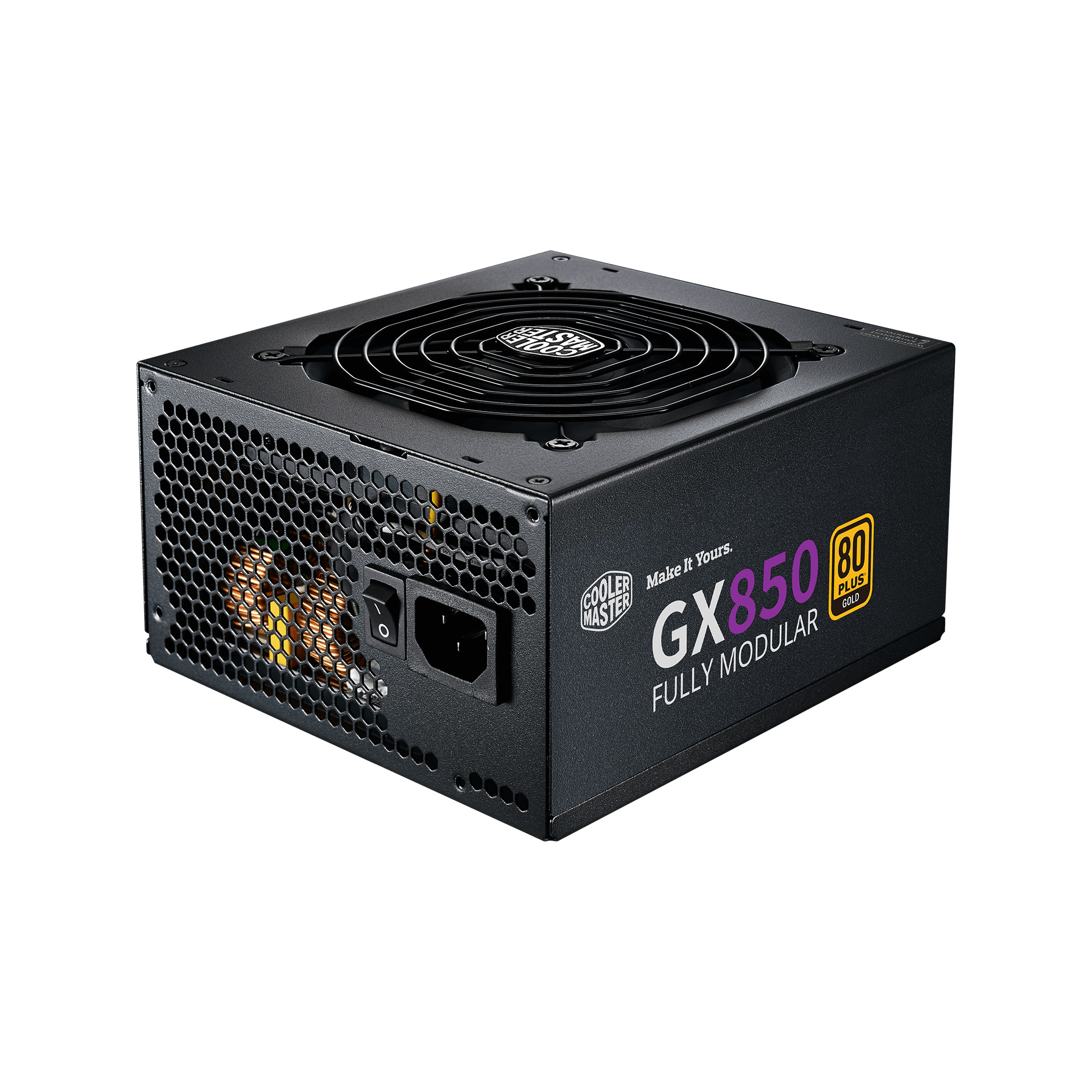

GX Gold 850 Full Modular image number 1

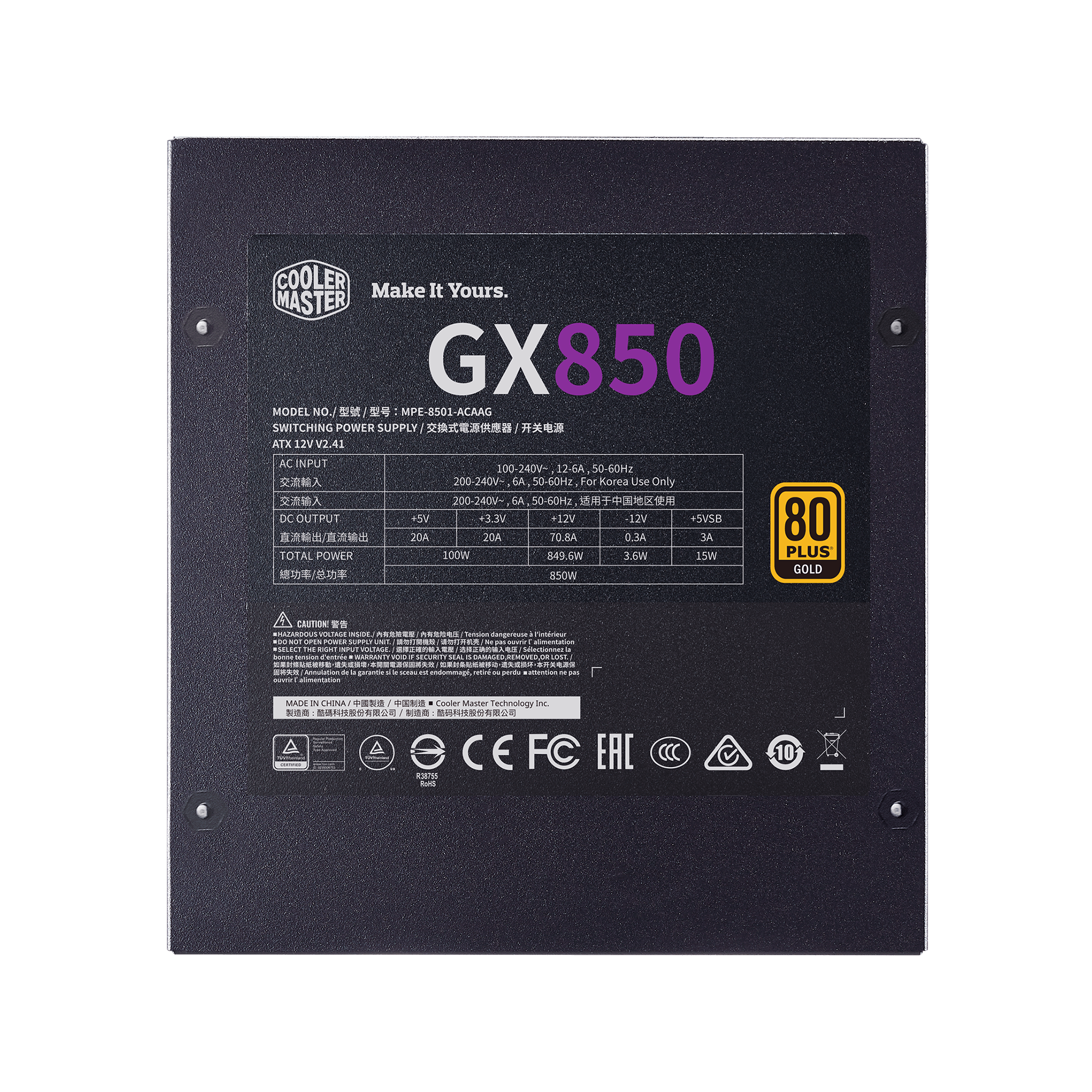

GX Gold 850 Full Modular image number 2

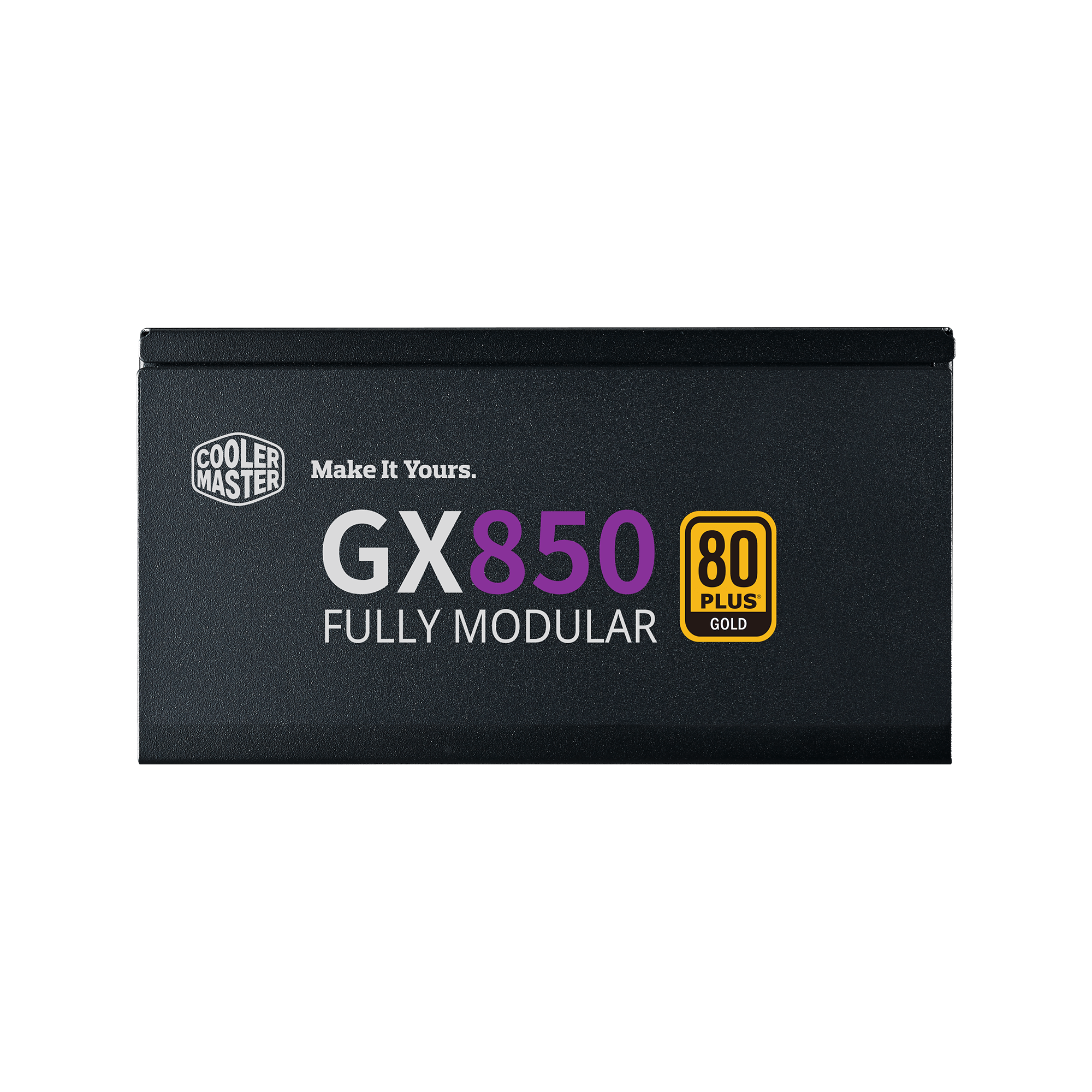

GX Gold 850 Full Modular image number 3

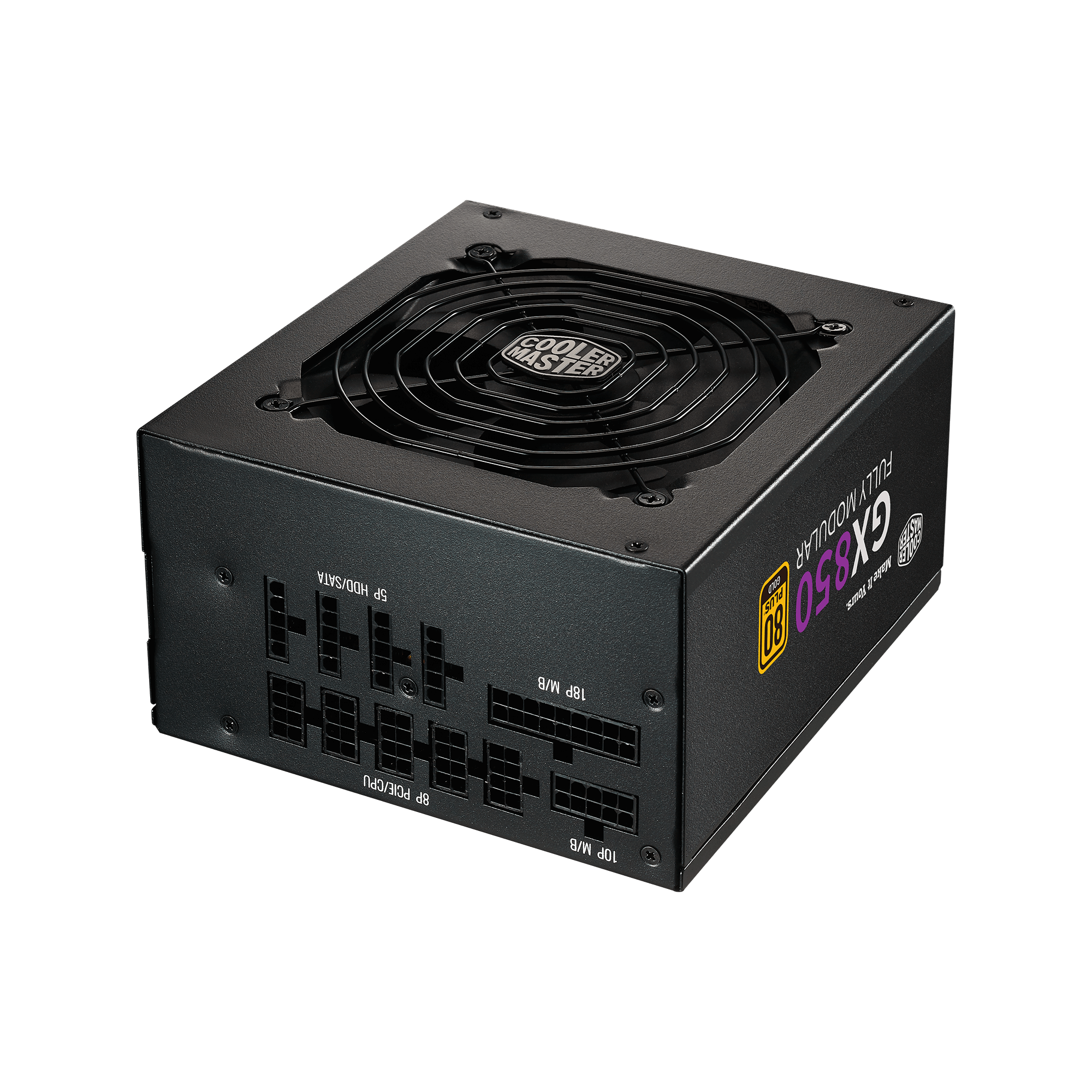

GX Gold 850 Full Modular image number 4

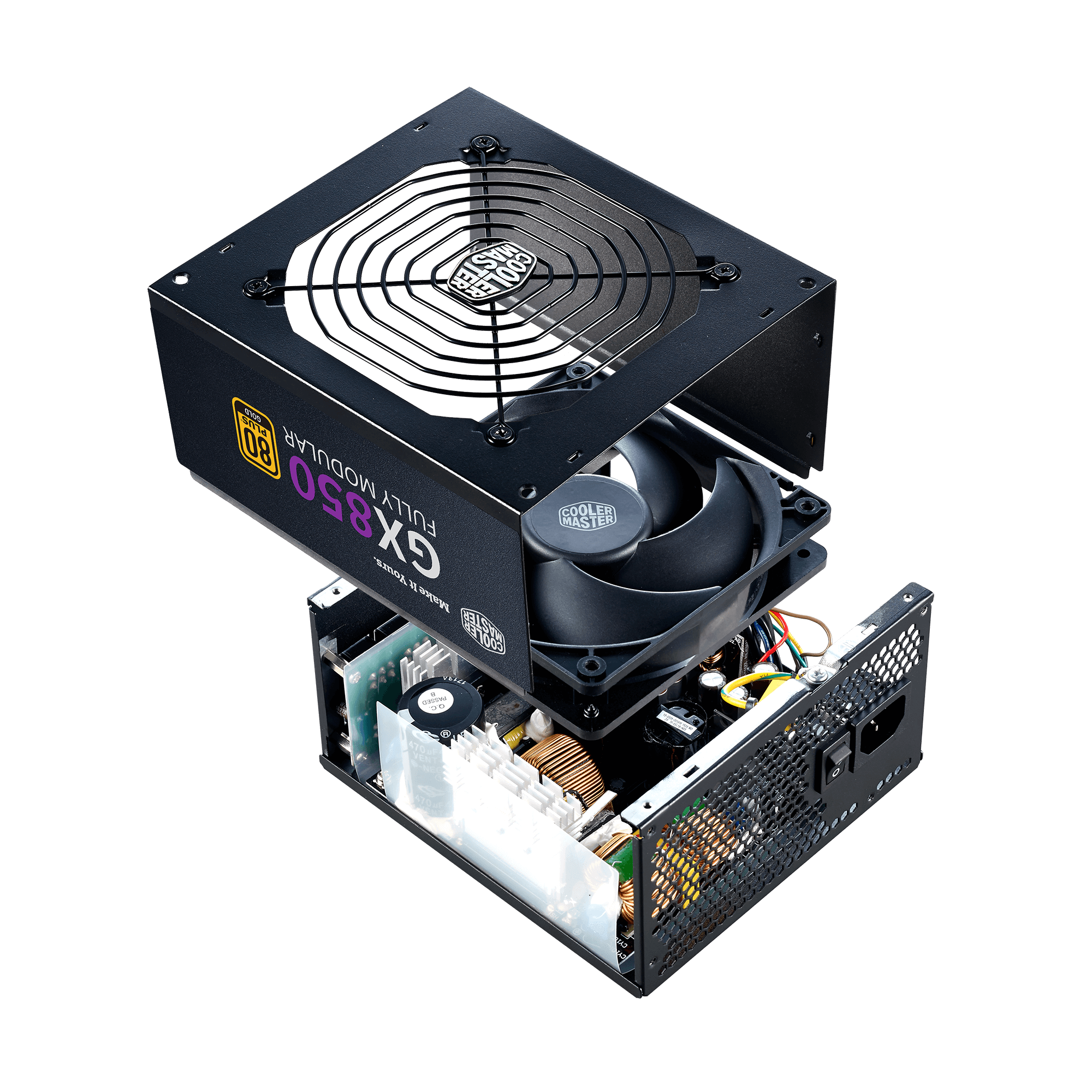

GX Gold 850 Full Modular image number 5
GX Gold 850 Full Modular image number 6
GX Gold 850 Full Modular image number 7

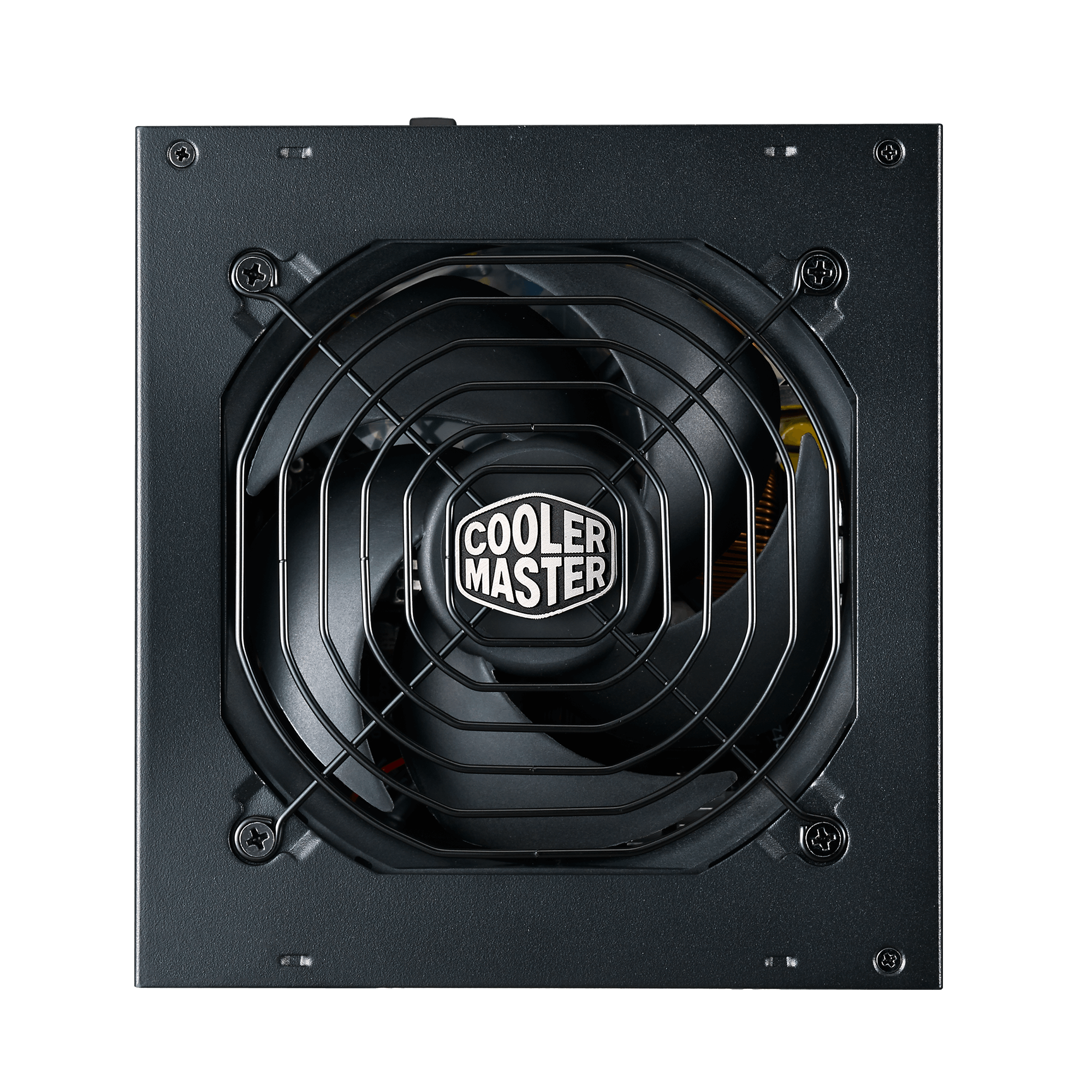

GX Gold 850 Full Modular image number 8

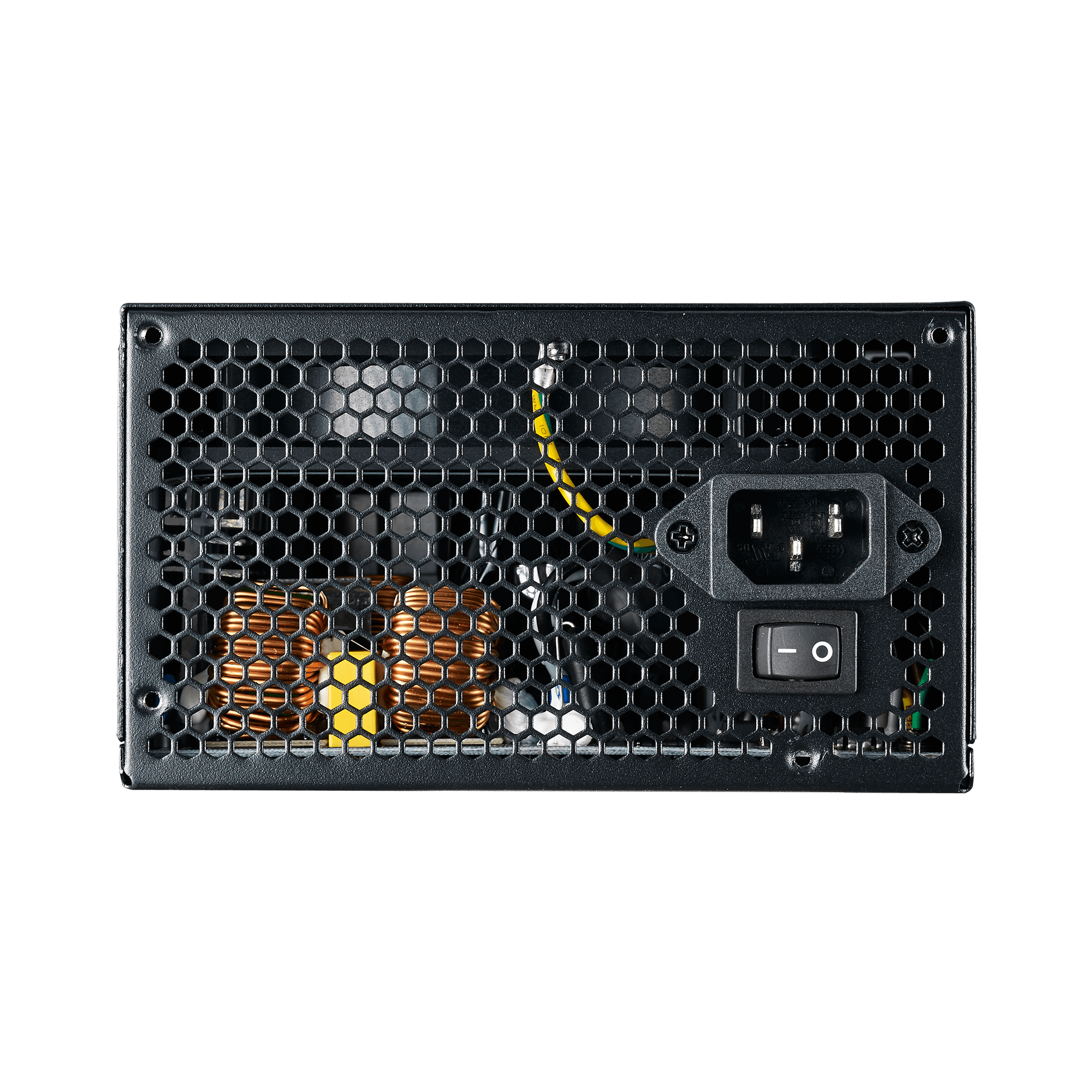

GX Gold 850 Full Modular image number 9
GX Gold 850 Full Modular
GX Gold 850 Full Modular
GX Gold 850 Full Modular
GX Gold 850 Full Modular
GX Gold 850 Full Modular
GX Gold 850 Full Modular
GX Gold 850 Full Modular
GX Gold 850 Full Modular
GX Gold 850 Full Modular
GX Gold 850 Full Modular

Full Modular 80 Plus Gold ATX Power Supply Unit

GX Gold 850 Full Modular

80 Plus Gold Efficiency

2 EPS Connectors

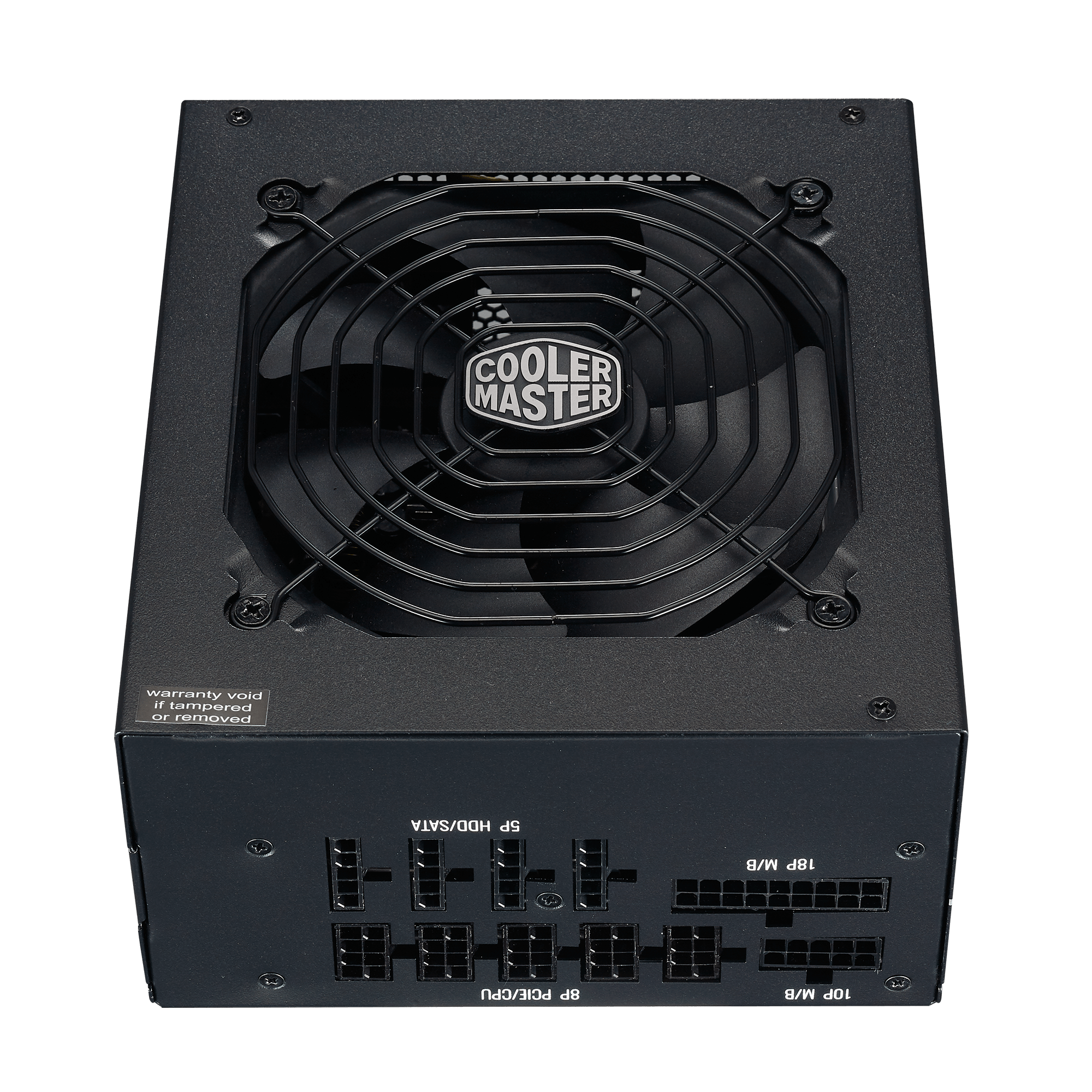

120mm HDB Fan

High Temperature Resilience

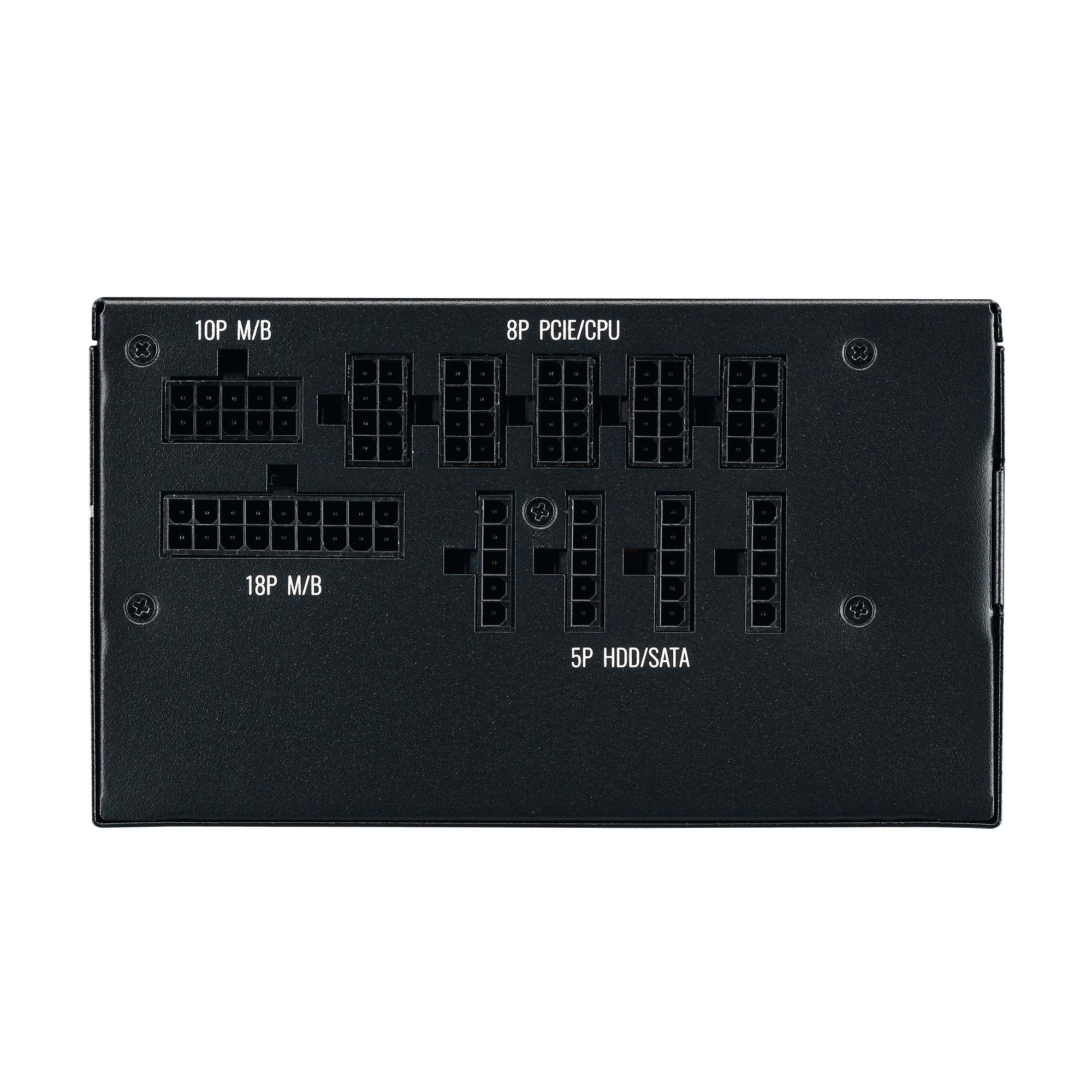

Full Modular Cabling

5 Year Warranty

Specifications

  • Modular Fully Modular
  • ATX Version ATX 12V
  • PFC Active PFC
  • ErP 2014 Lot 3 Yes
  • Category Above 750W
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors x1 = 1x (700mm)1
  • EPS 8 Pin Connector x1 = 1x (700mm)
  • Fan Size 120mm
  • 80 PLUS Rating 80 PLUS Gold
  • MTBF >100,000 hours @ 25℃ ambient
  • Input Frequency 47-63Hz
  • SATA Connectors 12
  • 80 Plus Efficiency Gold
  • Fan Bearing HDB
  • Operating Temperature 0-50°C
  • PCI-e 6+2 Pin Connectors 750W / 850W: x4 = 2x (600+120mm)​ 1000W: x3 = 3x (600mm)
  • Input Voltage 100-240V
  • Peripheral 4 Pin Connectors 4
  • Protections OVP
  • Protections OPP
  • Protections SCP
  • Protections UVP
  • Protections OTP
  • Protections OCP
  • Hold Up Time >16ms at 100% Load
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Series GX Series
  • Input Current 12-6A
  • Efficiency ≥90% @ Typical Load
  • Regulatory TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
  • Model MPE-8501-AFAAG
