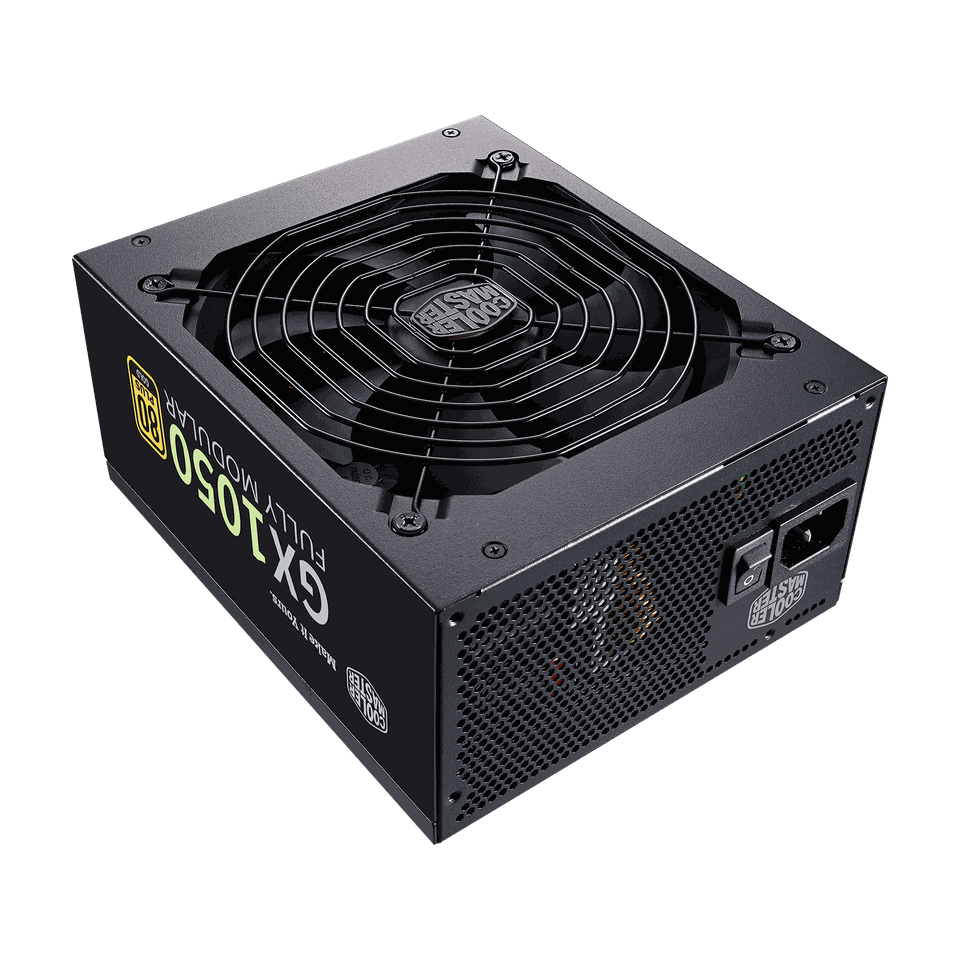

GX GOLD 1050 - V2 Full Modular

Specifications

• Modular Fully Modular
• PFC Active PFC
• ErP 2014 Lot 3 Yes
• ATX 24 Pin Connectors 1
• EPS 4+4 Pin Connectors x1 = 1x (700mm)1
• Category Above 750W
• EPS 8 Pin Connector x1 = 1x (700mm)
• Fan Bearing FDB
• Noise Level @ 20% 0 dBA
• Input Voltage 90-264V
• Power Good Signal 100 - 150 ms
• 80 PLUS Rating 80 PLUS Gold
• MTBF >100,000 hours @ 25℃ ambient
• Input Frequency 47-63Hz
• 80 Plus Efficiency Gold
• SATA Connectors 12
• Operating Temperature 0-50°C
• PCI-e 6+2 Pin Connectors 6
• Peripheral 4 Pin Connectors 4
• Protections OVP
• Efficiency 90% @ Typical Load
• ATX Version ATX 12V V2.52
• Fan Size 140mm
• Protections OPP
• Protections SCP
• Protections UVP
• Protections OTP
• Protections OCP
• Fan Speed 2200 RPM
• Series GX Series
• Regulatory CCC
• Regulatory CE
• Regulatory RCM
• Regulatory EAC
• Hold Up Time >20ms at 100% Load
• Dimensions (L x W x H) 180 x 150 x 86 mm
• Input Current 13-6A
• Regulatory cTUVus
• Regulatory FCC
• Regulatory BSMI
• Regulatory CB
• Noise Level @ 50% 14.9 dBA
• Regulatory TUV
• Noise Level @ 100% 27.3 dBA
• Regulatory KCC
• Model MPE-A501-AFCAG
