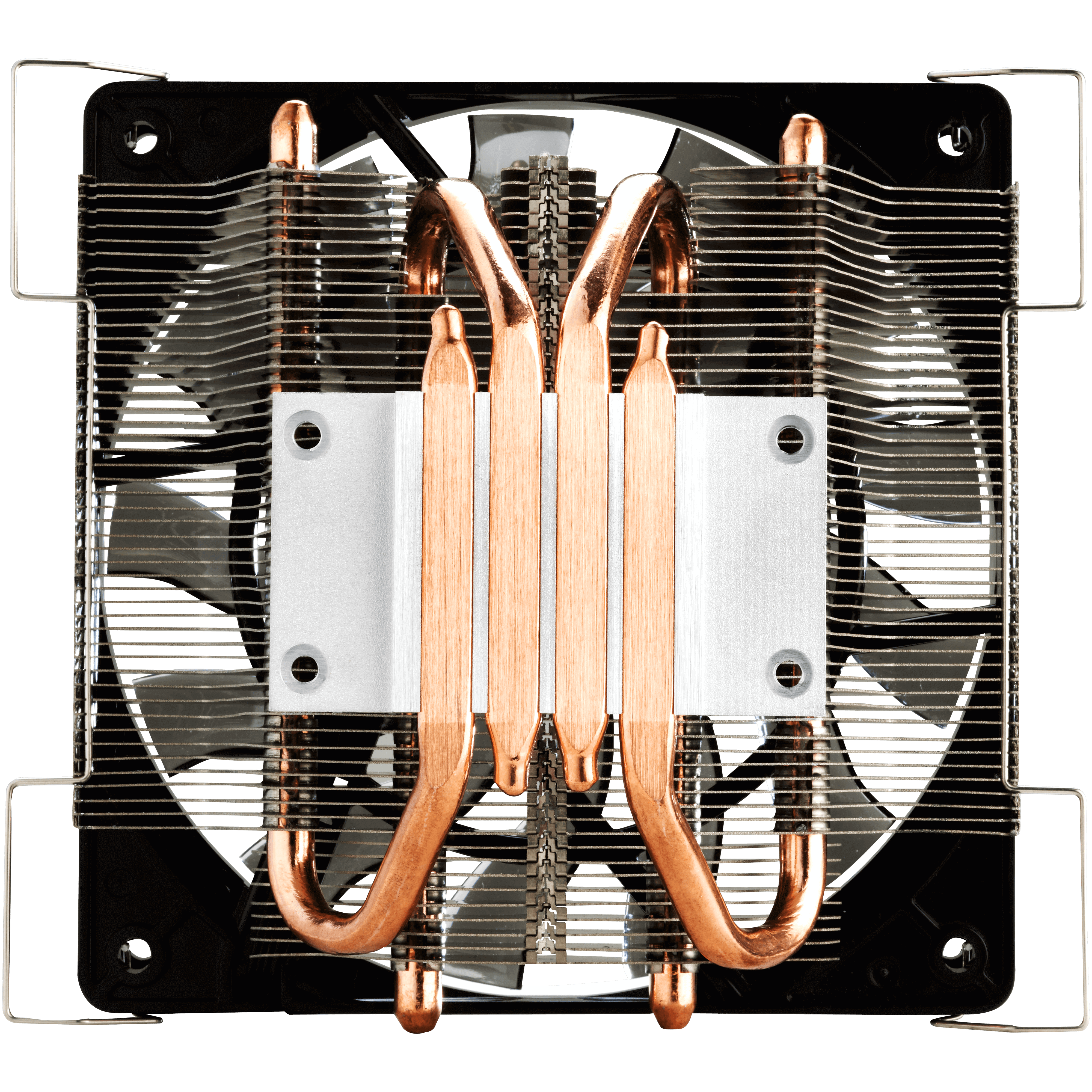

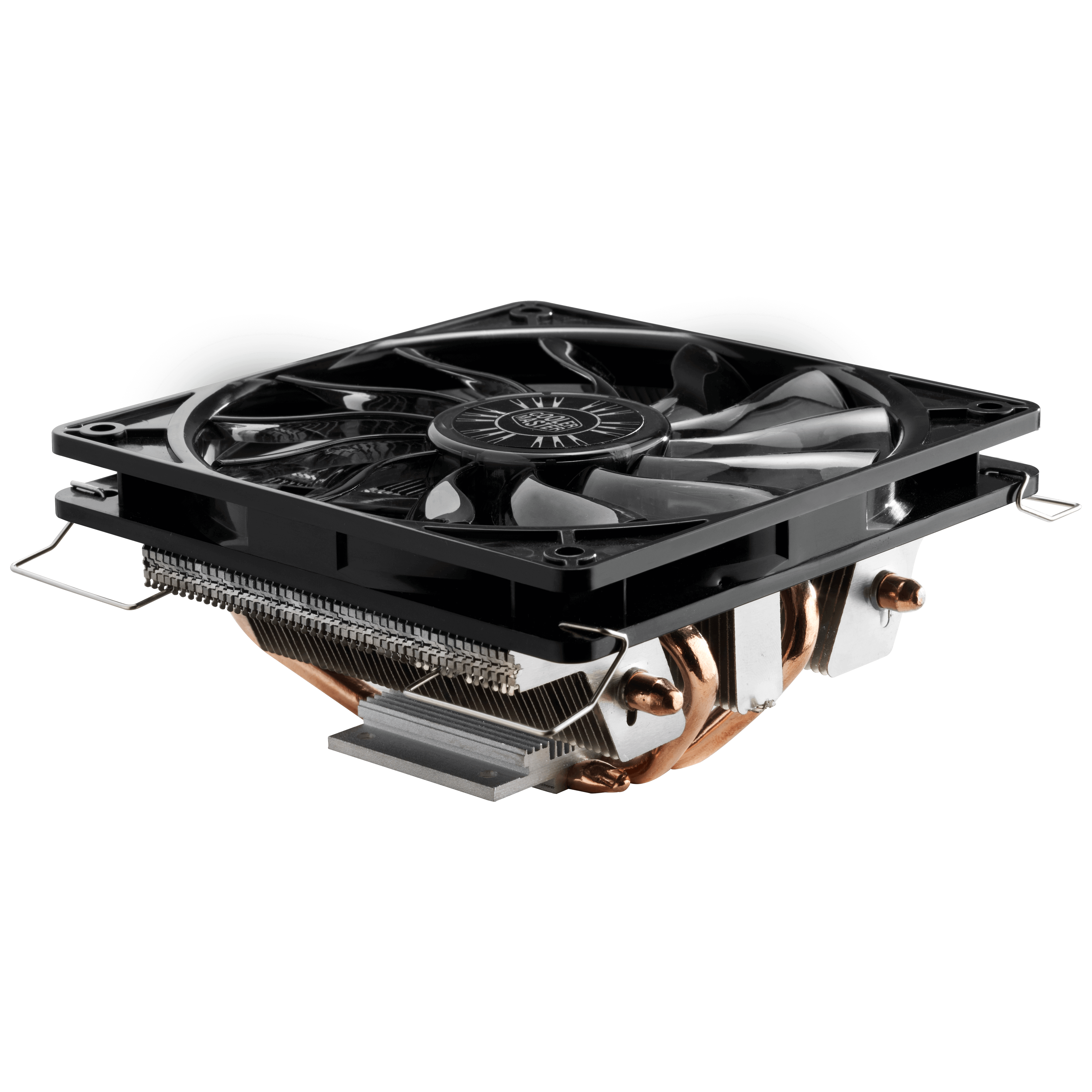

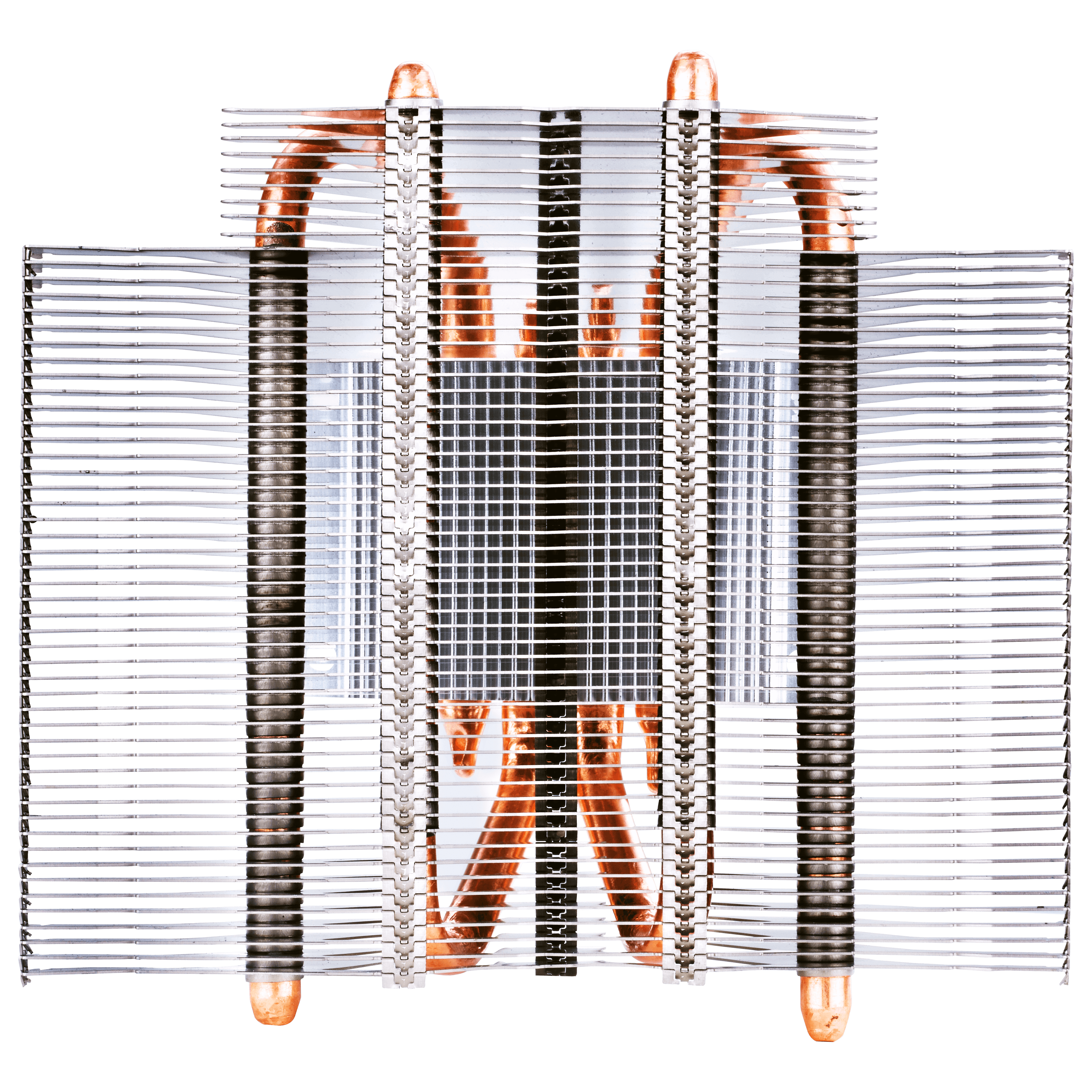

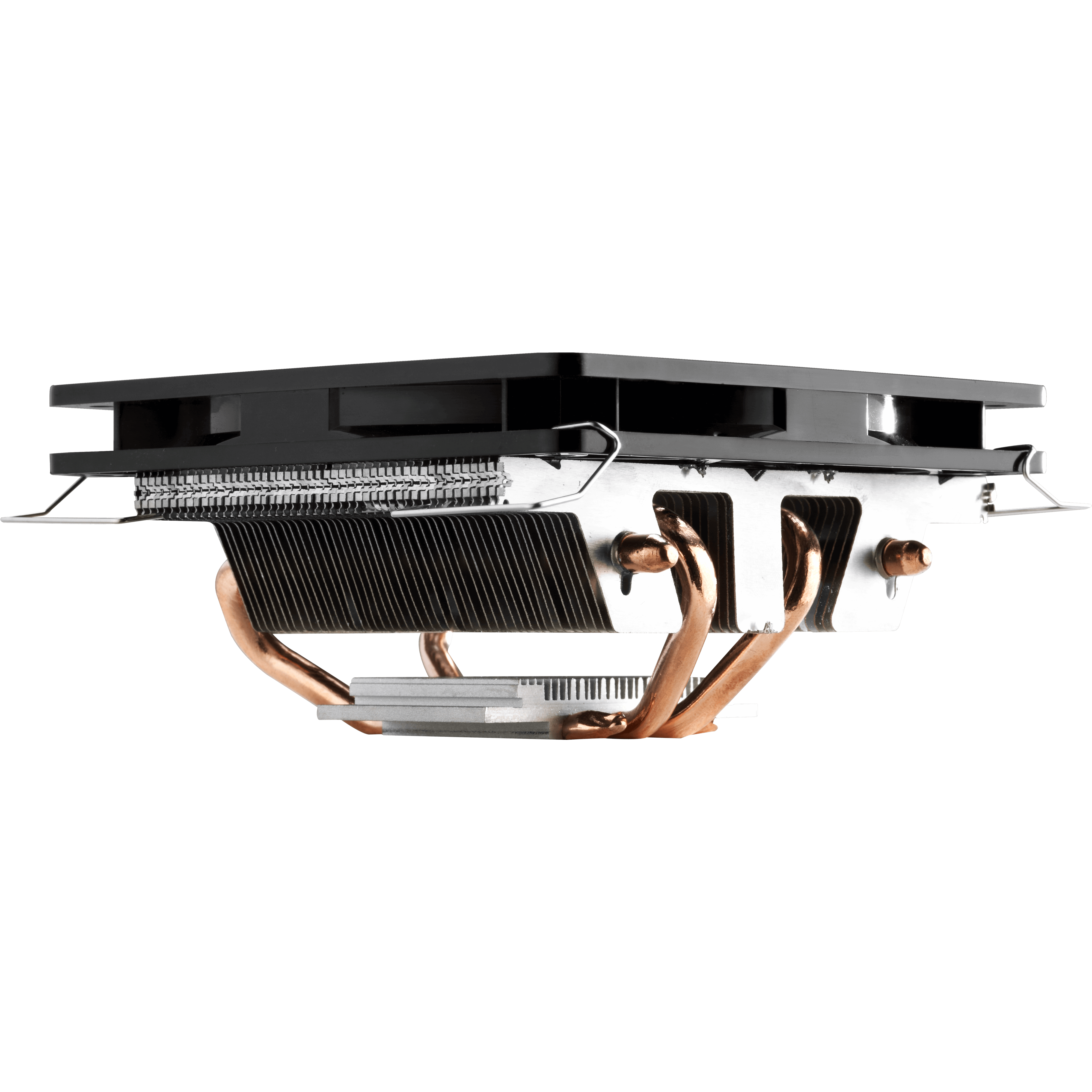

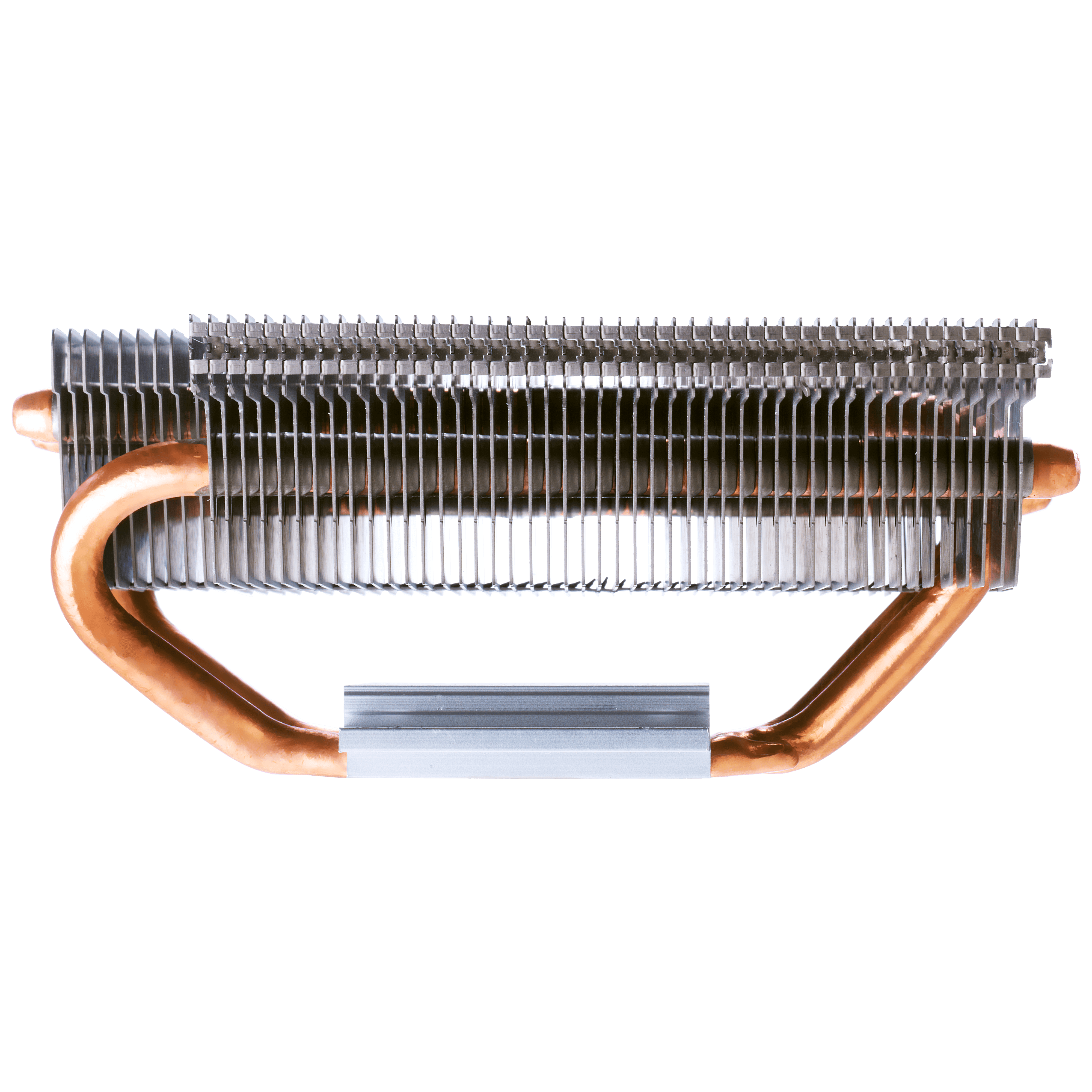

GeminII M4

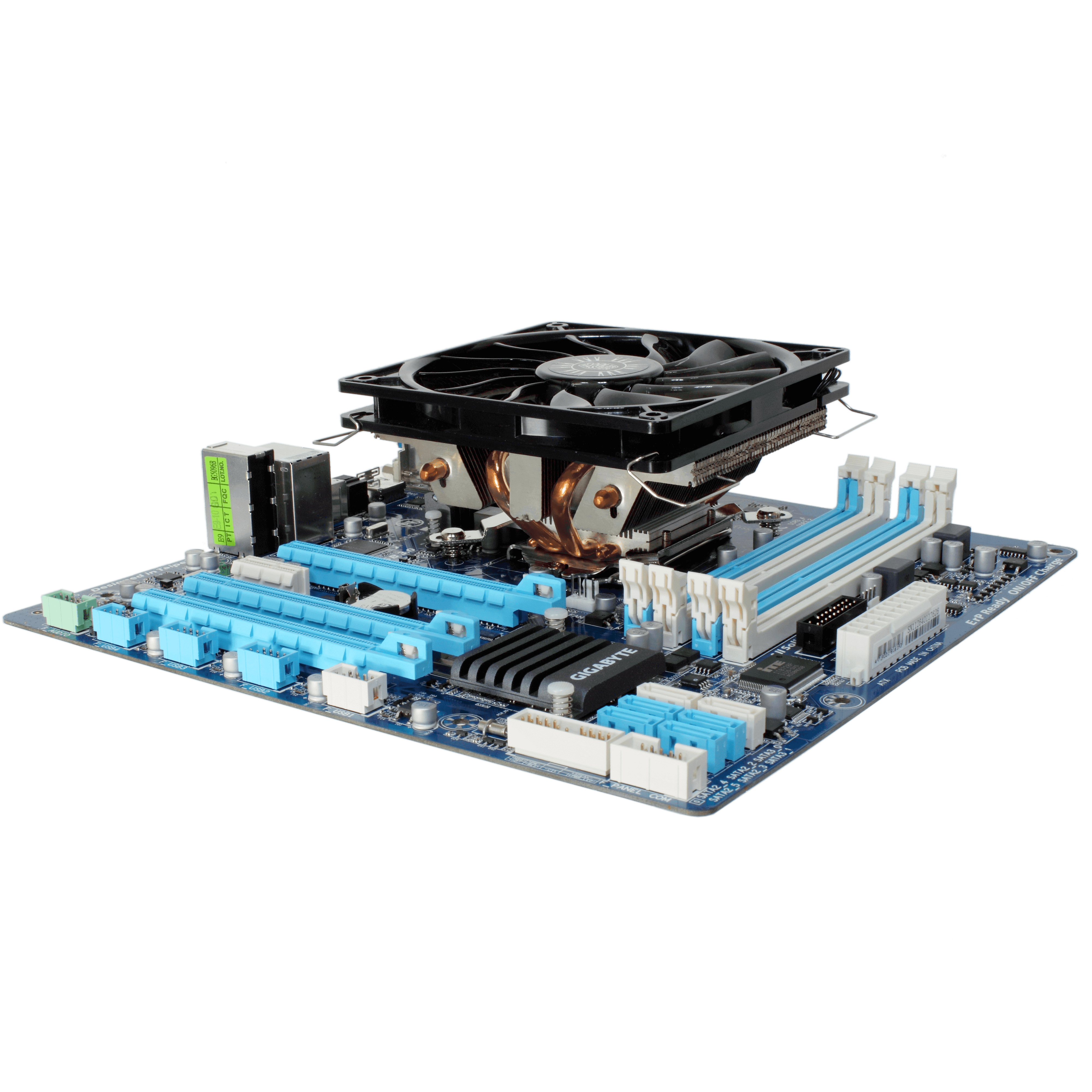

GeminII M4 is a super low profile CPU cooler designed for a system with limited space, such as mini-ITX, HTPC, or any small desktop.

Heat Pipe Dimensions Ø6mm
Fan Rated Voltage 12 VDC
Cooler Type Air Cooler
Warranty 2 years
Fan Power Connector 4-Pin (PWM)
CPU Socket LGA2066
Fan Bearing Type Long Life Sleeve Bearing

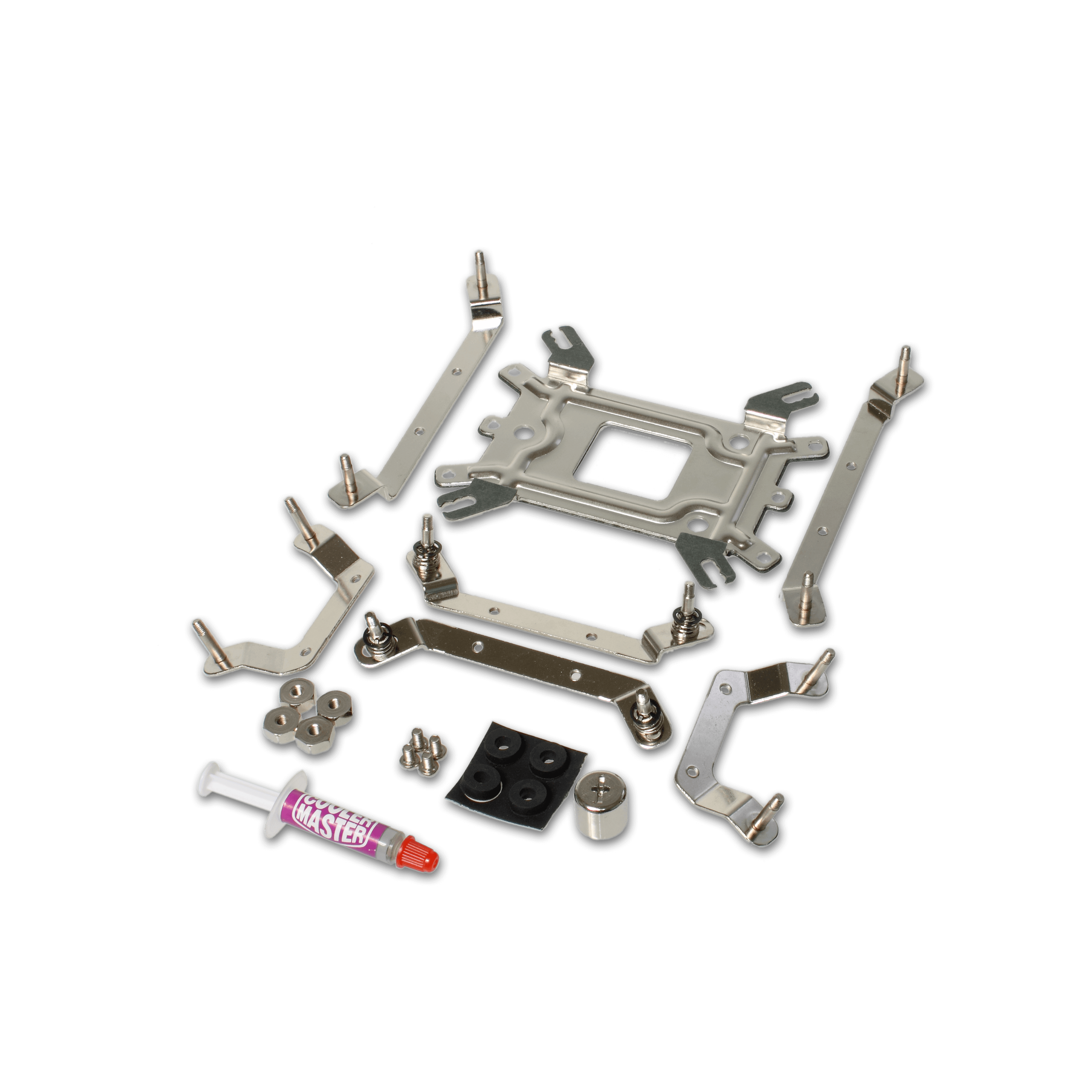

Note *The supplied accessories may differ by country or area. Please check with your local distributor for further details.
Fan Life Expectancy 40,000 Hours
Heatpipes 4
Note *This socket is only compatible with GeminII M4 RR-GMM4-16PK-R2, it is not compatible with GeminII M4 RR-GMM4-16PK-R1.
CPU Socket LGA2011
Fan Weight 79g / 0.17lb
Series GeminII
CPU Socket LGA1366
CPU Socket LGA1200
CPU Socket LGA1156
CPU Socket LGA1155
Fan Airflow 17.4 - 58.4 CFM ± 10%
Fan Noise Level 8 - 30 dBA
CPU Socket LGA1151
CPU Socket LGA1150
Fan Speed 500-1600 RPM (PWM) ± 10%
CPU Socket LGA775
Fan Dimensions (L x W x H) 120 x 120 x 15 mm / 4.7 x 4.7 x 0.6 inch
Heat Sink Material Aluminum Fins
Heat Sink Dimensions (L x W x H) 120 x 118 x 44 mm / 4.7 x 4.6 x 1.7 inch
Fan Air Pressure 0.18 - 1.76 mmH2O ± 10%
CPU Socket AM3+
CPU Socket AM3
CPU Socket AM2+
Heat Sink Weight 210g / 0.46lb
CPU Socket AM2
CPU Socket FM2+
Dimensions (L x W x H) 137 x 122 x 59mm / 5.4 x 4.8 x 2.3 inch
Heat Sink Material 4 Continuous Direct Contact Heat Pipes
Fan Power Consumption 2.4W
CPU Socket FM2
CPU Socket FM1
Fan Rated Current 0.2A
Product Number RR-GMM4-16PK-R2 (with 2066 / 2011)
Product Number RR-GMM4-16PK-R1 (without 2066 / 2011)
