Entry Level 80 PLUS Gold ATX Power Supply Unit

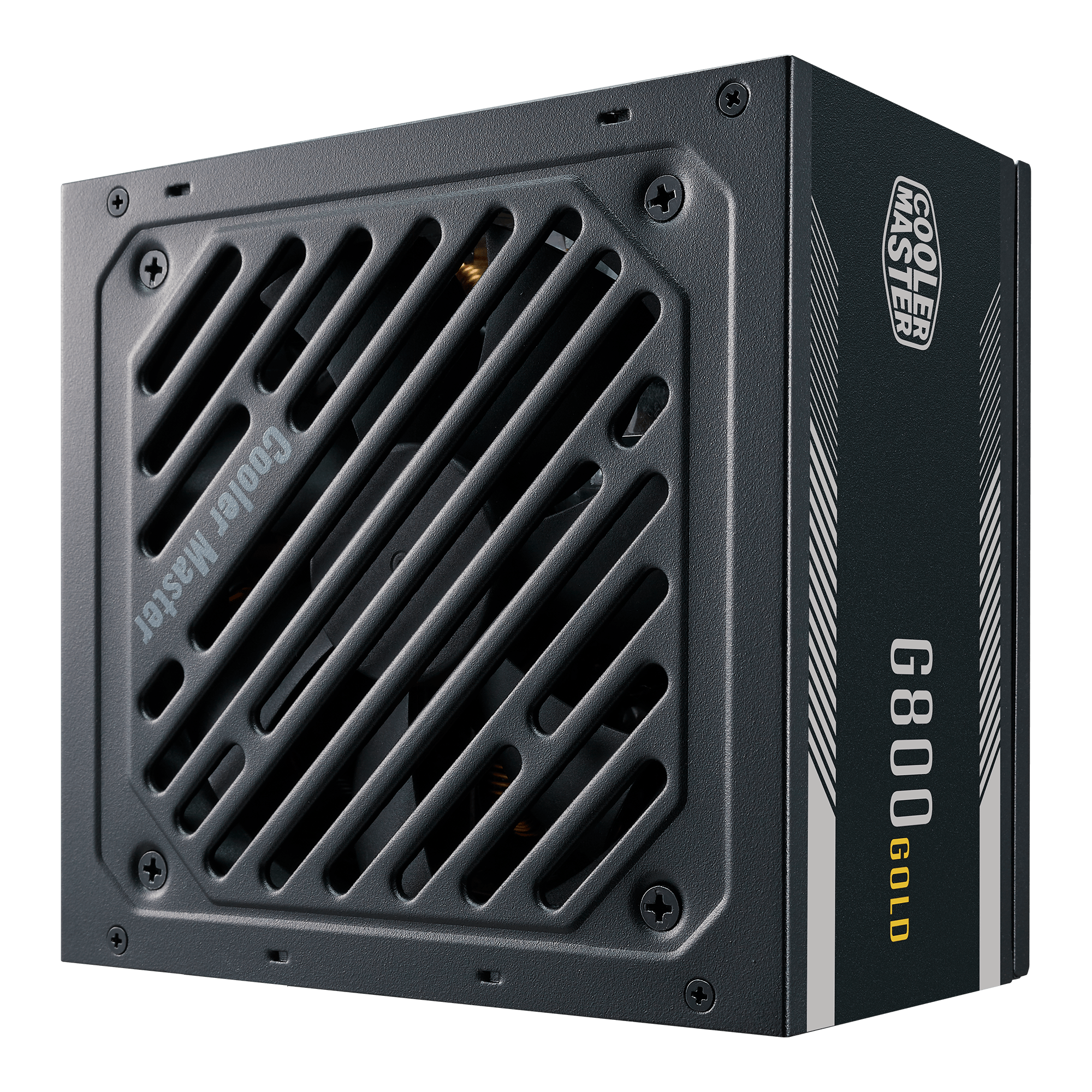

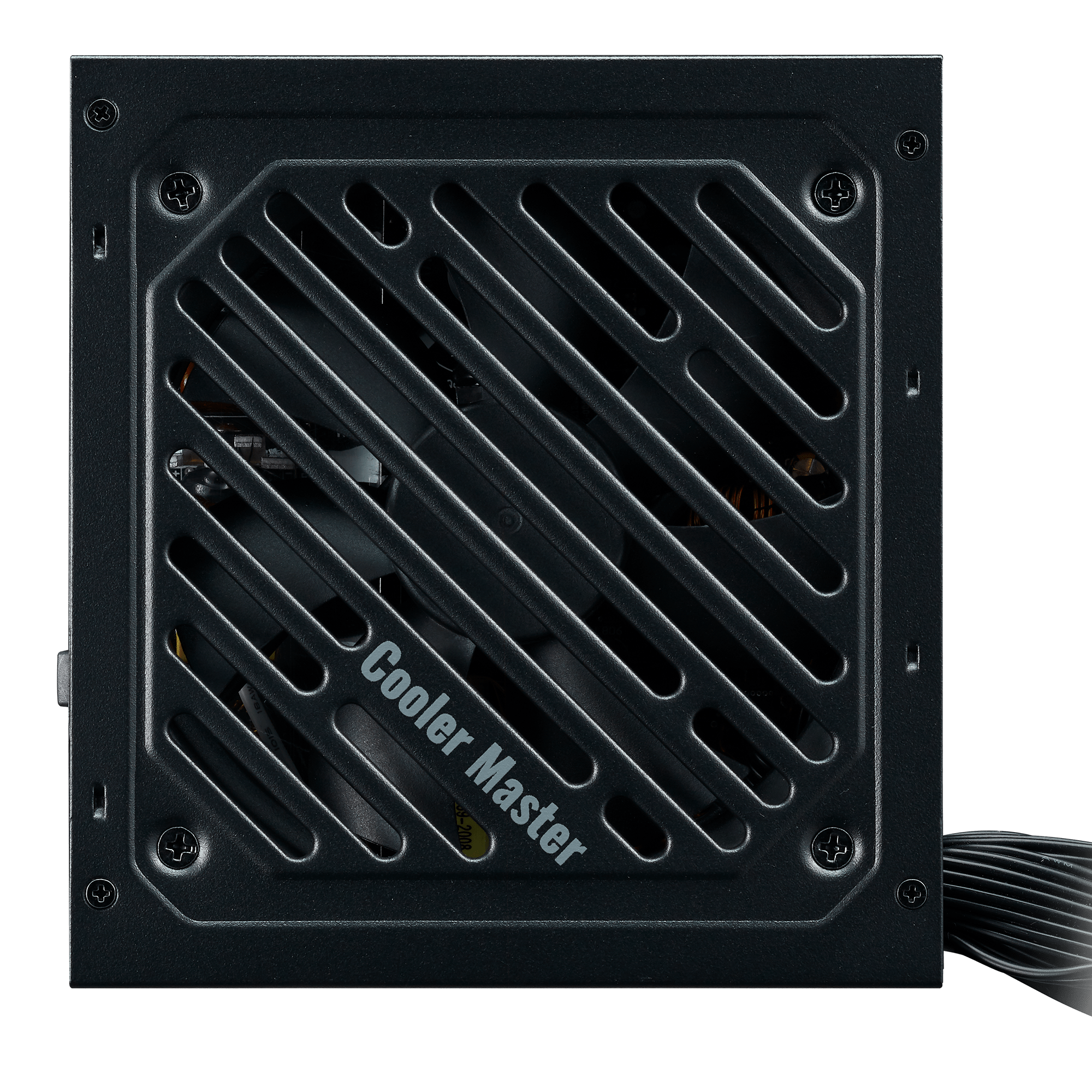

G800 Gold
The G800 Gold consists of dependable power supply units for entry level users and system integrators.
- Category Above 750W
- PFC Active PFC
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-40°C
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- Power Good Signal 100 - 150 ms
- Warranty 5 Years
- 80 PLUS Rating 80 PLUS Gold
- Fan Size 120mm
- MTBF >100,000 Hours
- Input Frequency 47-63Hz
- 80 Plus Efficiency Gold
- Modular Non Modular
- Fan Bearing HDB
- Input Voltage 100-240V
- PCI-e 6+2 Pin Connectors 4
- SATA Connectors 6
- Peripheral 4 Pin Connectors 3
- Protections OVP
- ATX Version ATX 12V V2.52
- Protections OPP
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Protections UVP
- Protections OTP
- Protections OCP
- Series G Series
- Regulatory CCC
- Regulatory CE
- Input Current 12-6A
- Efficiency ≥90% @ Typical Load
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Hold Up Time ≥15ms at 100% load
- Regulatory BSMI
- Regulatory CB
- Regulatory TUV
- Regulatory RoHS2.0
- Regulatory KC+KCC
- Regulatory BIS

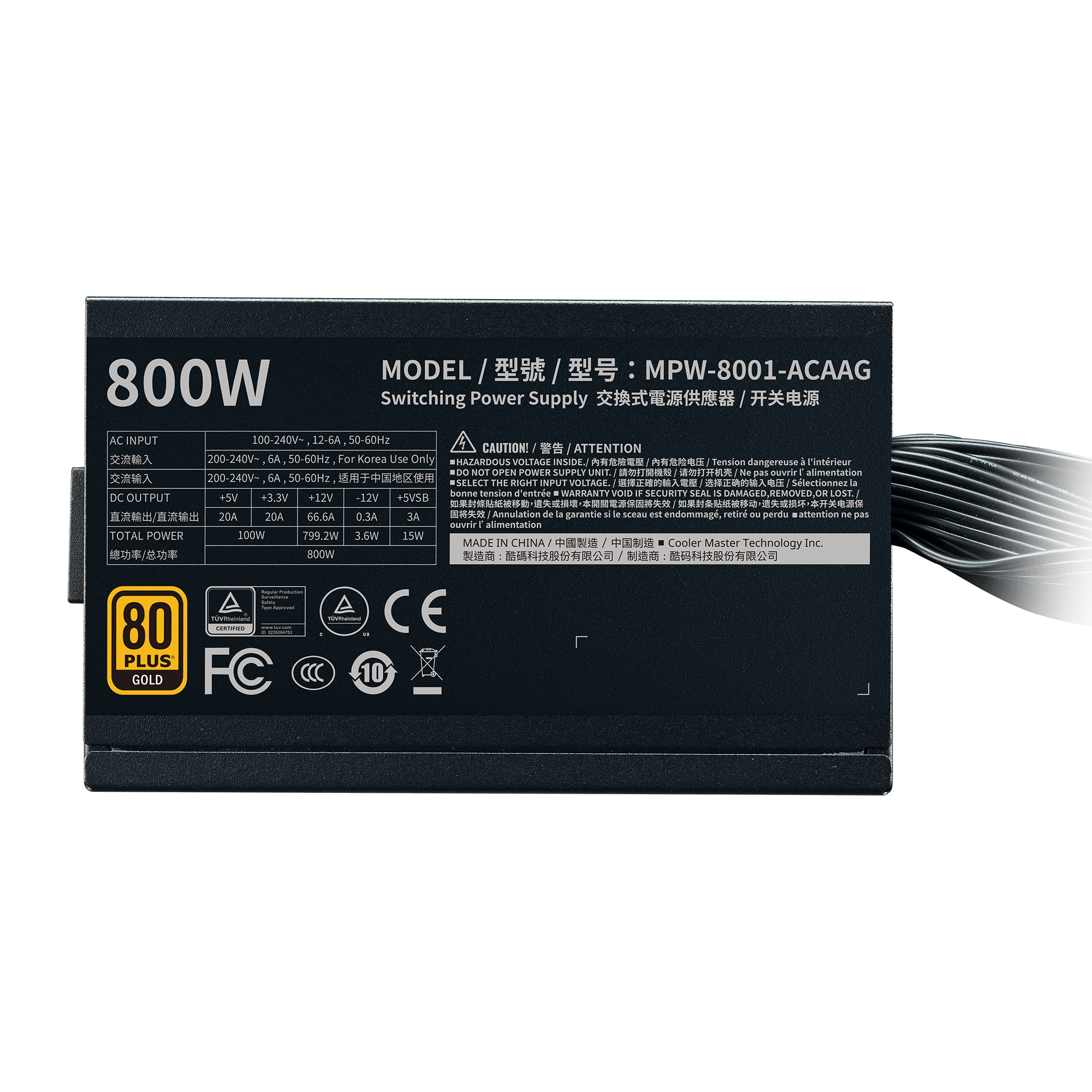

- Model MPW-8001-ACAAG
