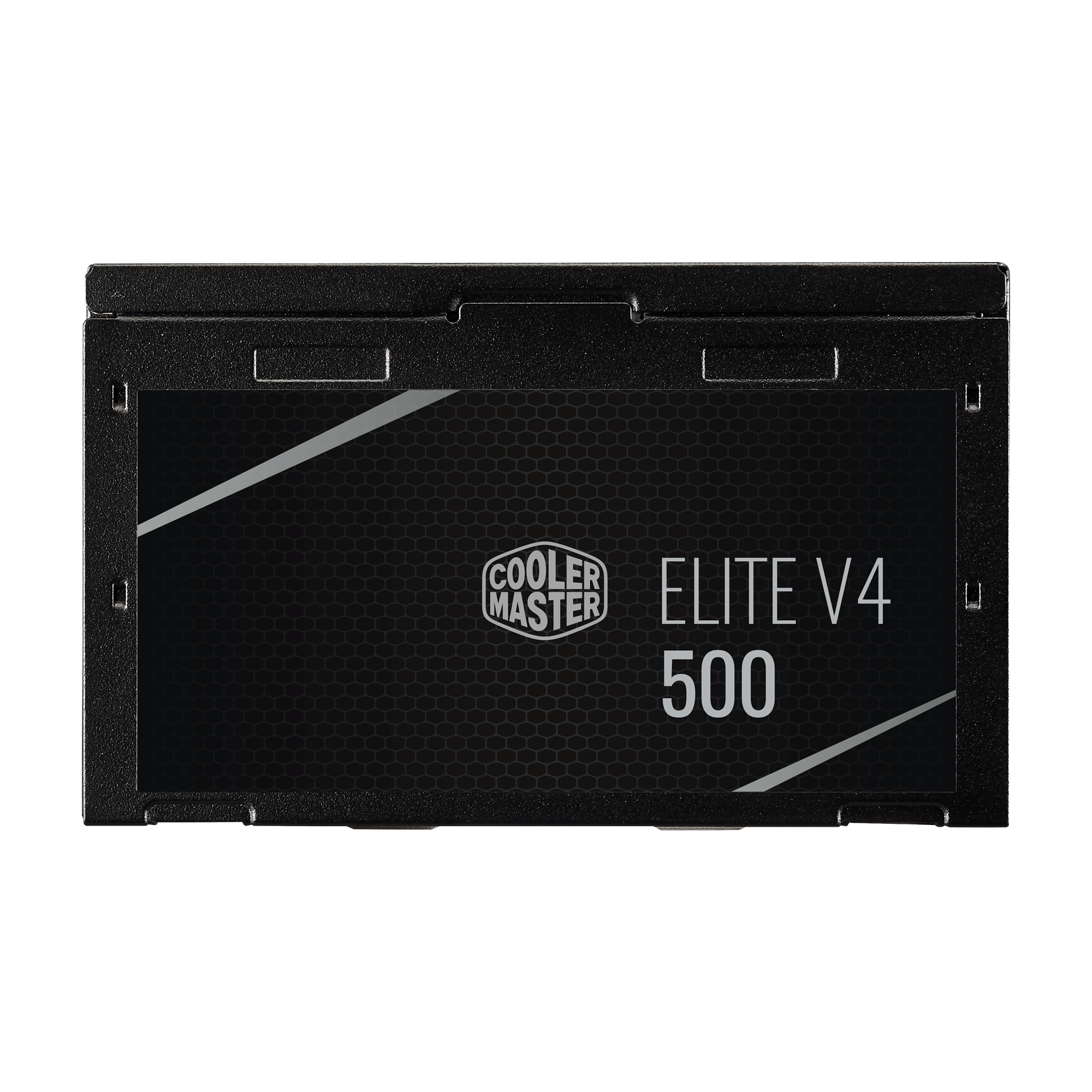

Entry Level ATX Power Supply Unit

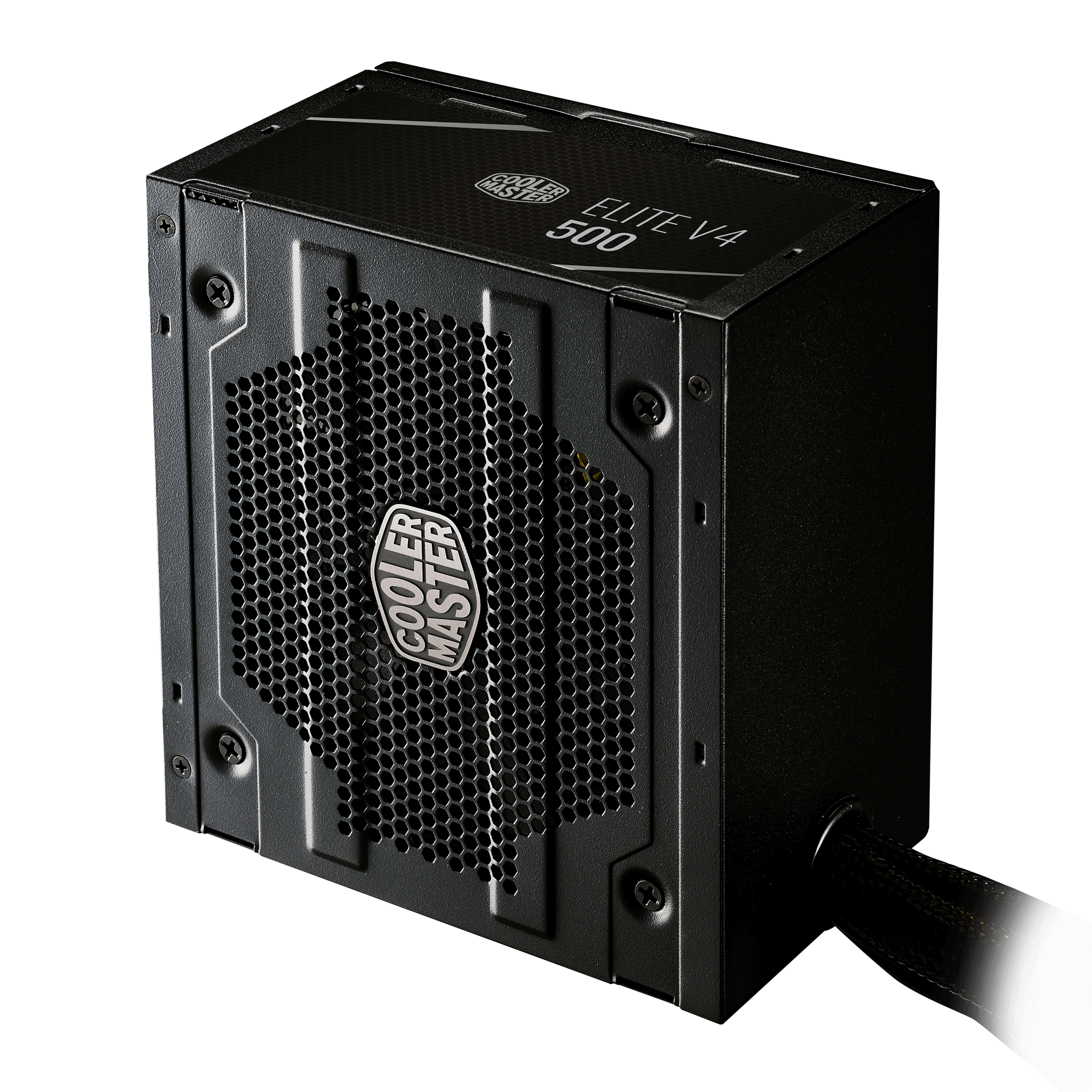

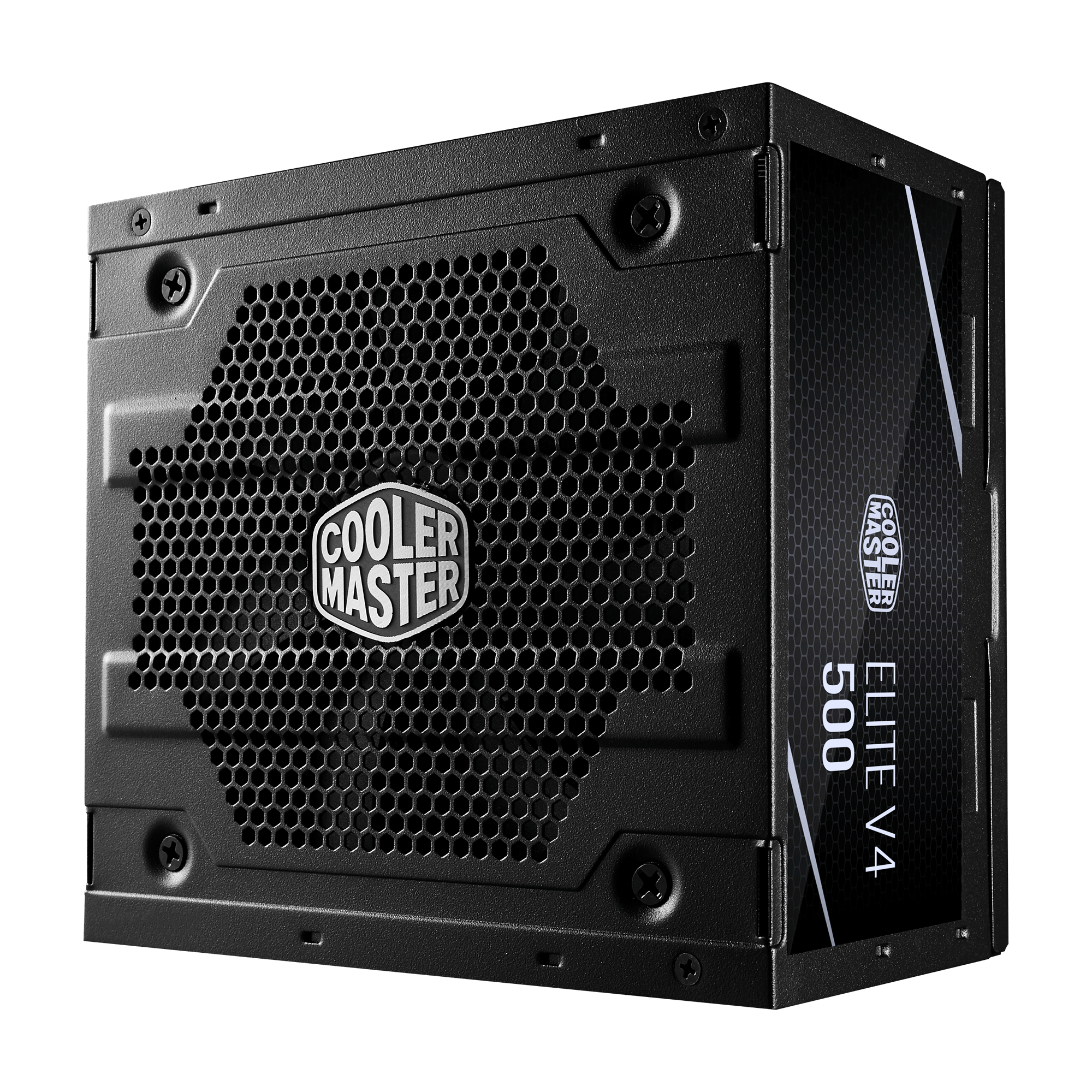

Elite 500 230V – V4

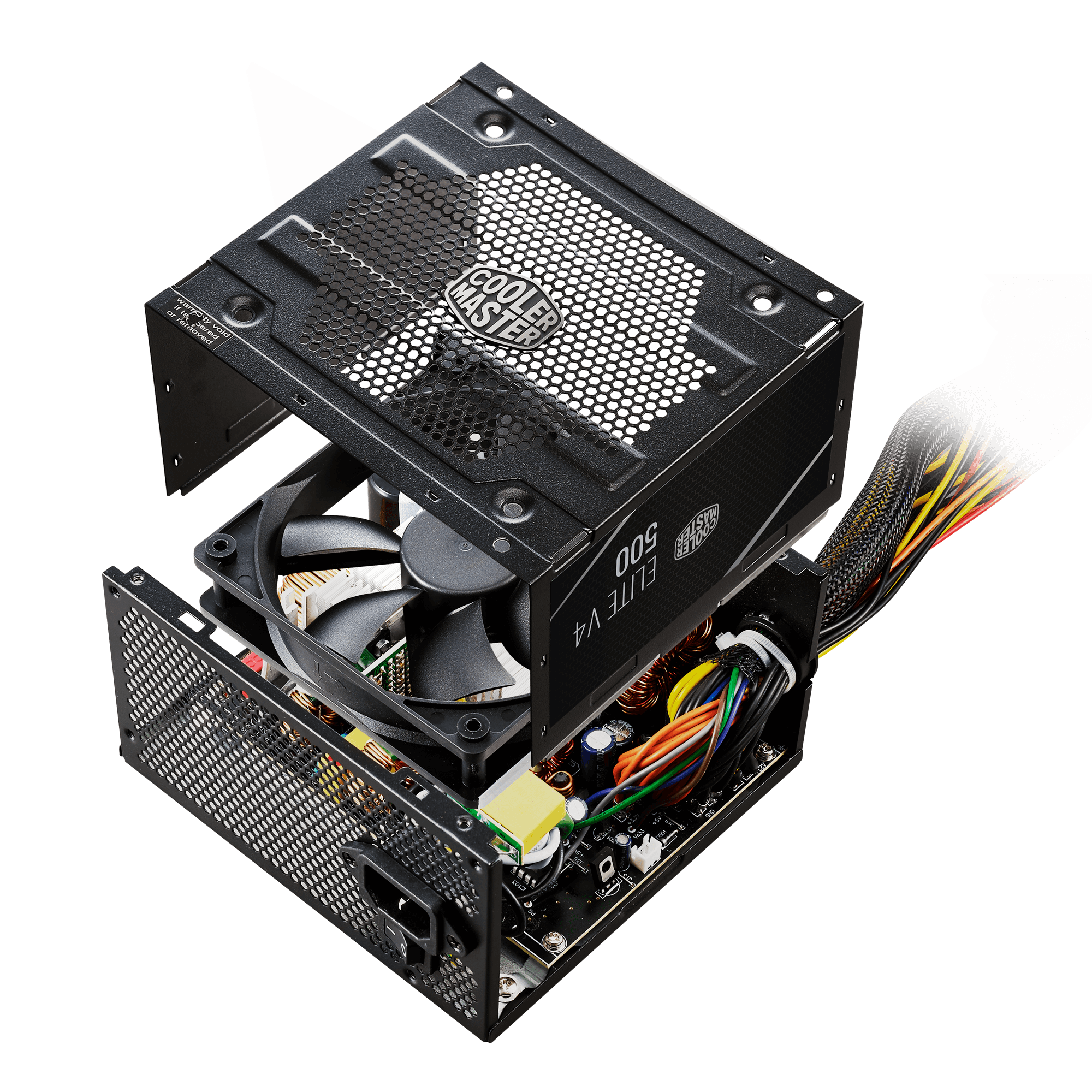

• Active PFC + Forward Topology Design
• High Temperature Resistance
• Peak Power Tolerance
• 80 Plus White EU 230V Efficiency
• Durable, Reliable, And Safe
• 3 Year Warranty
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes
- MB 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours

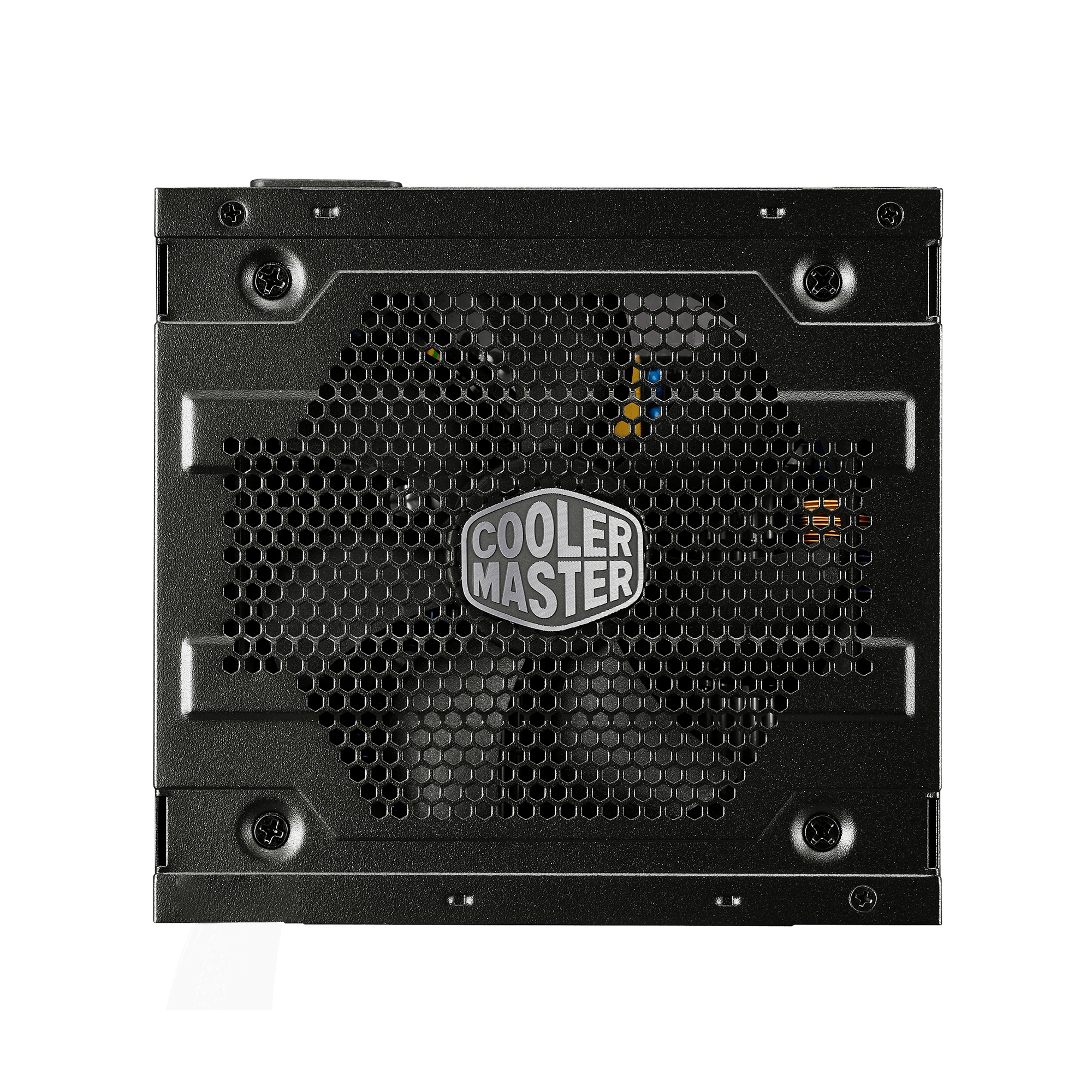

- Fan Size 120mm
- Category 500 to 750W
- Modular Non Modular
- 80 Plus Efficiency White
- Efficiency 85% @ Typical Load
- 80 PLUS Rating 80 PLUS Standard 230V EU
- Fan Bearing Sleeve Bearing
- PCI-e 6+2 Pin Connectors 2
- Operating Temperature 40°C
- Protections OVP
- Peripheral 4 Pin Connectors 3
- Hold Up Time >14ms at 100% load
- Input Current 5A
- SATA Connectors 5
- ATX Version ATX 12V Ver. 2.41
- Protections OPP
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Protections UVP
- Protections OTP
- Regulatory CCC
- Input Voltage 200-240Vac
- Regulatory CE
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus
- Series Elite Series
- Regulatory FCC
- Regulatory BSMI
- Regulatory CB
- Regulatory TUV
- Regulatory KCC

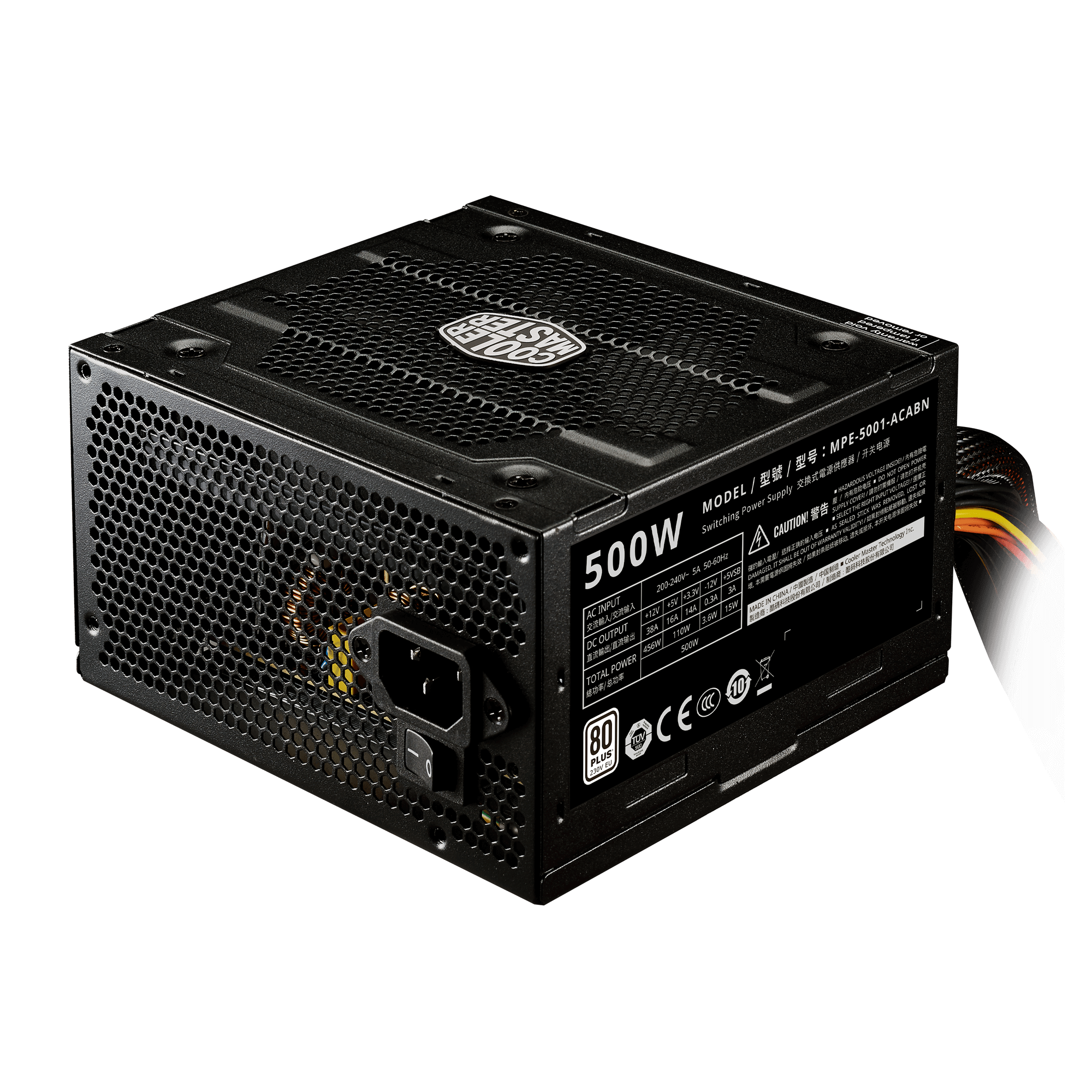

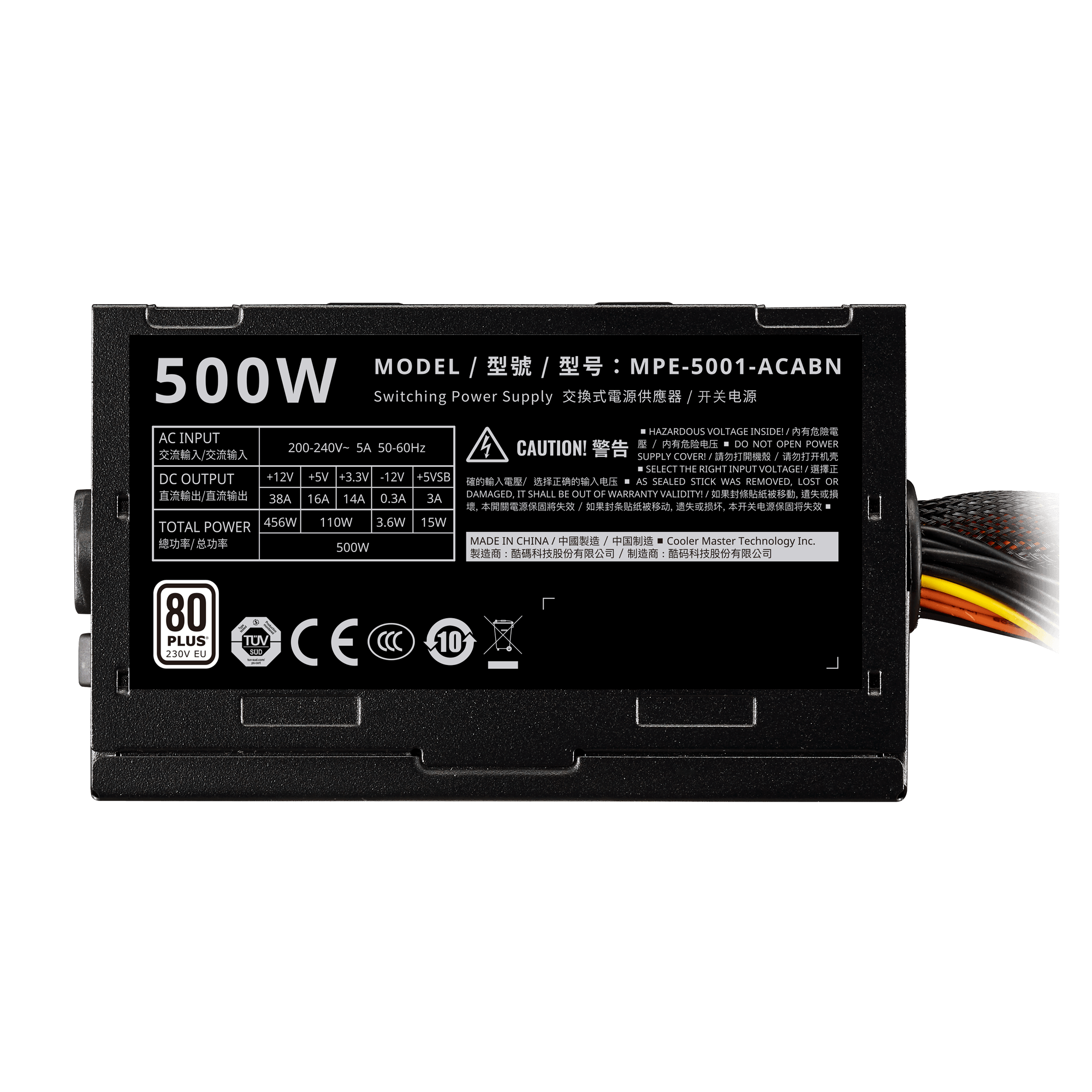

- Model MPE-5001-ACABN
