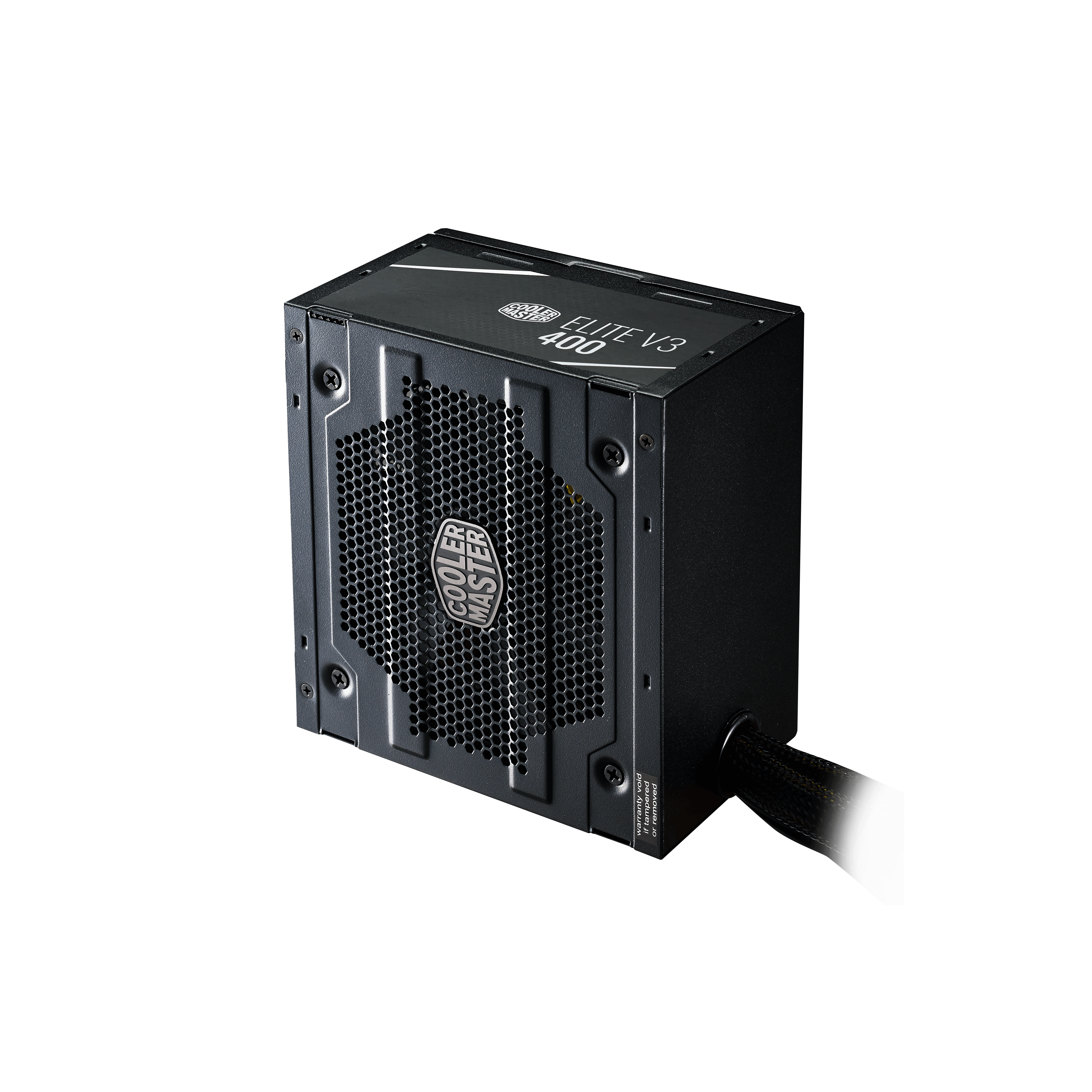

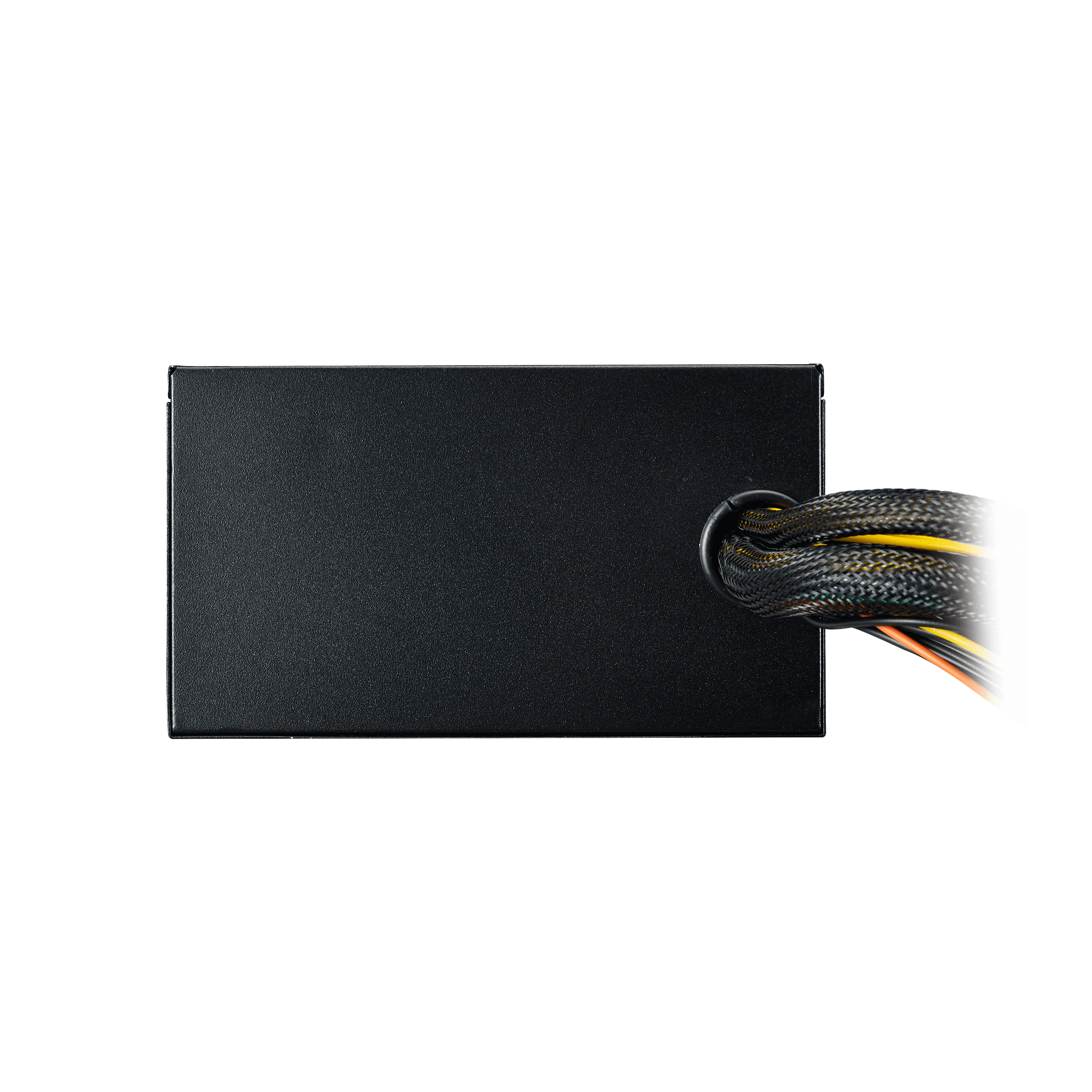

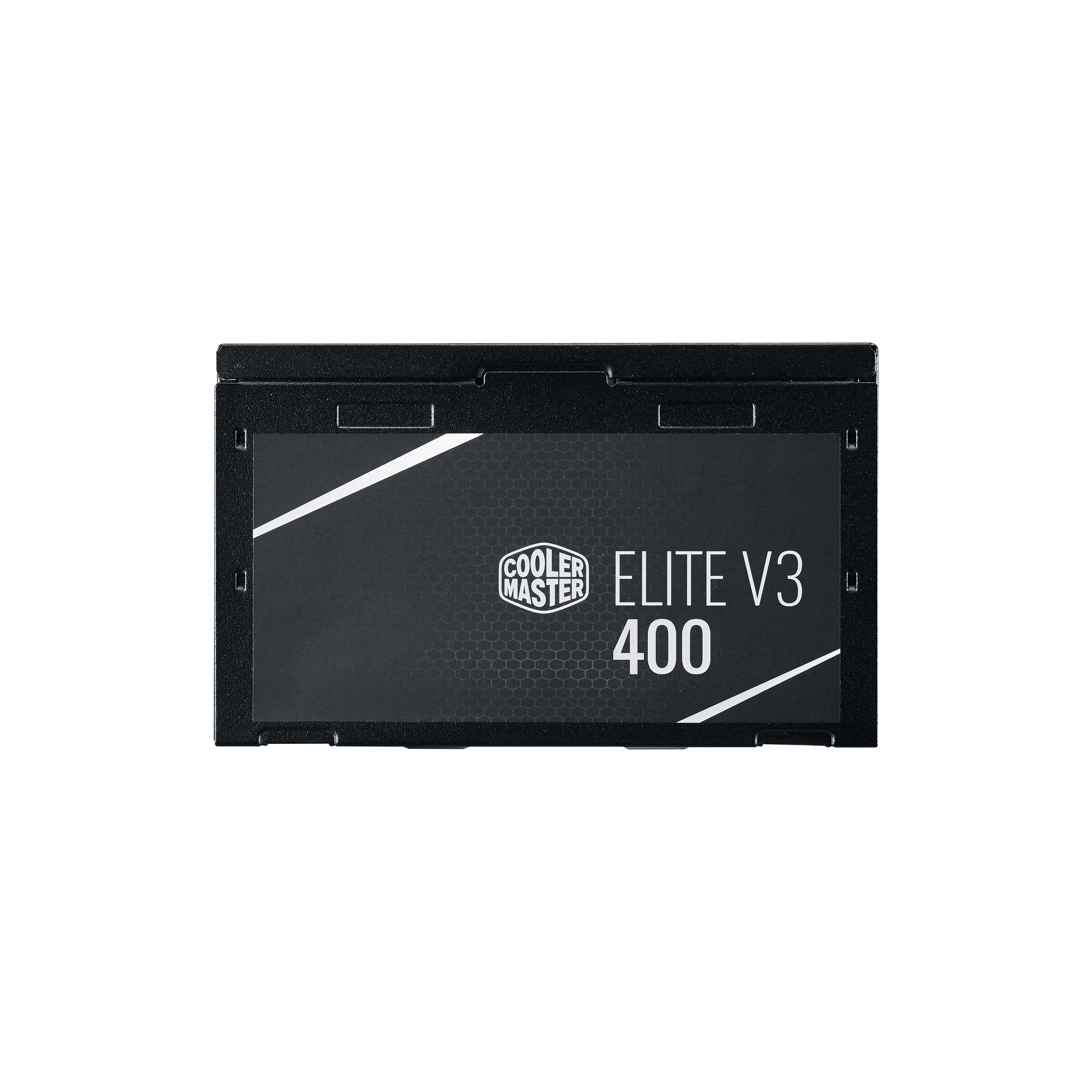

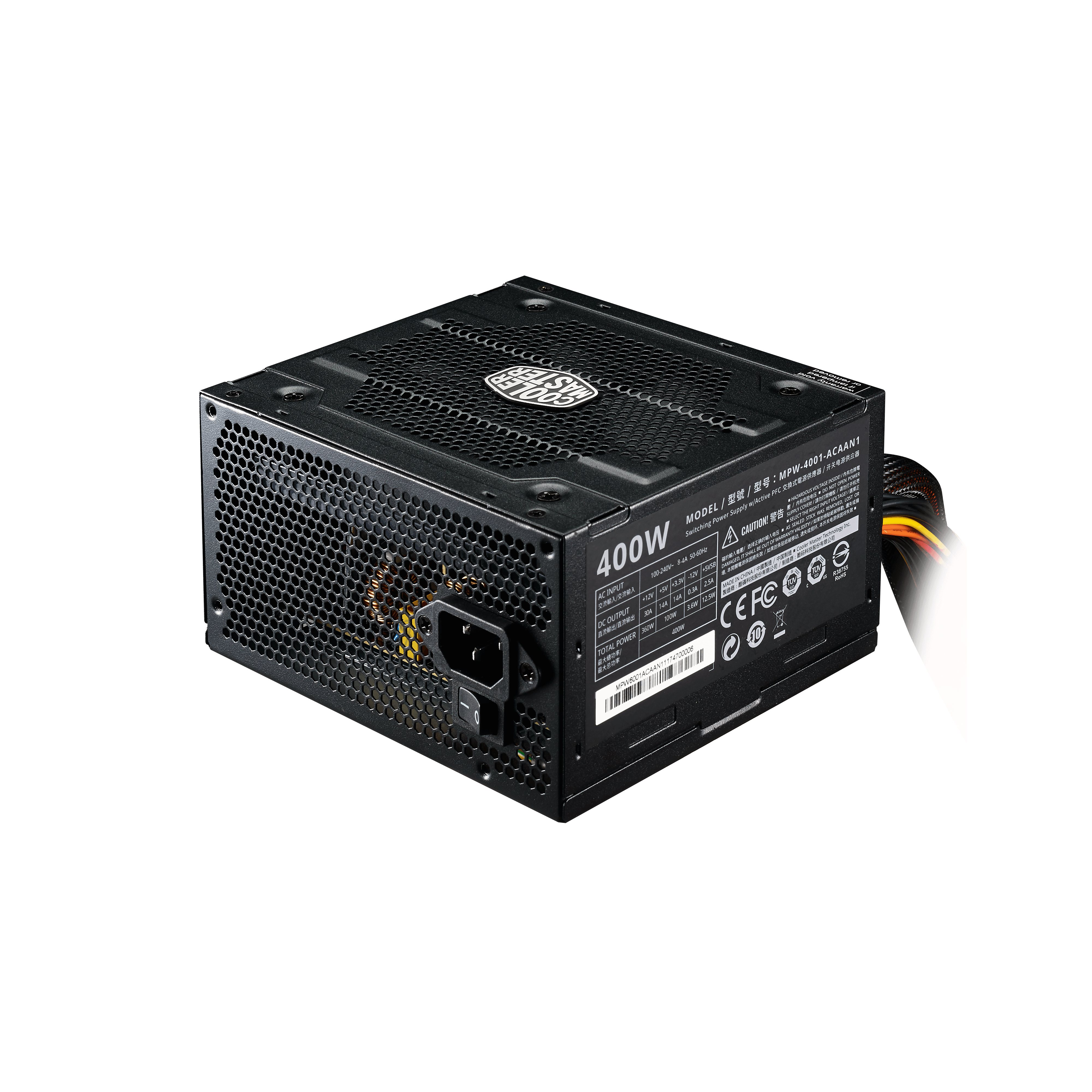

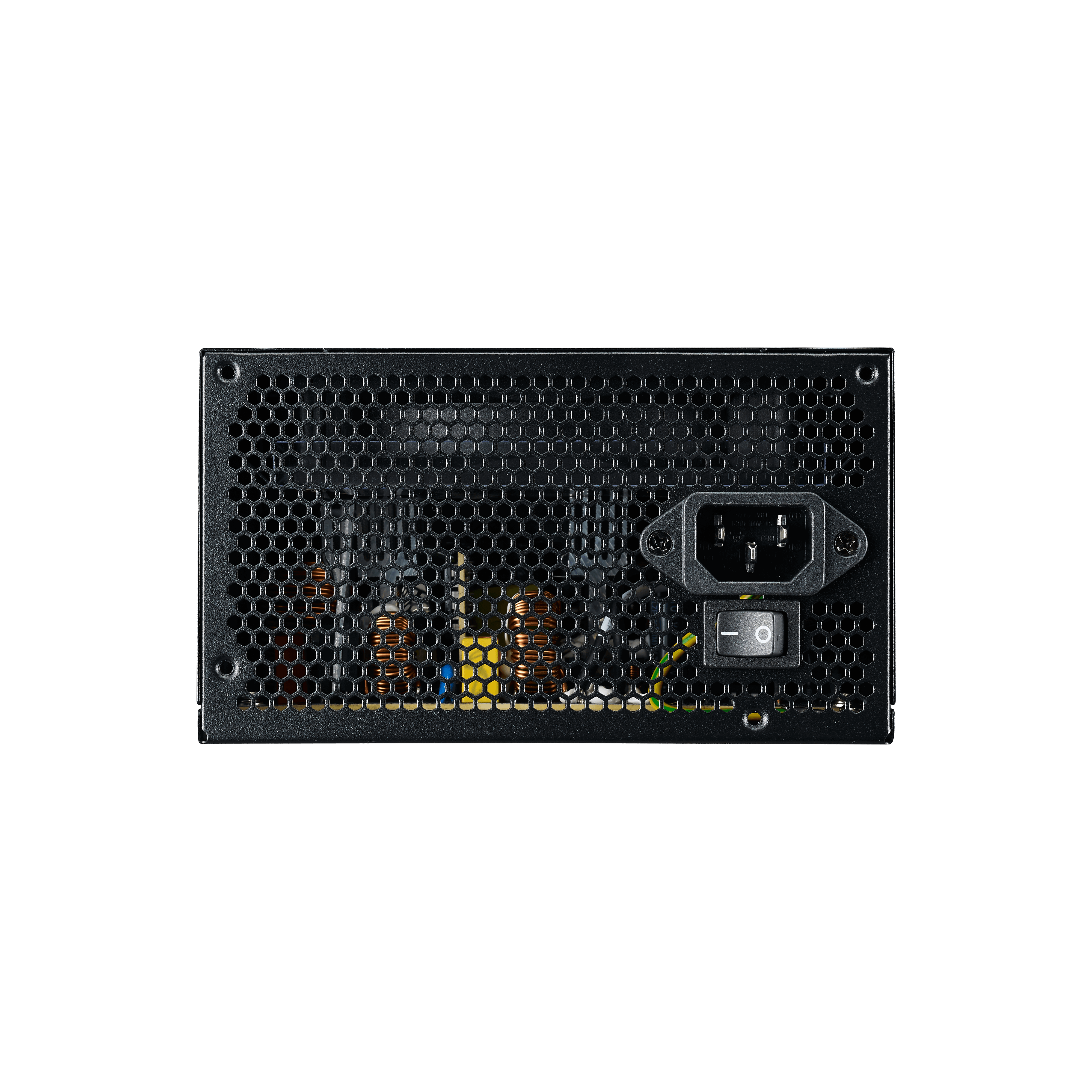

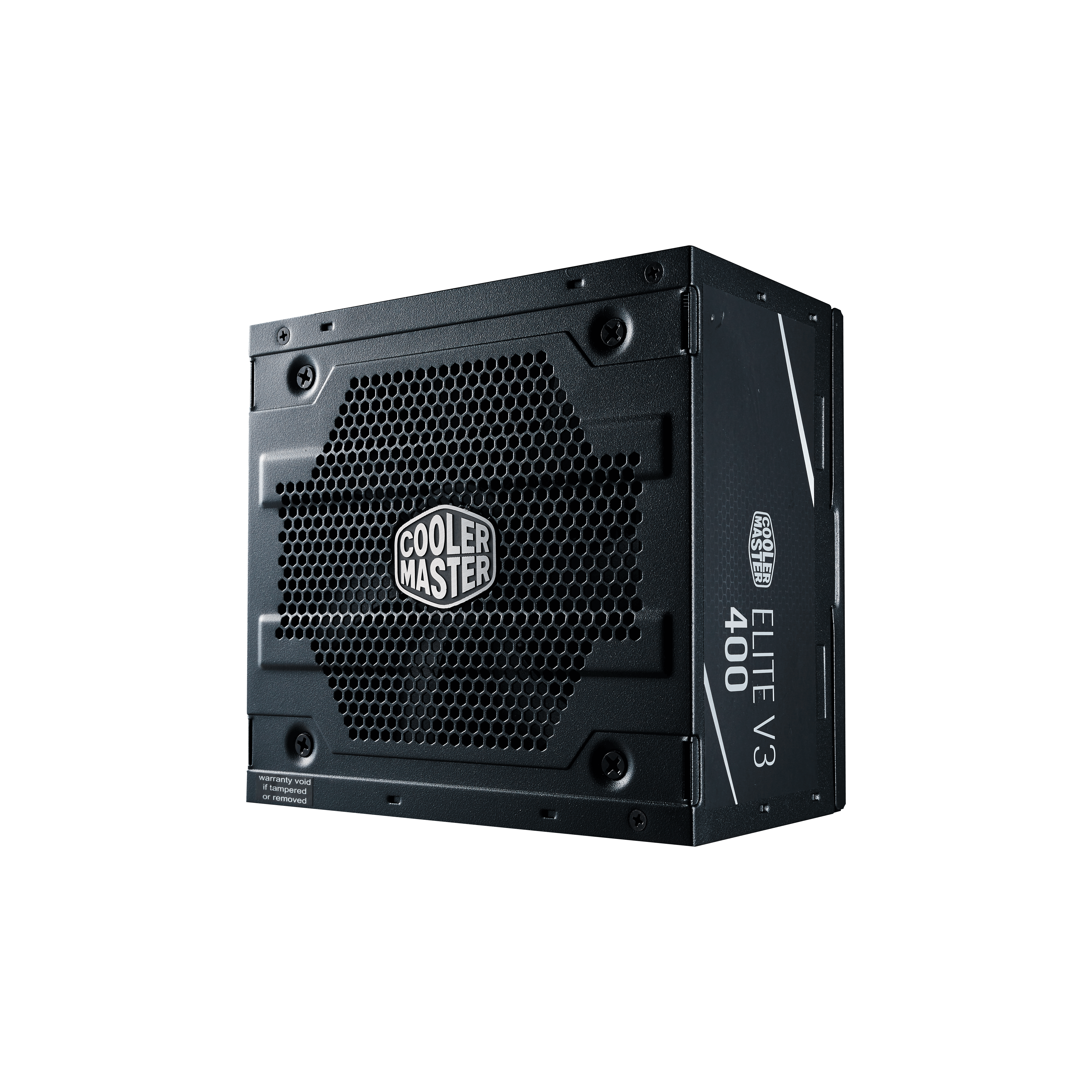

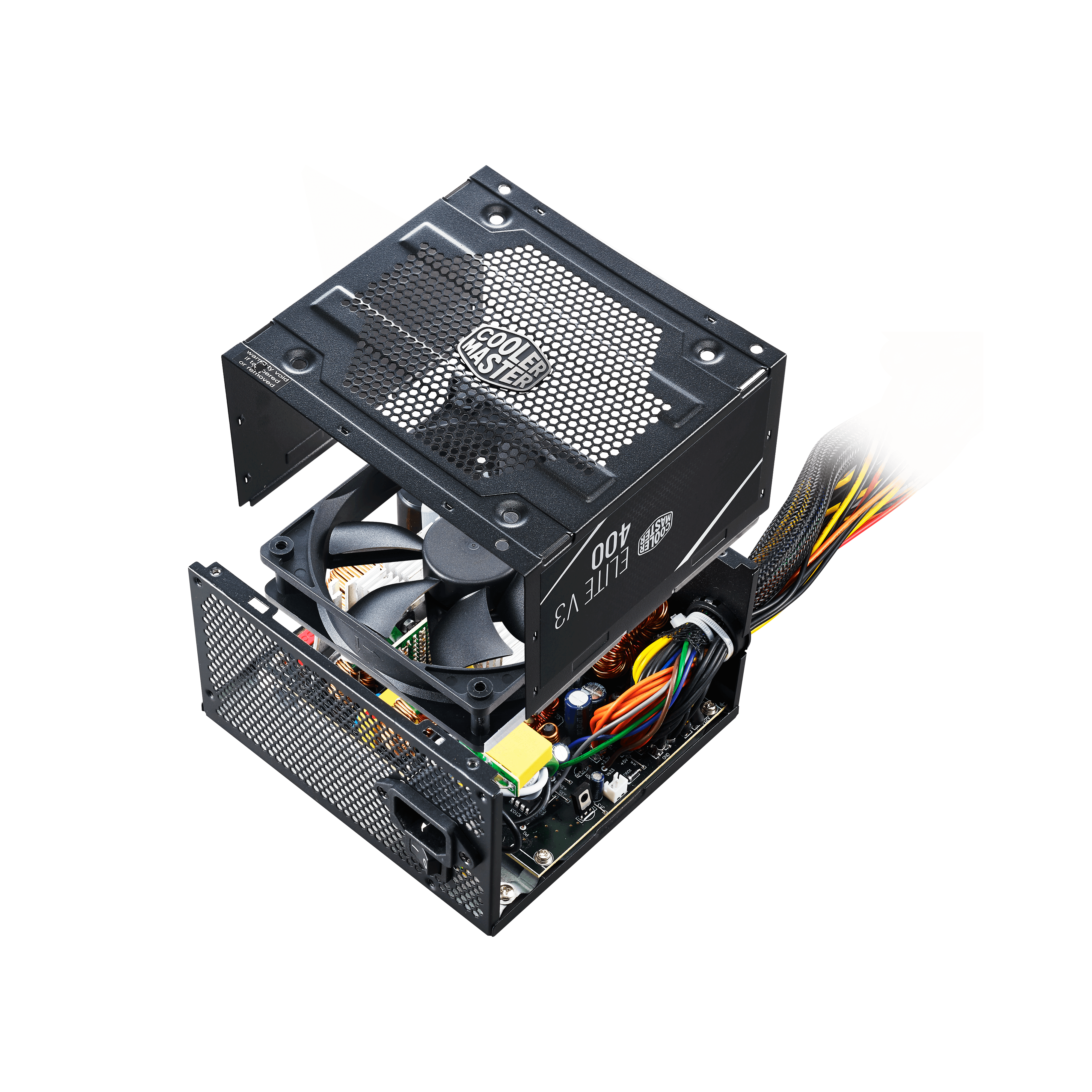

Elite 400W - V3
• Active PFC + Forward Topology Design
• Higher Temperature Resistance
• Peak Power Tolerance
• 75% Efficiency
• Super Resilient
- Input Frequency 50-60Hz
- MB 24 Pin Connectors 1
- Hold Up Time >10ms at 100% Full Load
- Warranty 3 Years
- Efficiency 75% @ Typical Load
- CPU 12V 4+4 Pin Connectors 1

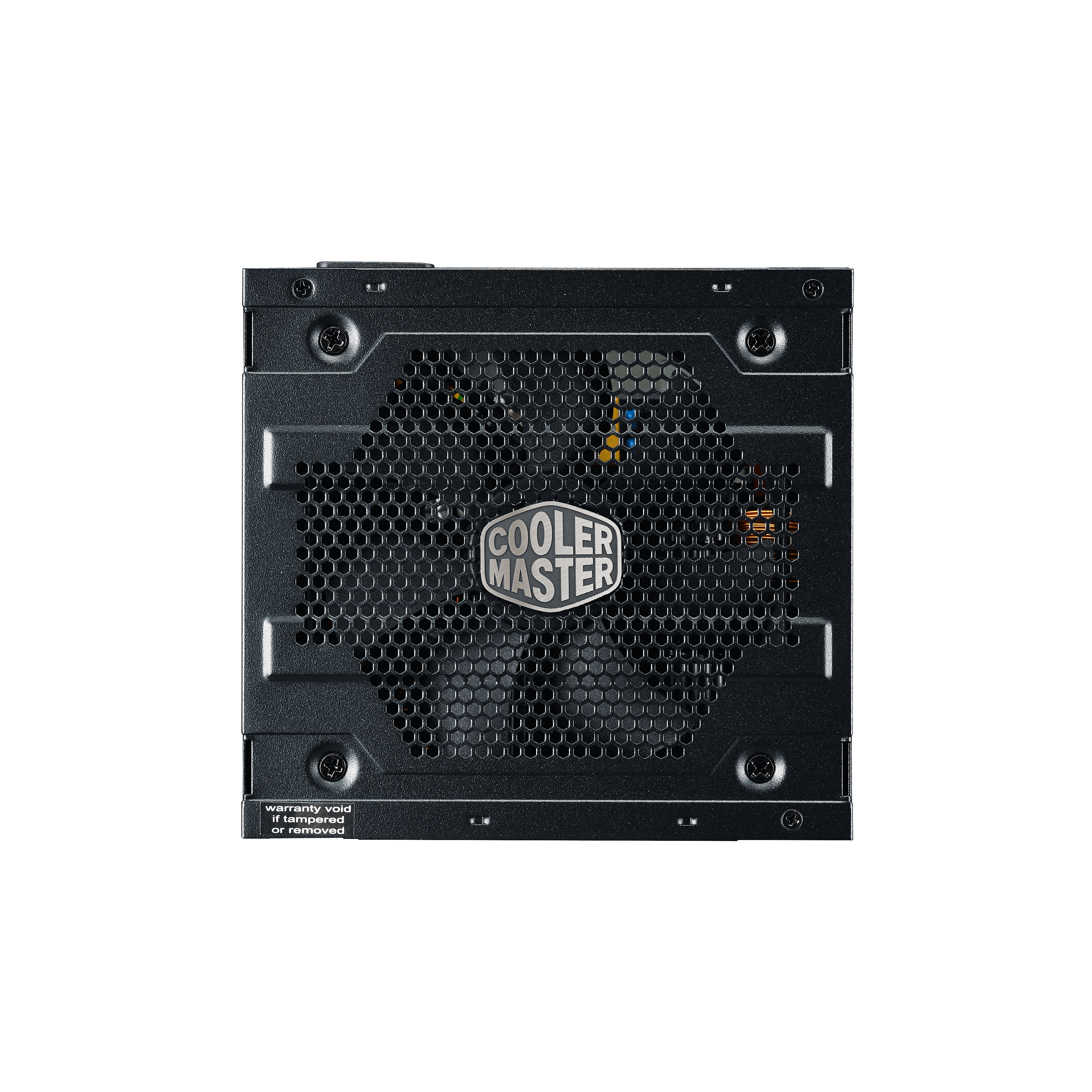

- Fan Size 120mm
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- ATX Version ATX 12V V2.31
- PFC Active PFC (>0.9 Typical)
- Fan Bearing Sleeve Fan
- Operating Temperature 10-40°C
- Input Voltage 100-240V
- PCI-e 6+2 Pin Connectors 1
- Protections OVP
- Protections OPP
- Peripheral 4 Pin Connectors 2
- SATA Connectors 4
- Protections SCP
- Protections OTP
- Dimensions (L x W x H) 150 x 140 x 86 mm
- Input Current 8-4A
- Regulatory CE
- Regulatory cTUVus
- Series Elite Series
- Regulatory FCC
- Regulatory BSMI
- Regulatory TUV

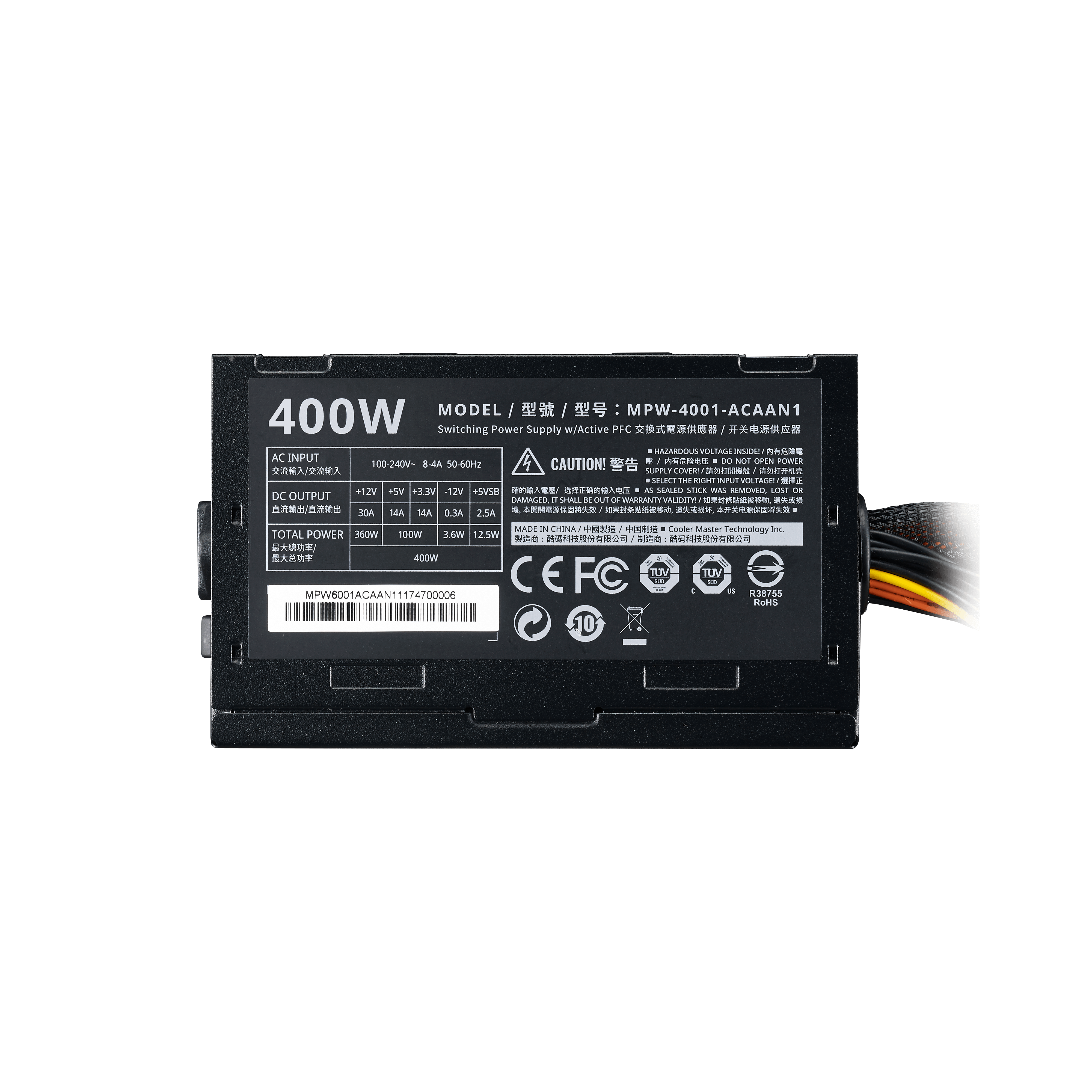

- Model MPW-4001-ACAAN1
- Product Name Elite V3 400W
