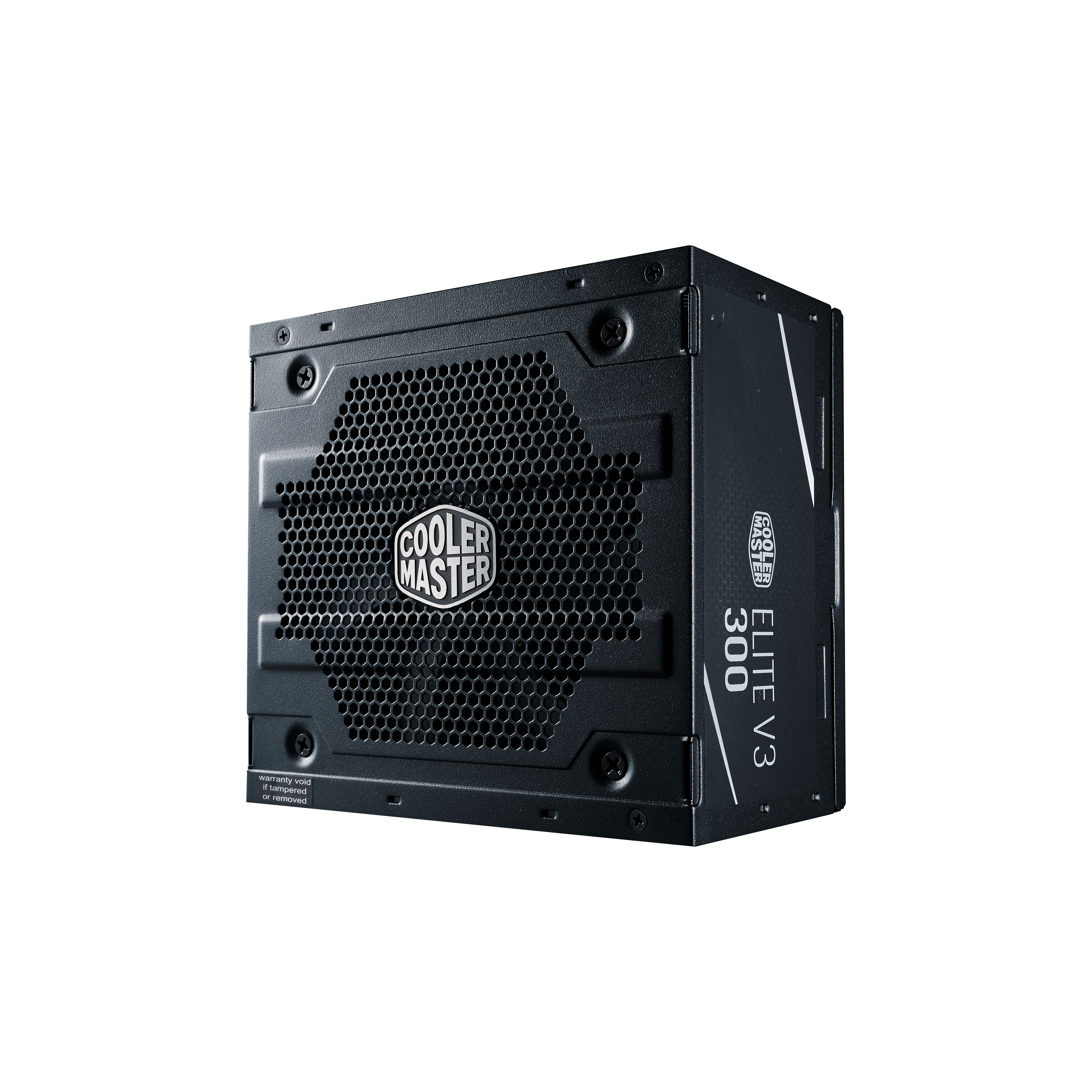

Elite 300W - V3 image number 0

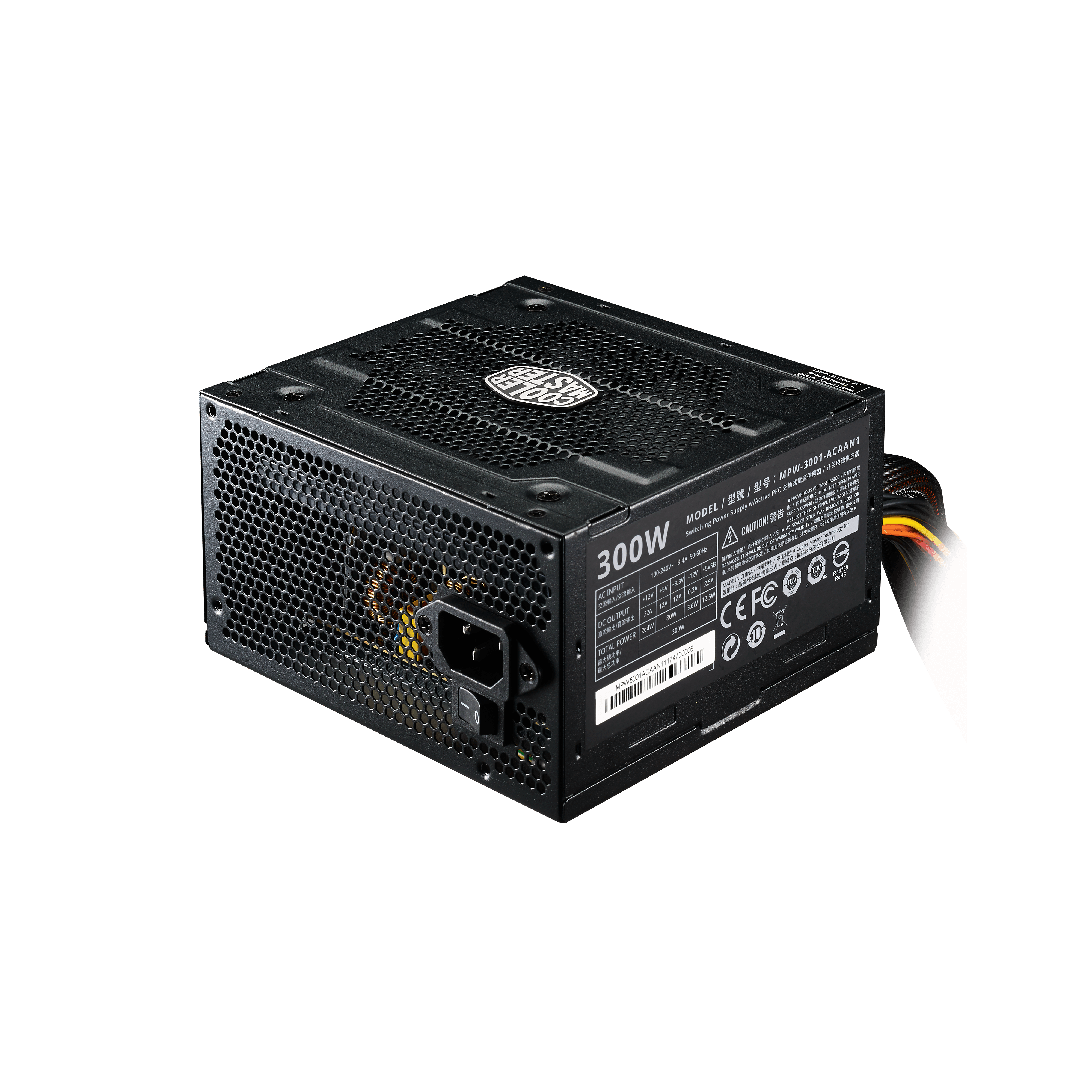

Elite 300W - V3 image number 1
Elite 300W - V3 image number 2

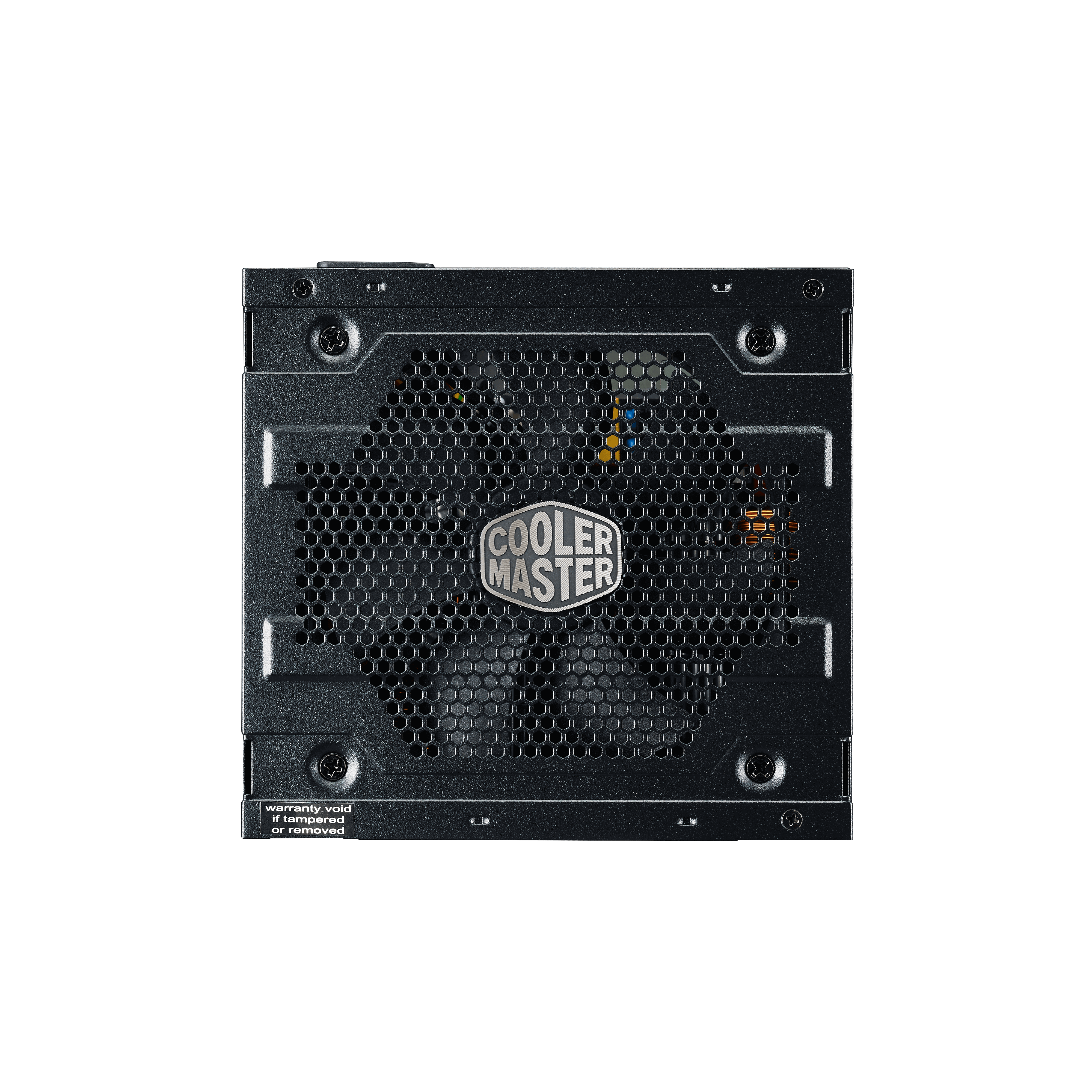

Elite 300W - V3 image number 3

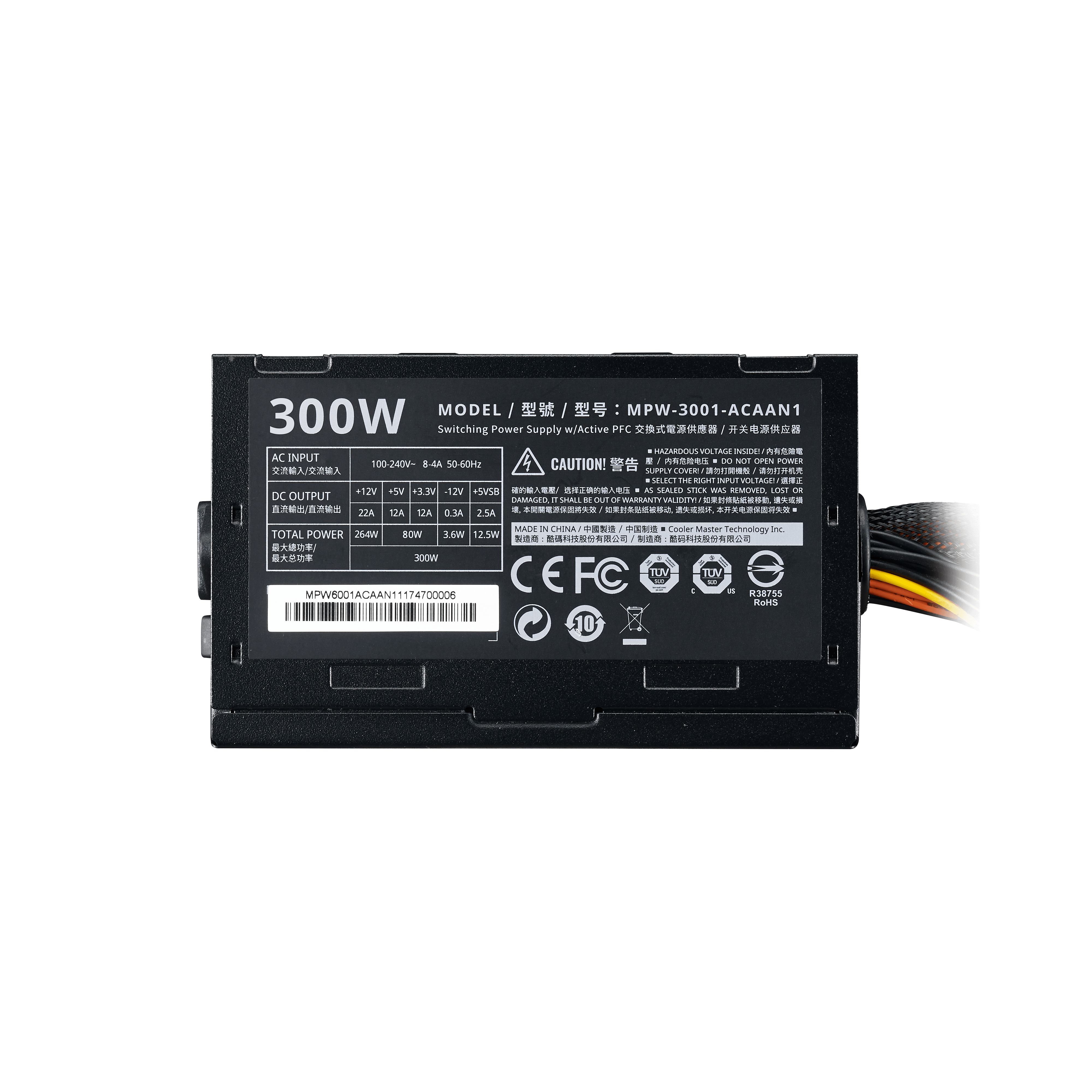

Elite 300W - V3 image number 4

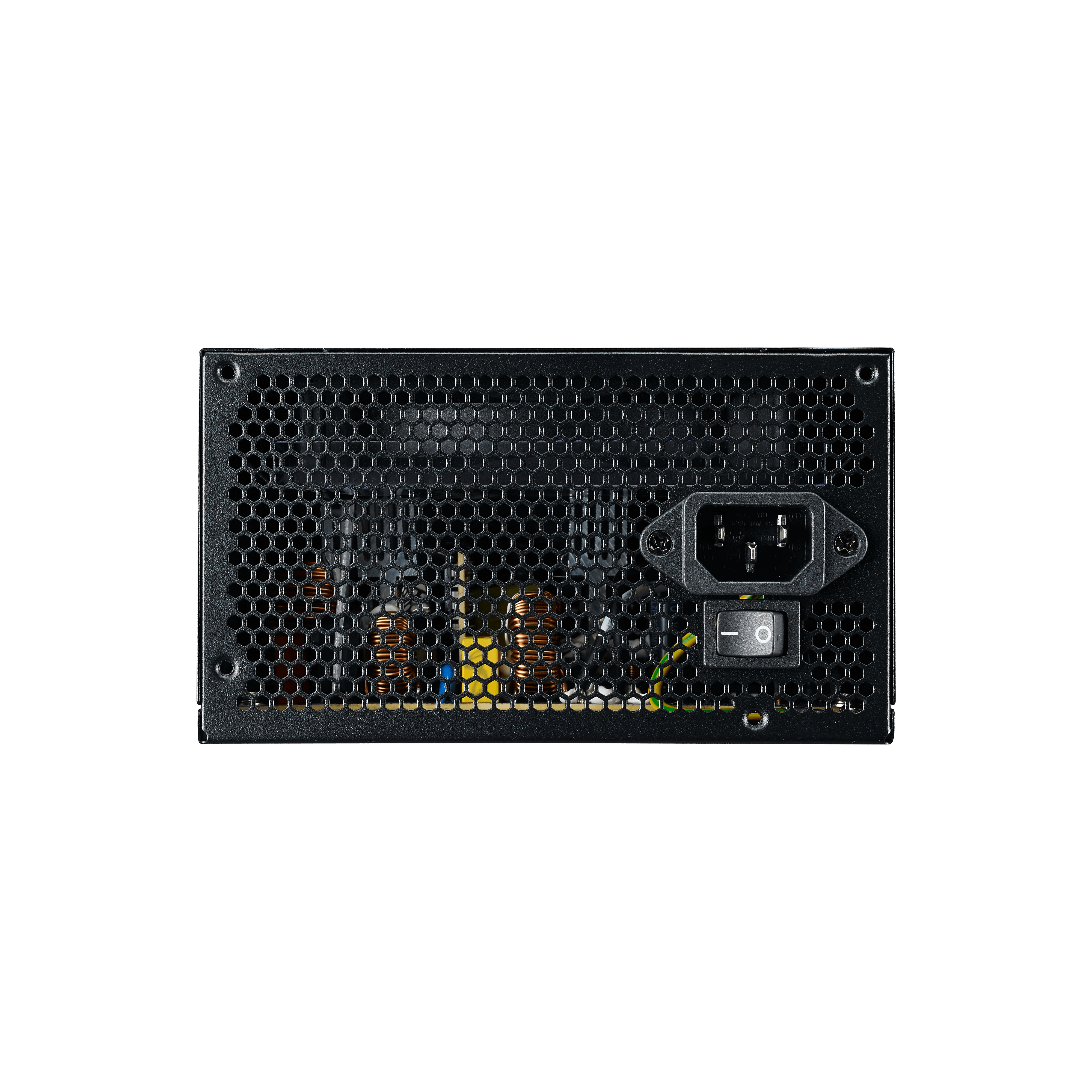

Elite 300W - V3 image number 5

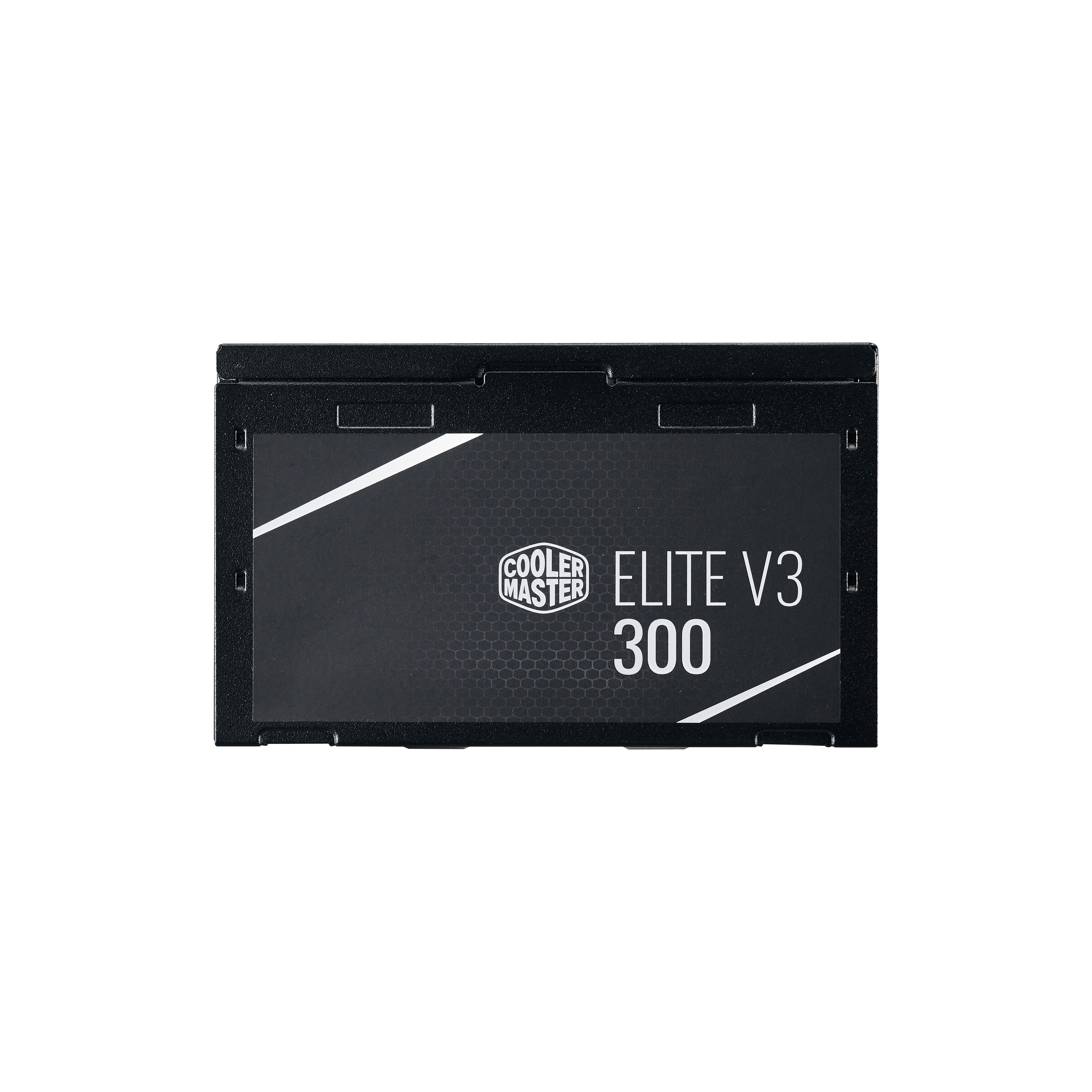

Elite 300W - V3 image number 6

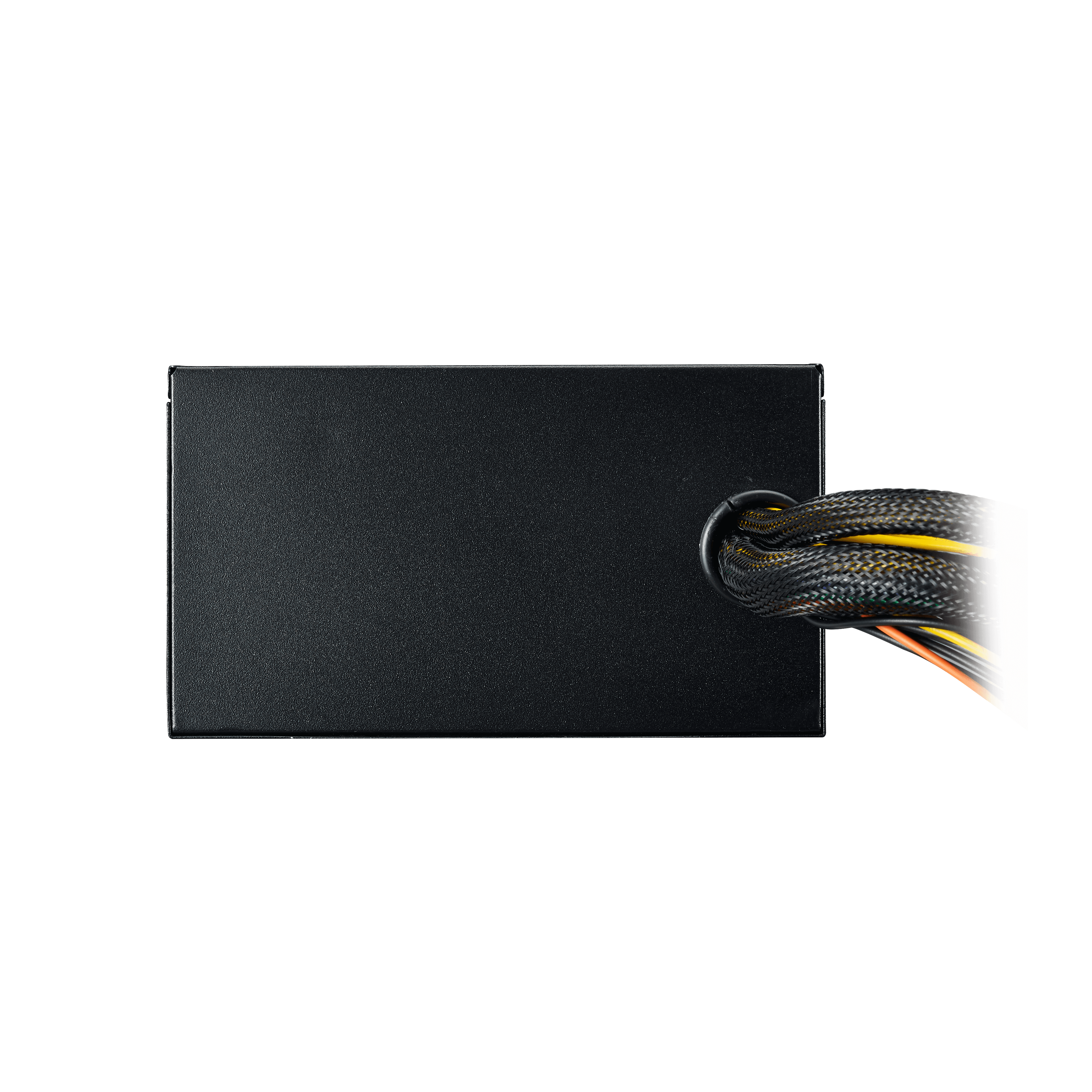

Elite 300W - V3 image number 7
Elite 300W - V3 image number 8
Elite 300W - V3
Elite 300W - V3
Elite 300W - V3
Elite 300W - V3
Elite 300W - V3
Elite 300W - V3
Elite 300W - V3
Elite 300W - V3
Elite 300W - V3

Don't Settle for Standard

Elite 300W - V3

• Active PFC + Forward Topology Design

• Higher Temperature Resistance

• Peak Power Tolerance

• 75% Efficiency

• Super Resilient

Specifications

  • Input Frequency 50-60Hz
  • MB 24 Pin Connectors 1
  • Hold Up Time >10ms at 100% Full Load
  • Warranty 3 Years
  • Efficiency 75% @ Typical Load
  • CPU 12V 4+4 Pin Connectors 1
  • Fan Size 120mm
  • Power Good Signal 100 - 500 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • ATX Version ATX 12V V2.31
  • PFC Active PFC (>0.9 Typical)
  • Fan Bearing Sleeve Fan
  • Operating Temperature 10-40°C
  • Input Voltage 100-240V
  • PCI-e 6+2 Pin Connectors 1
  • Protections OVP
  • Protections OPP
  • Peripheral 4 Pin Connectors 2
  • SATA Connectors 4
  • Protections SCP
  • Protections OTP
  • Dimensions (L x W x H) 150 x 140 x 86 mm
  • Input Current 8-4A
  • Regulatory CE
  • Regulatory cTUVus
  • Series Elite Series
  • Regulatory FCC
  • Regulatory BSMI
  • Regulatory TUV
  • Model MPW-3001-ACAAN1
  • Product Name Elite V3 300W
