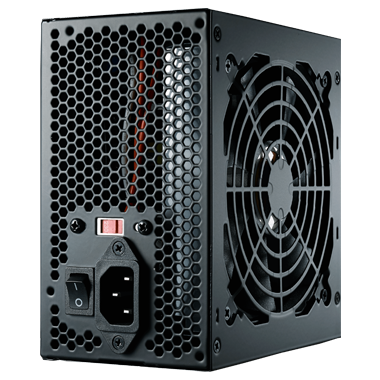

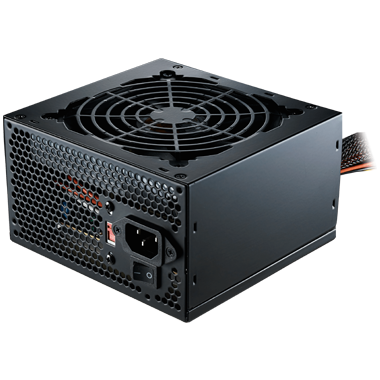

Elite 550W - V2
Elite 550W - V2
- Operating Temperature 0-40°C
- MB 20+4 Pin Connectors 1
- FDD Cable 4 Pin Connectors 1
- Efficiency 75% @ Typical Load
- Fan Type 120mm Sleeve Fan
- CPU 12V 4+4 Pin Connectors 1
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Category 500 to 750W
- Modular Non Modular
- Input Frequency 50/60Hz
- Legacy Power Supplies
- Input Range Select Switch
- ATX Version Intel Form Factor ATX 12V V2.31
- PCI-e 6+2 Pin Connectors 2
- SATA Connectors 6
- 80 Plus Efficiency None 80 PLUS
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Output Capacity 550W
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
- Protections UVP
- Input Voltage 115-230Vac
- Protections OCP
- Hold Up Time >16ms
- Regulatory EAC
- Series Elite Series
- Regulatory FCC
- Regulatory BSMI
- Regulatory UL
- Model RS550-PCARN1
