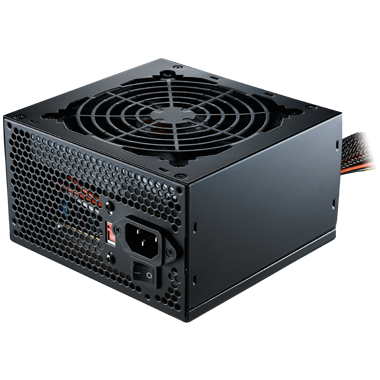

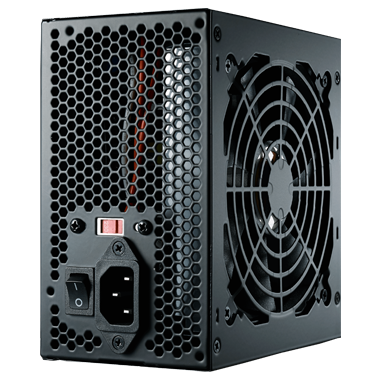

Name: Elite 500W - V2
SKU: elite-power-v2-500w
Availability: InStock

MB 20+4 Pin Connectors 1

FDD Cable 4 Pin Connectors 1

Fan Type 120mm Sleeve Fan

CPU 12V 4+4 Pin Connectors 1

Power Good Signal 100 - 500 ms

MTBF >100,000 Hours

Input Frequency 47-63Hz

Category 500 to 750W

Modular Non Modular

Legacy Power Supplies

PCI-e 6 Pin Connectors 1

Input Range Select Switch

ATX Version lntel ATX 12V V2.3

80 Plus Efficiency None 80 PLUS

Peripheral 4 Pin Connectors 3

Protections OVP

Protections OPP

SATA Connectors 4

Protections SCP

Protections UVP

Input Voltage 115-230Vac

Dimensions (L x W x H) 150 x 140 x 86 mm

Hold Up Time >16ms

Protections OCP

Efficiency >75% @ Typical Load

EAN Code 4719512045978

UPC Code 884102024979

Regulatory EAC

Series Elite Series

Regulatory FCC

Regulatory BSMI

Regulatory UL

Model RS500-PCARN1-xx

Elite 500W - V2
