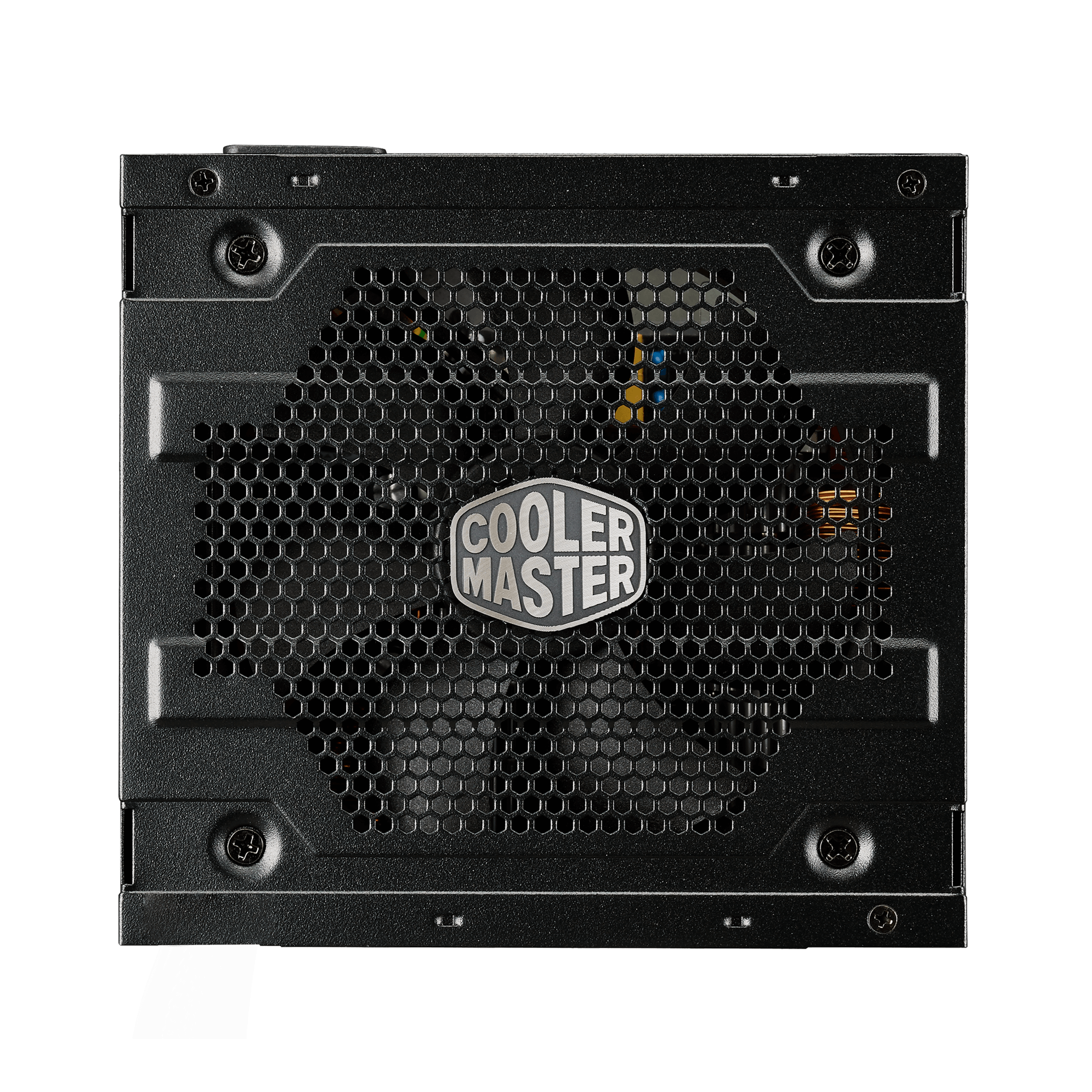

Elite P400 230V - V3 image number 2
Elite P400 230V - V3 image number 3
Elite P400 230V - V3 image number 4
Elite P400 230V - V3 image number 5
Elite P400 230V - V3 image number 6
Elite P400 230V - V3 image number 7
Elite P400 230V - V3 image number 8
Elite P400 230V - V3
Elite P400 230V - V3
Elite P400 230V - V3
Elite P400 230V - V3
Elite P400 230V - V3
Elite P400 230V - V3
Elite P400 230V - V3
Elite P400 230V - V3
Elite P400 230V - V3

Entry Level ATX Power Supply Unit

Elite P400 230V - V3

• Active PFC + Forward Topology Design

• High Temperature Resistance

• Peak Power Tolerance

• 75% Efficiency

• Durable, Reliable, And Safe

• 3 Year Warranty

Specifications

  • PFC Active PFC
  • ErP 2014 Lot 3 Yes
  • Input Frequency 50-60Hz
  • MB 24 Pin Connectors 1
  • Efficiency 75% @ Typical Load
  • Peak Current 25A
  • Peak Power 400W
  • EPS 4+4 Pin Connectors 1
  • SATA Connectors 4

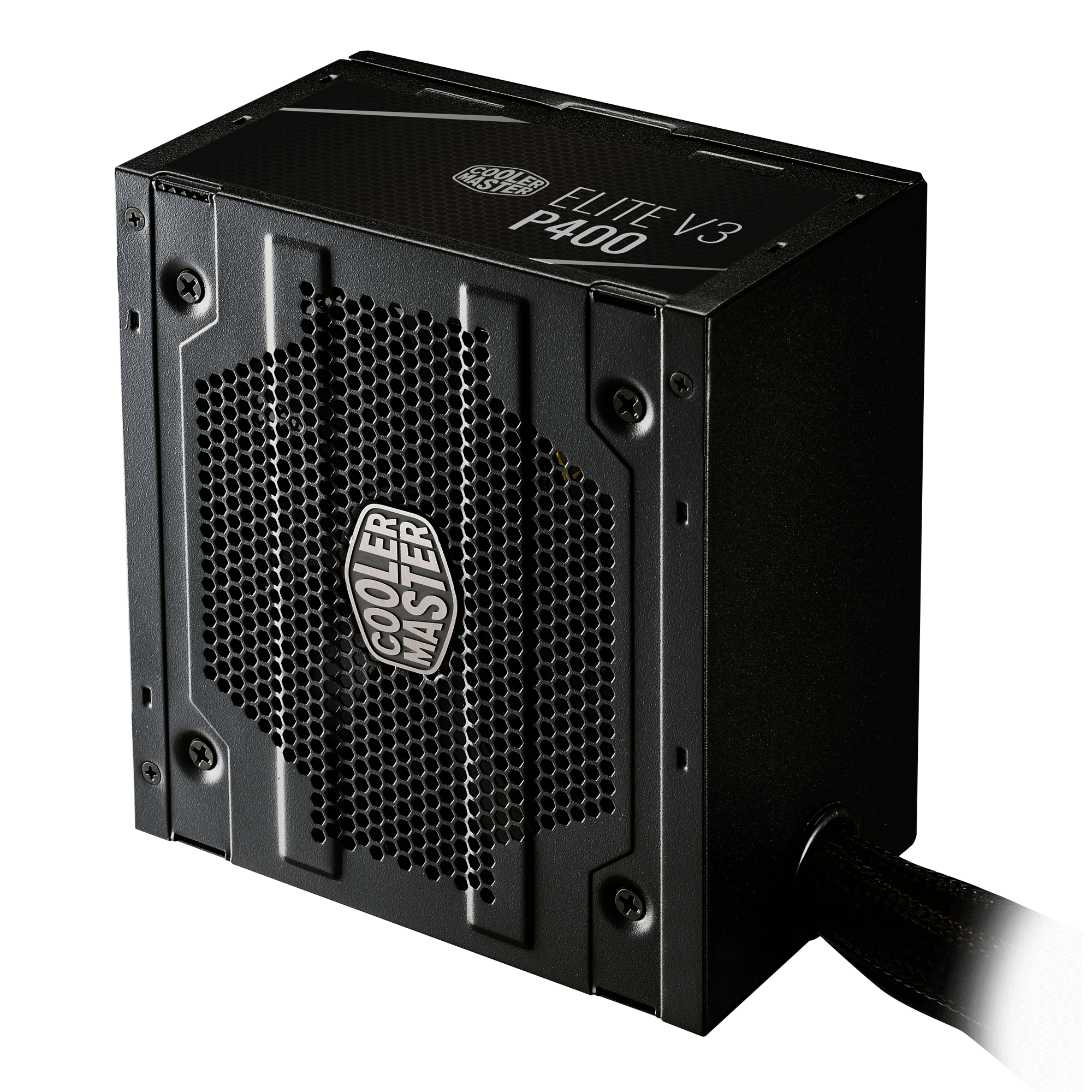

  • Fan Size 120mm
  • Power Good Signal 100 - 500 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • Input Current 4A
  • Fan Bearing Sleeve Bearing
  • Operating Temperature 40°C
  • 80 Plus Efficiency None 80 PLUS
  • Hold Up Time >14ms at 100% load
  • PCI-e 6+2 Pin Connectors 1
  • Protections OVP
  • Protections OPP
  • ATX Version ATX 12V Ver. 2.41
  • Peripheral 4 Pin Connectors 2
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Protections SCP
  • Protections UVP
  • Protections OTP
  • Input Voltage 200-240Vac
  • Regulatory CE
  • Series Elite Series
  • Regulatory CB
  • Regulatory TUV

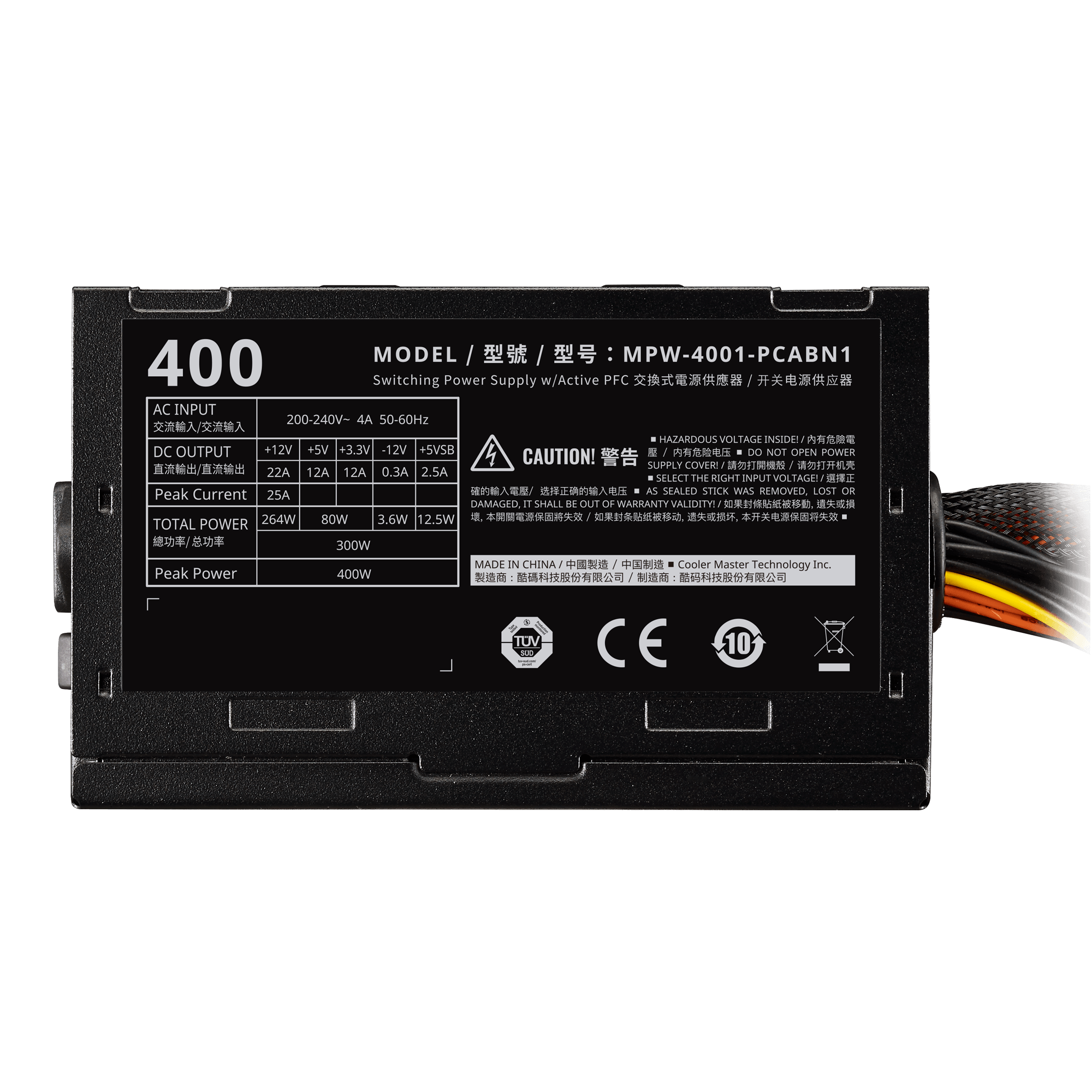

  • Model MPW-4001-PCABN1
