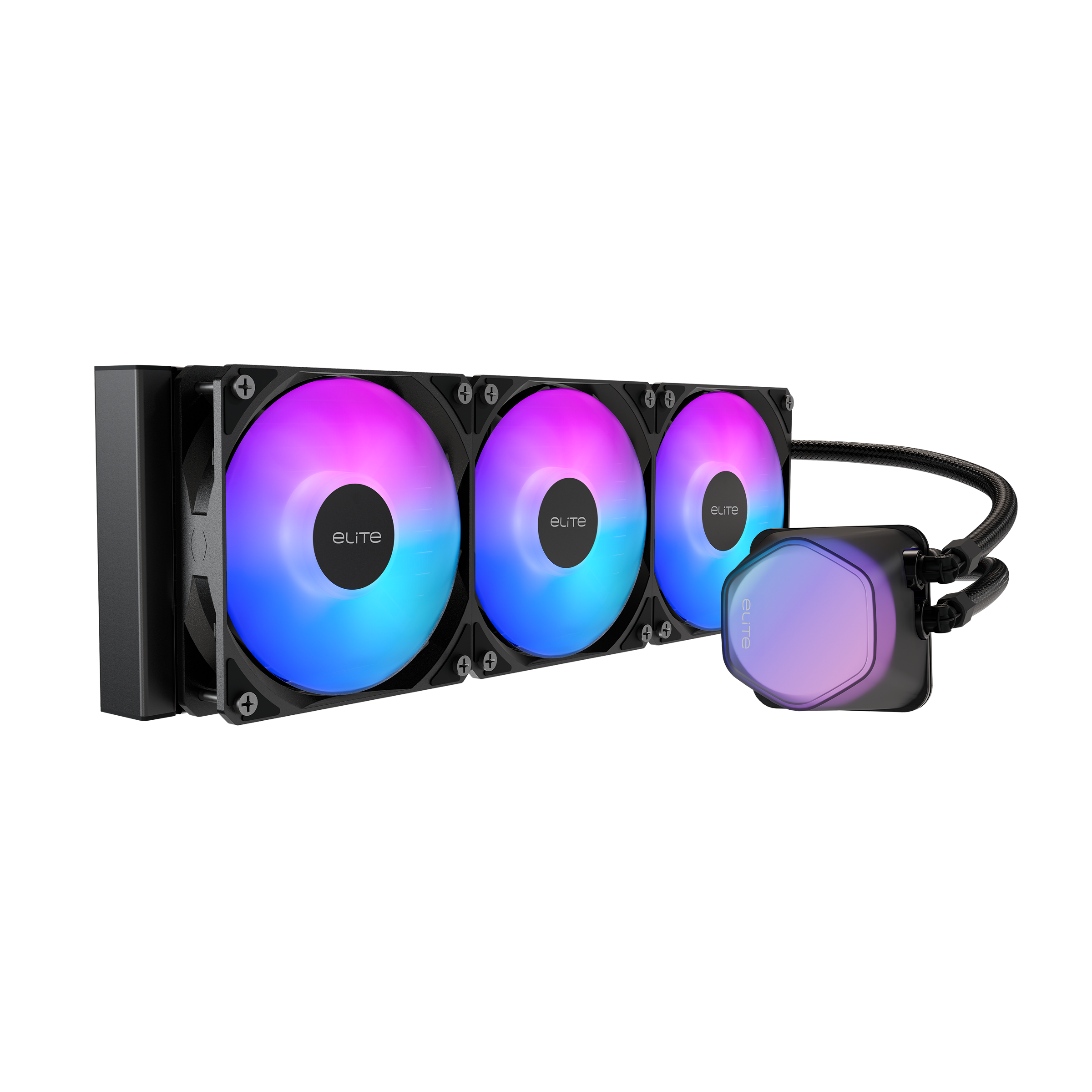

Elite Liquid Series image number 0

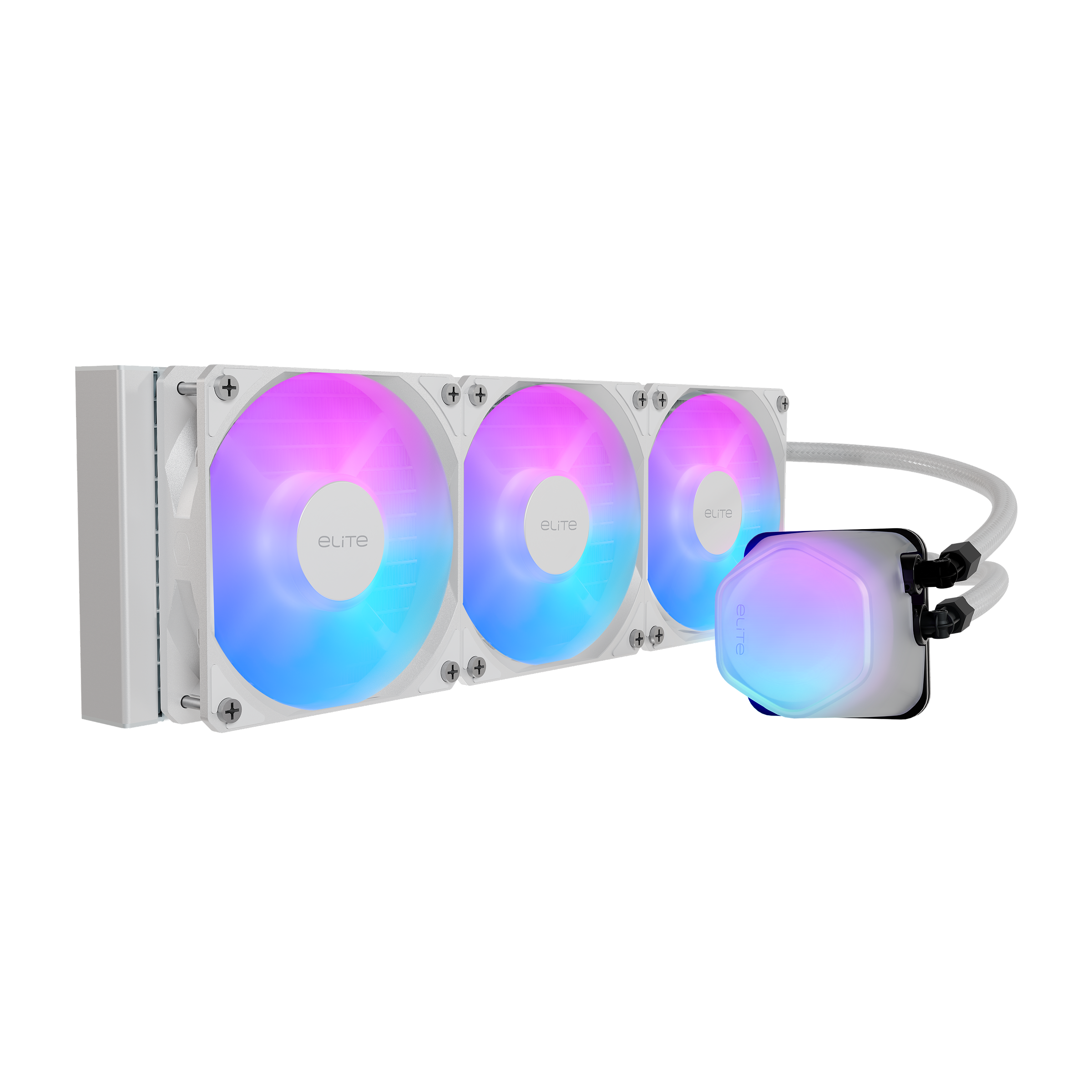

Elite Liquid Series image number 1

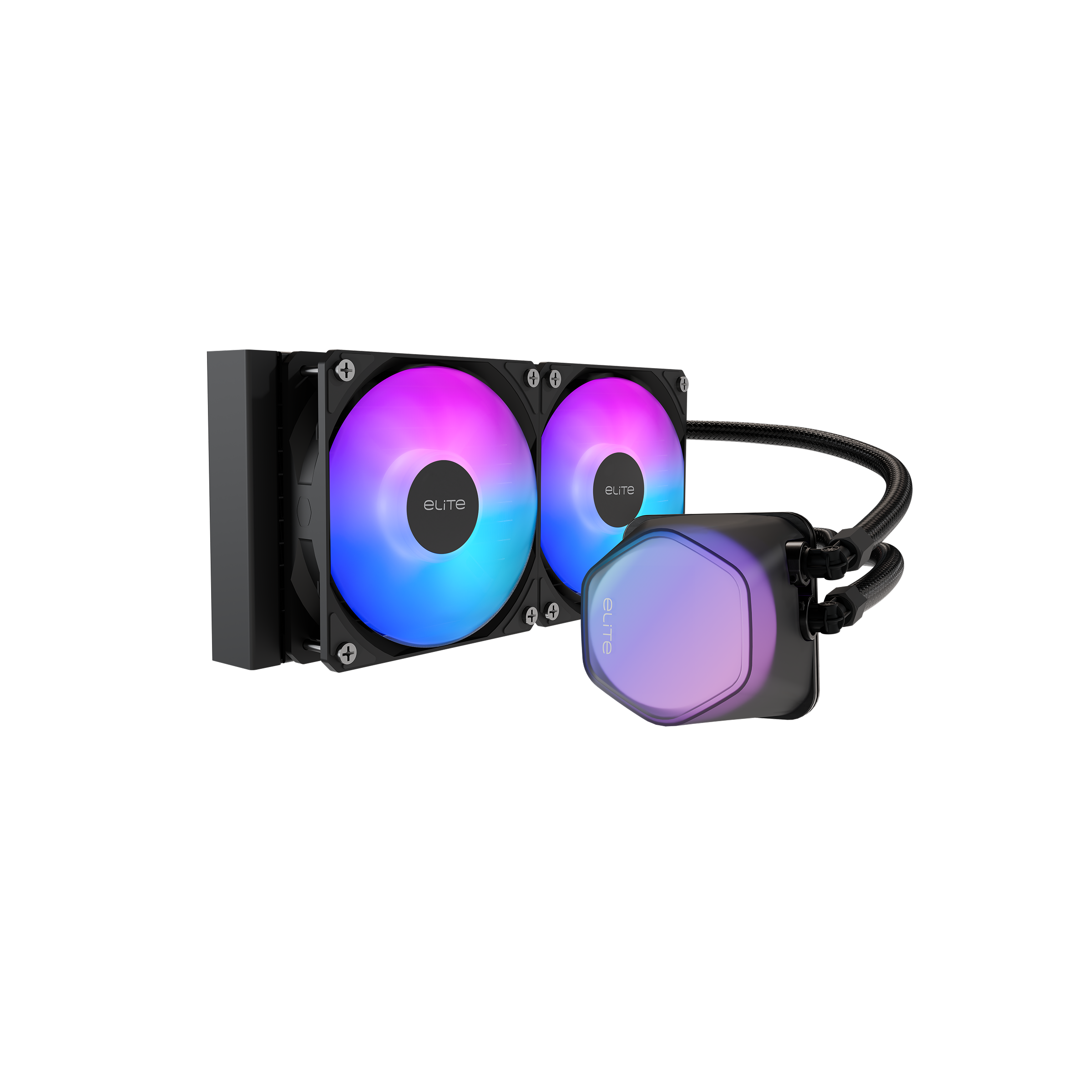

Elite Liquid Series image number 2

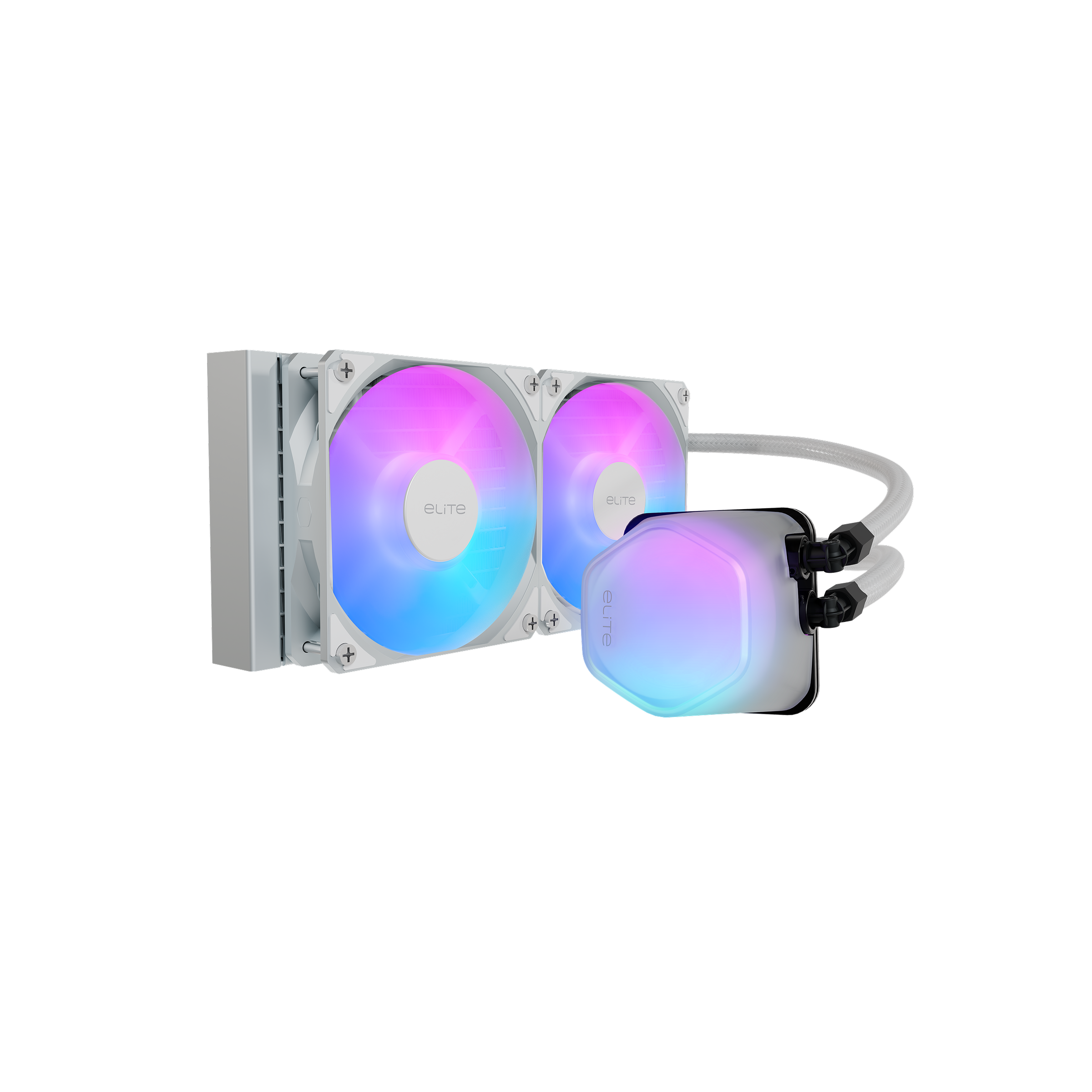

Elite Liquid Series image number 3

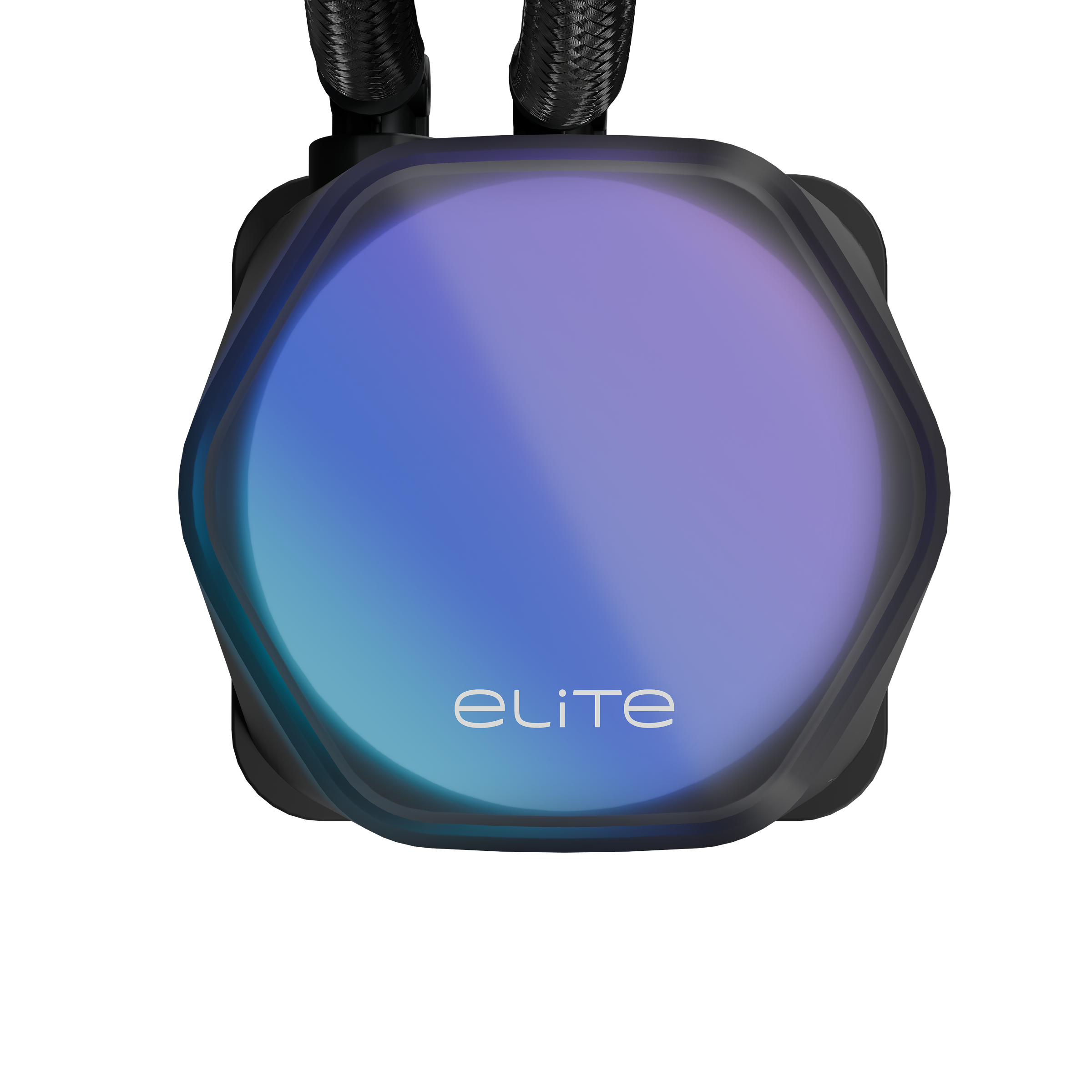

Elite Liquid Series image number 4
Elite Liquid Series
Elite Liquid Series
Elite Liquid Series
Elite Liquid Series
Elite Liquid Series

Elite Liquid Series

Unique aesthetic​

Flexible, customizable pump design​

Quick and easy installation​

Dual chamber pump​

Extensive tubing length​

Pre-applied CryoFuze thermal paste​

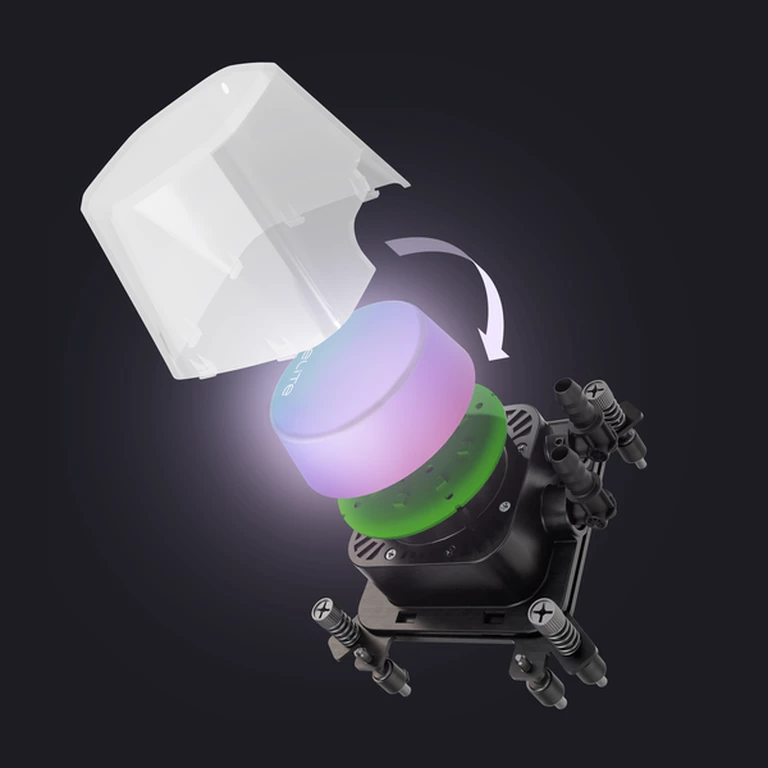

FLEXIBLE, CUSTOMIZABLE PUMP DESIGN​

FLEXIBLE, CUSTOMIZABLE PUMP DESIGN​

The tool-free, removable top cover offers unmatched flexibility, allowing you to adjust the internal logo orientation for personalized branding. With the ability to rotate the inner cap by 90 degrees, you can further tailor the appearance to your preference.

Additionally, the decorative caps provide an extra layer of customization, making it easy to showcase your unique logos and design choices. This versatile pump design ensures that every cooler is as distinctive as your brand.

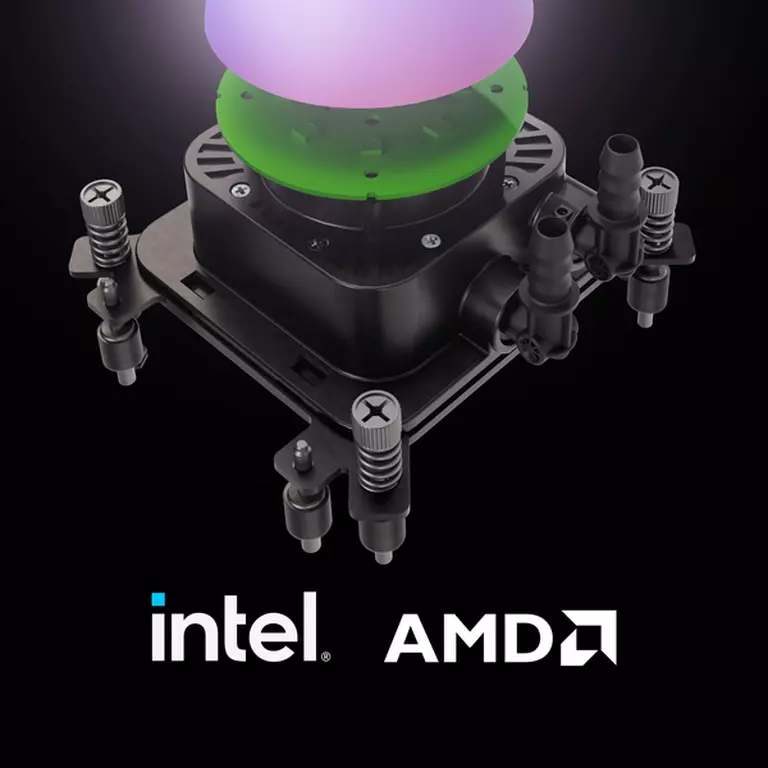

QUICK AND EASY INSTALLATION​

QUICK AND EASY INSTALLATION​

A unified mounting bracket comes pre-installed and supports both Intel and AMD sockets. The included fans further simplify setup, making installation fast and hassle-free.

Dual Chamber Pump​

The upgraded dual-chamber pump design delivers a more compact cooler without compromising on performance, ensuring optimal cooling efficiency.​

Extensive Tubing Length​

The 400 mm tubing length ensures effortless cooler installation in any orientation, offering flexibility and ease during setup.​

Revamped Fans​

The fan blades and revamped aesthetics provide optimized cooling and a fresh look.​

Pre-Applied Cryofuze ​ Thermal Paste​

Pre-applied thermal paste ensures a mess-free application and simplifies installation, making it ideal for those new to PC building by removing the guesswork of applying the correct amount.​

Specifications

  • Product Name Elite Liquid
  • Product Number 360 Black: ELW-D36M-A21DA-R1, 360 White: ELW-D36M-A21DA-RW, 240 Black: ELW-D24M-A21DA-R1, 240 White: ELW-D24M-A21DA-RW
  • CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
  • CPU Socket AMD® AM5 / AM4 Socket
  • Radiator Material Aluminum
  • Radiator Dimensions 360: 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
  • Radiator Dimensions 240: 277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch)
  • Pump Dimensions 84.9 x 76.2 x 52.3 mm (3.3 x 3 x 2.1 inch)
  • Pump Profiles Addressable RGB
  • Pump Speed 3200±10% RPM
  • Pump MTTF >210,000 Hours
  • Pump Noise Level 25 dBA (Max)
  • Pump Rated Voltage 12 VDC
  • Fan Power Consumption 7.2 W
  • Pump Connector 3-Pin ARGB + 4-Pin PWM
  • Tube Length 400 mm
  • Fan Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
  • Fan LED Addressable RGB
  • Fan Quantity 360: 3 PCS
  • Fan Quantity 240: 2 PCS
  • Fan Speed 600~2100 RPM ±10%
  • Fan Airflow 142.8 m³/h(84.2 CFM) (Max)
  • Fan Air Pressure 2.71 mmH₂O (Max)
  • Fan MTTF >40,000 Hours
  • Fan Noise Level 39.5 dBA (Max)
  • Fan Bearing Type Rifle Bearing
  • Fan Connector 7-Pin PWM + ARGB
  • Fan Rated Voltage 12 VDC
  • Fan Rated Current 0.33 A
  • Fan Safety Current 0.42A
  • Fan Power Consumption 3.96 W
  • Warranty 3 years
  • Radiator Size 240
  • Radiator Size 360
  • Cooler Type Liquid Cooler
  • Series Elite Liquid
