Natural Aesthetics. Immersive View. Advanced Cooling.

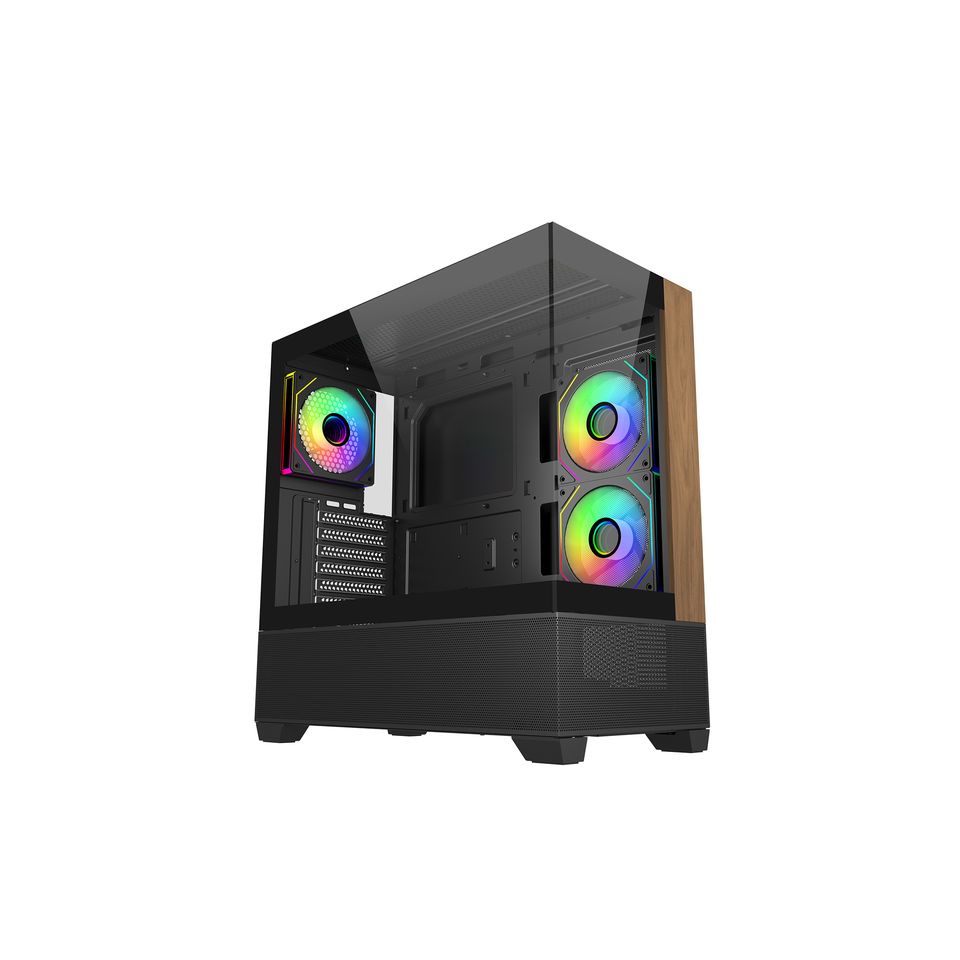

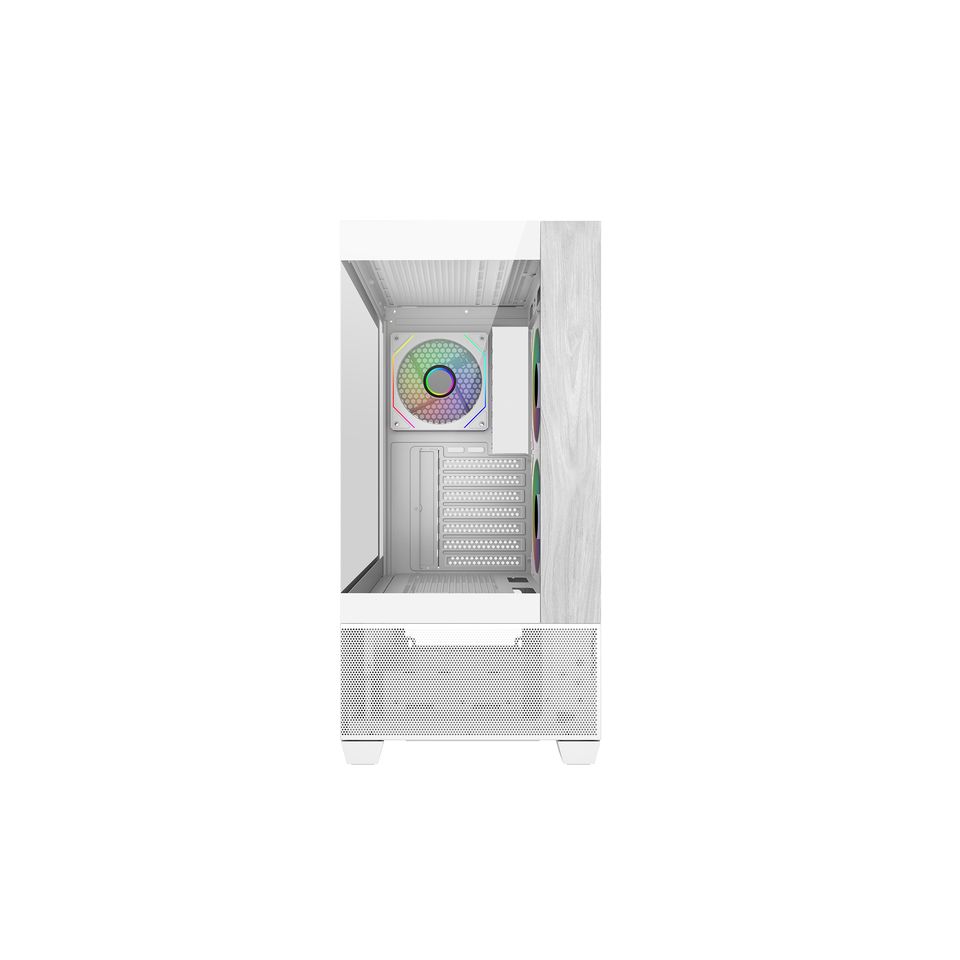

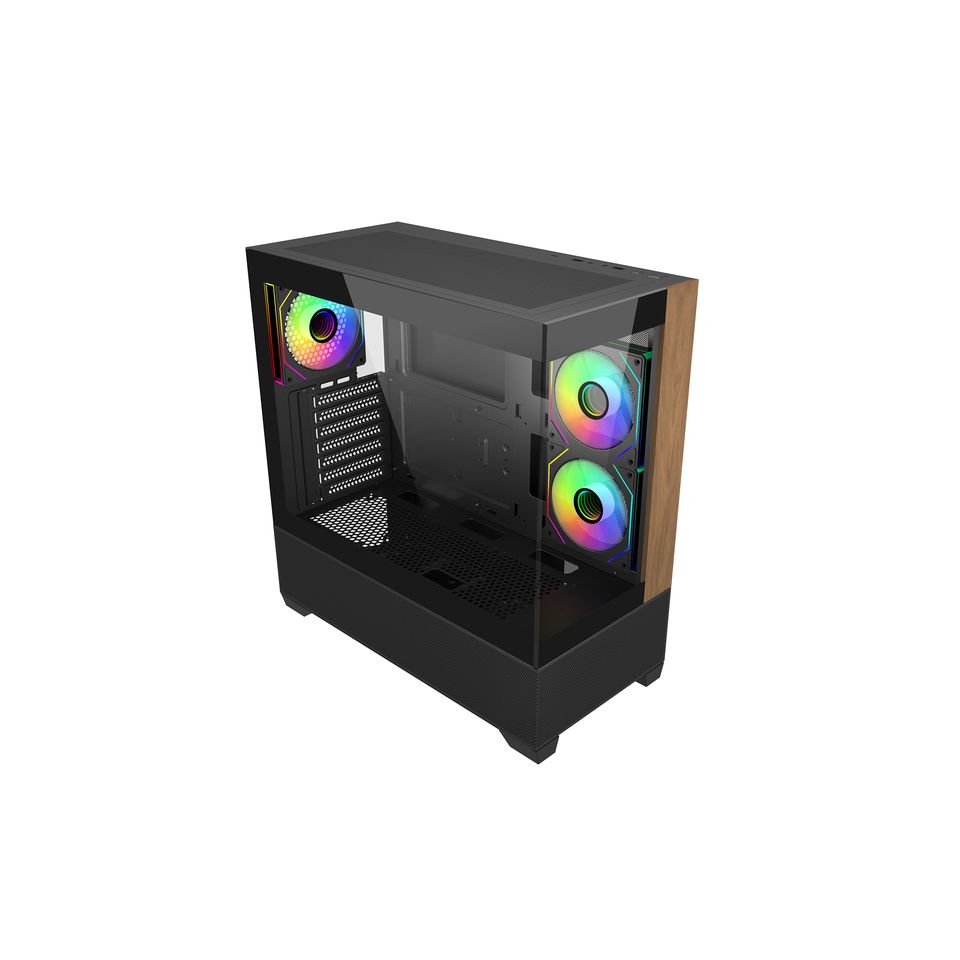

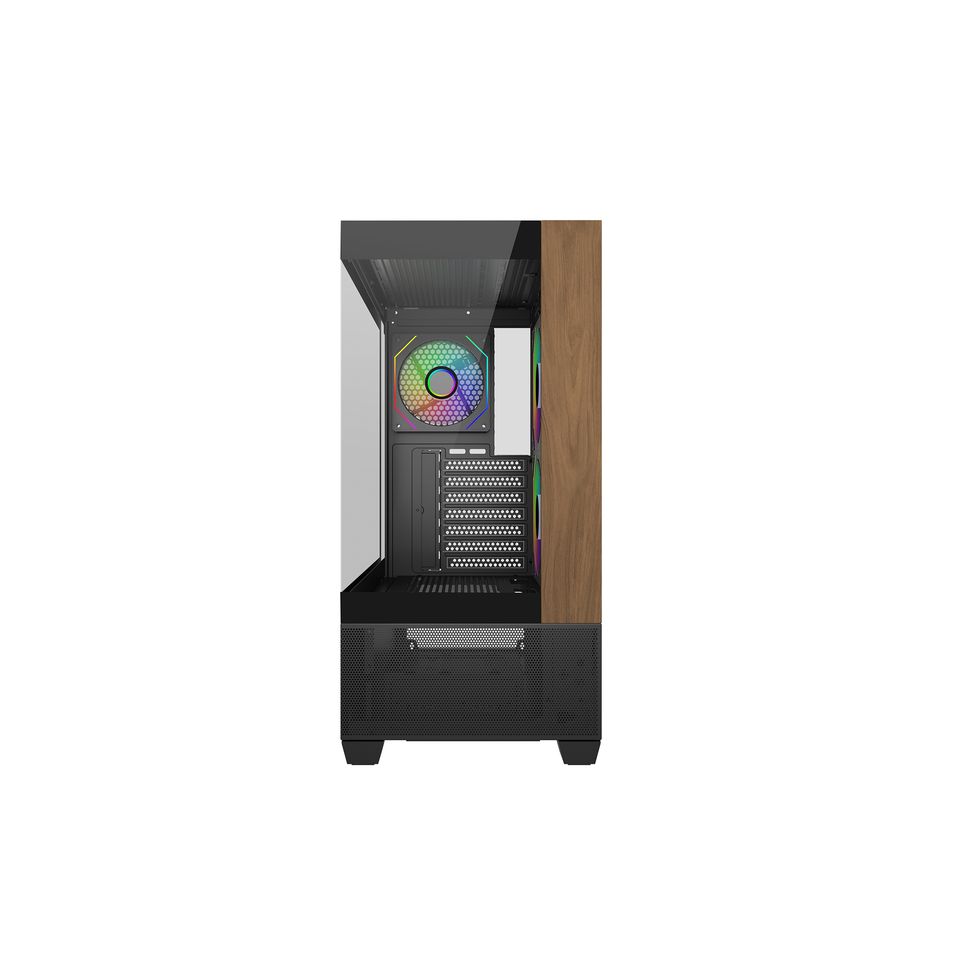

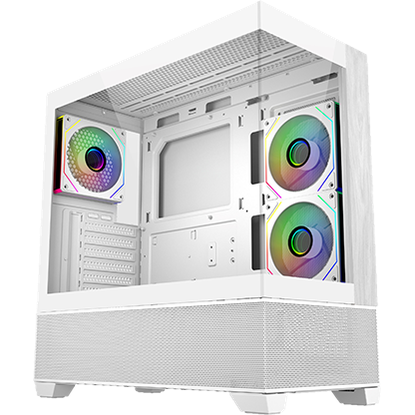

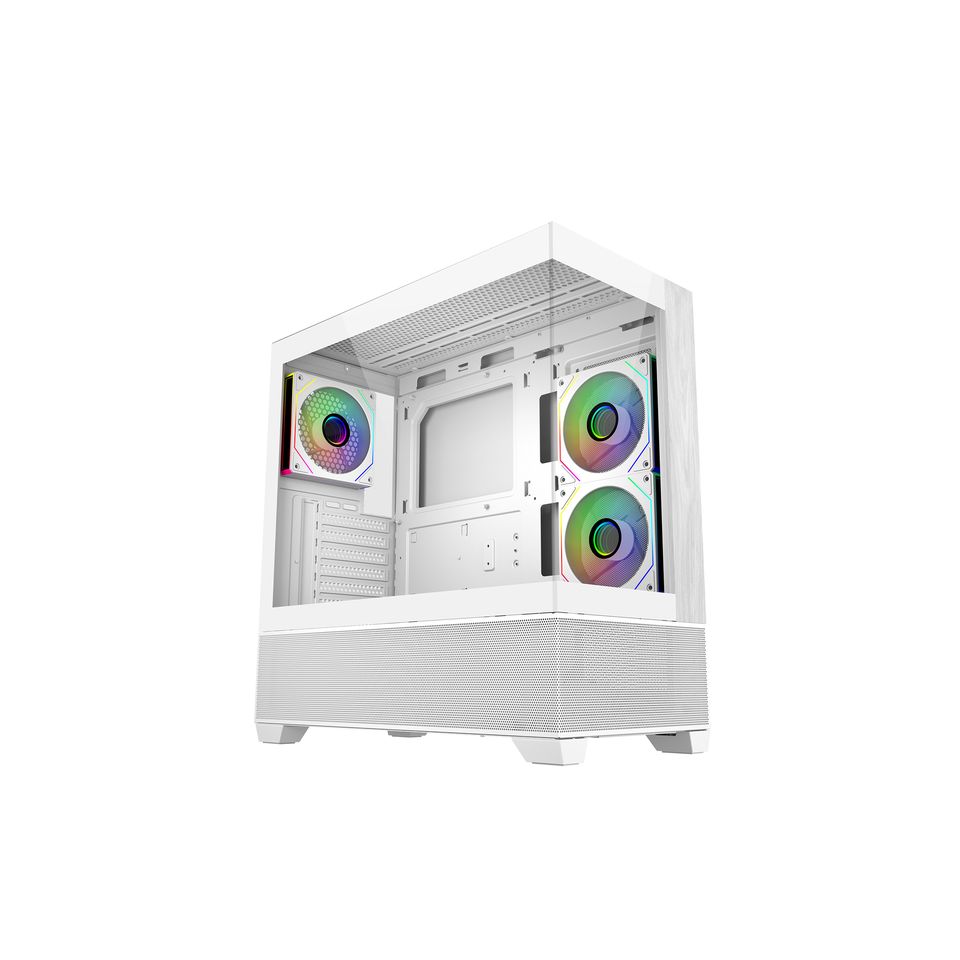

Elite 690 Wood

The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and bottom ventilation for vertical cooling, it supports versatile fan and radiator setups—perfect for performance-driven or style-focused builds.

270° Panoramic Tempered Glass

Beveled glass panels create an immersive, seamless showcase of your build.

Optimized Tower with PSU Chamber

Vertical layout separates thermal zones for better airflow and cleaner cable routing.

Vertical Cooling Architecture

Up to 10 fans in a bottom-to-top layout maximize airflow and cooling.

Natural Wood Front Panel

Crafted from real wood, the front panel adds a warm, organic touch to any space.

High-Performance Radiator Support

Top 360mm and side 240mm radiator support for powerful cooling setups.

Pre-installed ARGB Fans with Sync

Includes 3 daisy-chainable ARGB fans with full motherboard lighting sync support.

Top & Bottom Mesh Ventilation

Mesh panels ensure enhanced airflow and system-wide thermal performance.

Next-Gen GPU Ready

Supports up to 425mm GPUs—ready for RTX 50 Series and beyond.

High-Speed I/O Panel

USB 3.2 Gen 2x2 Type-C and dual USB 3.0 ports for blazing-fast connectivity.

Specifications

Model Number Black: E690-KHNN-S00, White: E690-WHNN-S00
Color(s) Black / White
Materials - Front Panel Tempered Glass + Wood
Material - Side Panel (Left) Tempered Glass
Material - Side Panel (Right) Steel
Dimensions (L x W x H) 434 x 218 x 454 mm (Incl. Protrusions), 430 x 218 x 435 mm (Excl. Protrusions)
Volume 42.93 L (Liters Incl. Protrusions)
Motherboard Support ITX / Micro-ATX / ATX
Expansion Slots 7
5.25" Drive Bays 0
3.5" Drive Bays 1 (Max. 2)
2.5" Drive Bays 1 (Max. 2)
I/O Panel - USB Ports 1 x USB Type C 20Gbps, 2 x USB 3.0
I/O Panel - Audio In / Out 1x 3.5mm Combo
Pre-installed Fans - Rear 1x 120mm ARGB PWM
Pre-installed Fans - Side Mount 2x 120mm ARGB PWM reverse fan
Fan Support - Top 2x 140mm / 3x 120mm
Fan Support - Rear 1x 120mm
Fan Support - Side Mount 2x 120mm
Fan Support - Bottom 3x 120mm
Radiator Support - Top 120 / 240 / 360 (Max height 45mm)
Radiator Support - Bottom 120 / 240 / 360mm
Radiator Support - Side Mount 120 / 240mm
Clearance - CPU Cooler 170mm
Clearance - PSU 250mm
Clearance - Graphics Card 425mm
Power Supply Support ATX
Warranty 2 years
Size Mid Tower
Series Elite Series
