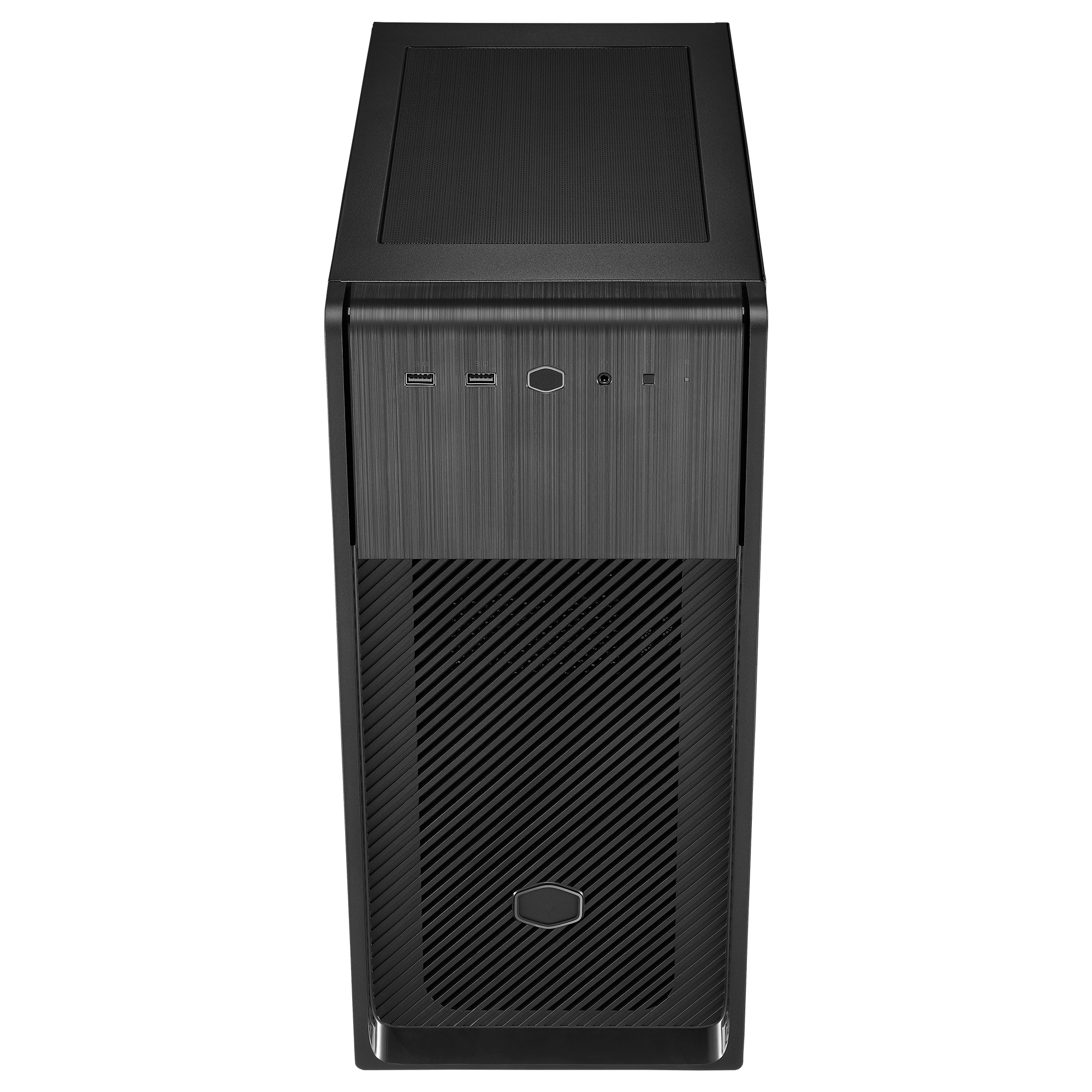

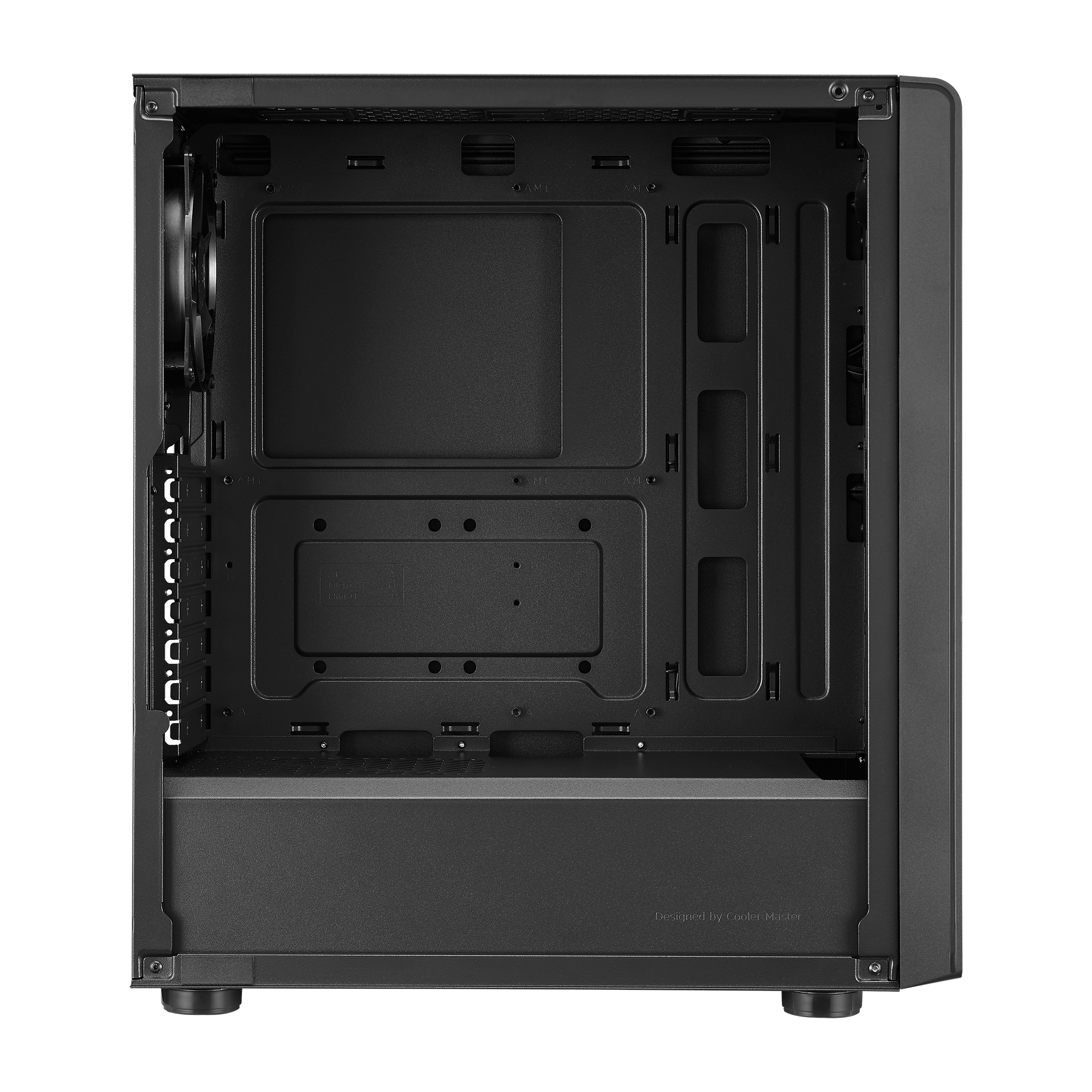

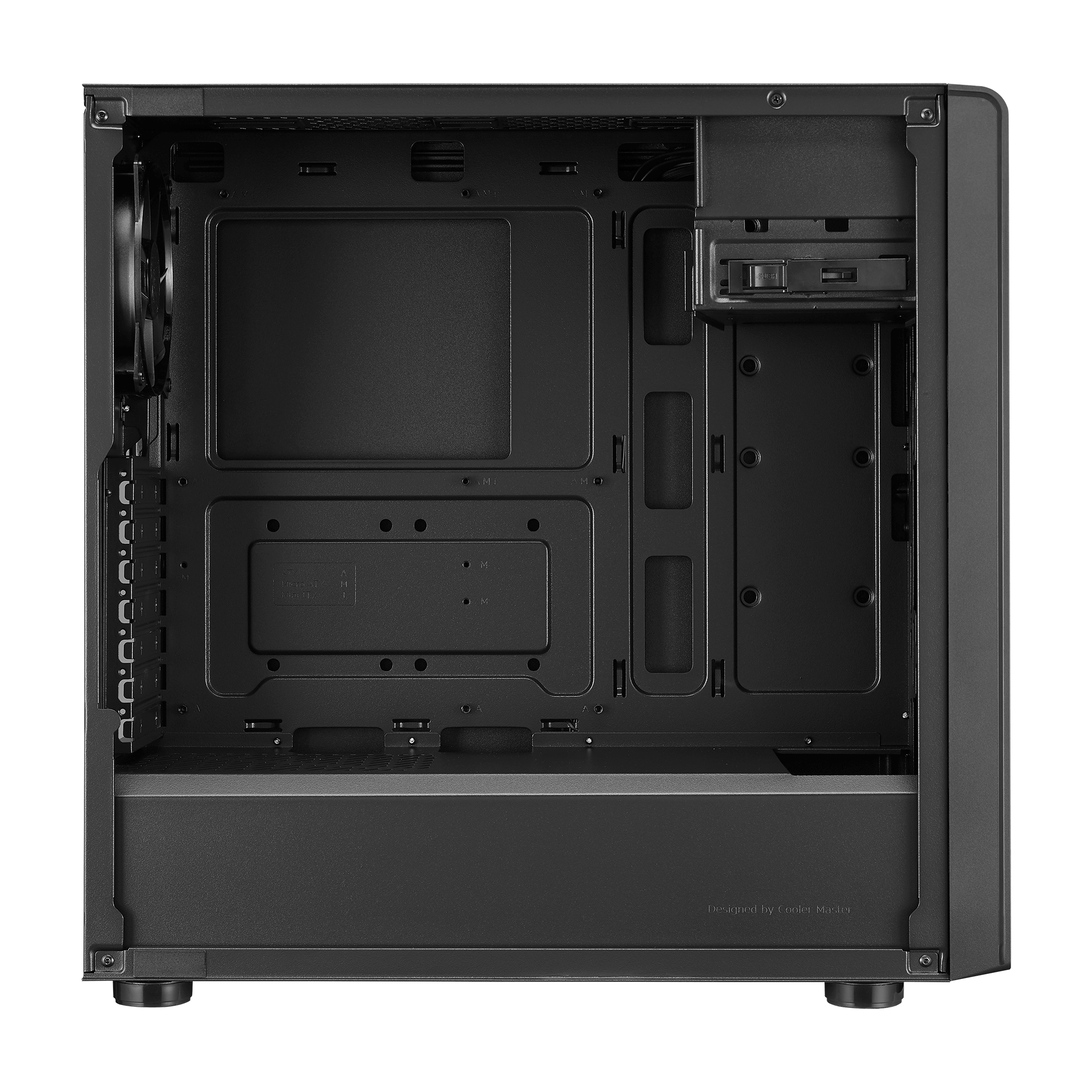

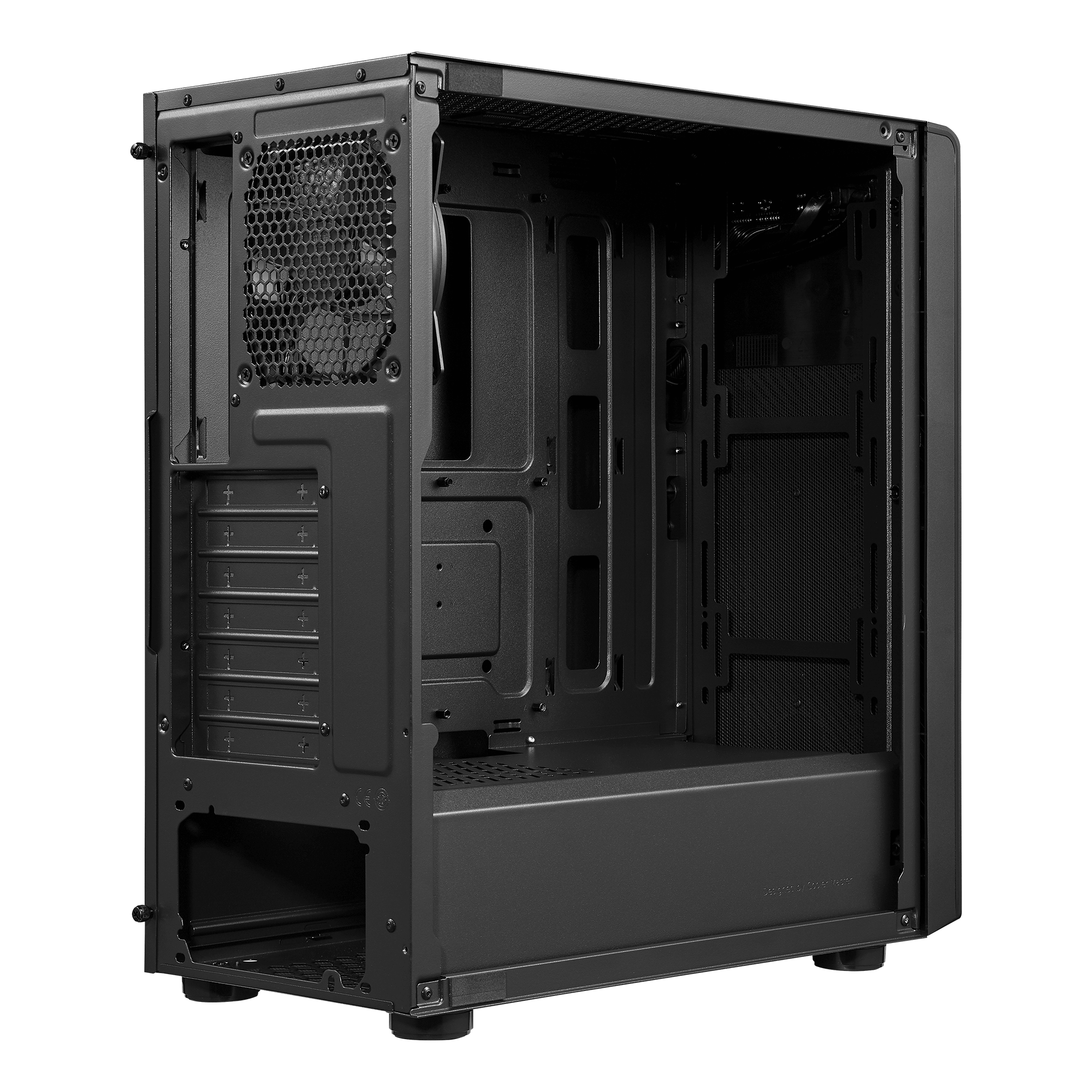

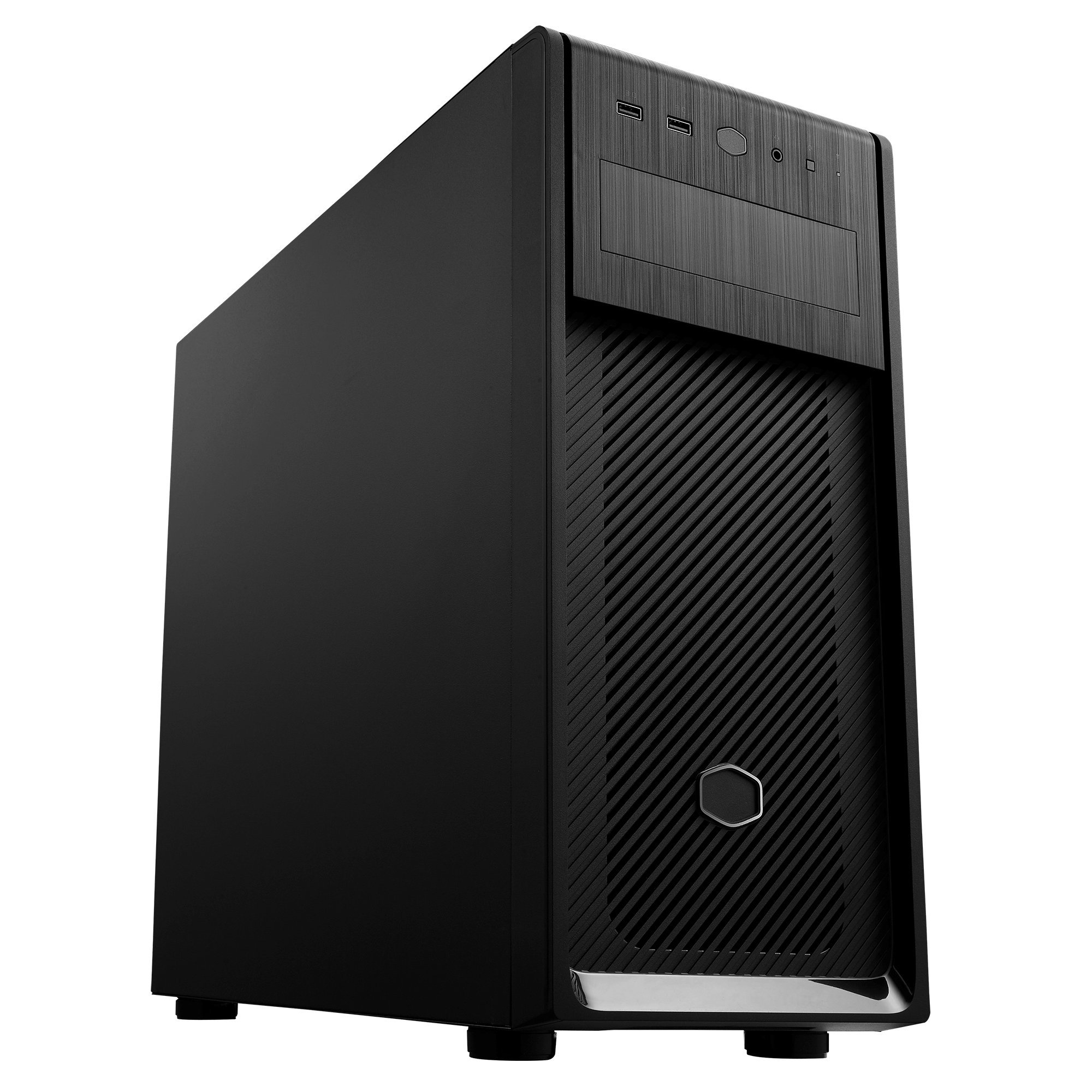

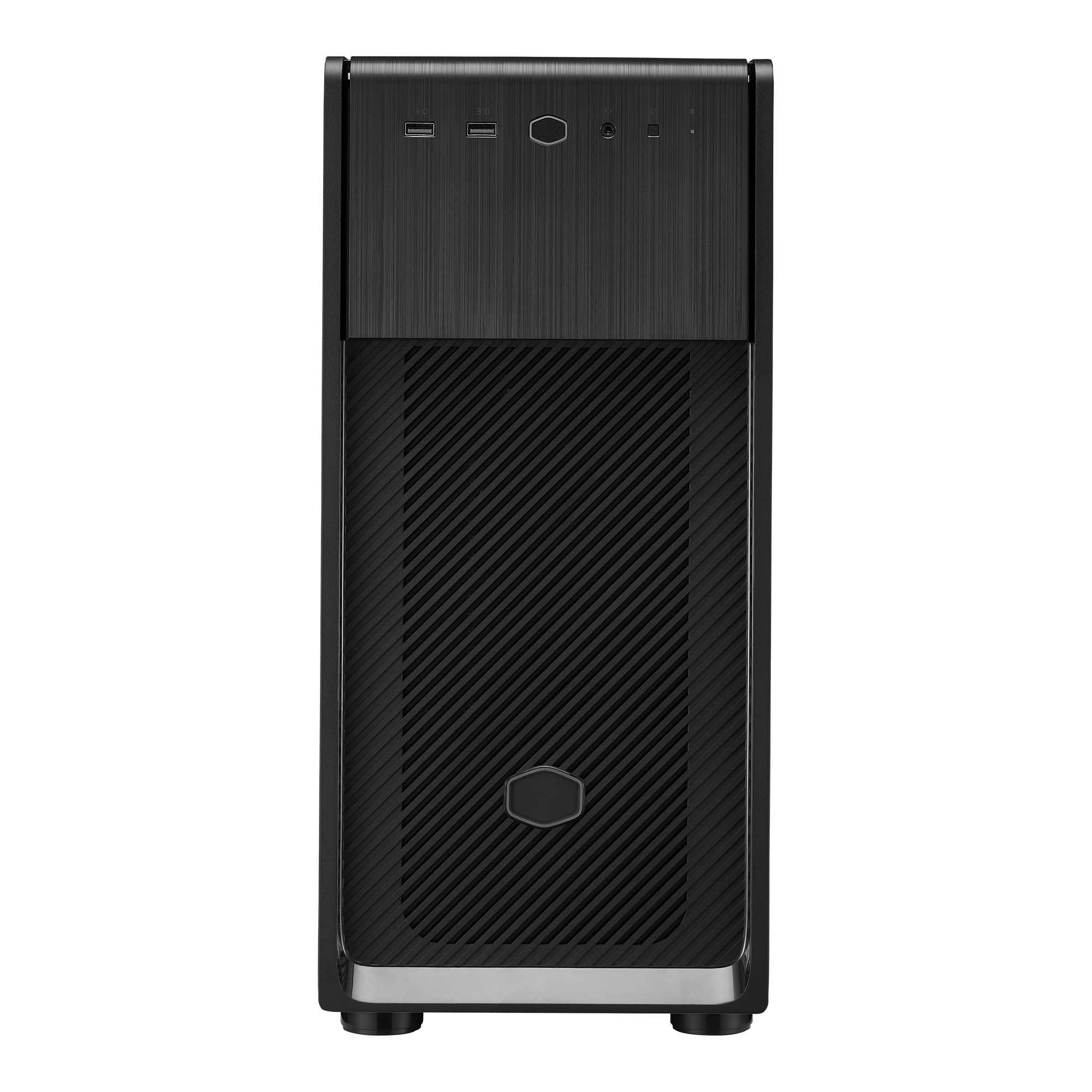

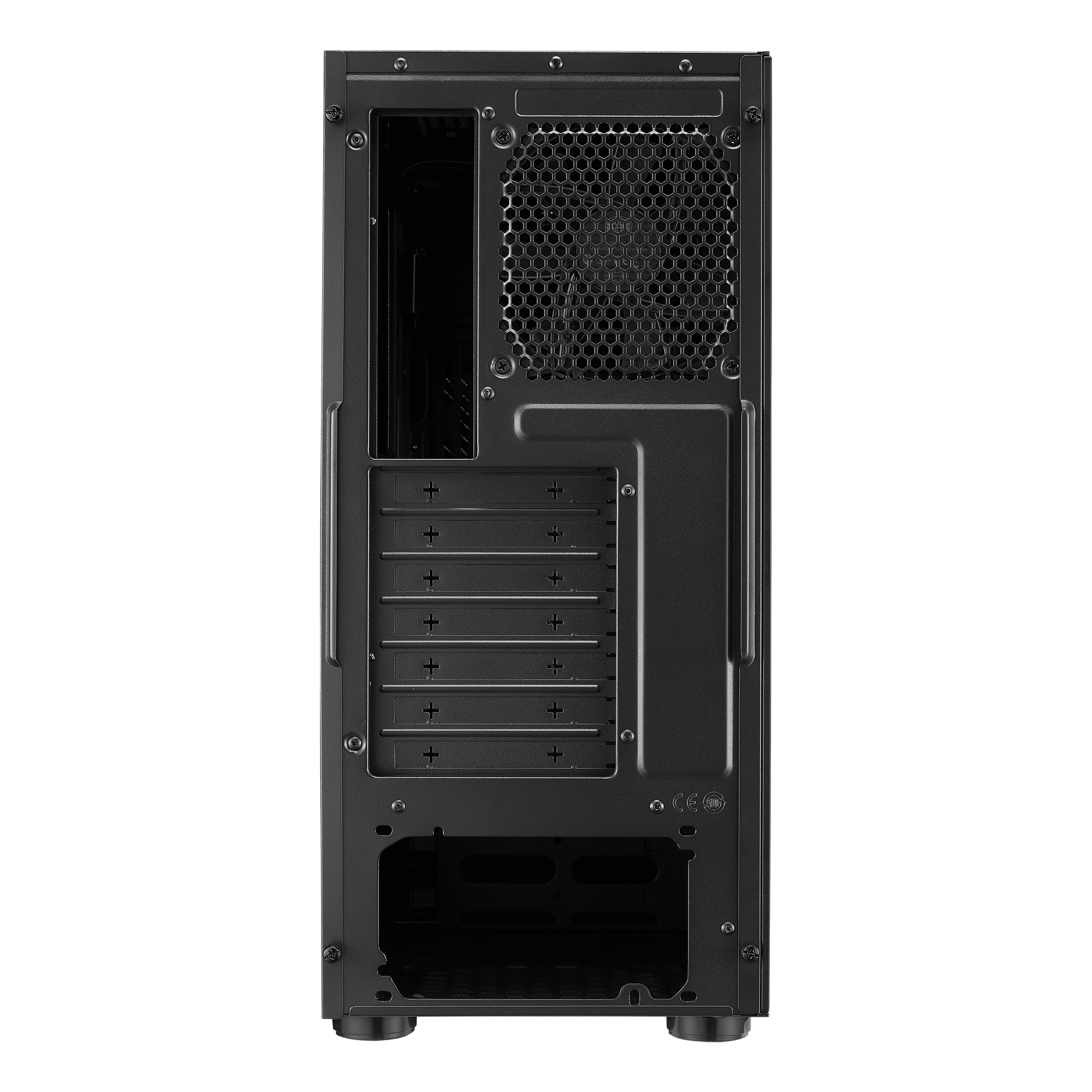

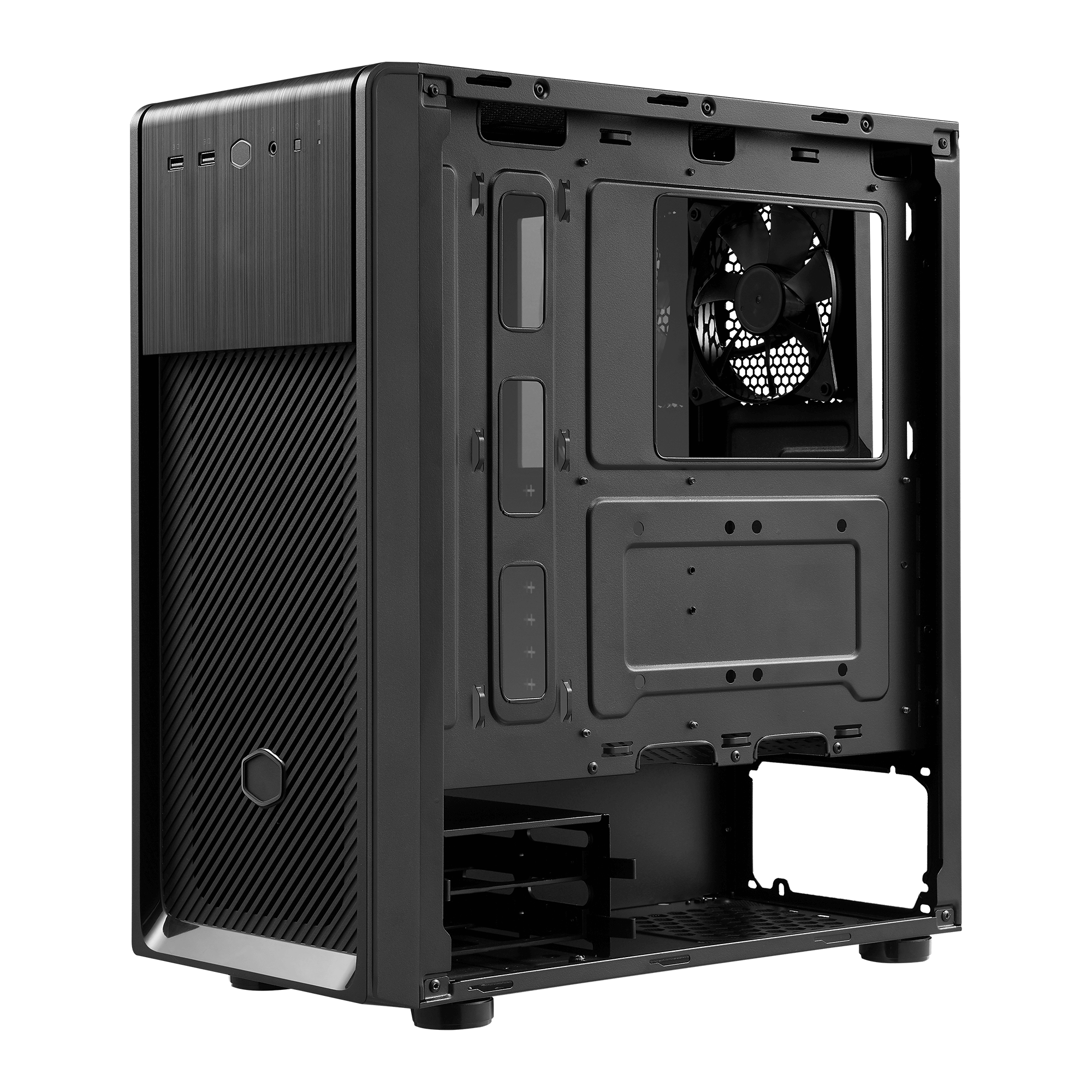

Steadfast

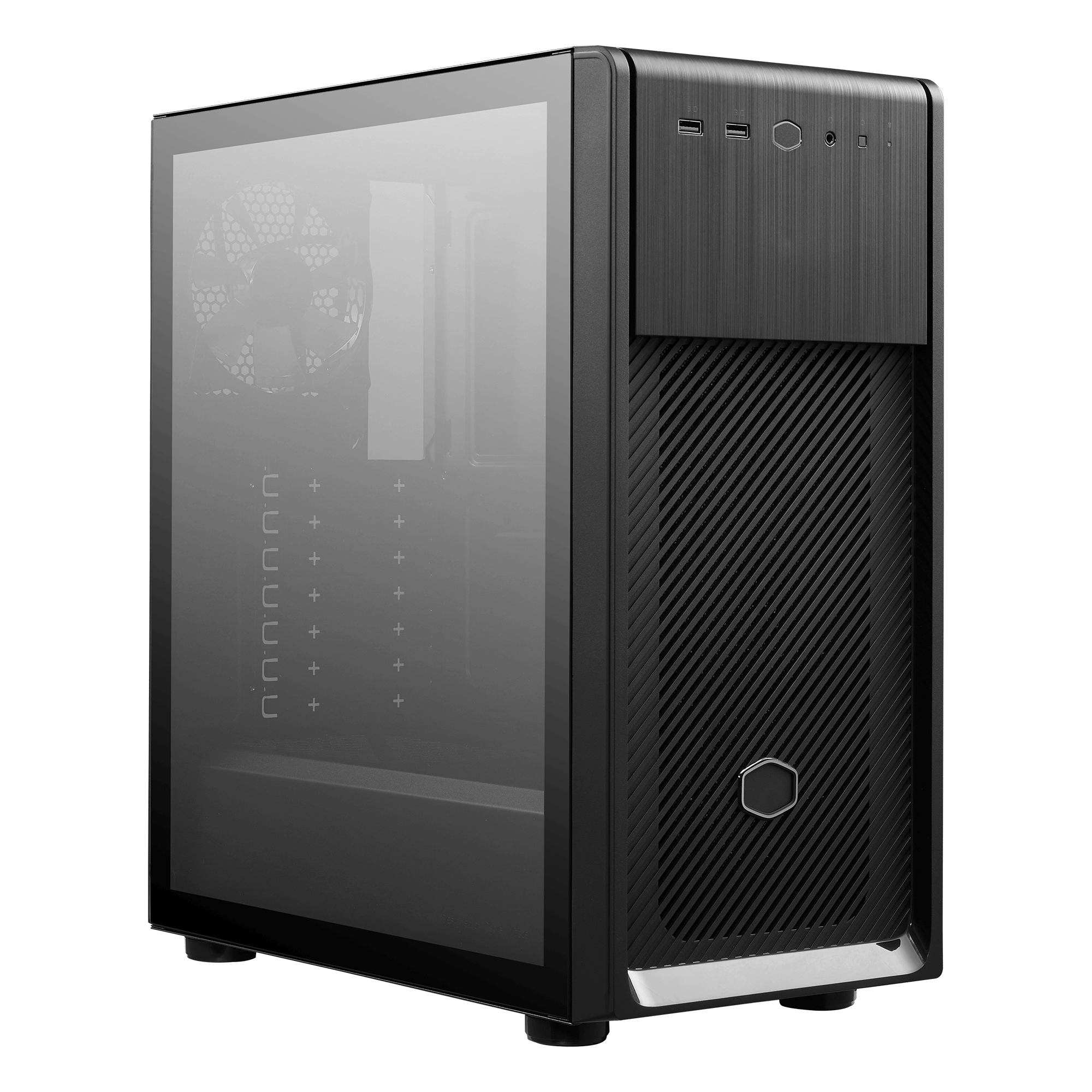

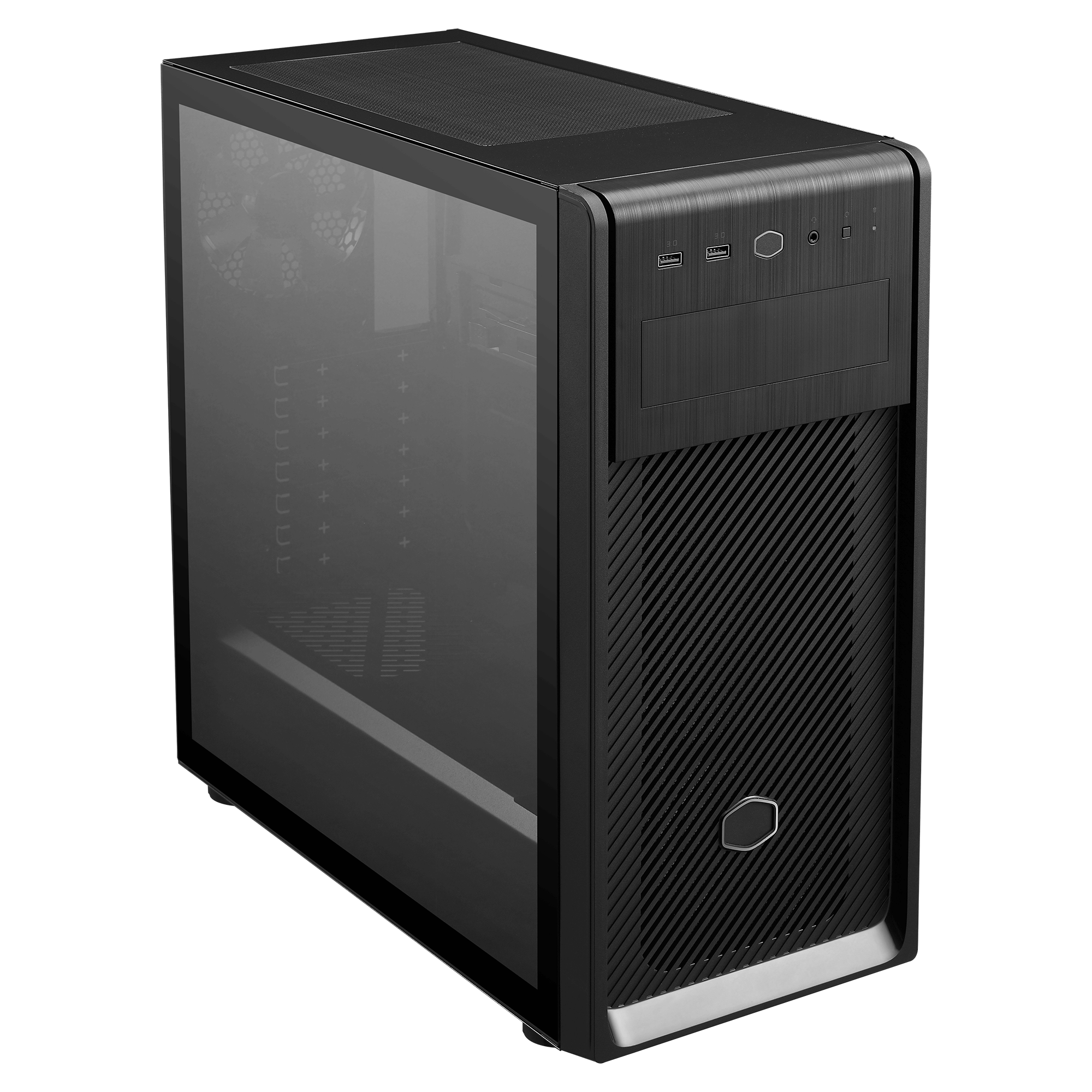

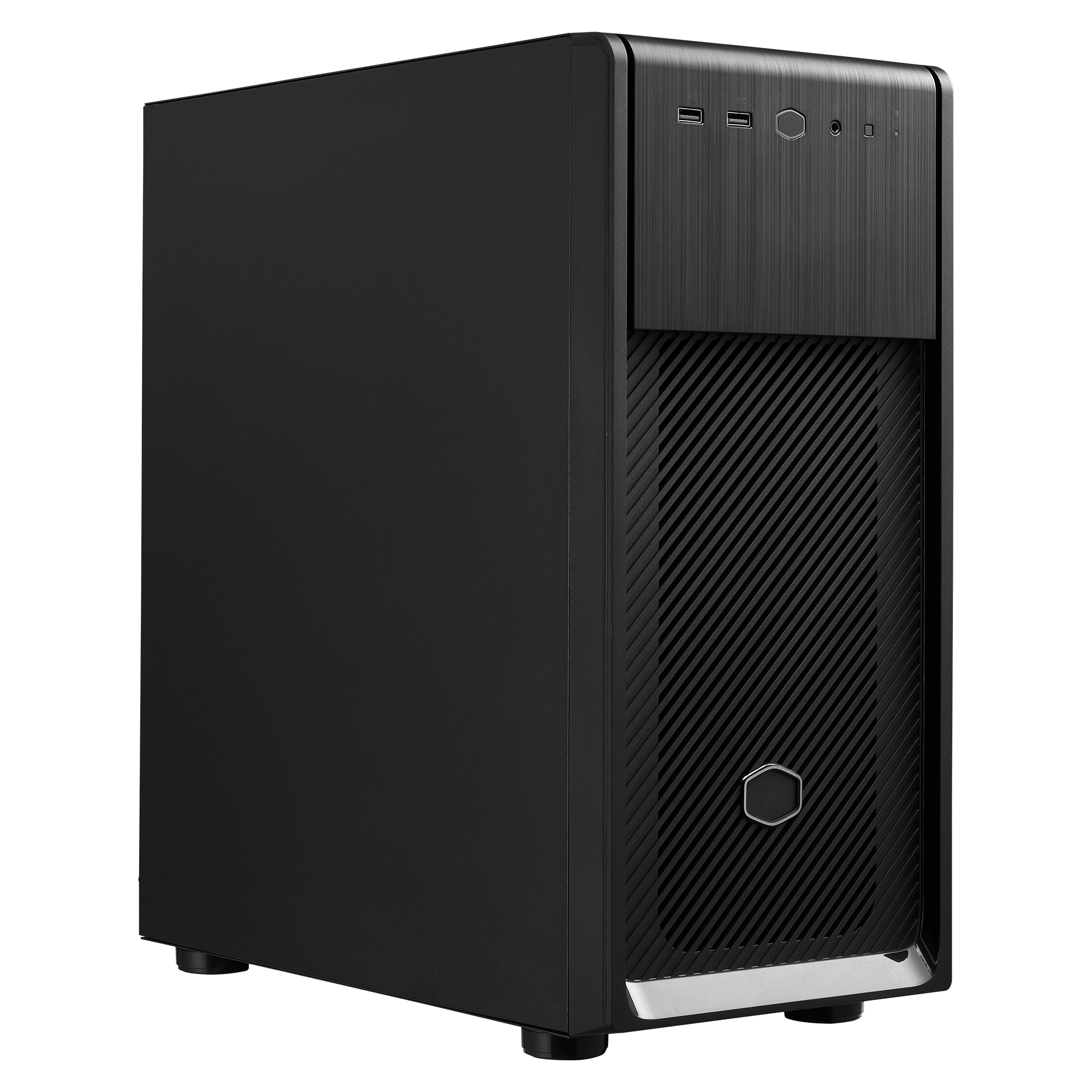

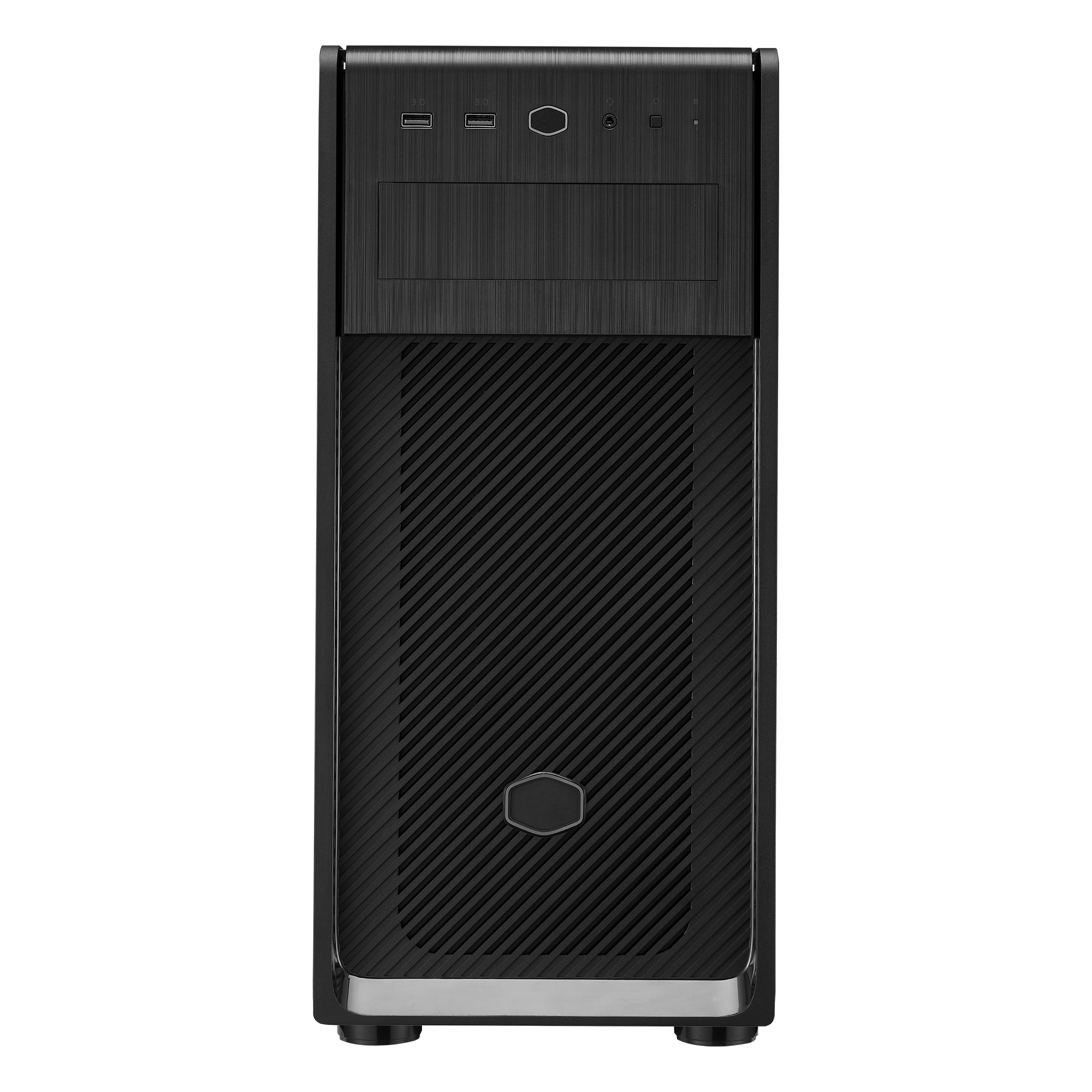

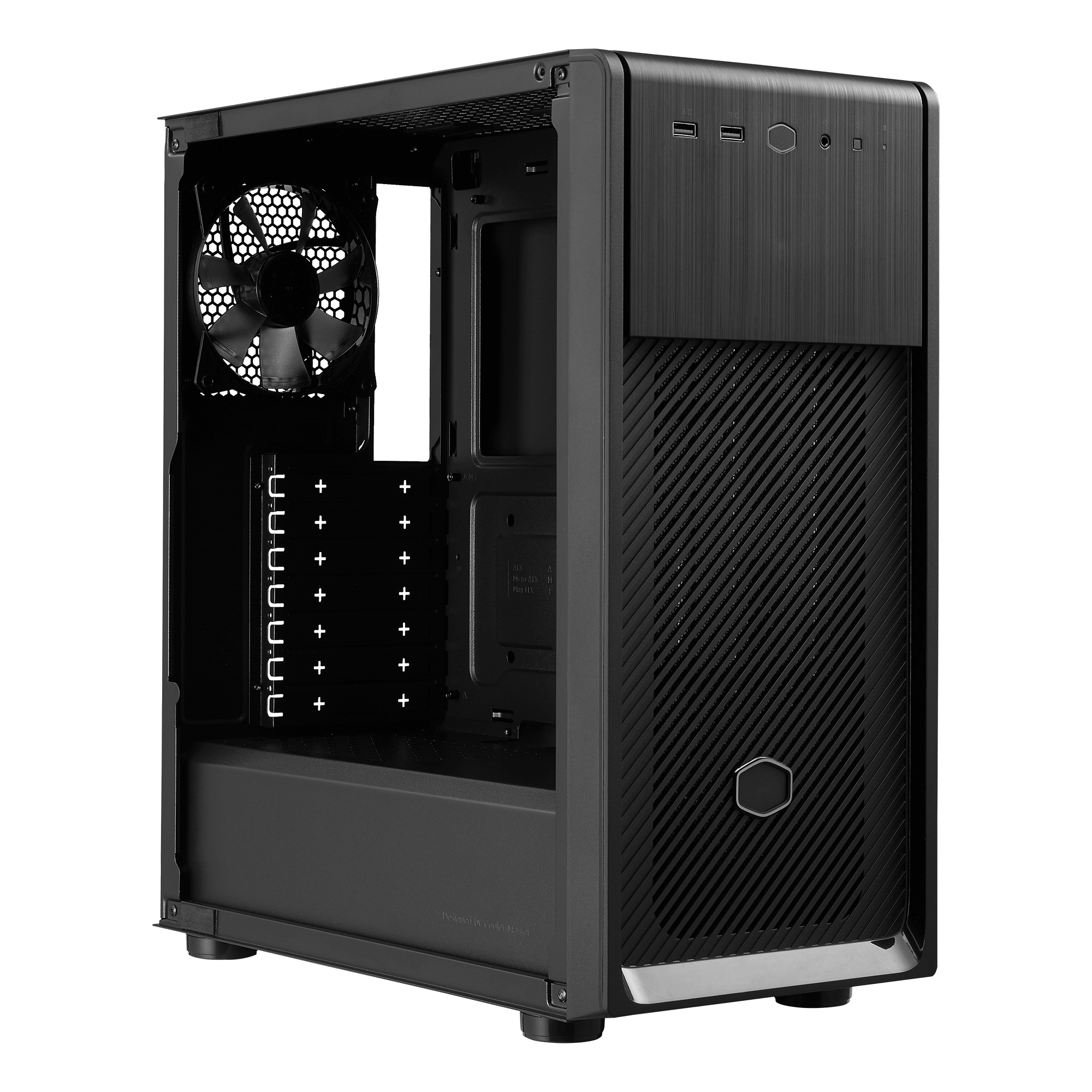

Elite 500 / Elite 500 ODD
Large Filtered Intakes
With/Without ODD Support
Versatile Cooling Options
Full Black Coating & PSU Cover
Breathable Power Supply Shroud
Room For Upgrades
Removable HDD Cage
model
Specifications
- Radiator Support - Rear 120mm
- Power Supply Support Bottom Mount
- Dust Filters Top
- Kensington Lock N/A
- Dust Filters Front
- Warranty 2 years
- 2.5" / 3.5" Drive Bays (Combo) 2
- Color(s) Black
- Size Mid Tower
- Dust Filters Bottom
- Power Supply Support ATX
- Fan Support - Rear 1x 120mm
- Radiator Support - Front 280mm
- Radiator Support - Front 240mm
- Series Elite Series
- Radiator Support - Front 140mm
- Motherboard Support ATX
- Expansion Slots 7
- Pre-installed Fans - Rear 1x 120mm
- Radiator Support - Front 120mm
- Motherboard Support Micro ATX
- Fan Support - Top 2x 140mm
- Cable Routing 18.5mm
- Motherboard Support Mini ITX
- Volume 37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions)
- Fan Support - Top 2x 120mm
- I/O Panel 2x USB 3.2 Gen 1 Type-A
- Radiator Support - Front 360mm (Remove ODD) (E500-KG5N-S00, E500-KN5N-S00)
- Radiator Support - Top 120 / 240mm (32mm max motherboard component height)
- I/O Panel 1x 3.5mm Headset Jack (Audio+Mic)
- Clearance - PSU 160mm (E500-KGNN-S00, E500-KNNN-S00), 180mm (E500-KG5N-S00, E500-KN5N-S00)
- Clearance - CPU Cooler TG: 161mm, Steel: 163mm
- Fan Support - Front 2x 140mm, 3x 120mm (E500-KGNN-S00, E500-KNNN-S00), 2x 120mm (E500-KGNN-S00, E500-KNNN-S00), 3x 120mm (remove ODD bracket) (E500-KGNN-S00, E500-KNNN-S00)
- 5.25" Drive Bays 0 (E500-KGNN-S00, E500-KNNN-S00), 1 (E500-KG5N-S00, E500-KN5N-S00)
- 2.5" Drive Bays 3 (E500-KGNN-S00, E500-KNNN-S00), 5 (E500-KG5N-S00, E500-KN5N-S00)
- Materials Steel, Plastic, Tempered Glass
- Clearance - GFX 350mm (w/o front fans & radiator) (E500-KGNN-S00, E500-KNNN-S00), 400mm (w/o front fans & radiator) (E500-KG5N-S00, E500-KN5N-S00)
- Dimensions (L x W x H) 409 x 204 x 455mm (incl. Protrusions), 402 x 204 x 455mm (excl. Protrusions), 464 x 204 x 455mm (incl Protrusions, ODD), 457 x 204 x 455mm (excl. Protrusions, ODD)
- Model Number E500-KGNN-S00 (TG), E500-KNNN-S00 (Steel), E500-KG5N-S00 (TG, ODD), E500-KN5N-S00 (Steel, ODD)
