Effortless Efficiency

Elite 302 Lite

High in value and attention to detail, Cooler Master’s Elite 302 lite offers users a cost effective, space conscious solution to gaming and computing needs.

Elite 302 features a large intake grill to ensure a smooth, and efficient running system. The fully black coating and included PSU cover allows for clean builds that are visually appealing as well as functional.

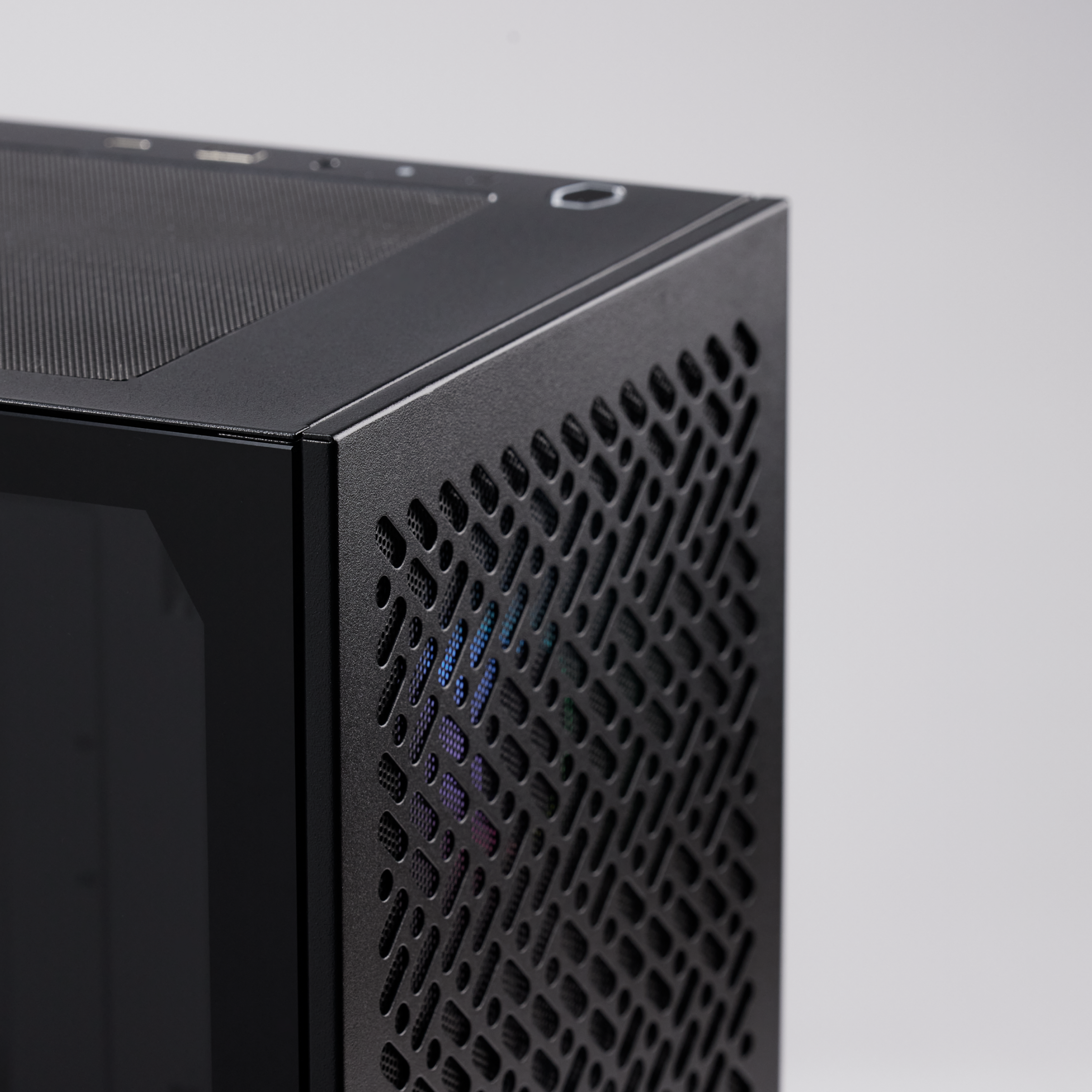

Tool-Less Magnetic Front Panel

Quick and easy maintenance with a tool-free magnetic mesh front panel — engineered for airflow and effortless access.

Ready For High-Performance Cooling

Accommodates up to 6 fans and supports 280mm or 360mm radiators to keep your system performing at its peak.

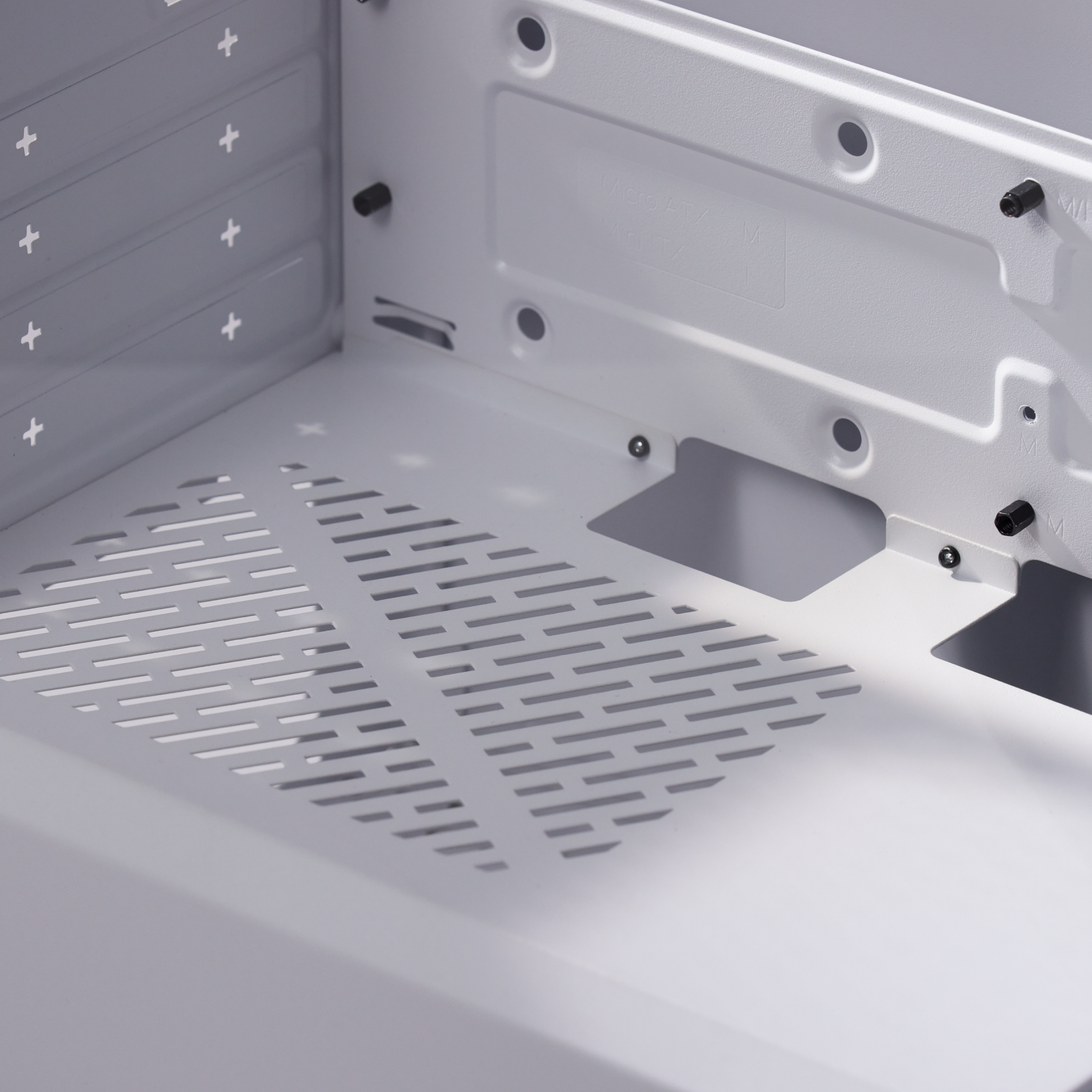

Breathable PSU Shroud

Ventilated power supply cover supports both active and passive cooling —

offering flexibility and thermal efficiency.

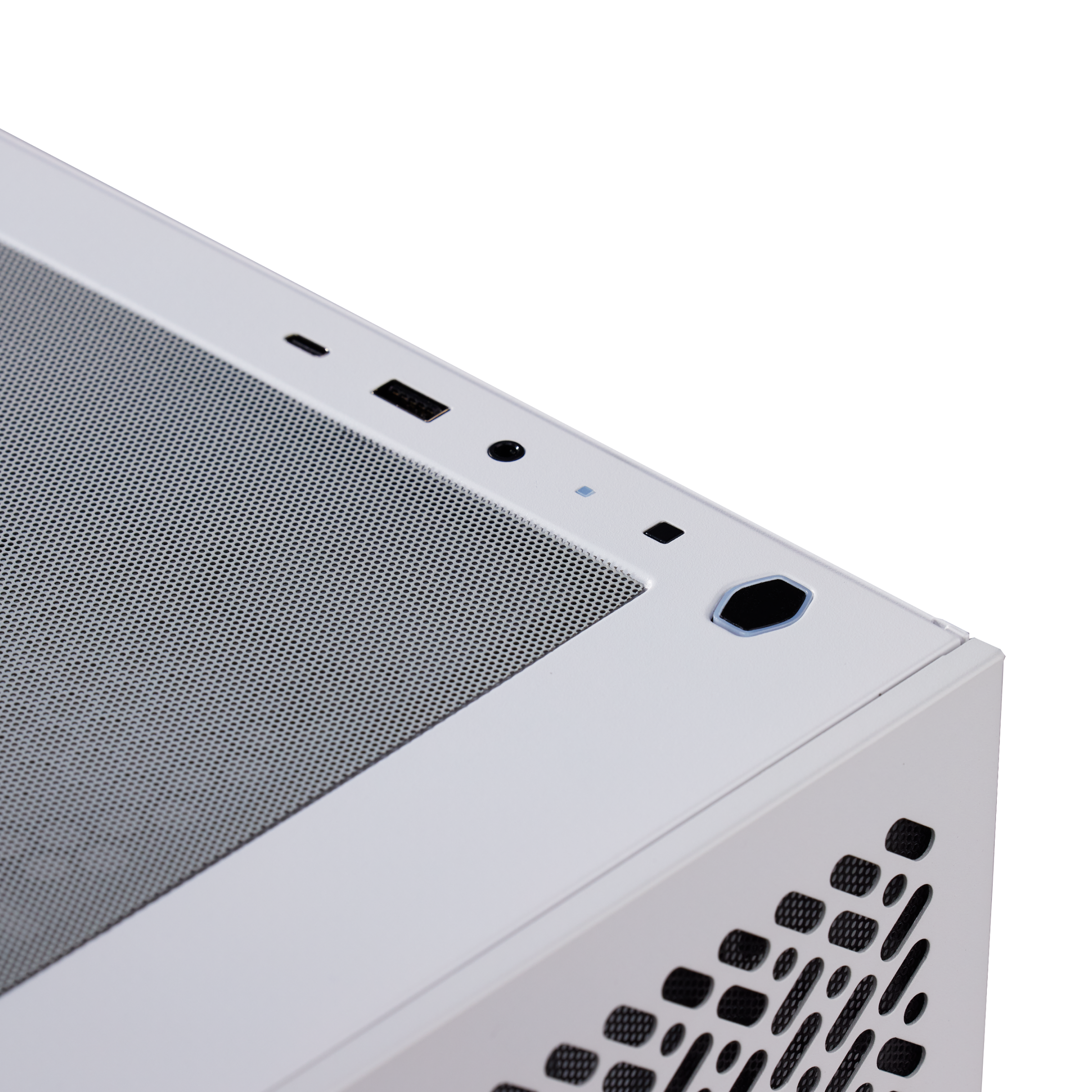

Front I/O USB Type-C Support







Modern connectivity with a built-in USB Type-C port for faster, streamlined data transmission.

Specifications

  • Model Number Black: E302L-KGNN-S00​, White: E302L-WGNN-S00​
  • Exterior Color Black, White
  • Materials - Exterior Steel
  • Materials - Side panel (Right / Left) TG / Steel
  • Dimensions (L x W x H) 390 x 203.5 x 430mm​ (Incl. Protrusions), 377 x 203.5 x 410mm​ (Excl. Protrusions)
  • Volume (incl. Protrusions) 34.13L​
  • Motherboard Support Mini-ITX, Micro-ATX
  • Expansion Slots 4
  • 5.25" Drive Bays N/A
  • 3.5" Drive Bays 1
  • 2.5" Drive Bays 1 (Max. 2)
  • I/O Panel - USB Ports 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C​
  • I/O Panel - Audio In / Out 1x 3.5mm Combo
  • Fan Support - Front 3x 120mm
  • Fan Support - Top 2x 120mm / 2x 140mm
  • Fan Support - Rear 1x 120mm
  • Pre-installed Fans - Front N/A
  • Pre-installed Fans - Top N/A
  • Pre-installed Fans - Rear 1x 120mm Black Fan
  • Radiator Support - Front 120 / 240 / *360 mm (*Supported within 60mm thickness)​
  • Radiator Support - Top 120 / 140 / 240 / 280mm
  • Radiator Support - Rear 120mm

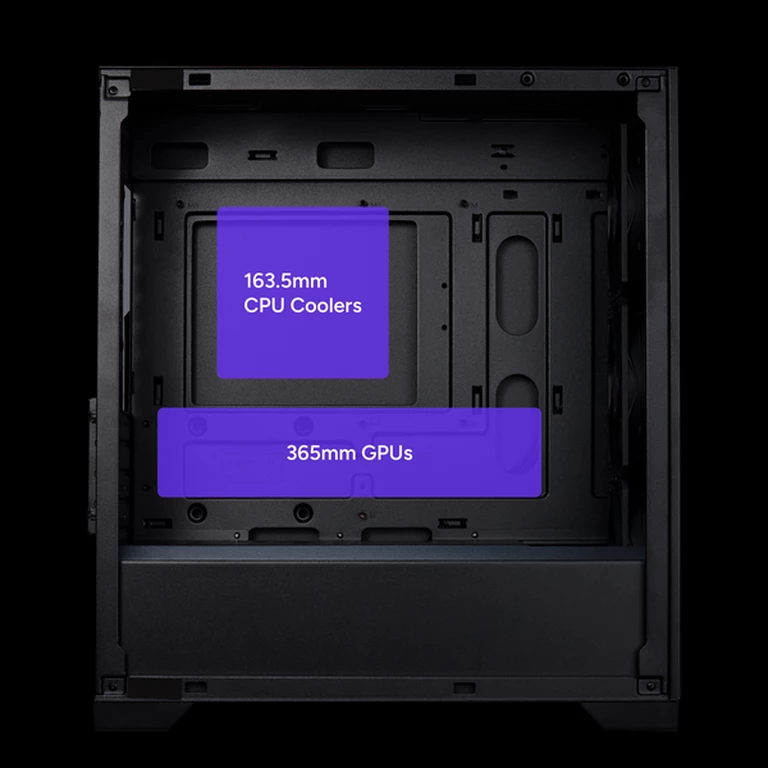

  • Clearance - CPU Cooler 163.5mm
  • Clearance - PSU 160mm
  • Clearance - GFX 365mm (without front fans & radiator)
  • Cable Routing 18.5mm
  • Dust Filters Top / Bottom / Front
  • Power Supply Support ATX
  • Warranty 2 years
  • Size Mini Tower
  • Series Elite Series
