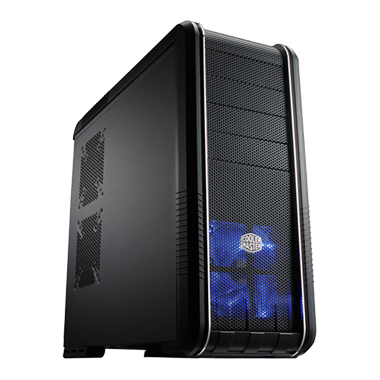

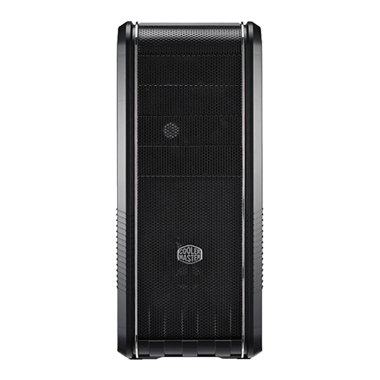

Name: CM 690 II Plus (USB 3.0 version)
SKU: cm-690-ii-plus-usb3
Availability: InStock

I/O Panel 1x USB 3.0

Cooling System - HDD cage 120mm fan x 1 (optional)

Cooling System - Left side 120/140mm fan x 2 (optional)

Cooling System - Right side 80 x 15mm fan x 1 (optional)

Legacy Cases

Materials Plastic

Color(s) Black

Size Mid Tower

Cooling System - Rear 120mm red LED fan x 1, 1200RPM, 17dBA

Cooling System - Bottom 2x 120/140mm Fan (Optional)

2.5" Drive Bays 2 (converted from one 3.5" drive bay)

Cooling System - Front 140 x 25 mm Blue LED on /off fan x 1 / 1200 RPM / 19 dBA

Power Supply Support ATX PS2

Power Supply Support EPS 12V (Optional)

I/O Panel 2x USB 2.0

Expansion Slots 7+1

Cooling System - Top 120mm fan x 1/ 1200RPM /17dBA (supports 120/140mm fan x 2)

3.5" Drive Bays 1 Exposed (converted from one 5.25" drive bay)

Materials Steel body

Maximum Compatibility - VGA Card Length 304mm / 11.96 inch

3.5" Drive Bays 6 (hidden)

Materials Mesh bezel

I/O Panel 1x Mic

Maximum Compatibility - CPU Cooler Height 177mm / 6.96 inch

I/O Panel 1x Audio (supports HD audio)

5.25" Drive Bays 4 (without the use of exposed 3.5” drive bay)

Weight 9.56 kg / 21.08 lbs

Dimensions (L x W x H) 214.5 x 496 x 528.8 mm / 8.4 x 19.5 x 20.8 inch

Model Number RC-692P-KWN5

Model Number RC-692P-KKN5

CM 690 II Plus (USB 3.0 version)
