Name: CM 690 II Advanced (USB 3)
SKU: cm-690-ii-advanced-usb3
Availability: InStock

Cooling System - Bottom 2x 120mm Fan (Optional)

Cooling System - HDD cage 120mm fan x 1 (optional)

Cooling System - Left side 120/140mm fan x 2 (optional)

Cooling System - Right side 80 x 15mm fan x 1 (optional)

Legacy Cases

Color(s) Black

Size Mid Tower

Materials Plastic

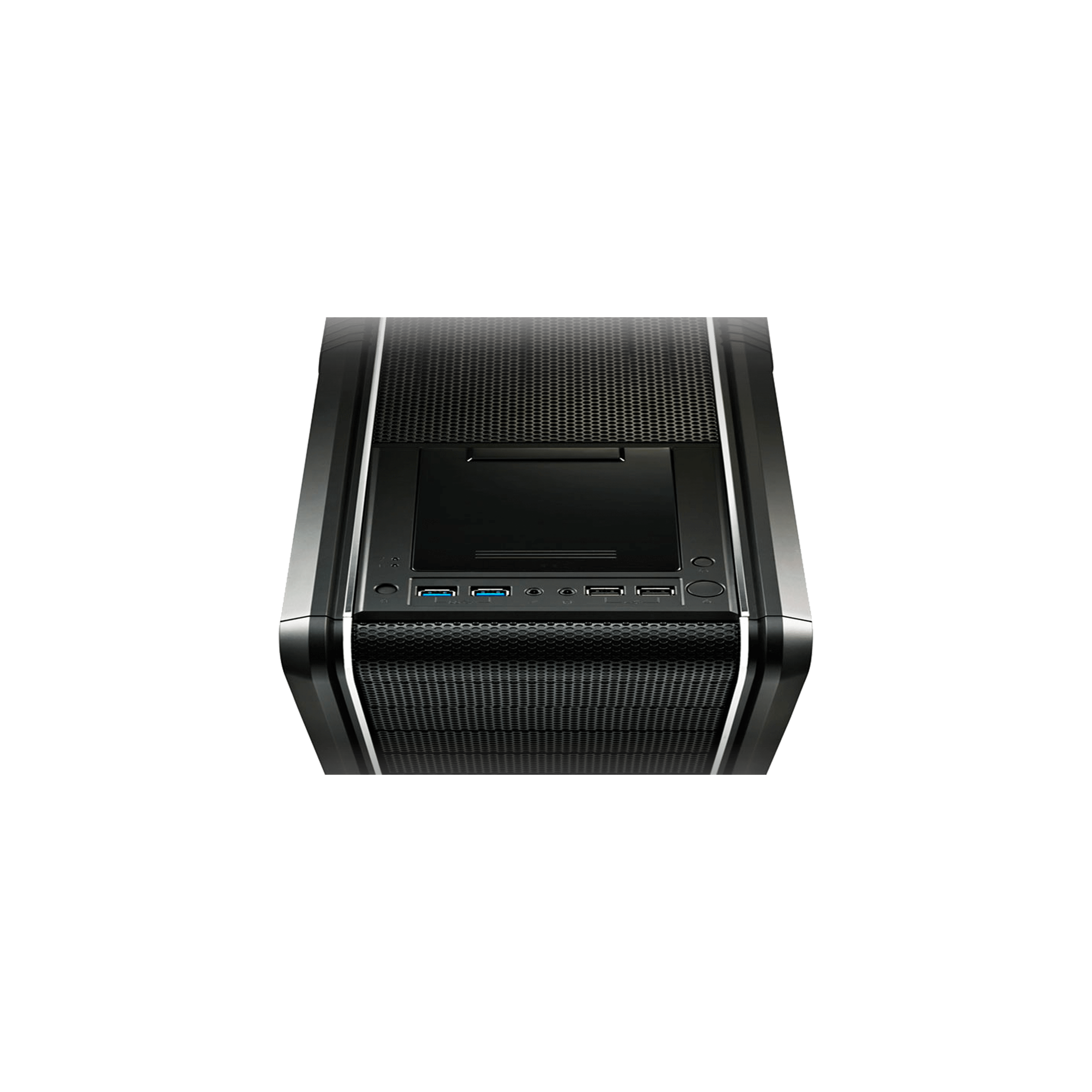

I/O Panel 2x USB 3.0

Cooling System - Rear 120mm red LED fan x 1, 1200RPM, 17dBA

2.5" Drive Bays 2 (converted from one 3.5" drive bay)

Cooling System - Front 140 x 25 mm Blue LED on /off fan x 1 / 1200 RPM / 19 dBA

Power Supply Support ATX PS2

Power Supply Support EPS 12V (Optional)

I/O Panel 2x USB 2.0

Expansion Slots 7+1

Cooling System - Top 140 x 25mm fanx1/1200RPM/19dBA(supports120/140mm fan x 2)

3.5" Drive Bays 1 Exposed (converted from one 5.25" drive bay)

Materials Steel body

3.5" Drive Bays 6 hidden (4 removable)

Materials Mesh bezel

I/O Panel 1x Mic

I/O Panel 1x Audio (supports HD audio)

5.25" Drive Bays 4 (without the use of exposed 3.5” drive bay)

Weight 9.56 kg / 21.08 lbs

Dimensions (L x W x H) 214.5 x 496 x 528.8 mm / 8.4 x 19.5 x 20.8 inch

Product Name CM 690 II Advanced (USB 3)

Model Number RC-692A-KKN5, RC-692A-KWN5

CM 690 II Advanced (USB 3)
