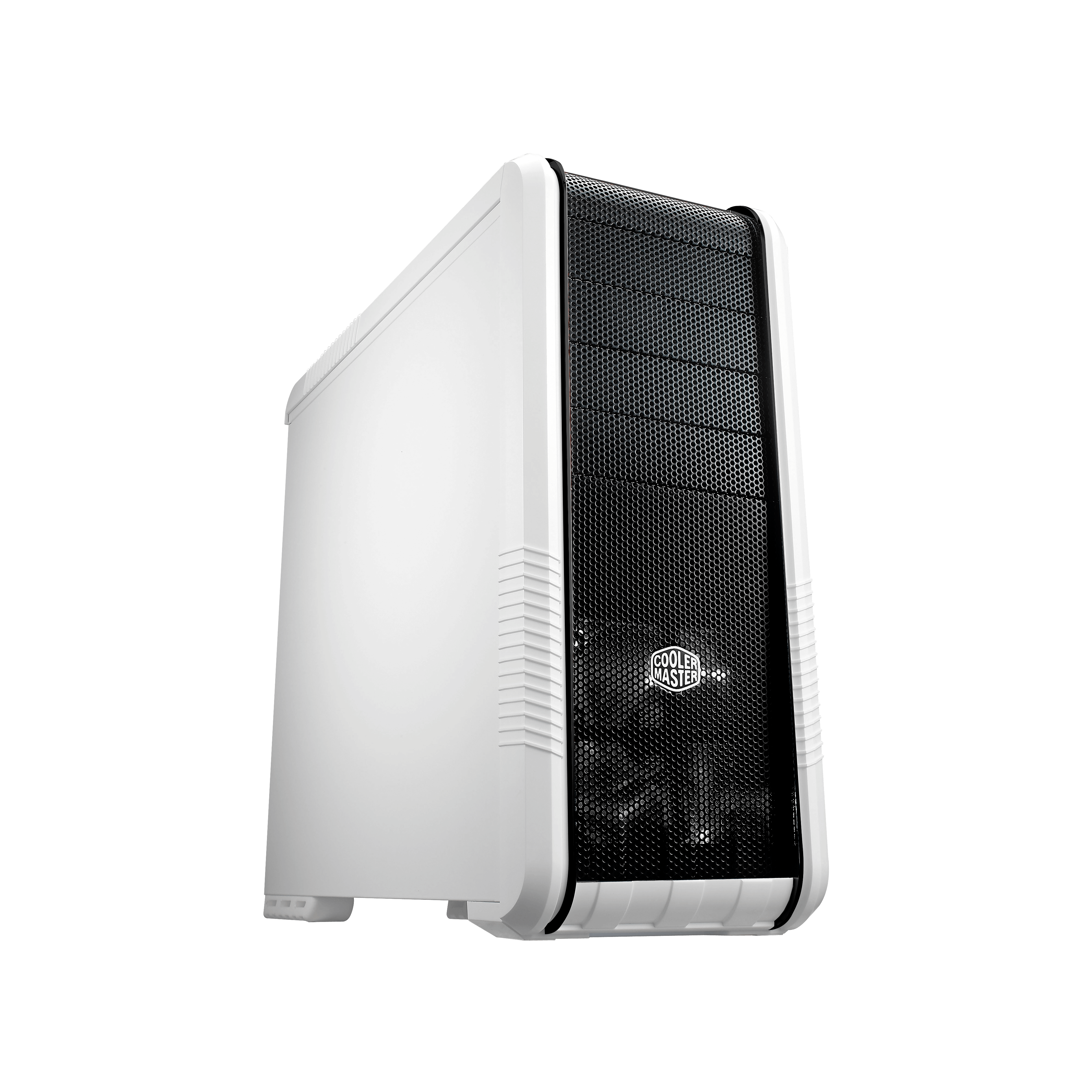

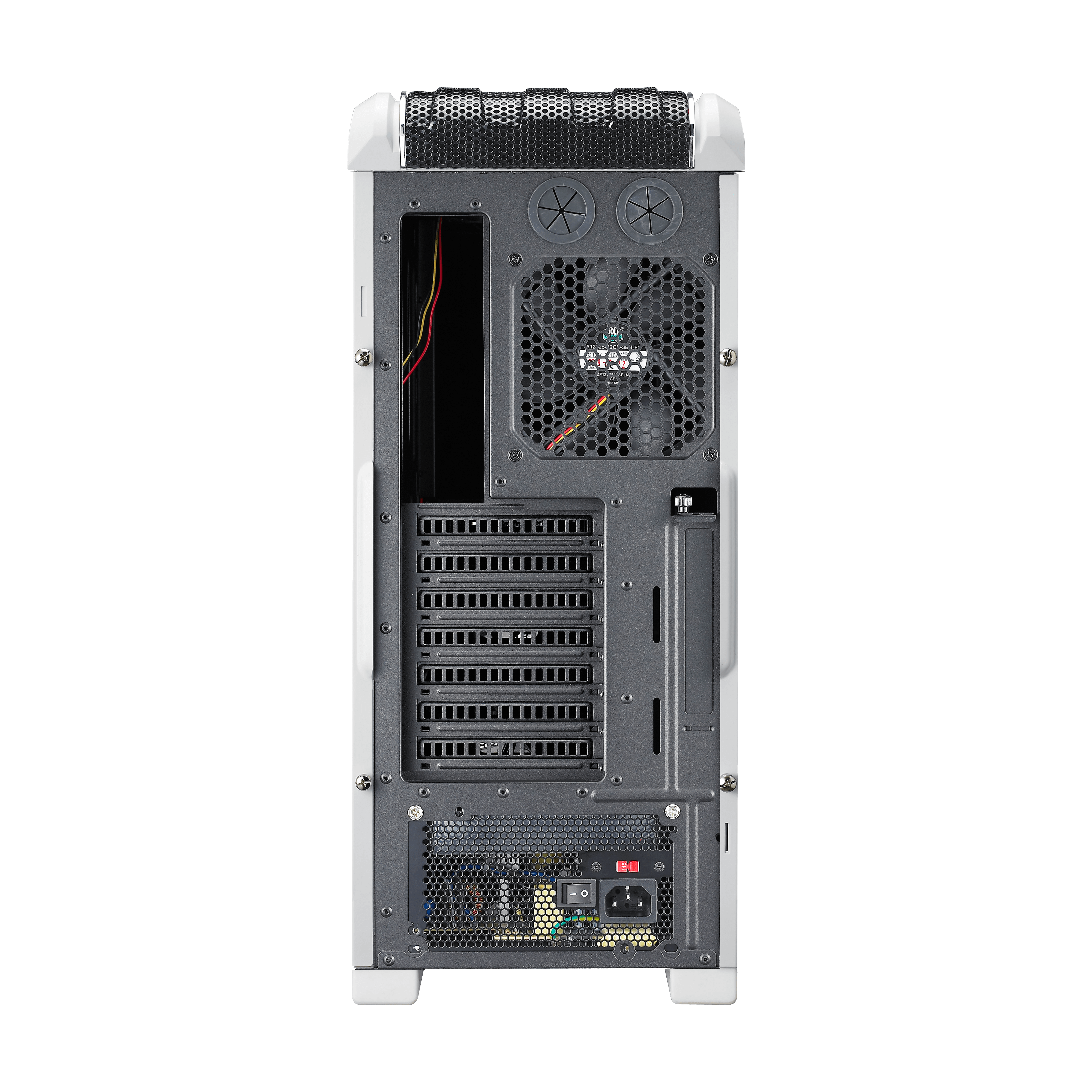

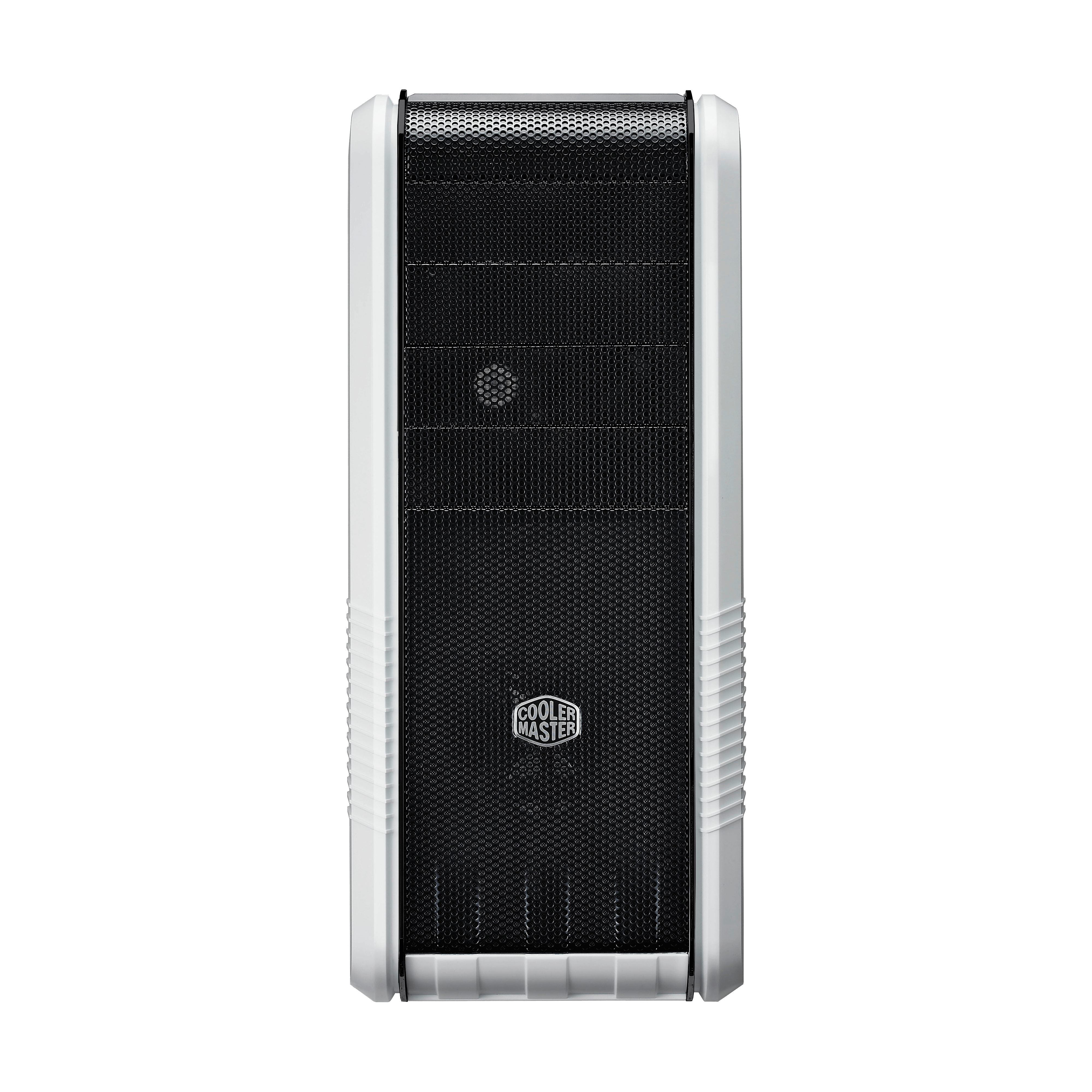

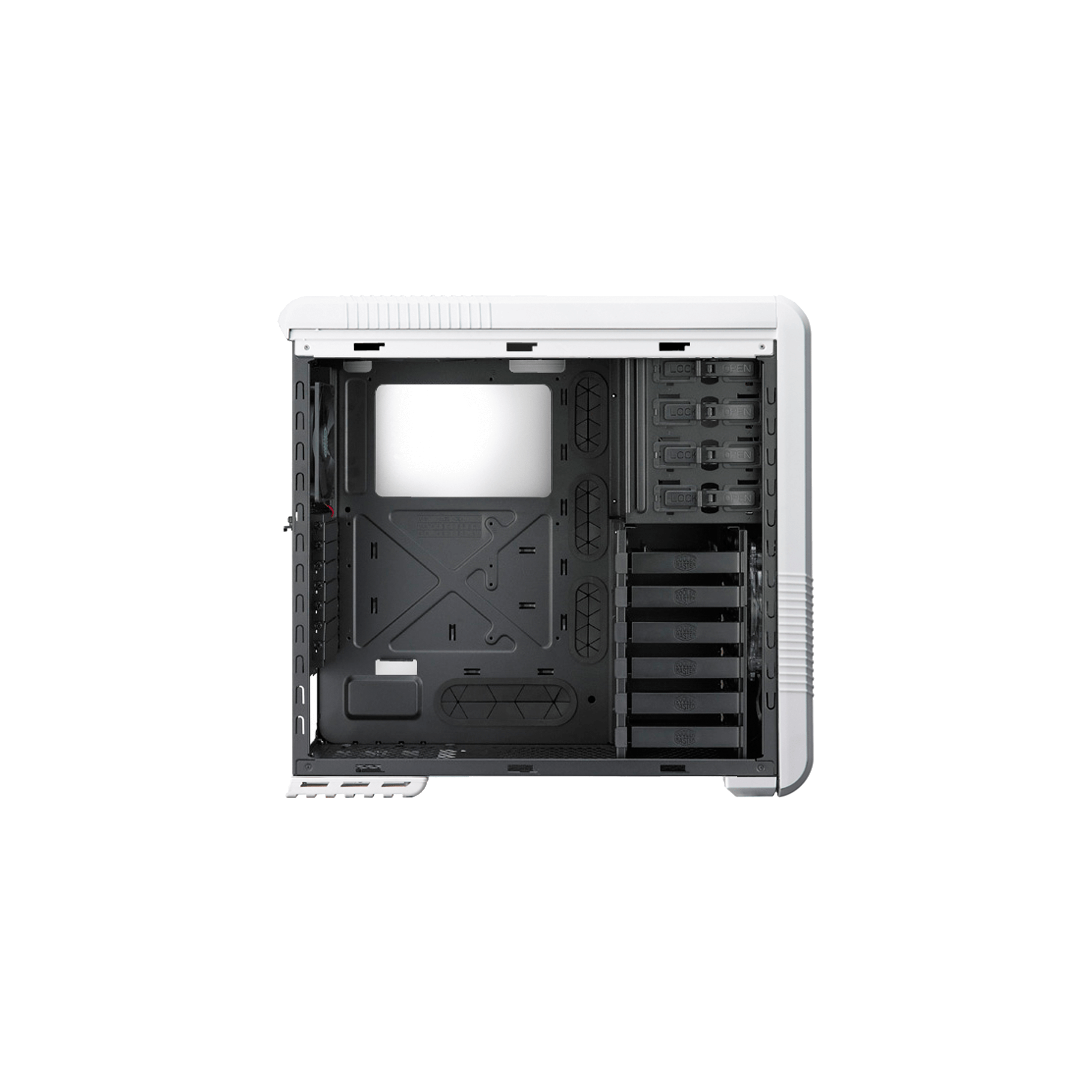

CM 690 II Advanced Black & White Edition (USB 3.0 version)
CM 690 II Advanced Black & White Edition (USB 3.0 version)
- Cooling System - Bottom 2x 120mm Fan (Optional)
- Color(s) Black
- Size Mid Tower
- Materials Plastic
- I/O Panel 2x USB 3.0
- Legacy Cases
- Color(s) White
- Cooling System - Rear 120mm red LED fan x 1, 1200RPM, 17dBA
- Cooling System - Front 140 x 25 mm Blue LED on /off fan x 1 / 1200 RPM / 19 dBA
- 2.5" Drive Bays 2 (converted from one 3.5" drive bay)
- I/O Panel 2x USB 2.0
- Expansion Slots 7+1
- Cooling System - Top 140 x 25mm fanx1/1200RPM/19dBA(supports120/140mm fan x 2)
- Motherboard Support ATX
- Motherboard Support Micro ATX
- 3.5" Drive Bays 1 Exposed (converted from one 5.25" drive bay)
- Power Supply Support PS2
- Materials Steel body
- Motherboard Support Mini ITX
- Maximum Compatibility - VGA Card Length 304mm / 11.96 inch
- 3.5" Drive Bays 6 hidden (4 removable)
- Materials Mesh bezel
- I/O Panel 1x Mic
- Maximum Compatibility - CPU Cooler Height 177mm / 6.96 inch
- I/O Panel 1x Audio (supports HD audio)
- 5.25" Drive Bays 4 (without the use of exposed 3.5” drive bay)
- Weight 9.56 kg / 21.08 lbs
- Dimensions (L x W x H) 214.5 x 496 x 528.8 mm / 8.4 x 19.5 x 20.8 inch
- Model Number RC-692A-KKN5-BW
