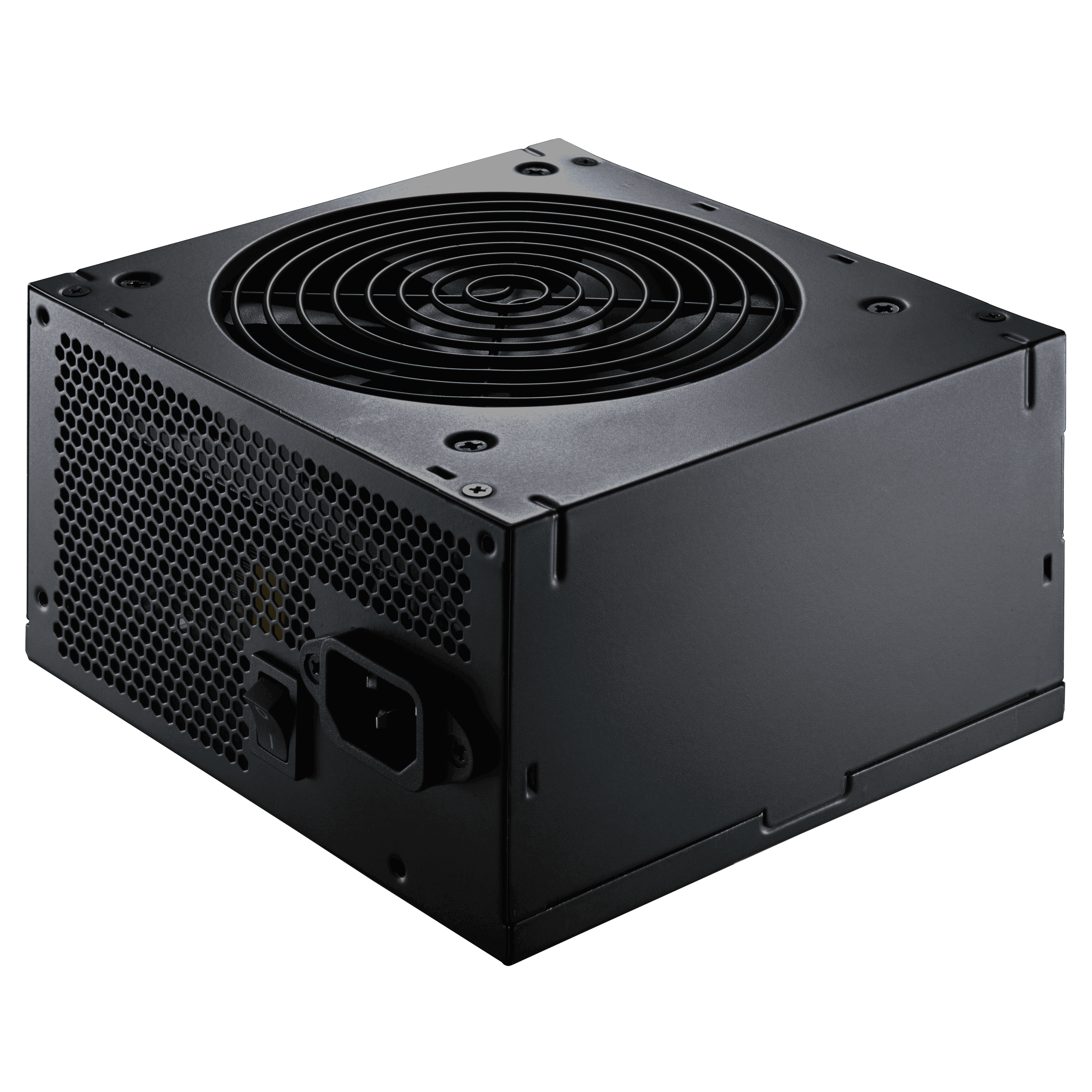

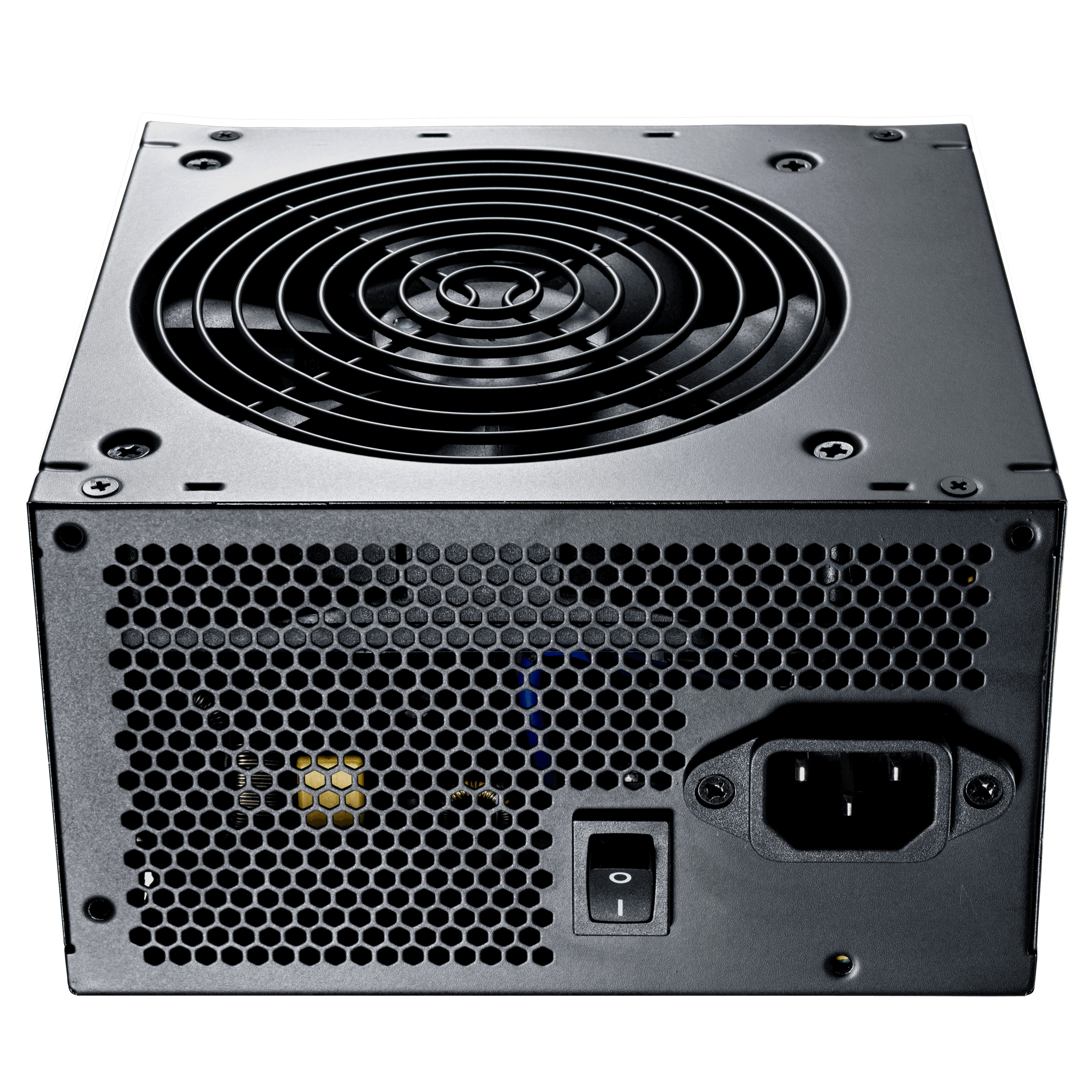

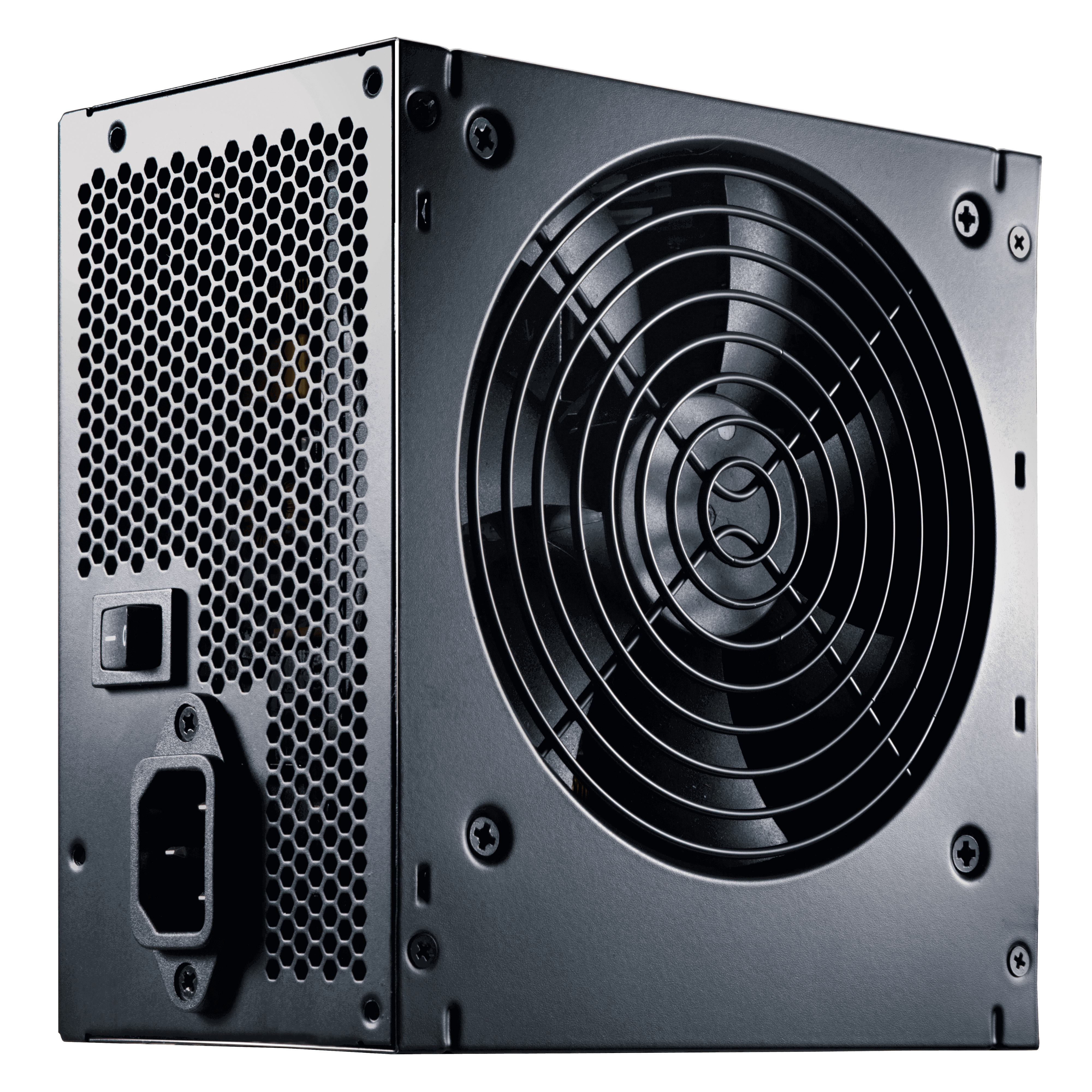

Name: B700 ver.2
SKU: b700ver2
Availability: InStock

Operating Temperature 0-40°C

MB 20+4 Pin Connectors 1

Floppy 1

Certification 80 PLUS Standard

Category 500 to 750W

CPU 12V 4+4 Pin Connectors 1

Power Good Signal 100 - 500 ms

MTBF >100,000 Hours

Input Frequency 47-63Hz

Modular Non Modular

Fan Size Silent 120mm HDB Fan

Legacy Power Supplies

PFC Active PFC (>0.9 Typical)

PCI-e 6+2 Pin Connectors 4

ATX Version Intel Form Factor ATX 12V V2.31

Hold Up Time >13ms

SATA Connectors 6

Peripheral 4 Pin Connectors 3

Protections OVP

Protections OPP

Protections SCP

Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch

Protections OCP

Input Voltage 200-240Vac

Regulatory CE

Input Voltage 230V only

Efficiency >85% @ Typical Load

Regulatory EAC

Regulatory TUV

Input Current 5A@230Vac

Product Name B700 VER.2

Model RS-700-ACAB-B1

B700 ver.2
