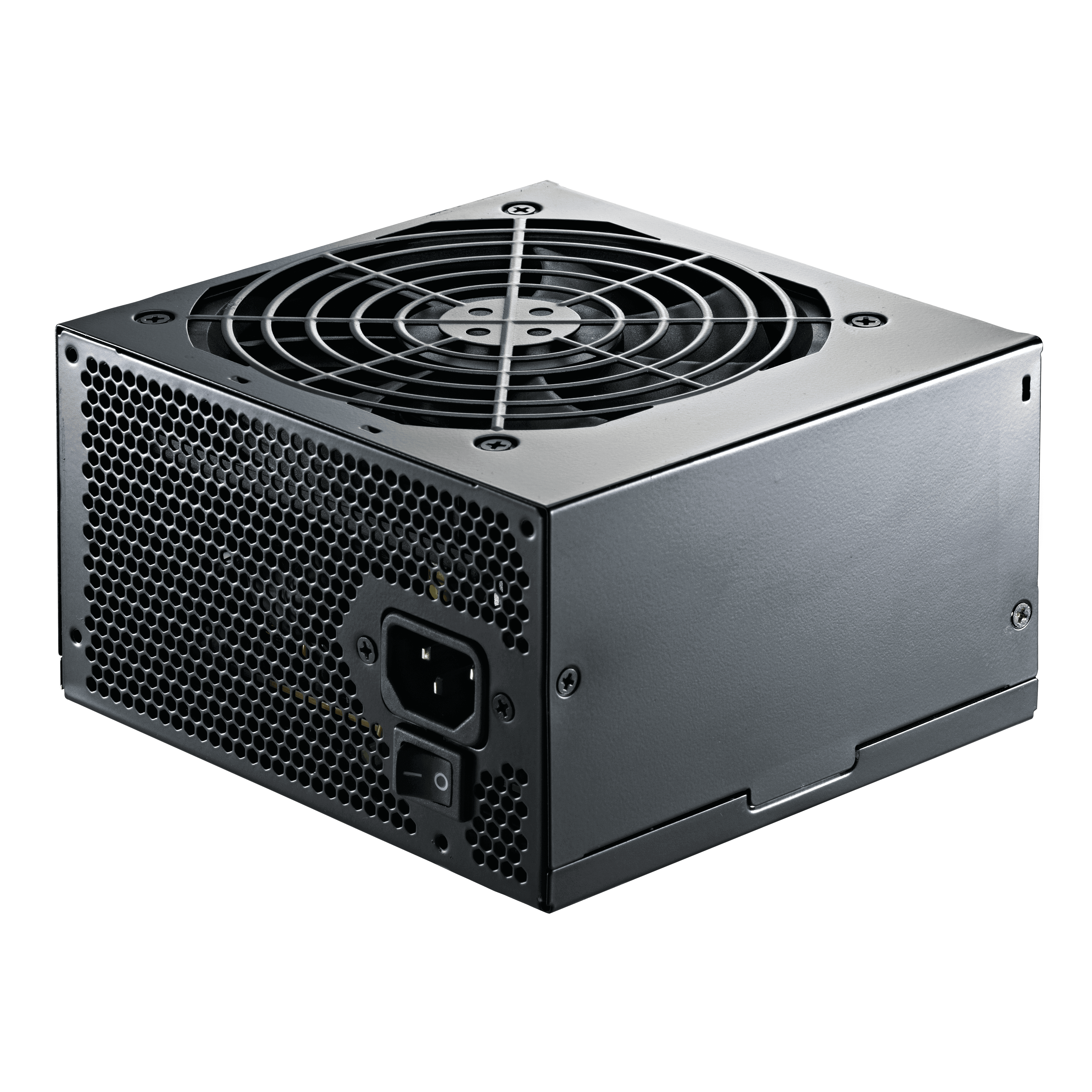

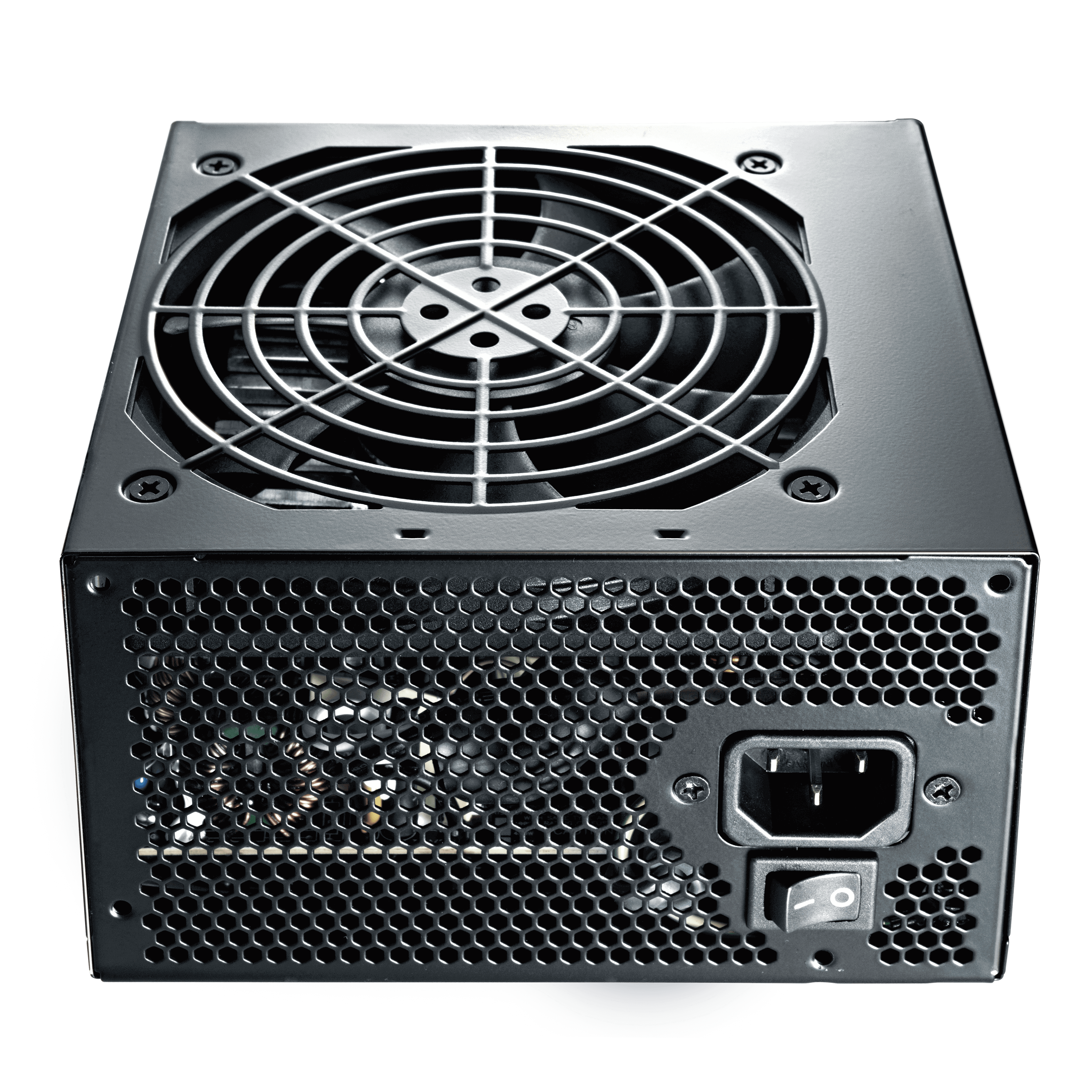

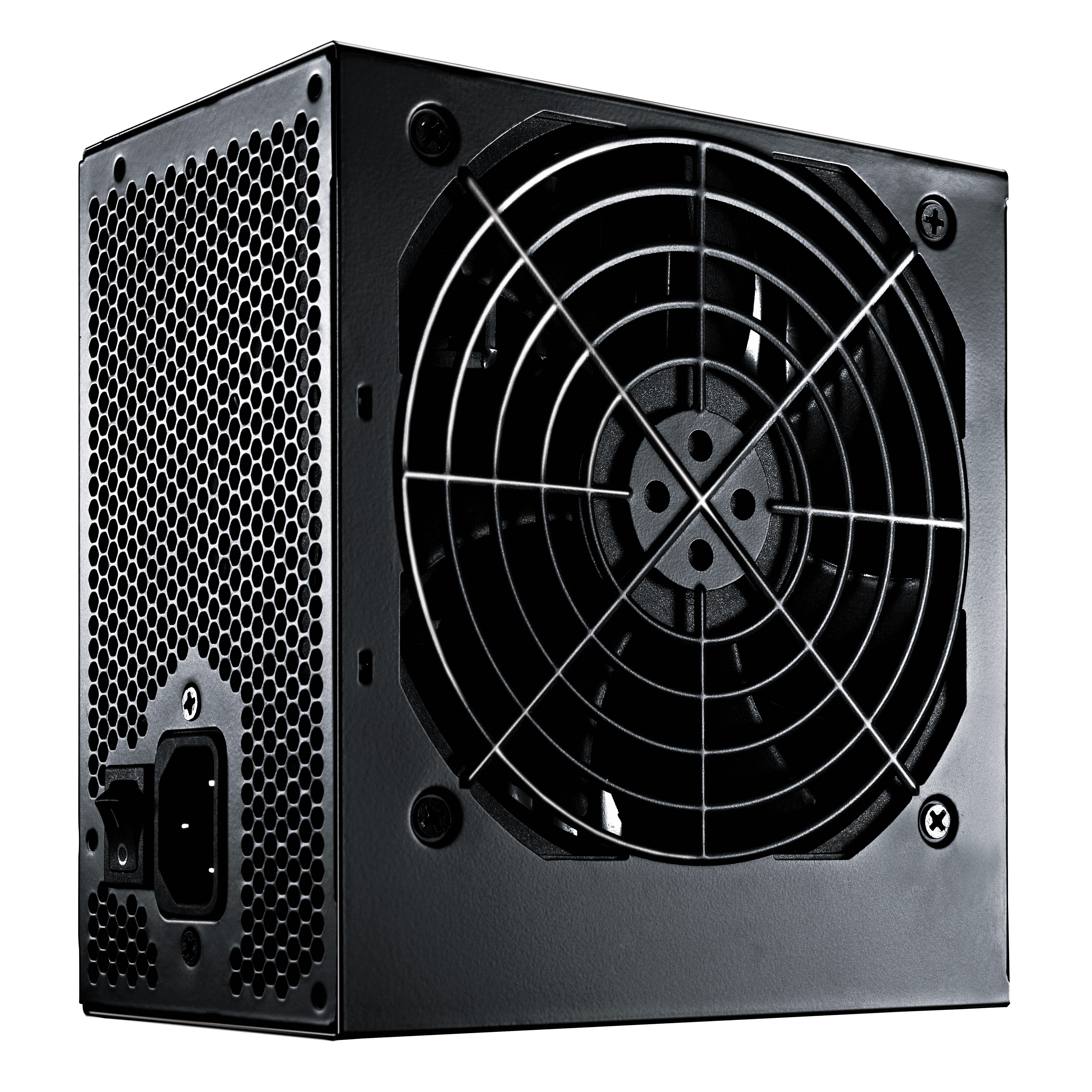

B600

Specifications

• Operating Temperature 0-40°C
• Floppy 1
• MB 20+4 Pin Connectors 1
• CPU 12V 4+4 Pin Connectors 1
• Power Good Signal 100 - 500 ms
• MTBF >100,000 hours @ 25℃ ambient
• Input Frequency 47-63Hz
• Category 500 to 750W
• Modular Non Modular
• Input Range 180-264Vac
• Legacy Power Supplies
• Fan Type 120mm Intelligent Fan
• Hold Up Time >12ms at 100% Full Load
• PFC Active PFC (>0.9 Typical)
• ATX Version Intel Form Factor ATX 12V V2.31
• PCI-e 6+2 Pin Connectors 2
• SATA Connectors 6
• 80 Plus Efficiency None 80 PLUS
• Peripheral 4 Pin Connectors 3
• Protections OVP
• Protections OPP
• Protections SCP
• Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
• Protections OTP
• Protections OCP
• Regulatory CE
• Efficiency >85% @ Typical Load
• Input Voltage 230V only
• Regulatory TUV
• Input Current 5A@230Vac
• Regulatory GOST
• Regulatory C-tick
• Product Name B600
• Model RS-600-ACAB-D3
