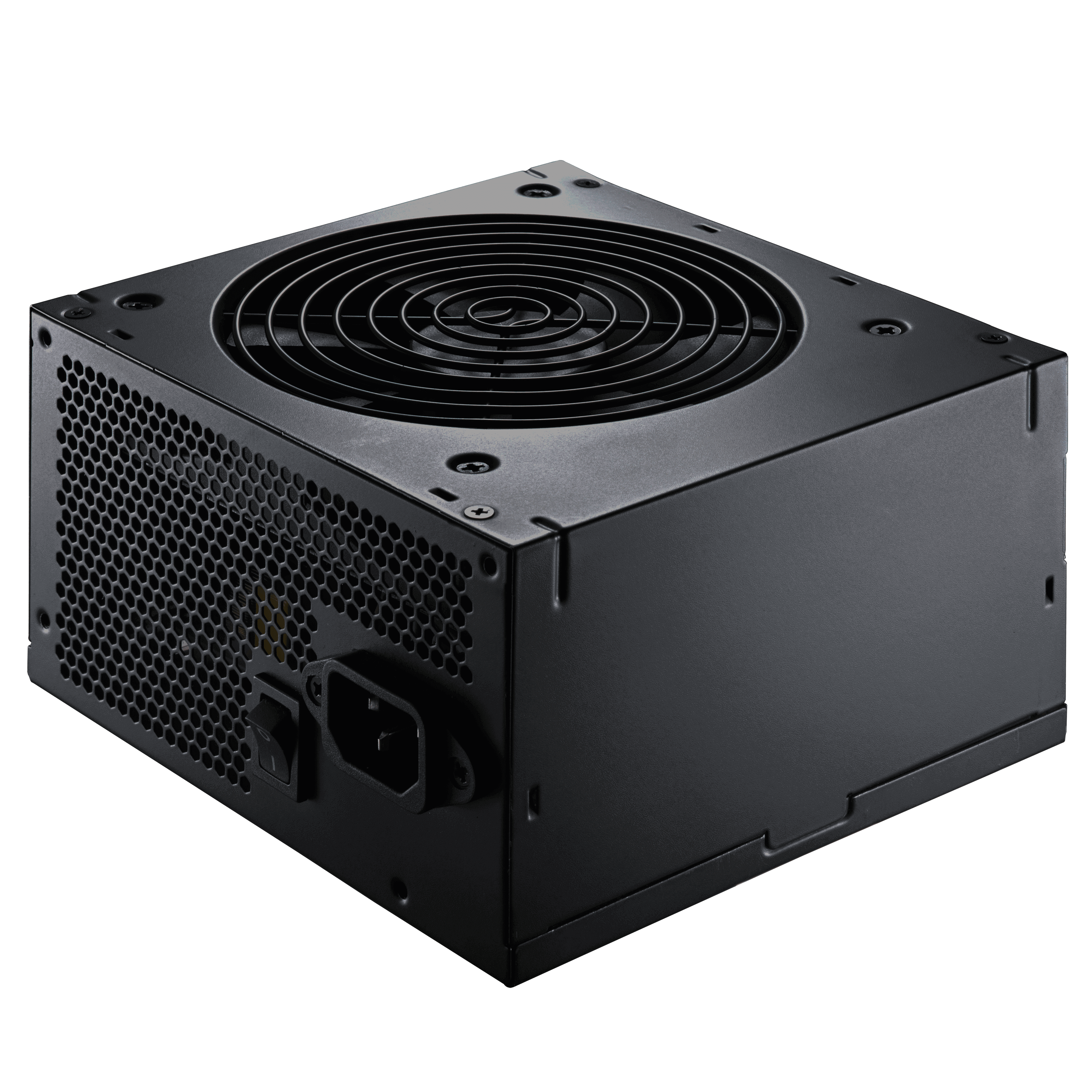

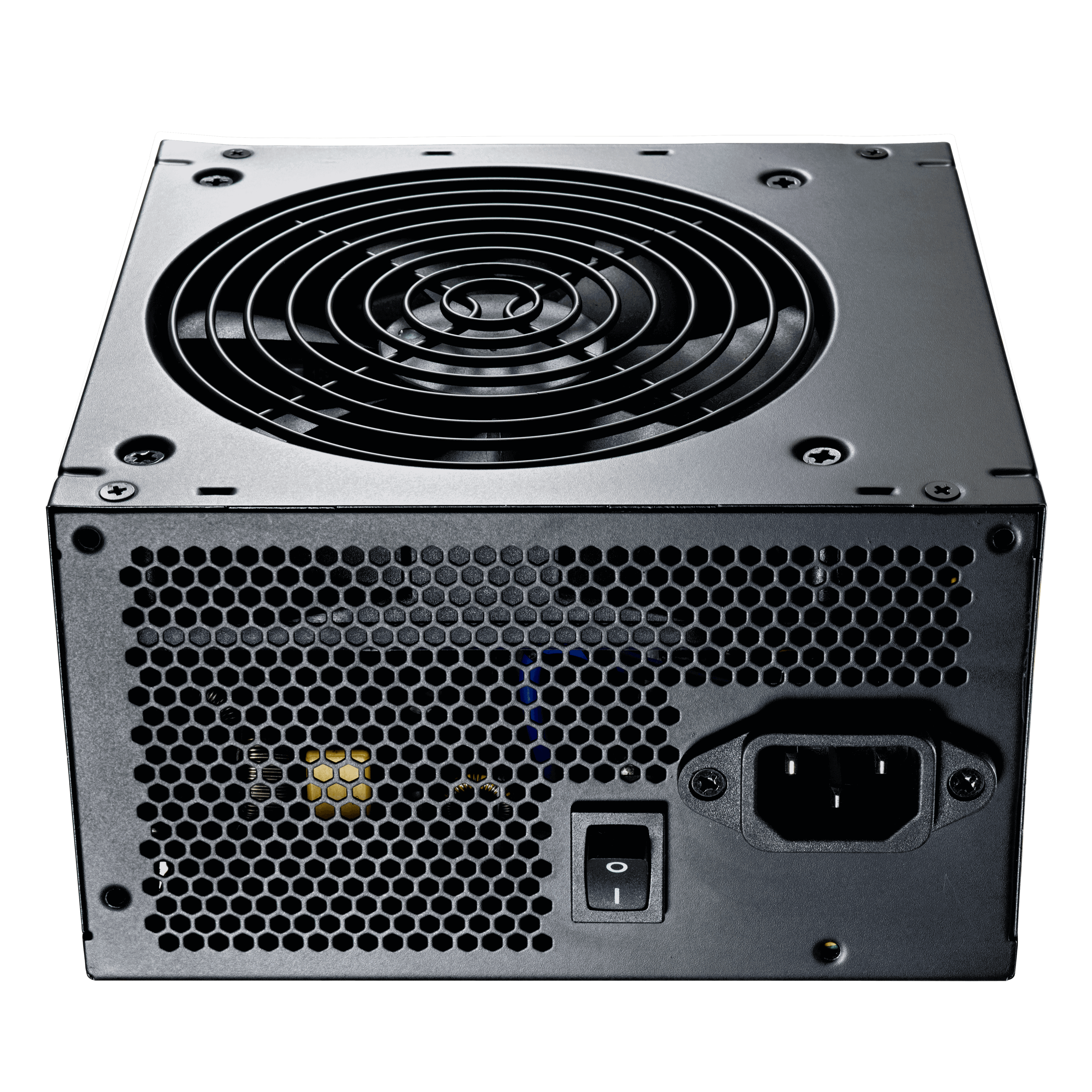

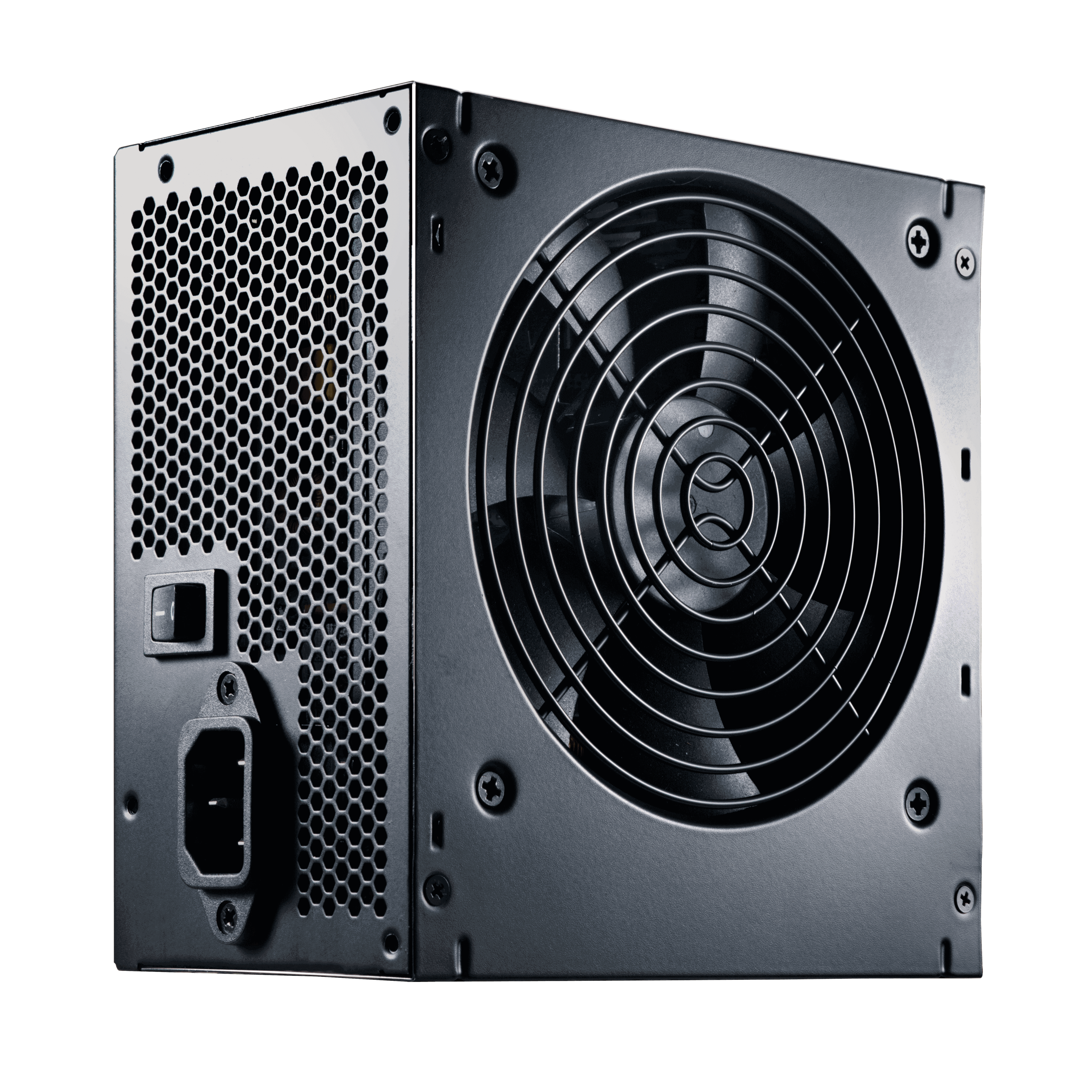

B500
B500
- Operating Temperature 0-40°C
- Floppy 1
- MB 20+4 Pin Connectors 1
- CPU 12V 4+4 Pin Connectors 1
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Input Frequency 47-63Hz
- Category 500 to 750W
- Modular Non Modular
- Fan Size Silent 120mm HDB Fan
- Legacy Power Supplies
- PFC Active PFC (>0.9 Typical)
- ATX Version Intel Form Factor ATX 12V V2.31
- Hold Up Time >13ms
- PCI-e 6+2 Pin Connectors 2
- SATA Connectors 6
- 80 Plus Efficiency None 80 PLUS
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
- Protections OTP
- Protections OCP
- Input Voltage 200-240Vac
- Regulatory CE
- Input Voltage 230V only
- Efficiency >85% @ Typical Load
- Regulatory EAC
- Regulatory TUV
- Input Current 5A@230Vac
- Product Name B500
- Model RS-500-ACAB-M3
