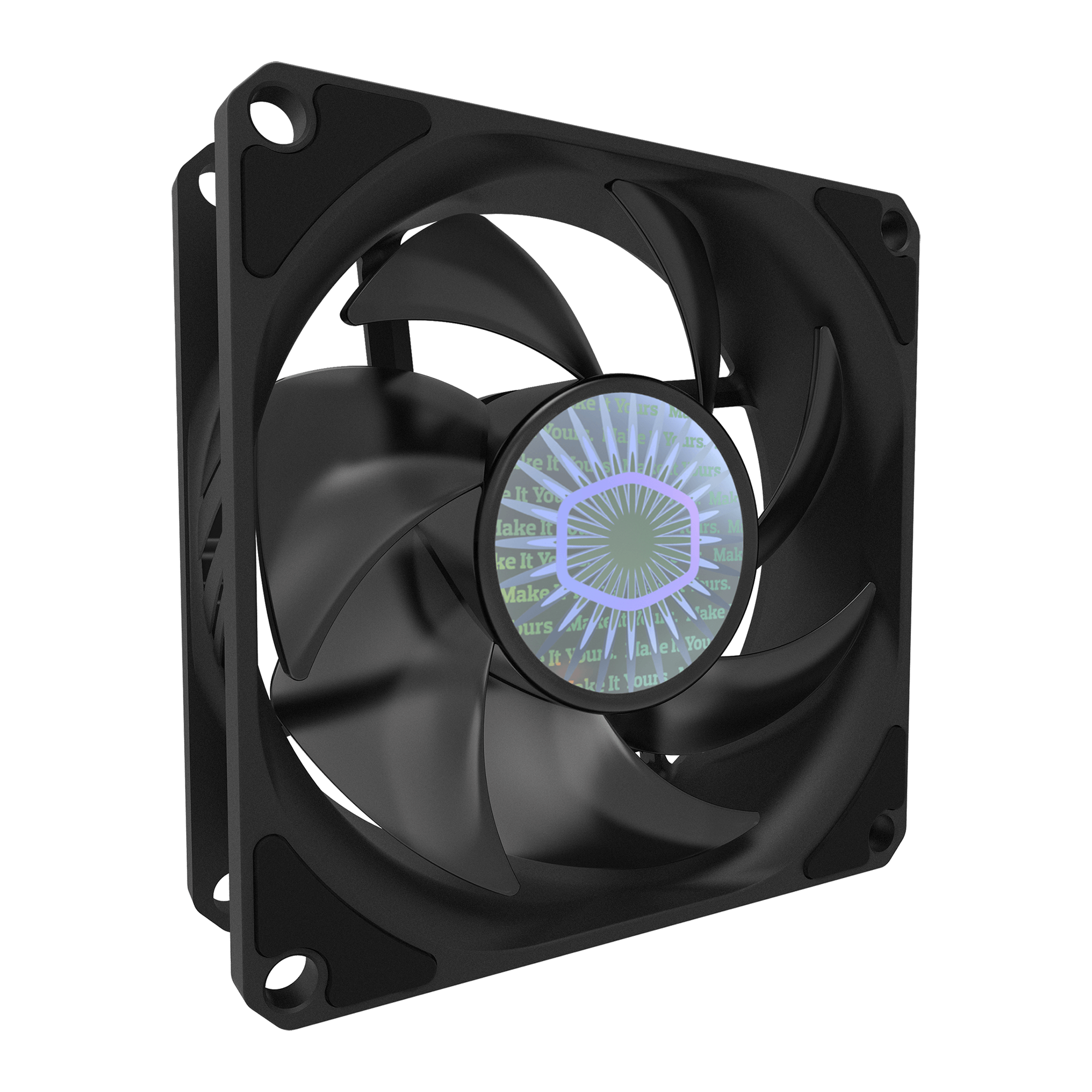

SickleFlow 80 image number 0

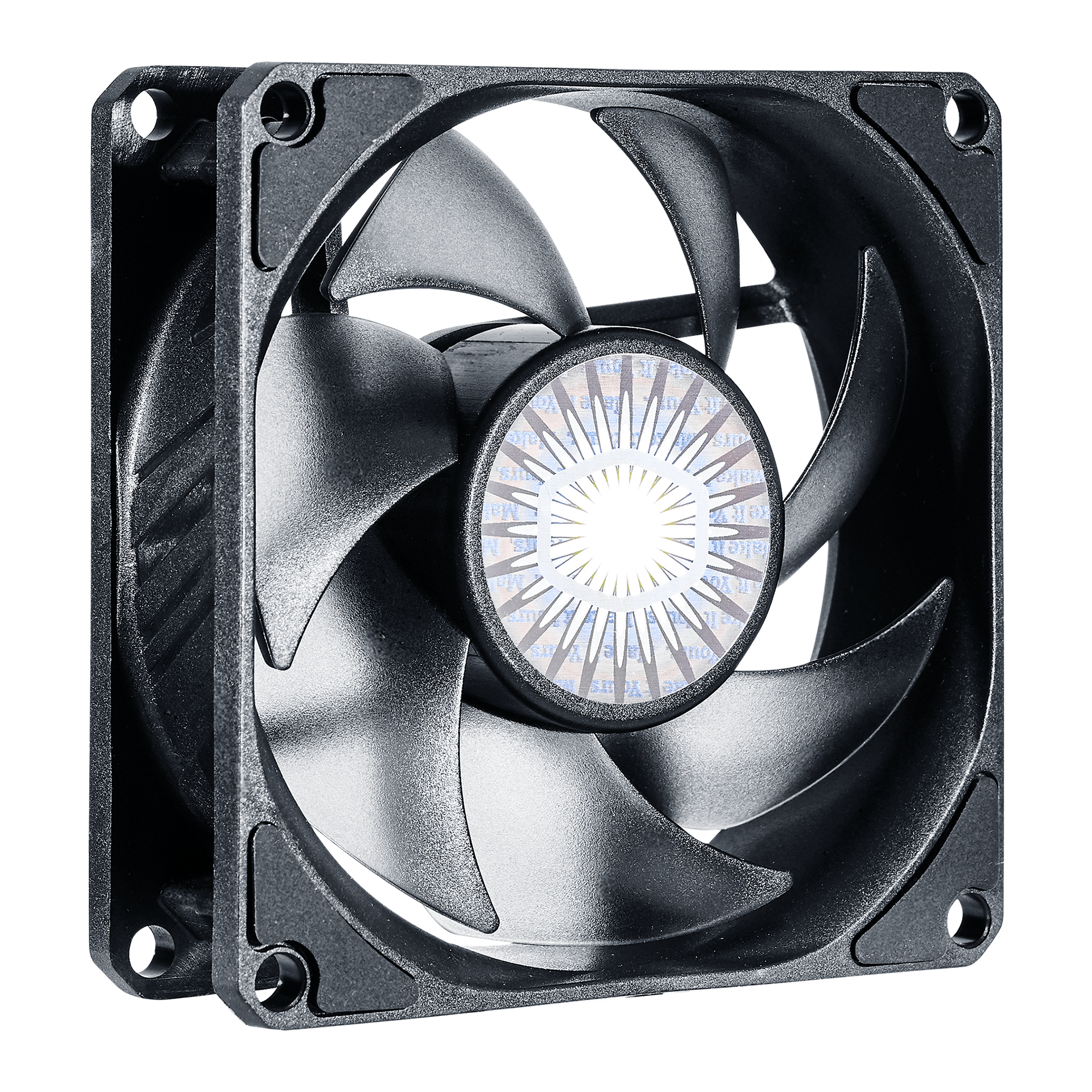

SickleFlow 80 image number 1

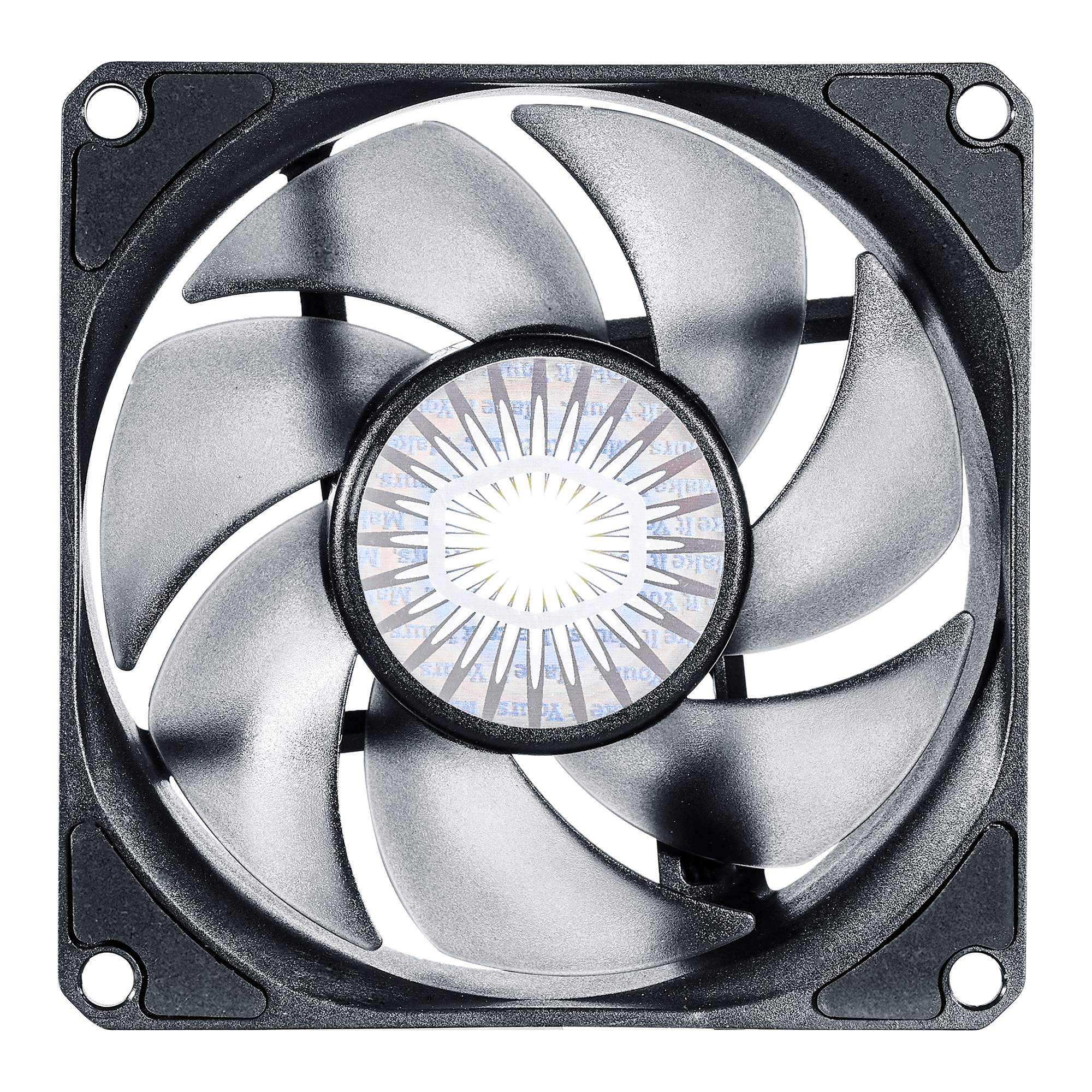

SickleFlow 80 image number 2

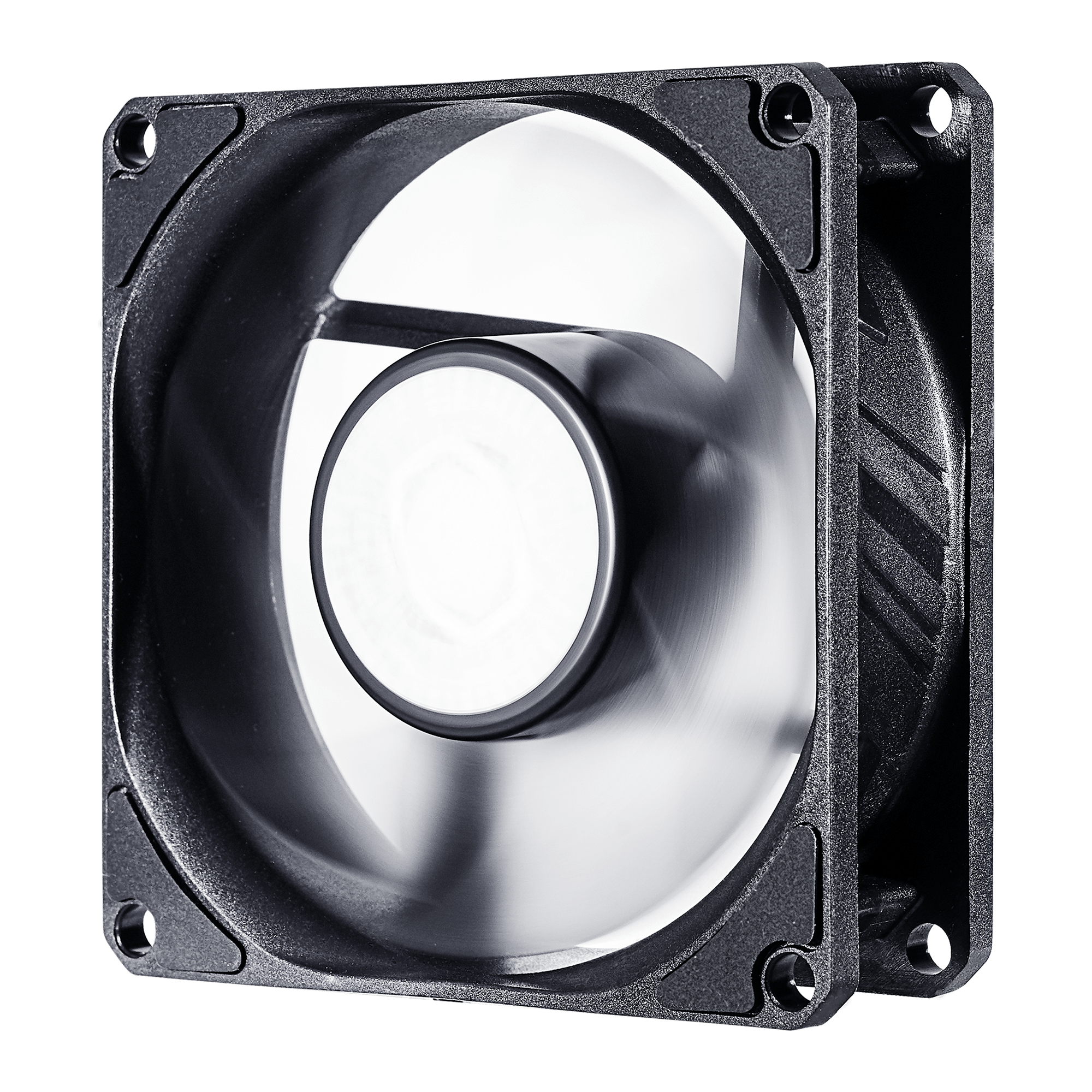

SickleFlow 80 image number 3

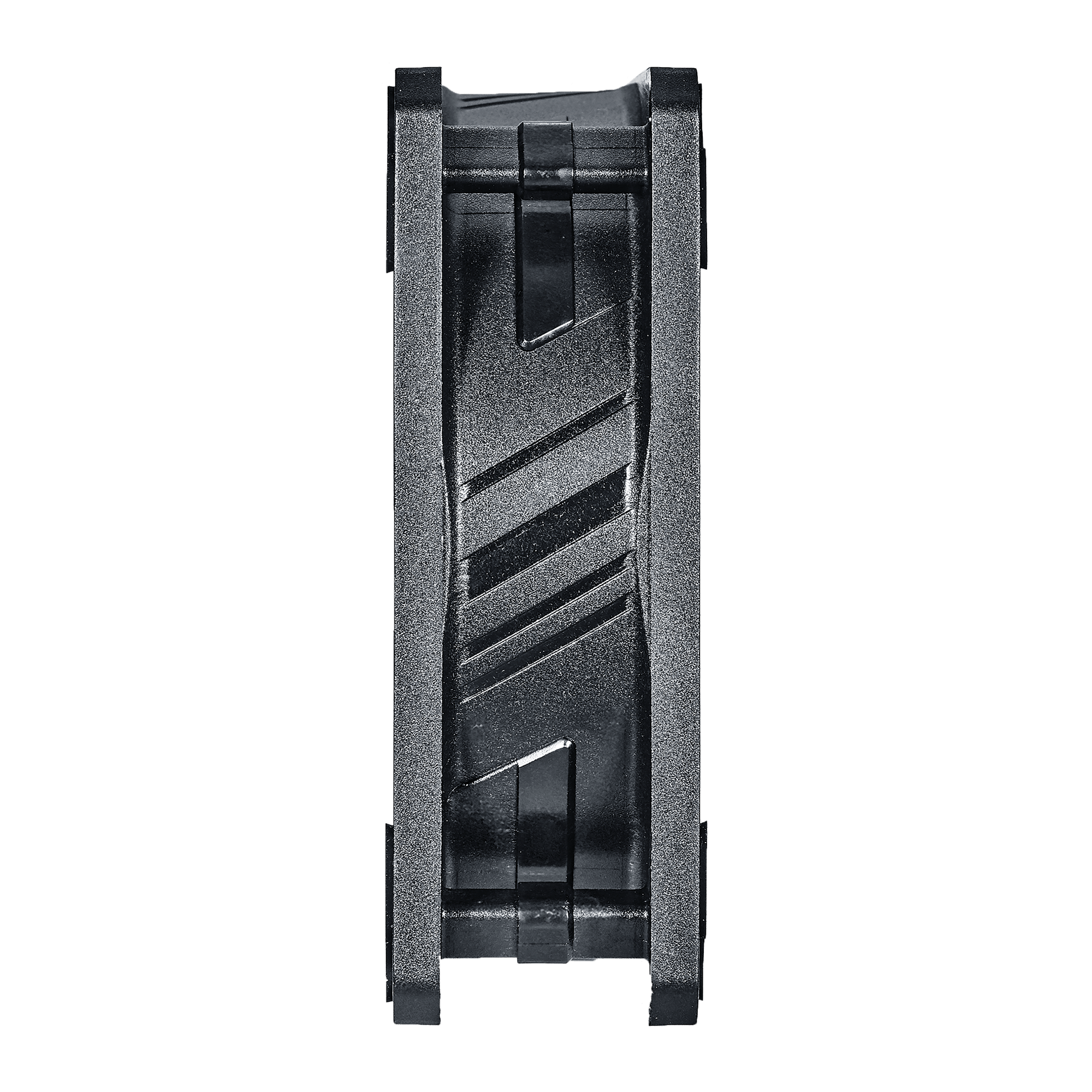

SickleFlow 80 image number 4
SickleFlow 80
SickleFlow 80
SickleFlow 80
SickleFlow 80
SickleFlow 80

Choose The Most

SickleFlow 80

New Blade Design

Enhanced Fan Frame

Sealed Bearing Structure

model
OPTIMIZED FLOW AND PRESSURE

OPTIMIZED FLOW AND PRESSURE

Continuing the SickleFlow 120 series , Cooler Master introduces a new models with brand new upgraded design features for enhanced performance.

The new SickleFlow 80 fan blades are created with bigger blades and increased curvature to optimize the air flow and air pressure performance. Strengthen structural frame design with added rib housing for durability. Improved dustproof and oil leakage prevention for beater life expectancy,

Improved Frame Durability

Enhanced square frame structure with added rib-support for reducing turbulent flow, noise and increasing overall work efficiency.​

New Air Balance Blade

Optimized fan blade design with increased curvature that improves air flow and air pressure.​

New Bearing Sealant

Two-tier sealing mechanism designed to improve dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.

Specifications

  • Product Number MFX-B8NN-25NPK-R1
  • Fan Profiles Non-LED
  • Fan Bearing Type Rifle Bearing
  • Fan Speed 650-2500 RPM ± 5%
  • Fan Airflow 30 CFM
  • Fan Air Pressure 2.75 mmH2O
  • Fan Noise Level 6 - 25 dBA
  • Fan Dimensions (L x W x H) 80 x 80 x 25 mm / 3.1 x 3.1 x 1.0 inch
  • Fan MTTF 160,000 Hours
  • Fan Rated Voltage 12 VDC
  • Fan Rated Current 0.11A
  • Fan Safety Current 0.18A
  • Fan Power Consumption 1.32W
  • Fan Power Connector 4-Pin (PWM)
  • Fan Weight 83g / 0.18 lbs
  • Warranty 2 years
  • Cooler Type Case Fan
  • Series SickleFlow
  • Fan Size 80
  • LED Lighting Non-LED
