The Saber's Edge

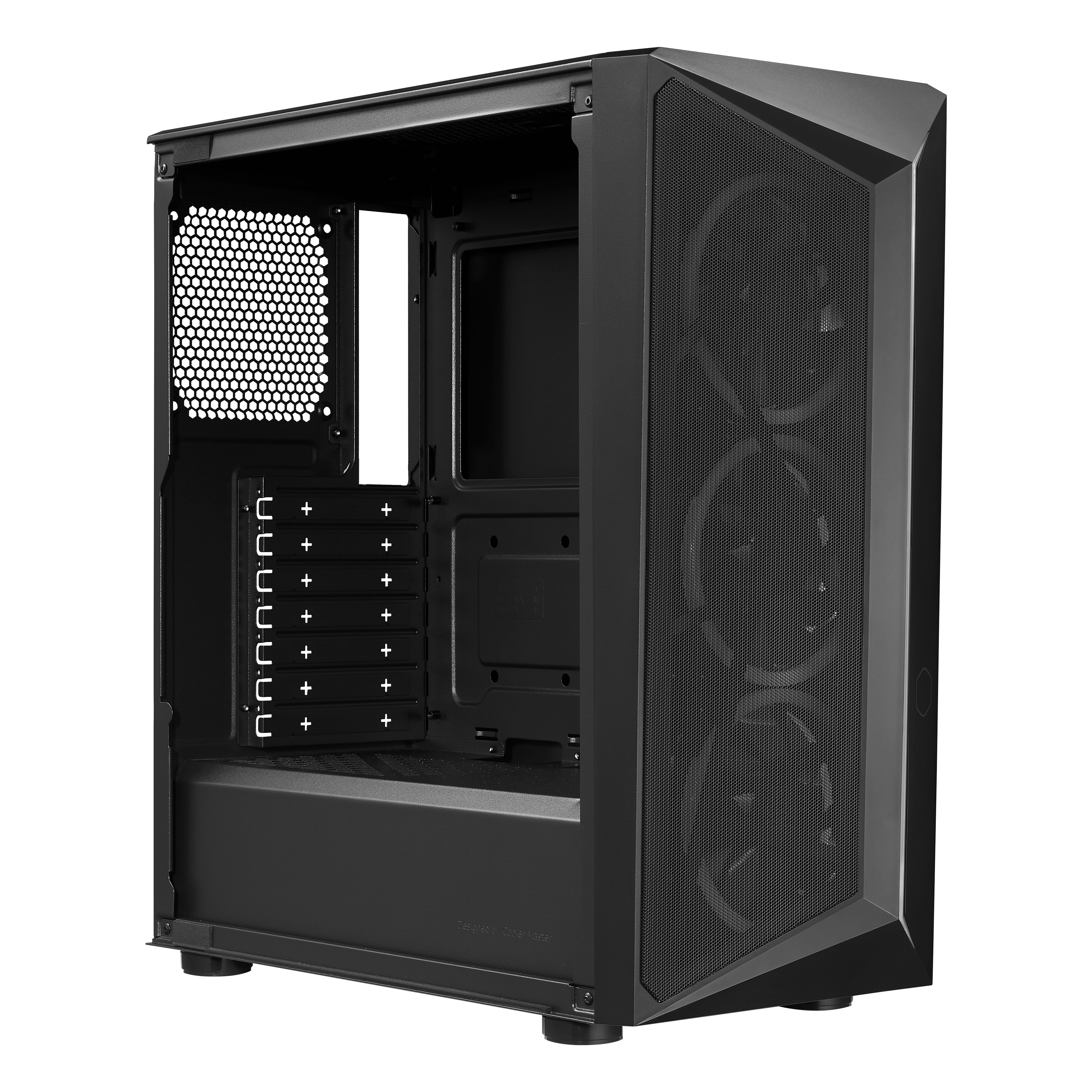

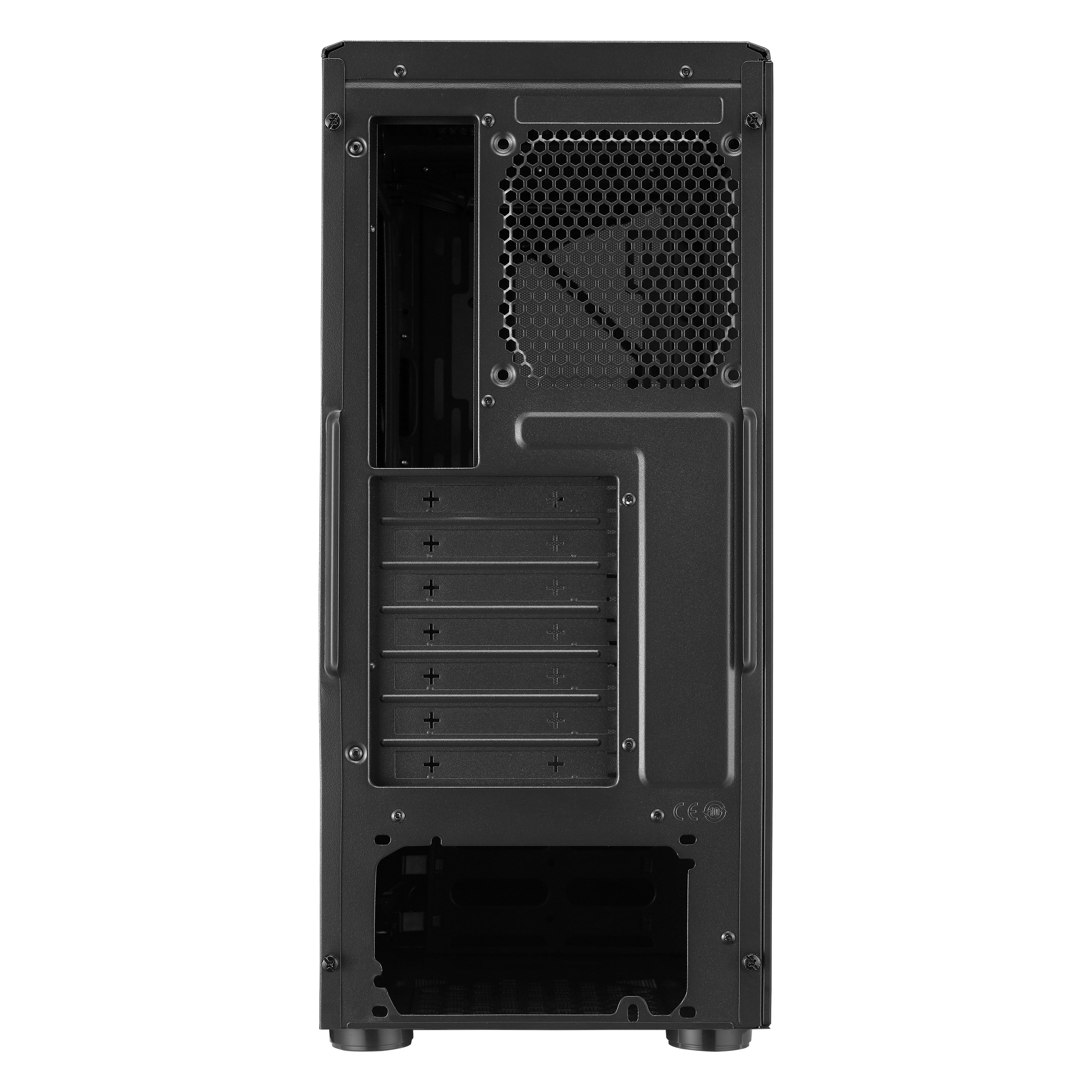

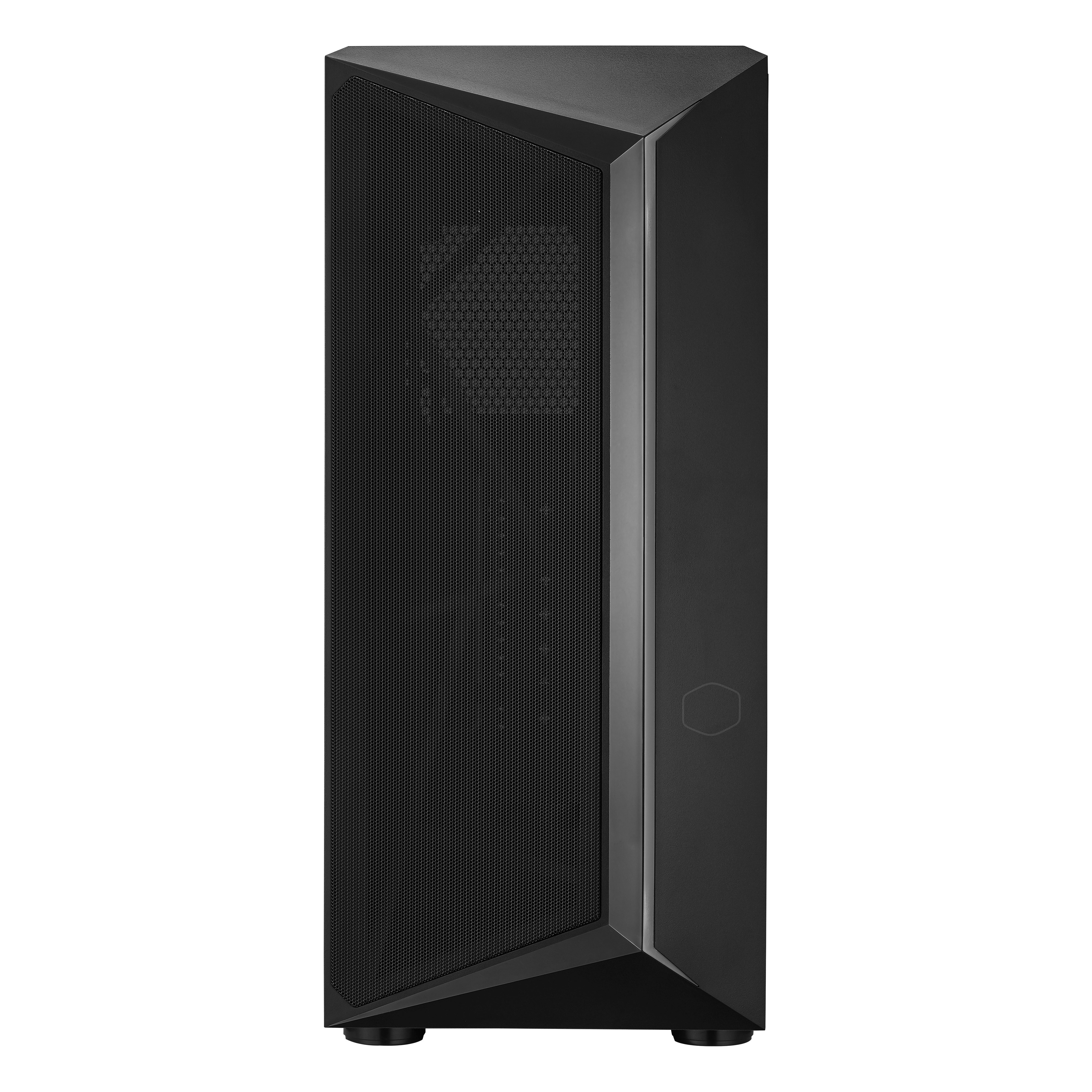

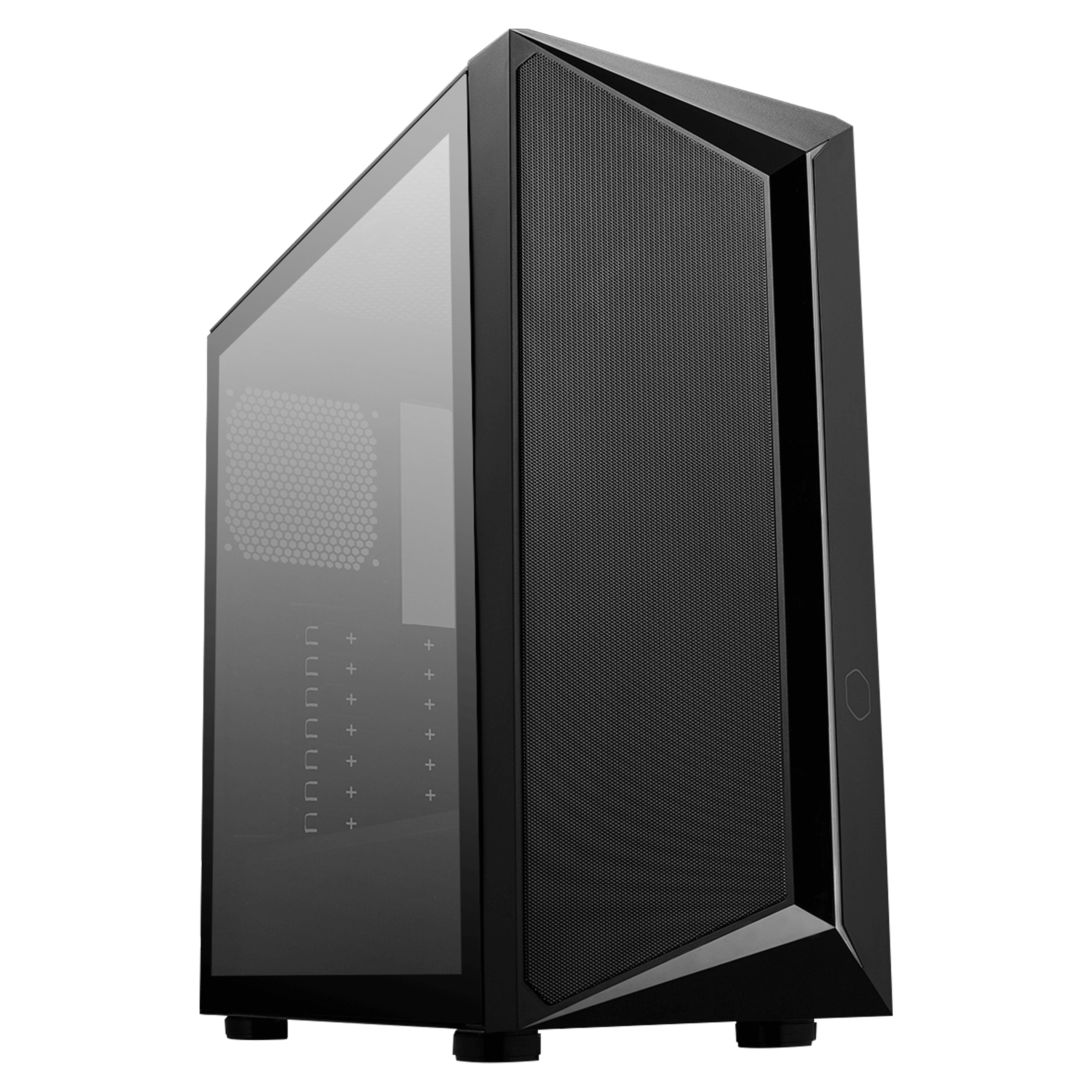

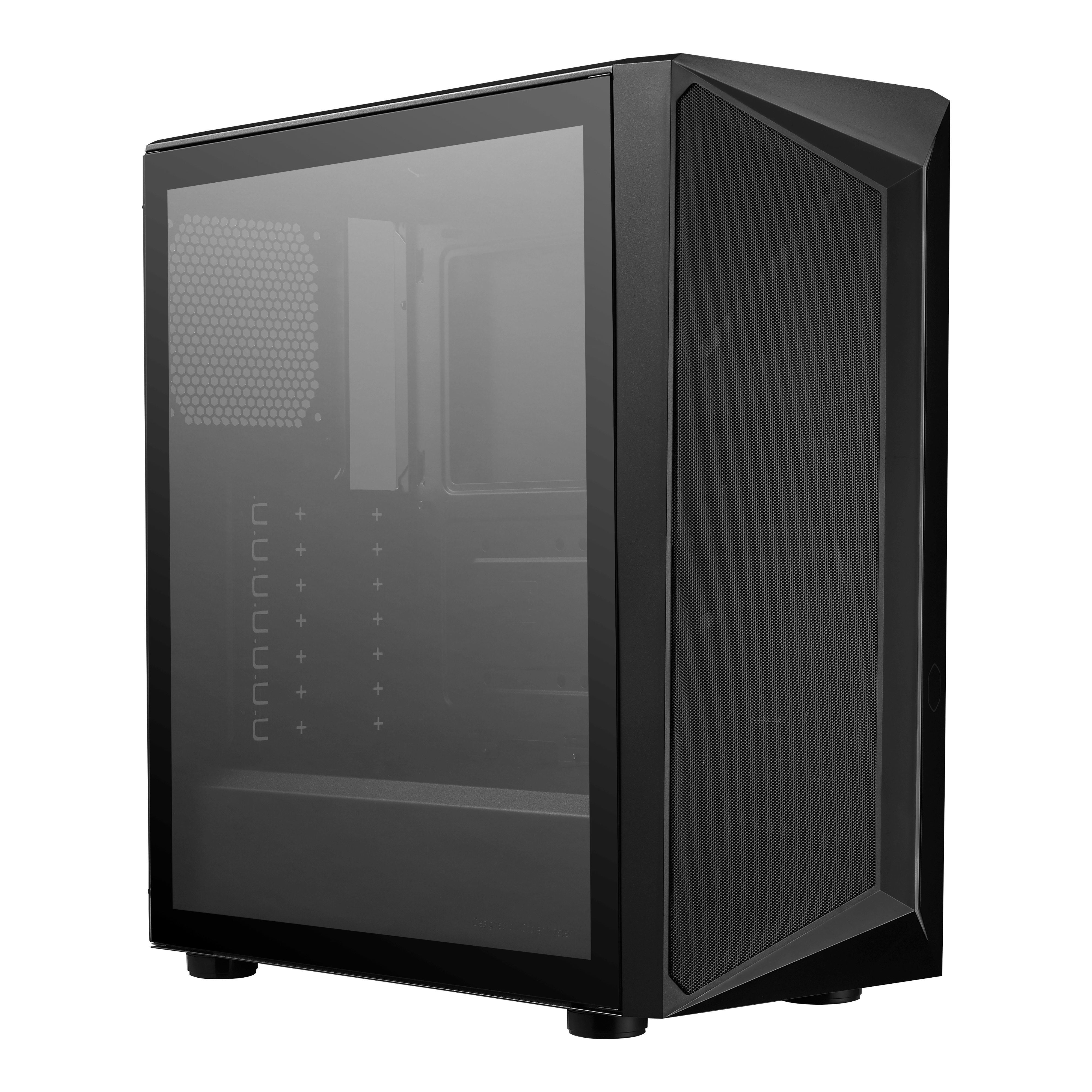

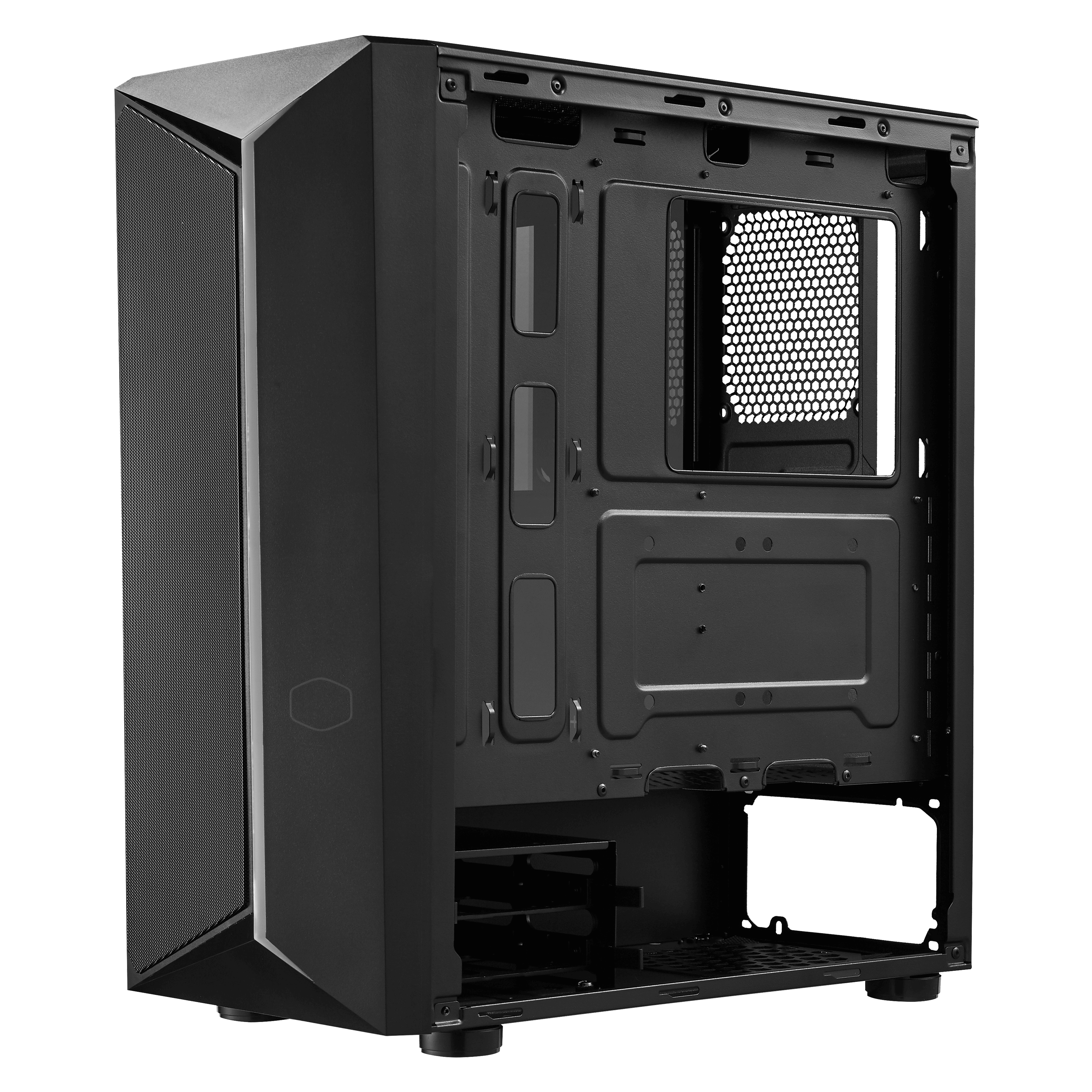

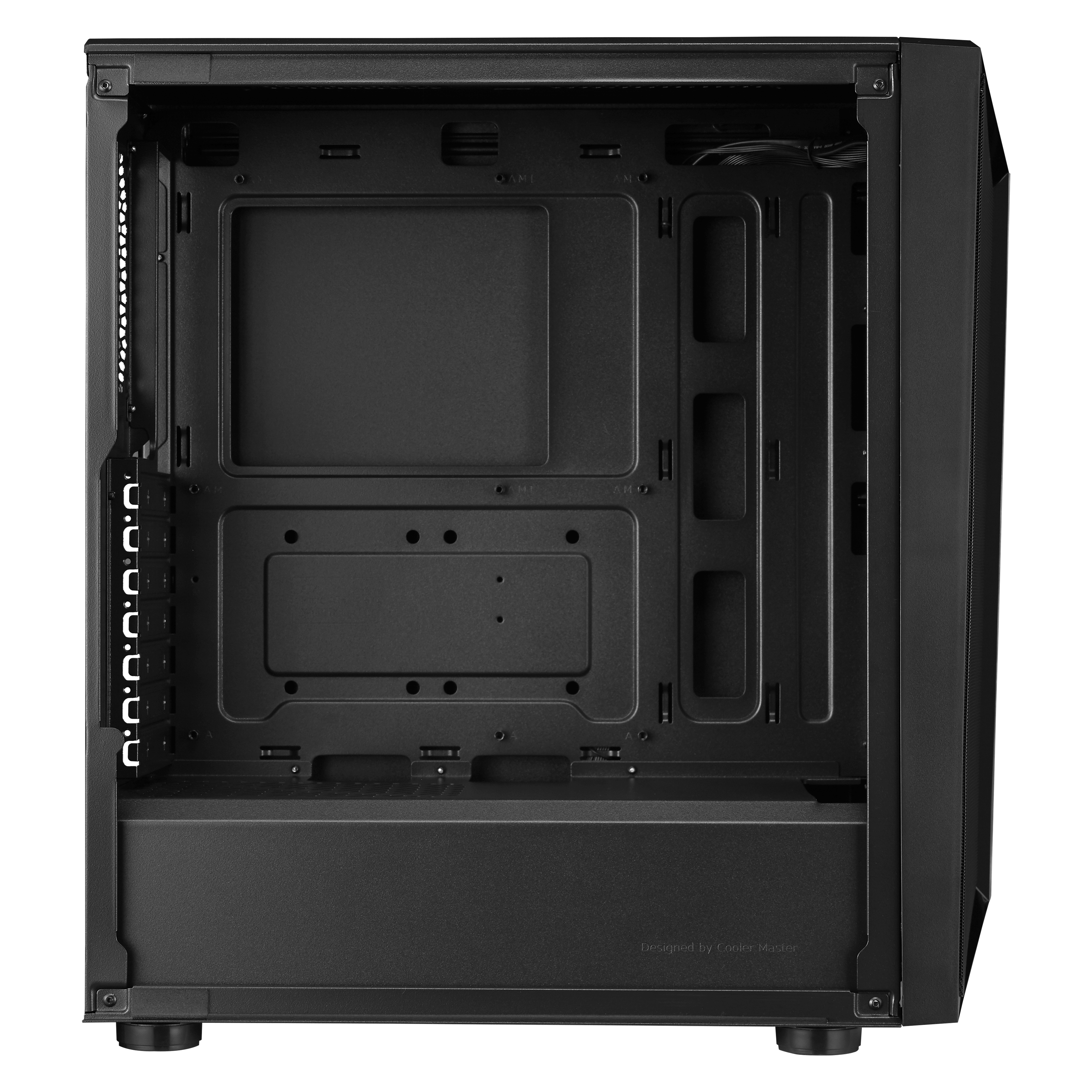

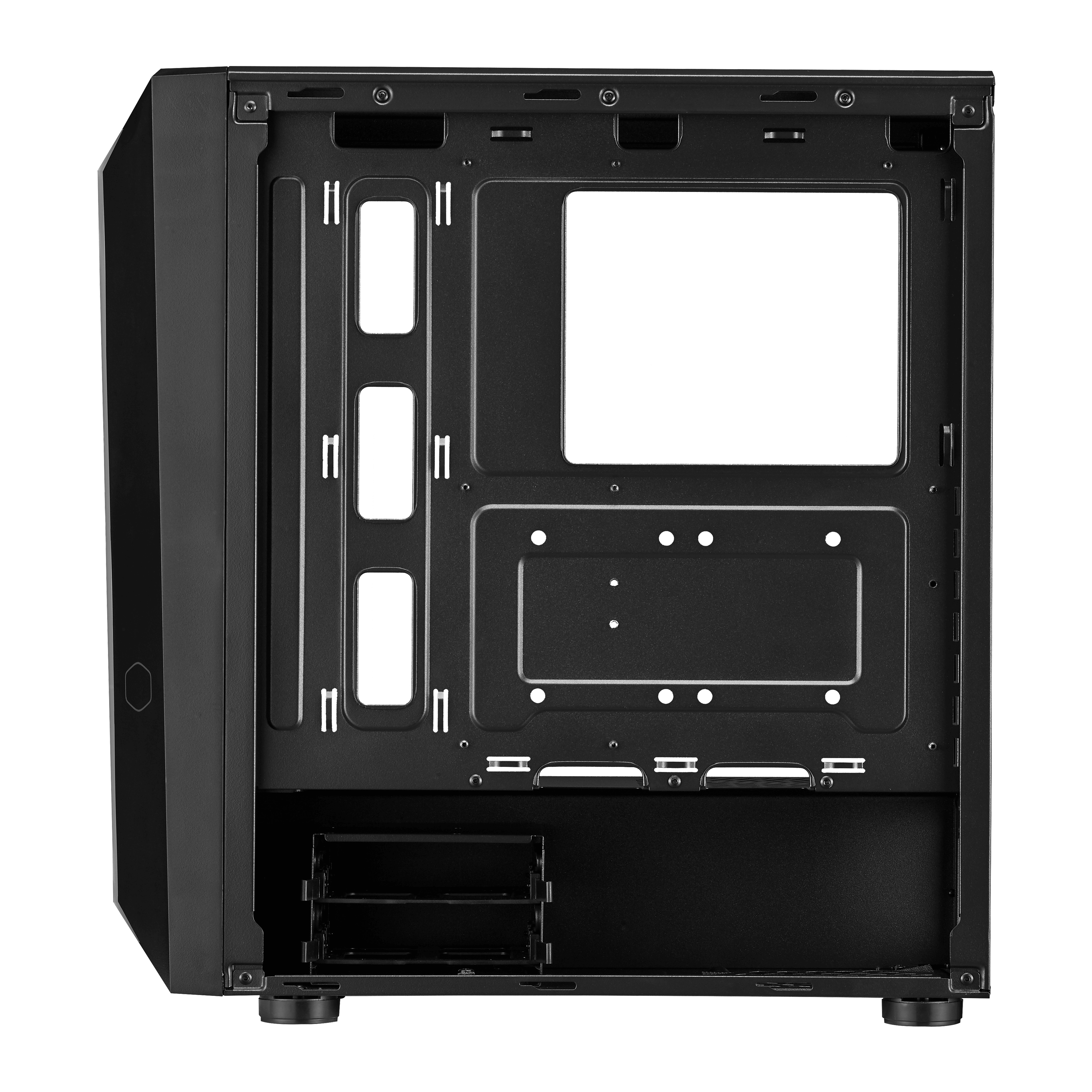

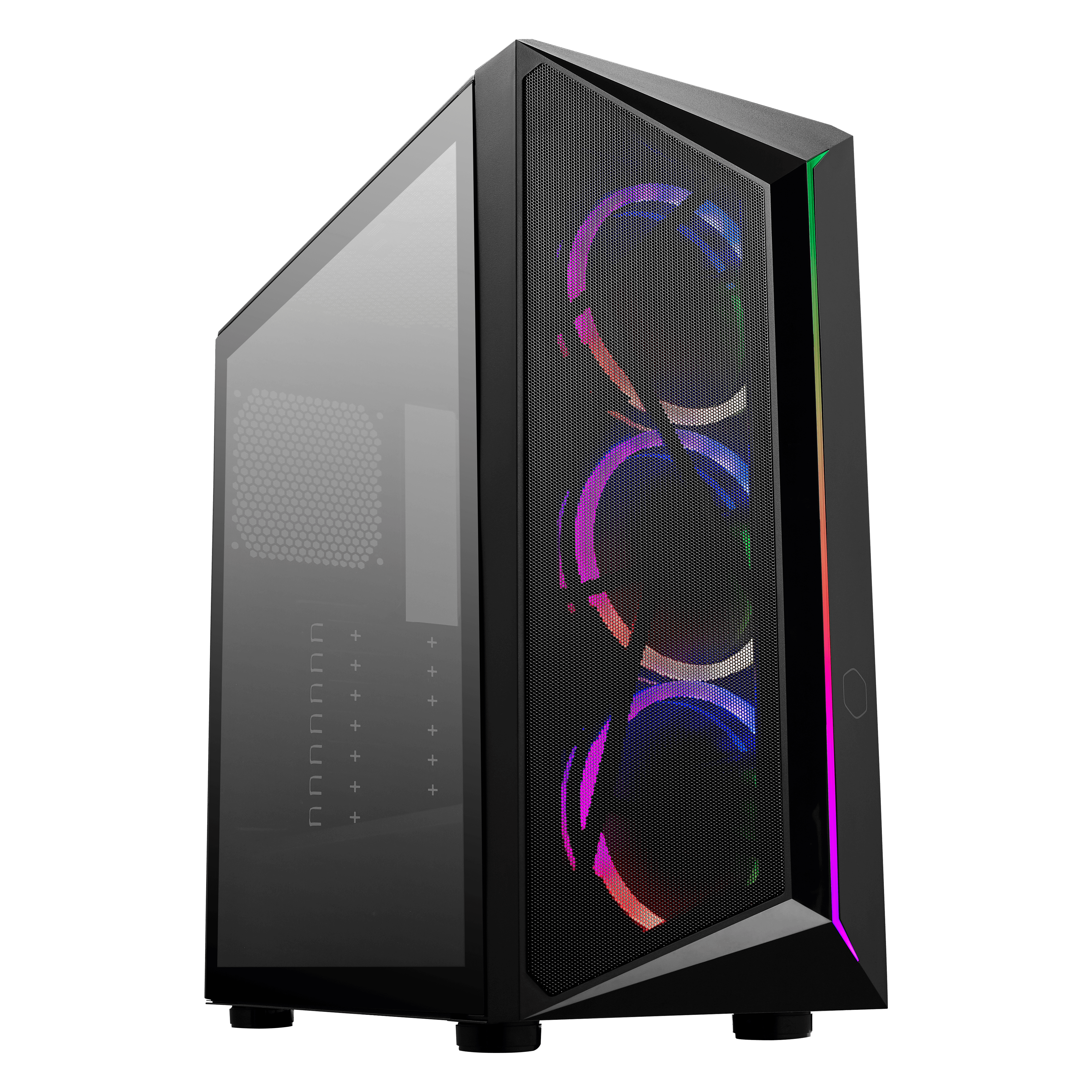

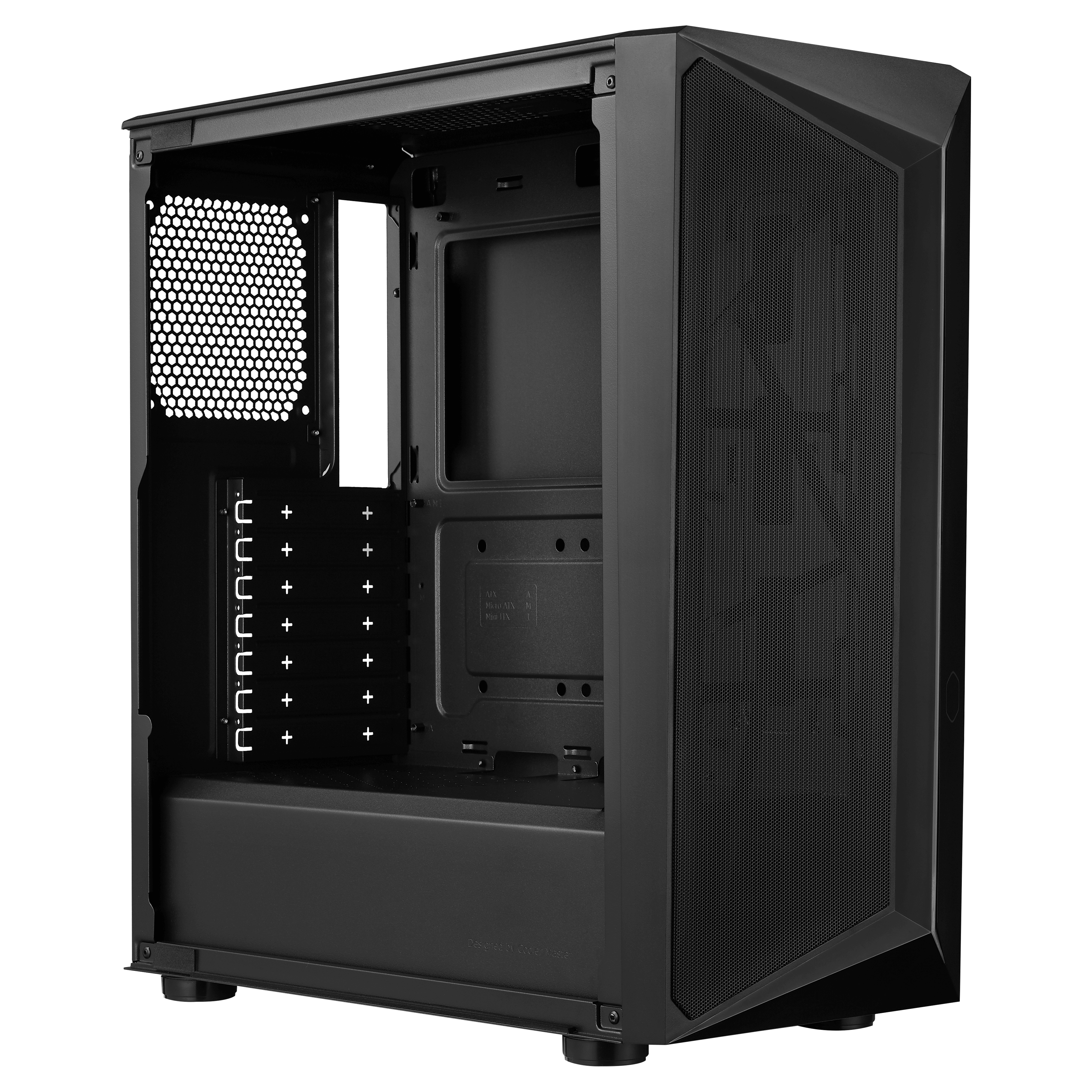

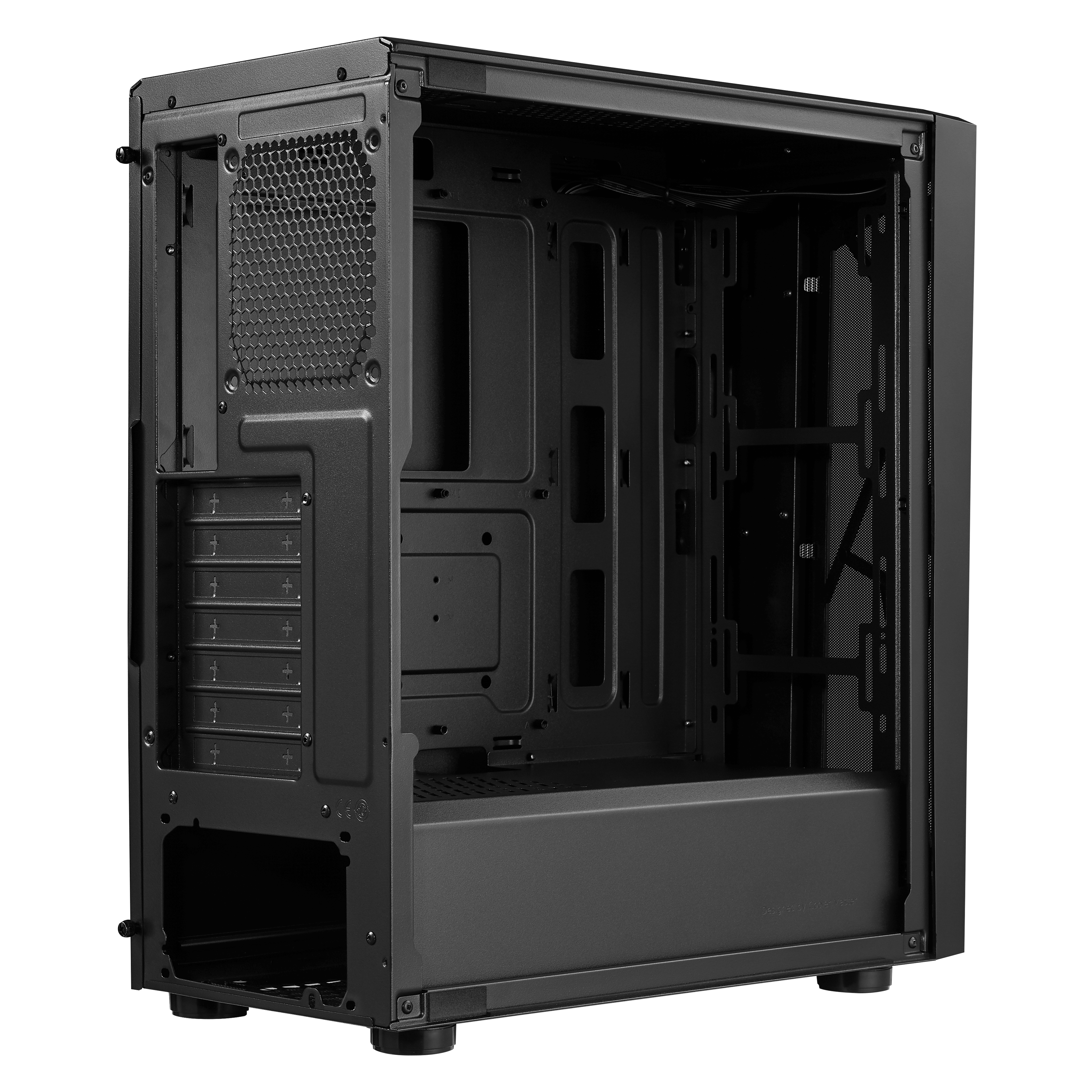

CMP 510
ARGB Strip
Large Filtered Intakes
Versatile Cooling Options
Full Black Coating & PSU Cover
Breathable Power Supply Shroud
Room For Upgrades
model
- Model Number CP510-KGNN-S00, CP510-KGNN-S01
- Exterior Color Black
- Materials - Exterior Steel, Plastic
- Materials - Left Side Panel Tempered Glass
- Dimensions (L x W x H) 445 x 204 x 463mm (Incl. Protrusions), 436 x 204 x 448mm (Excl. Protrusions)
- Volume 39.85L (exlc. Protrusions)
- Motherboard Support Mini-ITX, Micro-ATX, ATX
- Expansion Slots 7
- 2.5" / 3.5" Drive Bays (Combo) 2
- 2.5" Drive Bays 2

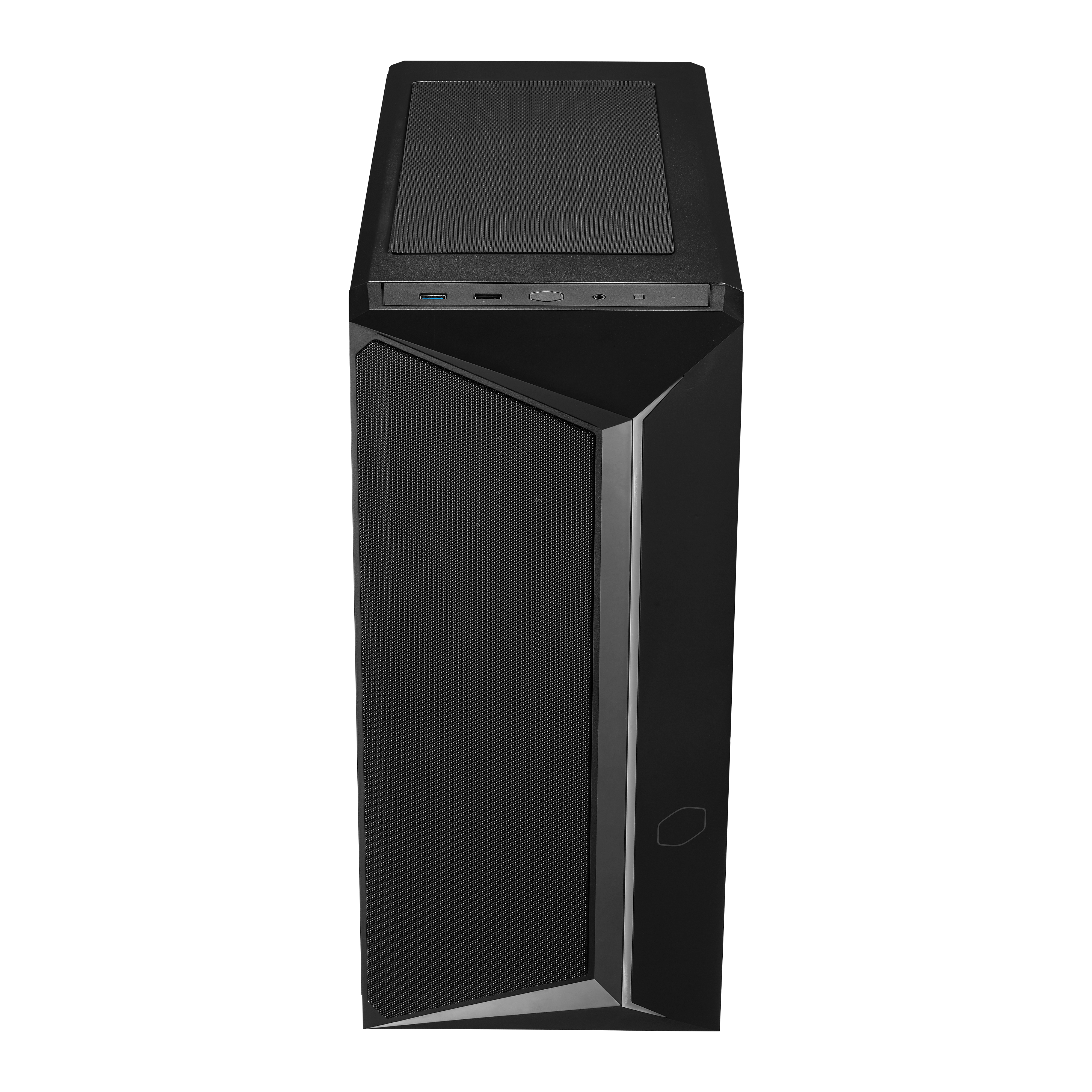

- I/O Panel 1x USB 3.2 Gen 1 Type-A, 1x USB 2.0, 1x 3.5mm Headset Jack (Audio+Mic), 1x ARGB Controller
- Pre-installed Fans - Top N/A

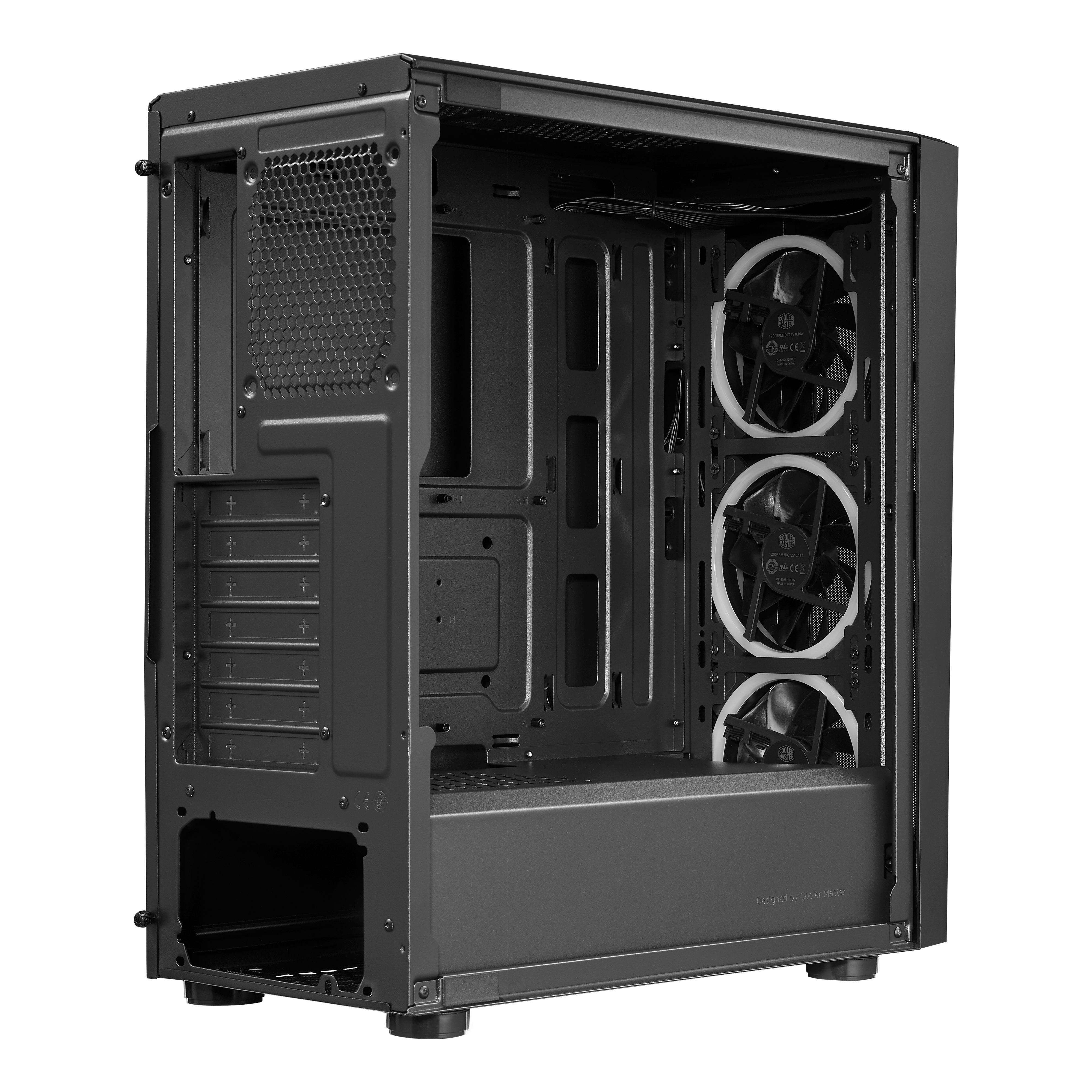

- Pre-installed Fans - Front 3 x 120mm ARGB Fan (CP510-KGNN-S00)
- Pre-installed Fans - Rear N/A
- Fan Support - Top 2x 120mm, 2x 140mm
- Fan Support - Front 3x 120mm, 2x 140mm
- Fan Support - Rear 1x 120mm
- Radiator Support - Top 120 / 240mm (Memory bar height limit 35mm, First assemble the memory and then assemble the Radiator)
- Radiator Support - Front 120 / 140 / 240 / 280mm
- Radiator Support - Rear 120mm
- Clearance - CPU Cooler 161mm
- Clearance - PSU 160mm
- Clearance - GFX 350mm (w/o front fans & radiator)
- Cable Routing 18.5mm
- Dust Filters Top, Bottom
- Power Supply Support Bottom Mount, ATX
- Warranty 2 years
- Size Mid Tower
- Series CMP Series
