QUIETLY SUPREME

V Platinum 1600 V2

Introducing the V Platinum V2, featuring an ultra-quiet Mobius fan, 80 Plus Platinum efficiency, and ATX 3.1 support with a durable 12V-2x6 cable.

model

Silent fan performance with a zero speed mode

Quietly Supreme

V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed by a 12-year warranty.

Advanced heat dissipation

Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.

*The temperature difference at fan standstill is 5.2 °C.

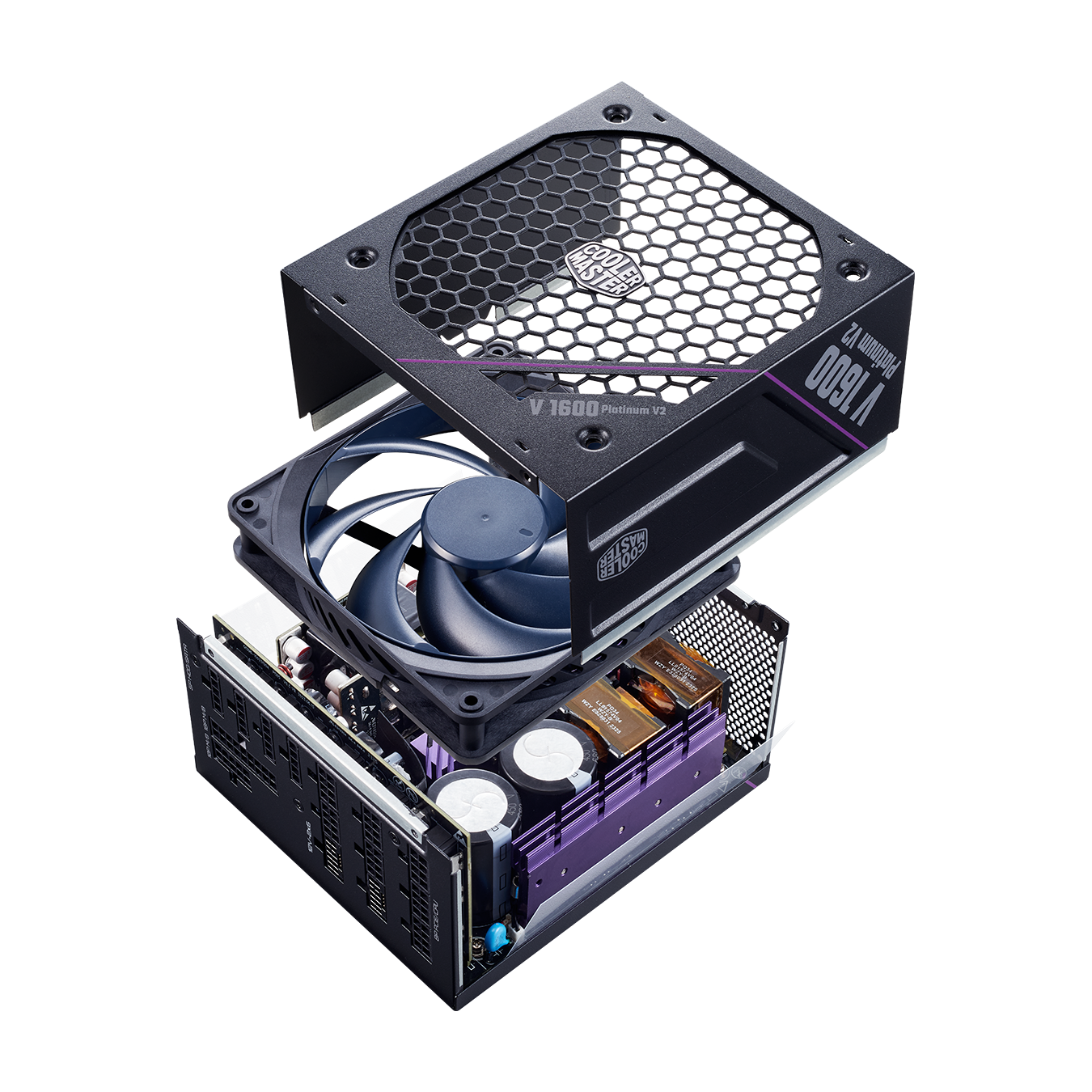

Mobius fan featuring a Ring Blade Design (RBD) for advanced heat dissipation

Certified Efficiency

Certified Efficiency

An interleaved PFC decreases power loss and improves efficiency by minimizing current, reducing interference, and reducing output capacitor ripple current.

Two Durable 90° 12v-2x6 Cables & ATX 3.1 Support

Two Durable 90° 12v-2x6 Cables & ATX 3.1 Support

Includes ATX 3.1 support and two 90° 12V-2x6 connectors featuring more reliability, higher electrical durability, improved safety, and the capacity to deliver up to 600W per connector, totaling an impressive 1200W output to empower your GPU.

*All performance stats confirmed in 25°C ambient temperature testing.

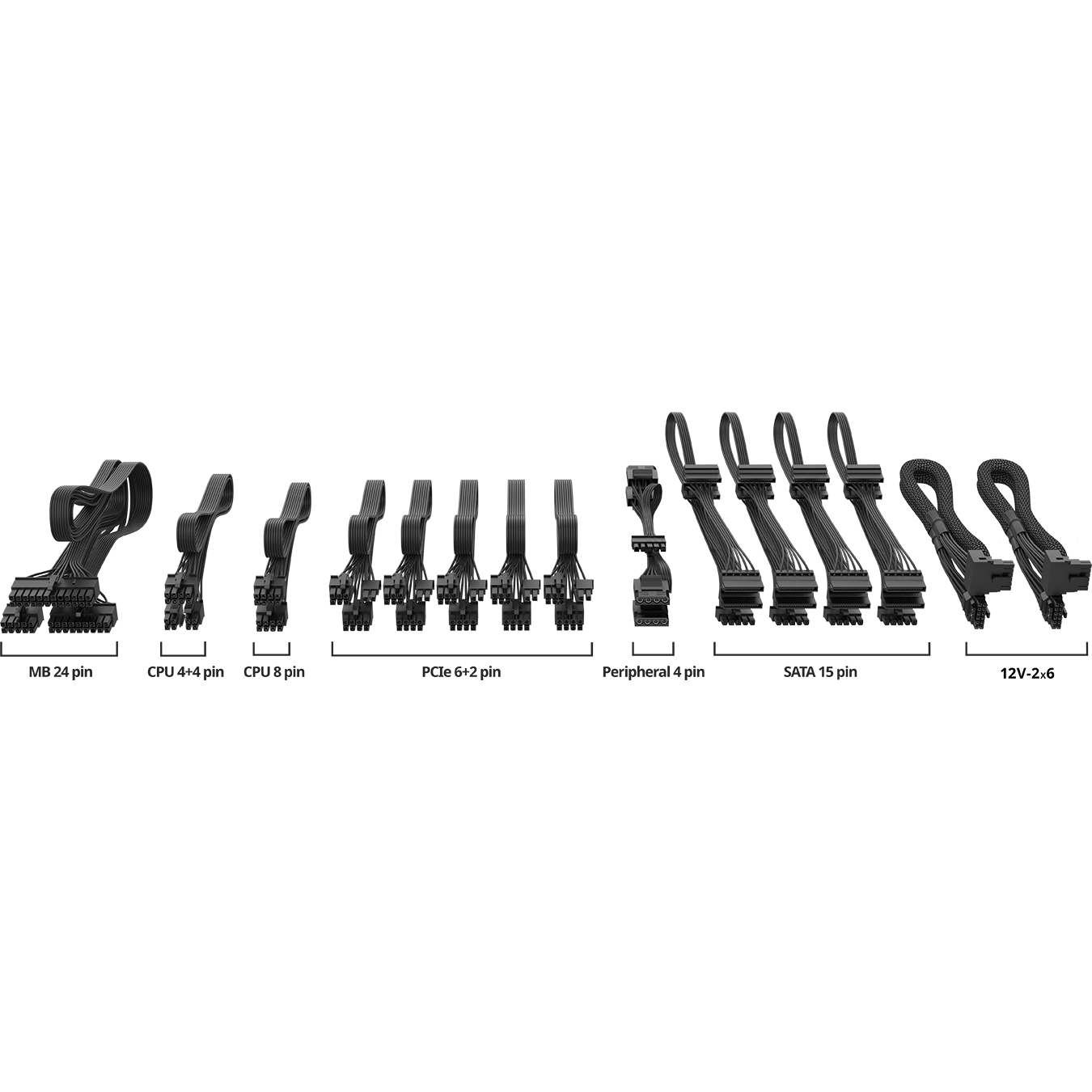

Fully Modular Cabling

Fully Modular Cabling

A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.

仕様

  • 製品型番 MPZ-G002-AFAP
  • 電源規格 ATX 12V バージョン3.1
  • PFC アクティブPFC
  • 入力電圧 100-240V
  • 入力電流 16-8A
  • 入力周波数 50-60Hz
  • 筐体サイズ (L x W x H) 160 x 150 x 86 mm
  • 冷却ファンサイズ 135mm
  • ファンベアリング LDB
  • ファン回転数 2400±10% RPM
  • 変換効率 ≥ 92% @ Typical Load
  • 80 PLUS 認証 80 PLUS Platinum
  • Erp 2014 Lot 3 はい
  • 動作温度 0-50°C
  • Power Good シグナル 100 - 150 ms
  • ホールドアップタイム ≥ 16ms
  • MTBF >100,000 時間
  • 保護回路 OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • 安全認証 CTUVUS、TUV、CE、FCC、BSMI、CCC、EAC、RCM、UKCA、RoHS2.0 / BIS, KC（地 域の要求に基づく）

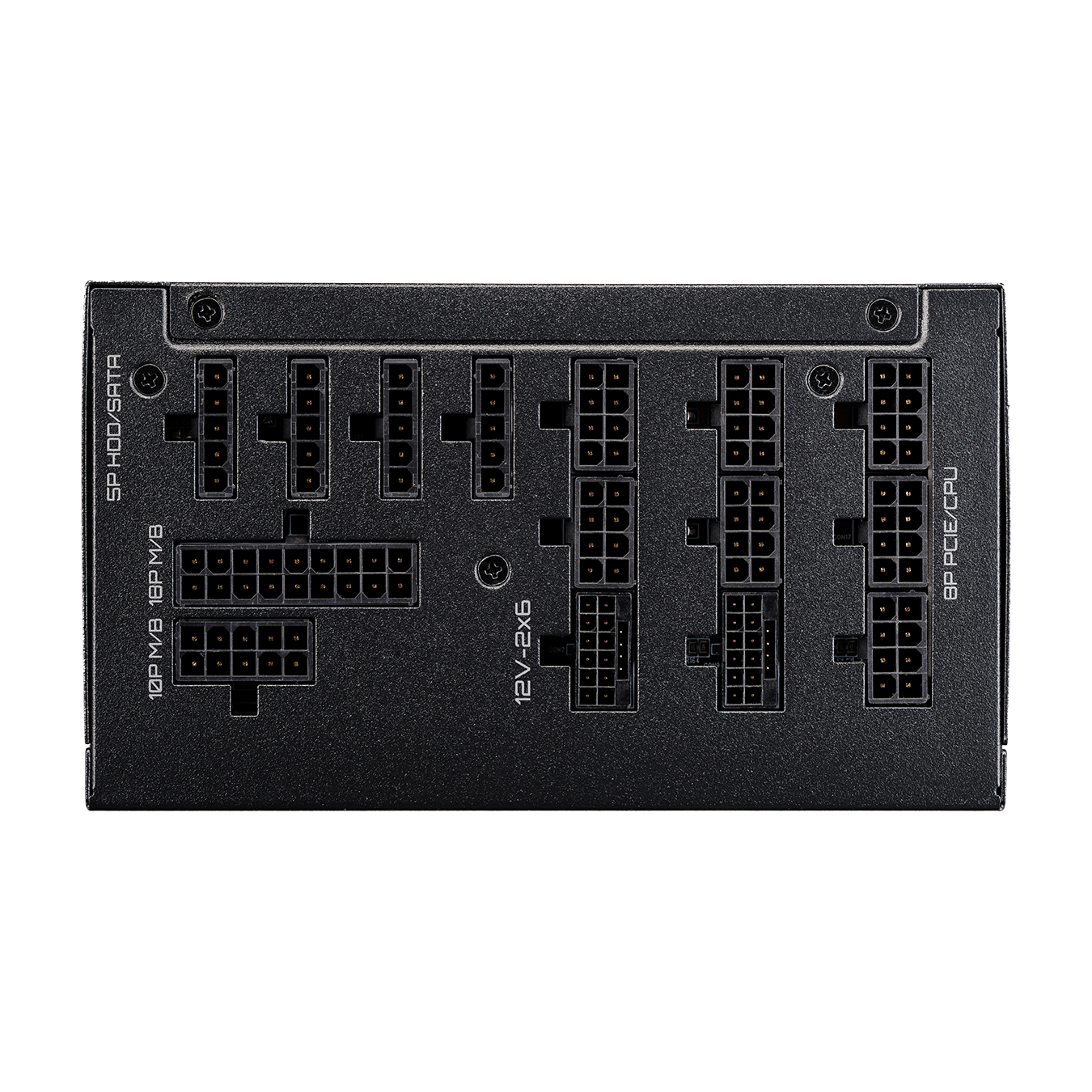

  • ATX 24 PIN コネクタ 1
  • EPS 4+4 PIN コネクタ 1
  • EPS 8 PIN コネクタ 1
  • SATA コネクタ 16
  • PERIPHERAL 4 PIN コネクタ 4
  • PCI-E 6+2 PIN コネクタ 5
  • 12V-2x6 PIN コネクタ 2
  • シリーズ V Platinum Series
  • 80 PLUS認証 Platinum
  • モジュラー Fully Modular
  • Category Above 750W
  • Form Factor ATX
  • Watts 1600W
