Full Modular 80 PLUS Platinum Power Supply with Smart Thermal Control Mode

XG750 Platinum Full Modular 750W PSU

The XG750 Platinum houses Cooler Master’s first in-house designed platform.

XG750 Platinum

FULL MODULAR 80 PLUS PLATINUM POWER SUPPLY WITH SMART THERMAL CONTROL MODE



• Intel ATX 12V Ver. 3.1

• 80 PLUS Platinum & Cybenetics Platinum certifications

•Cybenetics A++ noise level certification

• Quiet 135mm Fan

• Smart Thermal Control Mode with Hybrid Switch

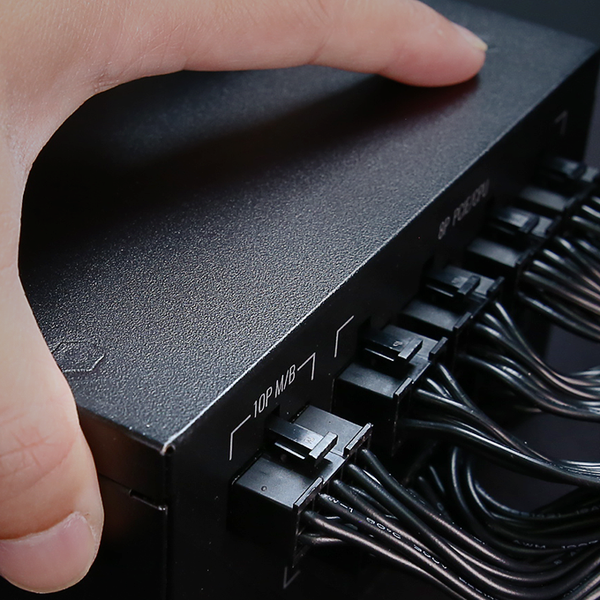

• Full-Modular Cabling

• 10-Year Warranty



Crafted For Excellence

Crafted For Excellence

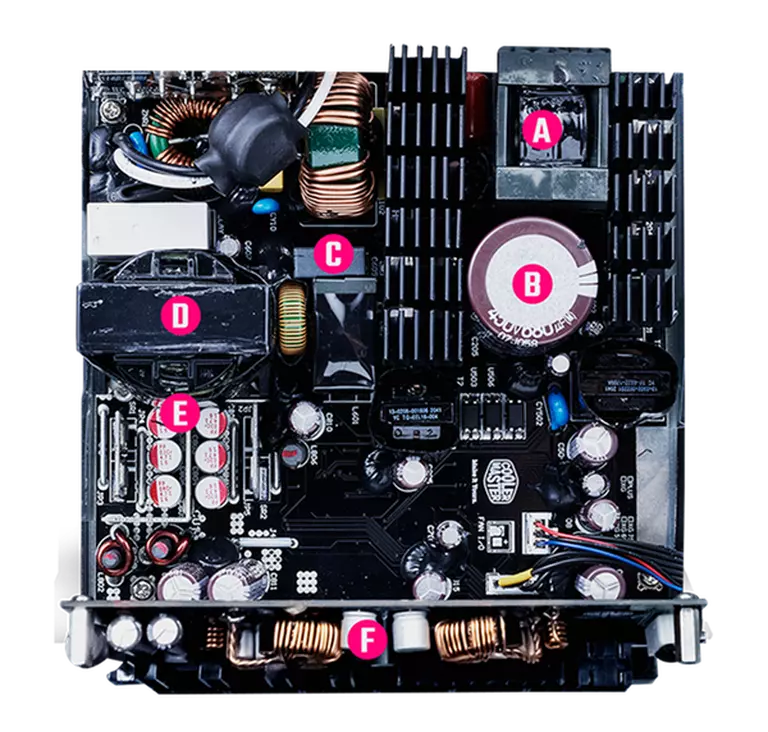

This professional grade power supply unit is built with full-bridge LLC resonant converter and DC-DC technology, made for the all users providing stability, reliability and so much more.

A - High permeability PFC inductors, improve power factor

B - All-Japan capacitor, make XG have longer life

C - LLC Topology makes XG more Efficient

D - Uniquely designed transformer with lower heat

E - High-performance synchronous rectification

F - DC to DC Converter

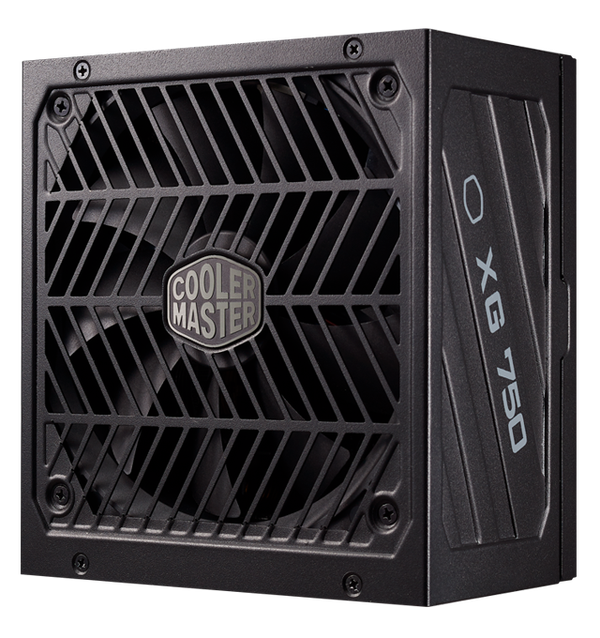

Silence is Platinum

Silence is Platinum

XG750 Platinum has been certified by Cybenetics for both Platinum efficiency and an A++ noise level. It delivers over 92% efficiency at typical loads and maintains an average noise level below 15dB(A) through its smart thermal control system.



Built to Last

Built to Last

With a 10 years warranty, you’ll be using this longer than most up to date home consoles and most of the other components in your system.

規格

  • 模組化 全模組化
  • 功率因數校正 主動式 PFC
  • 輸入頻率 50-60Hz
  • ErP 2014 Lot 3 符合
  • ATX 24 Pin 電源接頭 1
  • EPS 4+4 Pin 電源接頭 1
  • 80 PLUS 評級 80 PLUS 白金牌
  • EPS 8 Pin 電源接頭 1
  • 電源良好信號 100 - 150 ms
  • 平均故障間隔 (MTBF) >100,000 小時
  • 分類 500-750瓦
  • 80 Plus 白金牌認證
  • 工作溫度 0-50°C
  • SATA 電源接頭 12
  • 風扇尺寸 135mm
  • PCI-e 6+2 Pin 電源接頭 4
  • 輸入電壓 100-240V
  • 周邊 4 Pin 電源接頭 4
  • 保護機制 OVP
  • 保護機制 OPP
  • 保護機制 SCP
  • 保護機制 UVP
  • 保護機制 OTP
  • 保護機制 OCP
  • 尺寸 (長 x 寬 x 高) 160 x 150 x 86 mm
  • 保護機制 Surge and Inrush Protection
  • 風扇轉速 1800 RPM
  • 安規 CCC
  • 輸入電流 10-5A
  • 安規 CE
  • 產品系列 XG 系列
  • ATX 版本 ATX 12V Ver. 3.1
  • 安規 EAC
  • 安規 cTUVus
  • 安規 FCC
  • 轉換效率 典型轉換 ≥ 92%
  • 安規 BSMI
  • 持續輸出時間 ≥ 20ms
  • 安規 TUV
  • 噪音水平 @ 100% ≤ 25 dBA
  • 安規 UKCA
  • 型號 MPG-7501-AFBAP-TW
