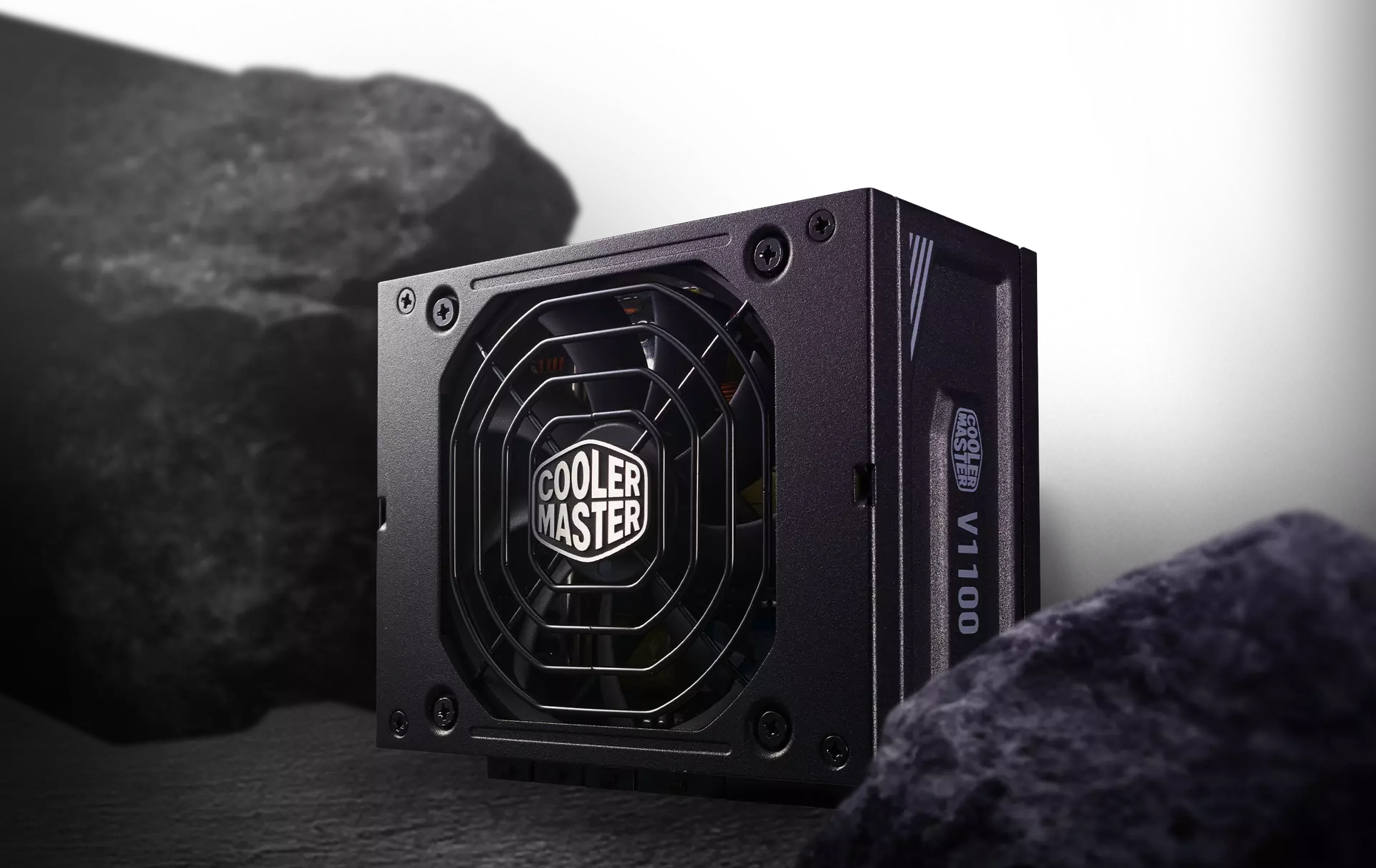

Industrial Leading SFX Power Supply

V SFX Platinum 1100 ATX 3.1

• High Power Density

• Fully support ATX 3.1

• 100% Japanese Capacitors

• Full-bridge LLC and DC-DC technology

• Fully Modular Cables

• 10-year Warranty

High Power Density

Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 30% more than V SFX Gold 850W power supply, in the small form factor.

Miniaturized But Solid

　

　

　

　

　

　

Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.

Full & Flexible Compatibility

Designed to fully support ATX 3.1 and provide backward compatibility, supporting both RTX 40 and 30 series graphics cards, and alongside with included bracket to support both ITX and ATX cases, the V SFX Platinum offers a PSU with the most complete compatibility.

Enhanced Dissipation

With the integration of transformer and rectifier, full-bridge LLC heat dissipation structure, and the EMI-inhibited amorphous metal materials, the V SFX Platinum provideds advanced performance and heat dissipation.

規格

  • 型號 MPZ-B001-SFAP-EB
  • ATX 版本 ATX 3.1 & SFX 12V Ver. 3.42
  • 功率因數校正 主動式 PFC
  • 輸入電壓 100-240V
  • 輸入電流 14-6.5A
  • 輸入頻率 50-60Hz
  • 尺寸 (長 x 寬 x 高) 100 x 125 x 63.5 mm
  • 風扇尺寸 92mm
  • 風扇軸承 FDB
  • 風扇轉速 1900 RPM
  • 轉換效率 典型轉換 ≥ 92%
  • 80 PLUS 評級 80 PLUS 白金牌
  • ErP 2014 Lot 3 符合
  • 工作溫度 0-50°C
  • 電源良好信號 100 - 150 ms
  • 持續輸出時間 ≥16ms at 70% Load
  • 平均故障間隔 (MTBF) >100,000 小時
  • 保護機制 OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection
  • 安規 TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA
  • ATX 24 Pin 電源接頭 1
  • EPS 4+4 Pin 電源接頭 1
  • EPS 8 Pin 電源接頭 1
  • SATA 電源接頭 8
  • 周邊 4 Pin 電源接頭 4
  • PCI-e 6+2 Pin 電源接頭 3
  • 12V-2x6 接頭 1
  • Form Factor SFX
  • Watts 1100W
  • 模組化 全模組化
  • 產品系列 V SFX Series
  • 80 Plus 白金牌認證
