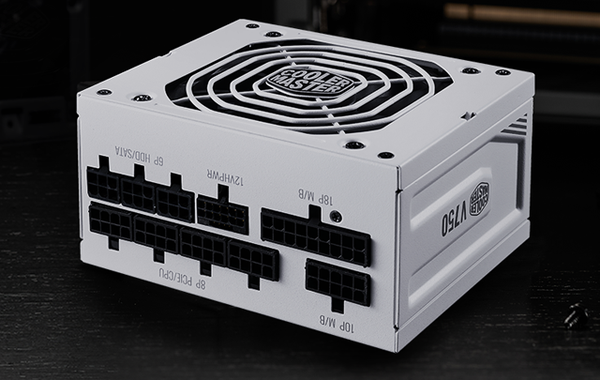

Fully modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
Small But Mighty

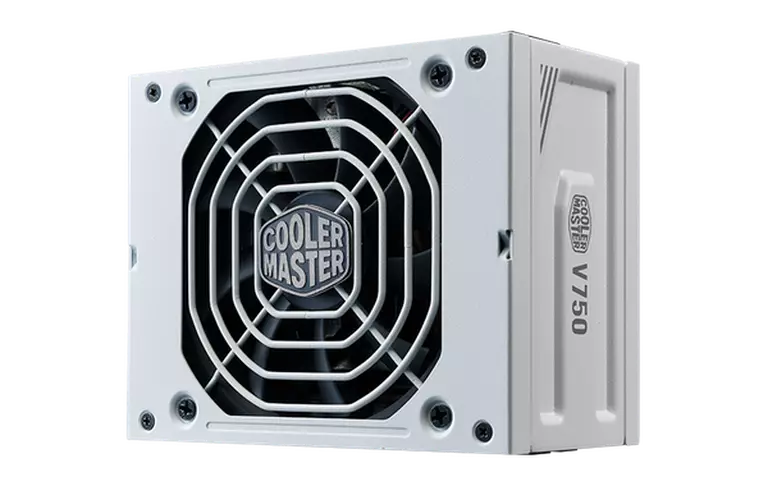

V SFX Gold 750 ATX 3.0 White Edition Power Supply
The V SFX Gold 750 ATX 3.0 White Edition power supply unit from Cooler Master offers fully modular cabling, 80 PLUS Gold efficiency, a highly flexible

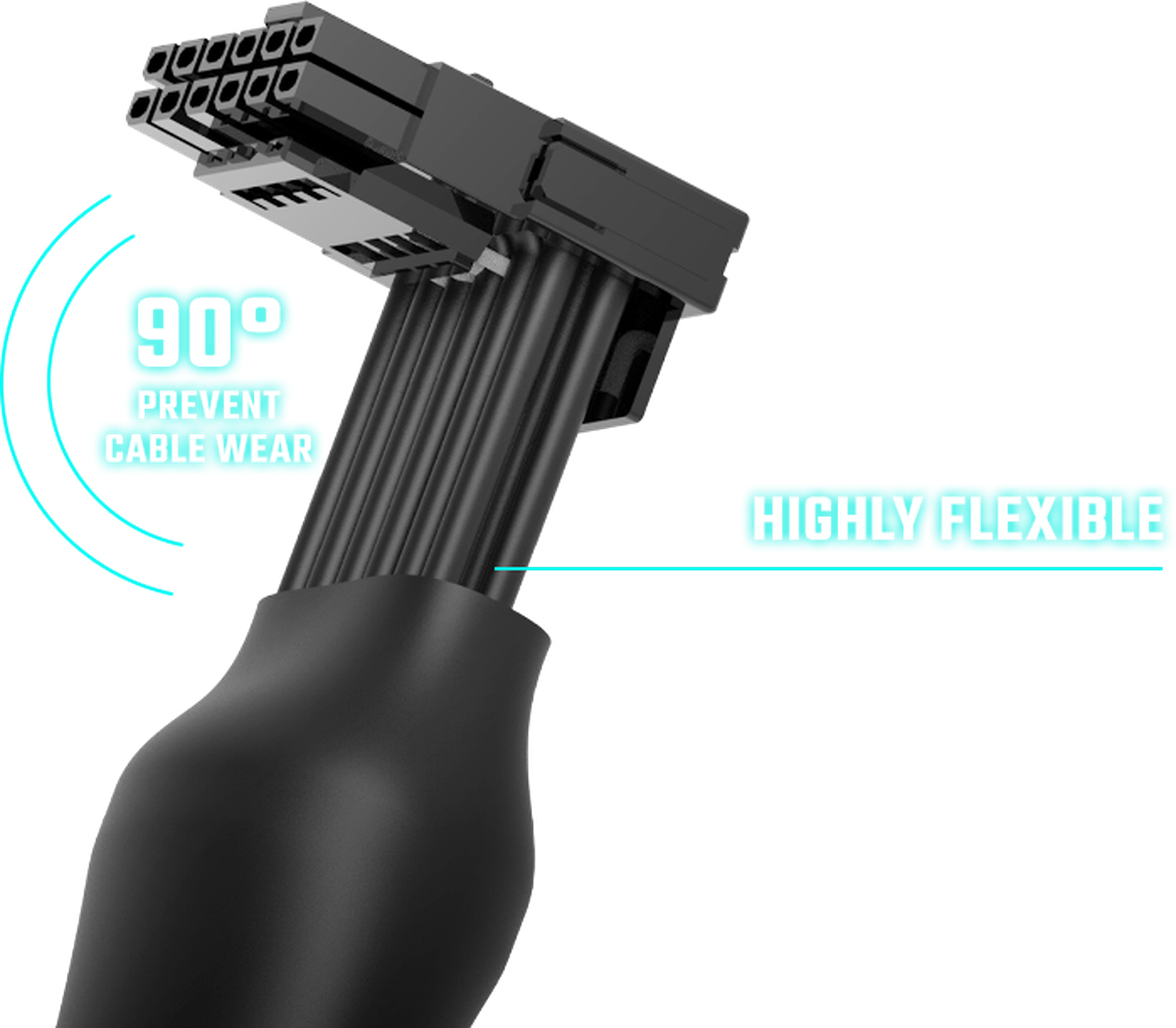

ATX 3.0 Support & a Durable 90-degree 12VHPWR Cable
Flexible Compatibility
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
100% Japanese Capacitors
Large, high-quality Japanese capacitors feature inmproved efficiency and reduced ripple noise.
80 PLUS Gold Certified
規格
- 型號 MPY-7501-SFHAGV-3WT
- ATX 版本 SFX 12V Ver. 3.42
- 功率因數校正 主動式 PFC
- 輸入電壓 100-240V
- 輸入電流 10-5A
- 輸入頻率 50-60Hz
- 尺寸 (長 x 寬 x 高) 100 x 125 x 63.5 mm
- 風扇尺寸 92mm
- 風扇軸承 FDB
- 轉換效率 典型轉換 90%
- 80 PLUS 評級 80 PLUS 金牌
- ErP 2014 Lot 3 符合
- 工作溫度 0-50°C
- 電源良好信號 100 - 500 ms
- 持續輸出時間 16ms
- 平均故障間隔 (MTBF) >100,000 小時
- 保護機制 OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- 安規 TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
- ATX 24 Pin 電源接頭 1
- EPS 4+4 Pin 電源接頭 1
- EPS 8 Pin 電源接頭 1
- SATA 電源接頭 8
- 周邊 4 Pin 電源接頭 4
- PCI-e 6+2 Pin 電源接頭 4
- 12VHPWR 電源接頭 1
- 80 Plus 金牌認證
- 產品系列 V SFX Series
- 模組化 全模組化
- 分類 750瓦以上
- Form Factor SFX
- Watts 750W
- ATX 版本 ATX 3.0
