靜音系列作

Silencio S400

Silencio 是一款不用向散熱效能妥協的靜音機殼。主機由隔音材料環繞,所有風扇都配有橡膠緩衝墊,上方面板可拆卸的遮罩能夠阻隔噪音。Silencio S400 也同時提供強化玻璃或是帶有隔音材料的金屬側板型號供選擇。對於效能有所要求的平台,可移除上方面板的隔音遮罩增加通風。

model

Silencio Technology

Sound Dampening Material

The Silencio utilizes a combination of sound dampening materials, from thick soft foam to heavy mass-loaded vinyl, to precisely counter prominent frequencies.

Front

Ventilation

The front panel features a recurved vent, directing air in through the front bezel. The curve points downward, taking air in from the bottom, and straightens out to direct air in from either side of the steel front door.

Ventilation

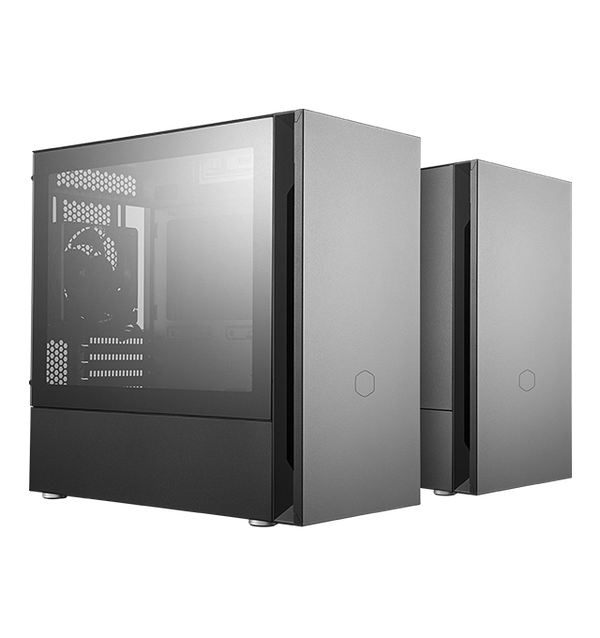

Seamless Tempered Glass or Sound-Dampened Steel

Seamless Tempered Glass or Sound-Dampened Steel

Available with seamless tempered glass or a sound-dampened steel side panel, systems can be built for show or for stealth with the Silencio.

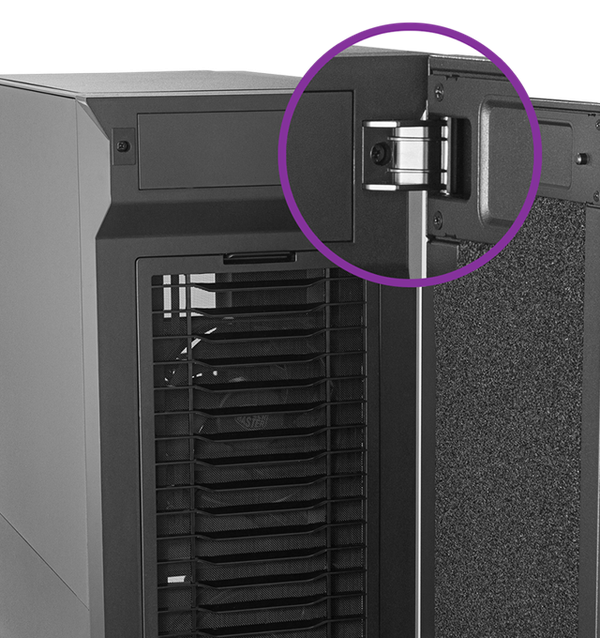

Reversible Steel Door

Reversible Steel Door

The steel front door features a reversible mounting system, capable of opening in either direction. To prevent vibrations, a softer, thicker material spans the steel structure in conjunction with a hinge system of magnets and rubber stompers.

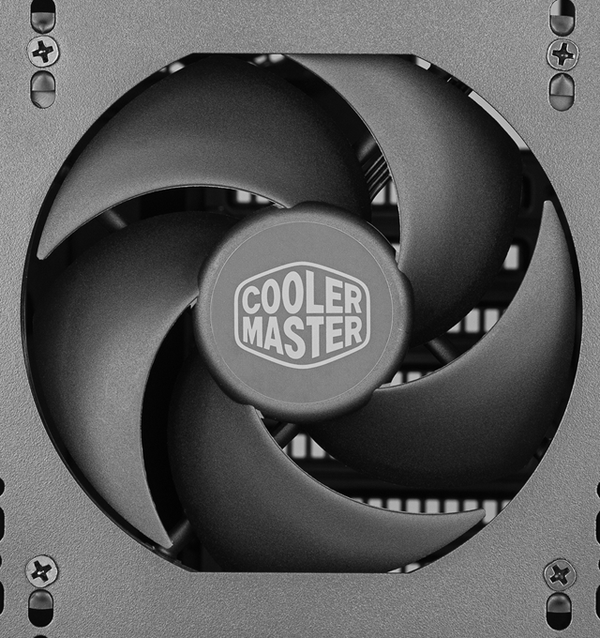

Silencio Fans

Silencio Fans

Two Silencio FP 120mm PWM fans are pre-installed with rubber padding to reduce noise, featuring specially designed blades that allow both quiet operation and high air pressure.

Motherboard Support

Mini-ITX, Micro-ATX

Cooling Support

Fans
Radiators

Top:
120 / 140mm x 1 Fans
120 / 140mm x 2 Fans (remove ODD cage)
120 / 240* Radiator
*remove ODD cage

Front:
120 / 140mm x 2 Fans
120 / 140 / 240 / 280* Radiator
*may interfere with HDD mounted below ODD bracket

Rear:
120 x 1 Fan
120 x 1 Radiator

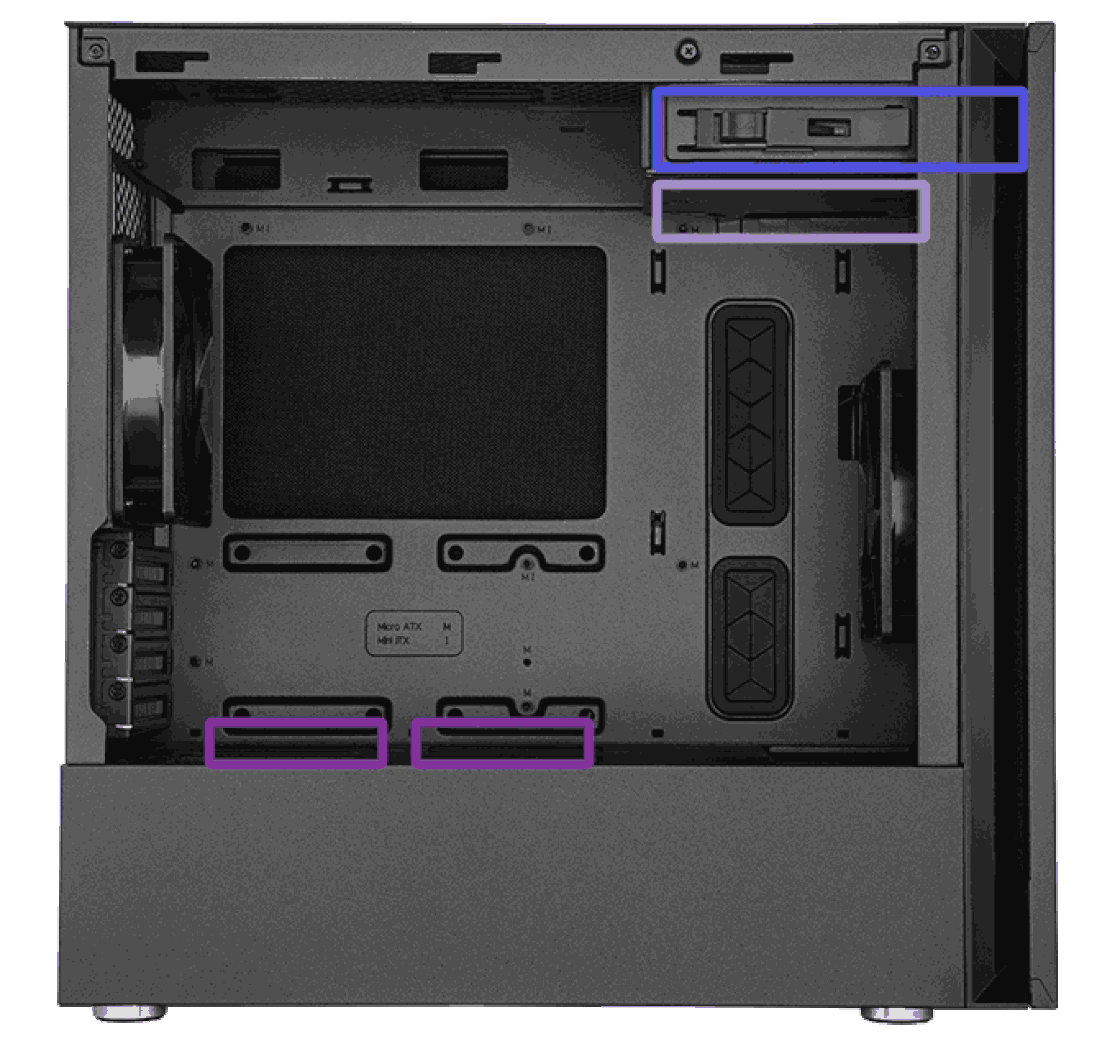

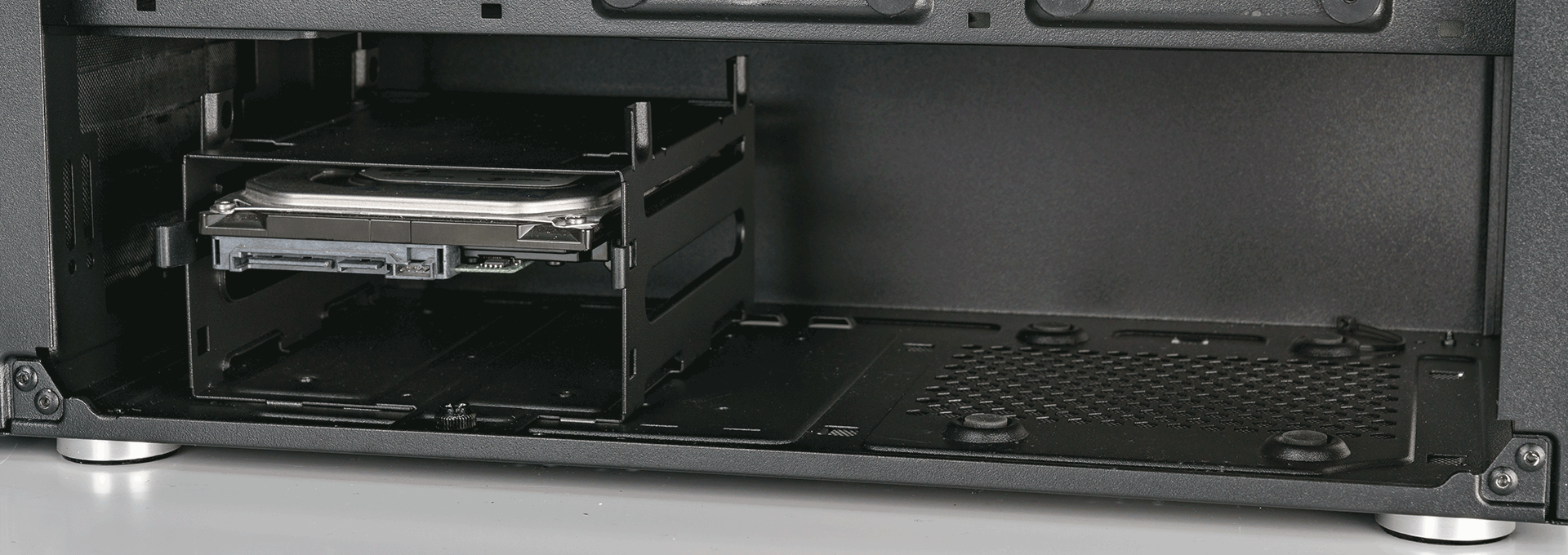

Storage Support

5.25” ODD x 1 (ODD version)

3.5” HDD x 4

2.5” SSD x 4

Clearances

CPU Cooler (Steel): 167mm
CPU Cooler (TG): 166mm

Power Supply:
325mm (w/o front radiator & HDD cage)
140mm (HDD cage in backmost position)

Graphics Card: 319mm

規格

  • 產品型號 MCS-S400-KN5N-S00 (Steel), MCS-S400-KG5N-S00 (TG)
  • 顏色
  • 材質 - 機身 Steel, Plastic, Sound Absorbing Material
  • 尺寸 (長x寬x高) 418 x 210 x 408mm (Incl. Protrusions), 403.5 x 210 x 400mm (Excl. Protrusions)
  • 容量 33.9L (不含突起)
  • 主機板支援 Mini-ITX, Micro-ATX
  • PCI 擴充槽 4
  • 5.25" 硬碟架 1
  • 3.5" 硬碟架 4
  • 2.5" 硬碟架 4
  • I/O 面板 - USB 埠 2x USB 3.2 Gen 1 (formerly USB 3.0)
  • I/O 面板 - 音效輸入/輸出 3.5mm 耳麥複合插孔(音訊 + 麥克風)* 1
  • I/O Panel - SD Card Reader Supports SD & MMC Cards
  • 預裝風扇 - 前方 1x 120mm (PWM 800-1400 RPM)
  • 預裝風扇 - 後方 1x 120mm (PWM 800-1400 RPM)
  • 風扇支援 - 前方 2x 120/140mm
  • 風扇支援 - 上方 1x 120mm, 1x 140mm / 2x 120mm, 2x 140mm (remove ODD cage)
  • 風扇支援 - 後方 1x 120mm
  • 水冷支援 - 前方 120 / 140 / 240 / 280mm (remove & reinstall ODD bracket to mount 280mm radiator, may interfere with HDD mounted below ODD bracket)
  • 水冷支援 - 上方 120 / 240mm* (*240mm requires removal of ODD cage)
  • 水冷支援 - 後方 120mm
  • 預留安裝空間 - CPU 散熱器 Steel: 167mm, TG: 166mm
  • 預留安裝空間 - 電源供應器 325mm (w/o front radiator & drive cage), 140mm (HDD cage in backmost position)
  • 預留安裝空間 - 顯示卡 319mm
  • 整線空間 20mm
  • 防塵濾網 前方、上方、底部
  • 電源供應器類型 Bottom Mount, ATX PS2
  • 尺寸 迷你直立式
  • 系列 Silencio 系列
