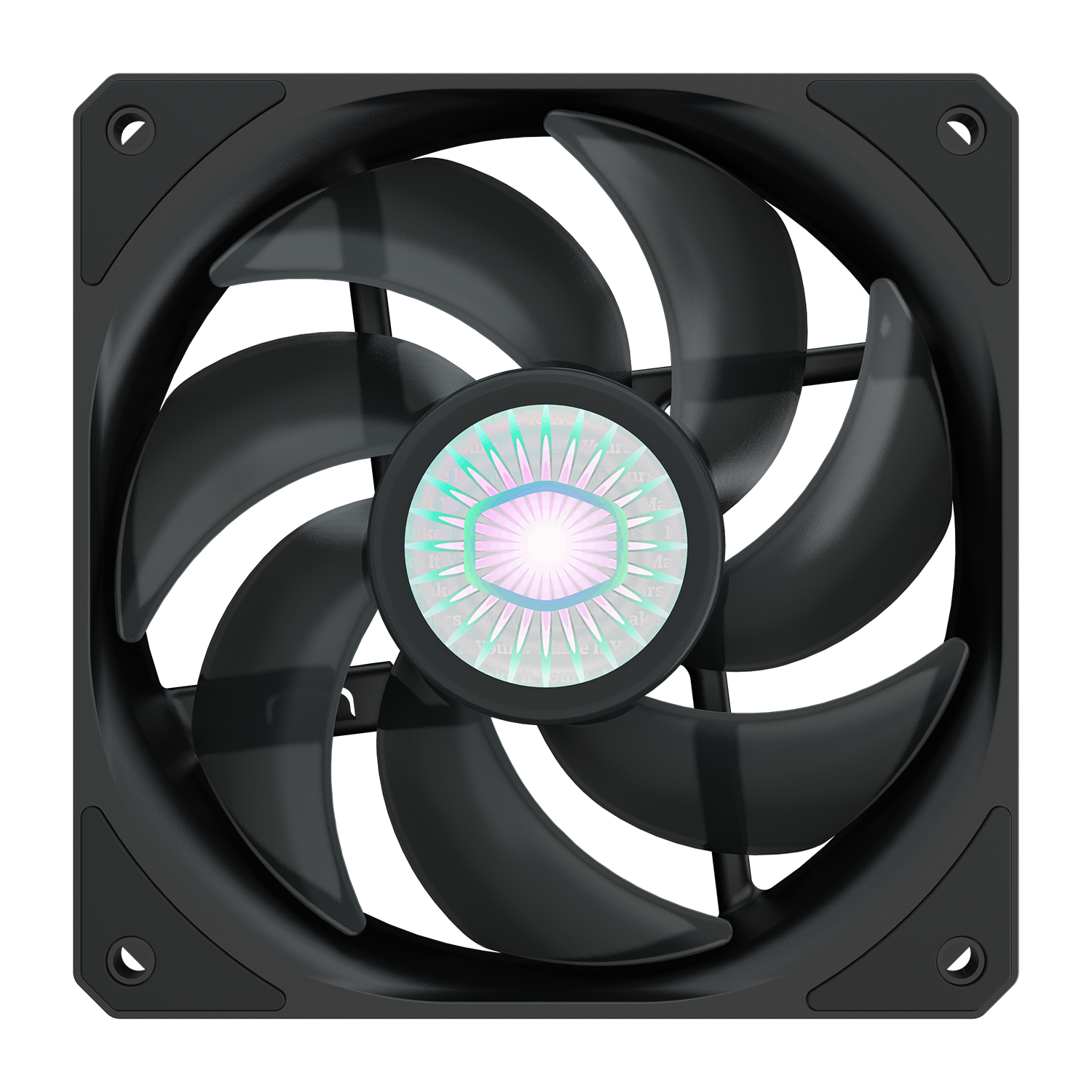

SickleFlow 120 image number 0

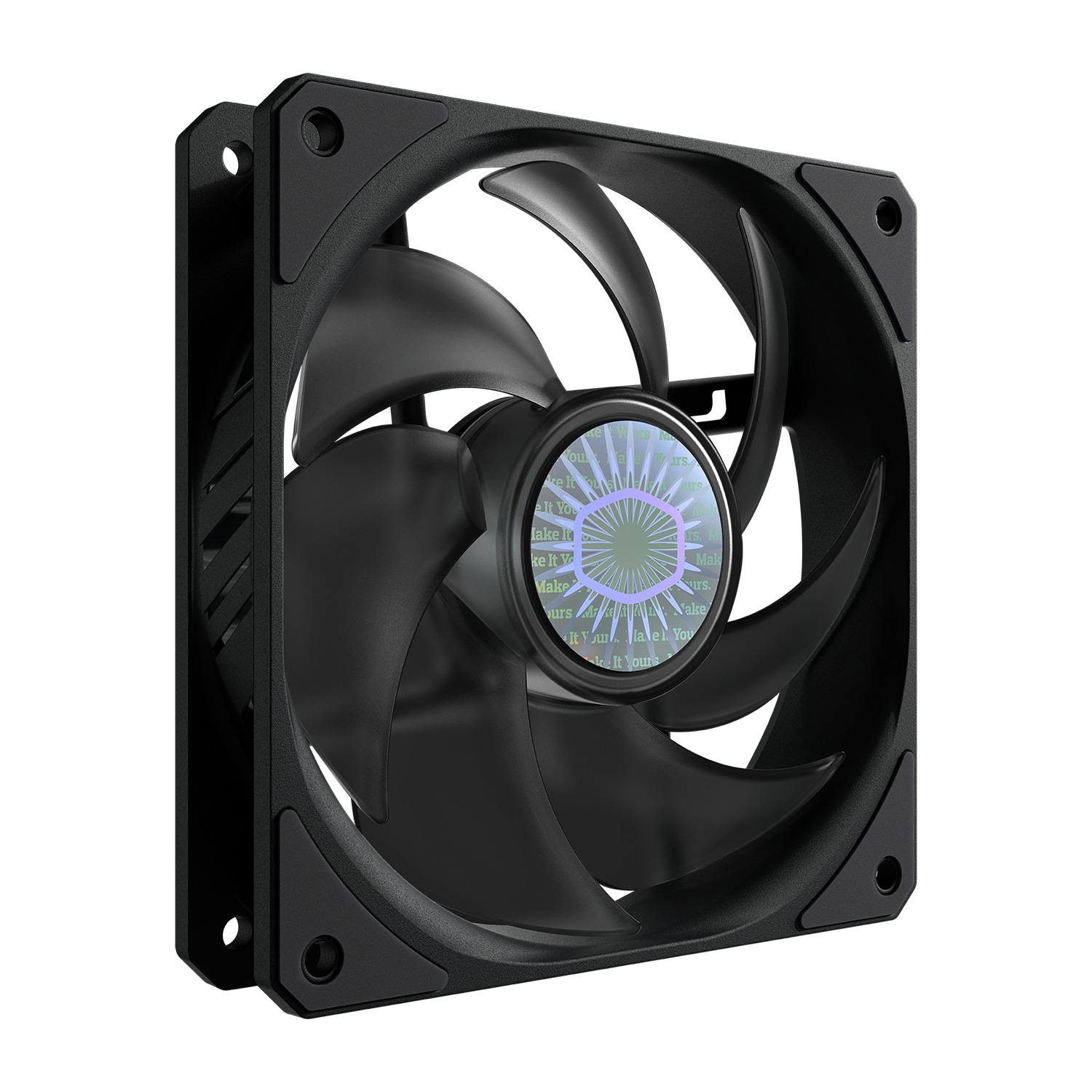

SickleFlow 120 image number 1

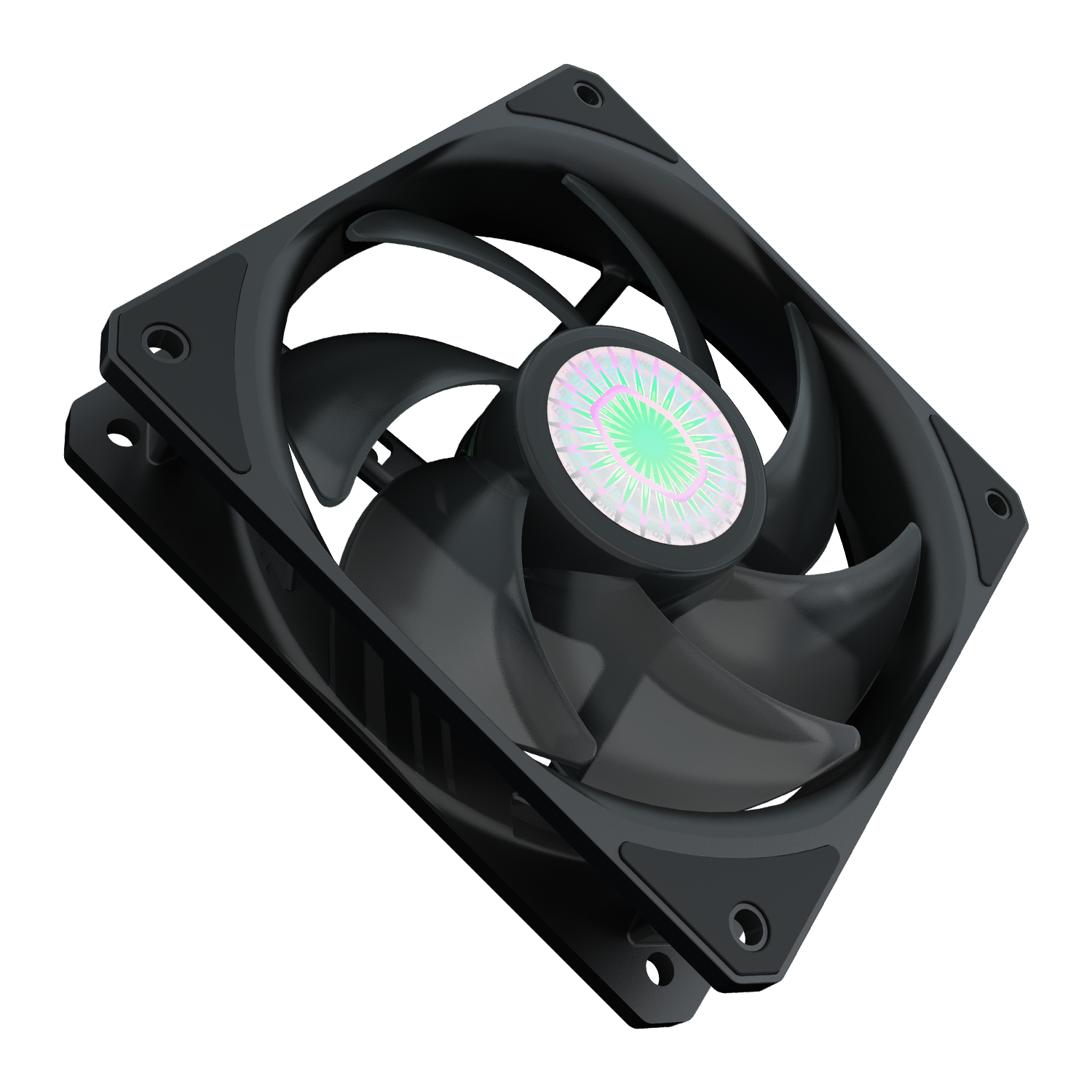

SickleFlow 120 image number 2
SickleFlow 120
SickleFlow 120
SickleFlow 120

經典進化 全面之選

SickleFlow 120

承襲SickleFlow 120系列，酷碼推出新一代系列產品，藉著各種全新特色帶來明顯的效能提升。在光效的表現不但更勝以往，也已經在各大主機板品牌中完成連動燈效的認證。全新的SickleFlow 120針對扇葉曲面有了進一步優化。 強化的風扇框架，增加了框架支撐力度，有效降低擾流以及噪音的產生。

model

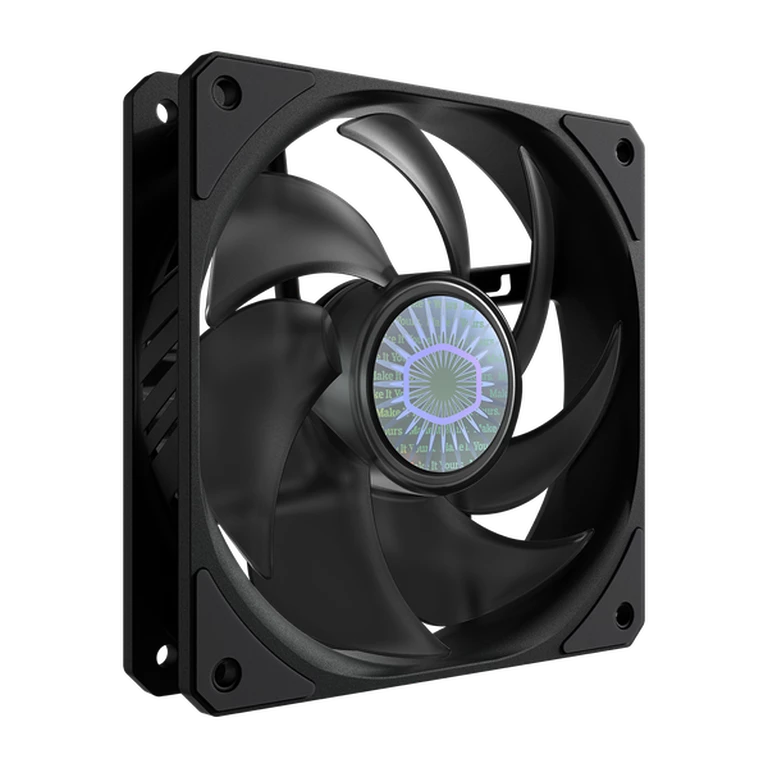

Next Generation of SickleFlow Fans

Next Generation of SickleFlow Fans

SickleFlow 120, a new series of the CoolerMaster Fan family, provides a specific air cooling solution ideal for CPU coolers and chassis in-take fans. Optimized blade design with updated curve that improves air flow and air pressure. Enhanced frame structure, reducing turbulent flow and noise and increasing overall work efficiency. Sealed and secured fan bearing, preventing dust and lubricating oil leakage while increasing the fan’s operation stability and life span.

Enhanced Fan Frame

Enhanced frame structure, reducing turbulent flow and noise and increasing overall work efficiency.

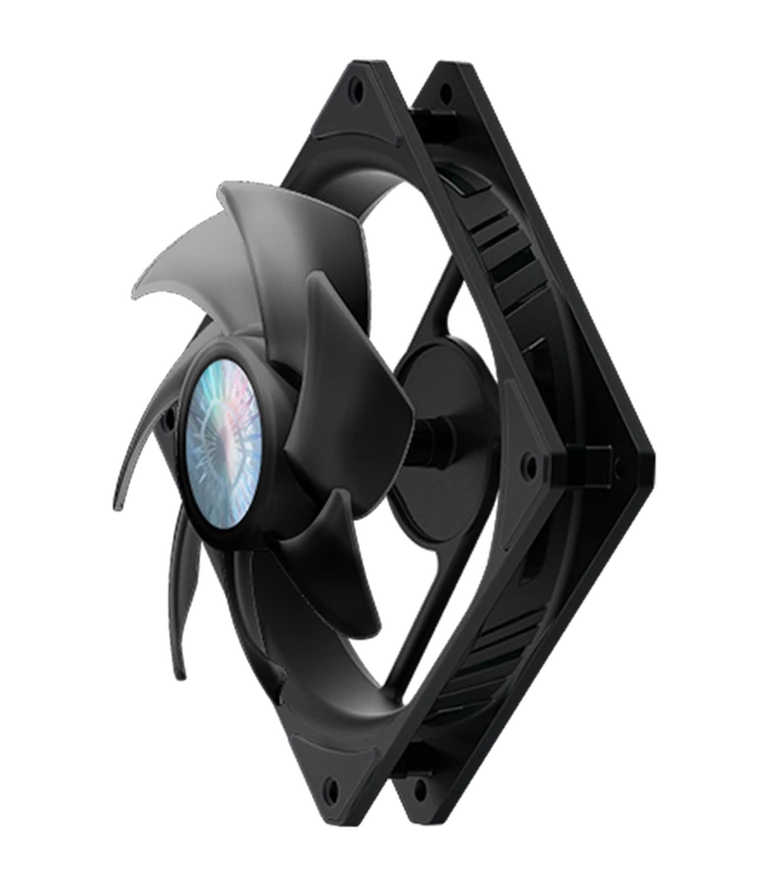

Sealed Bearing Structure

Sealed and secured fan bearing, preventing dust and lubricating oil leakage while increasing the fan’s operation stability and life span.

規格

  • 產品型號 MFX-B2NN-18NPK-R1
  • 風扇設定檔 無 LED
  • 風扇軸承類型 來福軸承 (Rifle Bearing)
  • 風扇轉速 650-1800 RPM ± 10%
  • 風扇風量 62 CFM ± 10%
  • 風扇風壓 2.5 mmH2O ± 10%
  • 風扇噪音水平 8 - 27 dBA
  • 尺寸 (長 x 寬 x 高) 120 x 120 x 25 mm
  • 風扇平均故障間隔 160,000 小時
  • 風扇額定電壓 12 VDC
  • 風扇額定電流 0.15A
  • 風扇安全電流 0.37A
  • 風扇功耗 1.8W
  • 風扇連接介面 4-Pin (PWM)
  • 風扇重量 156g / 0.34 lbs
  • 產品保固 2年
  • 產品類型 機殼風扇
  • 系列 SickleFlow
  • 風扇LED種類 Non-LED
  • 風扇尺寸 120
