The Intelligent Guardian

MWE Gold V4

GPU Shield™ Intelligent Current Management (Patent Applied For) ​

80 Plus Gold efficiency​​

Digital Control PSU ​​

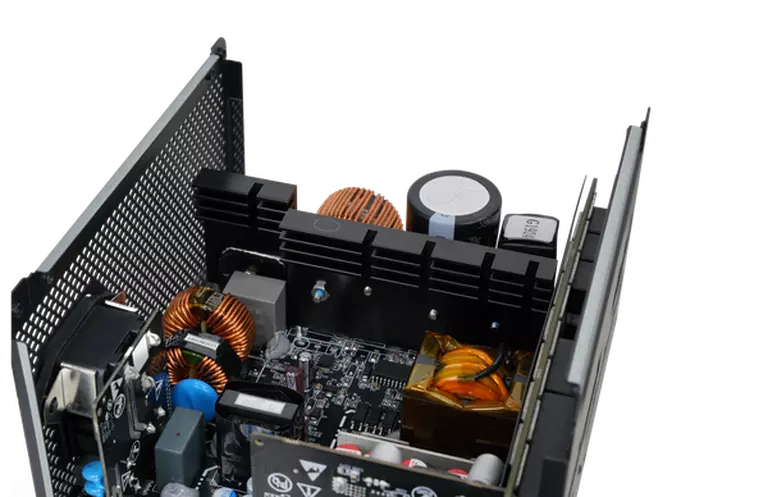

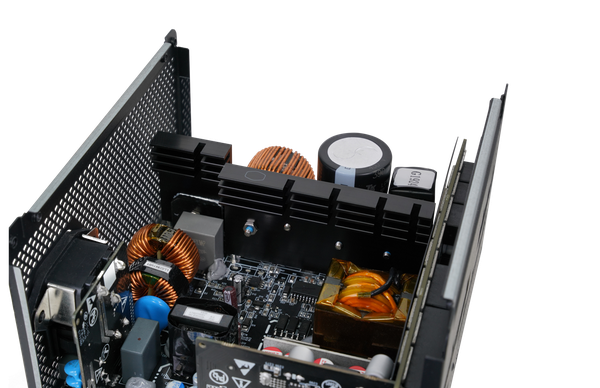

Wave-type heatsink design​​

ATX 3.1 & PCIe 5.1 Standards Support ​

Low-noise Design

Conformal Coating

10-year warranty

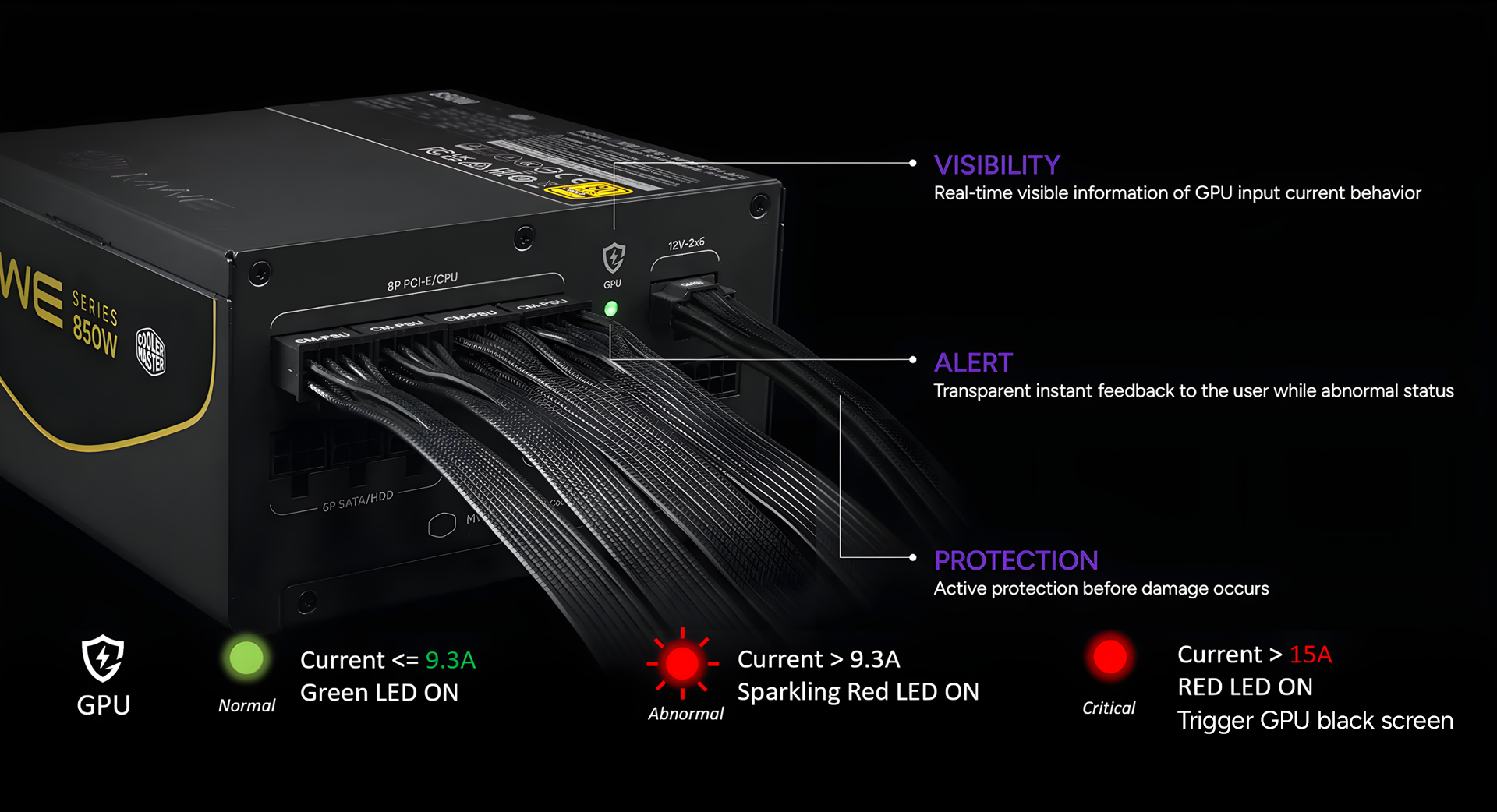

GPU Shield™ Intelligent Current Management

Automatically detects abnormal current, adjusts output in real time, and alerts users through LED indicators for safer, more stable power delivery.

GPU Shield™ Intelligent Current Management
GPU Shield™ Intelligent Current Management

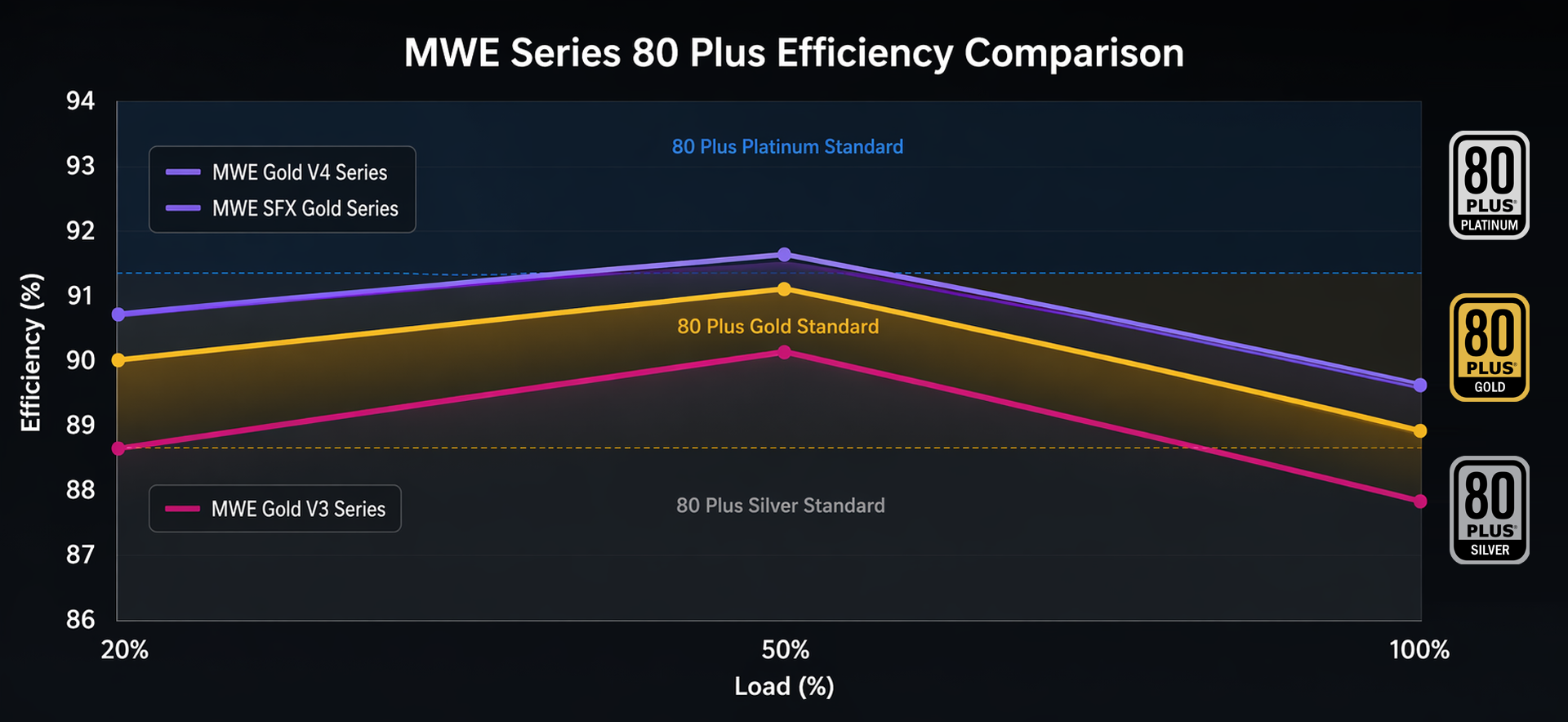

Digital Control IC

Engineered with digital control IC to achieve precise digital tuning of PFC and LLC, improving the overall efficiency 3% higher than previous series.

Digital Control IC
Digital Control IC

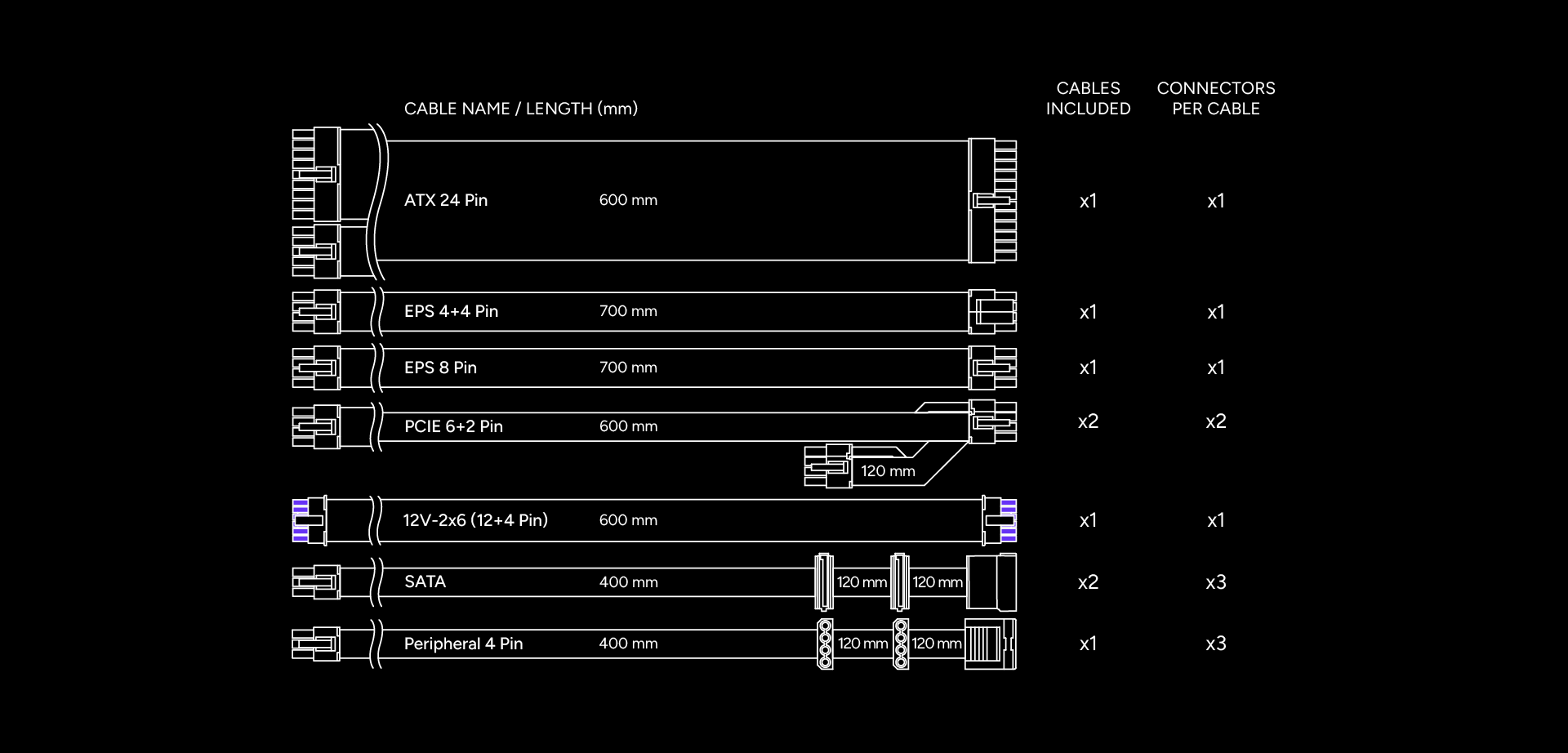

750W / 850W

Includes the same optimized cable configuration, designed for reliable performance and clean system builds.

750W / 850W
750W / 850W

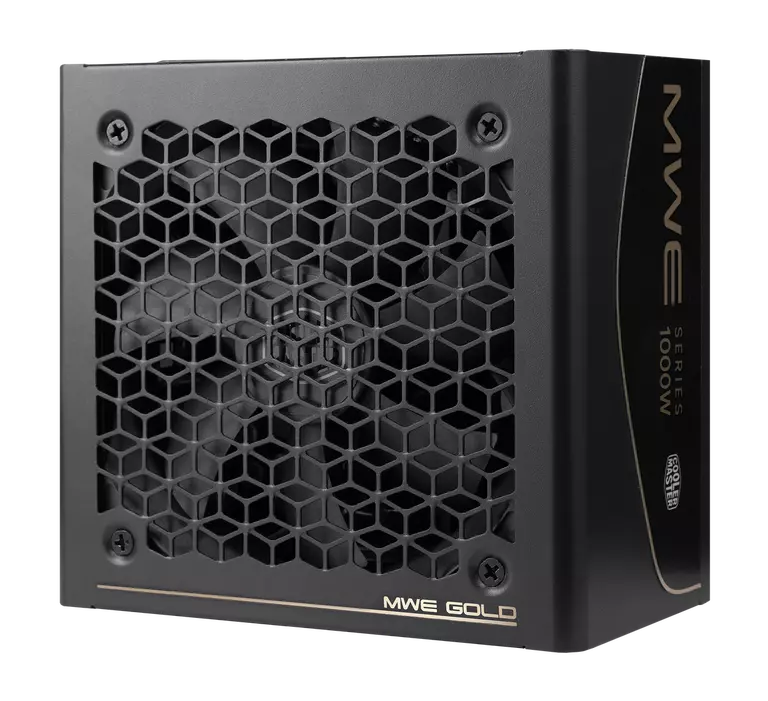

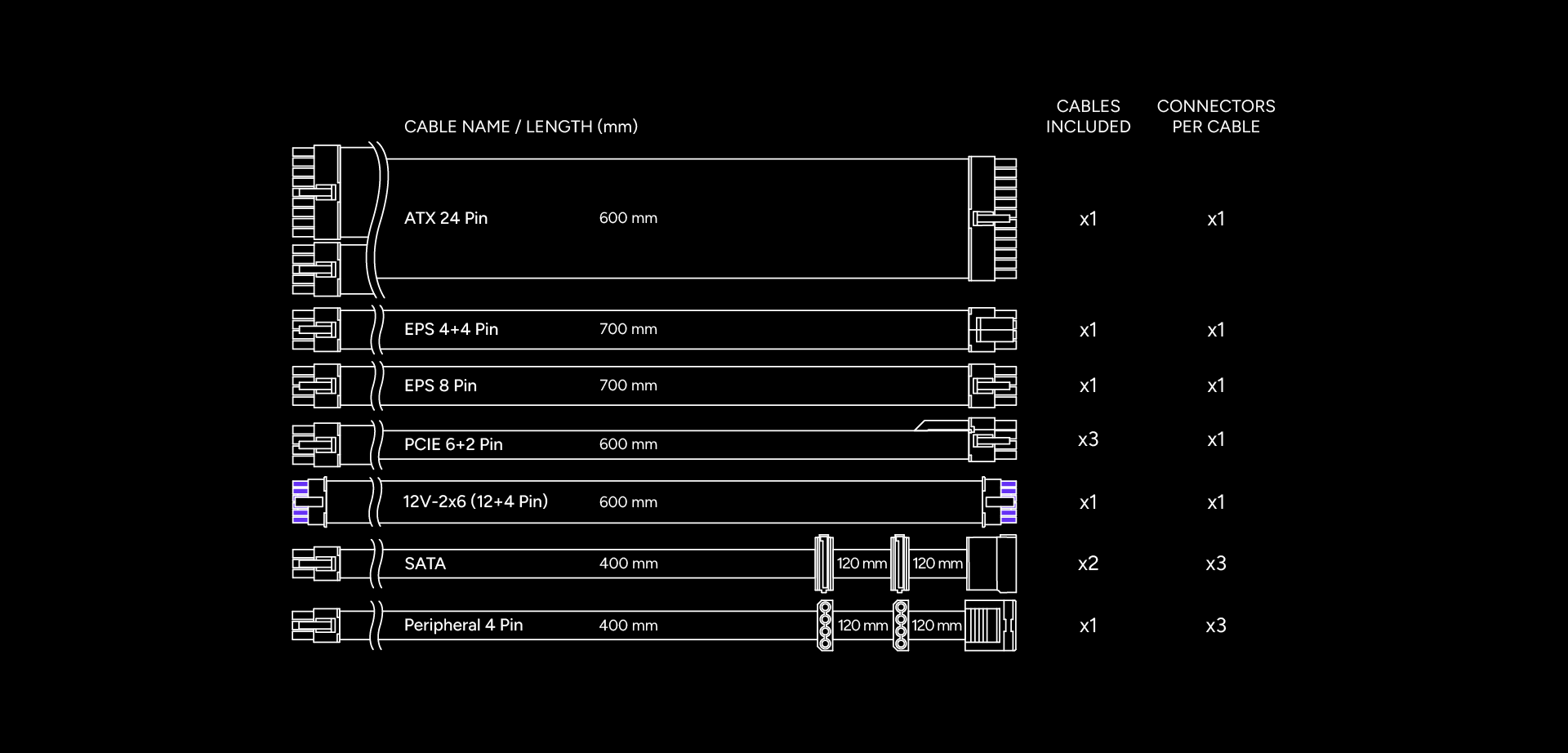

1000W

Features an enhanced cable configuration to support higher power demands and advanced high-performance setups.

1000W
1000W

ATX 3.1 & PCIe 5.1 Standards Support

Equipped with the latest standard and 12V-2x6 output connector, ready for next-gen flagship graphics cards.

Low-noise Design

Engineered to achieve a lab-level noise control to deliver quiet power operation.

Conformal Coating

Protective coating that improves durability and safeguards components in harsh environments.

10-year warranty

This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.

規格

  • 型號 MPX-7503-AFAG-2BTW
  • ATX 版本 ATX 12V Ver. 3.1
  • 功率因數校正 主動式 PFC
  • 輸入電壓 100-240V
  • 輸入電流 10-5A
  • 輸入頻率 50-60Hz
  • 尺寸 (長 x 寬 x 高) 160 x 150 x 86 mm
  • 風扇尺寸 120mm
  • 風扇軸承 HDB
  • 風扇轉速 2500 RPM
  • 轉換效率 典型轉換 ≥90%
  • 80 PLUS 評級 80 PLUS 金牌
  • ErP 2014 Lot 3 符合
  • 工作溫度 0-40°C
  • 電源良好信號 100 - 150 ms
  • 持續輸出時間 ≥16ms at 80% Load
  • 平均故障間隔 (MTBF) >100,000 小時
  • 保護機制 OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • 安規 cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
  • ATX 24 Pin 電源接頭 1
  • EPS 4+4 Pin 電源接頭 1
  • EPS 8 Pin 電源接頭 1
  • SATA 電源接頭 6
  • 周邊 4 Pin 電源接頭 2
  • PCI-e 6+2 Pin 電源接頭 4
  • 12V-2x6 接頭 1
  • 產品系列 MWE Gold 系列
  • 分類 750瓦以上
  • 模組化 全模組化
  • 80 Plus 金牌認證
  • Form Factor ATX
  • Watts 750W
