ATX 3.0 Fully Modular 80 PLUS Gold Certified ATX Power Supply Unit

MWE Gold 1250 - V2 ATX3.0 White Edition Fully Modular PSU

The MWE Gold 1250 - V2 ATX3.0 White Edition power supply unit from Cooler Master offers 80 PLUS Gold efficiency, a quiet 140mm silent fan

100% ATX 3.0 Compatible

100% ATX 3.0 Compatible

Cooler Master took the initiative and continuously developing our first ATX 3.0 Power Supply lineup. Compliant with ATX 3.0 standard and 12VHPWR connectors, the MWE Gold 1050/1250 - V2 ATX 3.0 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.

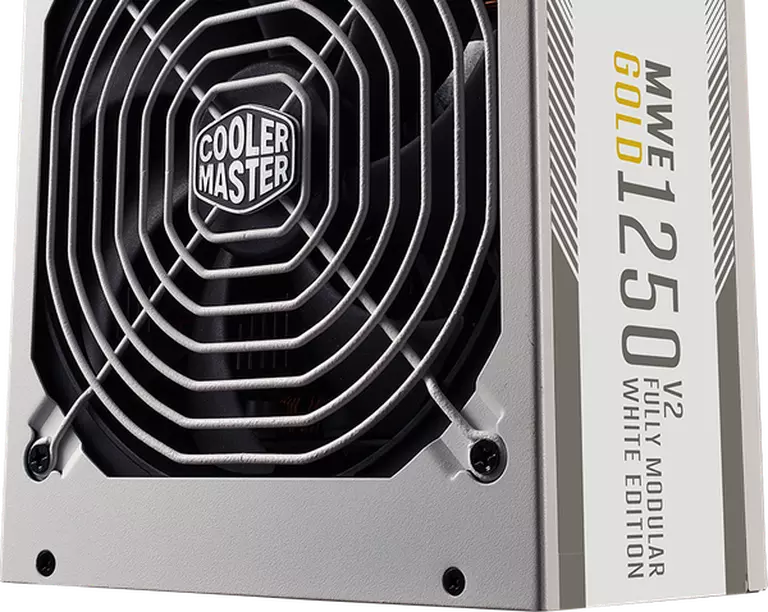

80 PLUS Gold Certified

80 PLUS Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 - V2 ATX 3.0 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.

Quiet Cooling

Quiet Cooling

The MWE Gold 1050/1250 - V2 ATX 3.0 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing (FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System (STCM), the fan will not spin until at 40% of rated output power to reduce noise.


*The fan curve is tested under ambient temperature of 25 degrees Celsius and core temperature is related to load.

Industrial-grade Temperature Resilience

Industrial-grade Temperature Resilience

The MWE Gold 1050/1250 - V2 ATX 3.0 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

Fully Modular Cabling

Fully Modular Cabling

The fully modular version of the MWE Gold 1050/1250 - V2 ATX 3.0 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.

規格

  • 型號 MPE-C501-AFCAG-3G
  • ATX 版本 ATX Rev. 3.0
  • 功率因數校正 主動式 PFC
  • 輸入電壓 100-240V
  • 輸入電流 15-7A
  • 輸入頻率 50-60Hz
  • 尺寸 (長 x 寬 x 高) 180 x 150 x 86 mm
  • 風扇尺寸 140mm
  • 風扇軸承 Two Ball Bearing
  • 轉換效率 典型轉換 ≥90%
  • 80 PLUS 評級 80 PLUS 金牌
  • ErP 2014 Lot 3 符合
  • 工作溫度 0-50°C
  • 電源良好信號 100 - 150 ms
  • 持續輸出時間 ≥16ms (100% 負載)
  • 平均故障間隔 (MTBF) >100,000 小時
  • 保護機制 OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection
  • 安規 TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS
  • ATX 24 Pin 電源接頭 1
  • EPS 4+4 Pin 電源接頭 1
  • EPS 8 Pin 電源接頭 1
  • SATA 電源接頭 12
  • 周邊 4 Pin 電源接頭 4
  • PCI-e 6+2 Pin 電源接頭 3
  • 12VHPWR 電源接頭 1
  • 產品系列 MWE Gold 系列
  • 分類 750瓦以上
  • 模組化 全模組化
  • 80 Plus 金牌認證
  • Form Factor ATX
  • Watts 1250W
