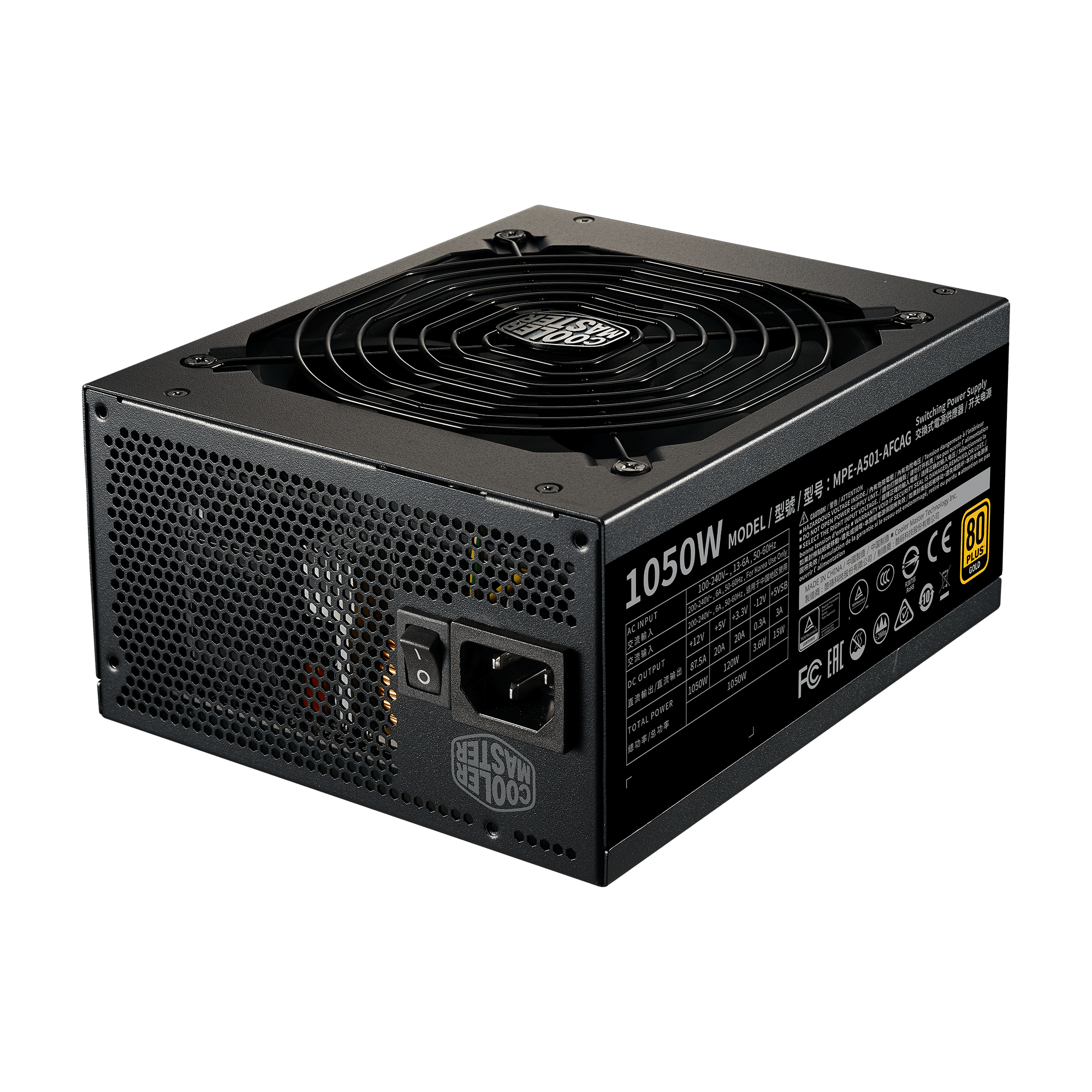

MWE Gold 1050 - V2 (Full Modular) image number 1

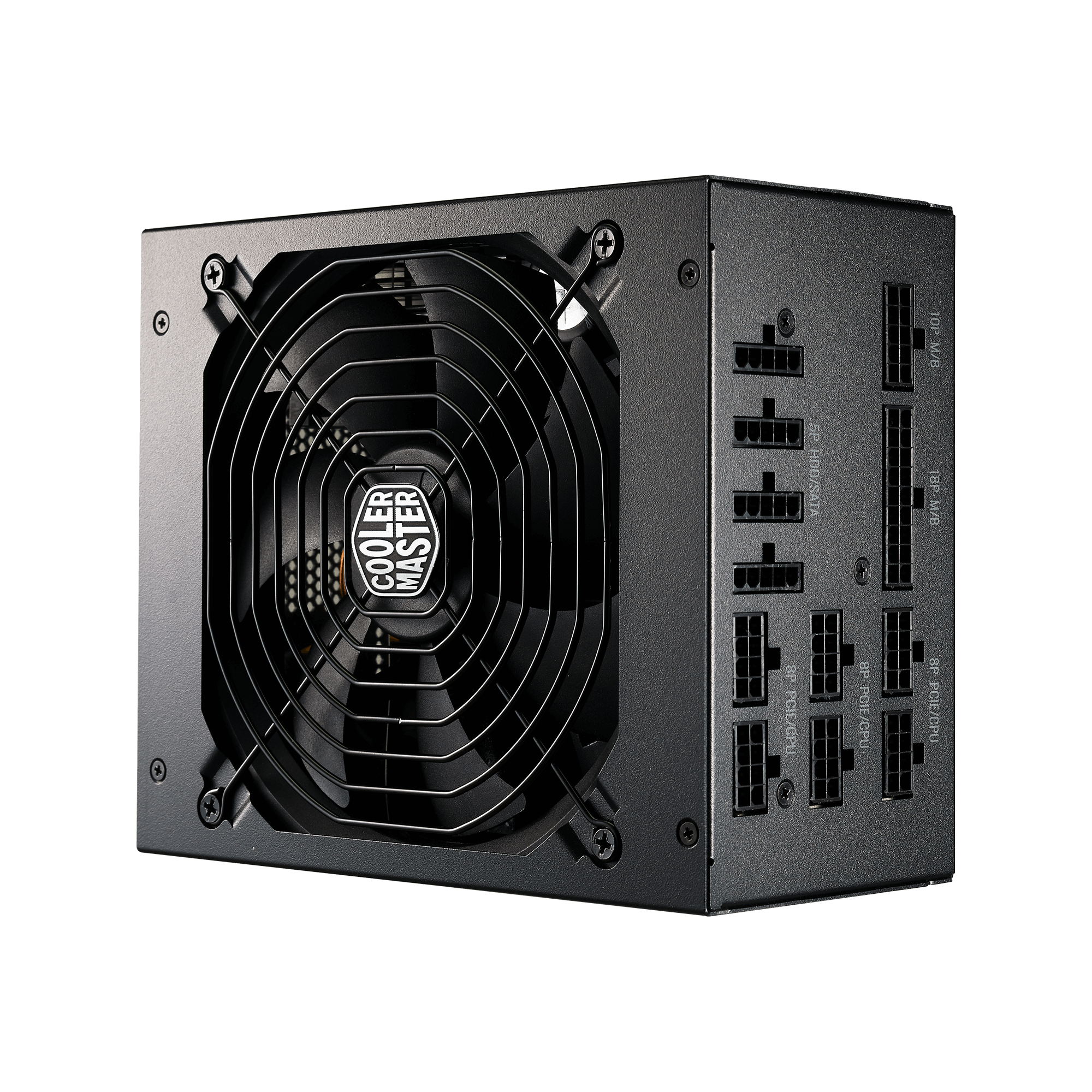

MWE Gold 1050 - V2 (Full Modular) image number 2
MWE Gold 1050 - V2 (Full Modular) image number 3
MWE Gold 1050 - V2 (Full Modular) image number 4
MWE Gold 1050 - V2 (Full Modular) image number 5
MWE Gold 1050 - V2 (Full Modular) image number 6
MWE Gold 1050 - V2 (Full Modular) image number 7

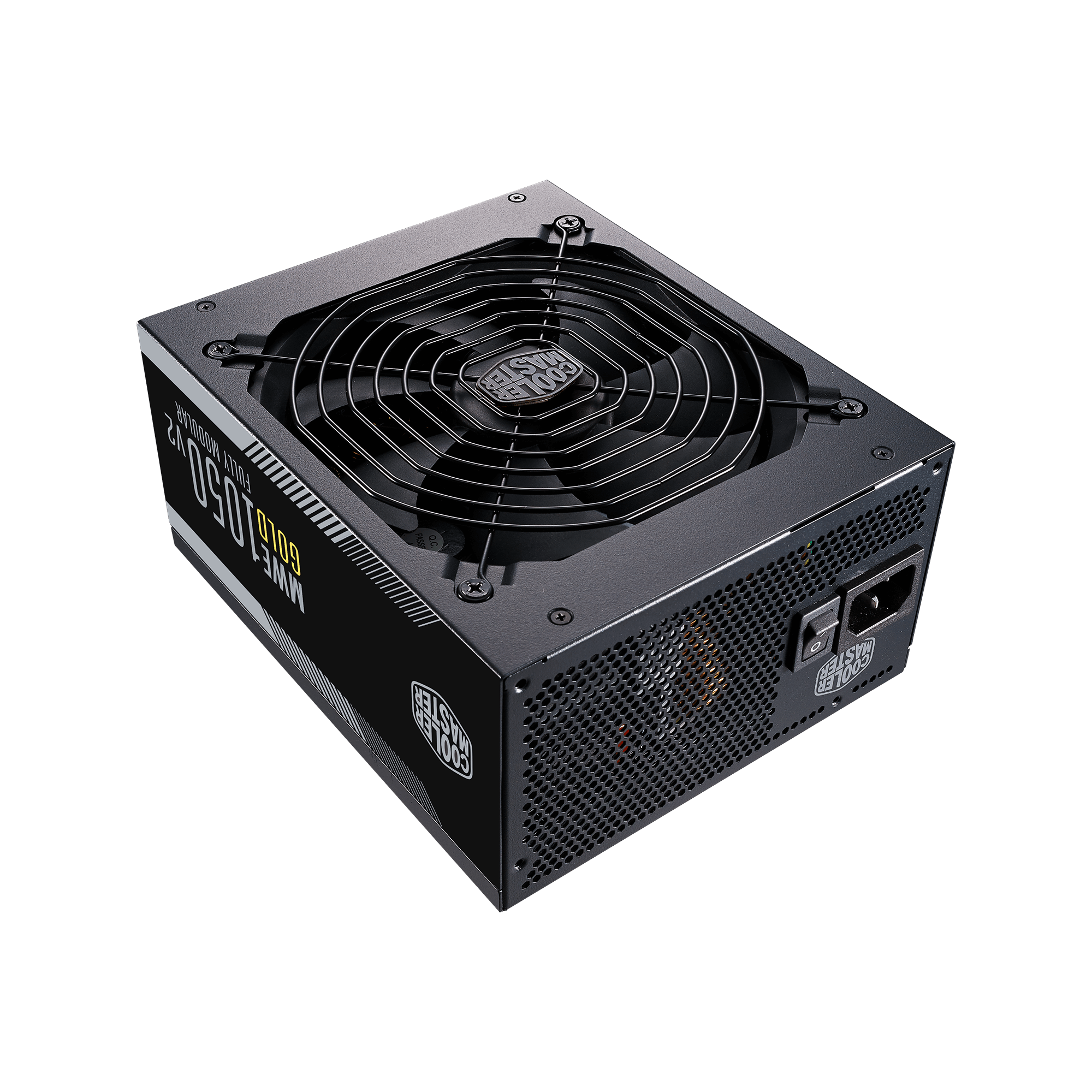

MWE Gold 1050 - V2 (Full Modular) image number 8
MWE Gold 1050 - V2 (Full Modular) image number 9

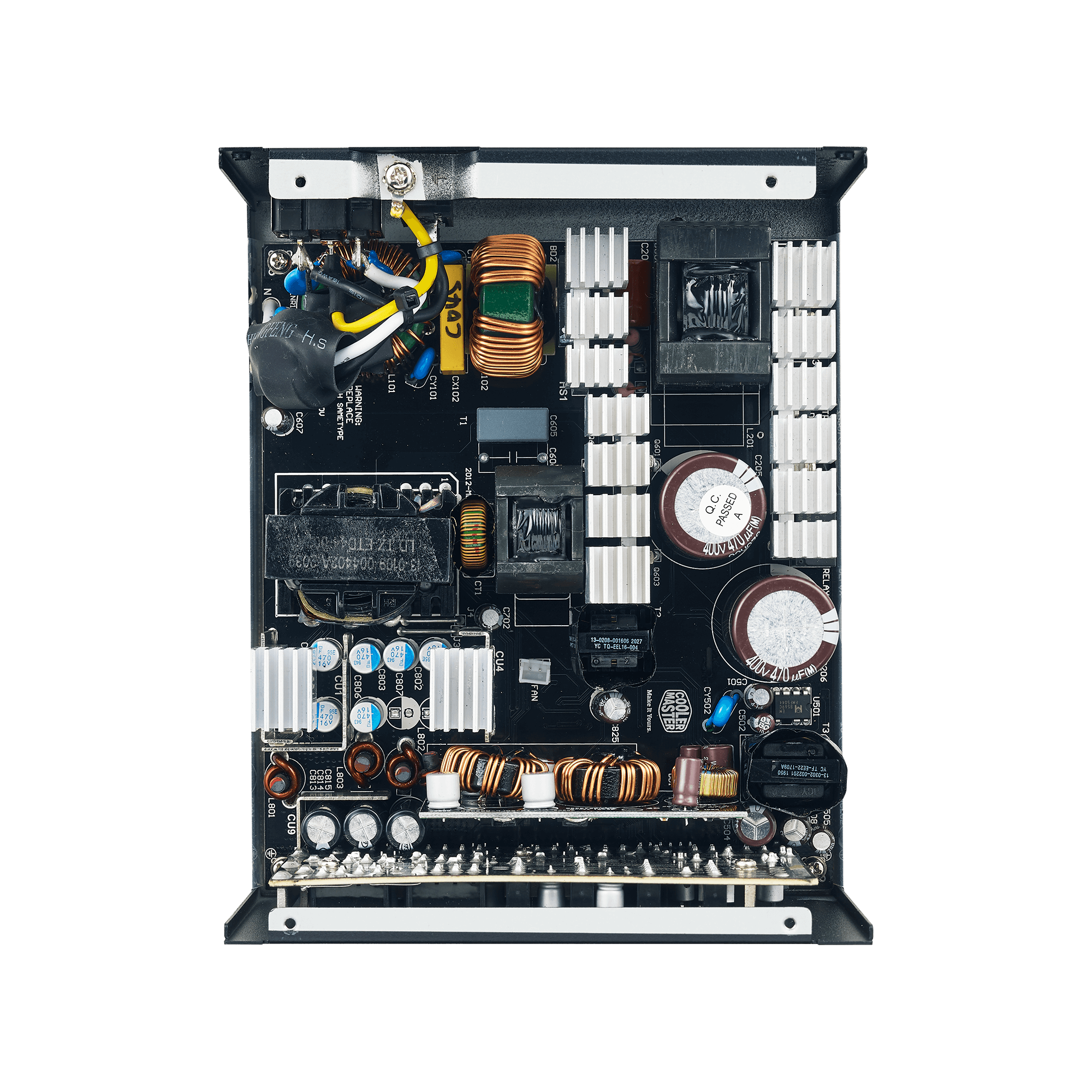

MWE Gold 1050 - V2 (Full Modular) image number 10
MWE Gold 1050 - V2 (Full Modular) image number 11
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)
MWE Gold 1050 - V2 (Full Modular)

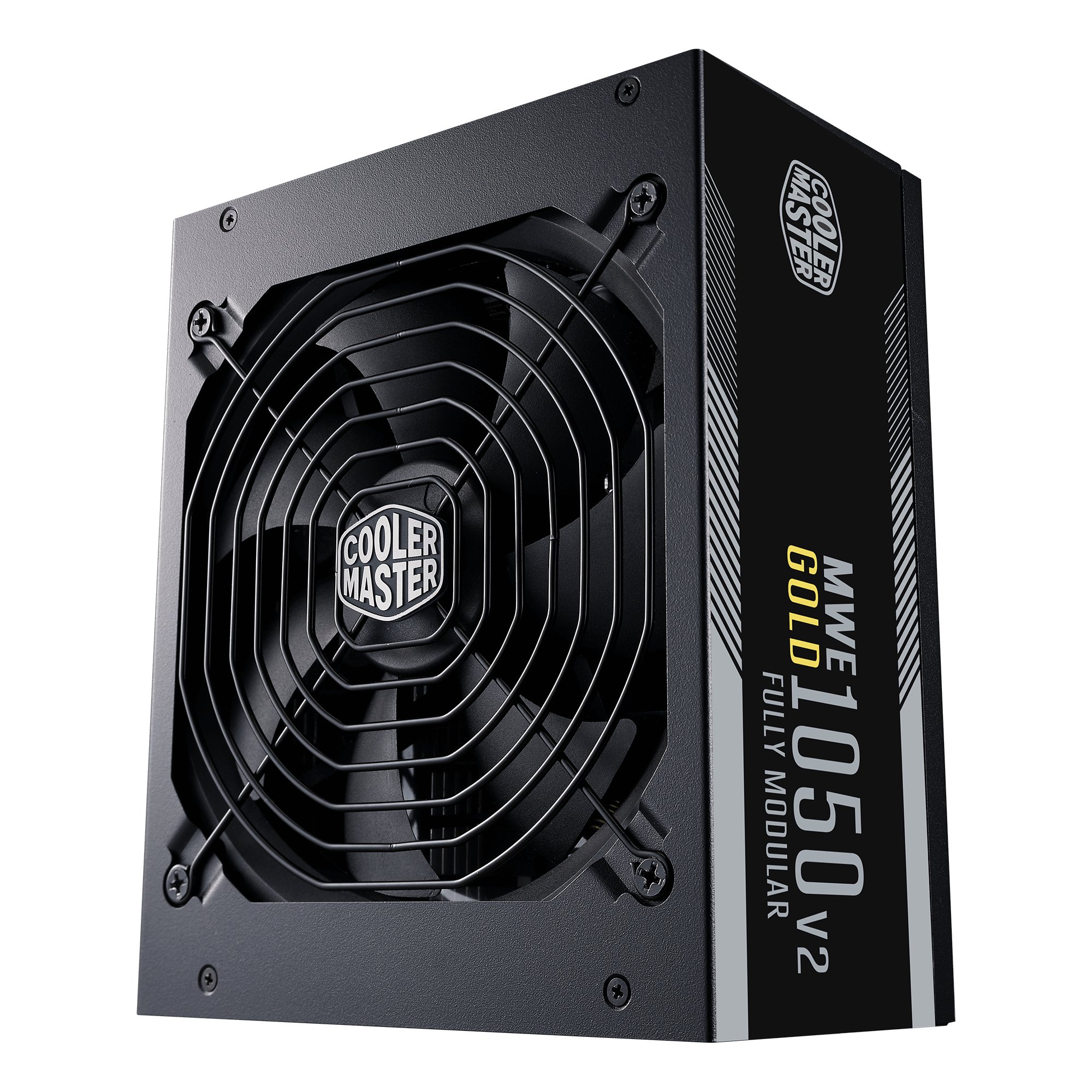

Full Modular 80 Plus Gold PSU

MWE Gold 1050 - V2 (Full Modular)

MWE Gold 1050 - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power offerings.

power
立即購買

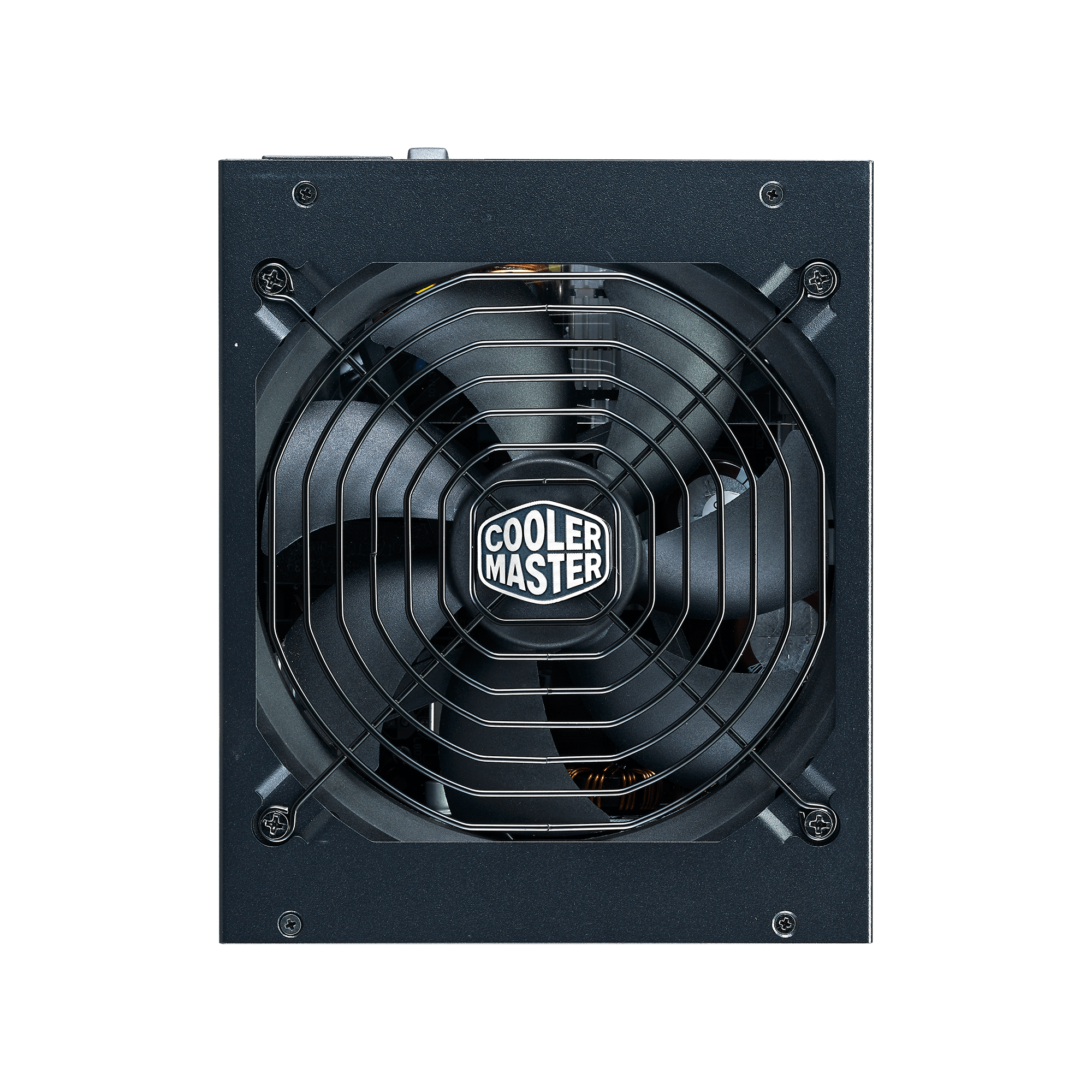

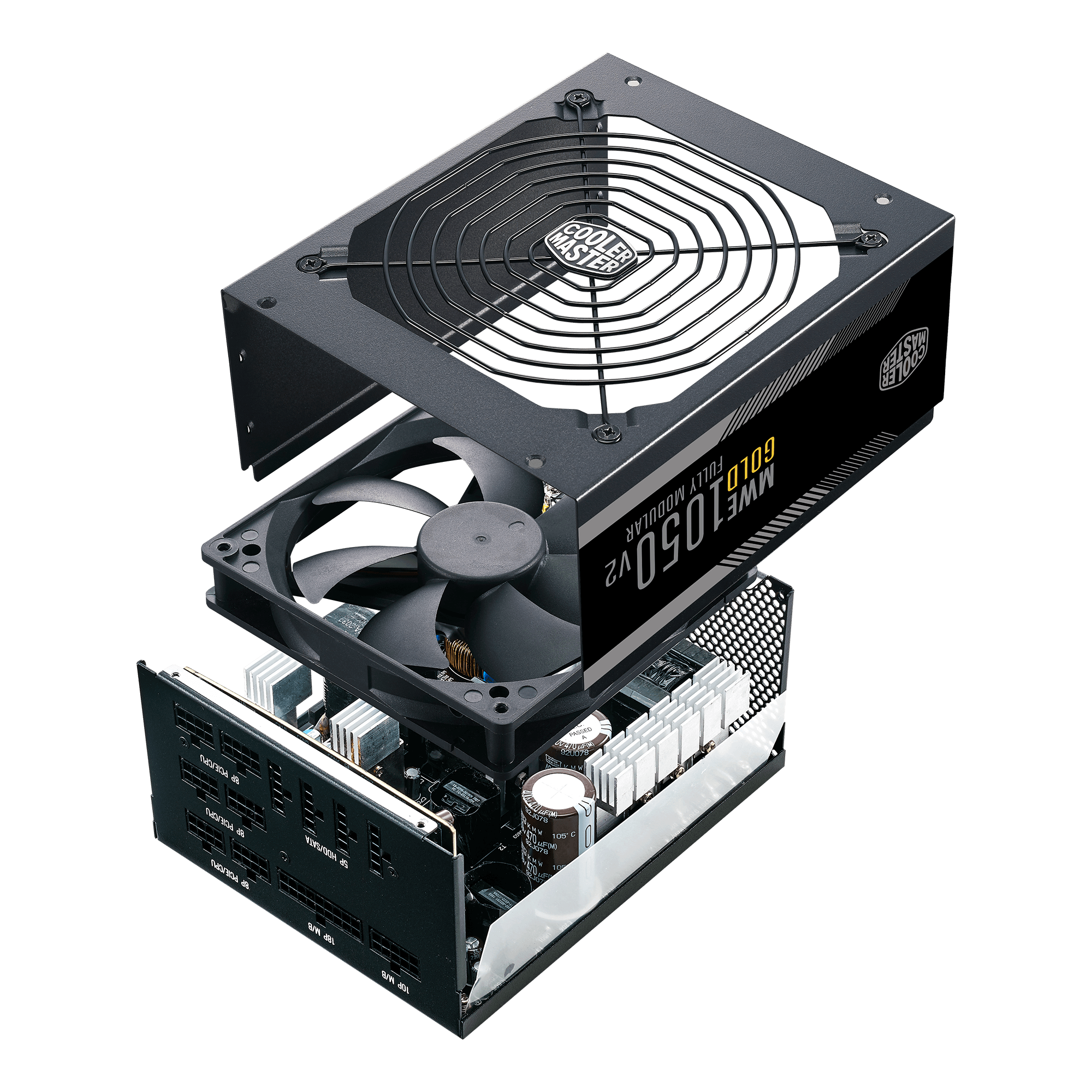

Quiet Cooling

Silence Fan with Smart Temp. Controlling Feature

MWE Gold 1050 & 1250 are equipped with a 140mm silence fan with smart temperature controlling feature. The fan supports 0 RPM to achieve 0 noise based on the scenario.

RTX Ready

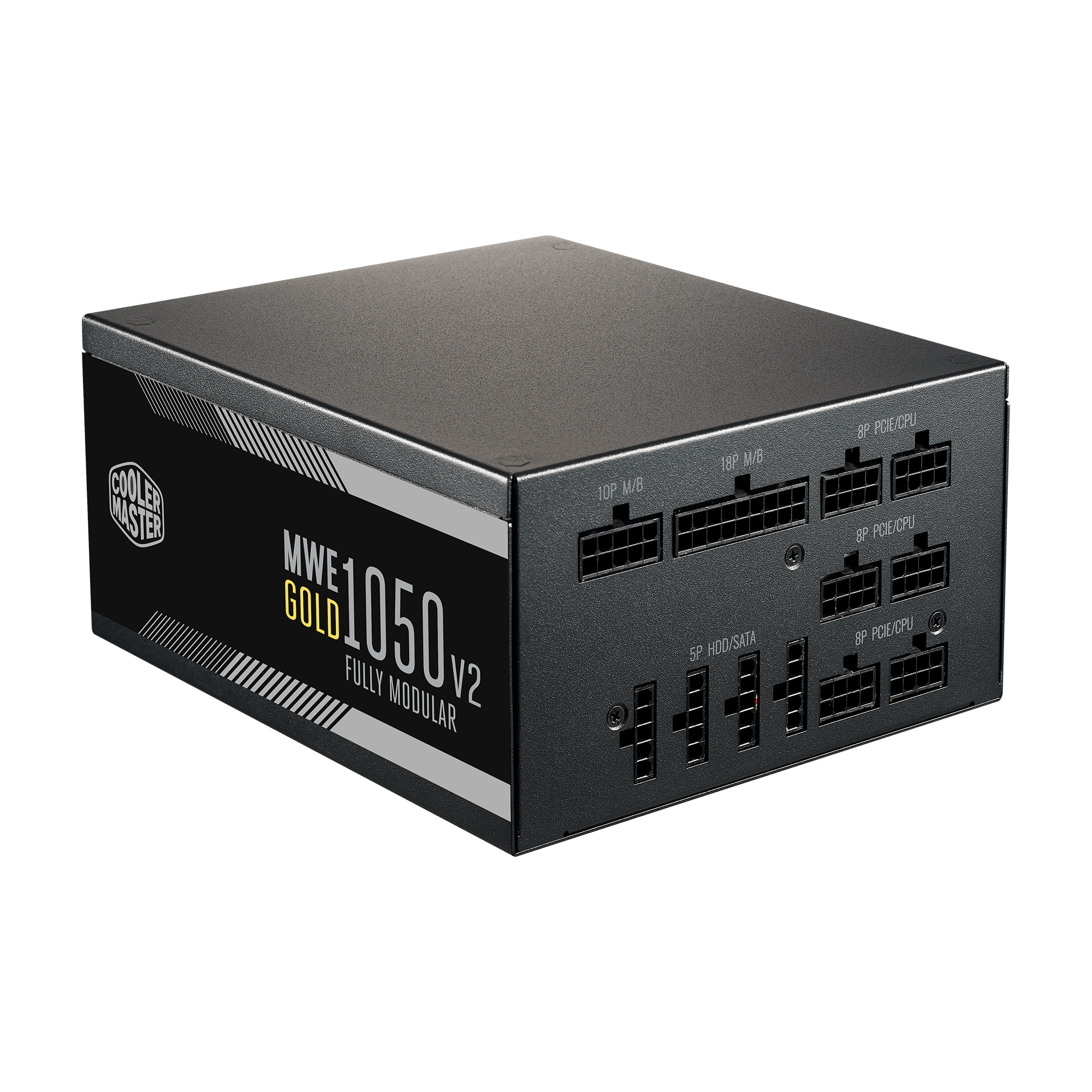

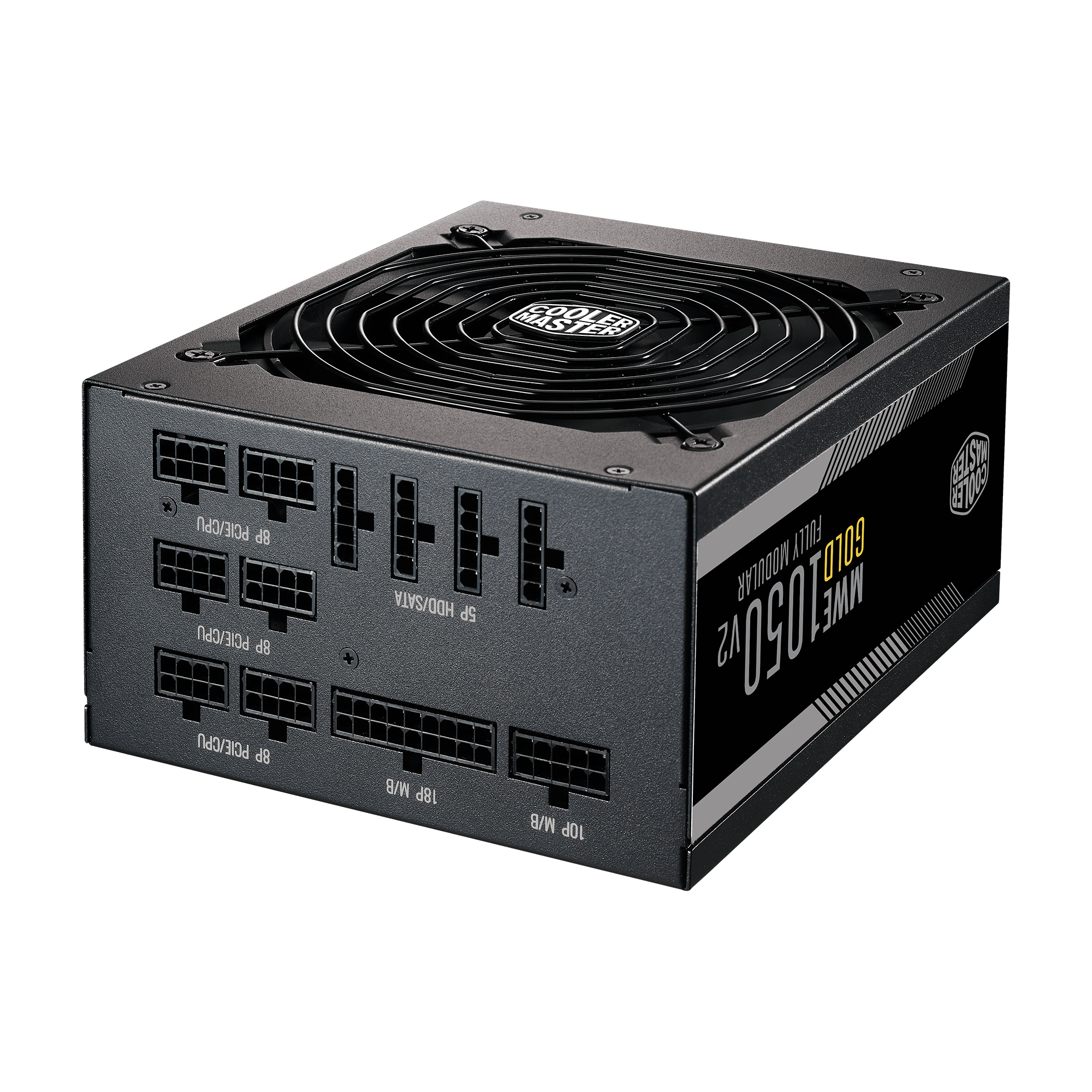

Full Modular Cabling

80 PLUS Gold Certified

規格

  • 型號 MPE-A501-AFCAG
  • ATX 版本 ATX 12V V2.52
  • 功率因數校正 主動式 PFC
  • 輸入電壓 100-240V
  • 輸入電流 13-6A
  • 輸入頻率 47-63Hz
  • 尺寸 (長 x 寬 x 高) 180 x 150 x 86 mm
  • 風扇尺寸 140mm
  • 風扇軸承 FDB
  • 風扇轉速 2200 RPM
  • 噪音水平 @ 20% 0 dBA
  • 噪音水平 @ 50% 14.9 dBA
  • 噪音水平 @ 100% 27.3 dBA
  • 轉換效率 典型轉換 ≥90%
  • 80 PLUS 評級 80 PLUS 金牌
  • ErP 2014 Lot 3 符合
  • 工作溫度 0-50°C
  • 電源良好信號 100 - 150 ms
  • 持續輸出時間 >20ms (100% 負載)
  • 平均故障間隔 (MTBF) >100,000 小時
  • 保護機制 UVP / OVP / OPP / OTP / SCP / OCP
  • 安規 TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB, UKCA

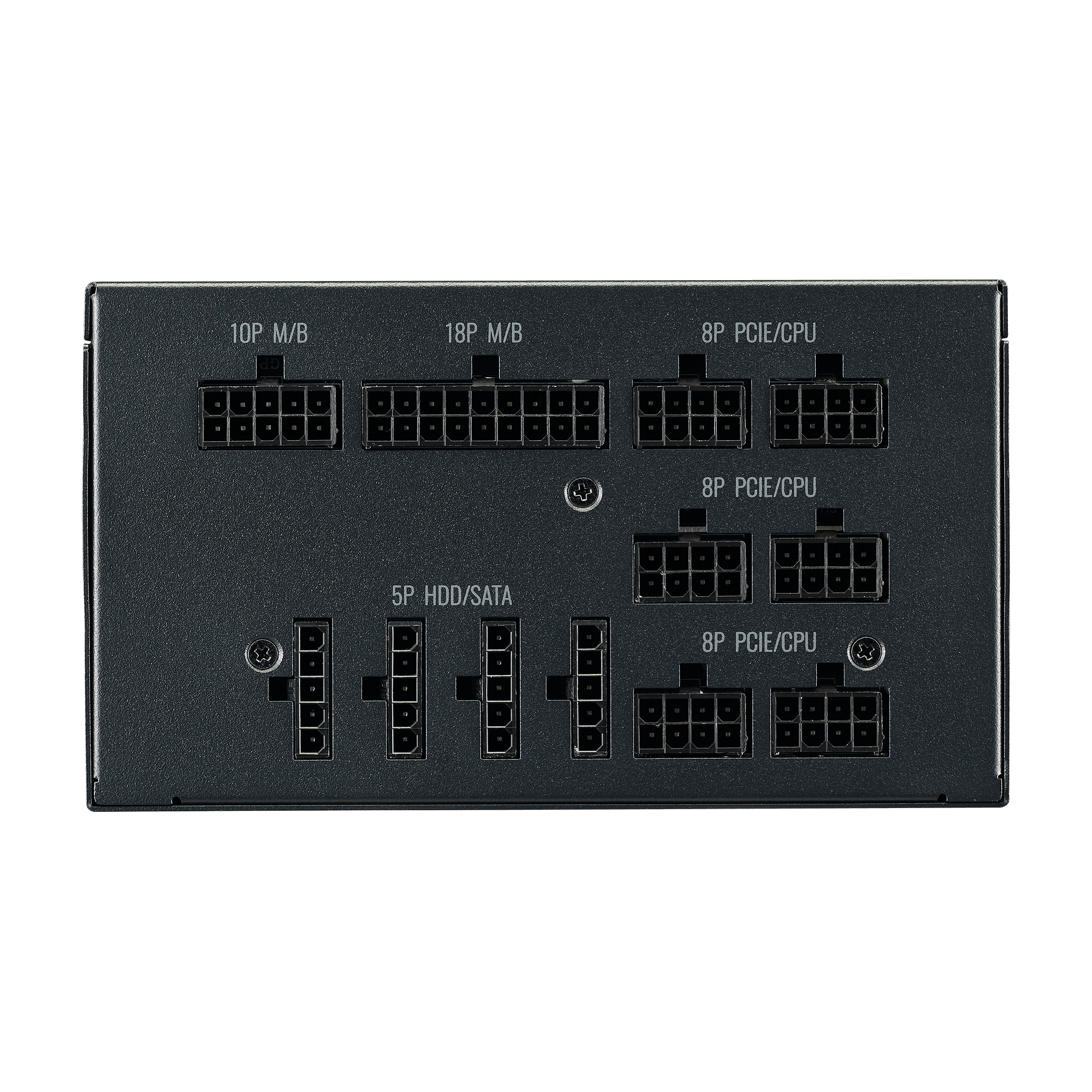

  • ATX 24 Pin 電源接頭 1
  • EPS 4+4 Pin 電源接頭 1
  • EPS 8 Pin 電源接頭 1
  • SATA 電源接頭 12
  • 周邊 4 Pin 電源接頭 4
  • PCI-e 6+2 Pin 電源接頭 6
  • 保固 10 年
  • 產品系列 MWE Gold 系列
  • 分類 750瓦以上
  • 模組化 全模組化
  • 80 Plus 金牌認證
  • Form Factor ATX
  • Watts 1050W
