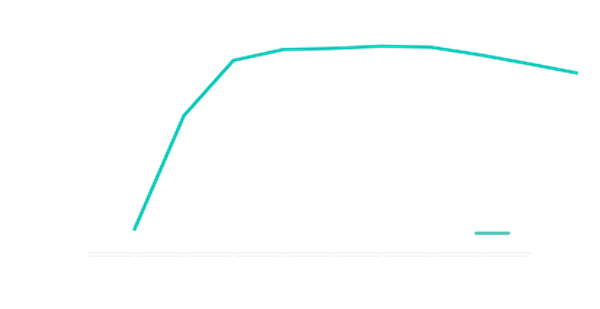

It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.
80 PLUS 銅牌認證

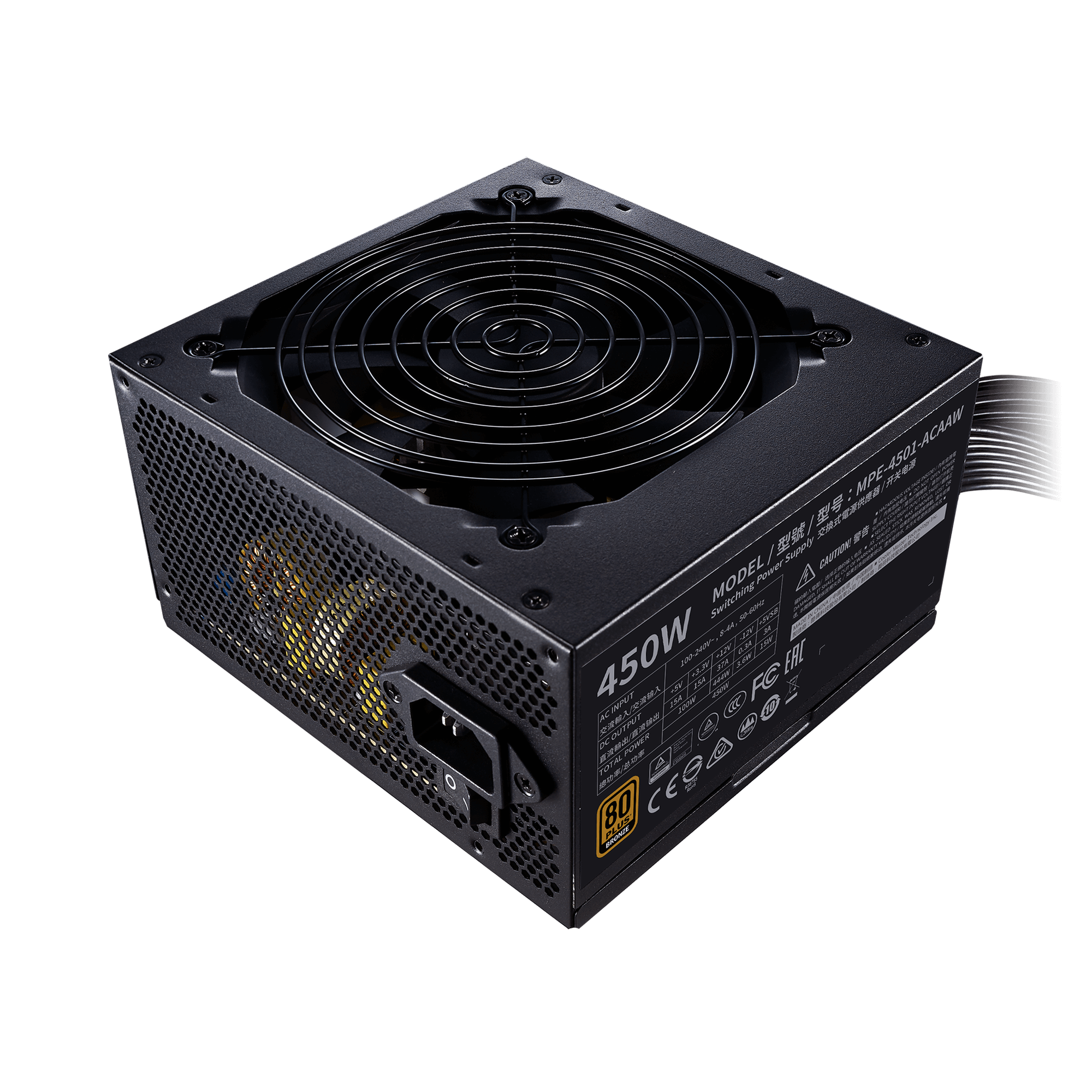

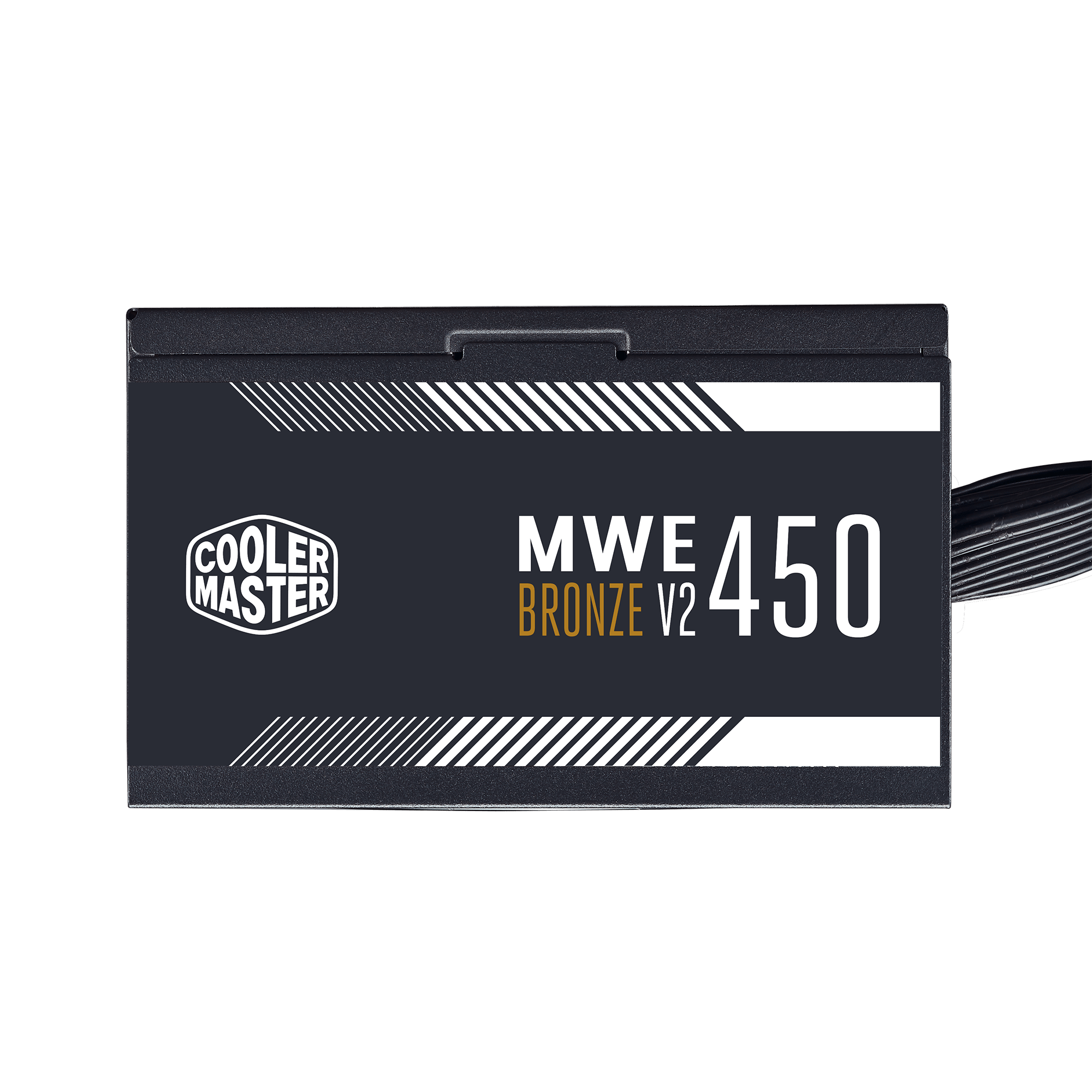

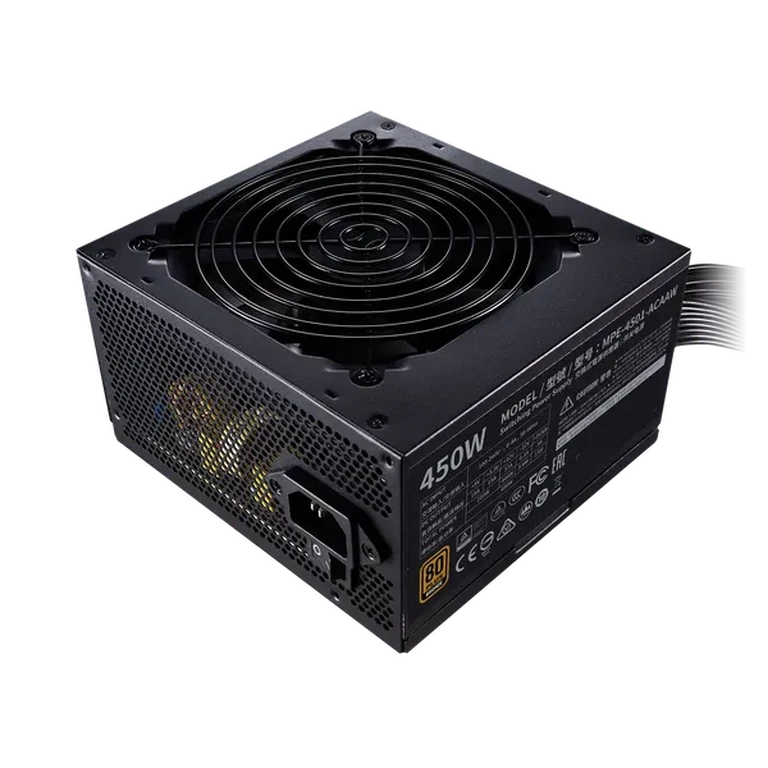

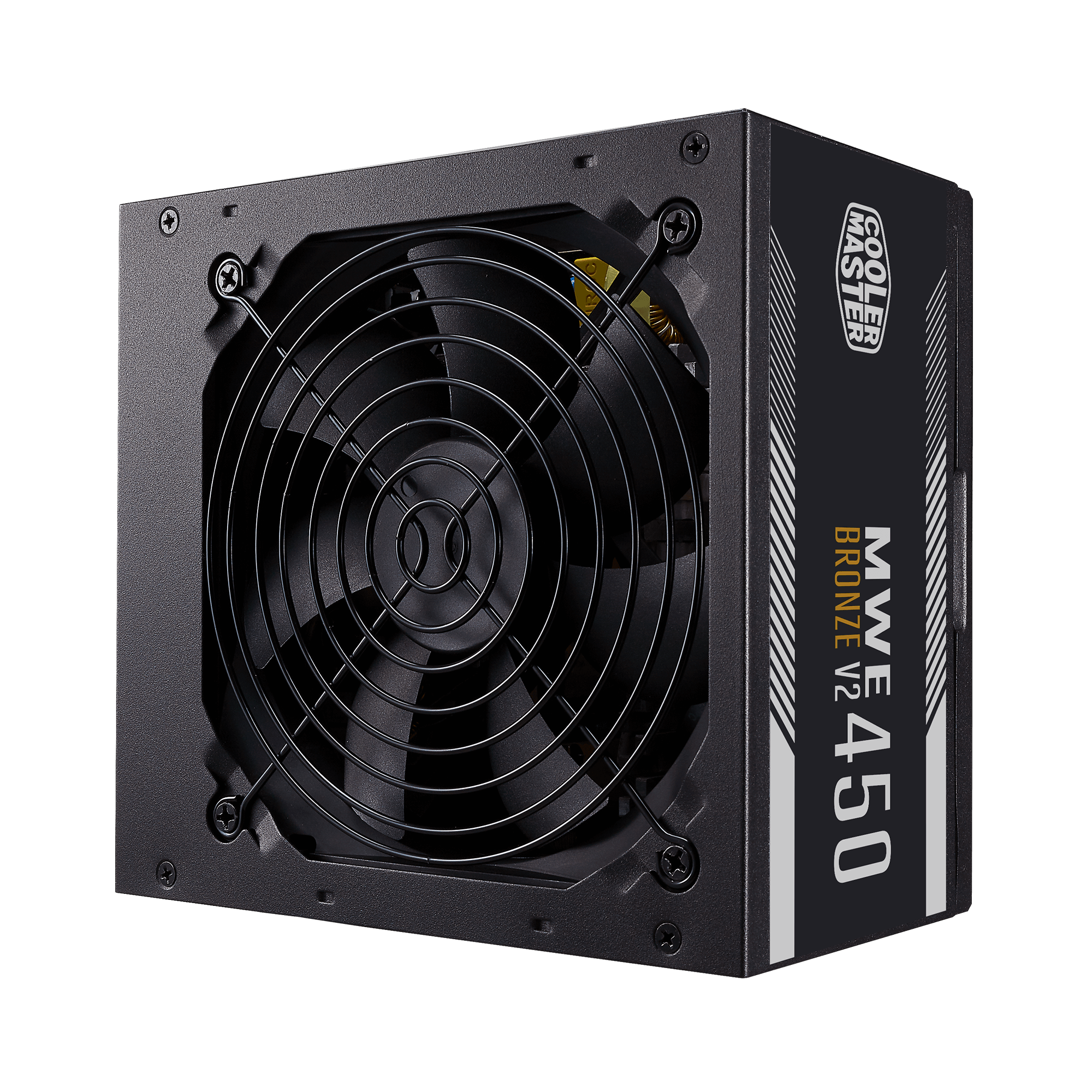

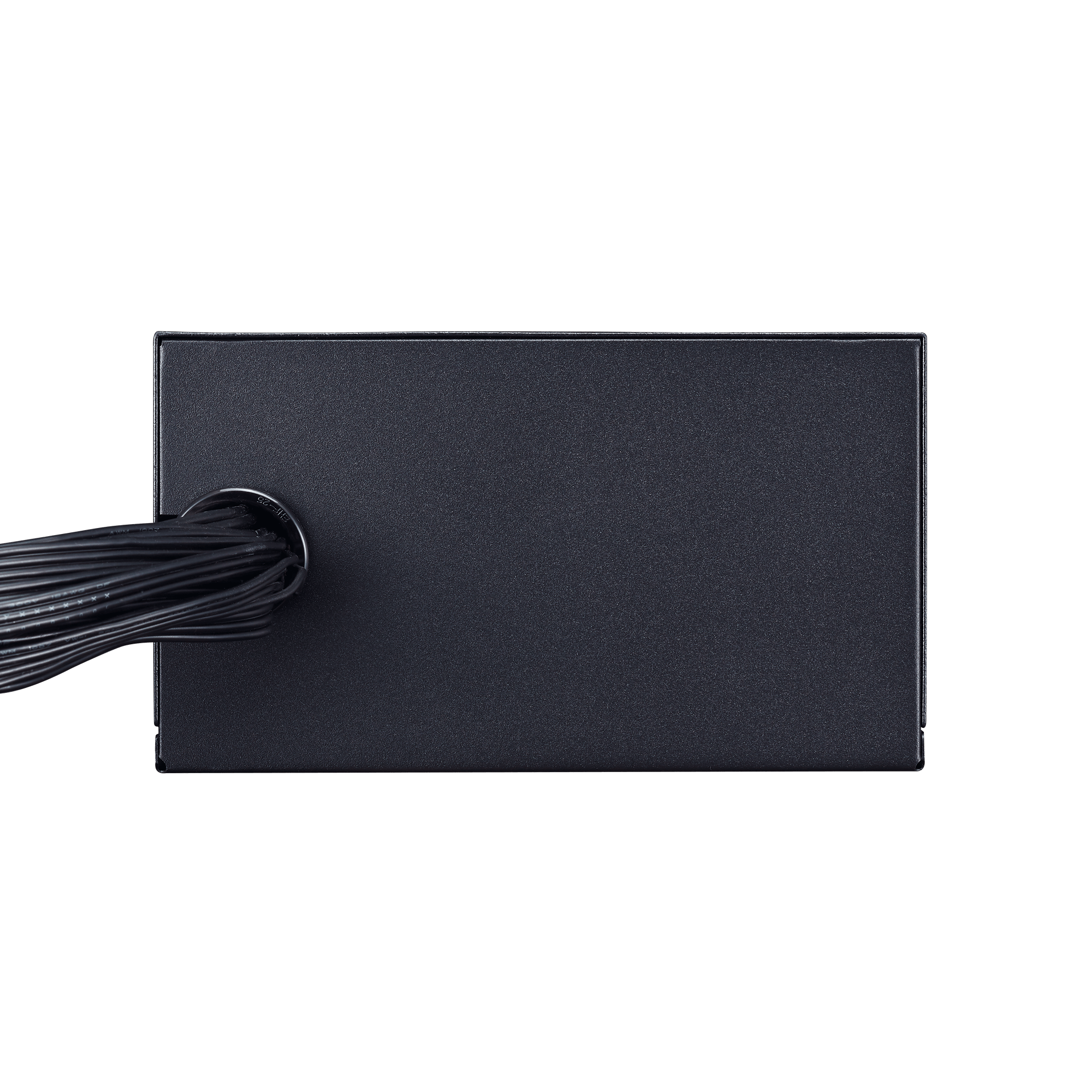

MWE 450 Bronze V2 Full Range
MWE Bronze V2電源系列提供給玩家們一個安全、可靠、效率的入門級別產品選擇，具備80 PLUS銅牌電源認證、DC to DC+ LLC電路設計、單路12V、主動式PFC，以及熱感應HDB風扇等特色。MWE Bronze V2將是玩家們組裝中階電腦最優質的選擇之一，不需要進行任何額外設定。
80 PLUS BRONZE CERTIFIED

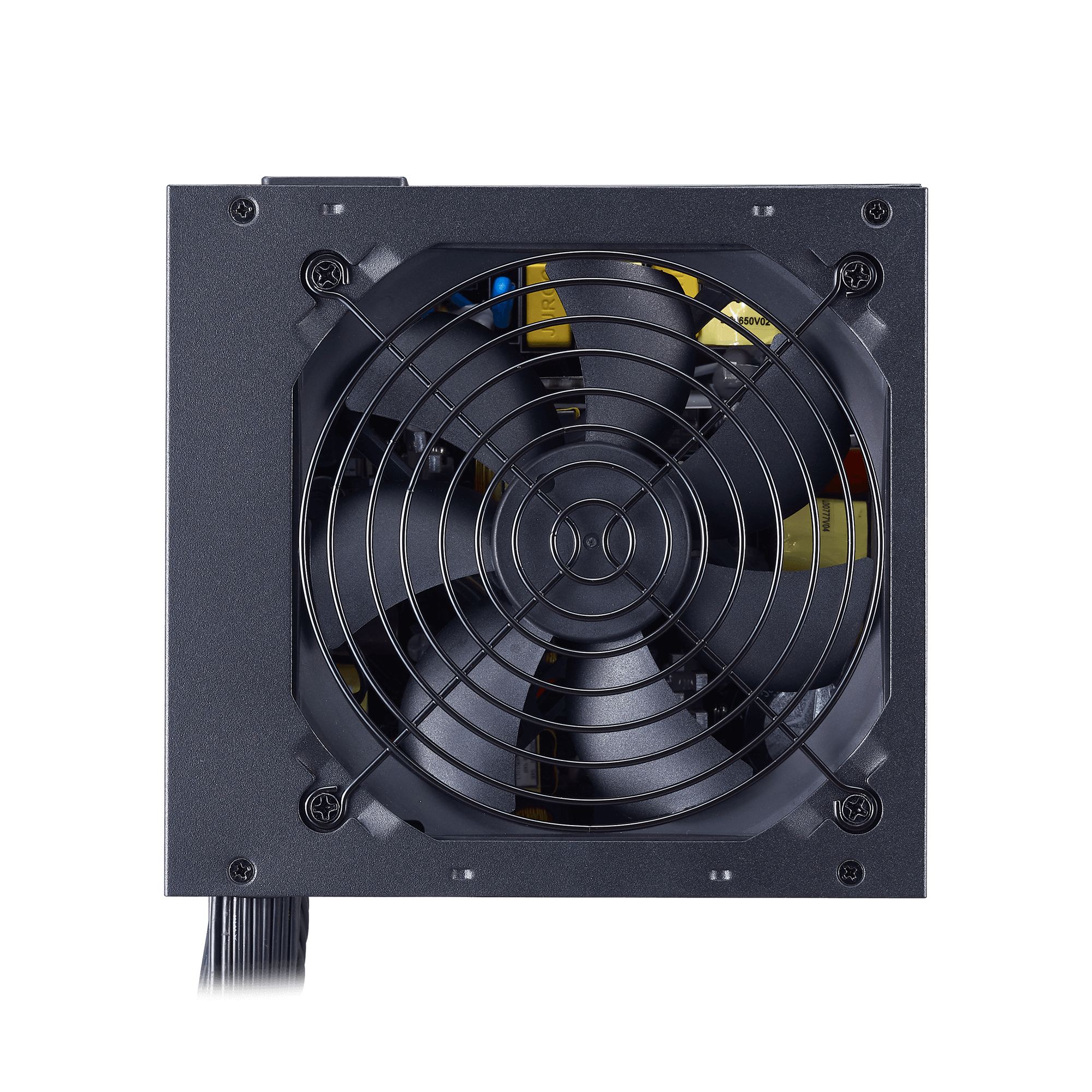

120MM HDB FAN

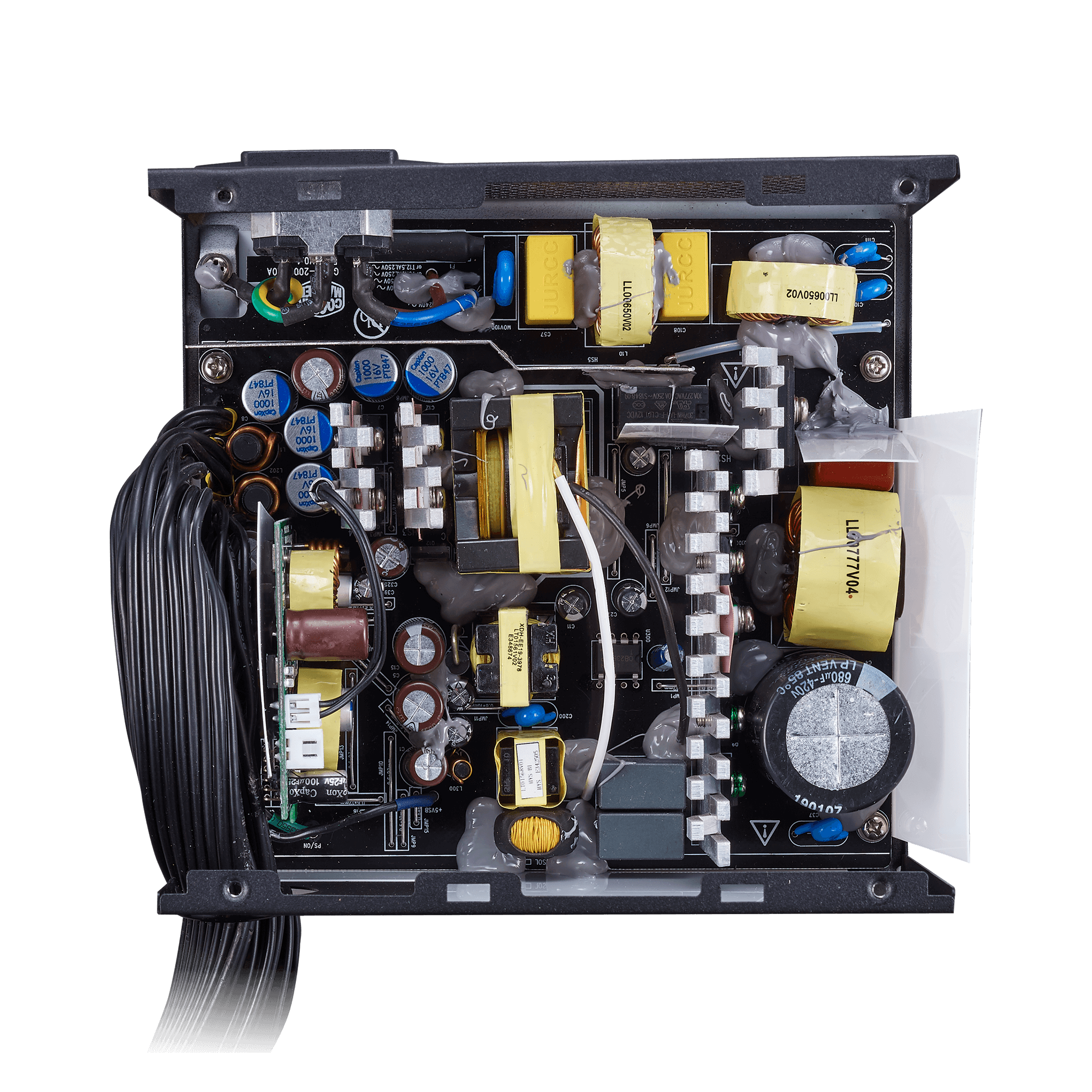

DC-TO-DC CIRCUIT DESIGN
SINGLE +12V RAIL
FLAT BLACK CABLES
For many PC Builders with aesthetics in mind, cabling can be one of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze - V2 uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
TECH SPECS

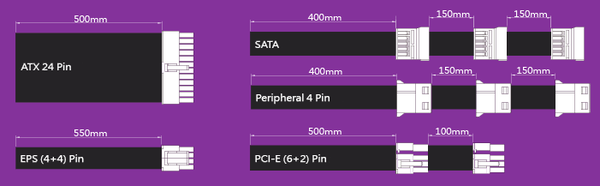

CABLE LENGTH
TECH SPECS

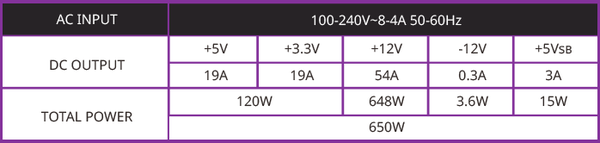

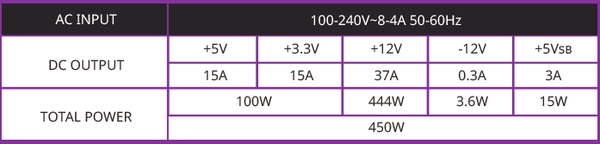

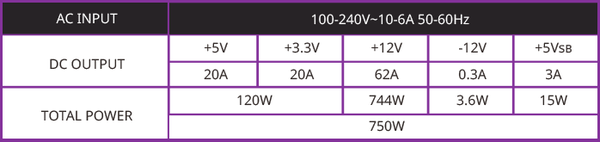

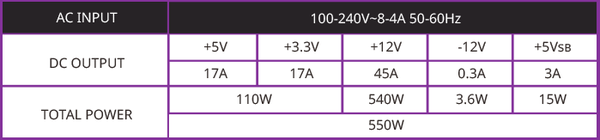

OUTPUT RATING
5 YEAR WARRANTY
The many processes required by a power supply unit in order to take power directly from the wall or other fixed power source, convert it to the correct output required by the connected components, and then distribute that power to said components safely can be full of risks. This is why it's important for a PSU to have the right protections and regulations to ensure this process runs correctly. The MWE Bronze - V2 is a safe, reliable product and as such Cooler Master is happy to offer a standard 5 year manufacturing warranty for all units in the series.
規格
- 功率因數校正 主動式 PFC
- 輸入頻率 50-60Hz
- 主機板 24 Pin 電源接頭 1
- ErP 2014 Lot 3 符合
- EPS 4+4 Pin 電源接頭 1
- 電源良好信號 100 - 500 ms
- 平均故障間隔 (MTBF) >100,000 小時
- 風扇尺寸 120mm
- 80 PLUS 評級 80 PLUS 銅牌
- 分類 500瓦以下
- 模組化 無模組化
- 風扇軸承 HDB
- 轉換效率 典型轉換 85%
- 80 Plus 銅牌認證
- 輸入電壓 100-240V
- PCI-e 6+2 Pin 電源接頭 2
- SATA 電源接頭 6
- 風扇轉速 1500 RPM
- 工作溫度 40°C
- 產品系列 MWE Bronze 系列
- ATX 版本 ATX 12V V2.52
- 周邊 4 Pin 電源接頭 3
- 保護機制 OVP
- 保護機制 OPP
- 持續輸出時間 >14ms (100% 負載)
- 噪音水平 @ 20% 11.18 dBA
- 保護機制 SCP
- 尺寸 (長 x 寬 x 高) 140 x 150 x 86 mm
- 保護機制 UVP
- 噪音水平 @ 100% 29.5 dBA
- 噪音水平 @ 50% 17.1 dBA
- 保護機制 OTP
- 輸入電流 8-4A
- 安規 CCC
- 安規 CE
- 安規 TUV-RH
- 安規 RCM
- 安規 EAC
- 安規 cTUVus
- 安規 FCC
- 安規 BSMI
- 安規 KC
- 安規 CB

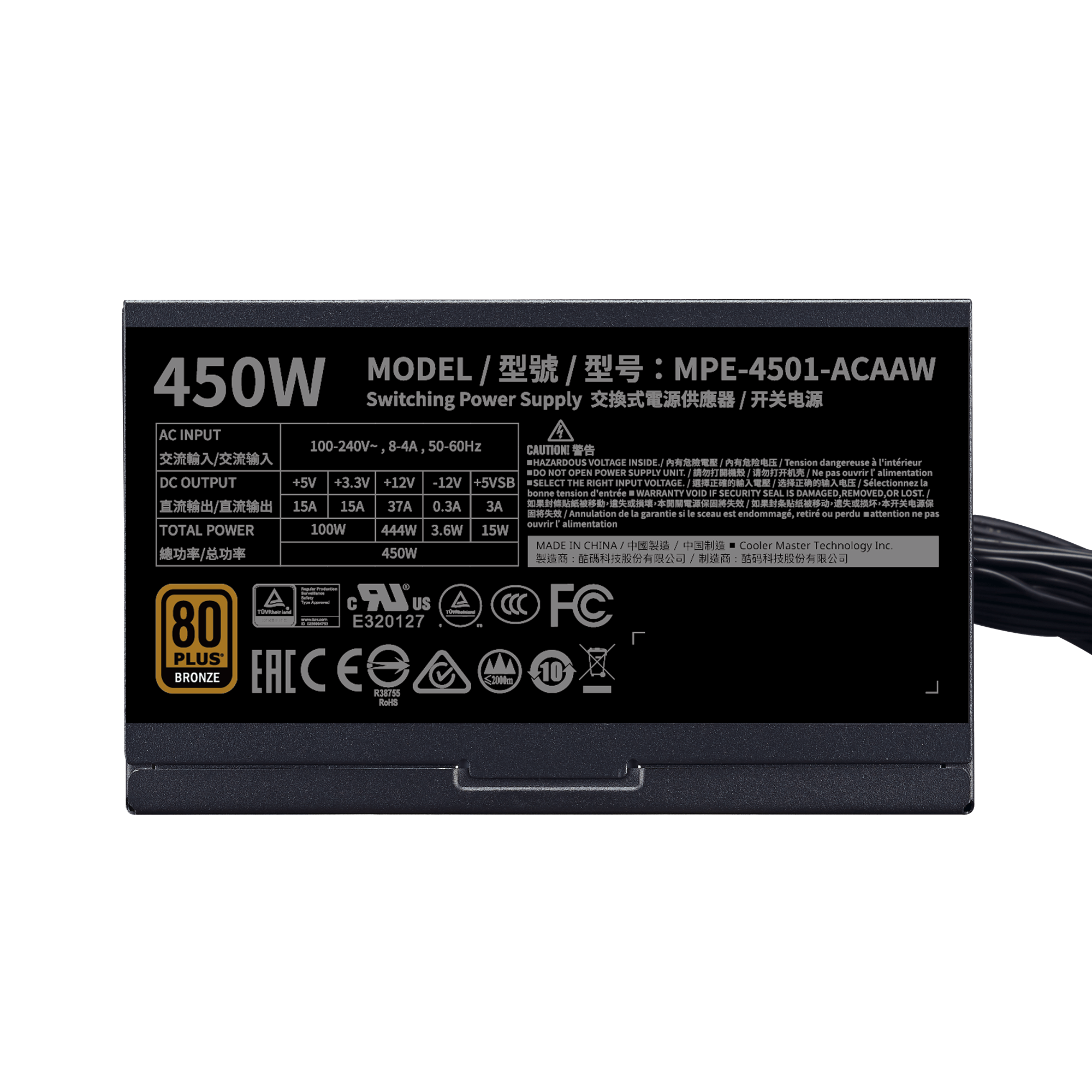

- 型號 MPE-4501-ACAAW
