It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.
80 Plus Bronze Certified 230V Power Supply Unit

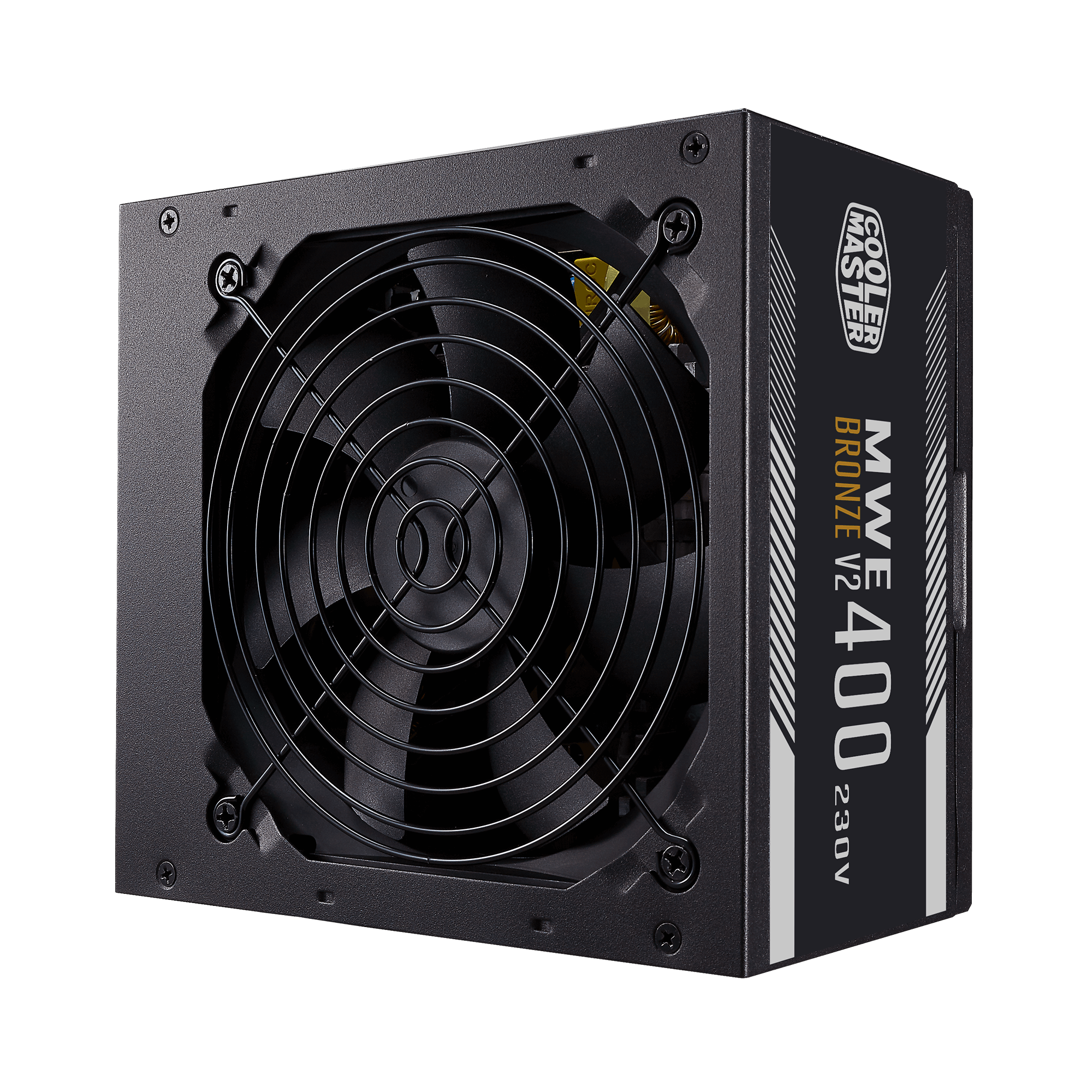

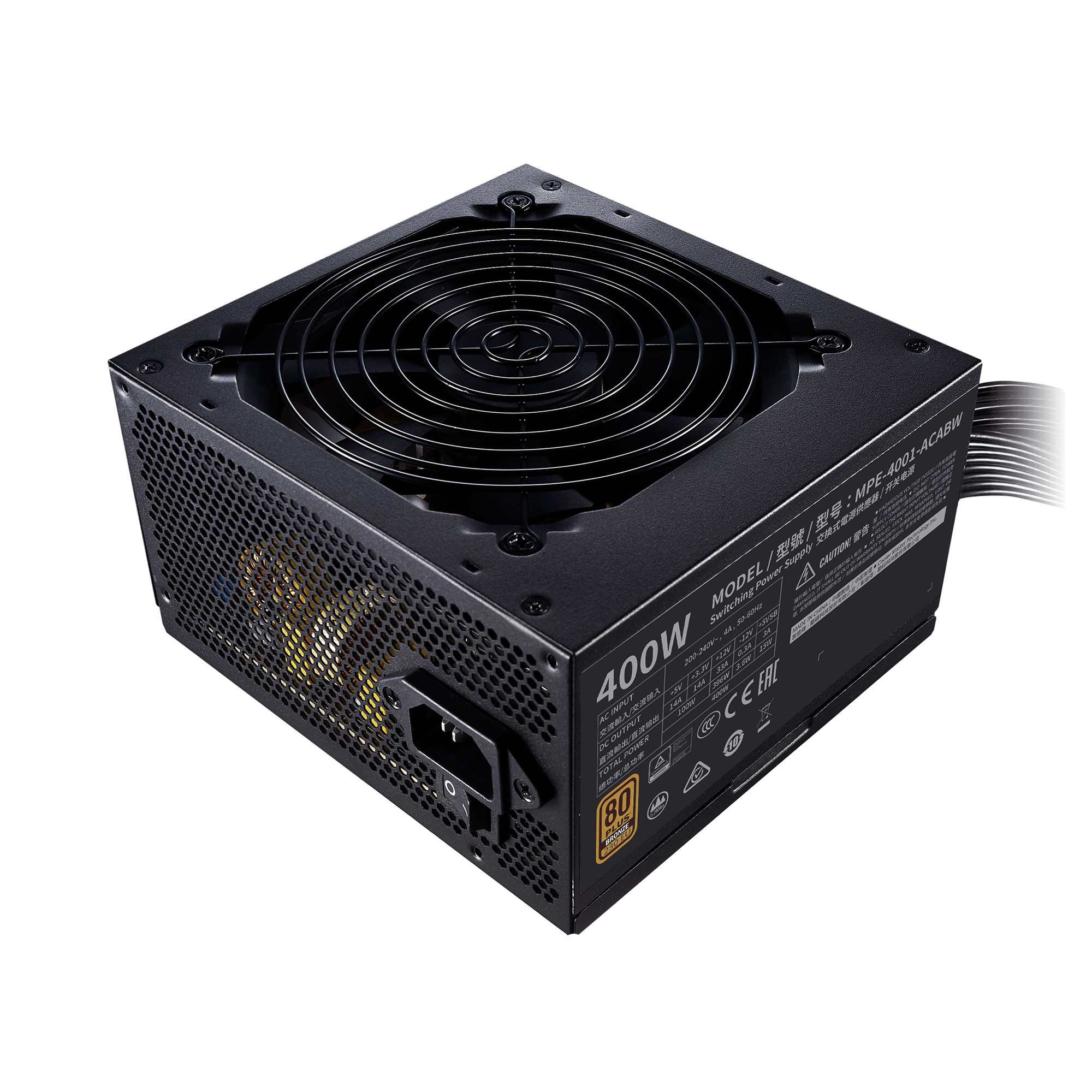

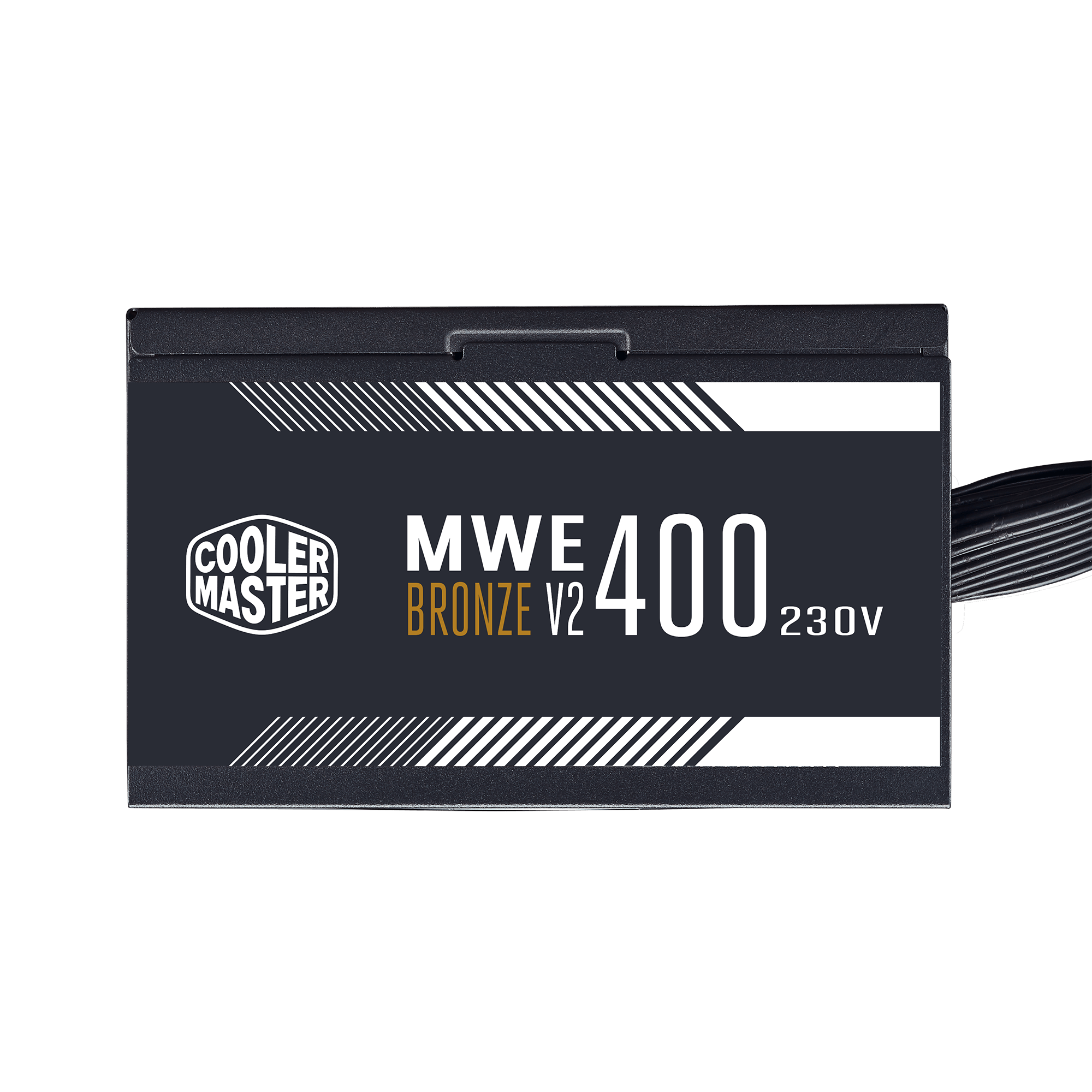

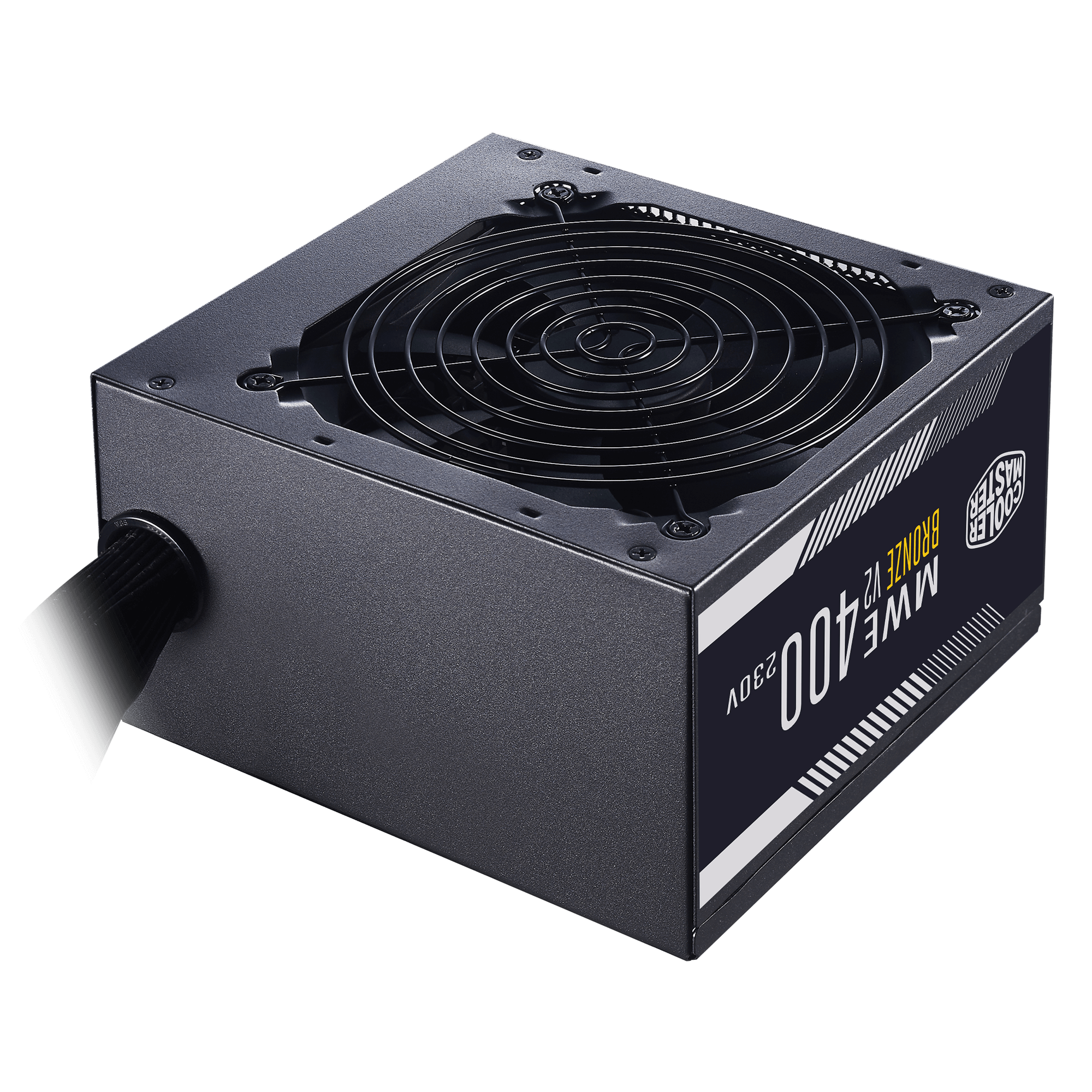

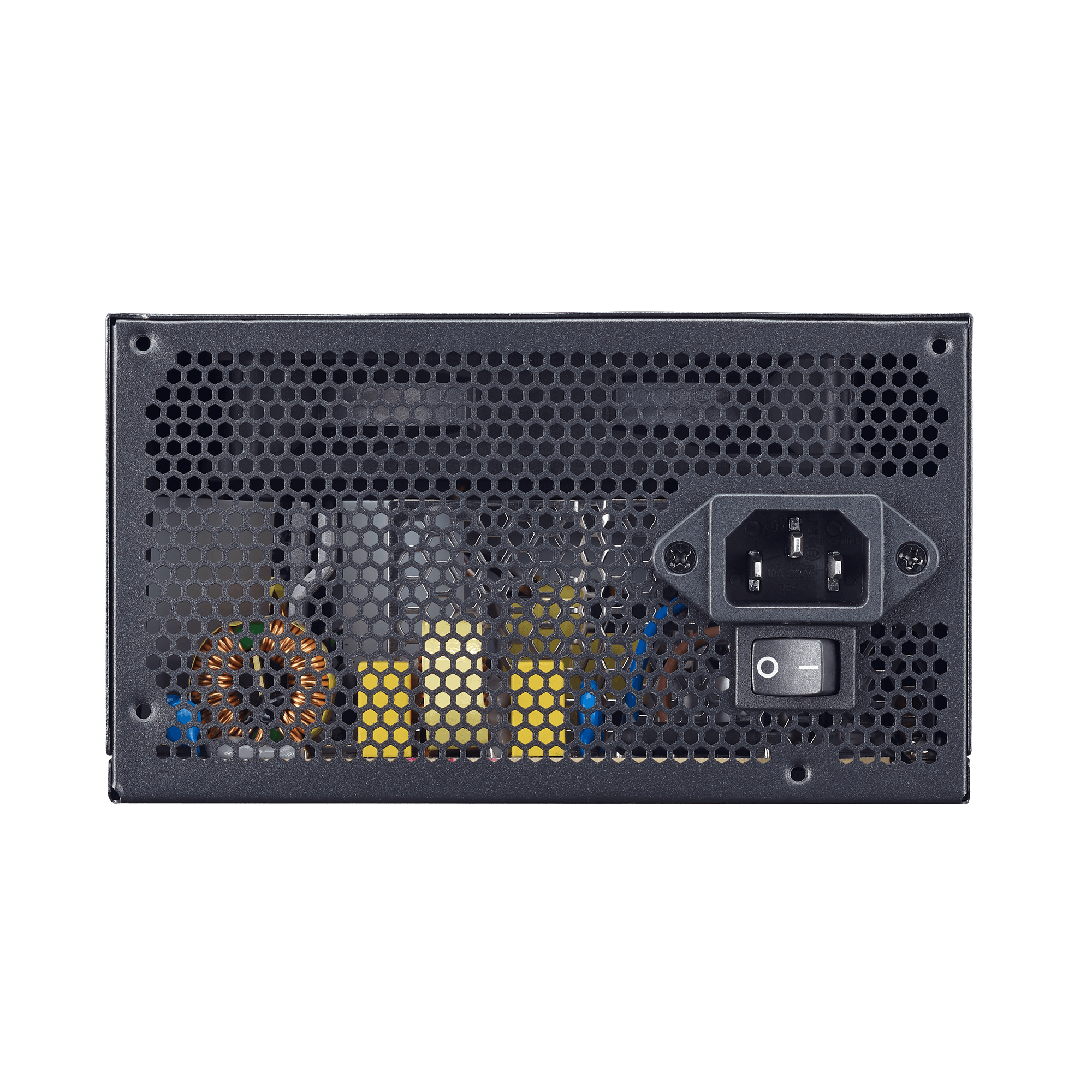

MWE 400 Bronze - V2 230V
The MWE Bronze V2 offers 80 PLUS Bronze certification, guaranteeing an average efficiency of 88% at typical load. The DC-to-DC + LLC circuit design...
80 PLUS BRONZE CERTIFIED

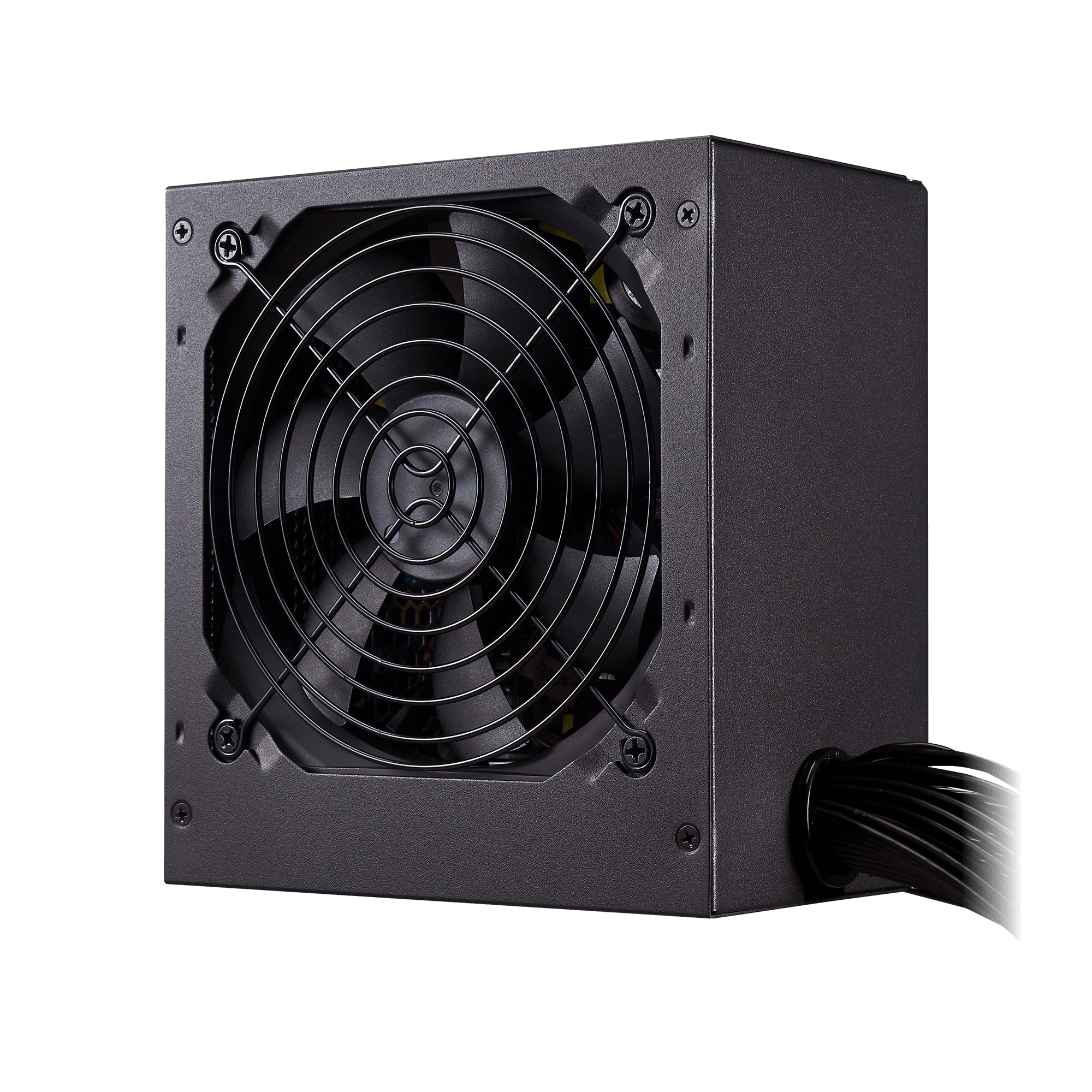

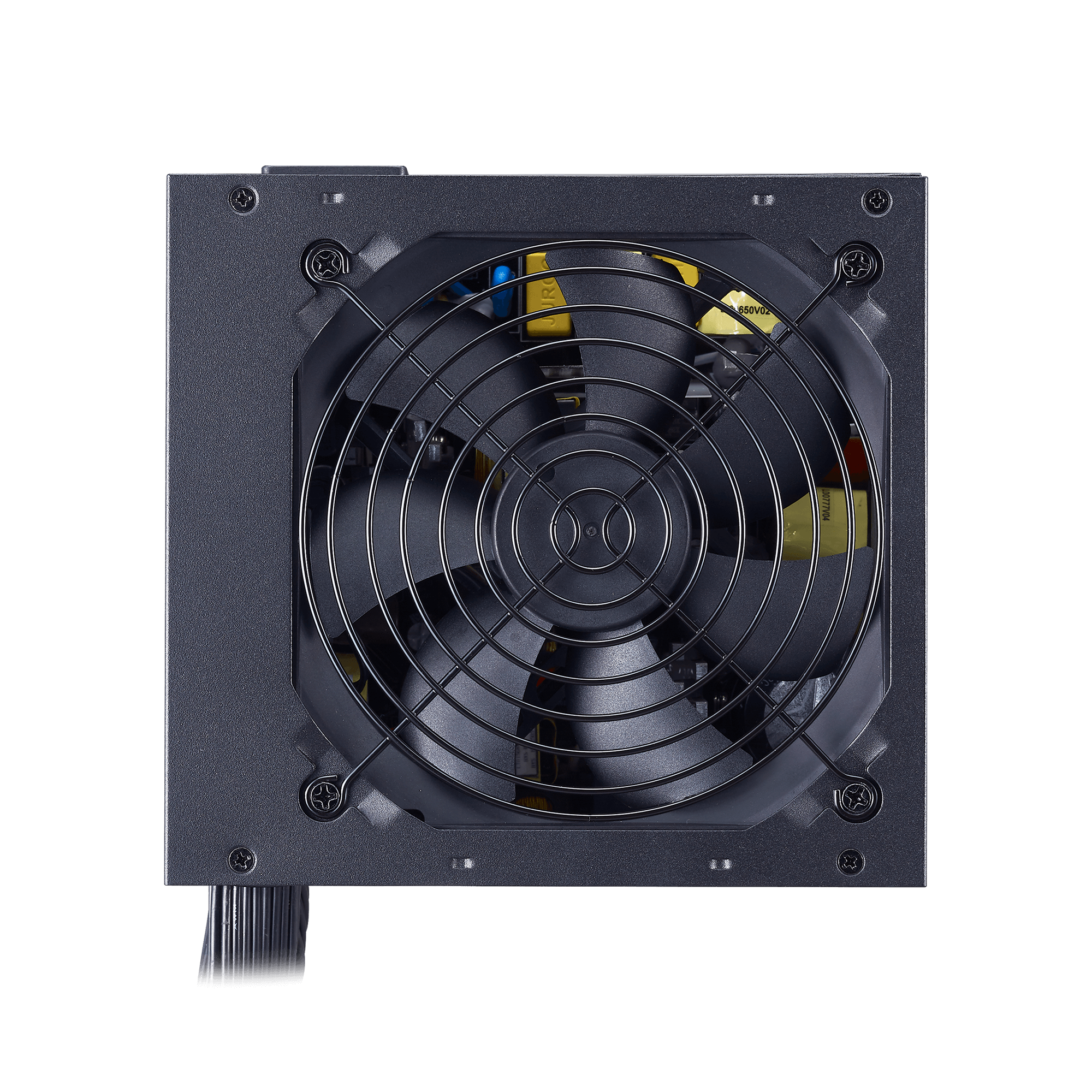

120MM HDB FAN

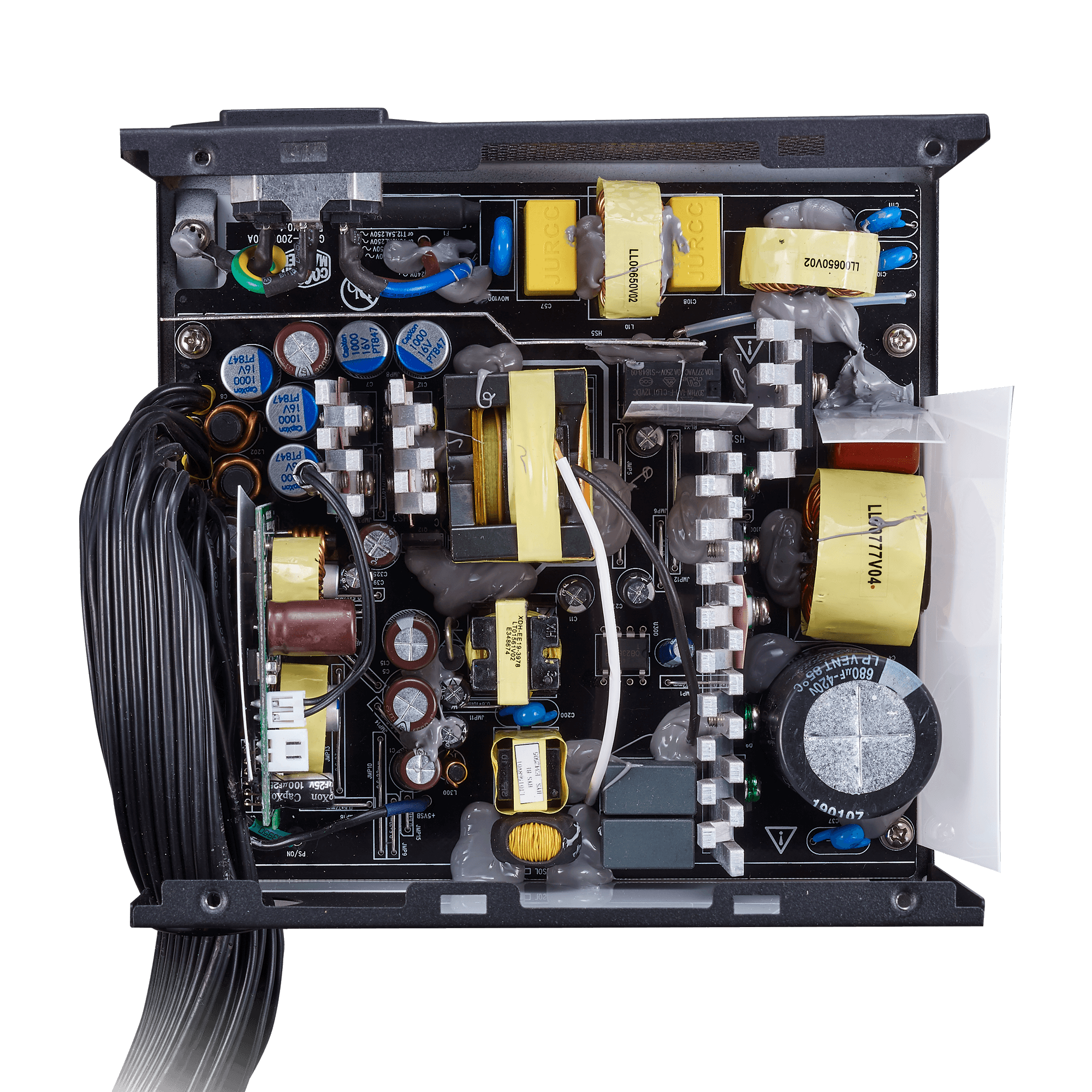

DC-TO-DC CIRCUIT DESIGN
SINGLE +12V RAIL
FLAT BLACK CABLES
For many PC Builders with aesthetics in mind, cabling can be one of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze - V2 uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
TECH SPECS
CABLE LENGTH
TECH SPECS

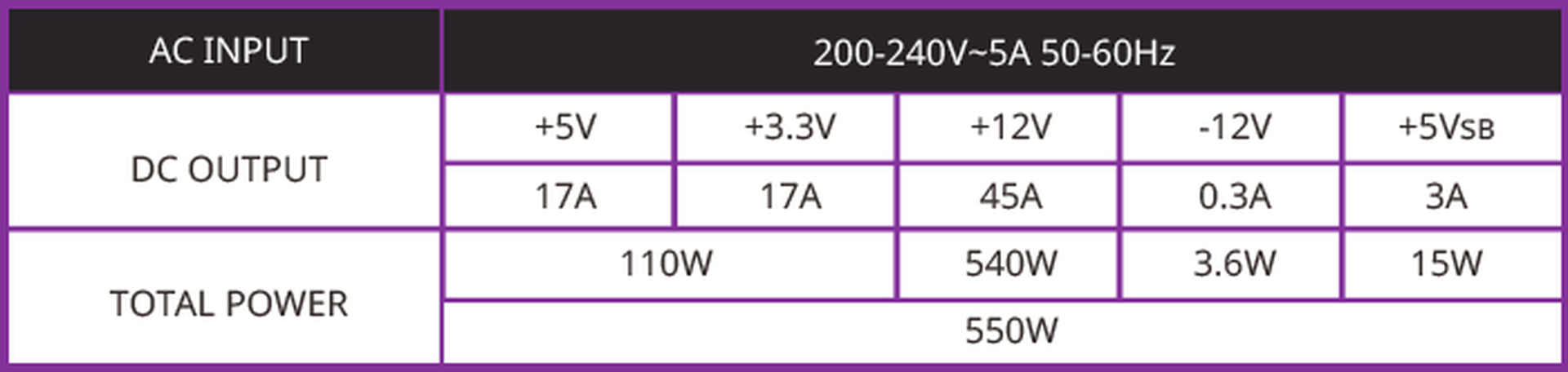

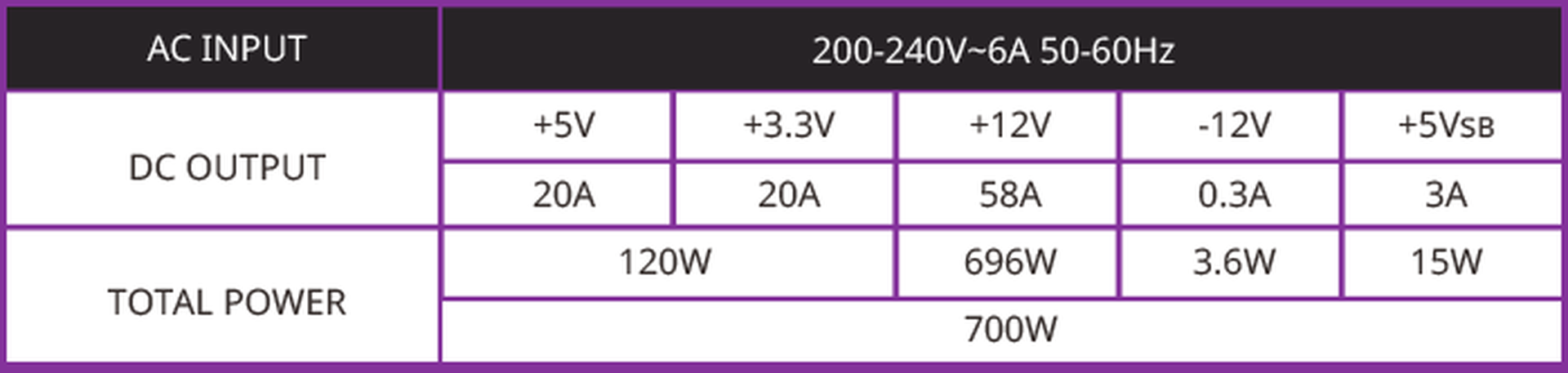

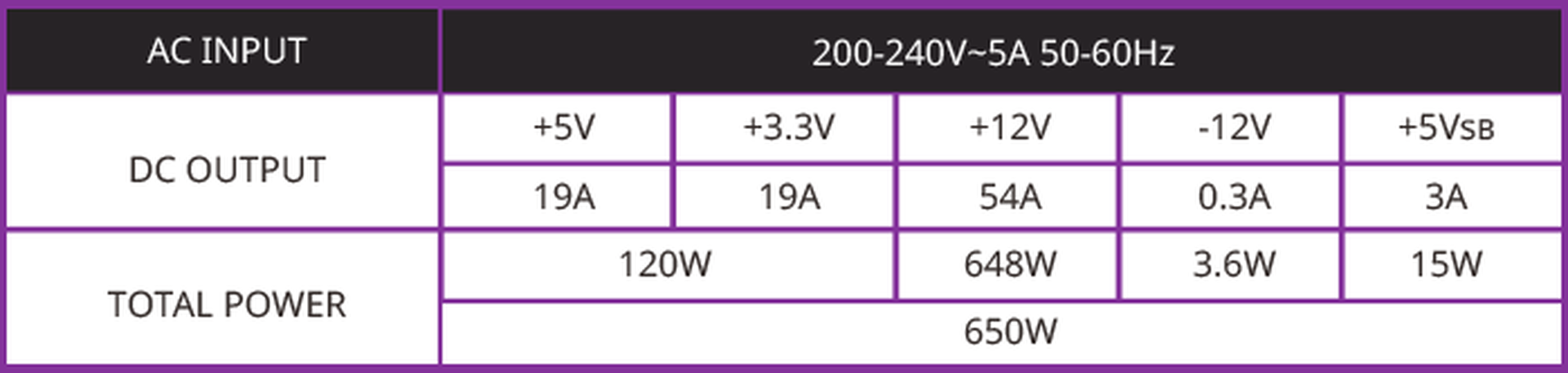

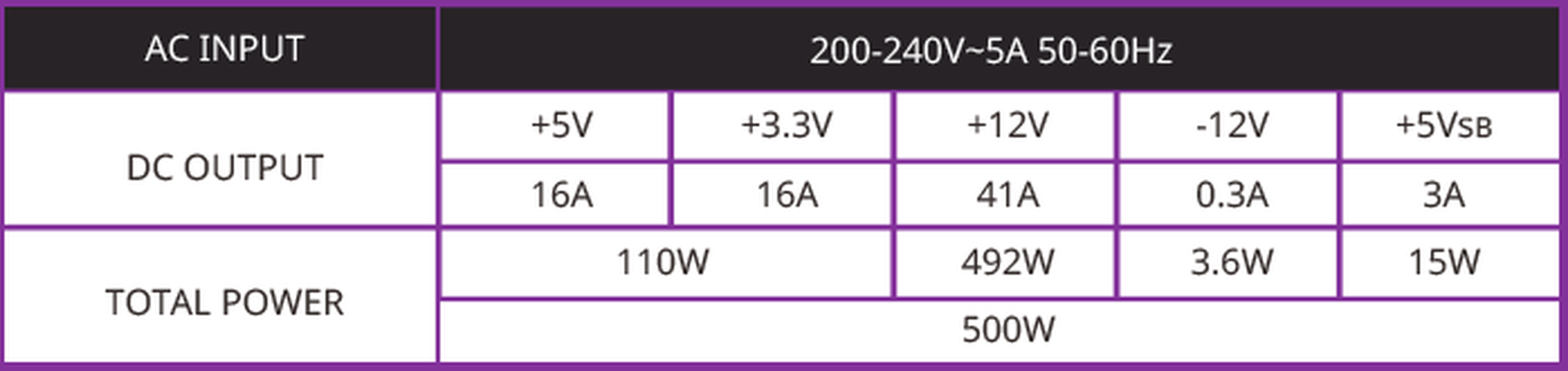

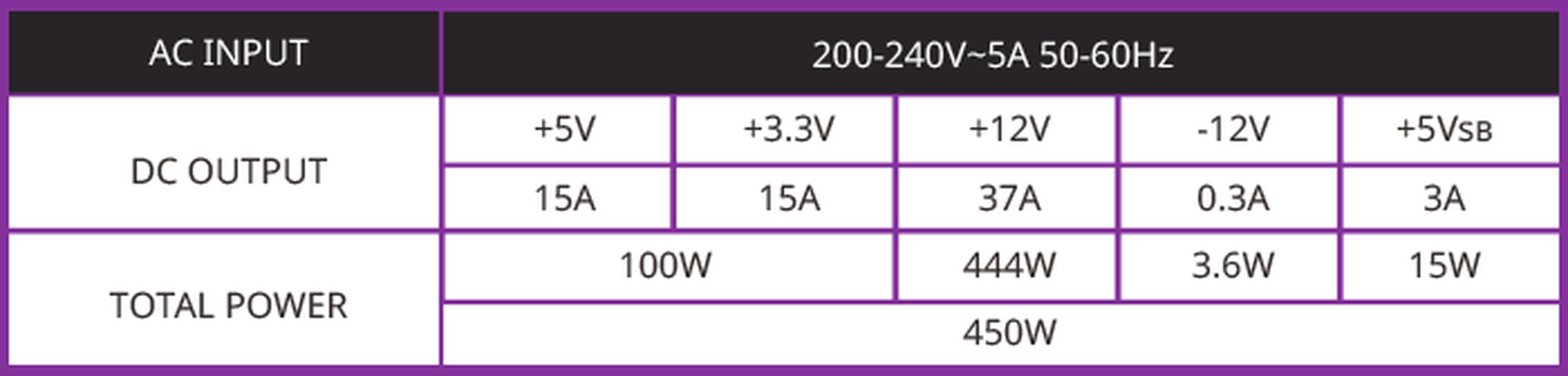

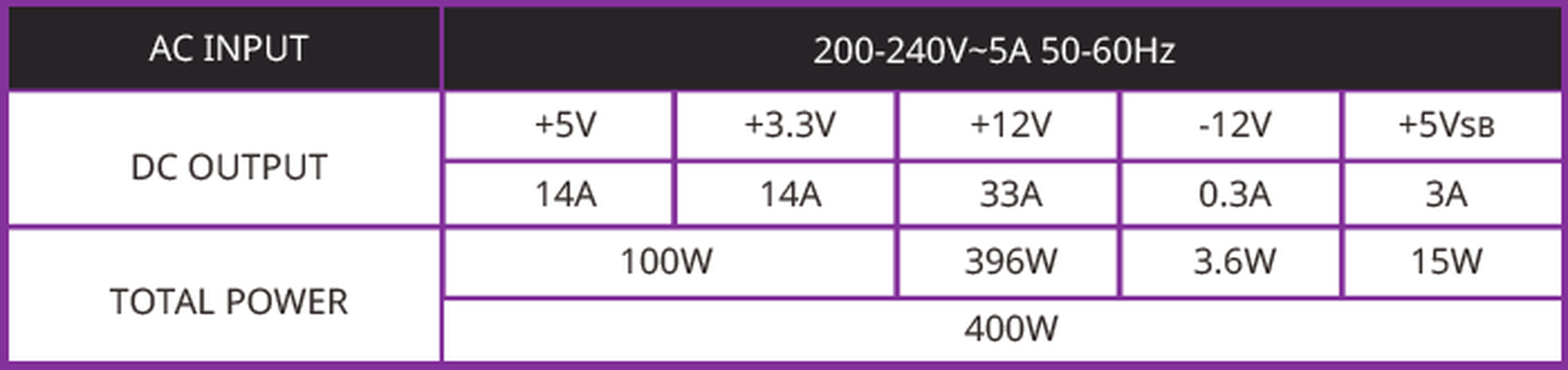

OUTPUT RATING
5 YEAR WARRANTY
The many processes required by a power supply unit in order to take power directly from the wall or other fixed power source, convert it to the correct output required by the connected components, and then distribute that power to said components safely can be full of risks. This is why it's important for a PSU to have the right protections and regulations to ensure this process runs correctly. The MWE Bronze - V2 is a safe, reliable product and as such Cooler Master is happy to offer a standard 5 year manufacturing warranty for all units in the series.
規格
- 功率因數校正 主動式 PFC
- ErP 2014 Lot 3 符合
- 輸入頻率 50-60Hz
- ATX 24 Pin 電源接頭 1
- EPS 4+4 Pin 電源接頭 1
- 風扇尺寸 120mm
- 電源良好信號 100 - 500 ms
- 平均故障間隔 (MTBF) >100,000 小時
- 分類 500瓦以下
- 風扇軸承 HDB
- 模組化 無模組化
- 80 Plus 銅牌認證
- SATA 電源接頭 6
- 風扇轉速 1500 RPM
- 轉換效率 典型轉換 88%
- 80 PLUS 評級 80 PLUS 銅牌 EU 230V
- 產品系列 MWE Bronze 系列
- ATX 版本 ATX 12V V2.52
- 保護機制 OVP
- 周邊 4 Pin 電源接頭 3
- PCI-e 6+2 Pin 電源接頭 1
- 保護機制 OPP
- 尺寸 (長 x 寬 x 高) 140 x 150 x 86 mm
- 持續輸出時間 >14ms (100% 負載) 230Vac
- 保護機制 SCP
- 保護機制 UVP
- 保護機制 OTP
- 噪音水平 @ 50% 17.7 dBA
- 噪音水平 @ 100% 30.4 dBA
- 輸入電流 8-4A
- 輸入電壓 200-240Vac
- 安規 CCC
- 噪音水平 @ 20% 13.4 dBA
- 安規 CE
- 安規 TUV-RH
- 安規 RCM
- 安規 EAC
- 安規 cTUVus
- 安規 FCC
- 安規 BSMI
- 安規 KC
- 安規 CB

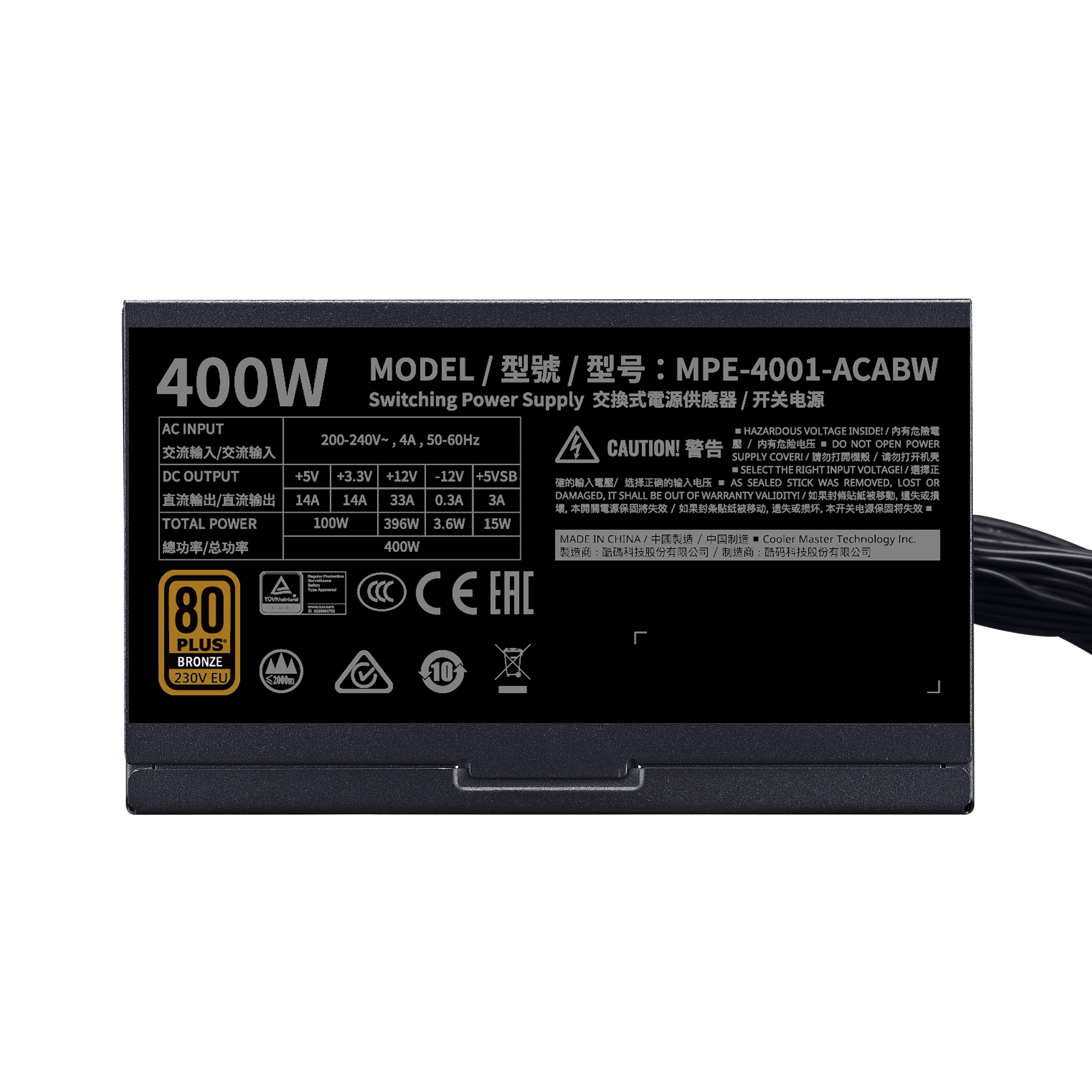

- 型號 MPE-4001-ACABW-B
