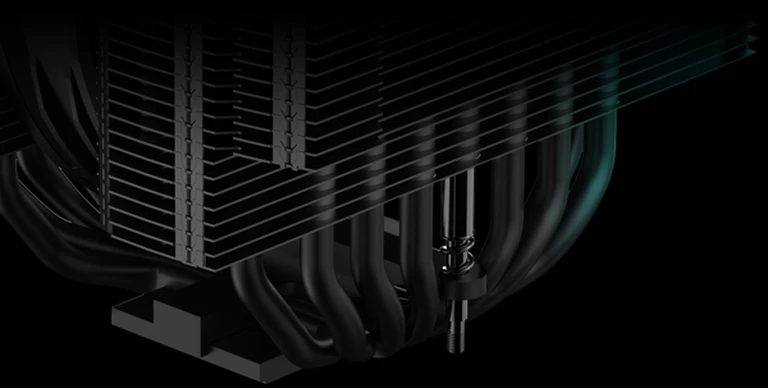

8 In-house Designed Superconductive Composite Heat Pipes
8 Superconductive composite heat pipes utilize groove and powder wick structure with dual variable heat pipe thickness for maximum efficiency of heat transfer.
再創經典

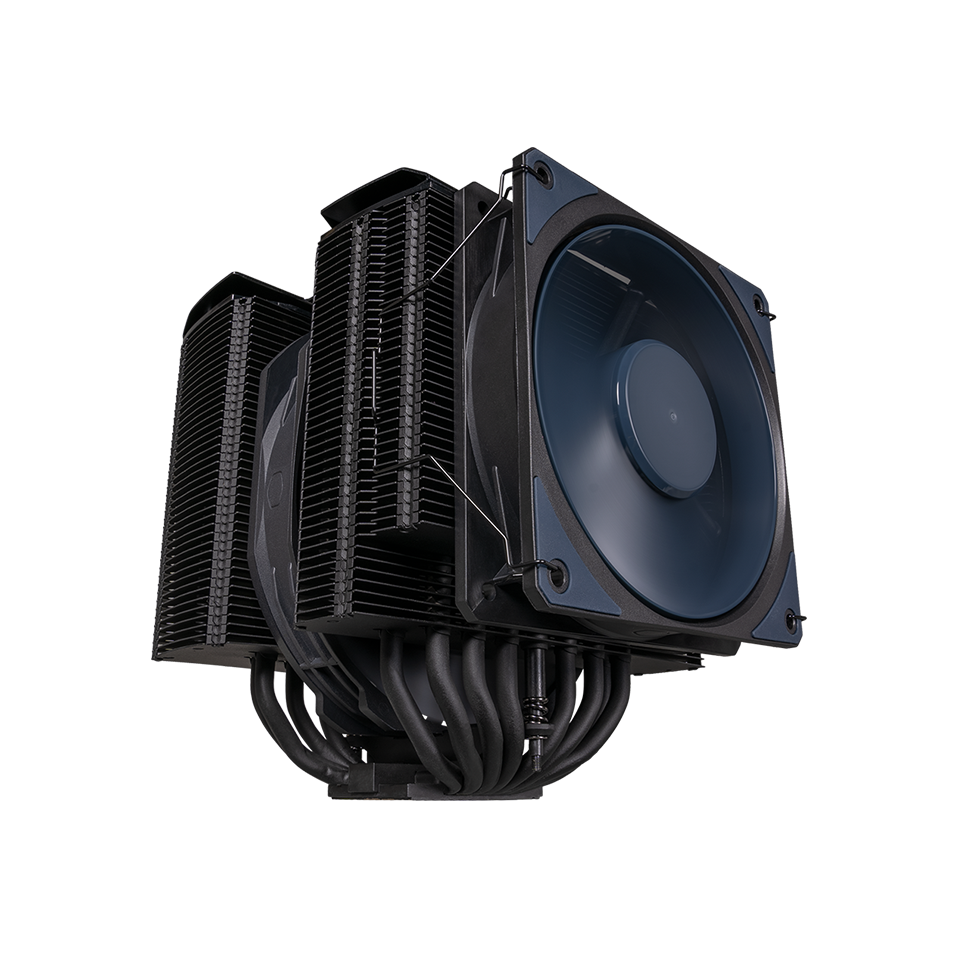

MasterAir MA824 Stealth CPU散熱器
Cooler Master 正式推出旗艦型空冷散熱器，Stealth 系列的最新產品 - MA824 Stealth。
model

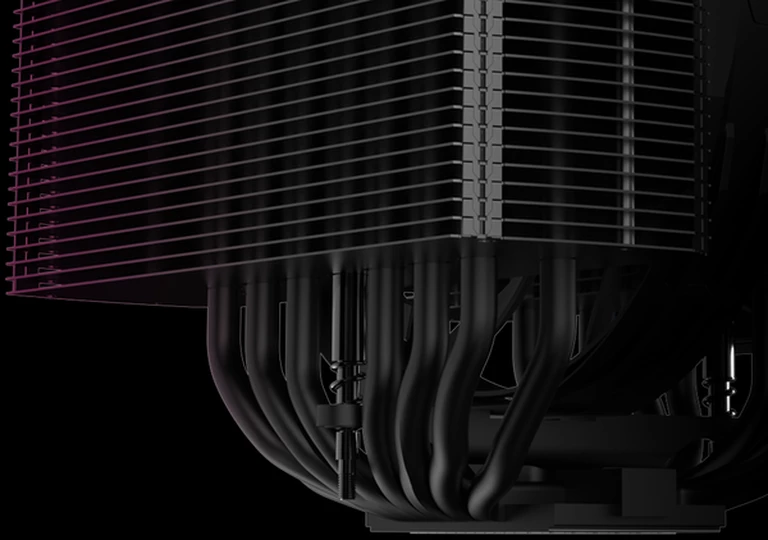

Performance Dual Tower
Redesigned dual tower maximizes performance and surface area with optimized fin density and thickness.

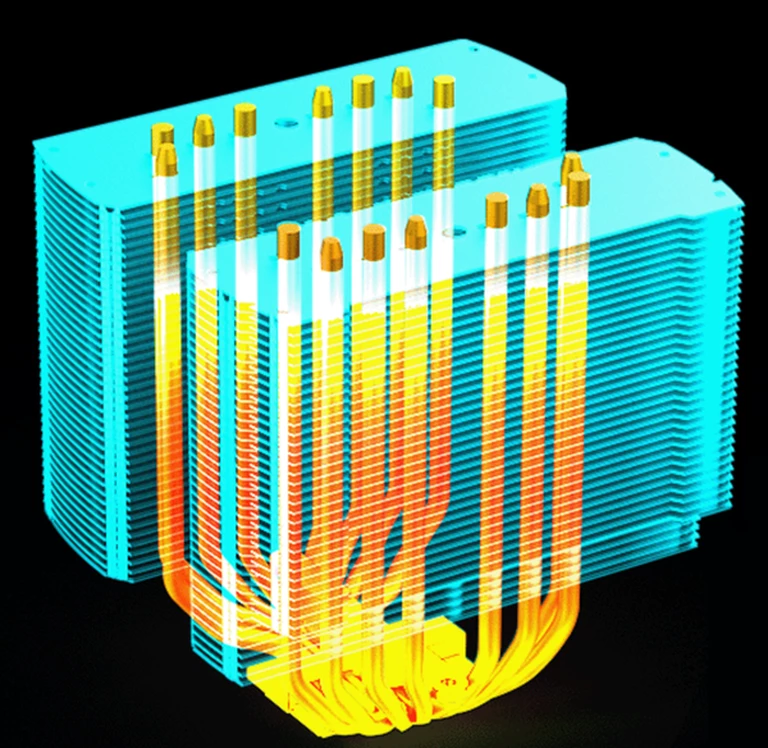

8 Heat Pipe Array
Optimized lay out consisting of 8 heat pipes to ensure the heat is transferred to all fin area for efficient dissipation.

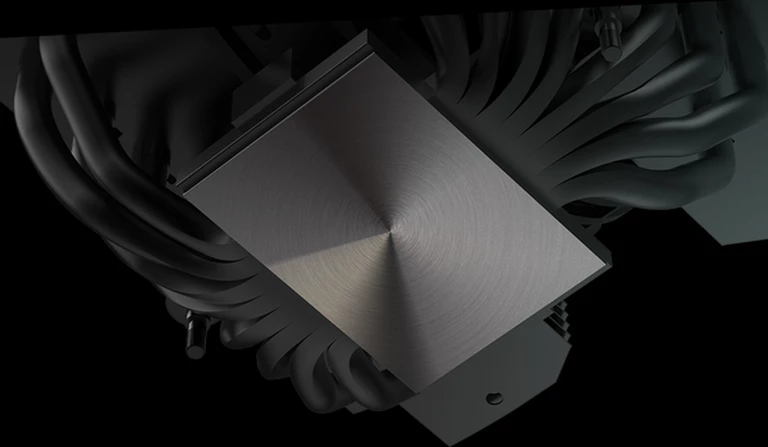

Expanded Copper Base
Expanded surface area of nickel plated copper base provides seamless contact and complete coverage to target all heat zones. Base layer thickness minimized for faster heat conductivity as well as lower cooler height for improved case compatibility.

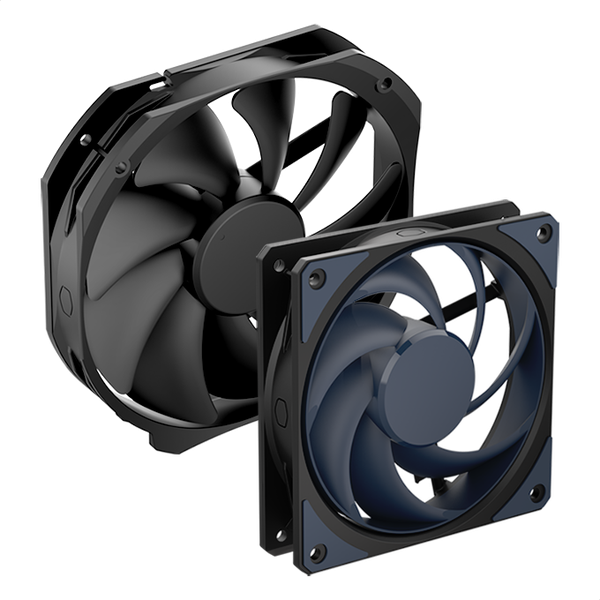

Dual Mobius Fans
Equipped with dual variable Mobius fans for exceptional silence without compromising performance.
Staggered 120mm and 135mm Mobius fans create ultimate Push-Pull setup for perfect airflow and air pressure to maximize heat dissipation.

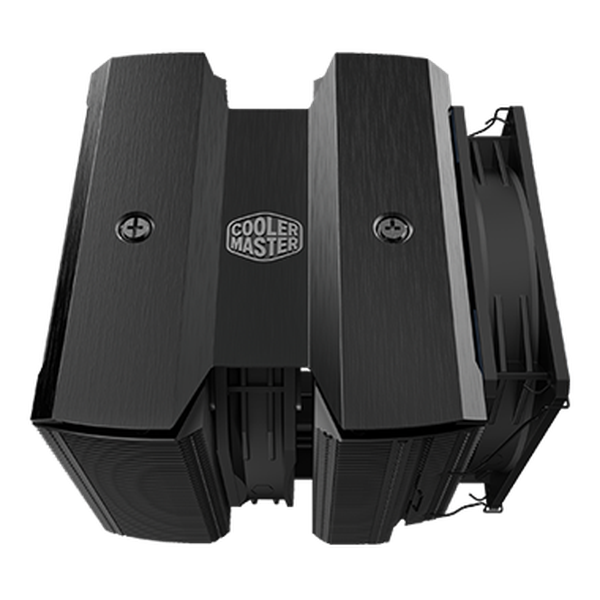

All Black Stealth Design
Stealth Series aluminum top cover and all black hardware provides a premium and clean design.

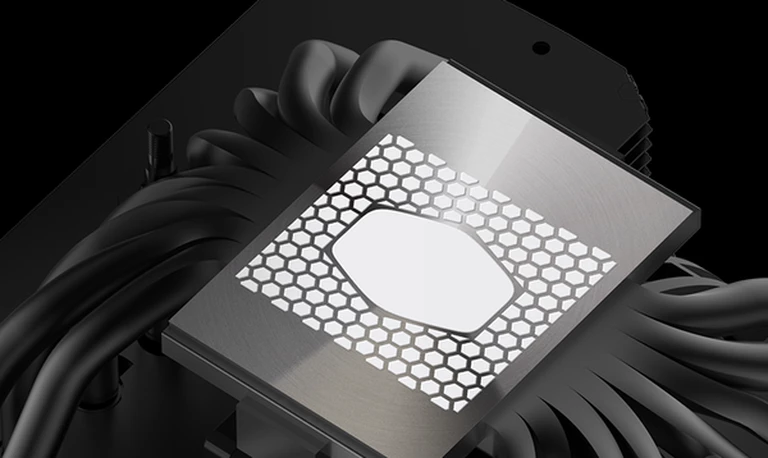

Pre-applied High Performance Thermal Paste

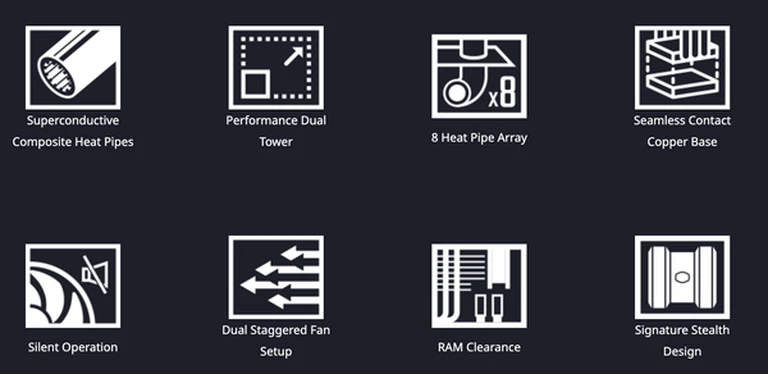

Key Features

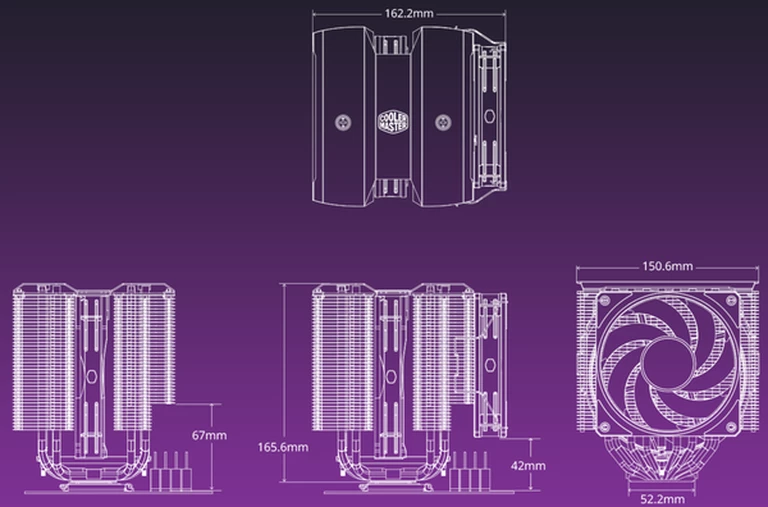

Dimensions
規格
- 產品型號 MAM-D8PN-318PK-R1
- 外觀顏色 黑色
- CPU 腳位 Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
- CPU 腳位 AMD® AM5 / AM4 Socket
- 尺寸 (長 x 寬 x 高) 162.2 x 150.6 x 165.6 mm
- 散熱器材質 8根熱管 / 鋁製散熱片
- 風扇尺寸 (長 x 寬 x 高) 135mm 風扇: 135 x 135 x 26 mm
- 風扇設定檔 無 LED
- 風扇數量 1 個
- 風扇轉速 135mm 風扇: 0-1550 RPM ± 15%
- 風扇風量 135mm 風扇: 63.6 CFM (最大), 120mm 風扇: 63.1 CFM (最大)
- 風扇壓力 135mm 風扇: 1.92 mmH₂O
- 風扇平均故障間隔 >200,000 小時
- 風扇噪音水平 135mm 風扇: 24.6 dBA (最大), 120mm 風扇: 22.6 dBA (最大)
- 風扇軸承類型 循環動態軸承 (Loop Dynamic Bearing, LDB)
- 風扇連接介面 4-Pin (PWM)
- 風扇額定電壓 12 VDC
- 風扇額定電流 135mm 風扇: 0.1 A
- 風扇安全電流 0.25A
- 風扇功耗 135mm 風扇: 1.2-2.4W
- 產品保固 5年
- 產品類型 CPU空冷散熱器
- 系列 MasterAir
- 熱導管數量 8
