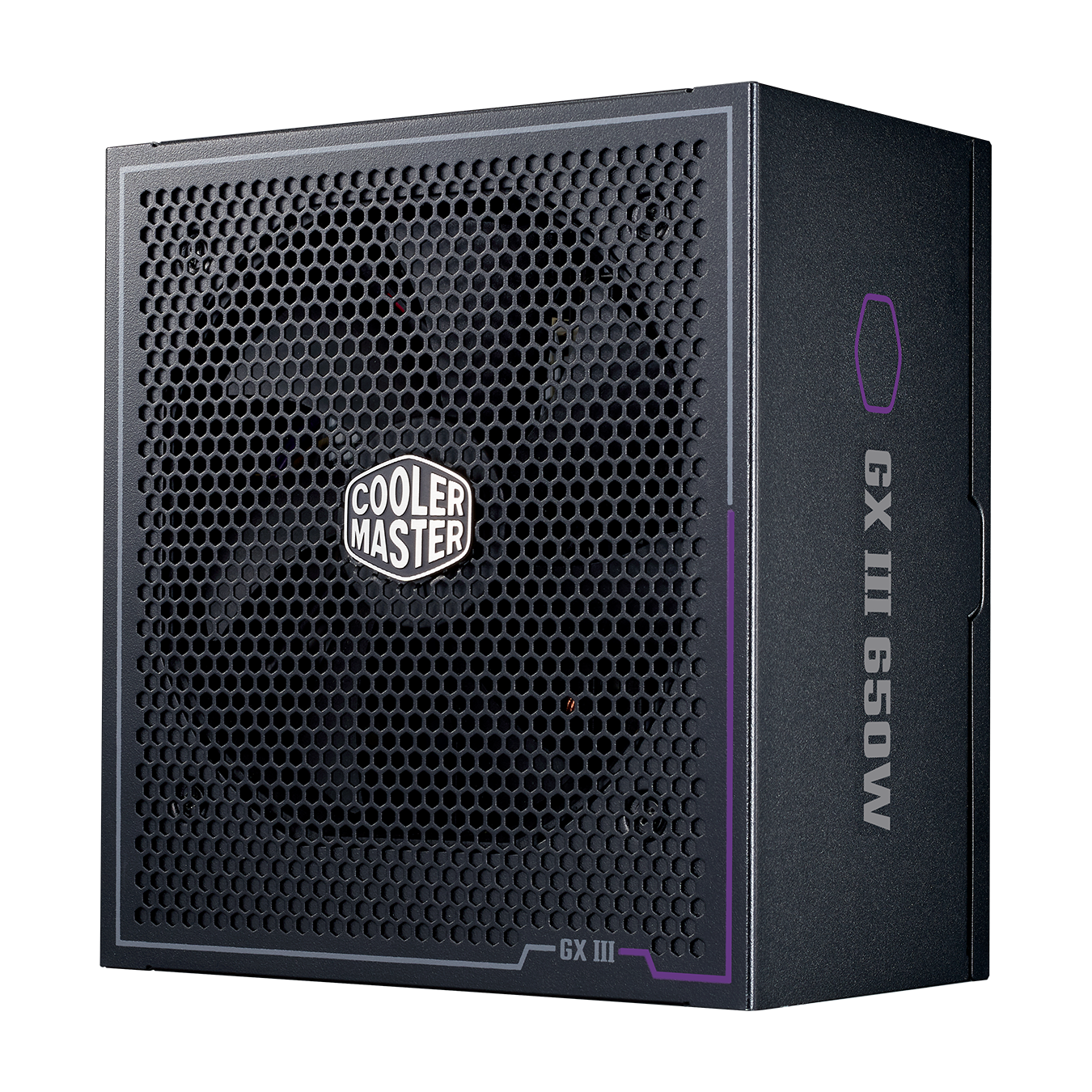

GX III Gold 650 | A sleek and clean GX series PSU image number 0

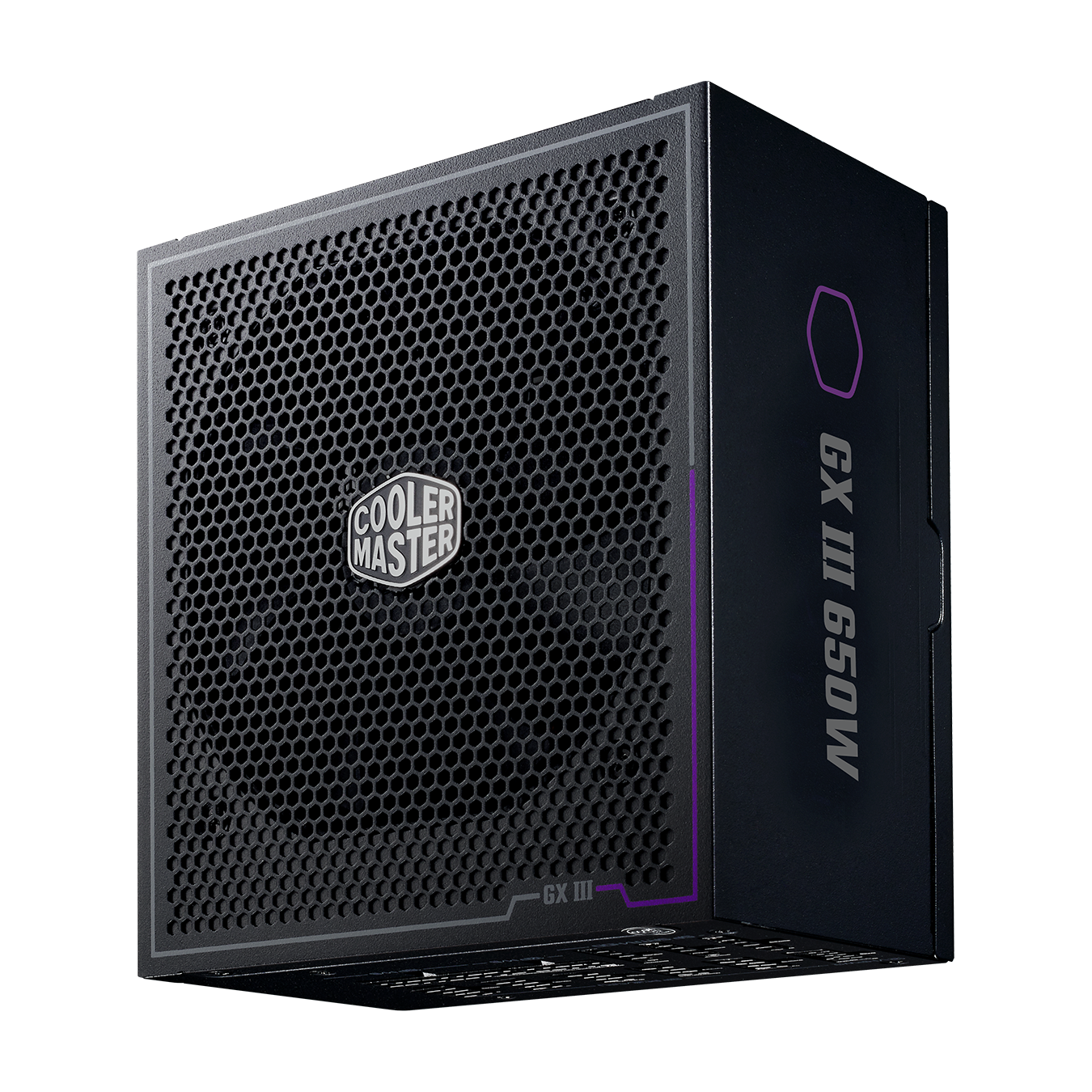

GX III Gold 650 | A sleek and clean GX series PSU image number 1

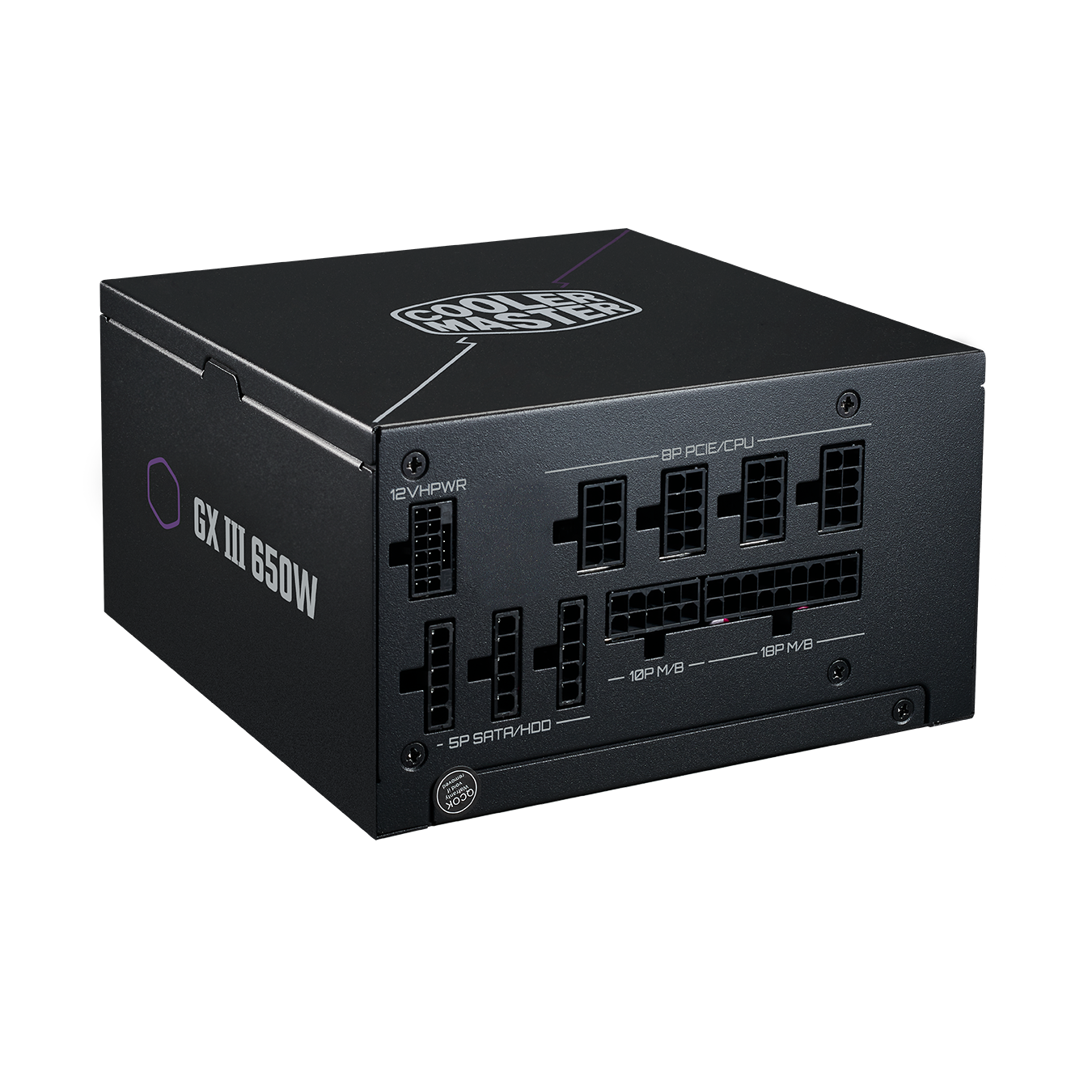

GX III Gold 650 | A sleek and clean GX series PSU image number 2

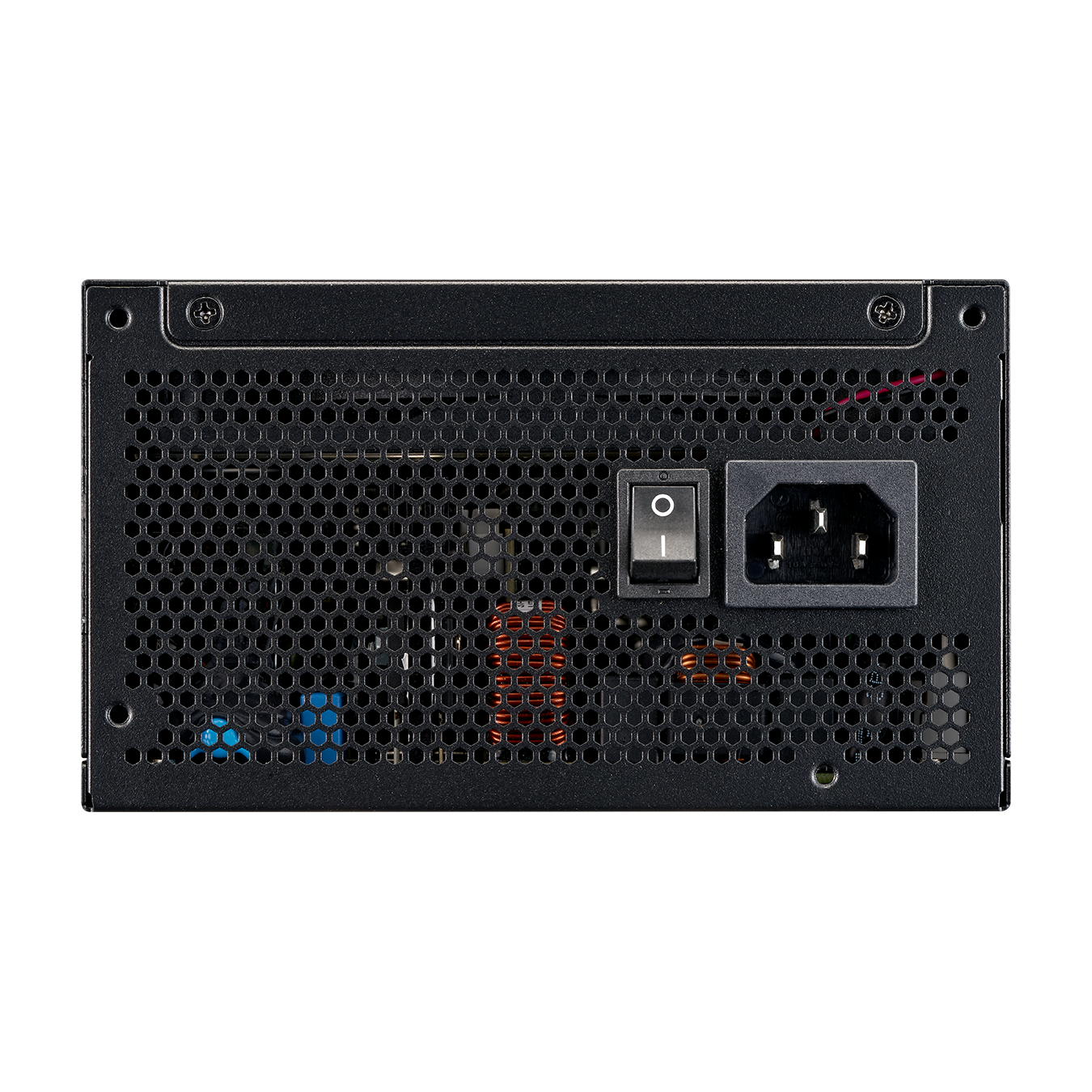

GX III Gold 650 | A sleek and clean GX series PSU image number 3

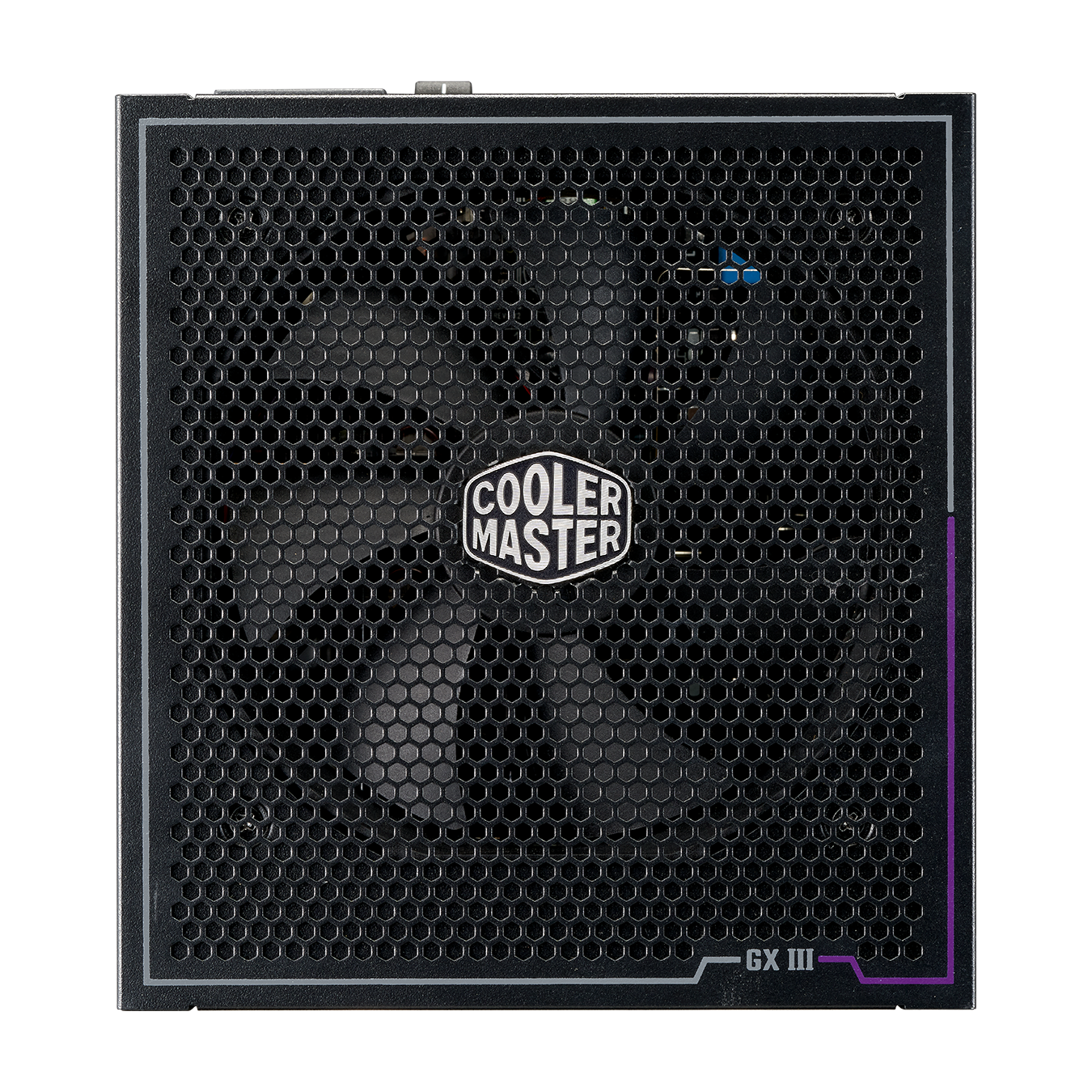

GX III Gold 650 | A sleek and clean GX series PSU image number 4

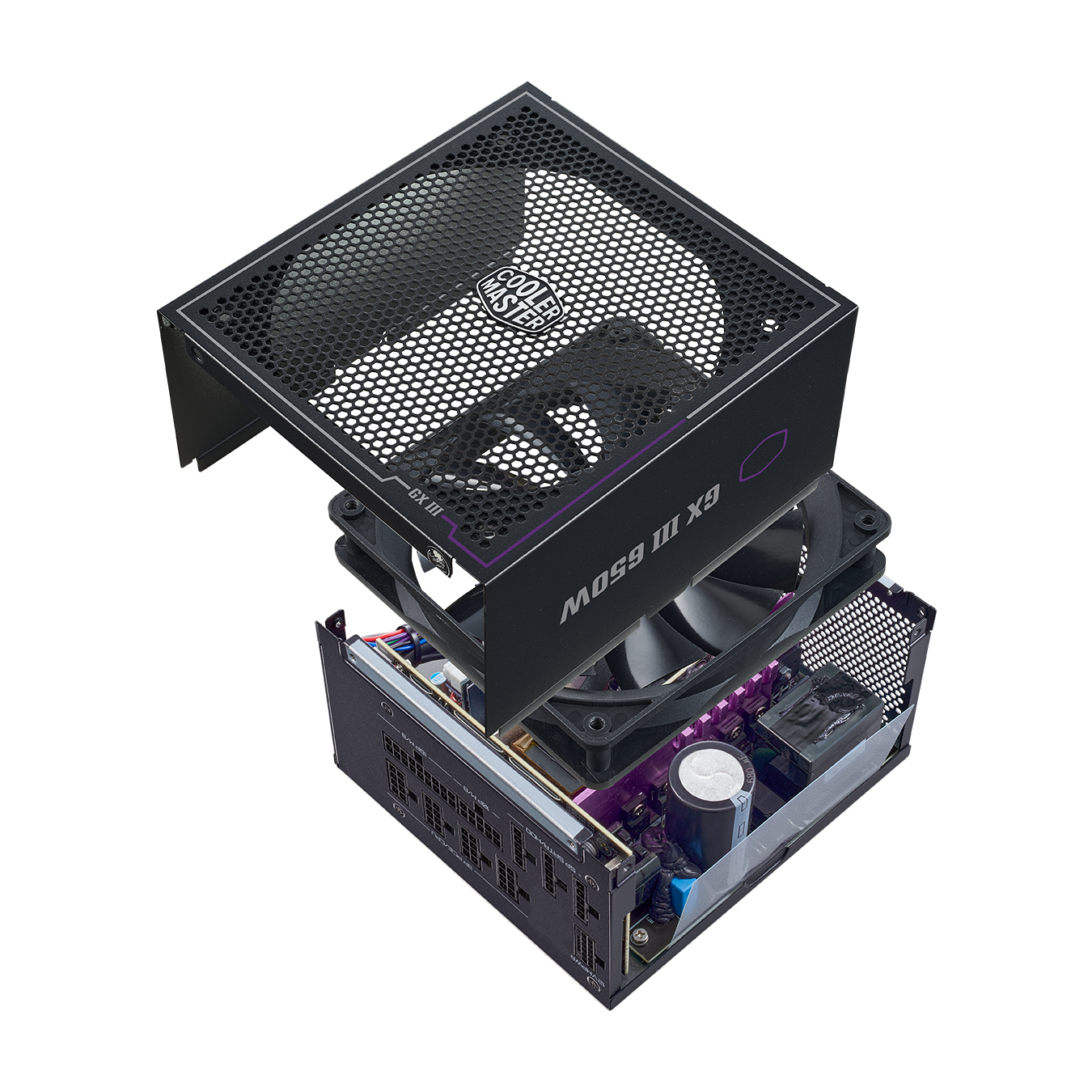

GX III Gold 650 | A sleek and clean GX series PSU image number 5
GX III Gold 650 | A sleek and clean GX series PSU image number 6

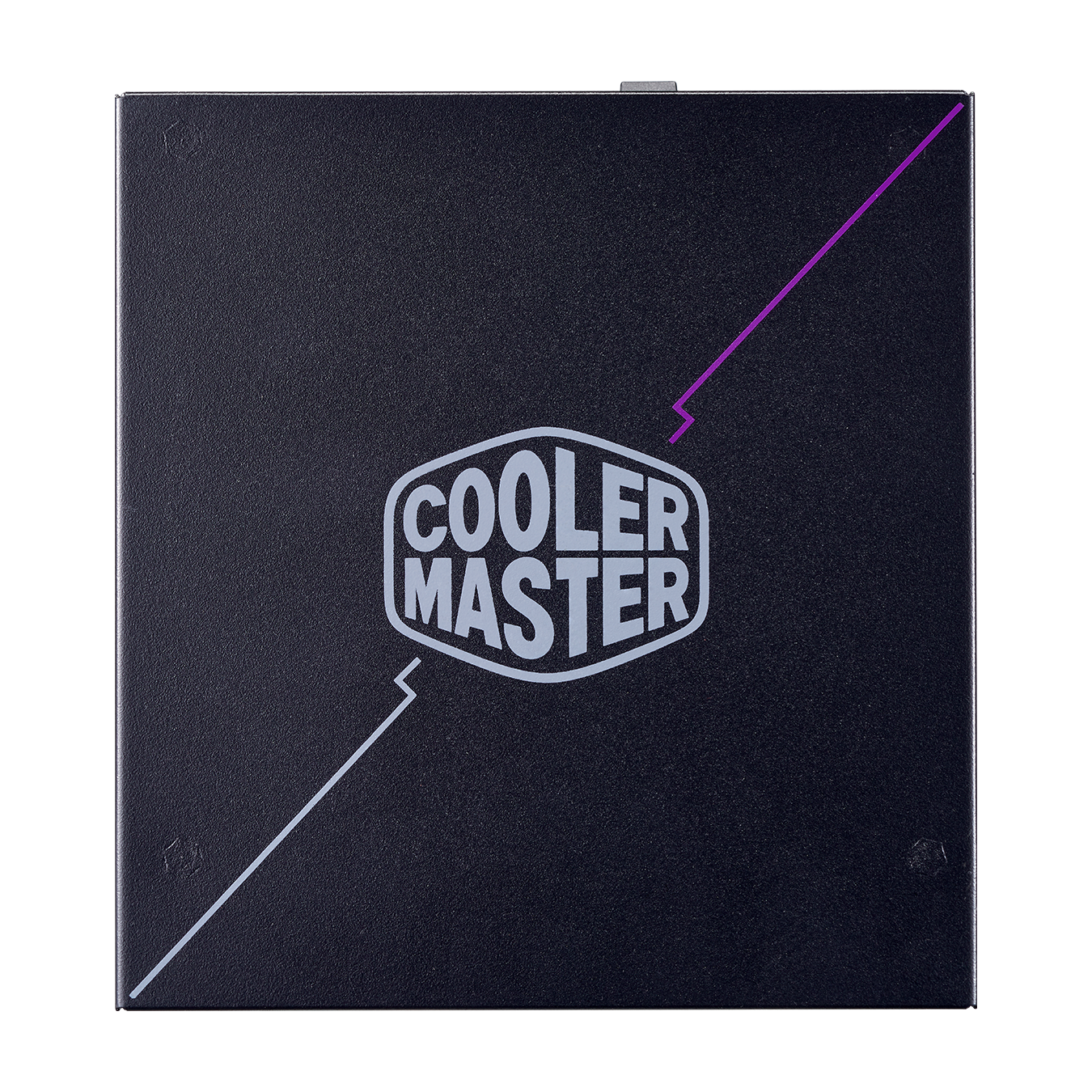

GX III Gold 650 | A sleek and clean GX series PSU image number 7
GX III Gold 650 | A sleek and clean GX series PSU
GX III Gold 650 | A sleek and clean GX series PSU
GX III Gold 650 | A sleek and clean GX series PSU
GX III Gold 650 | A sleek and clean GX series PSU
GX III Gold 650 | A sleek and clean GX series PSU
GX III Gold 650 | A sleek and clean GX series PSU
GX III Gold 650 | A sleek and clean GX series PSU
GX III Gold 650 | A sleek and clean GX series PSU

STRENGTH IN ELEGANCE

GX III Gold 650 | A sleek and clean GX series PSU

Cooler Master presents the brand new GX III Gold series featuring a half-bridge APFC, LLC, and DC-DC design, an STCM zero-rotation fan

model

ATX 3.0 Support & a Durable 90-degree 12VHPWR Cable

Innovative, streamlined Design

The innovative design streamlines the overall aesthetic of the unit and greatly improves airflow.

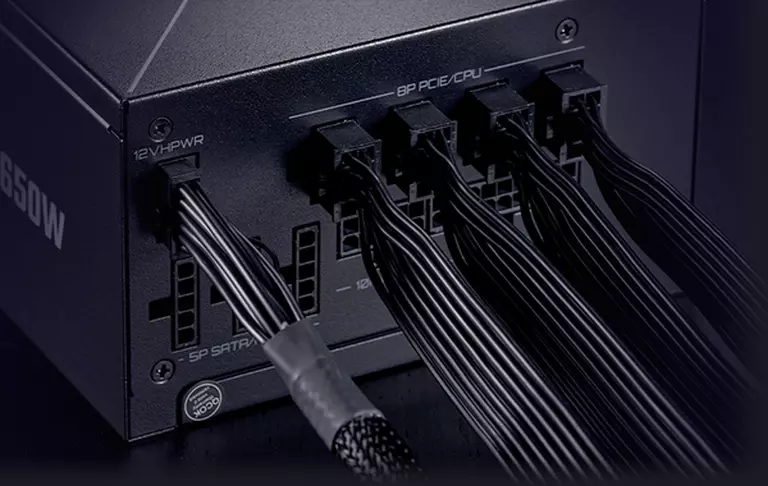

Fully Modular Cabling

Fully Modular Cabling

Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

規格

  • 型號 MPX-6503-AFAG
  • ATX 版本 ATX 12V Ver. 3.0
  • 功率因數校正 主動式 PFC
  • 輸入電壓 100-240V
  • 輸入電流 8-4A
  • 輸入頻率 50-60Hz
  • 尺寸 (長 x 寬 x 高) 160 x 150 x 86 mm
  • 風扇尺寸 120mm
  • 風扇軸承 HDB
  • 風扇轉速 2500 RPM

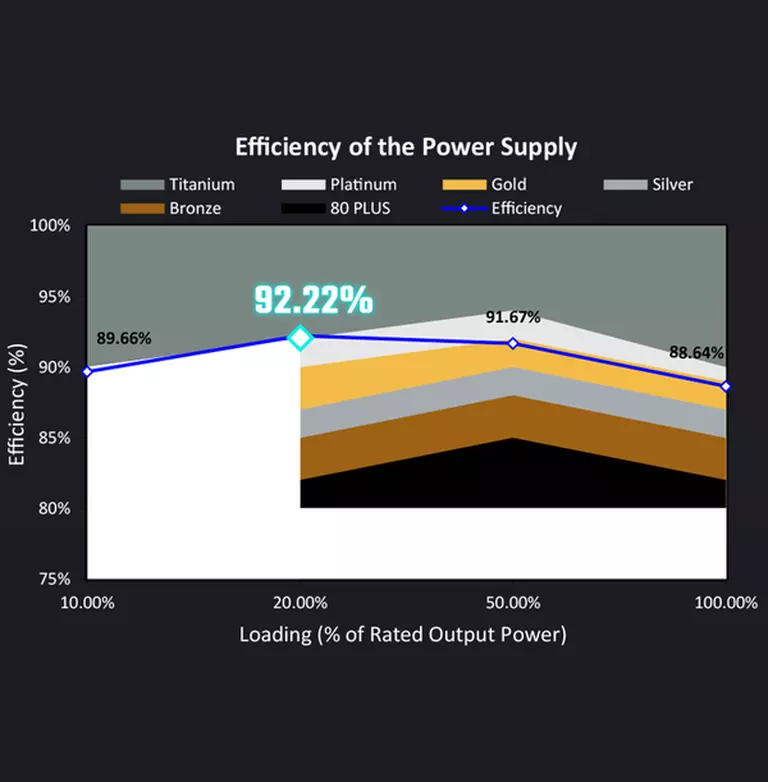

  • 轉換效率 典型轉換 ≥90%
  • 80 PLUS 評級 80 PLUS 金牌
  • ErP 2014 Lot 3 符合
  • 工作溫度 0-50°C
  • 電源良好信號 100 - 150 ms
  • 持續輸出時間 >16ms
  • 平均故障間隔 (MTBF) >100,000 小時
  • 保護機制 OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • 安規 cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
  • ATX 24 Pin 電源接頭 1
  • EPS 4+4 Pin 電源接頭 1
  • EPS 8 Pin 電源接頭 1
  • SATA 電源接頭 8
  • 周邊 4 Pin 電源接頭 4
  • PCI-e 6+2 Pin 電源接頭 2
  • 12VHPWR 電源接頭 1
  • 產品系列 GX 系列
  • 80 Plus 金牌認證
  • 模組化 全模組化
  • 分類 500-750瓦
  • Form Factor ATX
  • Watts 650W
